Detailed User Manual

Step 1A: Unpacking & plugging in

For best results, connect Cielo Breez Eco Smart Wi-Fi Controller with the provided USB cable and adapter. Mount your Breez Eco on a wall or place it on a table in AC's line of sight and plug it into a power source.

For optimal placement and control:

Place Breez Eco within 6-12 feet and in the line of sight of your air conditioner or heat pump.
To avoid deviated sensor readings, do not place Breez Eco where it may be exposed to excessive sunlight or other heat sources.

Special Note: It is strongly advised that whenever there is a need to use remote control for AC/Heat Pump, point it towards Breez Eco while performing any action. This way, your AC/Heat Pump and Cielo Home App will always be in sync.

Step 1B: Prior to app installation

Your Smart Phone

Make sure your smart phone’s Wi-Fi is turned ON.
Make sure your smart phone has internet access.

Your Wi-Fi Router

Make sure you have working internet connection on your Wi-Fi router.
Make sure there is no proxy server or authentication server conﬁgured on your internet connection.
Make sure there is no captive portal on your Wi-Fi router.

Important: Make sure IP isolation or client isolation is turned OFF on your Wi-Fi router.

Step 2A: App installation

Go to the App Store / Play Store.
In ‘search’ section type ‘Cielo Home’.
Once ‘Cielo Home’ App is displayed, download it.
Open the App after installation is complete.

Step 2B: Login/Register

You can either create a new user account or login as an existing user.

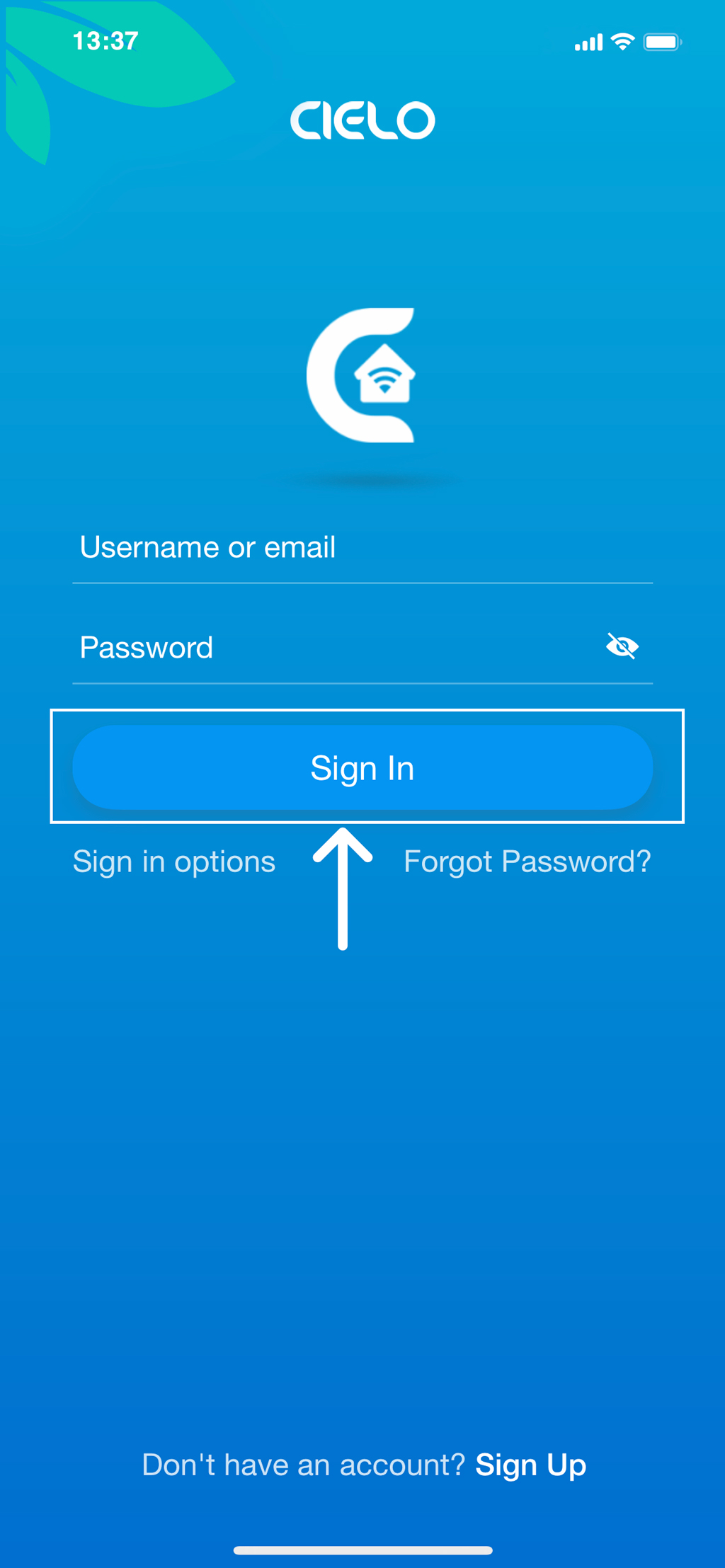

As an existing user, enter username and password and tap the ‘Sign In’ button.
If you are a new user, tap the ‘Sign Up’ button and ﬁll in the information.

Step 3A: Registration – iOS users

Note 1: Registration process is meant to connect the Breez Eco to your home Wi-Fi network through the ‘Cielo Home’ App.

Note 2: For iOS 13.0 & above, location permission is required to complete the registration process. You may disable it later.

Note 3: Please turn oﬀ LTE/mobile data on your phone during the registration process to ensure seamless registration. You may enable it later.

Step 1: After successful login, you are at the home screen. Tap the add device button as shown in the red box.

Step 2: Select 'Cielo Breez Eco' from the list of devices.

Step 3: Power-up the Cielo Device and press ‘Next’.

Step 4: Go to the Wi-Fi settings of your phone.

Step 5: Select the Cielo Device (Cielo_xxxx_xxxxxx) from the Wi-Fi list.

Step 6: Come back to the Cielo Home App.

Step 7: Your phone will show the list of available Wi-Fi networks.

Step 8: Select your preferred Wi-Fi network from the list, enter the password and tap the 'Connect' button.

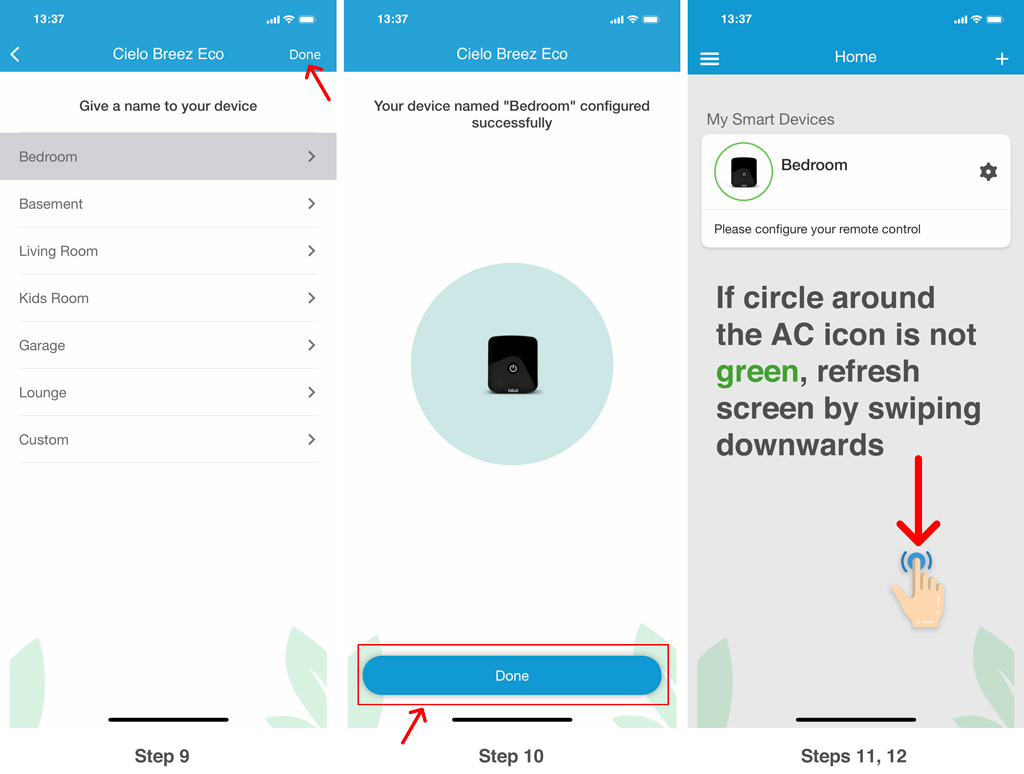

Step 9: Customize your device with a name of your choice (for example, Bedroom, Lounge, Oﬃce, etc.). Then tap on 'Done'.

Step 10: Your device has been configured successfully. Tap on ‘Done’.

Step 11: After successful configuration, your device will display on your home screen.

Step 12: Once the circle around the AC icon is green, tap on it to start the AC remote control configuration process. If circle around the AC icon is not green, refresh screen by swiping downwards.

Step 13: Get a hold of your AC’s remote and tap ‘Next’.

Step 14: Point your AC's remote at the Cielo Device and press remote’s 'Power Button' once. It will start the processing & conﬁguration process.

Step 15: The configuration screen will display your detected remote control. Tap on ‘Send a test on/off command’.

Step 16: Your remote has now been paired successfully with the Cielo Device. Tap on ‘Done’.

Registration process is complete. Enjoy the unlimited controls!

Quick Tip: LED indicator in the power button of Cielo Device should blink once after receiving the remote control's signal. If it does not blink, please check the batteries of remote control.

Step 3B Registration – Android users

Note 1: Registration process is meant to connect the Breez Eco to your home Wi-Fi network through the ‘Cielo Home’ App.

Note 2: For Android OS 8.1 & above, location permission is required to complete the registration process. You may disable it later.

Note 3: Please turn oﬀ LTE/mobile data on your phone during the registration process to ensure seamless registration. You may enable it later.

Step 1: After successful login, you are at the home screen. Tap the add device button as shown in the red box.

Step 2: Select 'Cielo Breez Eco' from the list of devices.

Step 3: Power-up the Cielo Device and press ‘Next’

Step 4: Tap the ‘Wi-Fi Settings’ button as highlighted in red.

Step 5: Connect your phone to the Cielo Device Wi-Fi (Cielo_xxxx_xxxxxx).

Step 6: Go back to ‘Cielo Home’ App.

Step 7: Your phone will show the list of available Wi-Fi networks.

Step 8: Select your preferred Wi-Fi network from the list, enter the password
and tap the 'Connect' button.

Step 9: Customize your device with a name of your choice (for example, Bedroom, Lounge, Oﬃce, etc.).

Step 10: Your device has been configured successfully. Tap on ‘Done’.

Step 11: After successful configuration, your device will display on your home screen.

Step 12: Once the circle around the AC icon is green, tap on it to start the AC remote control configuration process. If circle around the AC icon is not green, refresh screen by swiping downwards.

Step 13: Get a hold of your AC’s remote and tap ‘Next’.

Step 14: Point your AC's remote at the Cielo Device and press the remote’s 'Power Button' once. It will start the processing & conﬁguration process.

Step 15: The configuration screen will display your detected remote control. Tap on ‘Send a test on/off command’.

Step 16: Your remote has now been paired successfully with the Cielo Device. Tap on ‘Done’.

Registration process is complete. Enjoy the unlimited controls!

Quick Tip: LED indicator in the power button of Cielo Device should blink once after receiving the remote control's signal. If it does not blink, please check the batteries of remote control.

Your home screen

Your home screen shows the real time status of all your Cielo Devices.

A registered Cielo Device can show either of the 3 status, outlined in circles:

1 - Green - Device is online. You’re good to go!

2 - Red - Device is oﬄine. (try following options)

- Ensure your phone is connected to a working internet connection.

- Refresh home screen by swiping downwards (Pull-to-refresh).

- Ensure device is connected to a working internet connection.

3 - Grey - Device is oﬄine. (try following options) - Ensure your phone is connected to a working internet connection - Refresh home screen by swiping downwards (Pull-to-refresh).

Enjoy the unlimited functionalities

Cielo Breez Eco Works With Amazon Alexa, the Google Assistant, Siri Shortcuts, and Samsung SmartThings.

Troubleshooting tips

Breez Eco has an LED indicator in its power button for status indication.

Case 1: If your device is powered up and connected to a working internet connection, the light stays oﬀ meaning device is working perfectly.

Case 2: If there is a single blink every 2 seconds, it indicates the device is in broadcast (AP) mode. If you have not registered the device yet, please complete registration process as per step 3A/3B of this manual. If you have registered the device, refer to scenario 3 at the end of this page.

Case 3: If the light blinks twice every 2 seconds, it indicates the device is connected to router but has no internet access. Please ensure you have a working internet connection and restart the device.

Changing Wi-Fi network of Cielo Device

Scenario 1:

Cielo Device & mobile are on same Wi-Fi network - Tap on 'Settings' icon to enter device settings. Tap on ‘Device Wi-Fi’ then on 'Change Wi-Fi'. List of available networks will appear. Enter password of selected network. New settings are done.

Scenario 2:

Cielo Device & mobile are on diﬀerent Wi-Fi network - Go to your mobile settings and connect your mobile with same Wi-Fi network as Cielo Device. The remaining process is same as given in scenario 1. Note: In case your mobile couldn't connect to same Wi-Fi network as Cielo Device; touch & hold the power button on Cielo Device for 6 seconds to hard reset Wi-Fi settings. This will take Cielo Device in broadcast (AP) mode.

Scenario 3:

Cielo Device is in broadcast (AP) mode - Connect mobile with Cielo Device Wi-Fi i.e. Cielo_xxxx_xxxxxx in mobile Wi-Fi settings. Go back to ‘Cielo Home’ App. Tap on 'Settings' icon to enter device settings. Tap on ‘Device Wi-Fi’ then on 'Change Wi-Fi' button. List of available Wi-Fi networks will appear. Select your Wi-Fi & enter its password. Your new Wi-Fi settings are done.

Quick Tip: Configuring the right remote control for your AC

Cielo Device auto detects relevant remote control for your AC during registration process. If it is not working with your AC, please select your remote model manually.

For manual selection, follow these steps:

A. Go to device settings by tapping 'gear' symbol on the registered device.

B. Select 'Change Appliance'.

C. Select 'Manual Conﬁguration'.

D. Select the 'Manufacturer' & 'Remote Model' of your AC from the drop down lists and tap 'Confirm'.

E. After tapping on 'Confirm', the new remote model will be registered with your Cielo device. Send a test On/Off command, and confirm that the AC receives the signal. If so, tap on 'Done'.

Quick Tip: Remote control model number is usually found at the back side of remote control as shown in the image.

Step 4A: Setting up schedules for your heating and cooling -
iOS users

1. Setting up a schedule

You can schedule your Air-Conditioner / Heat Pump connected to Breez Eco by performing following steps on your Cielo Home app:

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to schedule.

Step 2: Tap on ‘Schedule’ in the navigation bar.

Step 3: Tap on the '+' icon as shown.

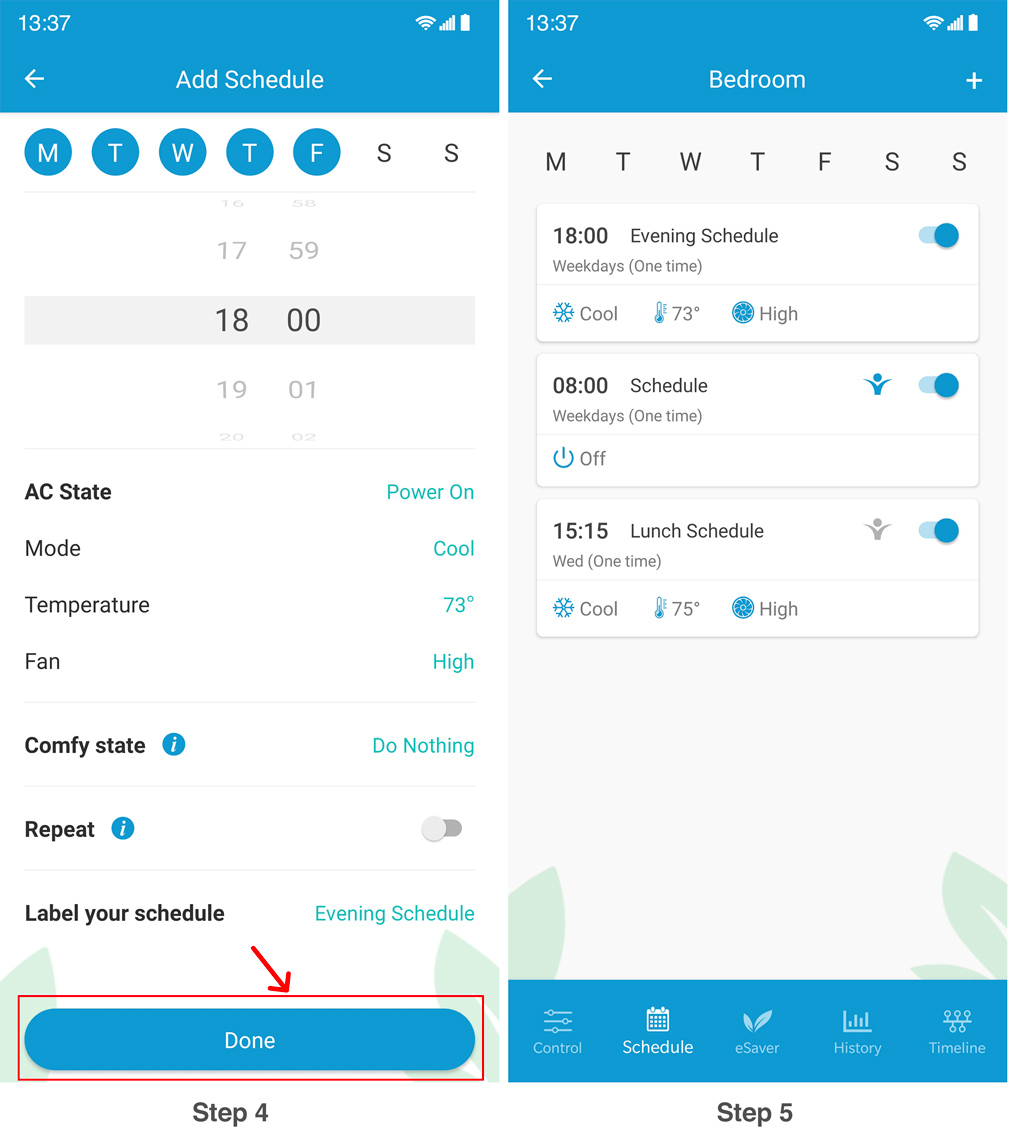

Step 4: You can turn the Air-Conditioner / Heat Pump ON/OFF via schedule, select the time,
mode, temperature and fan speed of your choice. Select power ON/OFF and select the
day/days you want to set the schedule for. You may also choose the schedule name of
your choice. Tap 'Done' to set-up the schedule.

Step 5: Once the schedule is set, it will appear on the schedule tab. You can turn it On/Off by toggling the slider against the schedule.

Note: You can also link your Comfy Settings to execute within your Schedules and may also enable or
disable them to your liking. You can do this by tapping on 'Comfy State', and enabling the Comfy settings. You can then select the desired Comfy Mode from 'Comfy Trigger'. When enabled, the currently active Comfy Mode will also be applied to the schedule. When disabled, there will be no Comfy Mode running with the schedules. When you choose the option 'Do Nothing', the currently active state of Comfy Mode will remain as it is.

2. Deleting/Editing a schedule

Step 1: From the device control screen, tap on ‘Schedule’ in the navigation bar.

Step 2: In the 'Schedule' tab, you will see all your set schedules.

Step 3: Swipe left on the schedule you want to edit or delete until both options for Edit/Delete appear.
Choose your desired option and proceed. You can also swipe until the left edge of the screen to delete schedule.

Step 4B: Setting up Comfy Temperature Mode (Automatically
change your AC settings if room temperature goes
above or falls below a pre-set value) - iOS users

You can set up comfy temperature mode for your Air-Conditioner / Heat Pump by performing these steps via Cielo Home app:

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to set comfy
temperature mode on.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on 'Comfy Mode'.

Step 4: Tap on 'Comfy Temperature' to set up Comfy Mode.

Step 5: Select what actions to perform if the temperature falls below or goes above the set range
e.g. turning the AC off or on, changing its mode, temperature and fan speed helping it
get back into the preferred temperature range. Tap 'Done' to enable it.

Step 6: 'Comfy Temperature' is now set. You can turn Comfy Mode 'On' or 'Off' from the toggle next to the name of the Comfy Mode. Once the device triggers the defined comfy temperature mode
actions you will get a notification in your app timeline.

Note: You can set up multiple Comfy Mode settings through Comfy templates. Each of the template can be turned 'On' or 'Off' from the toggle next to its name. You can have a different Comfy Mode for the morning, a different mode for the afternoon, and so on. To set different Comfy Modes, simply tap on the specific Comfy template you want to set, and follow the steps in this section.

Step 7: You can turn Comfy Mode On/Off from the device control screen. Tap on the 'Up' arrow icon at the bottom of the control screen.

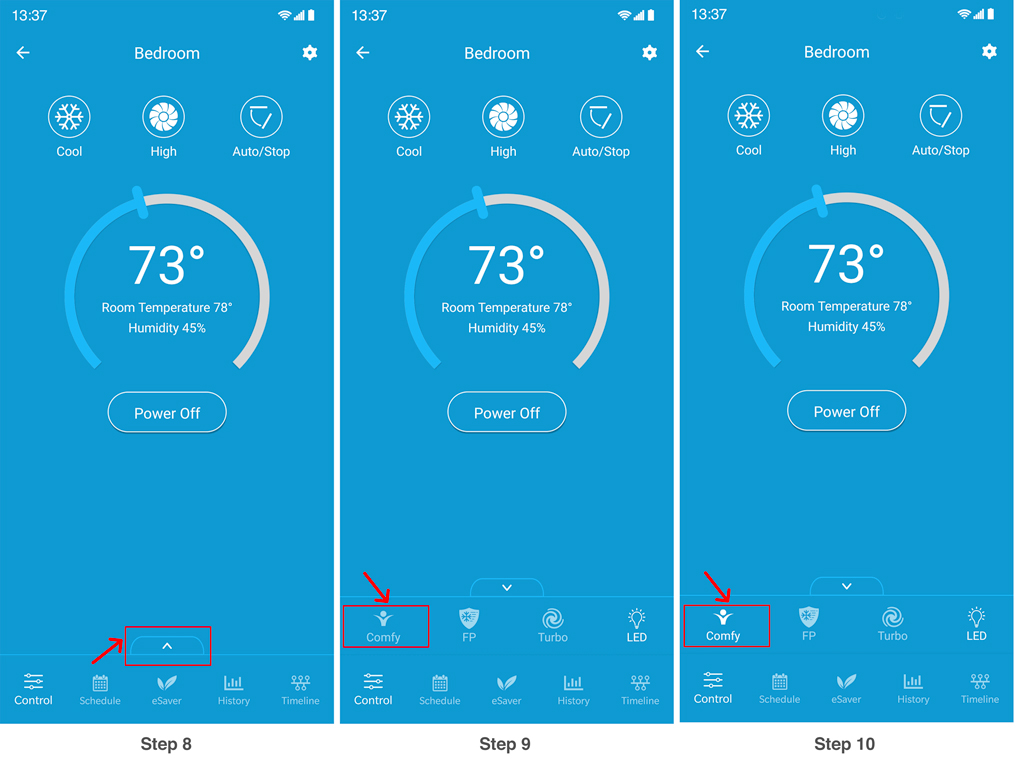

Step 8: On the pop-up navigation bar, tap on 'Comfy' to toggle it On or Off. Currently it is turned 'Off', shown by the greyed out icon.

Step 9: Select the desired Comfy Mode from the list of available Comfy settings. In this case, 'Comfy Temperature'.

Step 10: Comfy Mode is now active, and the Comfy icon will turn white. It is now turned 'On'.

Step 4C: Setting up Comfy Humidity Mode (Automatically
change your AC settings if room humidity goes
above or falls below a pre-set value) - iOS users

You can set up comfy humidity mode for your Air-Conditioner / Heat Pump by performing these steps via Cielo Home app:

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to set comfy
humidity mode on.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on 'Comfy Mode'.

Step 4: Tap on 'Comfy Humidity' to set up Comfy Mode.

Step 5: Select what actions to perform if the humidity falls below or goes above the set range
e.g. turning the AC off or on, changing its mode, temperature and fan speed helping it
get back into the preferred humidity range. Tap 'Done' to enable it.

Step 6: 'Comfy Humidity' is now set. You can turn Comfy Mode 'On' or 'Off' from the toggle next to the name of the Comfy Mode. Once the device triggers the defined comfy humidity mode
actions you will get a notification in your app timeline.

Step 7: You can turn Comfy Mode On/Off from the device control screen.

Step 8: Tap on the 'Up' arrow icon at the bottom of the control screen.

Step 9: On the pop-up navigation bar, tap on 'Comfy' to toggle it On or Off. Currently it is turned 'Off', shown by the greyed out icon.

Step 10: To turn it 'On', tap on the Comfy icon, and it will turn white. It is now turned 'On'.

Step 4D: Enabling Location Control (Turn your AC on before you arrive and turn it off after you have left the pre-set location) - iOS users

You can configure location based control for your Air-Conditioner / Heat Pump by performing these steps via Cielo Home app:

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to control
through location controls.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on ‘Geofencing’.

Step 4: Toggle the slider to enable Location Control, as shown in the red box.

Step 5: You will see your current location on the map. Set a Geo-Fence range for your Air-Conditioner/ Heat Pump between 1 - 10 Miles using the slider. Entering or exiting this range
will trigger the Air-Conditioner / Heat Pump ON/ OFF. Tap on 'Next'.

Step 6: Select your desired AC settings to be performed when you enter or exit the pre-set
location and tap on ‘Done’. Once locations controls are triggered you will get a notification
in your app timeline.

Step 4E: Checking your AC’s Air Filter Status - iOS users

You can check the live air filter status of your Air-Conditioner / Heat Pump. Simply, follow the steps listed below:

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to check the
air filter status for.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on ‘Air Filter’.

Step 4: You will see your current air filter status of the AC being used with the Device since registration (or since the last cleaning). When the range is about to fill up, manually remove the AC’s air filter and clean it. Once done, place filter back into the AC. Tap on ‘I have cleaned the air filter’.

Step 5/6: Your filter status has now begun a new cycle.

Step 4F: Adding Siri Shortcuts to Cielo Home

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to add Siri Shortcuts for.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on ‘Siri Shortcuts’.

Step 4: Tap on 'Create Shortcut' to make a new Siri Shortcut.

Step 5: Enter the desired AC settings when the command is sent through Siri Shortcuts. You can set the AC operating mode, temperature set point, and fan speed. Tap on ‘Done’.

Step 6: Next enter the phrase you want the Shortcut to be activated on. In this example 'Cool The Room'. Tap on 'Add to Siri'.

Step 7: All your currently active Siri Shortcuts will now be displayed. In this example, when you say to Siri 'Cool The Room', the AC will turn on at 73 degrees in cool mode at high fan speed.

Step 4G: Change Appliance (Manufacturer/Model Number) - iOS users

Step 1: On the Home screen, tap on the Breez Eco device you want to change the appliance for.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Change Appliance’.

Step 4: Tap on 'Manual Configuration'.

Step 5: Tap on the 'Manufacturer' and select the appropriate AC manufacturer from the drop down list.

Step 6: Tap on 'Remote Model' and select your remote model from the drop down list. In this case 'Model 1 (Celsius)'.

Step 7: Tap on 'Confirm' once you have selected the correct AC manufacturer and remote model.

Step 8: Once selected, send a test On/Off command to your AC. Once the AC accepts the command, tap on 'Done'.

Step 4H: Changing Device Name (e.g. bedroom, lounge etc.)
- iOS users

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to change the name of.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on ‘Device Name’.

Step 5: Select the new name from a list of common names, or type a custom name.

Step 6: Type the new name of the device, and tap on 'Done'. Device name is now changed.

Step 4I: Switch temperature units between Centigrade and Fahrenheit - iOS users

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to change the units of.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on the C to F toggle against 'Temperature Unit'.

Step 5: Your device's temperature units are changed successfully from Fahrenheit to Celsius.

Step 5J: Enable or disable touch power On/Off function on device - iOS users

Step 1: On the Home screen, tap on the Breez Eco device you want lock/unlock.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on 'Touch'.

Step 5: You can now enable or disable the device power touch control.

Step 5K: Adjusting the brightness of Device power LED - iOS users

Step 1: On the Home screen, tap on the Breez Eco device you want to change the LED brightness of.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: In Device preferences, tap on 'Display'.

Step 5/6: Toggle the 'Brightness' slider to change the brightness of the Breez Eco device power button.

Step 4L: Calibrate Room Temperature (Shown on Device) - iOS users

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to calibrate.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on 'Calibration'.

Step 5: Adjust the temperature as required.

Step 6: Tap on 'Done'. Your device has now been calibrated.

Step 4M: Calibrate Room Humidity (Shown on Device) - iOS users

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to calibrate.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on 'Calibration'.

Step 5: Tap on 'Temperature'.

Step 6: From the drop down menu, tap on 'Humidity'. Adjust the humidity as required.

Step 7: Tap on 'Done'. Your device has now been calibrated.

Step 4N: Changing Wi-Fi - iOS users

Step 1: On the Home screen, tap on the Breez Eco device you want to change the Wi-Fi of.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Wi-Fi’.

Step 4: Tap on 'Change Wi-Fi'.

Step 5: Tap on the intended Wi-Fi network.

Step 6: Enter the password of the Wi-Fi network. Tap on 'Connect'.

Step 7: The device Wi-Fi is now changed.

Step 4O: Sync AC State (e.g. AC is ON and App is showing it as
OFF) - iOS users

Step 1: On the Home screen, tap on the Breez Eco device you want to sync with your AC.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Sync AC State’.

Step 4: From the drop down menus, select the AC parameters which you want on your Breez Eco device. Then tap on 'Sync'. The Breez Eco device will now display these selected parameter values.

Step 4P: Zone Settings of your connected Air Conditioners - iOS users

1. Creating a zone

A zone will allow you to control power and other settings of all your registered devices together with a simple tap. To create a Zone in app, follow these steps:

Step 1: On the Home screen, tap on the Breez Eco device you want to move to a zone.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on ‘Move to Zone’.

Step 5: Tap on ‘Add’ to create a zone.

Step 6/7: Give your zone a name (e.g. Ground floor, First floor, Basement, etc.) and choose an icon.

Step 8: Zone is created successfully.

2. Adding a Device to a zone

Step 1: On the Home screen, tap on the Breez Eco device you want to move to a zone.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on ‘Move to Zone’.

Step 5: On the Zones Home screen, you will see a list of all active zones. Tap on the zone you wish to move the device to.

Step 6: You will see a check mark next to the zone name.

Step 7: Tap on ‘Done’.

Step 8: Device is added to zone successfully.

3. Removing a Device from a zone

Step 1: On the device control screen, tap on the ‘Settings’ icon on the top right.

Step 2: Tap on ‘Device Preferences’.

Step 3: Tap on ‘Remove from Zone’.

Step 4: Device removed from zone successfully.

4. Editing a zone

Step 1: Tap on ‘Settings’ icon of the zone you wish to edit.

Step 2: In zone settings, tap on ‘Edit Zone’. You can change the icon and name of the zone as
you desire.

Step 3: Tap on 'Done'.

5. Deleting a zone

Note: To delete a zone, you have to remove all the devices added in a zone individually. You may not be allowed to delete a zone otherwise. To delete a device from a zone, refer to Section 3.

Step 1: Tap on ‘Settings’ icon of the zone you wish to delete.

Step 2: In zone settings, tap on ‘Delete Zone’.

Step 3: Zone is successfully deleted.

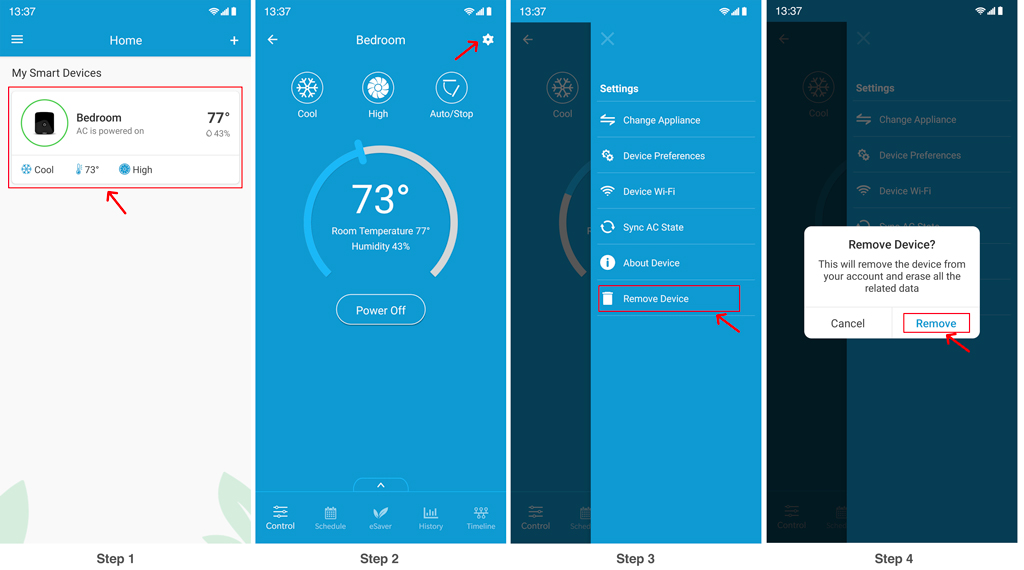

Step 4Q: Removing your Device (Breez Eco) - iOS users

Step 1: On the Home screen, tap on the Breez Eco device you want to delete.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Remove Device’.

Step 4: Tap on 'Remove' on the pop up. Your device is now removed.

Step 5A: Setting up schedules for your heating and cooling - Android users

1. Setting up a schedule

You can schedule your Air-Conditioner / Heat Pump connected to Breez Eco by performing following steps on your Cielo Home app:

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to schedule.

Step 2: Tap on ‘Schedule’ in the navigation bar.

Step 3: Tap on the '+' icon as shown.

Step 5: Once the schedule is set, it will appear on the schedule tab. You can turn it On/Off by toggling the slider against the schedule.

2. Deleting/Editing a schedule

Step 1: From the device control screen, tap on ‘Schedule’ in the navigation bar.

Step 2: In the 'Schedule' tab, you will see all your set schedules.

Step 3: To edit a schedule, tap on the schedule you want to edit. To delete a schedule, swipe left on the schedule you want to delete until the green tab appears. Continue swiping until the left edge of the screen to delete schedule.

Step 5B: Setting up Comfy Temperature Mode (Automatically
change your AC settings if room temperature goes
above or falls below a pre-set value) - Android users

You can set up comfy temperature mode for your Air-Conditioner / Heat Pump by performing these steps via Cielo Home app:

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to set comfy
temperature mode on.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on 'Comfy Mode'.

Step 4: Tap on 'Comfy Temperature' to set up Comfy Mode.

Step 7: You can turn Comfy Mode On/Off from the device control screen. Tap on the 'Up' arrow icon at the bottom of the control screen.

Step 8: On the pop-up navigation bar, tap on 'Comfy' to toggle it On or Off. Currently it is turned 'Off', shown by the greyed out icon.

Step 9: Select the desired Comfy Mode from the list of available Comfy settings. In this case, 'Comfy Temperature'.

Step 10: Comfy Mode is now active, and the Comfy icon will turn white. It is now turned 'On'.

Step 5C: Setting up Comfy Humidity Mode (Automatically
change your AC settings if room humidity goes
above or falls below a pre-set value) - Android users

You can set up comfy humidity mode for your Air-Conditioner / Heat Pump by performing these steps via Cielo Home app:

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to set comfy
humidity mode on.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on 'Comfy Mode'.

Step 4: Tap on 'Comfy Humidity' to set up Comfy Mode.

Step 7: You can turn Comfy Mode On/Off from the device control screen.

Step 8: Tap on the 'Up' arrow icon at the bottom of the control screen.

Step 9: On the pop-up navigation bar, tap on 'Comfy' to toggle it On or Off. Currently it is turned 'Off', shown by the greyed out icon.

Step 10: To turn it 'On', tap on the Comfy icon, and it will turn white. It is now turned 'On'.

Step 5D: Enabling Location Controls (Turn your AC on before you arrive and turn it off after you have left the pre-set location) - Android users

You can configure location based control for your Air-Conditioner / Heat Pump by performing these steps via Cielo Home app:

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to control
through location controls.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on ‘Geofencing’.

Step 4: Toggle the slider to enable Location Control, as shown in the red box.

Step 5: You will see your current location on the map. Set a Geo-Fence range for your Air-Conditioner/ Heat Pump between 1-10 Miles using the slider. Entering or exiting this range
will trigger the Air-Conditioner / Heat Pump ON/ OFF. Tap on 'Next'.

Step 6: Select your desired AC settings to be performed when you enter or exit the pre-set
location and tap on ‘Save’. Once locations controls are triggered you will get a notification
in your app timeline.

Step 5E: Checking your AC’s Air Filter Status - Android users

You can check the live air filter status of your Air-Conditioner / Heat Pump. Simply, follow the steps listed below:

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to check the
air filter status for.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on ‘AC Filter’.

Step 4: You will see your current air filter status of the AC being used with the Device since registration (or since the last cleaning). When the range is about to fill up, manually remove the AC’s air filter and clean it. Once done place filter back into the AC. Tap on ‘I have cleaned the air filter’.

Step 5/6: Tap on ‘Reset’. Your filter status has now begun a new cycle.

Step 5F: Change Appliance (Manufacturer/Model Number) - Android users

Step 1: On the Home screen, tap on the Breez Eco device you want to change the appliance for.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Change Appliance’.

Step 4: Tap on 'Manual Configuration'.

Step 5: Tap on the 'Manufacturer' and select the appropriate AC manufacturer from the drop down list.

Step 6: Tap on 'Remote Model' and select your remote model from the drop down list. In this case 'Model 1'.

Step 7: Tap on 'Confirm' once you have selected the correct AC manufacturer and remote model.

Step 8: Once selected, send a test On/Off command to your AC. Once the AC accepts the command, tap on 'Done'.

Step 5G: Changing Device Name (e.g. bedroom, lounge etc.)
- Android users

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to change the name of.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on ‘Device Name’.

Step 5: Select the new name from a list of common names, or type a custom name.

Step 6: Type the new name of the device, and tap on 'Done'. Device name is now changed.

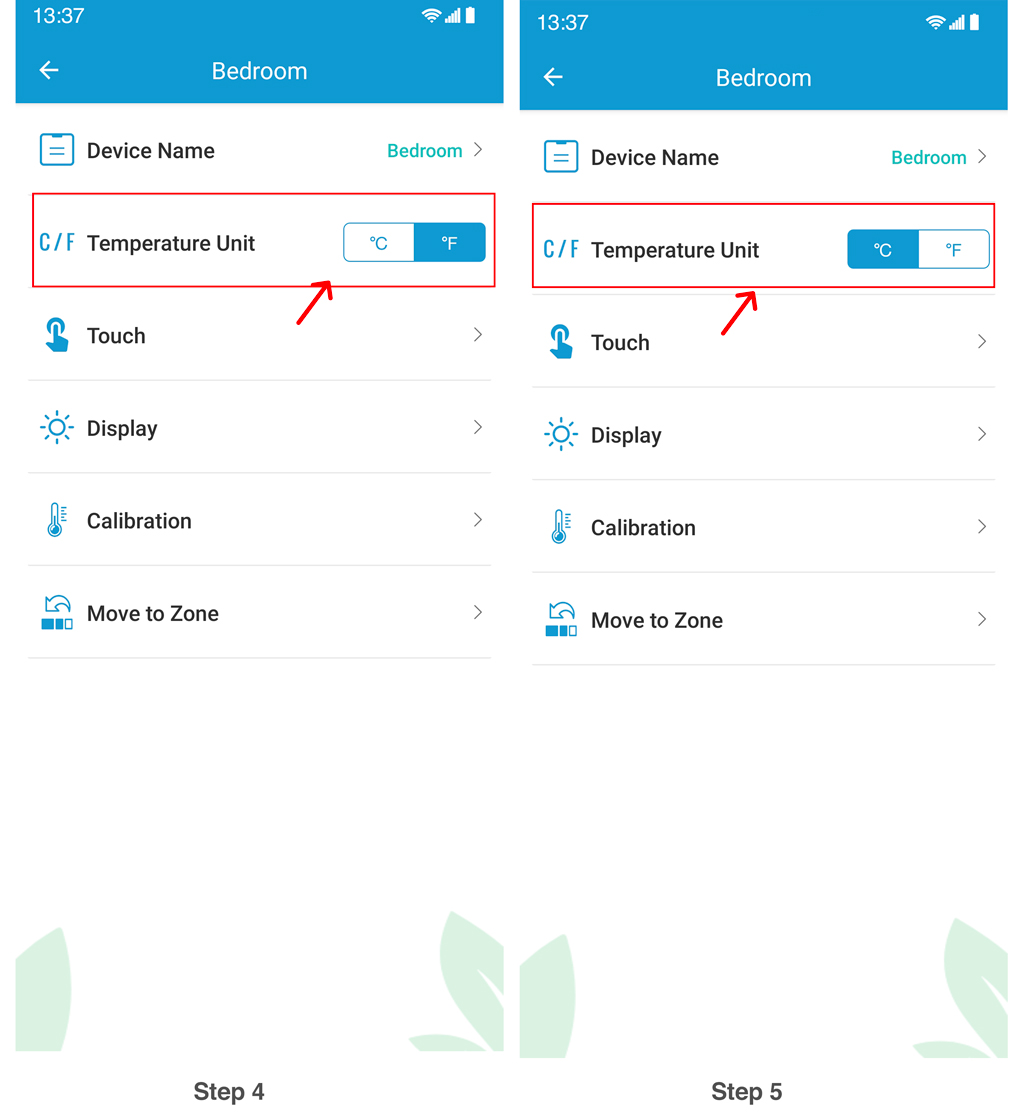

Step 4H: Switch temperature units between Centigrade and Fahrenheit - Android users

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to change the units of.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on the C to F toggle against 'Temperature Unit'.

Step 5: Your device's temperature units are changed successfully from Fahrenheit to Celsius.

Step 5I: Enable or disable touch power On/Off function on device - Android users

Step 1: On the Home screen, tap on the Breez Eco device you want lock/unlock.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on 'Touch'.

Step 5: You can now enable or disable the device power touch control.

Step 5J: Adjusting the brightness of Device power LED - Android users

Step 1: On the Home screen, tap on the Breez Eco device you want to change the LED brightness of.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: In Device preferences, tap on 'Display'.

Step 5/6: Toggle the 'Brightness' slider to change the brightness of the Breez Eco device power button.

Step 5K: Calibrate Room Temperature (Shown on Device) - Android users

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to calibrate.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on 'Calibration'.

Step 5: Adjust the temperature as required.

Step 6: Tap on 'Done'.

Step 5L: Calibrate Room Humidity (Shown on Device) - Android users

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to calibrate.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on 'Calibration'.

Step 5: Tap on 'Temperature'.

Step 6: From the drop down menu, tap on 'Humidity'.

Step 7: Adjust the humidity as required. Tap on 'Done'.

Step 5M: Changing Wi-Fi - Android users

Step 1: On the Home screen, tap on the Breez Eco device you want to change the Wi-Fi of.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Wi-Fi’.

Step 4: Tap on 'Change Wi-Fi'.

Step 5: Tap on the intended Wi-Fi network.

Step 6: Enter the password of the Wi-Fi network. Tap on 'Connect'.

Step 7: The device Wi-Fi is now changed.

Step 5N: Sync AC State (e.g. AC is ON and App is showing it as
OFF) - Android users

Step 1: On the Home screen, tap on the Breez Eco device you want to sync with your AC.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Sync AC State’.

Step 4: From the drop down menus, select the AC parameters which you want on your Breez Eco device. Then tap on 'Sync'.

Step 5O: Zone Settings of your connected Air Conditioners
– Android users

1. Creating a zone

A zone will allow you to control power and other settings of all your registered devices together with a simple tap. To create a Zone in app, follow these steps:

Step 1: On the Home screen, tap on the Breez Eco device you want to move to a zone.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on ‘Move to Zone’.

Step 5: At the moment there is no zone available. Tap on ‘Create Zone’ to create a zone.

Step 6/7: Give your zone a name (e.g. Ground floor, First floor, Basement, etc.) and choose an icon.

Step 8: Zone is created successfully.

After creating a zone, you can move to Step 5 of the next section 'Adding a Device to a zone'.

2. Adding a Device to a zone

Step 1: On the Home screen, tap on the Breez Eco device you want to move to a zone.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on ‘Move to Zone’.

Step 5: On the Zones Home screen, you will see a list of all active zones. Tap on the zone you wish to move the device to.

Step 6: You will see a check mark next to the zone name.

Step 7: Tap on ‘Done’.

Step 8: Device is added to zone successfully.

3. Removing a Device from a zone

Step 1: On the device control screen, tap on the ‘Settings’ icon on the top right.

Step 2: Tap on ‘Device Preferences’.

Step 3: Tap on ‘Remove from Zone’. Device removed from zone successfully.

4. Editing a zone

Step 1: Tap on ‘Settings’ icon of the zone you wish to edit.

Step 2: In zone settings, tap on ‘Edit Zone’. You can change the icon and name of the zone as
you desire.

Step 3: Tap on 'Done'.

5. Deleting a zone

Note: To delete a zone, you have to remove all the devices added in a zone individually. You may not be allowed to delete a zone otherwise. To delete a device from a zone, refer to Section 3.

Step 1: Tap on ‘Settings’ icon of the zone you wish to delete.

Step 2: In zone settings, tap on ‘Delete Zone’.

Step 3: Tap on 'Remove' on the pop up. Zone is successfully deleted.

Step 4P: Removing your Device (Breez Eco) - Android users

Step 1: On the Home screen, tap on the Breez Eco device you want to remove.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Remove Device’.

Step 4: Tap on 'Remove' on the pop up. Your device is now removed.

Articles in this section

Comments

Articles in this section

Related articles
