Detailed User Manual

Step 1A: Unpacking & plugging in

For best results, connect Cielo Breez Eco with the provided USB cable and adapter. Mount your Breez Eco on a wall or place it on a table in AC's line of sight and plug it into a power source.

For optimal placement and control:

• Place Breez Eco within 6-12 feet and in the line of sight of your air conditioner or heat pump.
• To avoid deviated sensor readings, do not place Breez Eco where it may be exposed to excessive sunlight or other heat sources.

Special Note: It is strongly advised that whenever there is a need to use remote control for AC/Heat Pump, point it towards Breez Eco while performing any action. This way, your AC/Heat Pump and Cielo Home App will always be in sync.

Step 1B: Prior to app installation

Your Smart Phone

• Make sure your smart phone’s Wi-Fi is turned ON.
• Make sure your smart phone has internet access.

 Your Wi-Fi Router

• Make sure you have working internet connection on your Wi-Fi router.
• Make sure there is no proxy server or authentication server configured on your internet connection.
• Make sure there is no captive portal on your Wi-Fi router.

Important: Make sure IP isolation or client isolation is turned OFF on your Wi-Fi router.

Step 2: App installation

Install the ‘Cielo Home’ app from the App Store.
Log in to the app if you already have an account; otherwise, create one using the sign-up option.

Step 3: Registration

Device registration process connects Breez Eco to your home Wi-Fi network through the Cielo Home app.

Note 1:

• For iOS 13.0 & above, location permission is required to complete the registration process. You may disable it later. For iOS 14.0 and above, Local Network Access permission is a requirement to successfully register the device.
• For Android OS 8.1 and above, location permission is required to complete the registration process. You may disable it later.  For Android 14 and above, Local Network Access permission is a requirement to successfully register the device.

Note 2: Please turn off LTE/mobile data on your phone during the registration process to ensure seamless registration. You may enable it later.

Step 1: After successful login, you are at the home screen of Cielo Home app.

Step 2: Select 'Cielo Breez Eco' from the list of devices.

Step 3: Tap ‘Continue’ to proceed. Allow required permissions. It will start searching for Breez Eco.

Step 4: Go to the Wi-Fi settings of your phone.

Step 5: Select the Cielo Device (Cielo_xxxx_xxxxxx) from the Wi-Fi list.

Step 6: Come back to the Cielo Home App. Your phone will show the list of available Wi-Fi networks.

Step 7: Select your preferred Wi-Fi network from the list and enter the password.

Step 8: Customize your device with a name of your choice (for example, Bedroom, Lounge, Office, etc.). Then tap on 'Continue'.

Step 9: Your device has been registered successfully. Tap on ‘Done’.

Step 10: After successful configuration, your device will display on your home screen.

Step 11: Once the circle around the AC icon is green, tap on it to start the AC remote control configuration process. If it is not green, refresh the screen by swiping downwards.

Step 12: Get a hold of your AC’s remote and tap ‘Next’.

Step 13: Point your AC's remote at the Cielo Device and press the remote’s 'Power Button' once. It will start the processing & configuration process.

Step 14: The configuration screen will display the remote control you detected. Tap on the ‘Send a test on/off command’.

Step 15: Your remote has now been successfully paired with the Cielo Device. Tap on ‘Done.’

Registration process is complete. Enjoy the unlimited controls!

Quick Tip: LED indicator in the power button of Cielo Device should blink once after receiving the remote control's signal. If it does not blink, please check the batteries of remote control.

Your Home Screen

Your home screen shows the real time status of all your Cielo Devices.

A registered Cielo Device can show either of the 3 status, outlined in circles:

1 - Green - Device is online. You’re good to go!

2 - Red - Device is offline. (try following options)

- Ensure your phone is connected to a working internet connection.

- Refresh home screen by swiping downwards (Pull-to-refresh).

- Ensure device is connected to a working internet connection.

3 - Grey - Device is offline. (try following options) - Ensure your phone is connected to a working internet connection - Refresh home screen by swiping downwards (Pull-to-refresh).

Enjoy the unlimited functionalities

Cielo Breez Eco Works With Amazon Alexa, the Google Assistant, Siri Shortcuts, and Samsung SmartThings.

Troubleshooting tips

Breez Eco has an LED indicator in its power button for status indication.

Case 1: If your device is powered up and connected to a working internet connection, the light stays off meaning device is working perfectly.

Case 2: If there is a single blink every 2 seconds, it indicates the device is in broadcast (AP) mode. If you have not registered the device yet, please complete registration process as per step 3A/3B of this manual. If you have registered the device, refer to scenario 3 at the end of this page.

Case 3: If the light blinks twice every 2 seconds, it indicates the device is connected to router but has no internet access. Please ensure you have a working internet connection and restart the device.

Changing Wi-Fi network of Cielo Device

Scenario 1:

Cielo Device & mobile are on same Wi-Fi network - Tap on 'Settings' icon to enter device settings. Tap on ‘Device Wi-Fi’ then on 'Change Wi-Fi'. List of available networks will appear. Enter password of selected network. New settings are done.

Scenario 2:

Cielo Device & mobile are on different Wi-Fi network - Go to your mobile settings and connect your mobile with same Wi-Fi network as Cielo Device. The remaining process is same as given in scenario 1. Note: In case your mobile couldn't connect to same Wi-Fi network as Cielo Device; touch & hold the power button on Cielo Device for 6 seconds to hard reset Wi-Fi settings. This will take Cielo Device in broadcast (AP) mode.

Scenario 3:

Cielo Device is in broadcast (AP) mode - Connect mobile with Cielo Device Wi-Fi i.e. Cielo_xxxx_xxxxxx in mobile Wi-Fi settings. Go back to ‘Cielo Home’ App. Tap on 'Settings' icon to enter device settings. Tap on ‘Device Wi-Fi’ then on 'Change Wi-Fi' button. List of available Wi-Fi networks will appear. Select your Wi-Fi & enter its password. Your new Wi-Fi settings are done.



Configuring the Right Remote Control for Your AC

Cielo Device auto detects relevant remote control for your AC during the registration process. If it is not working with your AC, please select your remote model manually.

For manual selection, follow these steps:

Step 1: On the Home screen, tap on the Breez Eco device you want to change the appliance for.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Change Appliance’.

Step 4: Tap on 'Manual Configuration'.

Step 5: Tap on the 'Manufacturer' and select the appropriate AC manufacturer from the drop-down list.

Step 6: Tap on 'Remote Model' and select your remote model from the drop-down list.  In this case, 'Model 1 (Celsius)'.

Step 7: Tap on 'Confirm' once you have selected the correct AC manufacturer and remote model.

Step 8: Once selected, send a test On/Off command to your AC.





Quick Tip: Remote control model number is usually found on the back side of the remote control.

Step 4A: Setting up schedules for your heating and cooling

1. Setting up a schedule

You can schedule your AC/Heat pump connected to Breez Eco by performing the following steps on your Cielo Home app:

Step 1: On the Home screen, tap on the Breez Eco to schedule.

Step 2: Tap on ‘Schedule’ in the navigation bar.

Step 3: Tap on '+ Add Schedule'.

Step 4: Tap on ‘Custom Schedule’.

Step 5: Select the time/days you want to set the schedule for and then tap on ‘Custom Settings’.

Step 6: Select the power state, mode, temperature, fan speed and swing position of your choice and tap on ‘Done’.

Step 7: Choose a suitable name for your schedule. Tap on ‘Save’ to set up the schedule.

Once the schedule is set, it will appear on the schedule tab. You can turn it On/Off by toggling the slider against the schedule.

2. Adding Comfy Schedule

To schedule Comfy mode, you need to save at least one template setting in the app. After you have done that, follow the steps below.

Step 1: On the Home screen, tap on the Breez Eco you want to schedule.

Step 2: Tap on ‘Schedule’ in the navigation bar.

Step 3: Tap on ‘+ Add Schedule’.

Step 4: Select ‘Comfy Schedule’.
Step 5: Select the time and day(s) and choose whether you want to set it as a repeat schedule. Then, select your desired Comfy template.

Once the Comfy schedule is set, it will appear on the schedules tab. You can enable/disable it by toggling the slider against the schedule.

3. Deleting/Editing a schedule

Step 1: From the device control screen, tap on ‘Schedule’ in the navigation bar.

Step 2: In the 'Schedule' tab, you will see all your set schedules.

Step 3: Swipe left on the schedule you want to edit or delete until both options for Edit/Delete appear. Choose your desired option and proceed. You can also swipe until the left edge of the screen to delete the schedule.

Step 4B: Setting up Comfy Temperature Mode (Automatically change your AC settings if room temperature goes above or falls below a pre-set value)

You can set up comfy temperature mode for your air conditioner/heat pump by performing these steps via Cielo Home app:

Step 1: On the Home screen, tap on the Breez Eco you want to set comfy mode on.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on 'Comfy'.

Step 4: Tap on 'Add Template' under the Comfy Temperature heading.

Step 5: Select what actions to perform if the temperature falls below or goes above the set range, e.g. turning the AC off or on, changing its mode, temperature, fan speed, and swing position to help it get back into the preferred temperature range. Add a name for this template and tap on ‘Done’.

Step 6: Your Comfy settings are now saved. It is disabled by default. You can turn Comfy 'On' from the toggle next to the name of the Comfy template. Once the device triggers the defined comfy temperature mode actions, you will get a notification in your app timeline.

Note: You can set up multiple Comfy settings through Comfy templates. Each of the templates can be turned 'On' or 'Off' from the toggle next to its name. You can have a different Comfy Mode for the morning, a different mode for the afternoon, and so on.

Step 7: You can also turn Comfy Mode On/Off from the app control screen. Tap on the 'Up' arrow icon at the bottom of the control screen.

Step 8: In the pop-up navigation bar, tap on 'Comfy' to toggle it On or Off. The greyed-out icon shows that it is currently Off.

Step 9: Select the desired Comfy Mode from the list of available Comfy settings. In this case, 'Morning'.

Step 10: Comfy Mode is now active, and the Comfy icon will turn white. It is now turned 'On'.

Step 4C: Setting up Comfy Humidity Mode (Automatically change your AC settings if room humidity goes above or falls below a pre-set value)

You can set up comfy humidity mode for your air conditioner/heat pump by performing these steps via Cielo Home app:

Step 1: On the Home screen, tap on the air conditioner/heat pump you want to set comfy
humidity mode on.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on 'Comfy'.

Step 4: Tap on ‘Add Template' to set up a Comfy Humidity template.

Step 5: Select what actions to perform if the humidity falls below or goes above the set range e.g. turning the AC off or on, changing its mode, temperature, and fan speed helping it get back into the preferred humidity range. Add a name for this template and tap on ‘Done’.

Step 6: 'Comfy Humidity' is now set. You can turn Comfy Mode 'On' or 'Off' from the toggle next to the name of the Comfy Mode. Once the device triggers the defined comfy humidity mode actions, you will get a notification in your app timeline.

You can also turn Comfy Mode On/Off from the app control screen.

Step 7: Tap on the 'Up' arrow icon at the bottom of the control screen.

Step 8: On the pop-up navigation bar, tap on 'Comfy' to toggle it On or Off. Currently, it is turned 'Off', shown by the greyed-out icon.

Step 9: To turn it 'On', tap on the Comfy icon, and it will turn white. It is now turned 'On'.

Step 4D: Enabling Location Control (Turn Your AC on Before You Arrive and Turn It off After You Have Left the Pre-set Location)

You can configure location-based control for your Air-Conditioner/Heat Pump by performing these steps via the Cielo Home app:

Step 1: On the Home screen, tap on the Breez Eco you want to control through location controls.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on ‘Geofencing’.

Step 4: Toggle the slider to enable Location Control, as shown in the red box.

Step 5: You will see your current location on the map. Set a Geo-Fence range for your Air-Conditioner/Heat Pump between 1 - 10 Miles using the slider. Entering or exiting this range will trigger the Air-Conditioner / Heat Pump ON/ OFF. Tap on 'Next'.

Step 6: Select your desired AC settings to be performed when you enter or exit the pre-set location and tap on ‘Done’. Once location controls are triggered, you will get a notification in your app timeline.

Step 4E: Checking Your AC’s Air Filter Status

You can check the live air filter status of your Air-Conditioner/Heat Pump. Simply follow the steps listed below:

Step 1: On the Home screen, tap on the Breez Eco you want to check the air filter status for.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on ‘Air Filter’.

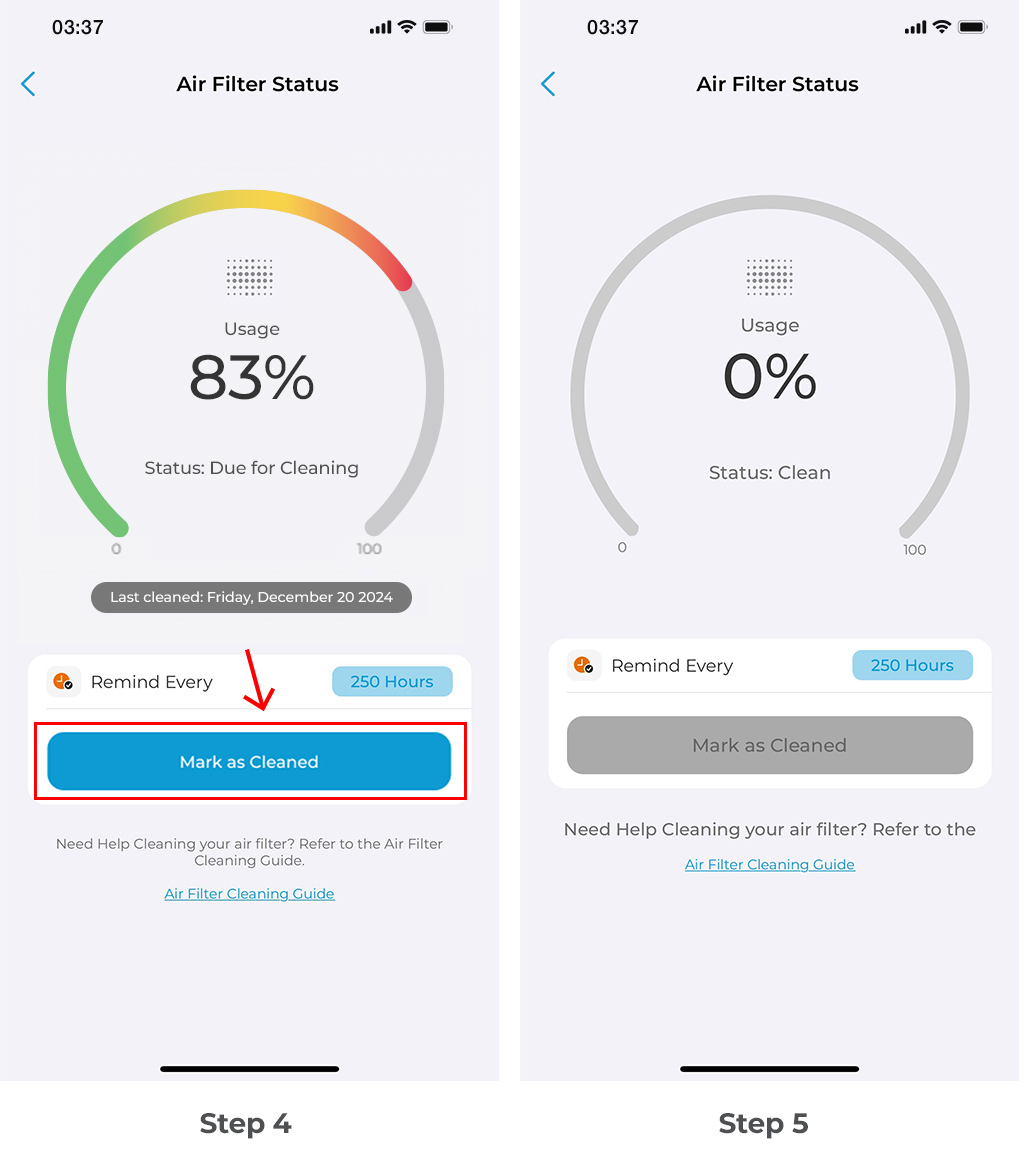

Step 4: You will see your current air filter status of the AC being used with the Device since registration (or since the last cleaning). When the range is about to fill up, manually remove the AC’s air filter and clean it. Once done, place the filter back into the AC. Tap on ‘I have cleaned the air filter’.

Step 5: It will ask you to reset the filter status. Tap on Reset. Your filter status will begin a new cycle.

Step 4F: Adding Siri Shortcuts to Cielo Home (For iOS users)

Step 1: On the Home screen, tap on the Breez Eco you want to add Siri Shortcuts for.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on ‘Siri Shortcuts’.

Step 4: Tap on 'Create Shortcut' to make a new Siri Shortcut.

Step 5: Enter the desired AC settings when the command is sent through Siri Shortcuts. You can set the AC operating mode, temperature set point, and fan speed. Tap on ‘Done’.

Step 6: Next, enter the phrase you want the Shortcut to be activated on. In this example, 'Cool The Room'. Tap on 'Add to Siri'.

Step 7: All your currently active Siri Shortcuts will now be displayed. In this example, when you say to Siri 'Cool The Room', the AC will turn on at 73 degrees in cool mode at high fan speed.

Step 4G: Checking Usage History

Step 1: On the Home screen, tap on the air conditioner/heat pump you want to check Usage history for.

Step 2: On the Control screen, Tap on 'History'.

Step 3: Your 30-day usage summary should appear on the screen. Tap on any day to learn more details about your detailed usage history.

Step 4H: Checking Timeline of Actions

Step 1: On the Home screen, tap on the air conditioner/heat pump you want to check the timeline of.

Step 2: On the Control screen, Tap on 'Timeline'.

Step 3: You'll see a complete list of actions performed over the last 90 days.

Step 4I: Change Appliance (Manufacturer/Model Number)

Step 1: On the Home screen, tap on the Breez Eco device you want to change the appliance for.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Change Appliance’.

Step 4: Tap on 'Manual Configuration'.

Step 5: Tap on the 'Manufacturer' and select the appropriate AC manufacturer from the drop-down list.

Step 6: Tap on 'Remote Model' and select your remote model from the drop-down list.  In this case, 'Model 1 (Celsius)'.

Step 7: Tap on 'Confirm' once you have selected the correct AC manufacturer and remote model.

Step 8: Once selected, send a test On/Off command to your AC.

Step 4J: Changing Device Name (e.g. bedroom, lounge etc.)

 Step 1: On the Home screen, tap on the Breez Eco you want to change the name of.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on the pencil icon in front of the device name.

Step 5: Select the new name from a list of common names, or type a custom name.

Step 6: Tap on 'Update.' The device name is now changed.

Step 4K: Adjusting the Brightness of the Device

Step 1: On the Home screen, tap on the Breez Eco device you want to change the LED brightness of.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: In Device preferences, tap on 'Display'.

Step 5/6: Toggle the 'Brightness' slider to change the brightness of the Breez Eco device power button.

Step 4L: Calibrate Room Temperature

Step 1: On the Home screen, tap on the Breez Eco you want to calibrate.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on 'Calibration'.

Step 5: Calibrate the indoor temperature as required.

Step 6: Tap on 'Apply'. Your device has now been calibrated.

Step 4M: Calibrate Room Humidity

Step 1: On the Home screen, tap on the Breez Eco you want to calibrate.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on 'Calibration'. Tap on ‘Humidity ‘.

Step 5: Calibrate the indoor humidity as required.

Step 6: Tap on 'Apply'. Your device has now been calibrated.

Step 4N: Enable or disable the touch power On/Off function on the device

Step 1: On the Home screen, tap on the Breez Eco device you want to lock/unlock.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on 'Touch'.

Step 5: You can now enable or disable the device power touch control.

Step 4O: Group Settings of your connected units

A group will allow you to control all your registered devices together with a simple tap.

1. Creating a group

To create a Group in the Cielo Home app, follow these steps:

Step 1: On the Home screen, tap on your Breez Lite device.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on ‘Move to Group.

Step 5: Tap on Create a new group.

Step 6: Give your group a name (e.g. Ground floor, First floor, Basement, etc.)

Step 7: Choose an icon.

Step 8: Tap on ‘Done’. Group is created successfully.

2. Adding a Device to a Group

Step 1: On the Home screen, tap on your Breez Lite device.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on ‘Move to Group’.

Step 5: On the Group screen, you will see a list of all of your active groups. Tap on the group you wish to move the device to.

Step 6: You will see a checkmark next to the group name. Tap on ‘Done’.

On the Home screen, you will see a separate ‘Groups’ tab. You can tap on the group to see your all your devices in that group.



3. Removing a Device from a group

Step 1: On the Home Screen, go to the ‘Groups’ section at the bottom and select your created group.

Step 2: Tap on the device you want to remove from your group.

Step 3: Go to the ‘Settings’ on the top right.

Step 4: Tap on ‘Device Preferences’.

Step 5: Tap on ‘Remove from Group.’ Tap on ‘Yes’.

Device removed from the group successfully.

4. Editing a Group

Step 1: Tap on the ‘Settings’ icon of the group you wish to edit.

Step 2: In group settings, tap on ‘Edit Group. You can change the icon and name of the group as you desire.

Step 3: Tap on 'Done'.

5. Deleting a Group

Note: To delete a group, you have to remove all the devices added to it individually. You may not be allowed to delete a group otherwise. To delete a device from a group, refer to Section 3.

Step 1: Tap on the ‘Settings’ icon of the group you wish to edit.

Step 2: In group settings, tap on ‘Delete Group’.

Step 4P: Switch temperature units between Centigrade and Fahrenheit

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to change the units of.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on the C to F toggle against 'Temperature Unit'.

Step 5: Your device's temperature units are changed successfully from Fahrenheit to Celsius.

Step 4Q: Removing your Device

Step 1: On the Home screen, tap on the Breez Lite device you want to delete.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on 'Remove Device’.

Step 5: Tap on ‘Remove’. Your devce is now removed.

Step 4R: Changing Device Wi-Fi

Step 1: On the Home screen, tap on the Breez Lite device whose Wi-Fi you want to change.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Wi-Fi’.

Step 4: Allow the required permissions. Tap ‘Continue’.

Step 5: It will start searching for your device. Once the device is connected, tap, ‘Next.’

Step 6: Tap on ‘Scan Wi-Fi’.

Step 7: Select your intended Wi-Fi network.  Enter the password. Tap on 'Connect'.

Step 8: The device Wi-Fi is now changed.

Step 4S: Sync AC State (e.g. AC is ON and App is showing it as OFF)

Step 1: On the Home screen, tap on the Breez Eco device you want to sync with your AC.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Sync AC State’.

Step 4: From the drop-down menus, select the AC parameters which you want to update. Then tap on 'Sync'. The Cielo Home app will now display these selected parameter values.
