Detailed User Manual - Cielo Smart Thermostat

2. Fan Settings

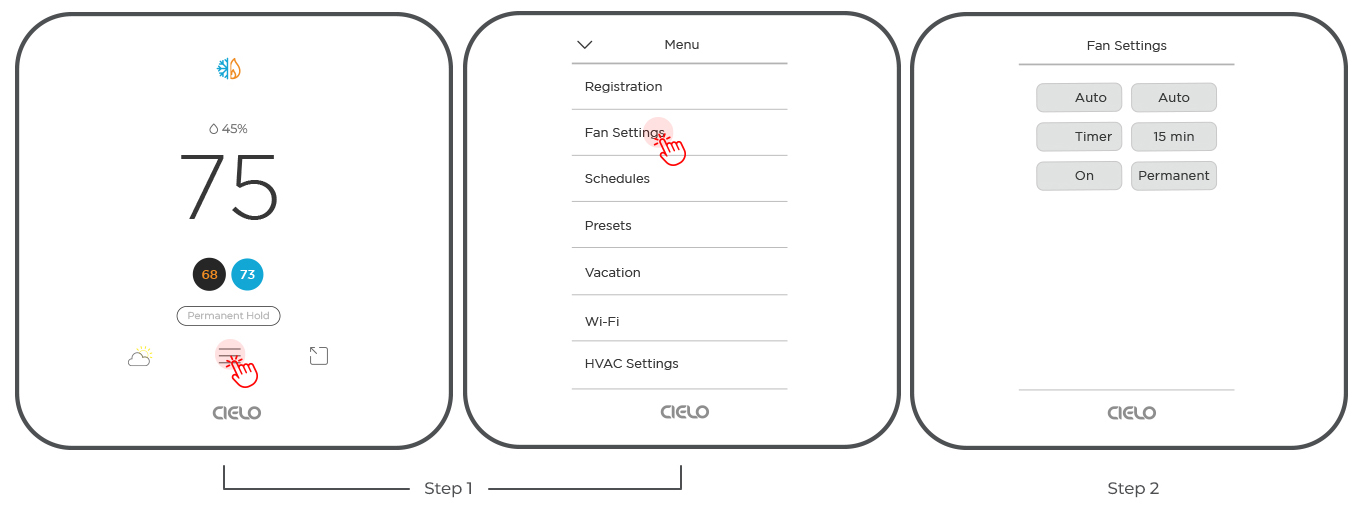

Step 1: Go to 'Menu' and select 'Fan Settings.'

Step 2: You have the option to run the fan on Auto, set a timer, or turn it on continuously.

3. Setting Up Schedules for Your Heating & Cooling

Cielo Smart Thermostat lets you set intelligent cooling/heating schedules so you can enjoy a true smart home experience and maximize your energy savings.

3A. Setting up Schedules on Your Cielo Smart Thermostat

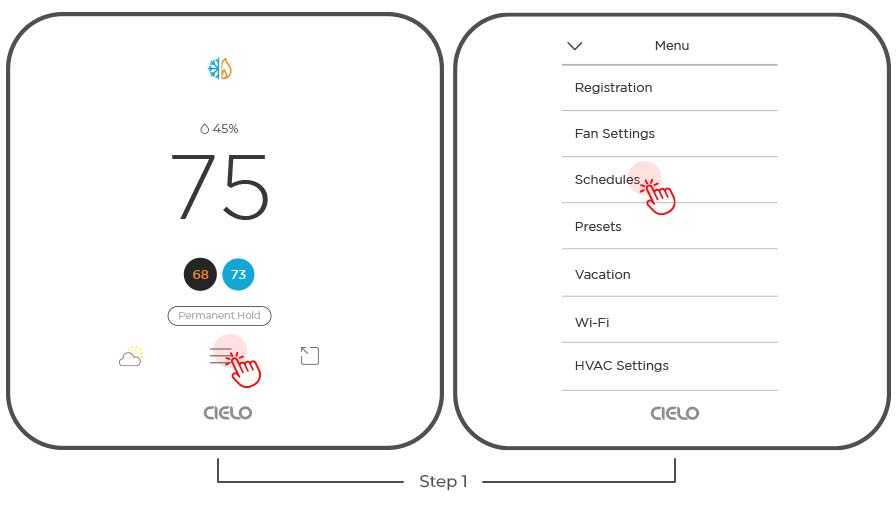

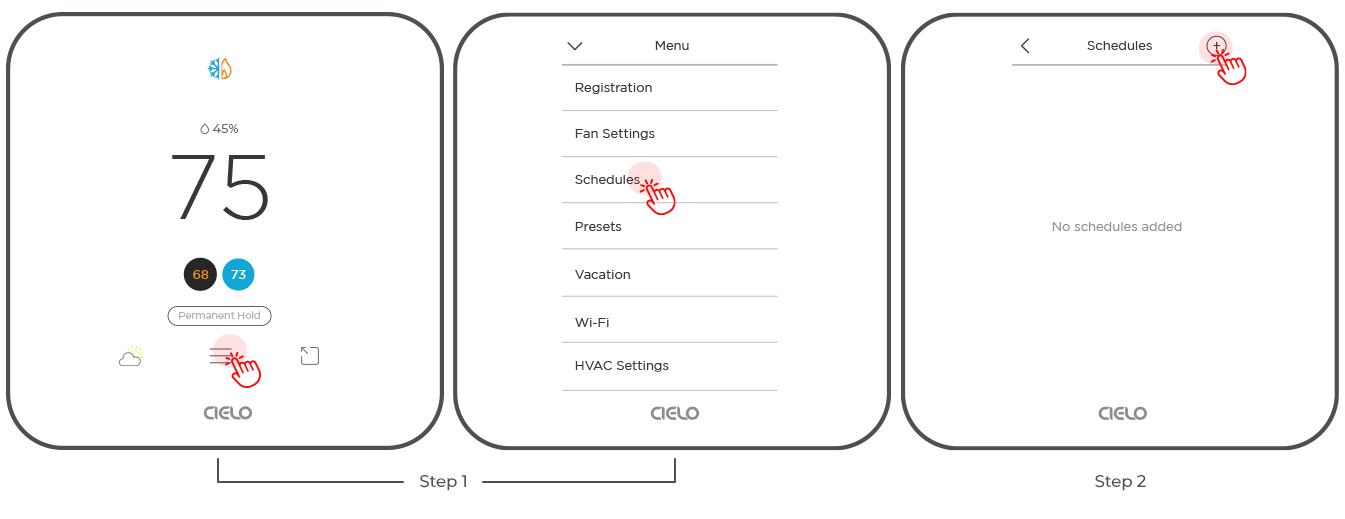

Step 1: Go to 'Menu' and select 'Schedules.'

Step 2: Tap on the '+' sign at the top right corner of the screen.

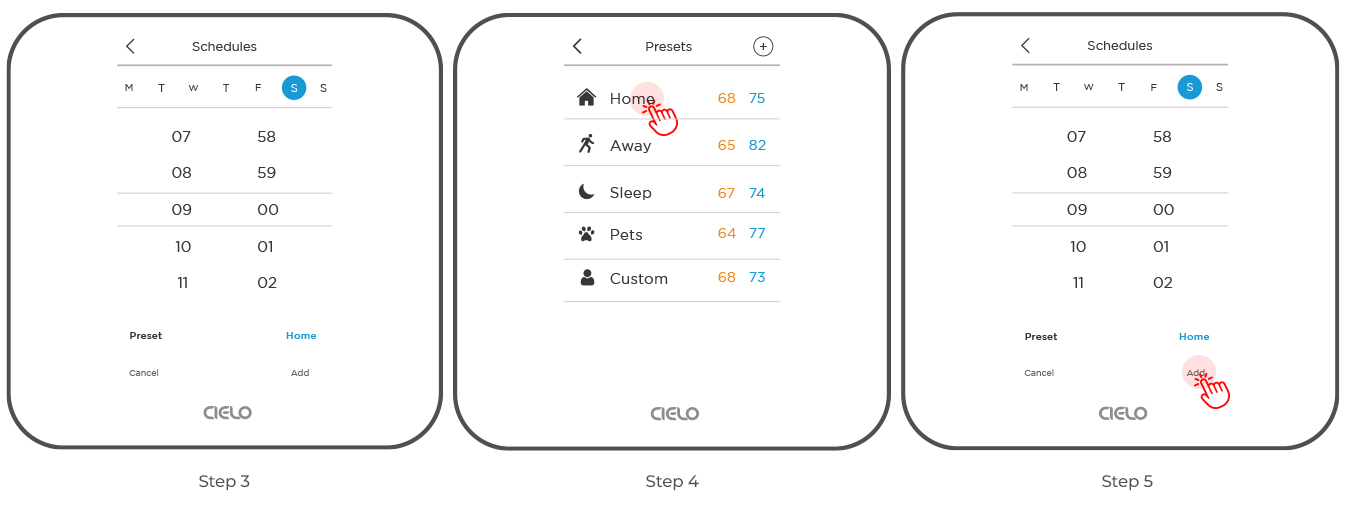

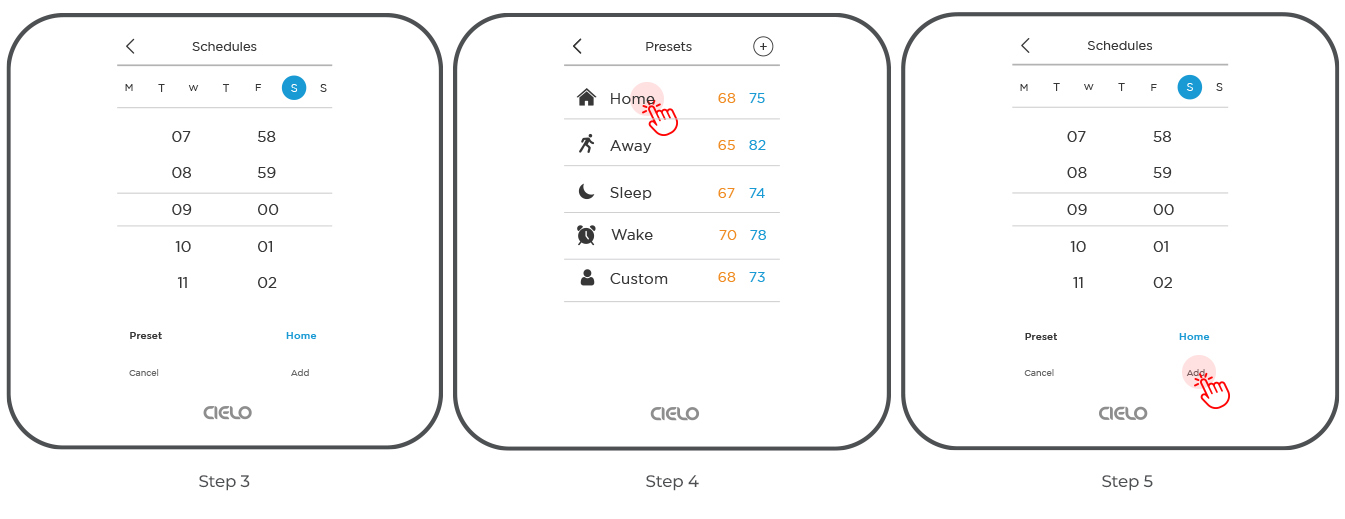

Step 3: Select the time and day(s) on which you want the schedule to run.

Step 4: Select the 'Preset' you want to add to your schedule, in this case, 'Home.'

You can also add a custom schedule by selecting ‘Custom’ in Presets.

Step 5: Tap 'Add. '

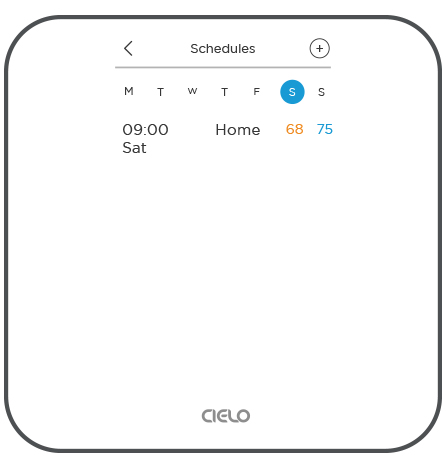

Your schedule is now saved.

3B. Deleting/Editing a Schedule

Step 1: Go to ‘Menu’ and select ‘Schedules.'

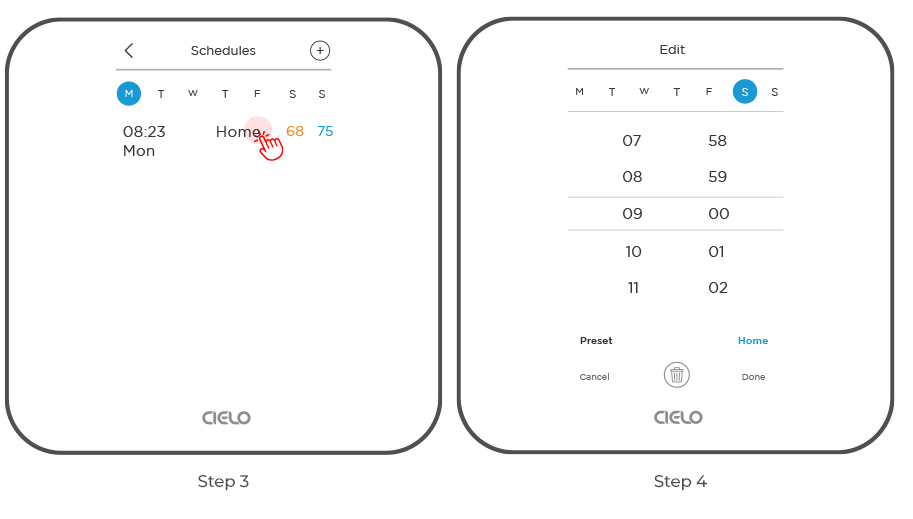

Step 2: On the 'Schedule' screen, you will see all your set schedules. Tap on the schedule you want to edit.

Step 3: Make your desired changes or tap the 'delete' icon if you wish to delete the schedule.

4. Presets

You can enjoy a truly tailored experience with predefined comfort settings, including Home, Away, Sleep, and Pets.

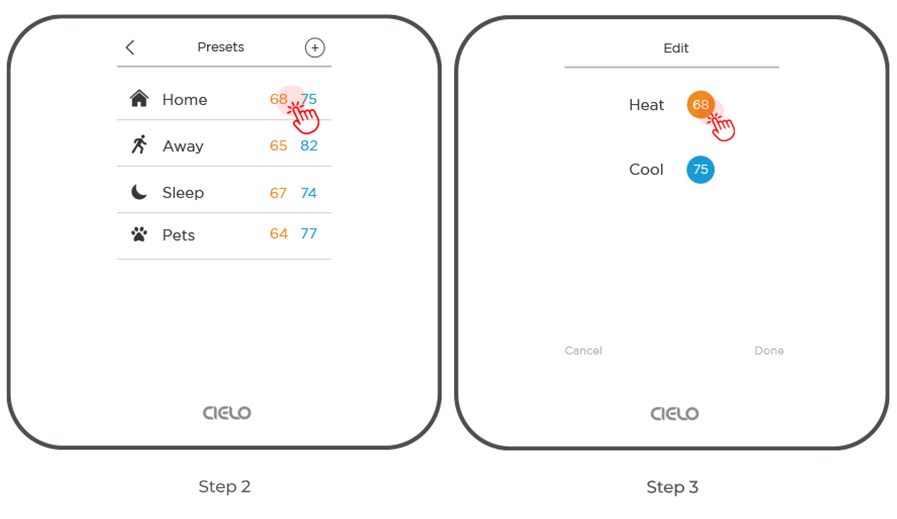

Editing a Preset

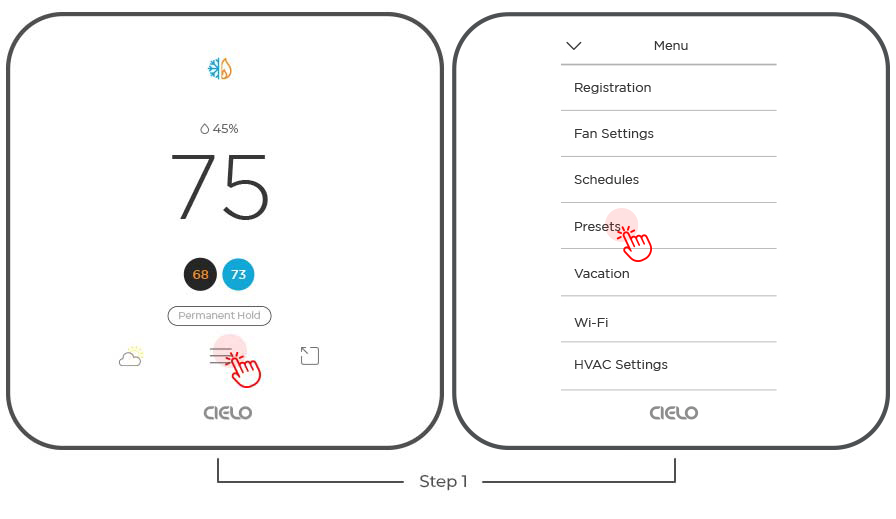

Step 1: Go to 'Menu' and select 'Presets.'

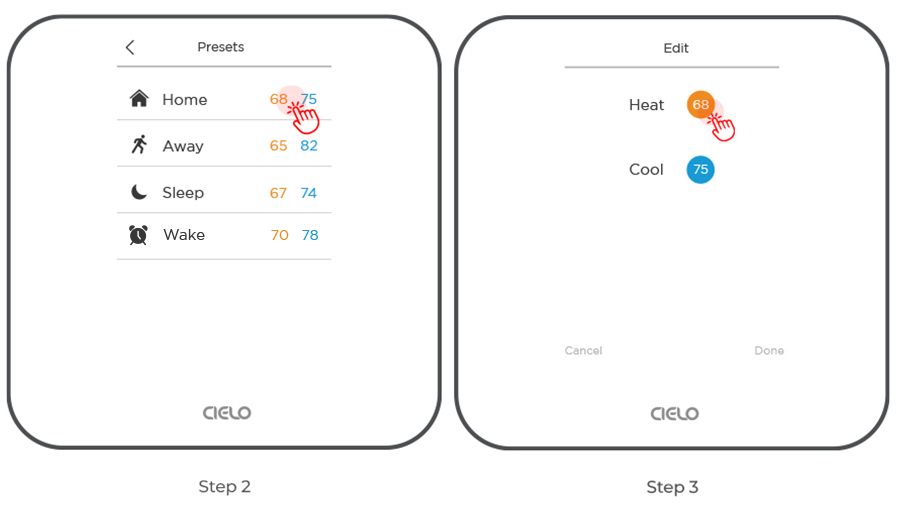

Step 2: Select the 'Preset' you want to edit.

Step 3: Tap on the temperature setpoints to change them to your preferred settings.

5. Vacation Mode

If you're planning to be away for an extended period, Vacation Mode can help you conserve energy while ensuring that your home is comfortable when you return.

5A. Setting Up Vacation Mode

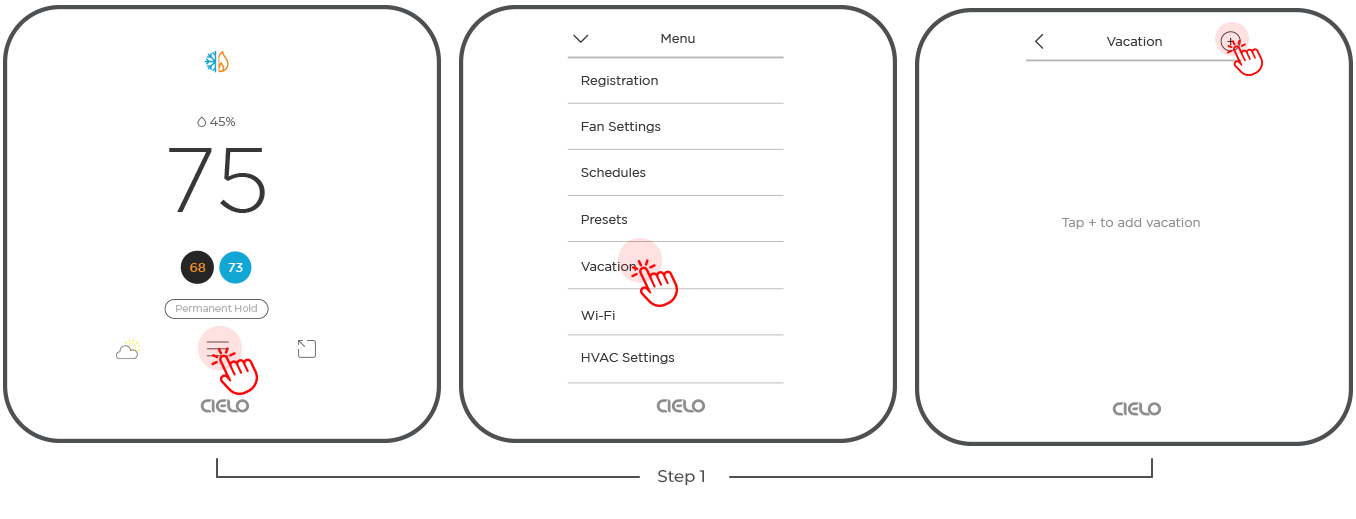

Step 1: Go to 'Menu' and select 'Vacation'. Tap on the '+' sign at the top right corner of the screen.

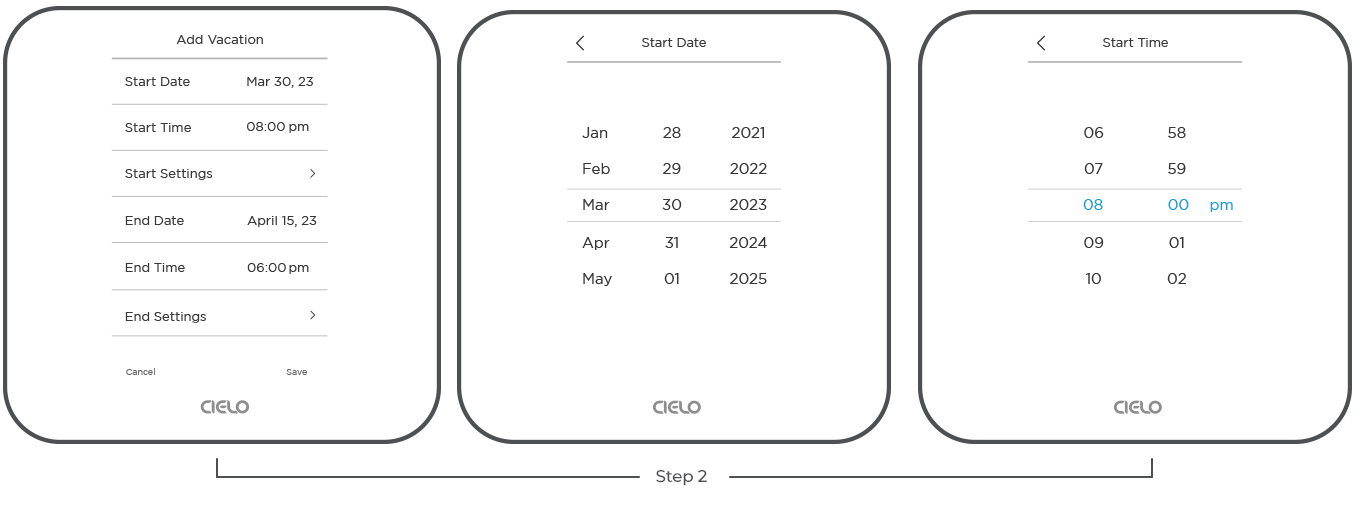

Step 2: Enter the start date and time.

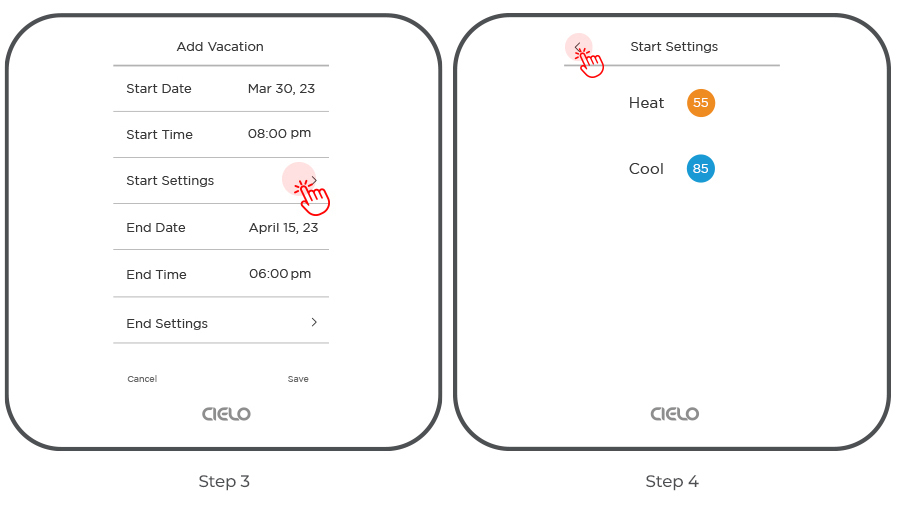

Step 3: Tap 'Start Settings' and select your preferred temperature and fan settings.

Step 4: Tap the back arrow.

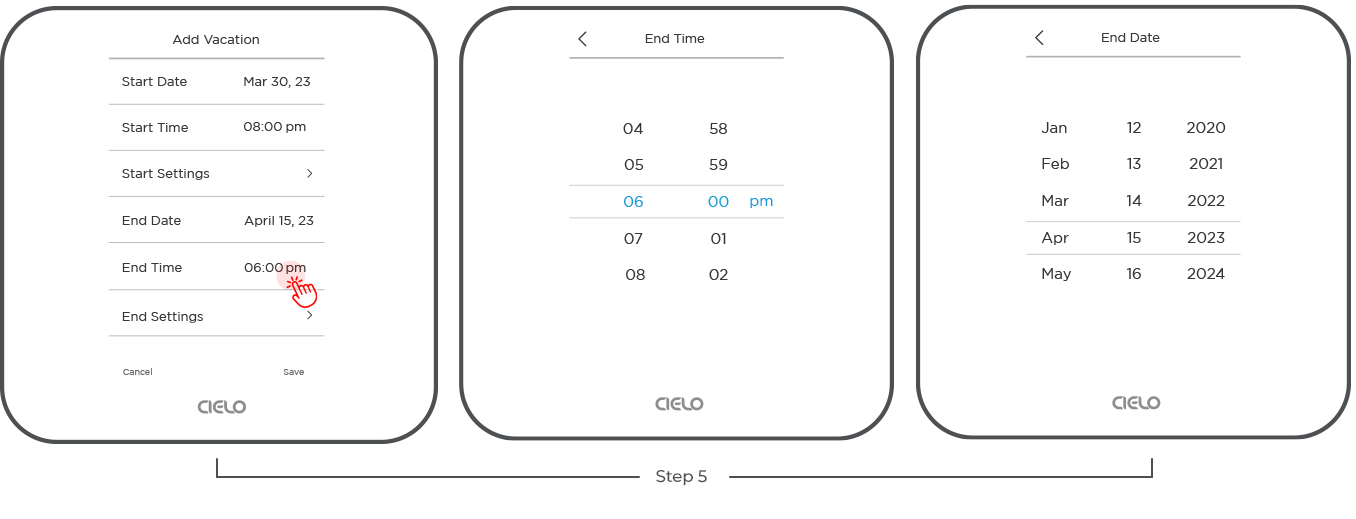

Step 5: Enter the end date and time.

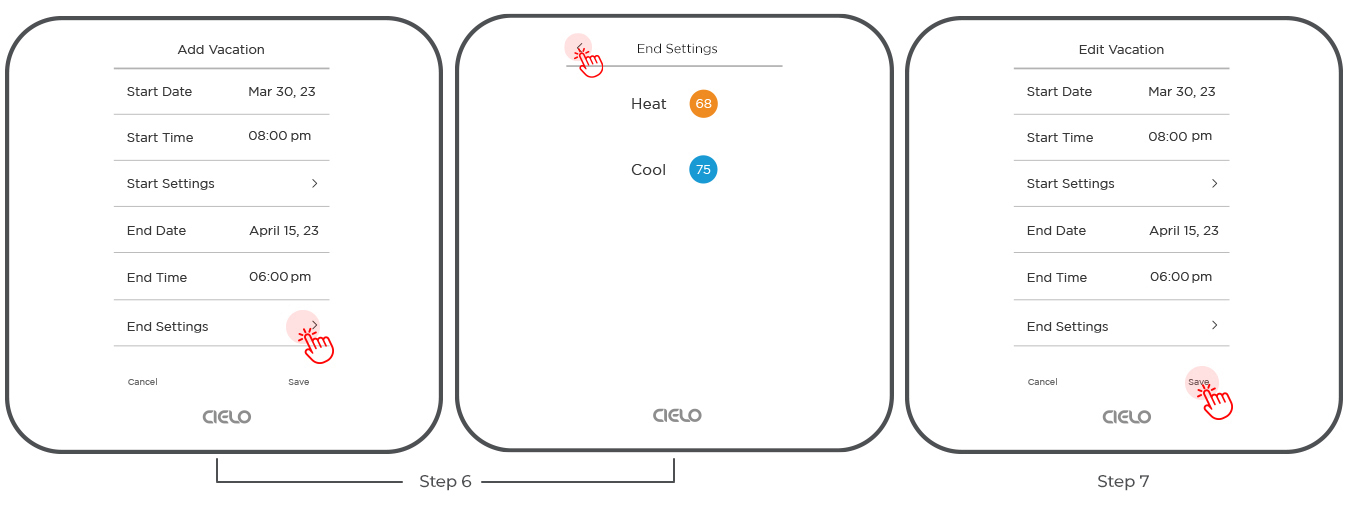

Step 6: Tap 'End Settings' and select your preferred temperature and fan settings. Tap back arrow

Step 7: Tap 'Save.'

Your Vacation Mode is now saved.

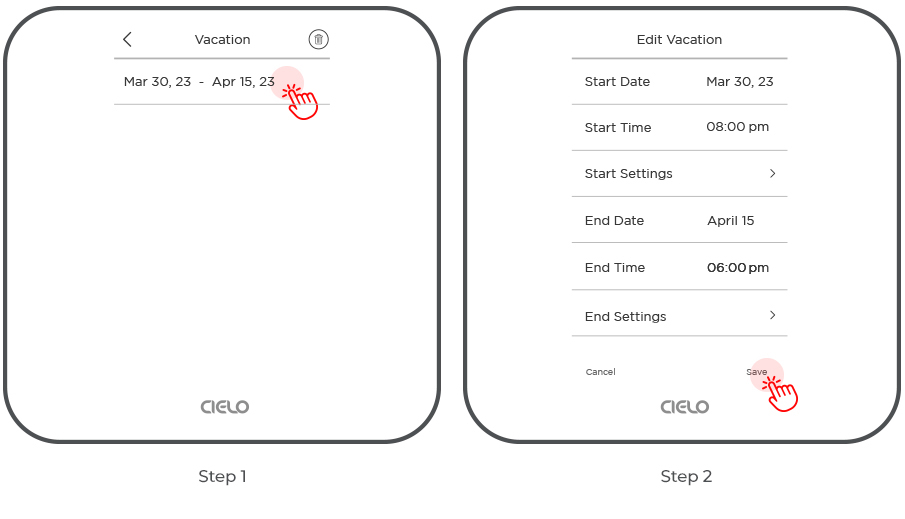

5B.Editing/Deleting Vacation Mode

Step 1: Tap on the saved vacation and make your desired changes. Tap 'Save.'

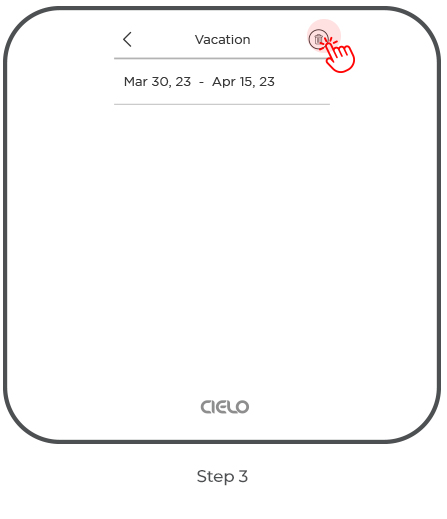

Step 2: If you wish to delete the vacation schedule, tap the delete icon on the top right corner of the screen.

6. Changing Wi-Fi

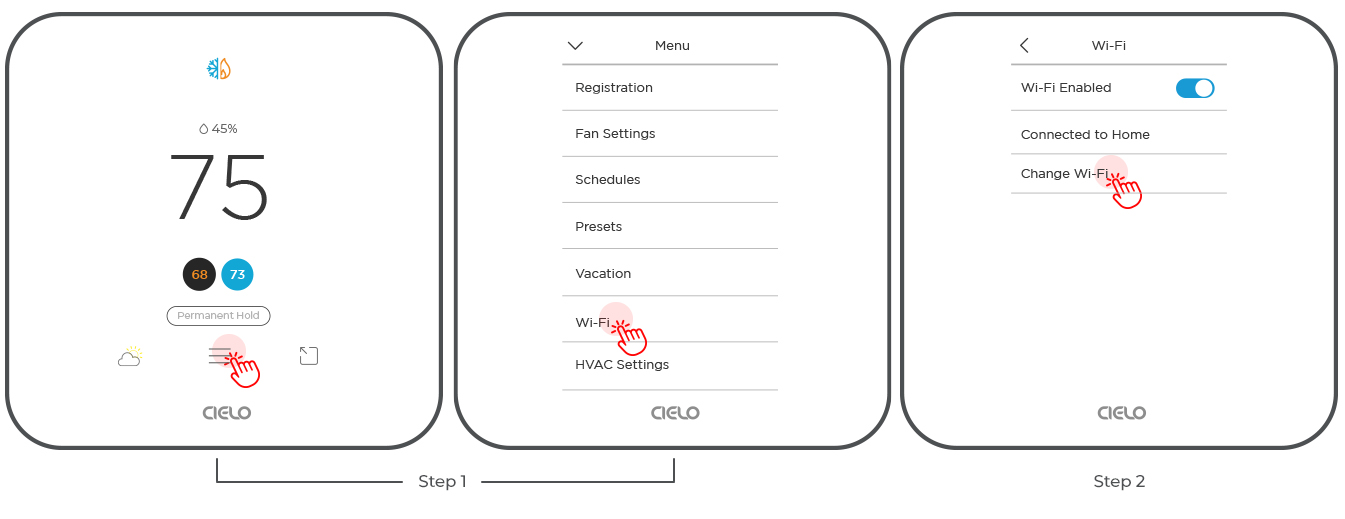

Step 1: Go to 'Menu' and select 'Wi-Fi'.

Step 2: Select 'Change Wi-Fi'.

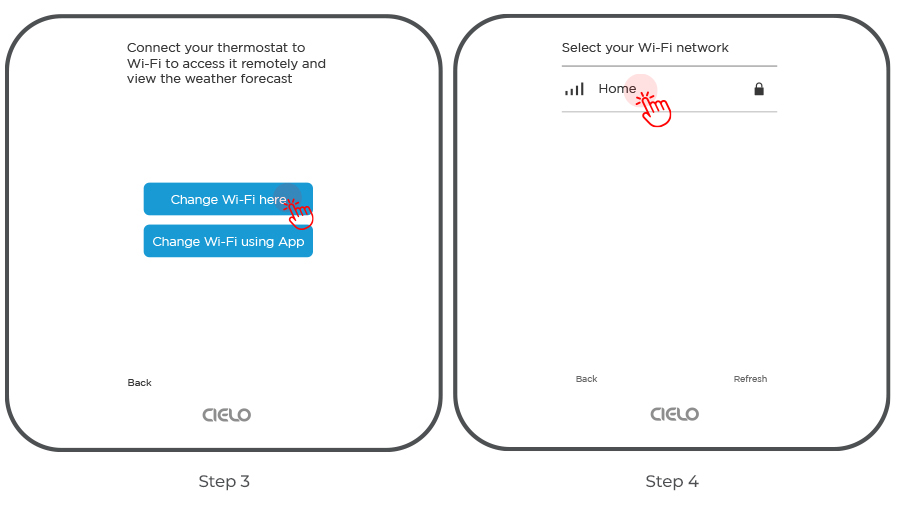

Step 3: You can either change Wi-Fi on the device or use the Cielo Home app.

In this case, tap on ‘Change Wi-Fi’ here. It will start scanning, and a list of available Wi-Fi networks will appear.

Step 4: Select your desired Wi-Fi network.

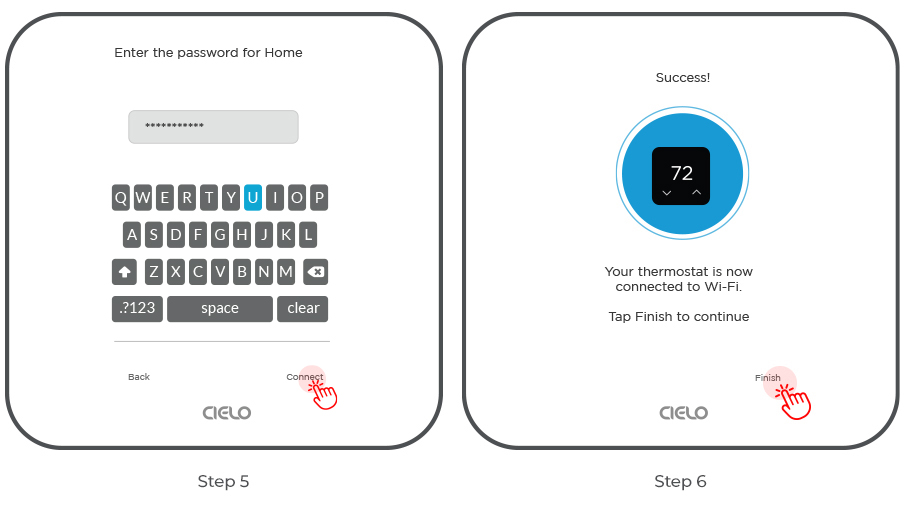

Step 5: Enter the password and tap 'Connect.'

Step 6: Tap 'Finish.'

7. Accessing your HVAC Settings

7A. HVAC System
This gives you information about the equipment you have installed.

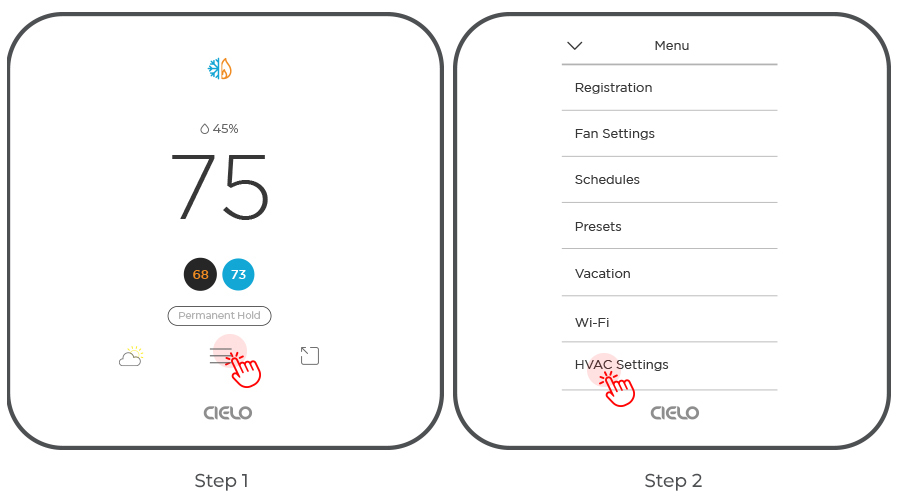

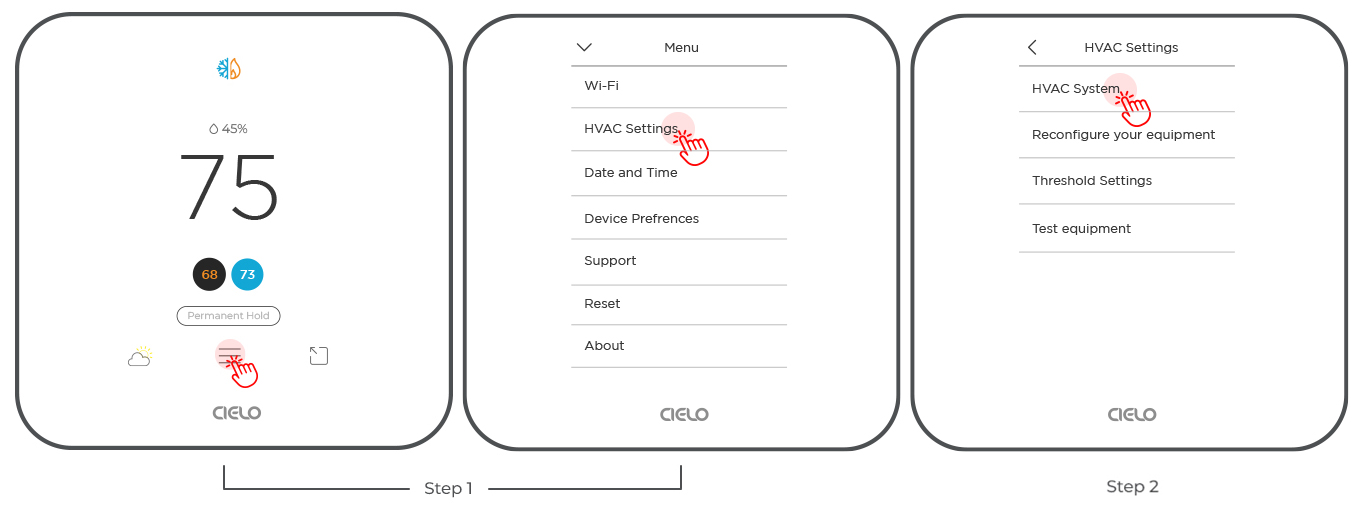

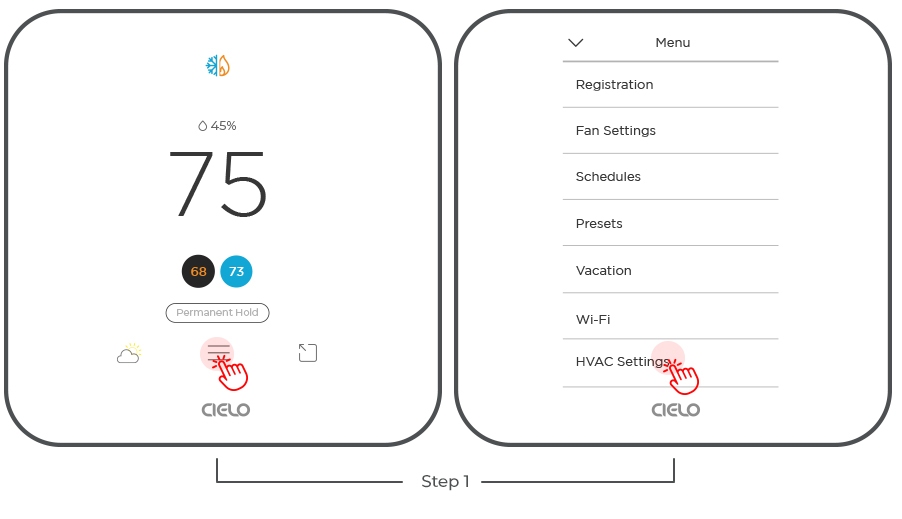

Step 1: Go to 'Menu' and select 'HVAC Settings.'

Step 2: Tap on 'HVAC System.'

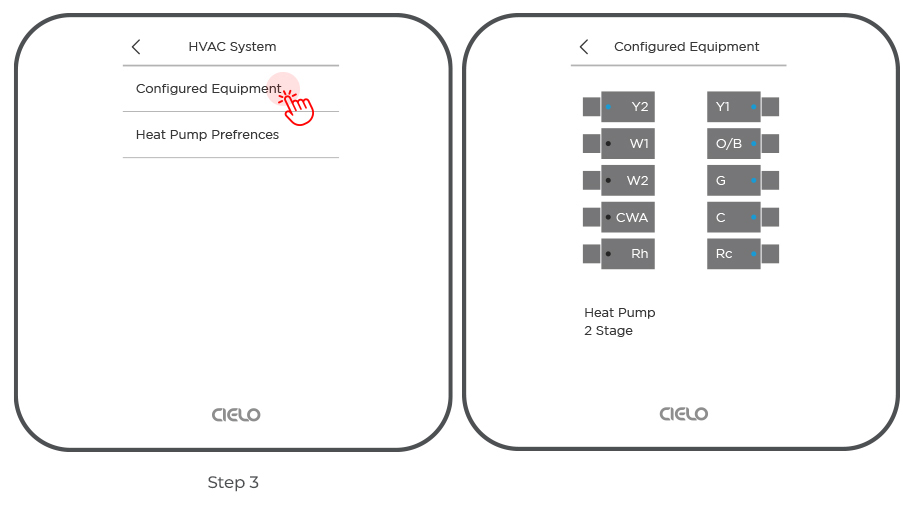

Step 3: Tap on ‘Configured Equipment.' Your configured equipment is shown on the screen.

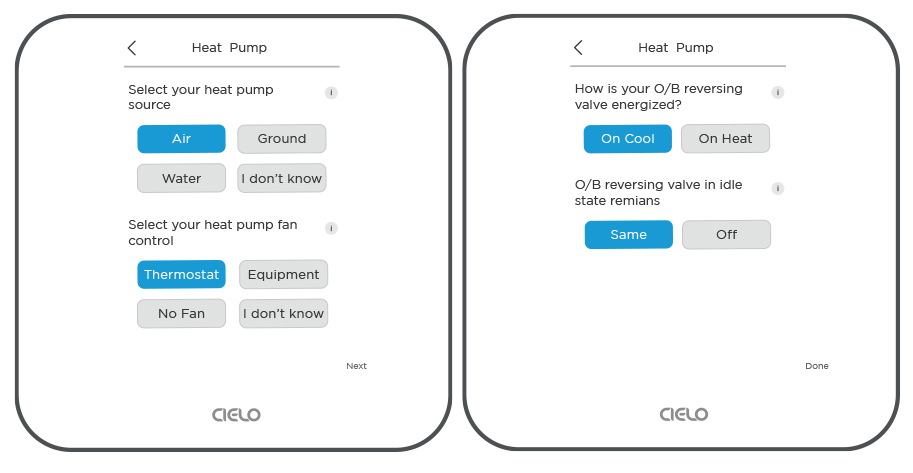

Heat Pump Preferences

You can adjust your heat pump settings here.

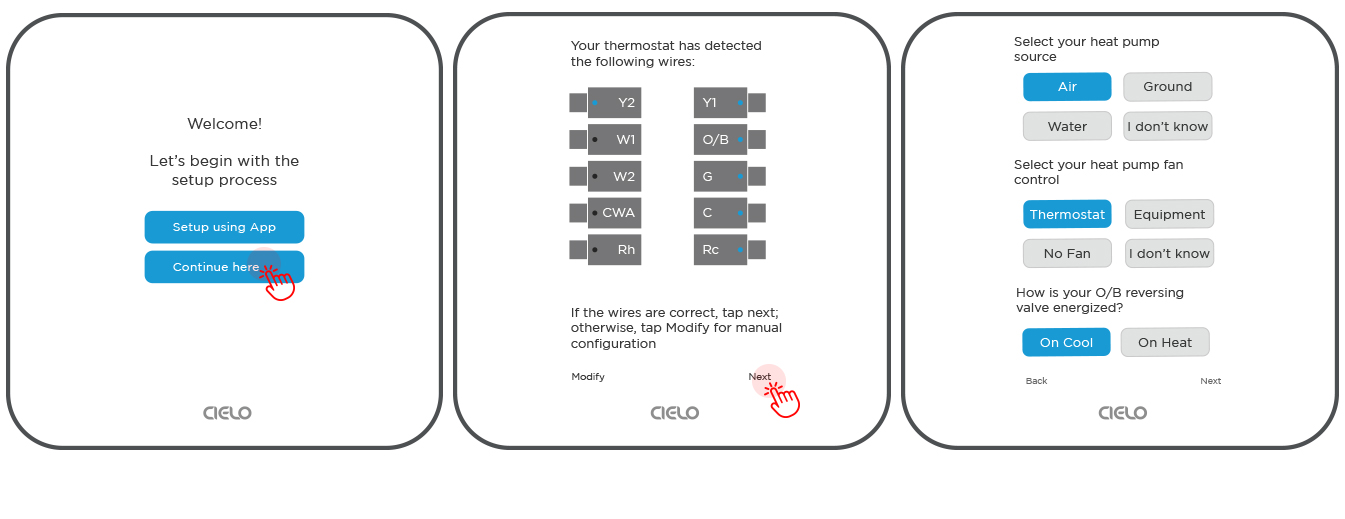

7B. Equipment Reconfiguration

Step 1: Go to 'Menu' and select 'HVAC Settings.'

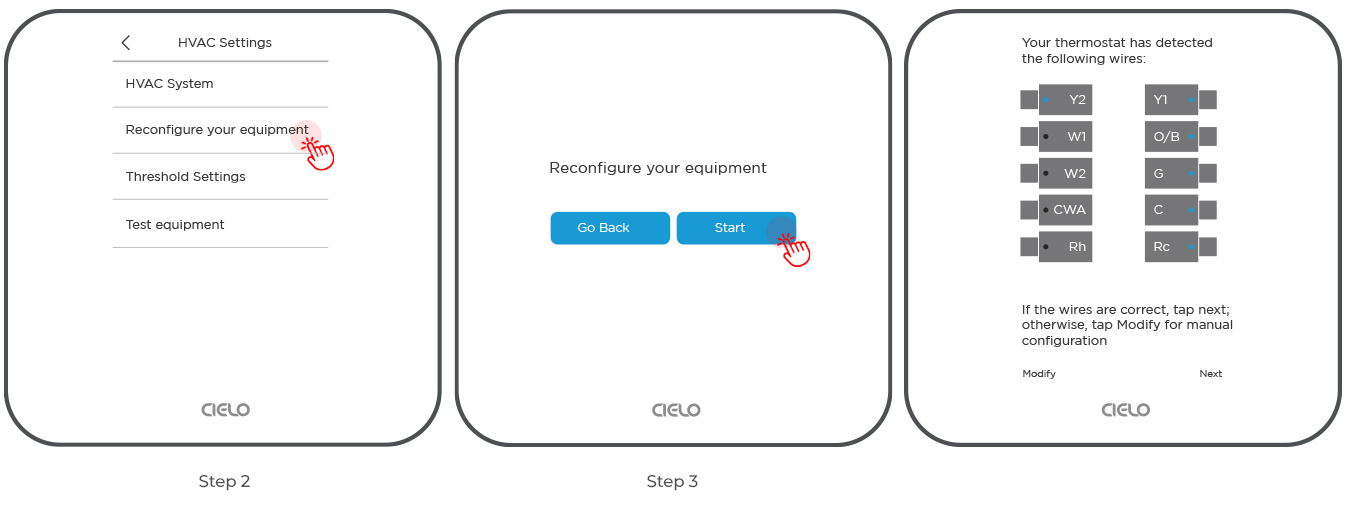

Step 2: Select  'Reconfigure your equipment'.

Step 3: Tap 'Start'.

The thermostat will auto-detect the connected wires. If the wires are correct, tap 'Next.' Otherwise, tap 'Modify' to configure manually.

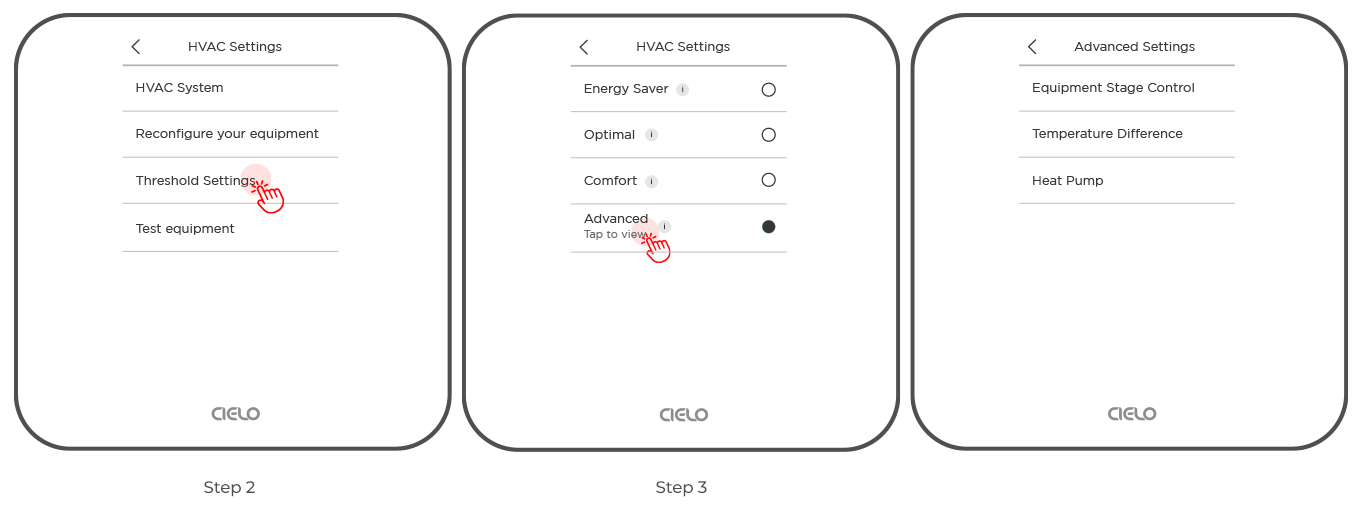

7C. Threshold settings

Threshold settings allow you to optimize the performance of your HVAC system to enhance its energy efficiency.

Step 1: Go to 'Menu' and select 'HVAC Settings.'

Step 2: Select ‘Threshold Settings’.

Step 3: You can choose from the premade threshold templates (energy saver, optimal, or comfort) or select 'Advanced' to change settings according to your preferences.





Equipment Stage Control

It gradually turns off the heating or cooling stages as the home temperature moves closer to the set point. It is only available if your equipment has more than one heating or cooling stage. Enabling this option saves you energy.

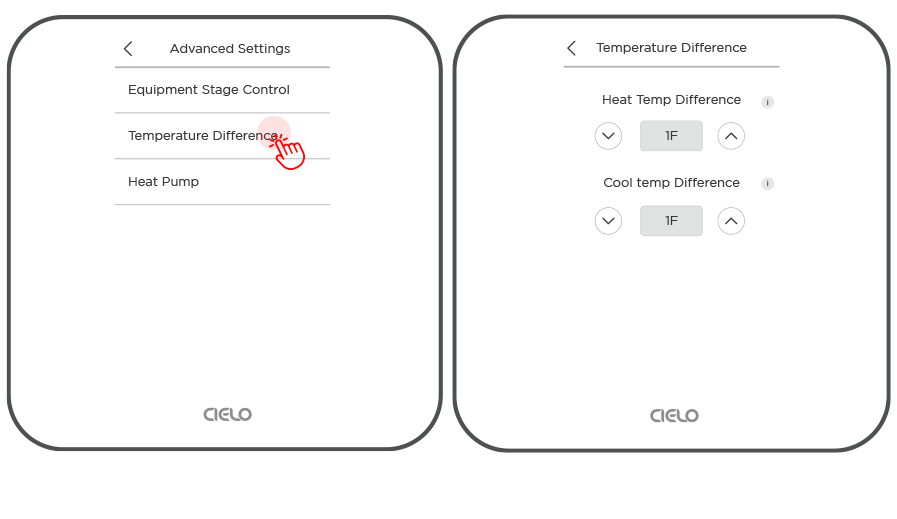

Temperature Difference

Set the minimum temperature difference that the Cielo Smart Thermostat will take into account before engaging in heating and cooling.

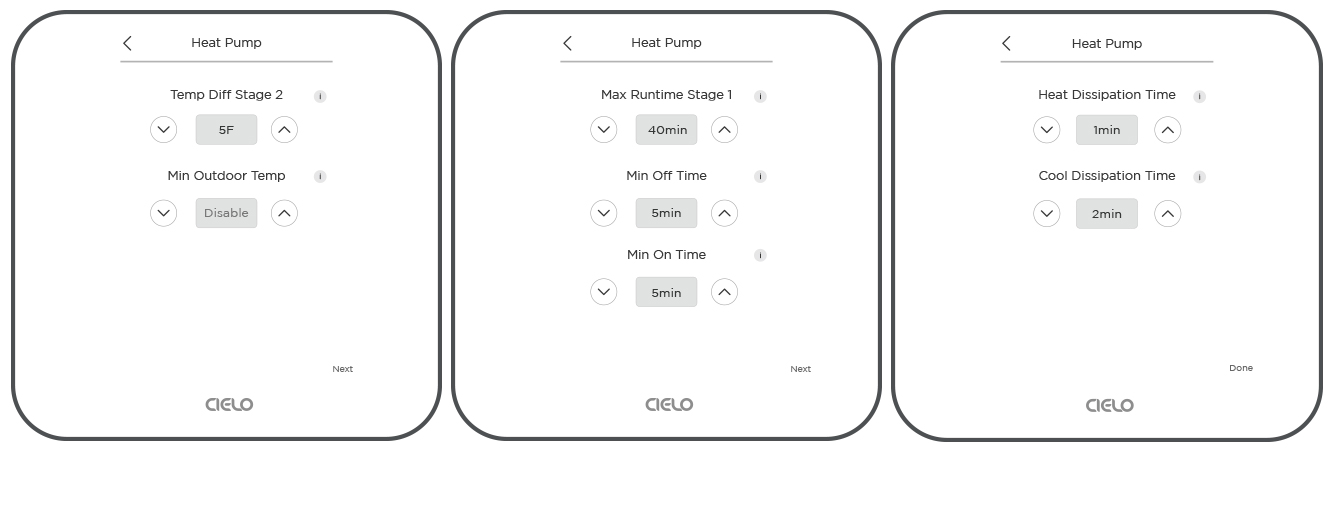

Heat Pump Settings

Temperature Difference - Stage 2

This is the temperature difference between the indoor and the setpoint before engaging stage 2. Use up and down arrows to adjust the difference.

Minimum Outdoor Temperature

This is the lowest outdoor temperature below which the heat pump will be automatically turned off, and Aux heating (if available) will be used as a heat source.

Use the up and down arrows to set the minimum outdoor temperature. You can also disable this setting. However, it is not advised to keep the system running at a temperature below what it can handle.

Max Runtime Stage 1

Use the up and down arrows to set the maximum number of minutes that stage 1 will run before engaging stage 2 of the compressor.

Minimum Off Time

Use the up and down arrows to set the minimum amount of time the compressor remains off between cycles.

Minimum On Time
Use the up and down arrows to set the minimum amount of time the compressor will stay on. In case the compressor is activated but the call is terminated abruptly, the compressor will run for the set duration before shutting down.

Heat Dissipation Time

This is the time in minutes that the fan of your HVAC system will run after your heating has been turned off. Use up and down arrows to adjust the time.

Cool Dissipation Time

This is the time in minutes that the fan of your HVAC system will run after your cooling has been turned off. Use up and down arrows to adjust the time.

Test Equipment

The Test Equipment feature allows you to test heating, cooling, fan, or connected accessories to assist with troubleshooting and confirm the system is working properly.

Step 1: Tap the ‘Menu’ icon.

Step 2: Go to ‘HVAC Settings’.

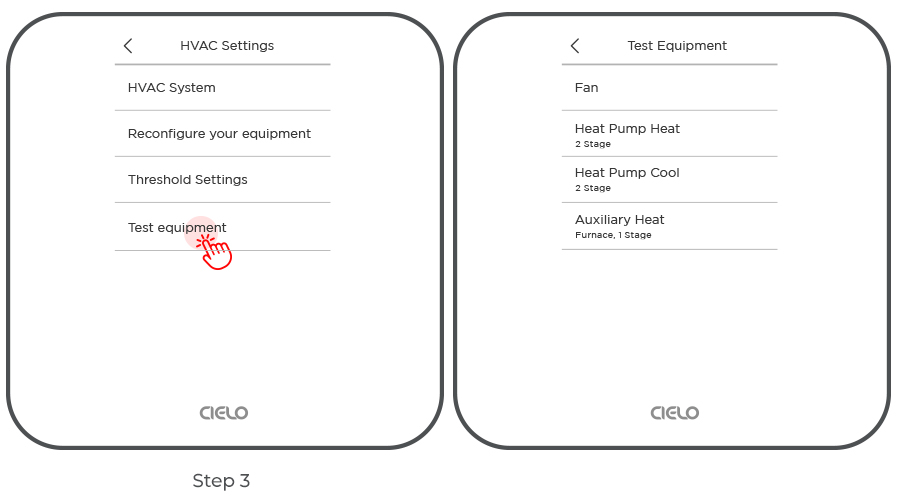

Step 3: Tap on ‘Test Equipment’.

You will find the various system functions available for testing. Select the function you wish to test.

Note: The options displayed on the ‘Test Equipment’ screen will vary based on the configured equipment.

8. Changing Time Format

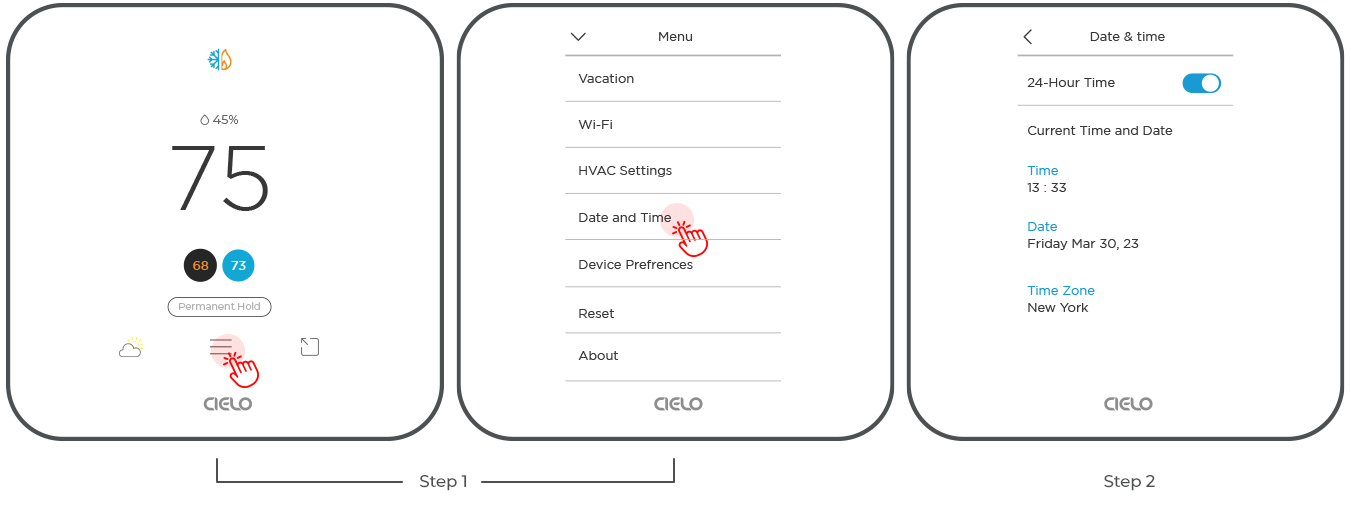

Step 1: Go to 'Menu' and select 'Date and Time.'

Step 2: Toggle the button to choose a 12 or 24-hour time format.

9. Device Preferences

9A. Changing Device Name

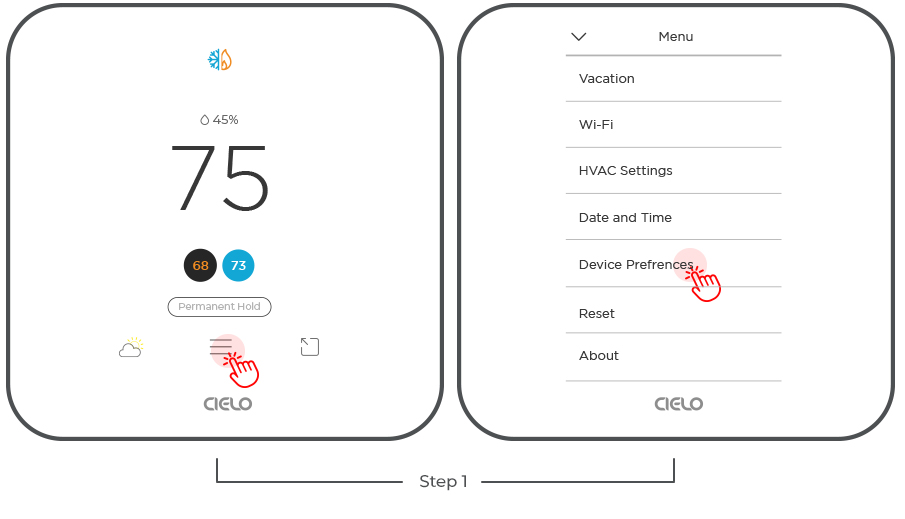

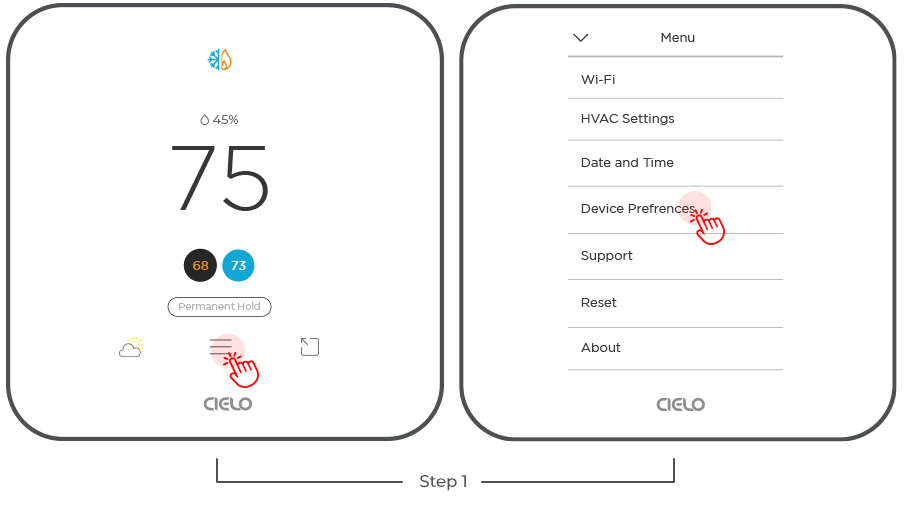

Step 1: Go to 'Menu' and select 'Device Preferences.'

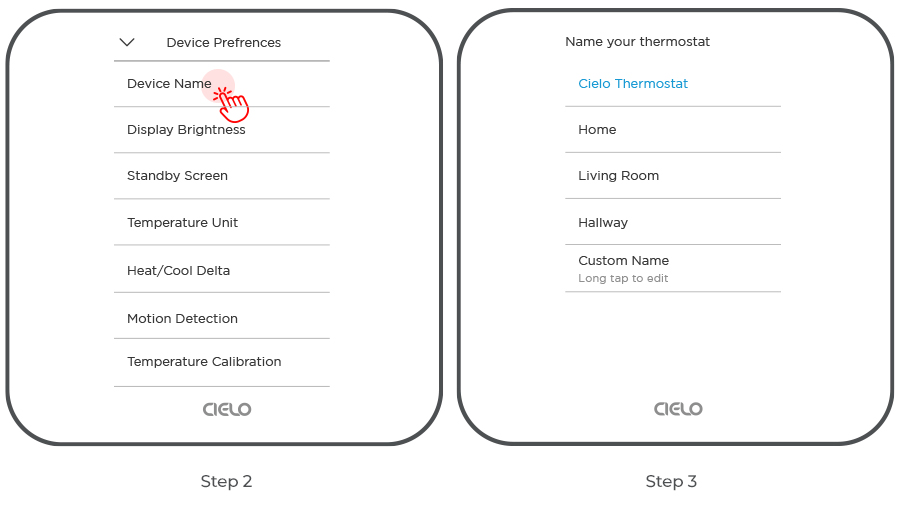

Step 2: Select ‘Device Name.'

Step 3: Select an existing name from the list or enter your own.



9B. Adjusting Screen Brightness

You can adjust the screen brightness of both the Control and Standby screens.

Step 1: Go to 'Menu' and select 'Device Preferences.'

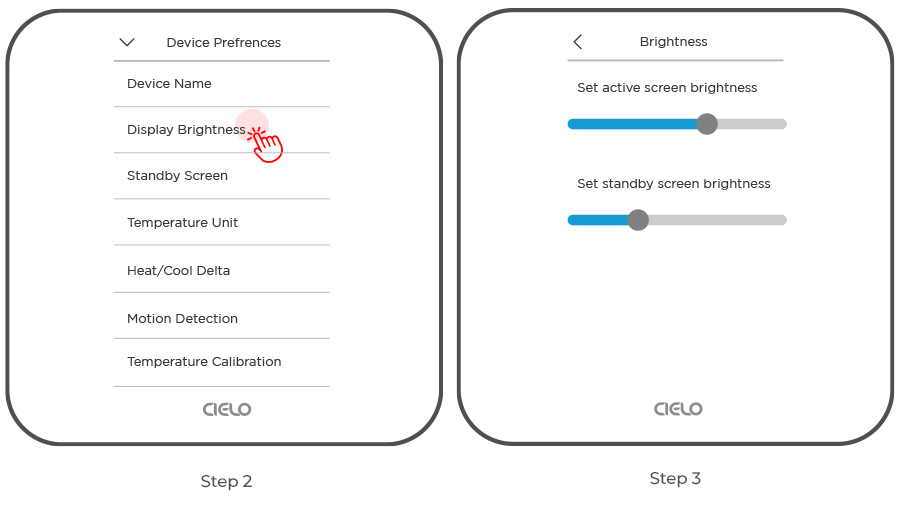

Step 2: Select ‘Display Brightness’.

Step 3: Use the slider to adjust the brightness.

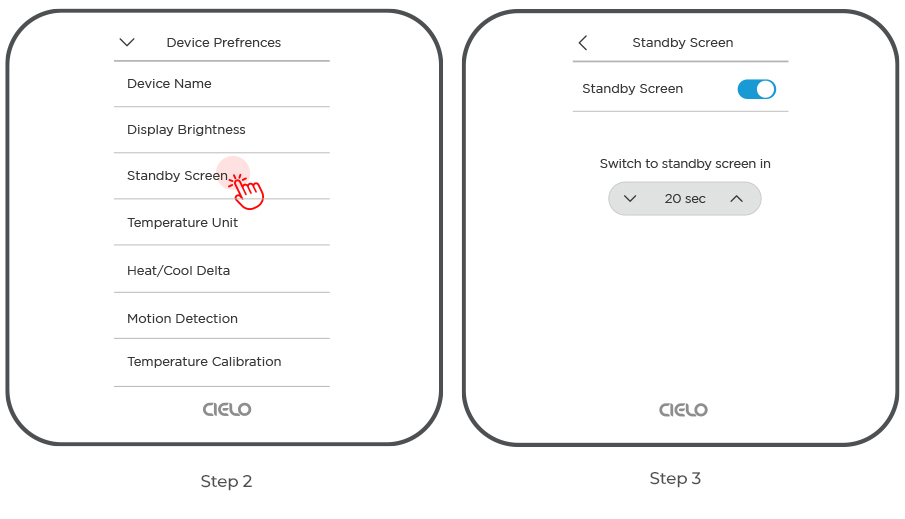

9C. Switch to Standby Screen Timer

You can adjust how long it takes to switch to the standby screen after you have finished using your thermostat.

Step 1: Go to 'Menu' and select 'Device Preferences.'

Step 2: Select ‘Standby Screen’.

Step 3: Use the up/down arrows to adjust the time.

9D. Switch Temperature Units Between Centigrade and Fahrenheit

Step 1: Go to 'Menu' and select 'Device Preferences.'

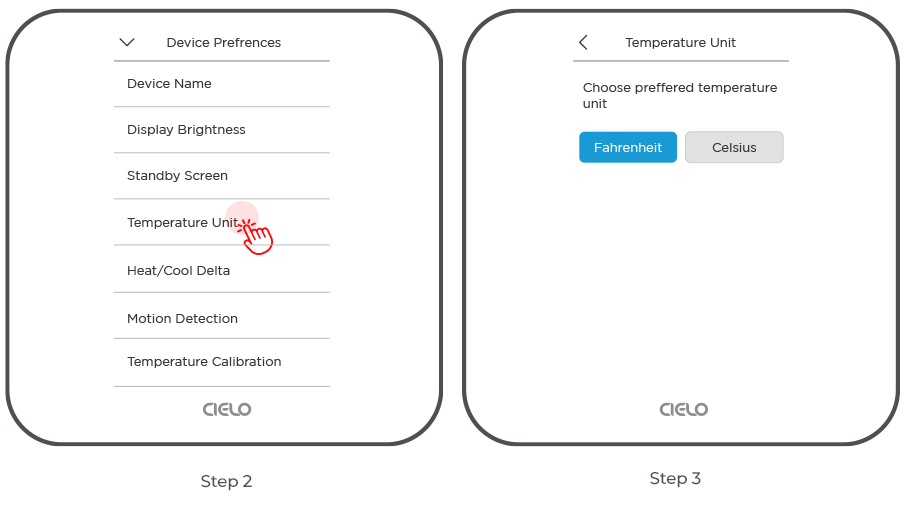

Step 2: Select ‘Temperature Unit’.

Step 3: Select your preferred temperature unit.

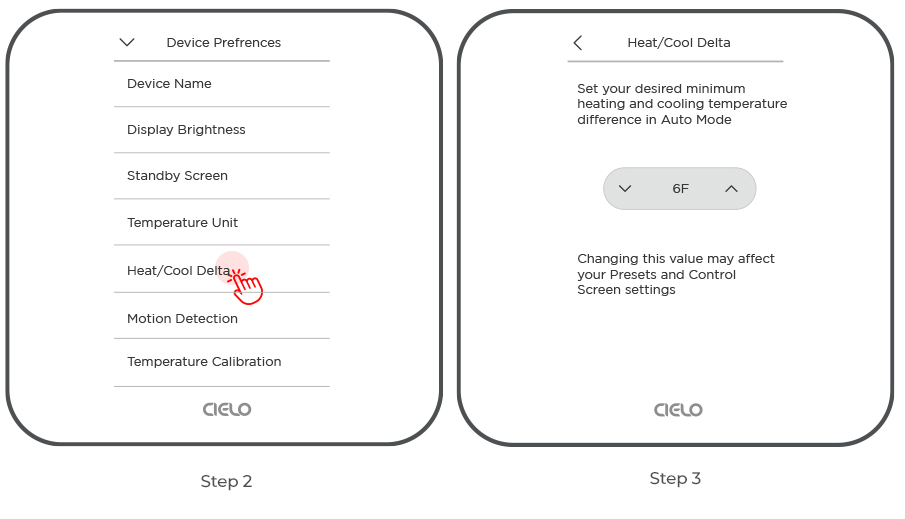

9E. Heat/Cool Delta
Set your desired minimum heating and cooling temperature difference in Auto Mode.

Step 1: Go to 'Menu' and select 'Device Preferences.'



Step 2: Select ‘Heat/Cool Delta.'

Step 3: Use up or down arrows to set your preferred temperature difference.





9F. Motion Detection

Your thermostat can automatically detect your presence and activate the control screen. You can also set it up to switch from Away to Home settings when motion is detected. Here's how to do it:

Step 1: Go to 'Menu' and select 'Device Preferences.'

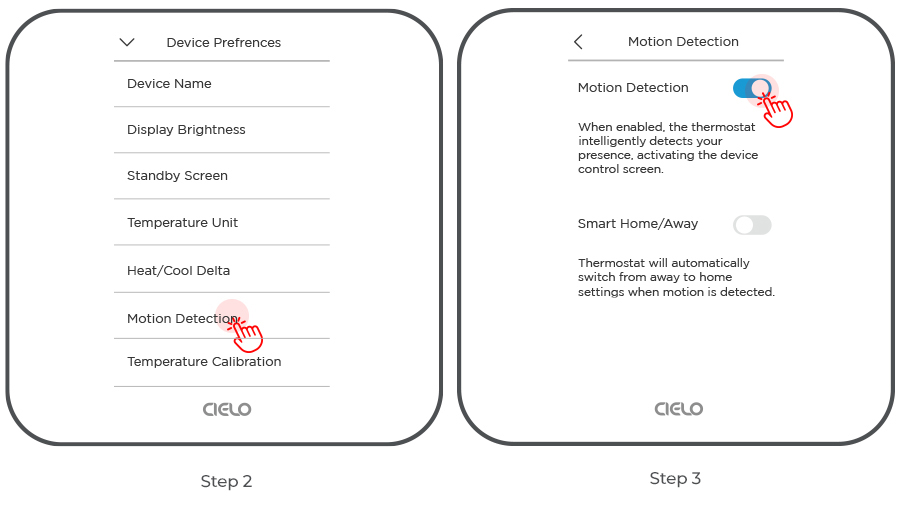

Step 2: Select ‘Motion Detection.'

Step 3: Toggle the button to turn on motion detection.

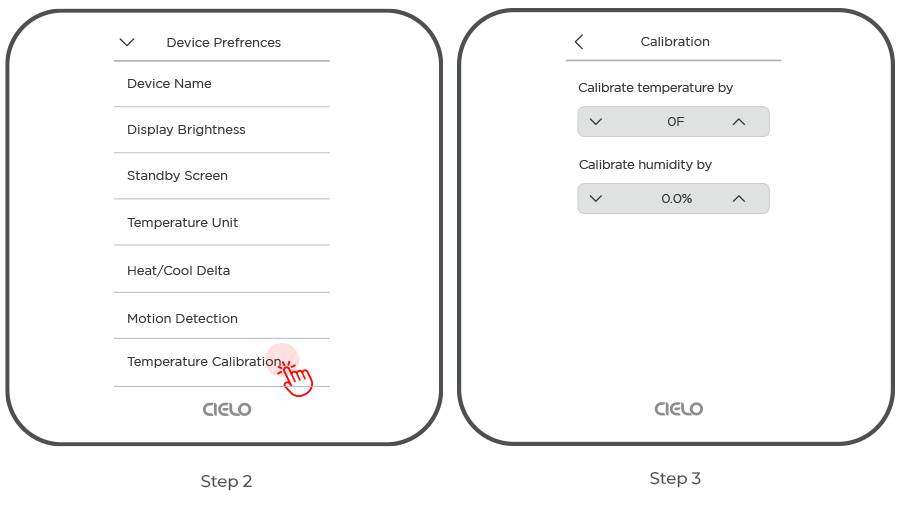

9G. Calibrating Temperature & Humidity

Calibration helps correct inaccuracies caused by differences between the ambient temperature/humidity levels near your thermostat and the rest of your home.

Step 1: Go to 'Menu' and select 'Device Preferences.'



Step 2: Select ‘Temperature Calibration’.

Step 3: Use the up/down arrows to adjust the temperature or humidity as required.



9H. Locking Your Thermostat

You can easily lock your Cielo Smart Thermostat to prevent unwanted adjustments.

Step 1: Go to 'Menu' and select 'Device Preferences.'

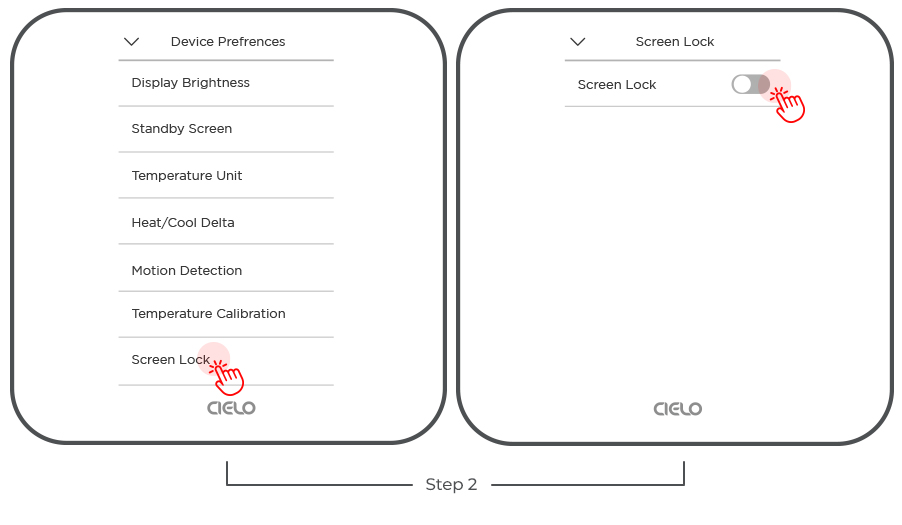

Step 2: Select ‘Screen Lock’. Toggle the screenlock button to set your passcode.

Step 3: Enter your passcode. Re-enter it. Your thermostat screen will be locked. You can unlock it using this passcode.

10. Resetting Cielo Smart Thermostat

10A. Resetting Preferences and Schedules

Resetting Preferences and Schedules will delete all the current settings and preferences, including schedules, hold settings, and motion detection.

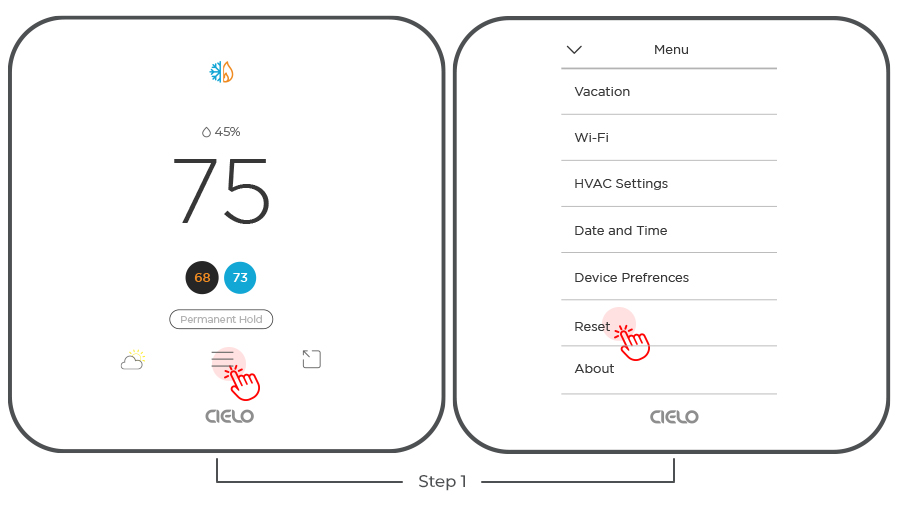

Step 1: Go to 'Menu' and select 'Reset.'

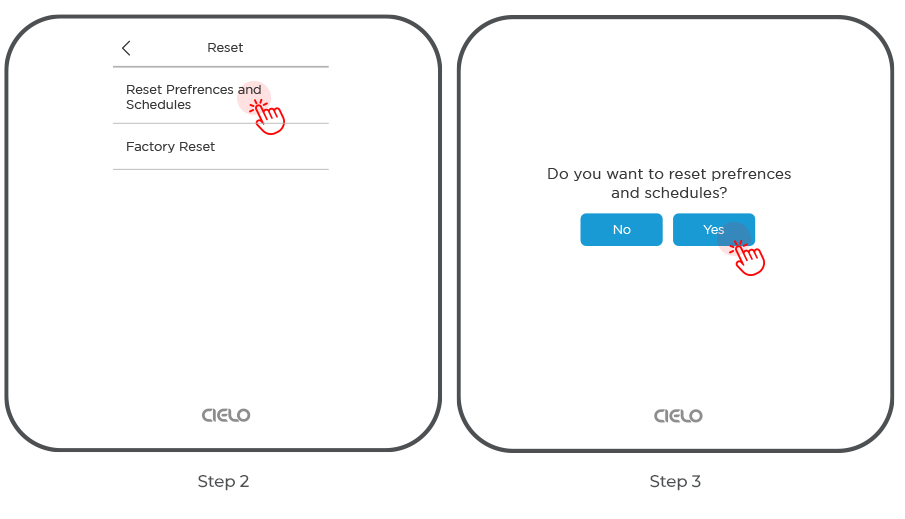

Step 2: Select ‘Reset Preferences and Schedules.'

Step 3: Tap 'Yes.'

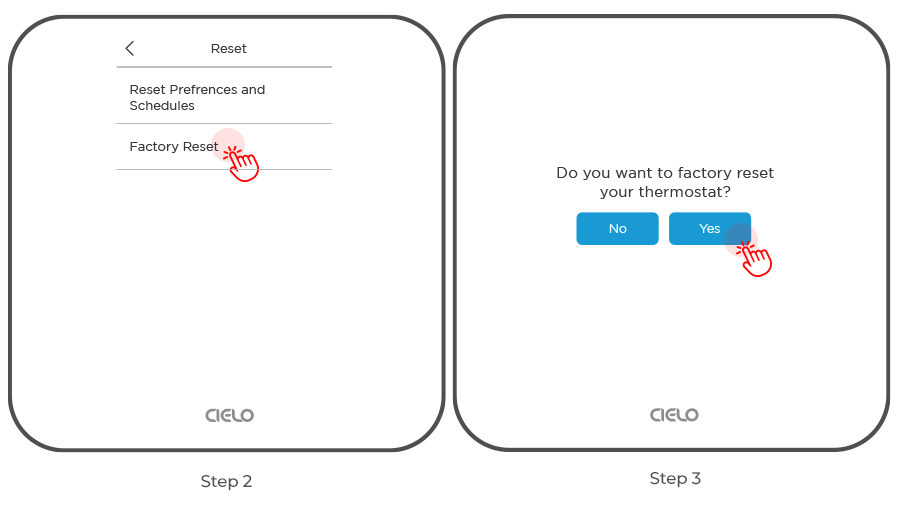

10B. Factory Reset

By selecting Factory Reset, your thermostat will be completely erased, restoring it to its factory settings.

Step 1: Go to 'Menu' and select 'Reset.'

Step 2: Select ‘Factory Reset.'

Step 3: Tap 'Yes.'

Checking Details of Your Thermostat

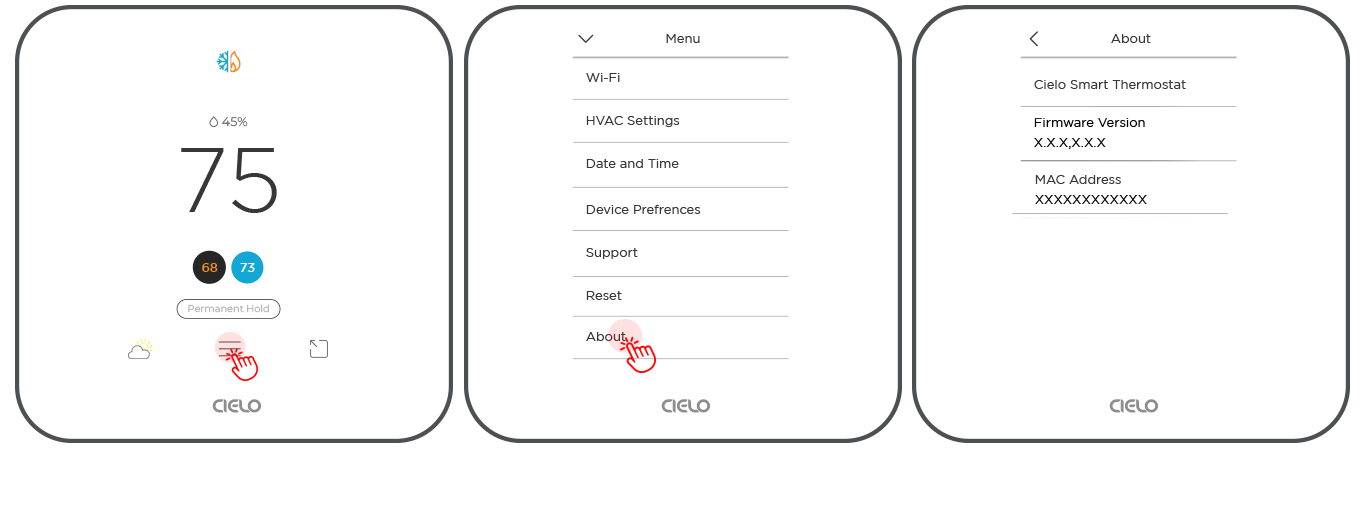

Step 1: Go to 'Menu' and select 'About.'
You can see the device details here.
