Can I install & register Cielo Breez Eco myself?

Yes, you can easily install & register the Breez Eco device by yourself. Plug in the device using the 5V adapter & micro usb cable. Once the device turns on you will find it in broadcast mode, take out your smart phone and simply download the ‘Cielo Home’ app and follow instructions.

For optimal placement and control:

• Make sure Breez Eco is in the line of sight of your air conditioner or heat pump.
• To avoid deviated sensor readings, do not place Breez Eco where it may be exposed to excessive sunlight or other heat sources.

Note: It is strongly advised that whenever there is a need to use the remote control for AC/heat pump, point it towards Breez Eco while performing any action. This way, your AC/heat pump, and Cielo Home app will always be in sync.

Prior to App Installation
For your phone:

• Make sure your smartphone’s Bluetooth is turned ON.
• Make sure your smartphone’s Wi-Fi is turned ON.
• Make sure your smartphone has internet access.

For your Wi-Fi router:

• Make sure you have a working internet connection on your Wi-Fi router.
• Make sure there is no proxy server or authentication server configured on your internet connection.
• Make sure there is no captive portal on your Wi-Fi router.

Note: Make sure IP isolation or client isolation is turned OFF on your Wi-Fi router.

App Installation & Registration

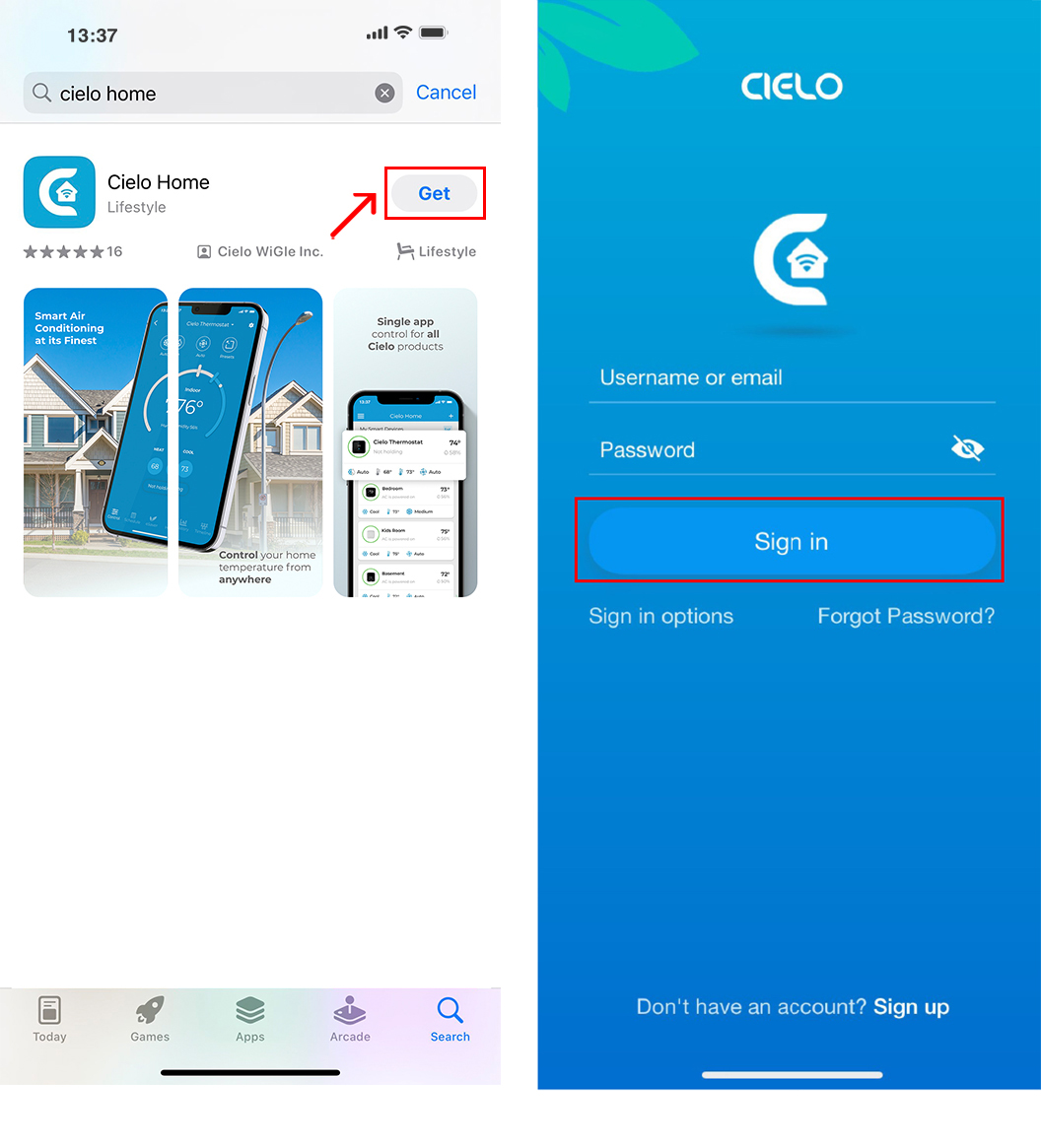

Install the ‘Cielo Home’ app from the App Store.
Log in to the app if you already have an account; otherwise, create one using the sign-up option.

Device Registration

Device registration process connects Breez Eco to your home Wi-Fi network through the Cielo Home app.

Note:

• For iOS 13.0 & above, location permission is required to complete the registration process. You may disable it later. For iOS 14.0 and above, Local Network Access permission is a requirement to successfully register the device.
• For Android OS 8.1 and above, location permission is required to complete the registration process. You may disable it later.  For Android 14 and above, Local Network Access permission is a requirement to successfully register the device.

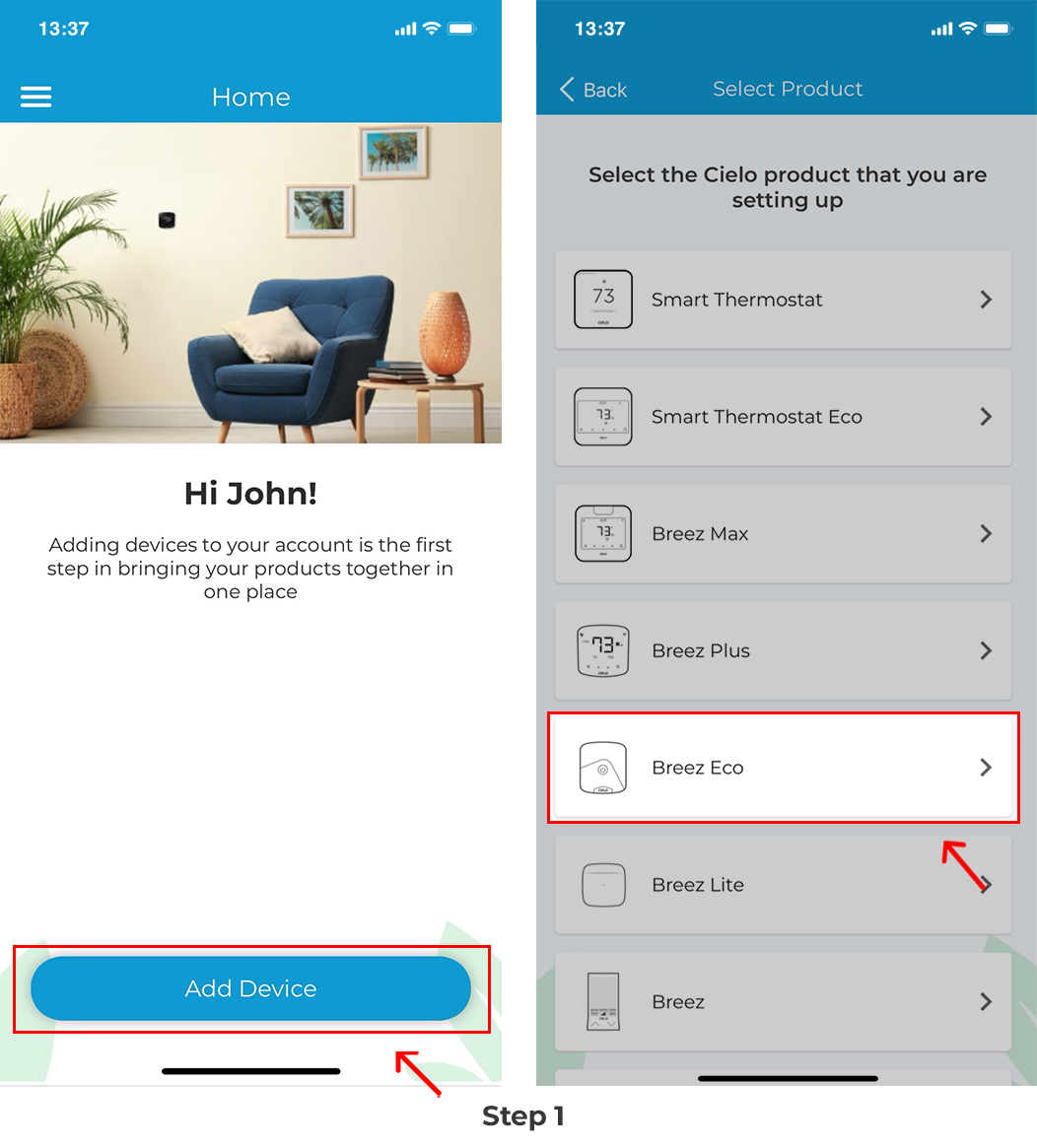

Step 1: Open the Cielo Home app, tap ‘Add Device' on the home screen, and select Breez Eco from the list of devices.

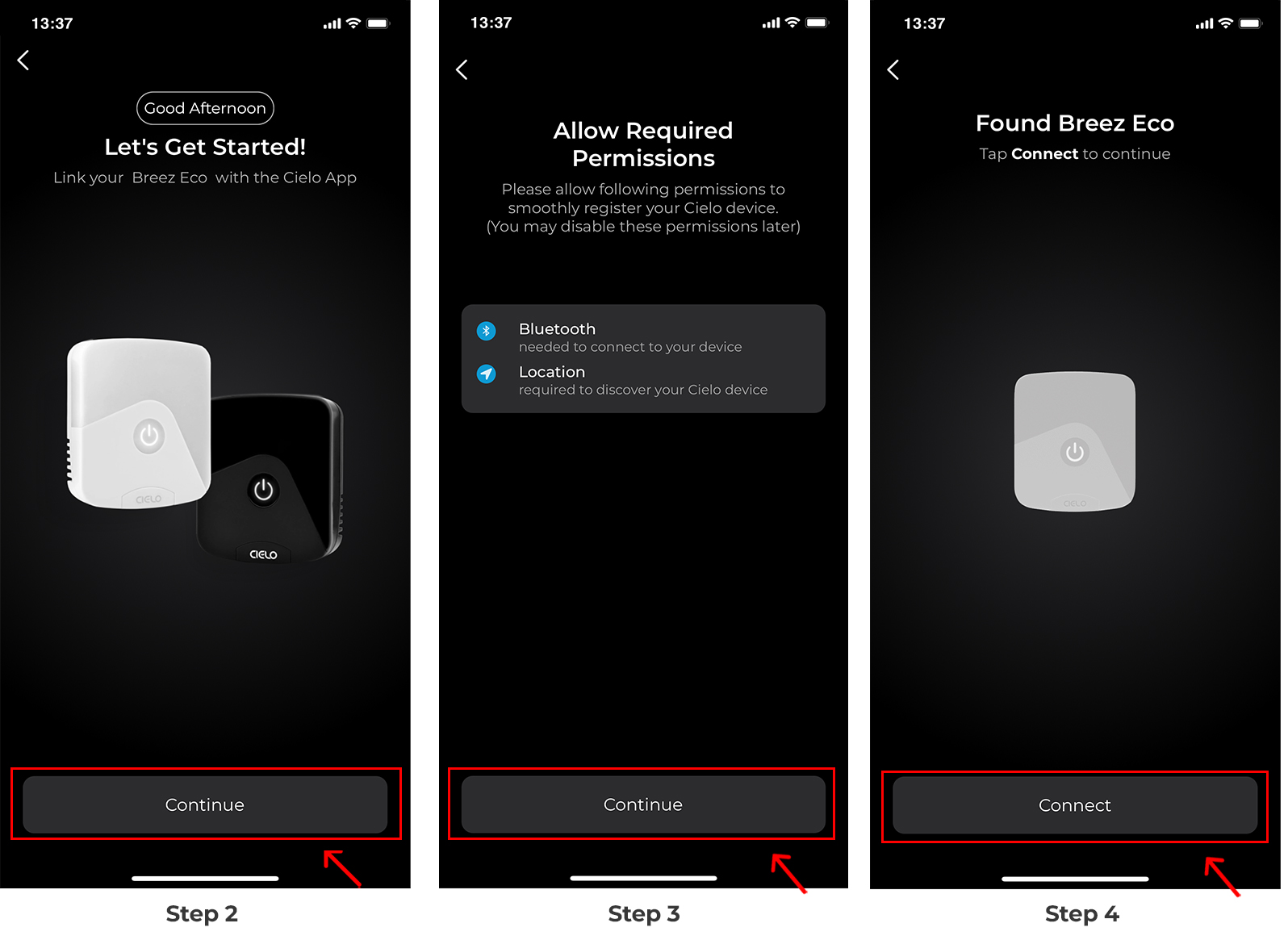

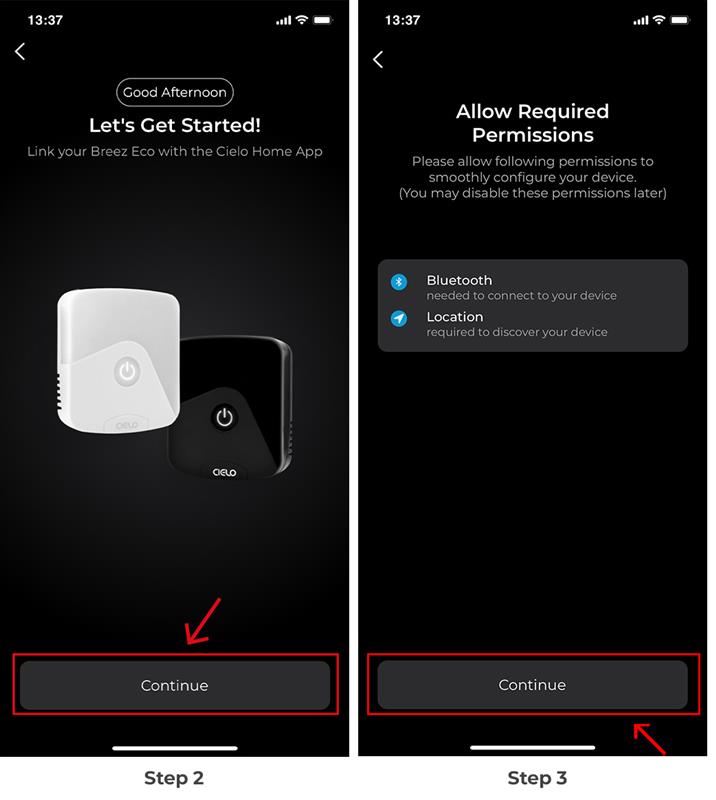

Step 2: Tap on ‘ Continue’.

Step 3: Allow required permissions. You may disable them later. Tap on ‘ Continue’.

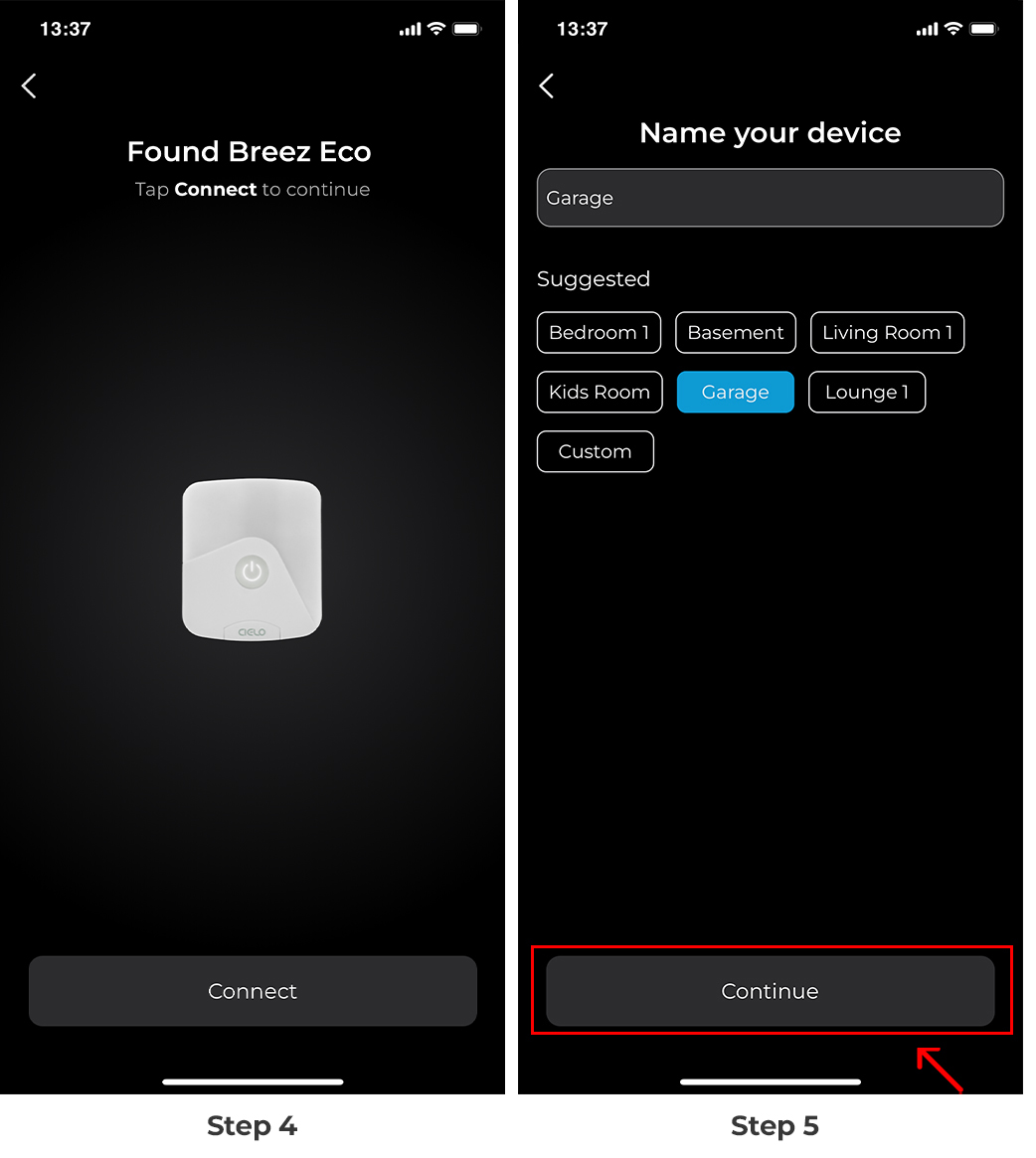

Step 4: Tap ‘Connect’.

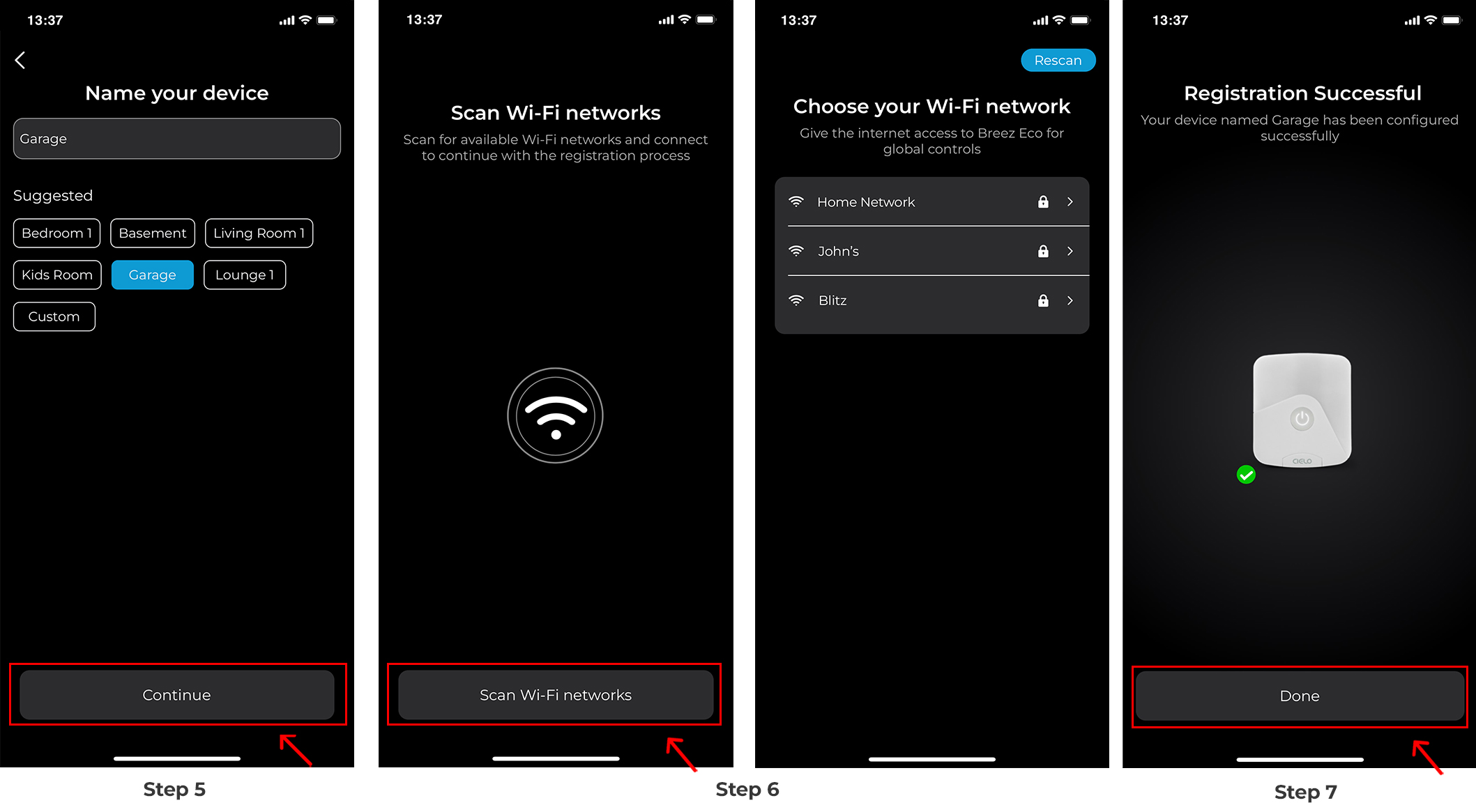

Step 5: Customize your device with a name of your choice (for example, Bedroom, Lounge, Office, etc.). Then tap on 'Continue'.

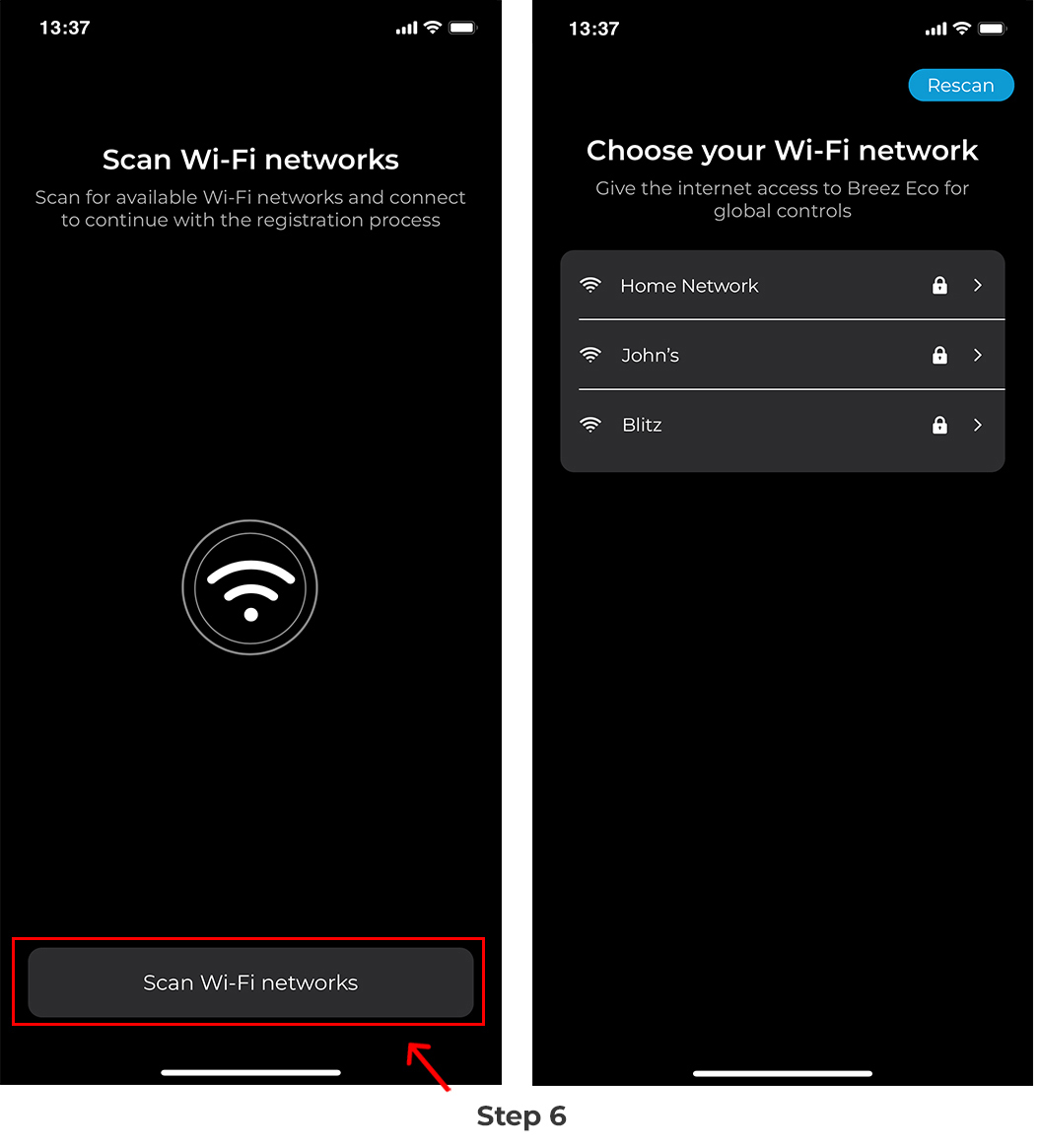

Step 6: Tap on ‘Scan Wi-Fi Networks’ to connect your device to Wi-Fi.

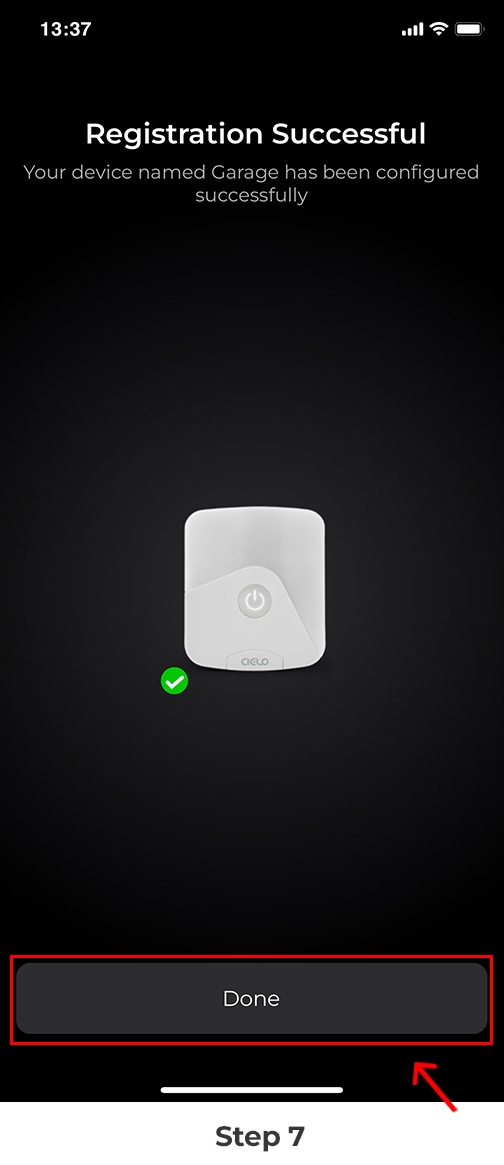

Step 7: Your device has been successfully registered. Tap on ‘Done’.

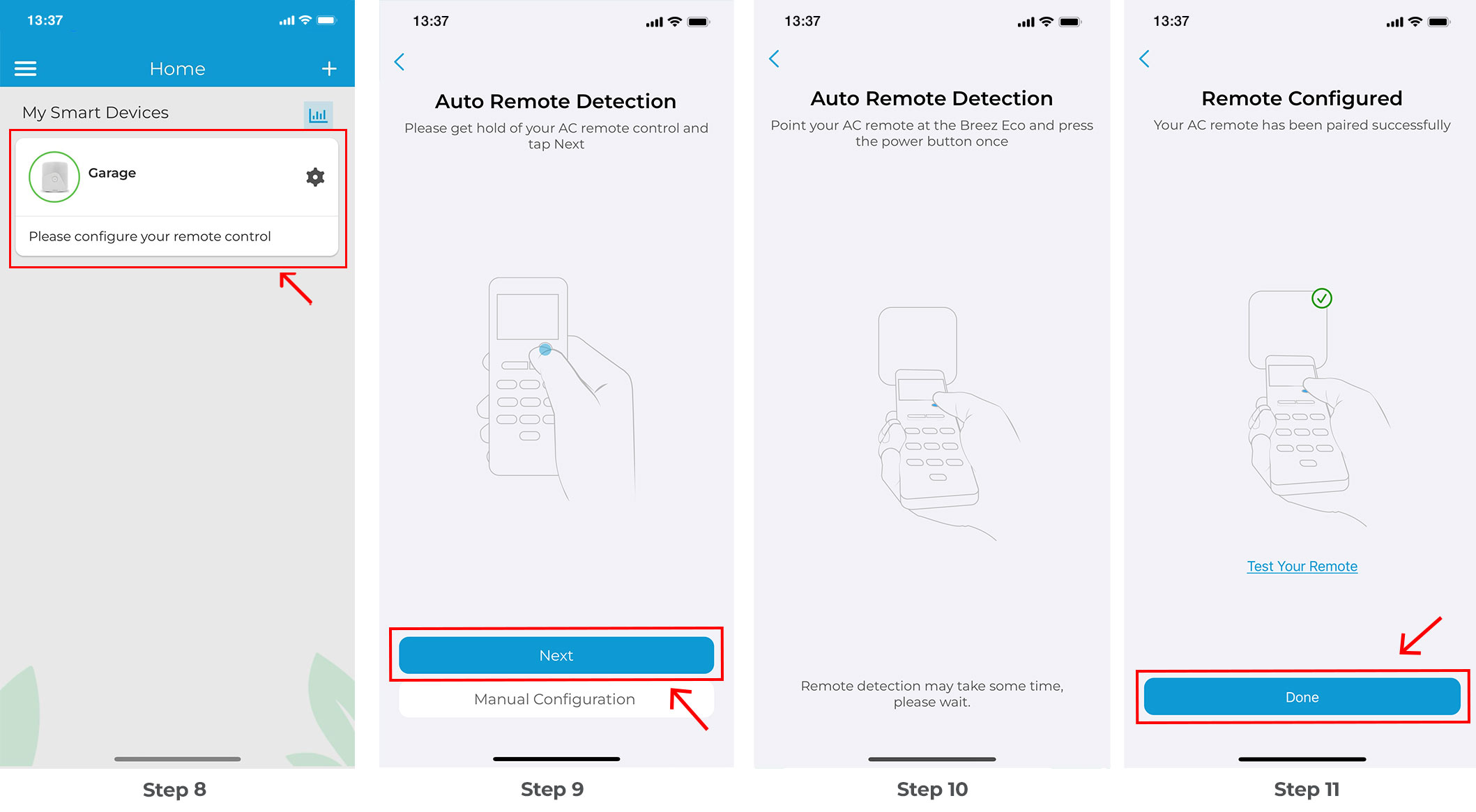

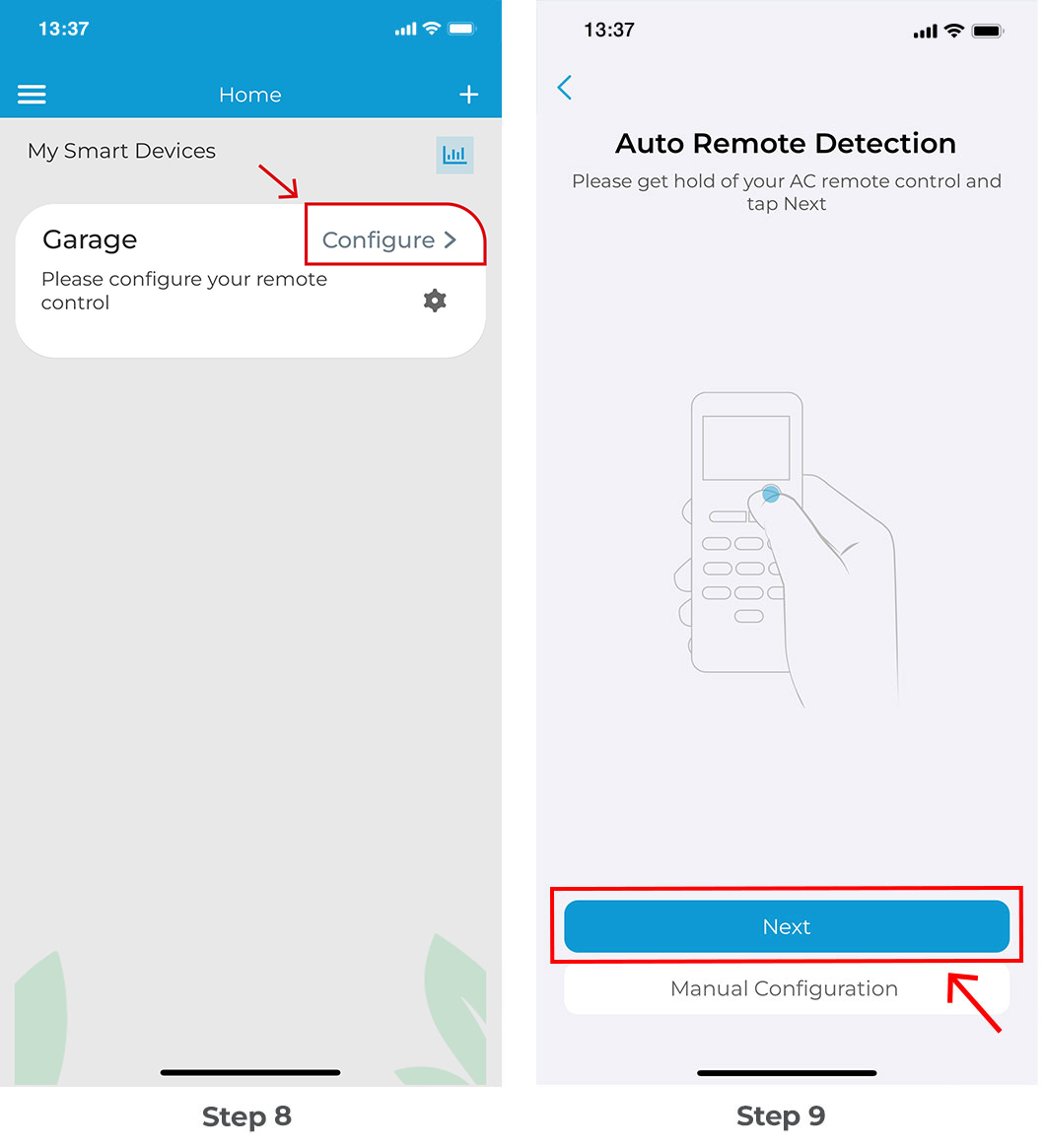

Step 8: After successful configuration, your device will display on your home screen.

Step 9: Get a hold of your AC’s remote and tap ‘Next’.

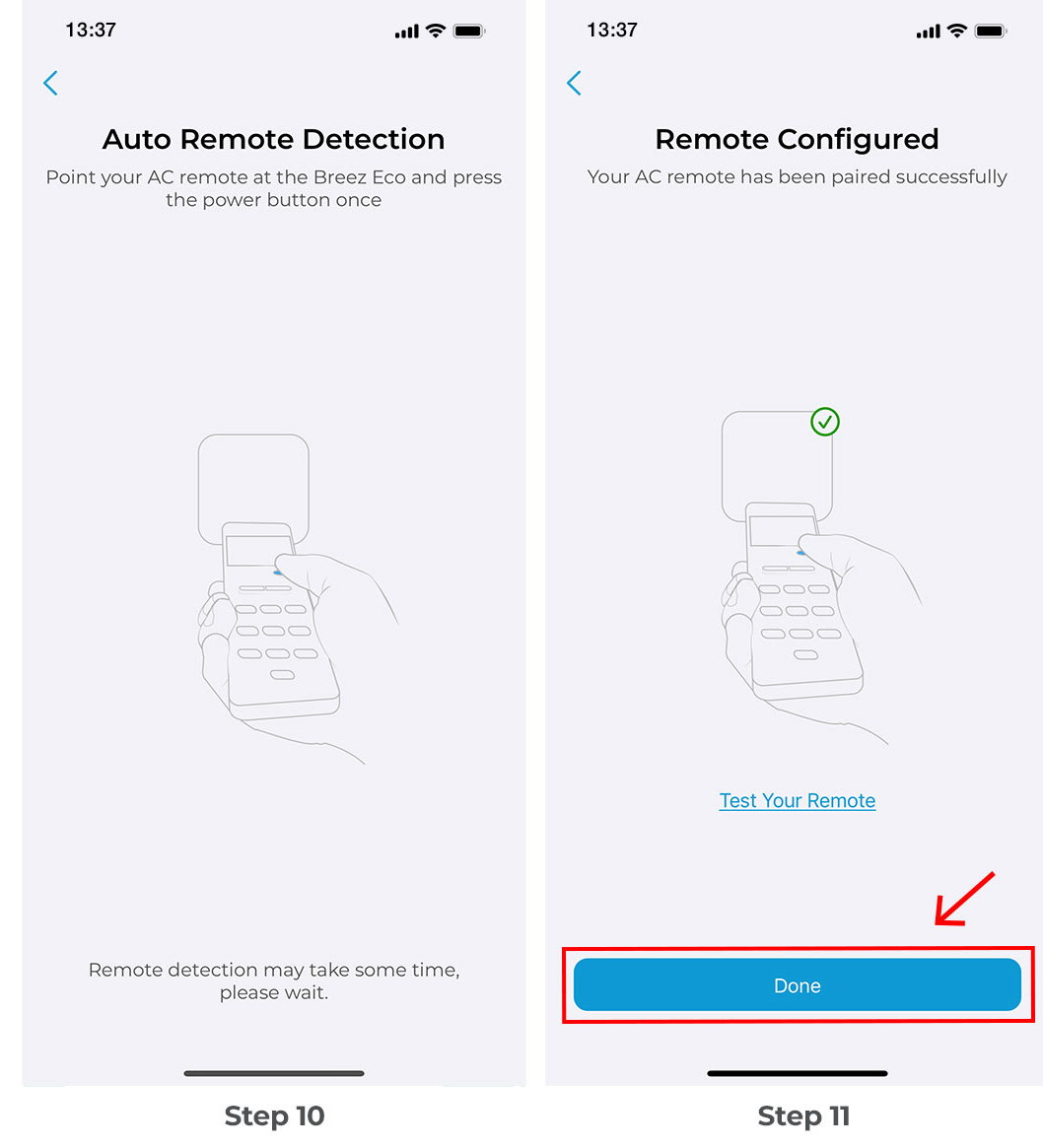

Step 10: Point your AC's remote at the Cielo Device and press the remote’s 'Power Button' once. It will start the processing & configuration process.

Step 11: Your remote is now paired with Breez Eco. Tap on ‘Done’.

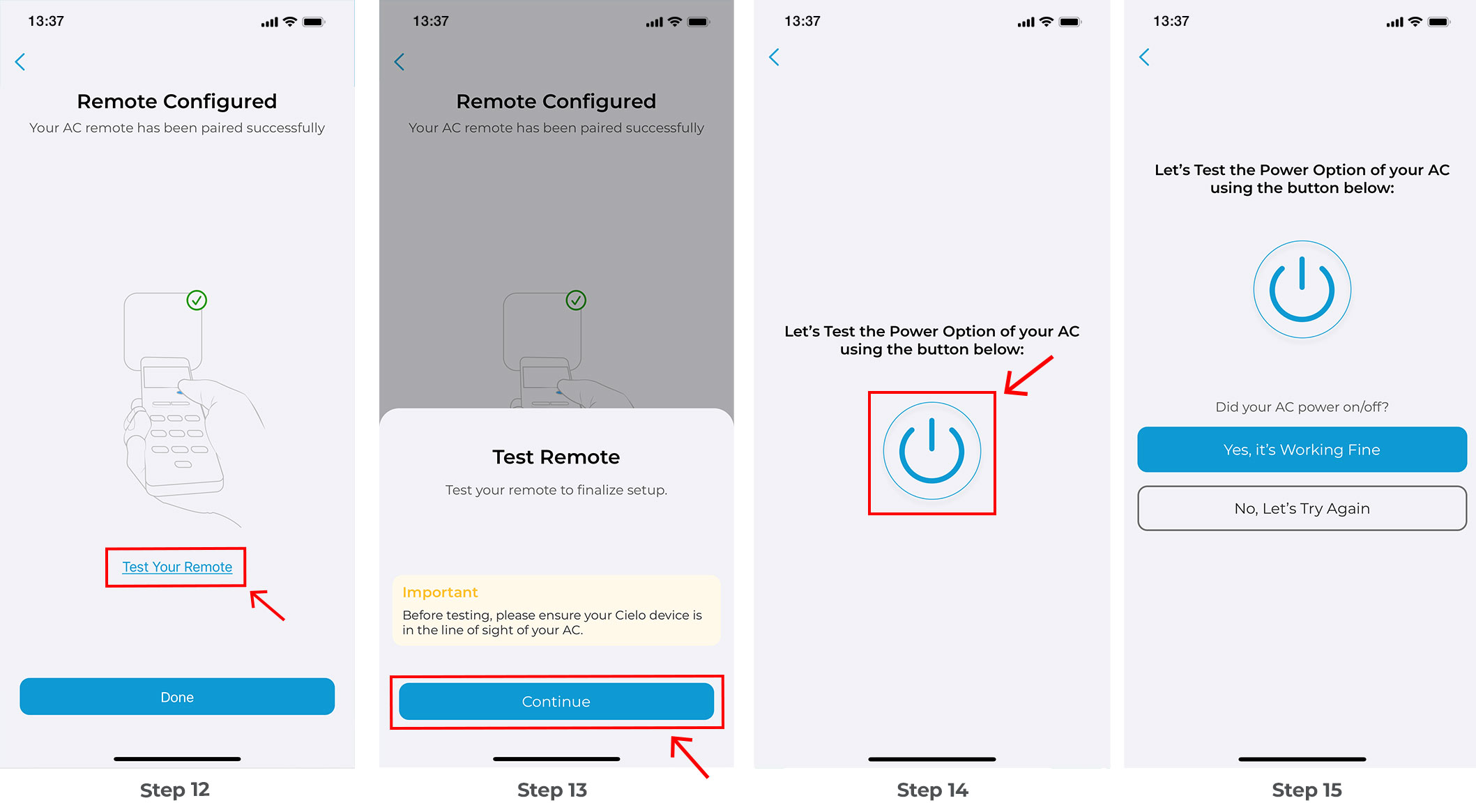

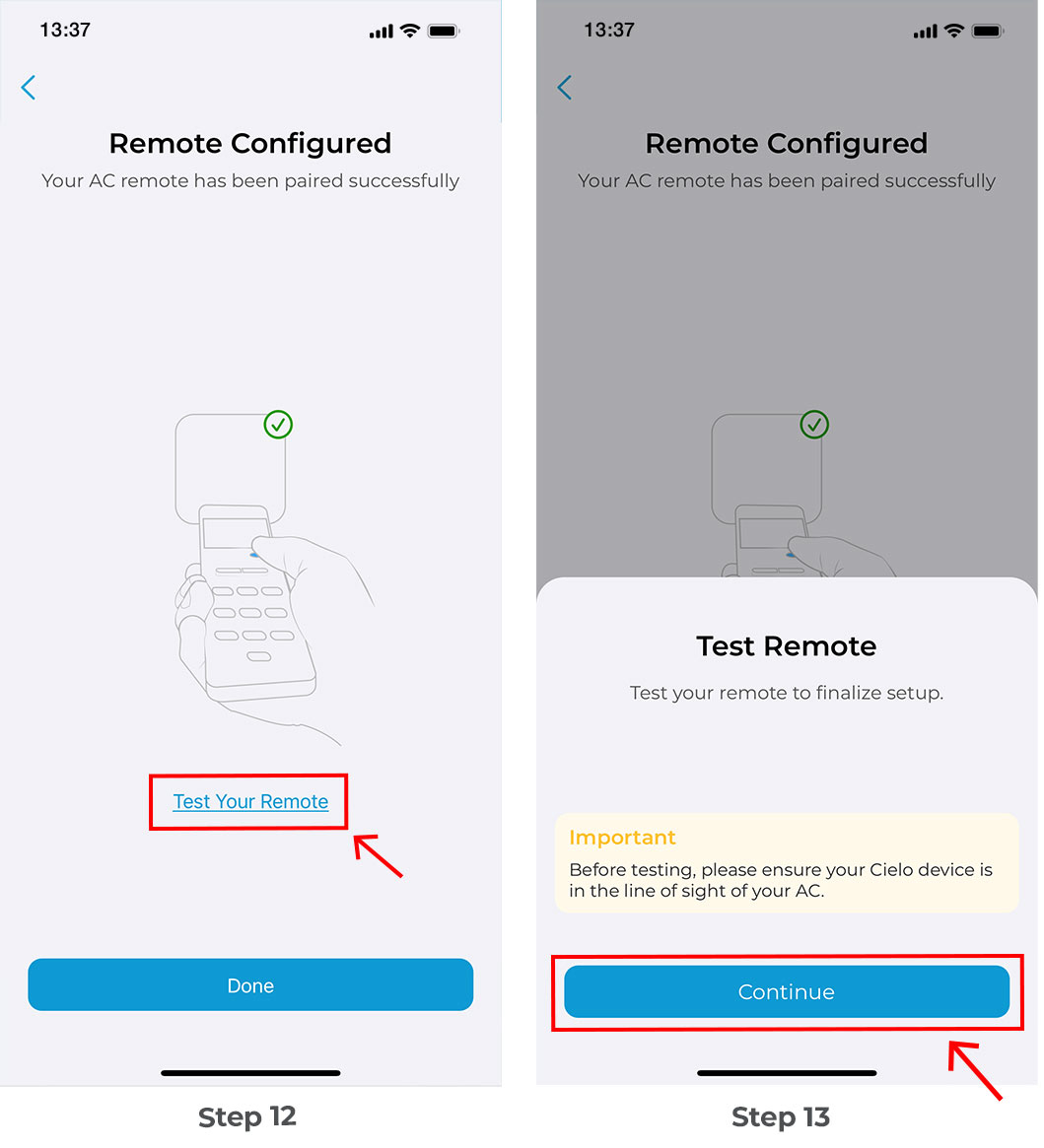

Step 12: To verify if your remote is configured correctly, tap on 'Test your remote.'

Step 13: Tap 'Contrinue.'

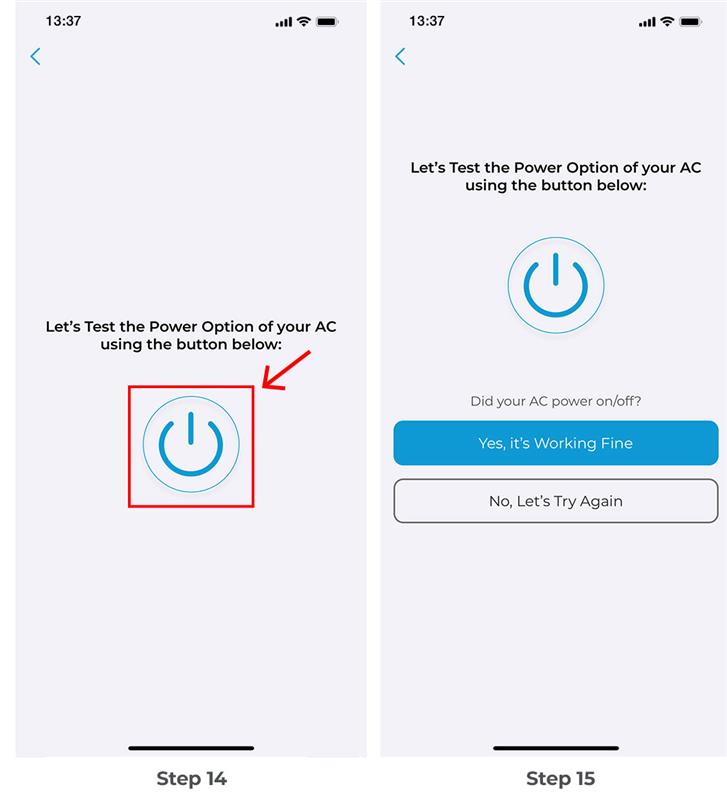

Step 14: Tap on the On/Off icon as shown.

Step 15: If your AC responds correctly, tap 'Yes, it's working fine.' If it doesn't, select 'Let's try again.'
