Breez Max Control Screen

Adjusting the temperature of your AC:
Use the up or down button to set the temperature of your choice.

Changing the mode of your AC:
Touch the menu button once. The AC modes will start blinking. Use the up or down
button to select the mode (e.g. Cool, Heat etc.).

Changing the fan speed:
Touch the menu button twice. The fan speed icon will start blinking. Use the up or down
button to change the fan speed.

Adjusting the swing position:
Touch the menu button thrice. The swing position icon will start blinking. Use the up or
down button to select the swing position.

Changing multiple settings:
You can set the mode, swing position & fan speed. Touch the menu button once and select
the mode of your choice. Touch the menu button again and adjust the fan speed. Touch
the menu button again and select the swing position.

Applying a Preset:

Tap on the preset icon to select the preset you want to apply.

Locking/Unlocking the display interface:

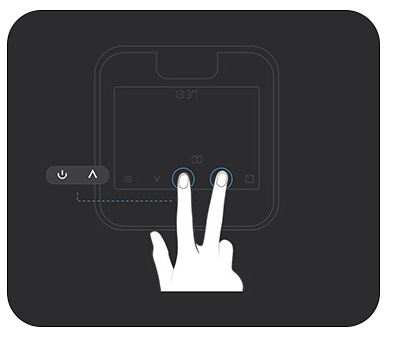

Touch and hold the Temperature Up and Down buttons simultaneously until the lock icon on the top right of the screen turns solid/disappears.

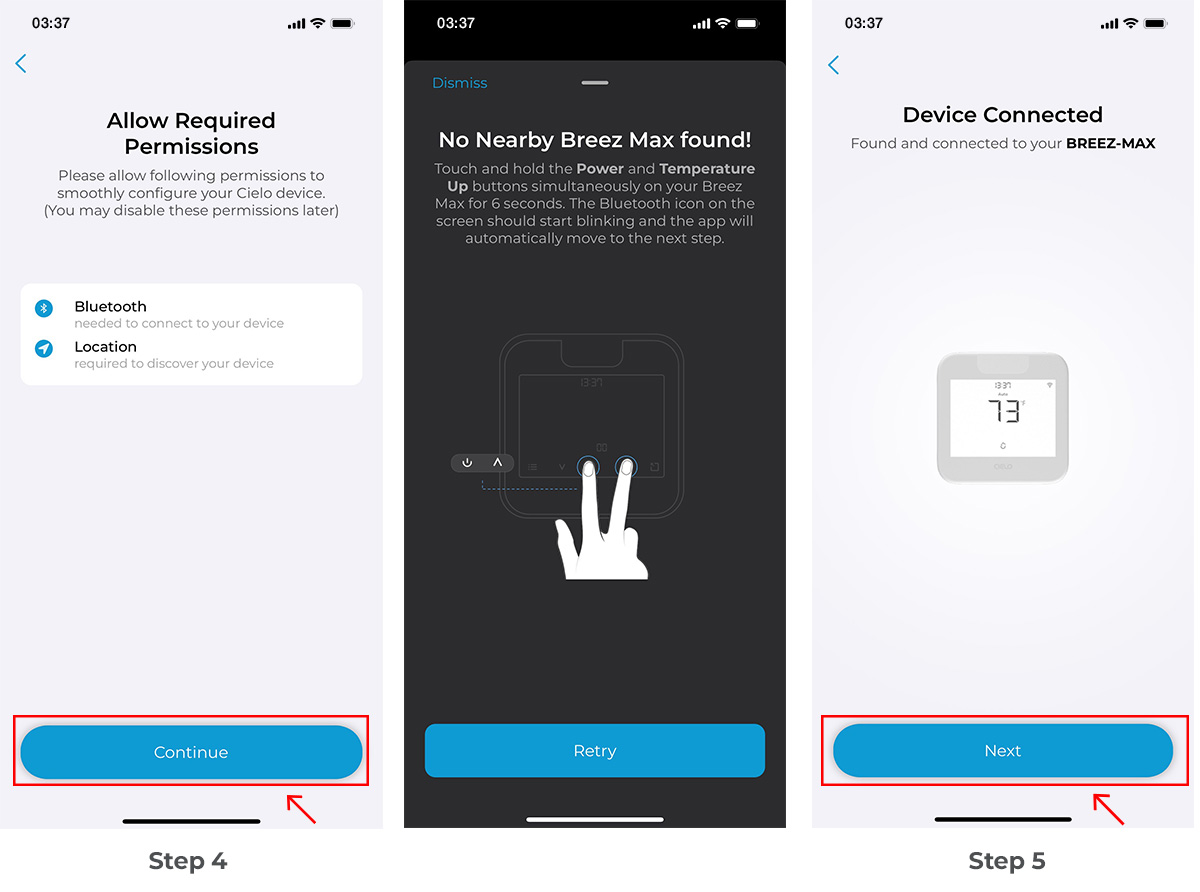

Resetting the Wi-Fi of Breez Max:
Touch and hold the Temperature Up and Power buttons simultaneously until the Wi-Fi icon disappears and the Bluetooth icon starts blinking.

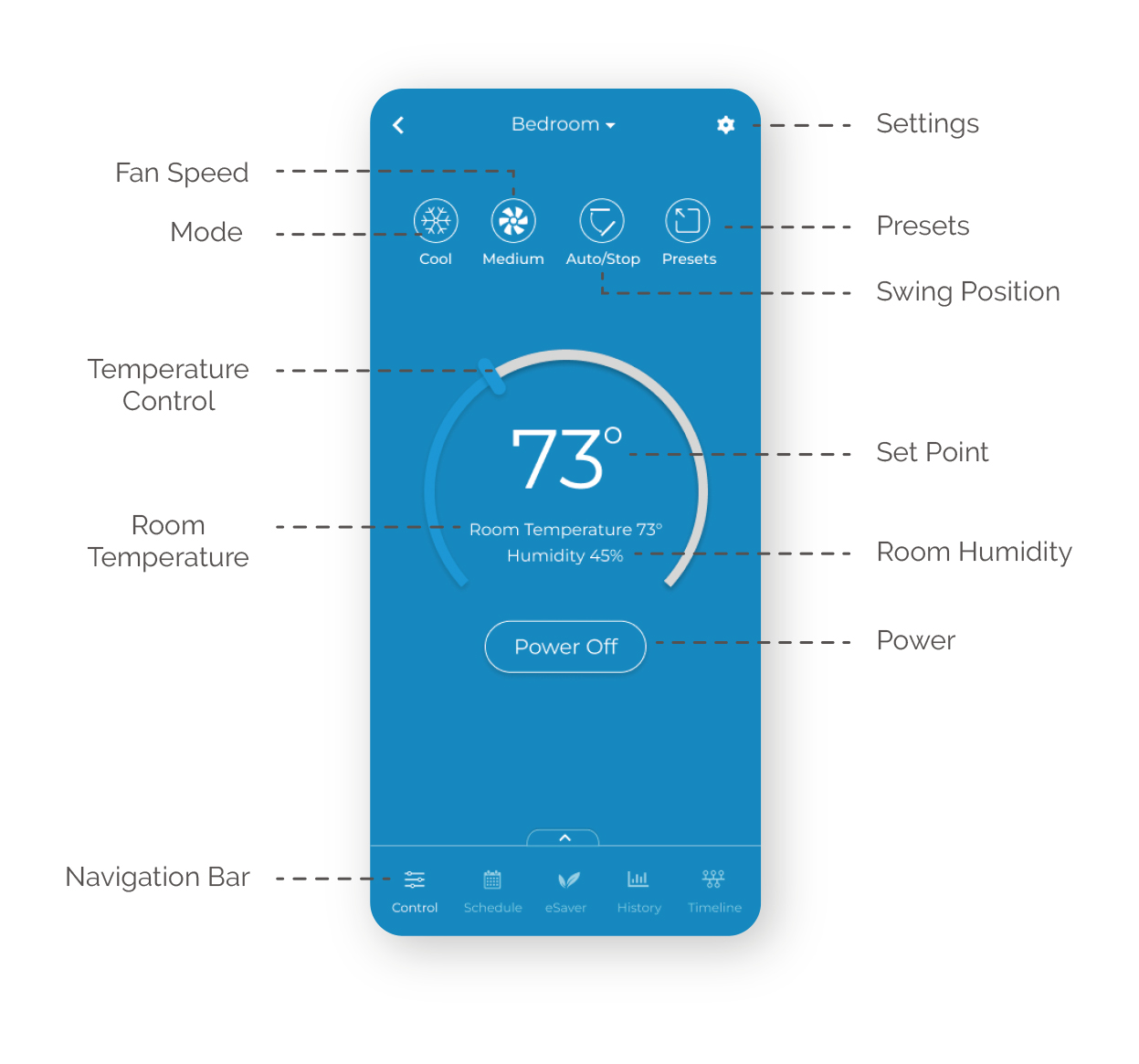

Cielo Home App Control Screen

Setting up Schedules for Your Heating and Cooling

Cielo Breez Max lets you set cooling/heating schedules, allowing you to enjoy a true smart home experience and maximize your energy savings.

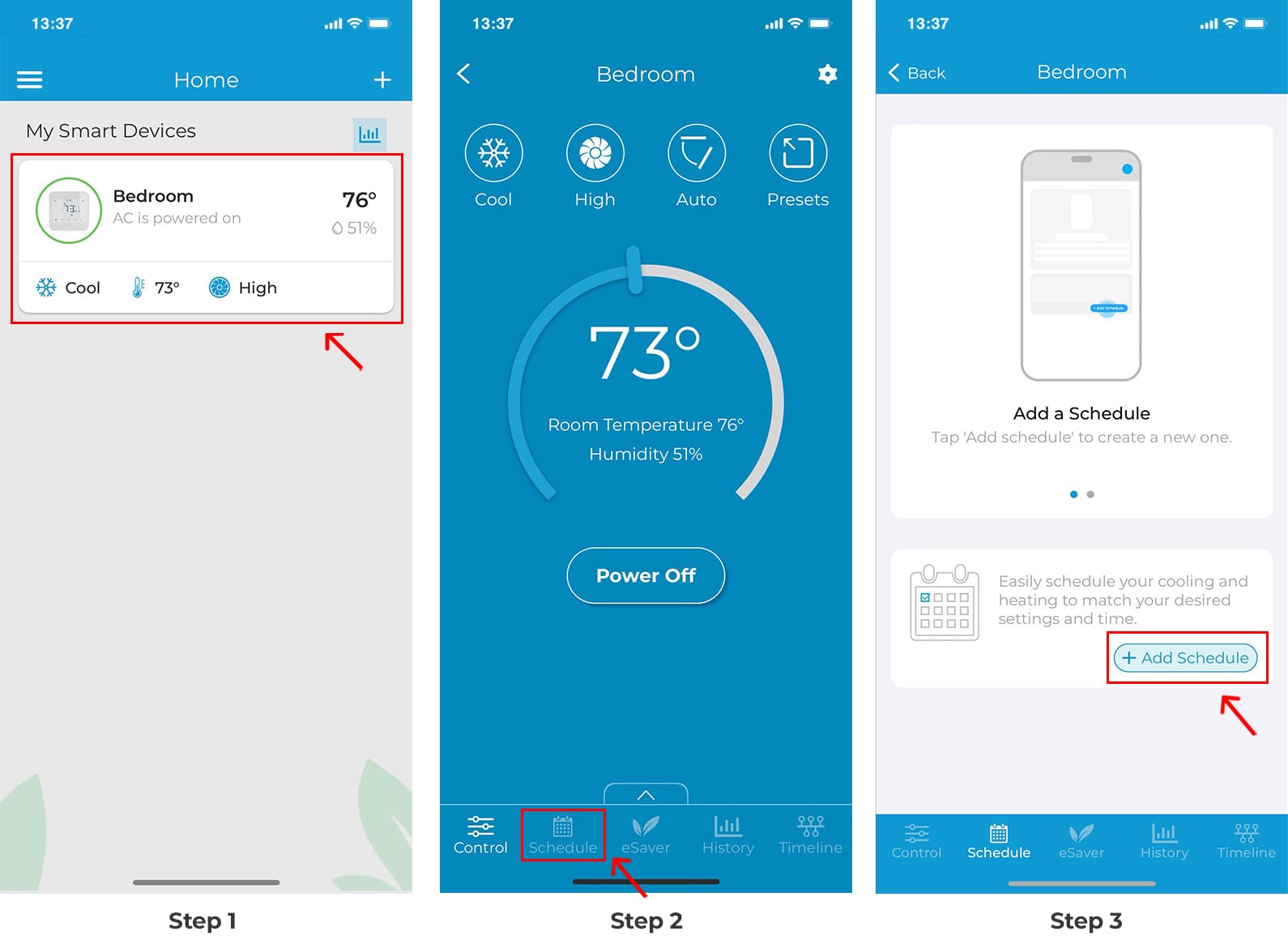

1. Setting up a Custom Schedule

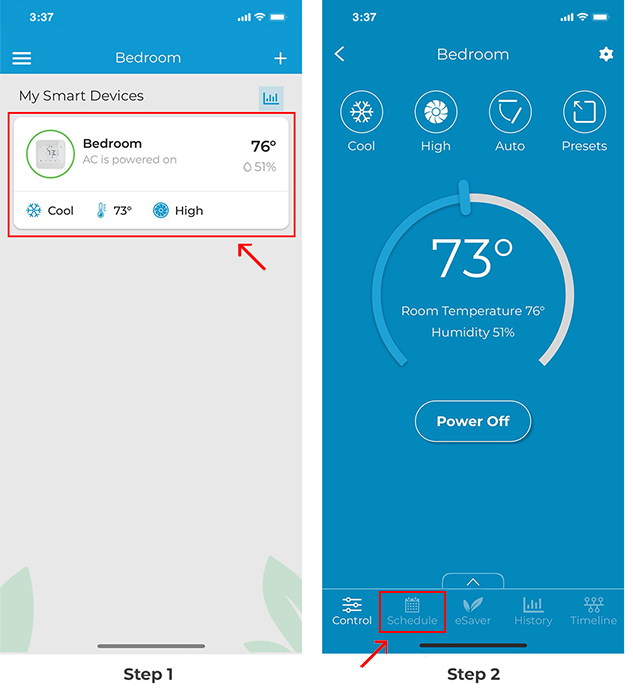

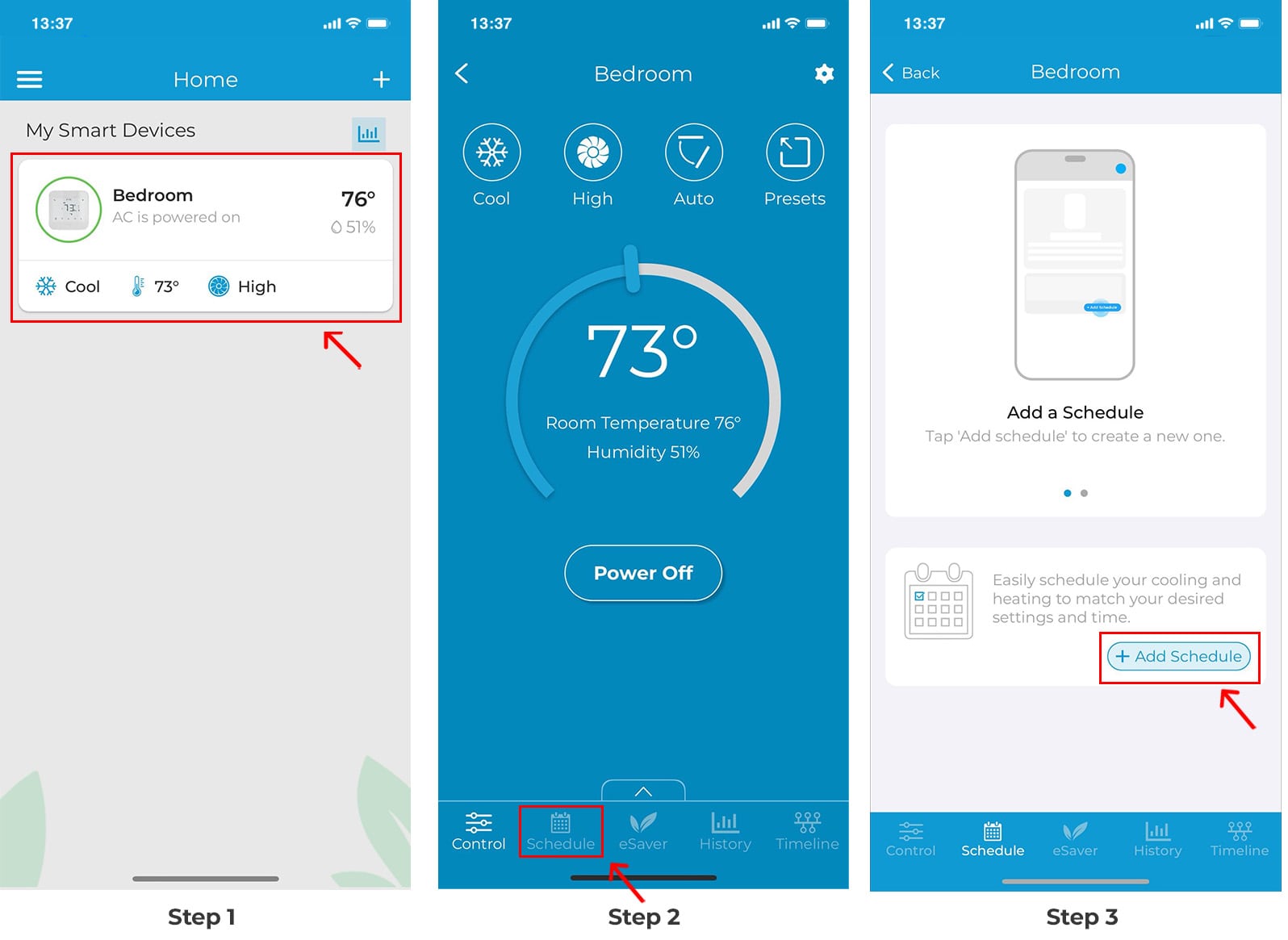

Step 1: On the Home screen, tap on the Breez Max you want to schedule.

Step 2: Tap on ‘Schedule’ in the navigation bar.

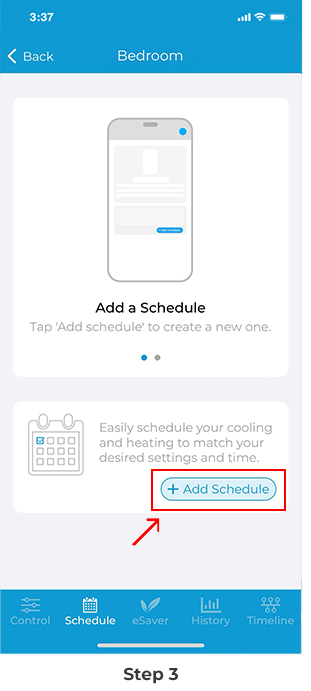

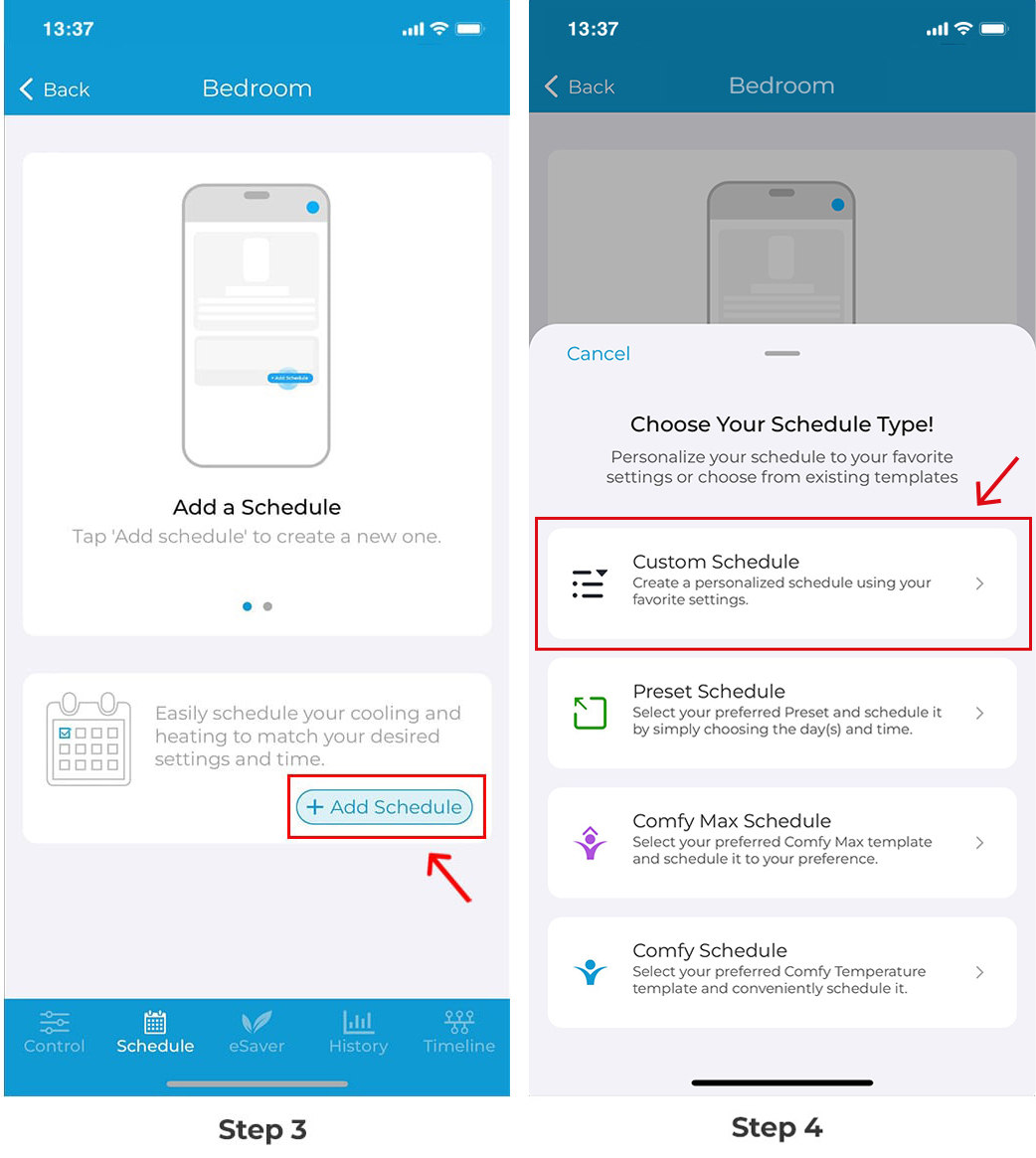

Step 3: Tap on '+ Add Schedule'.

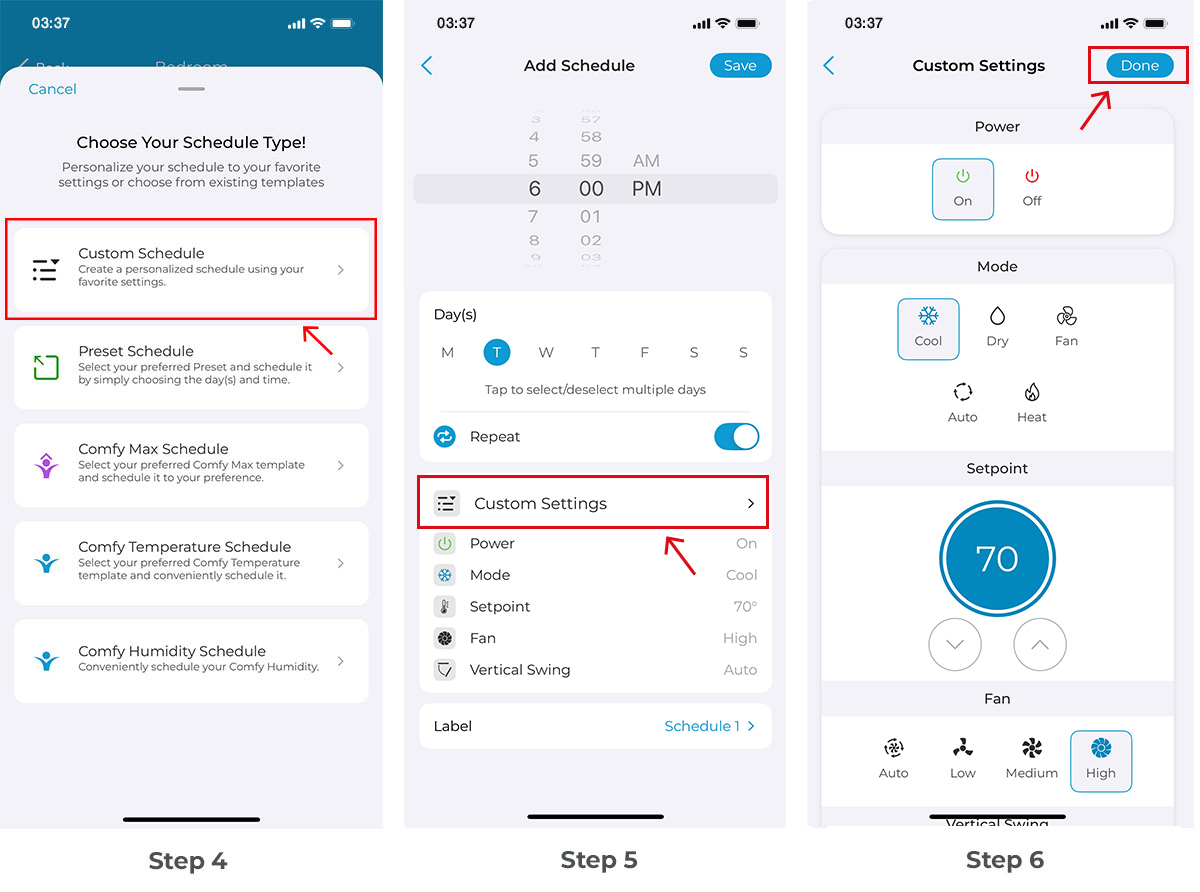

Step 4: Tap on ‘Custom Schedule’.

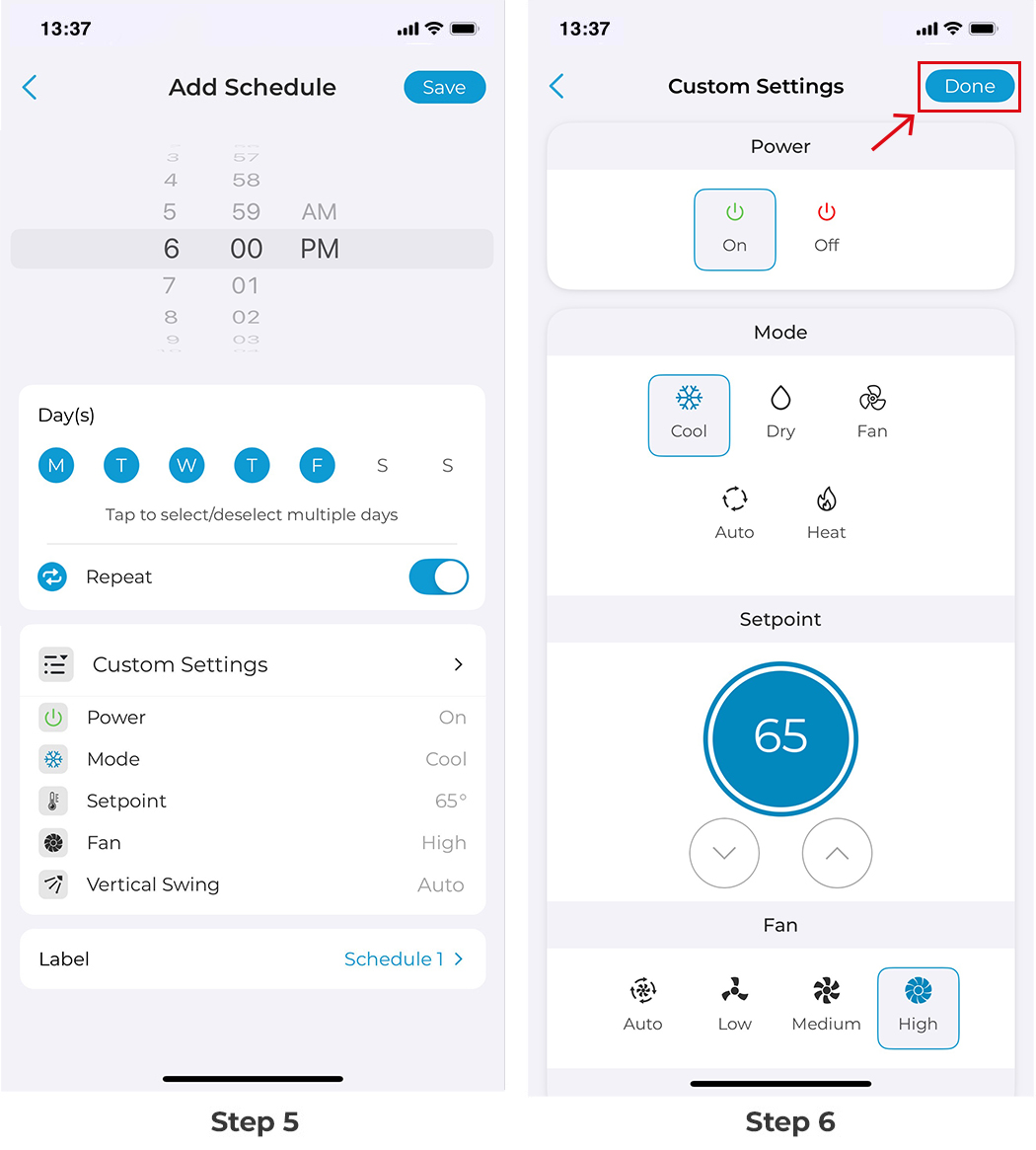

Step 5: Select the time/days you want to set the schedule for and choose whether you want to set it up as a repeat schedule. Tap on 'Custom Settings'.

Step 6: Tap on 'Custom Settings' and select the power state, mode, temperature, and fan speed of your choice and tap on ‘Done’.

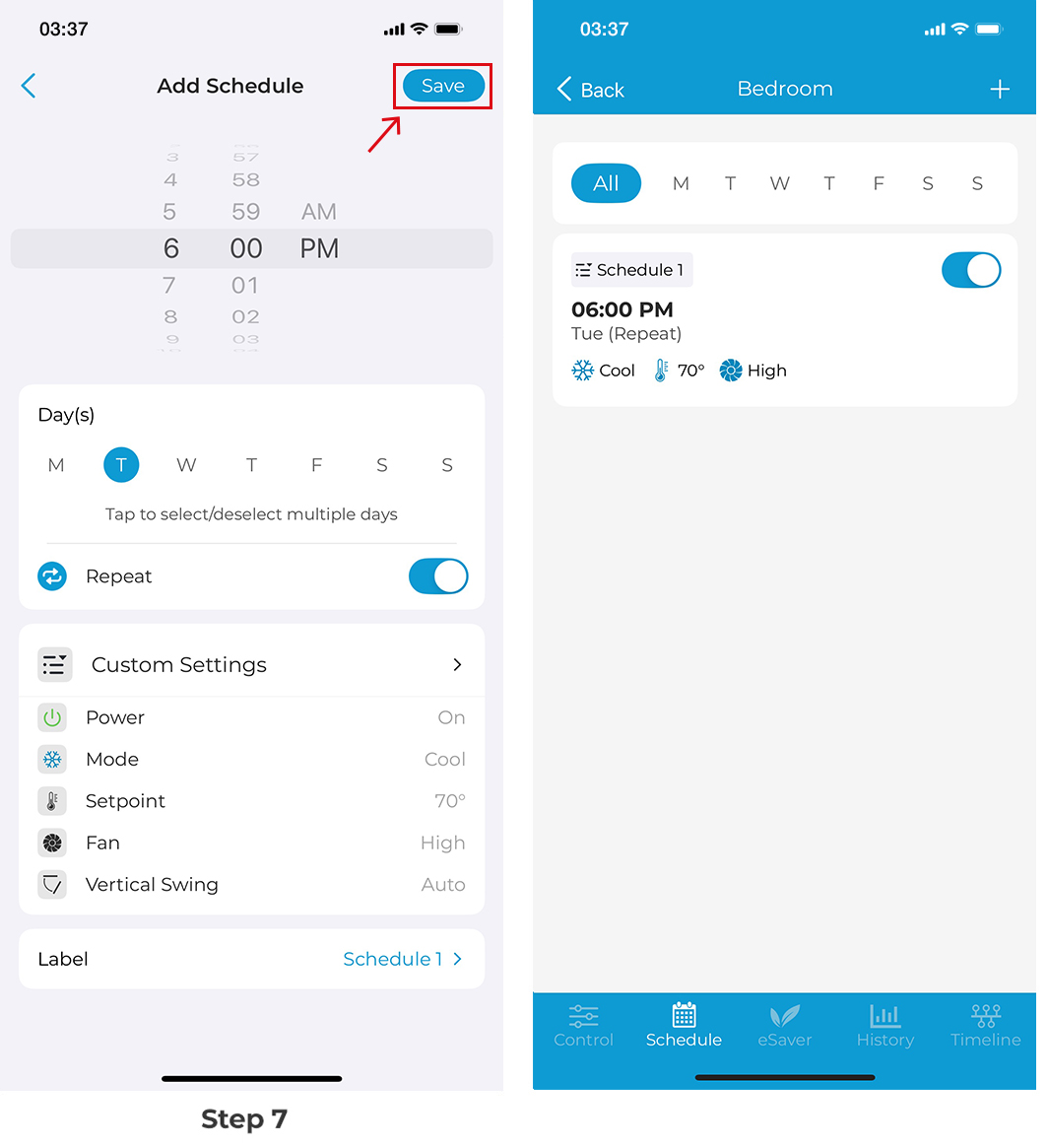

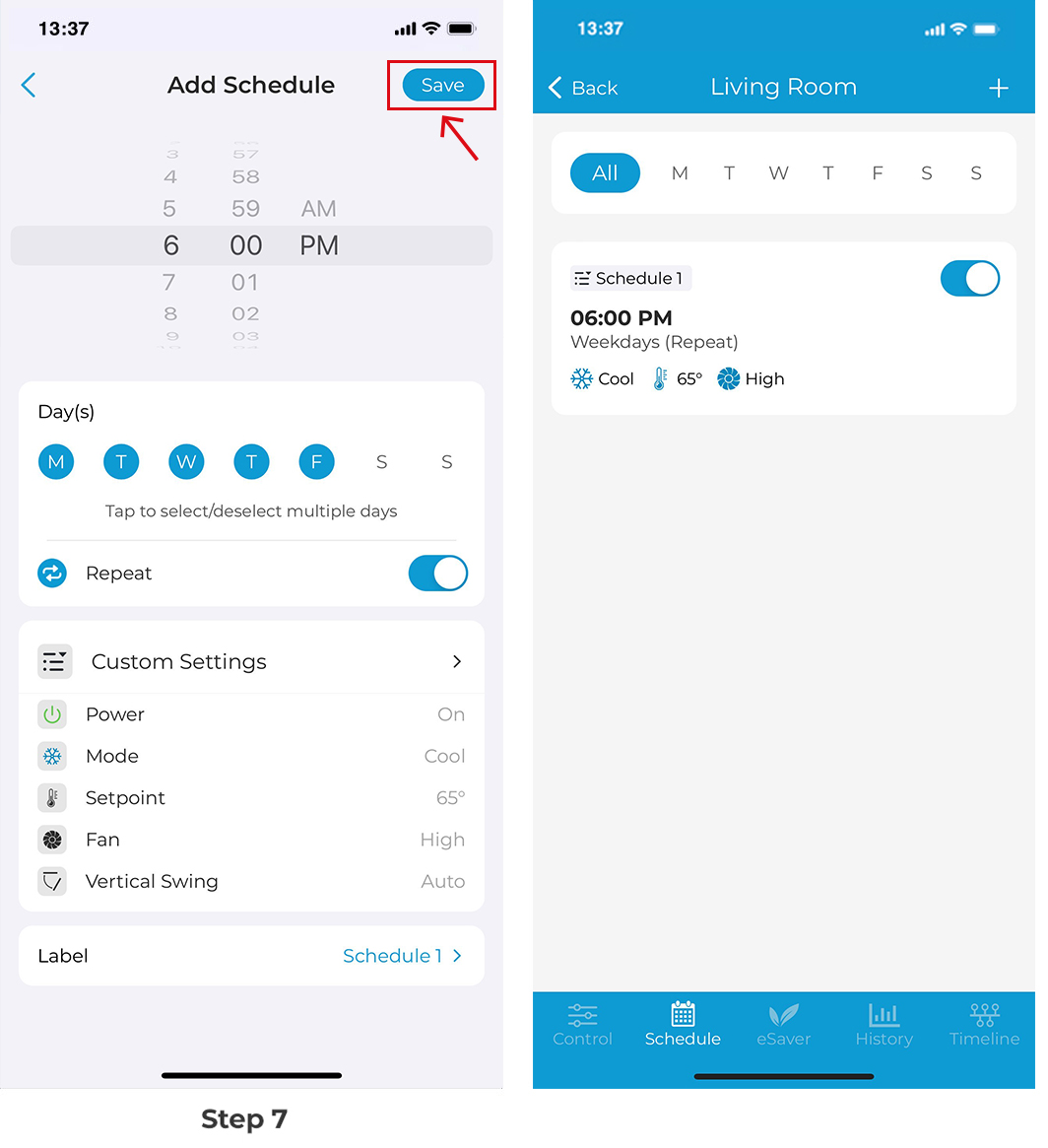

Step 7: Tap on ‘Save’ to set up the schedule.

Once the schedule is set, it will appear on the schedule tab. You can turn it On/Off by toggling the slider against the schedule.

2. Scheduling a Preset

Step 1: On the Home screen, tap on the Breez Max you want to schedule.

Step 2: Tap on ‘Schedule’ in the navigation bar.

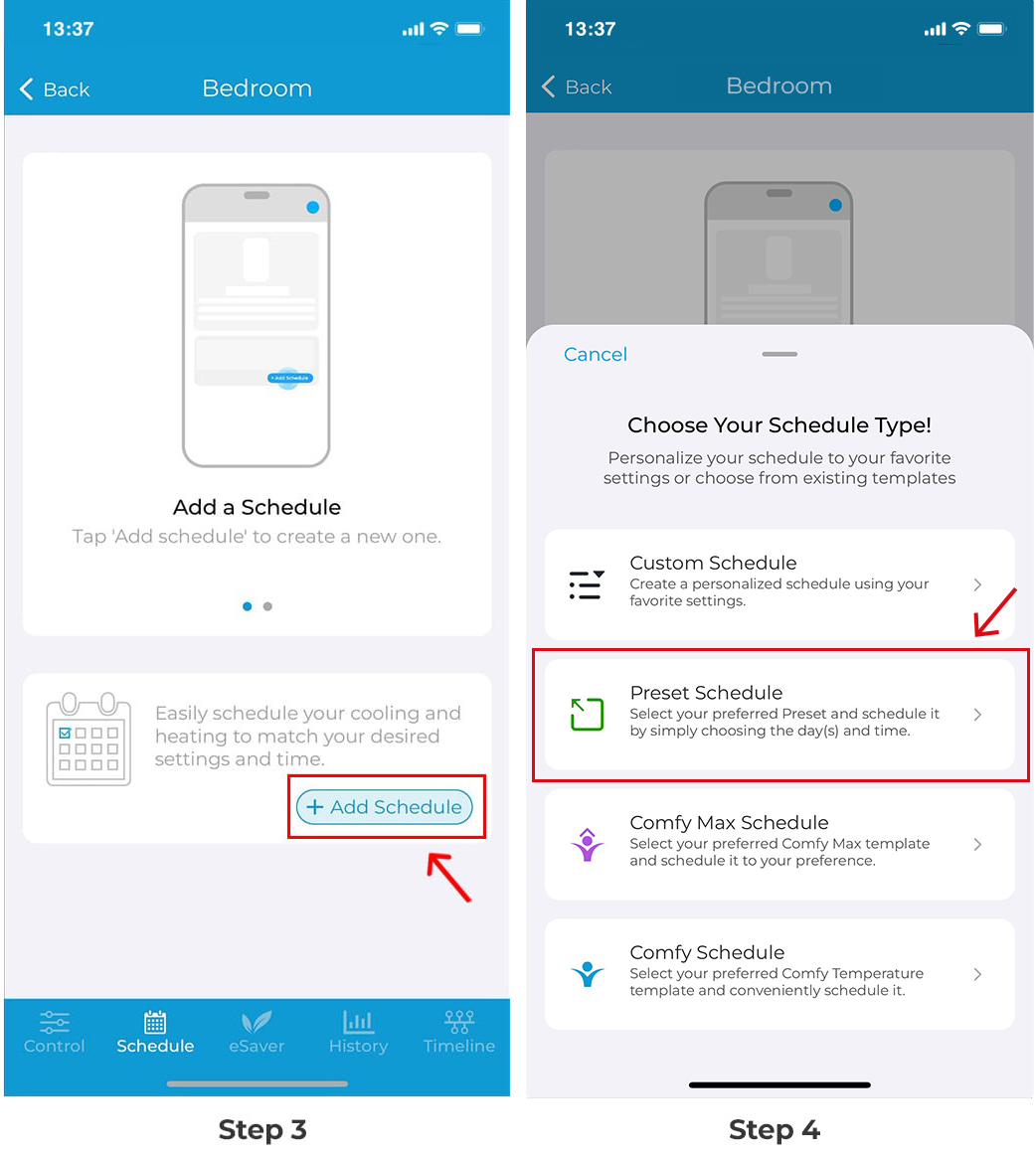

Step 3: Tap on '+ Add Schedule'.

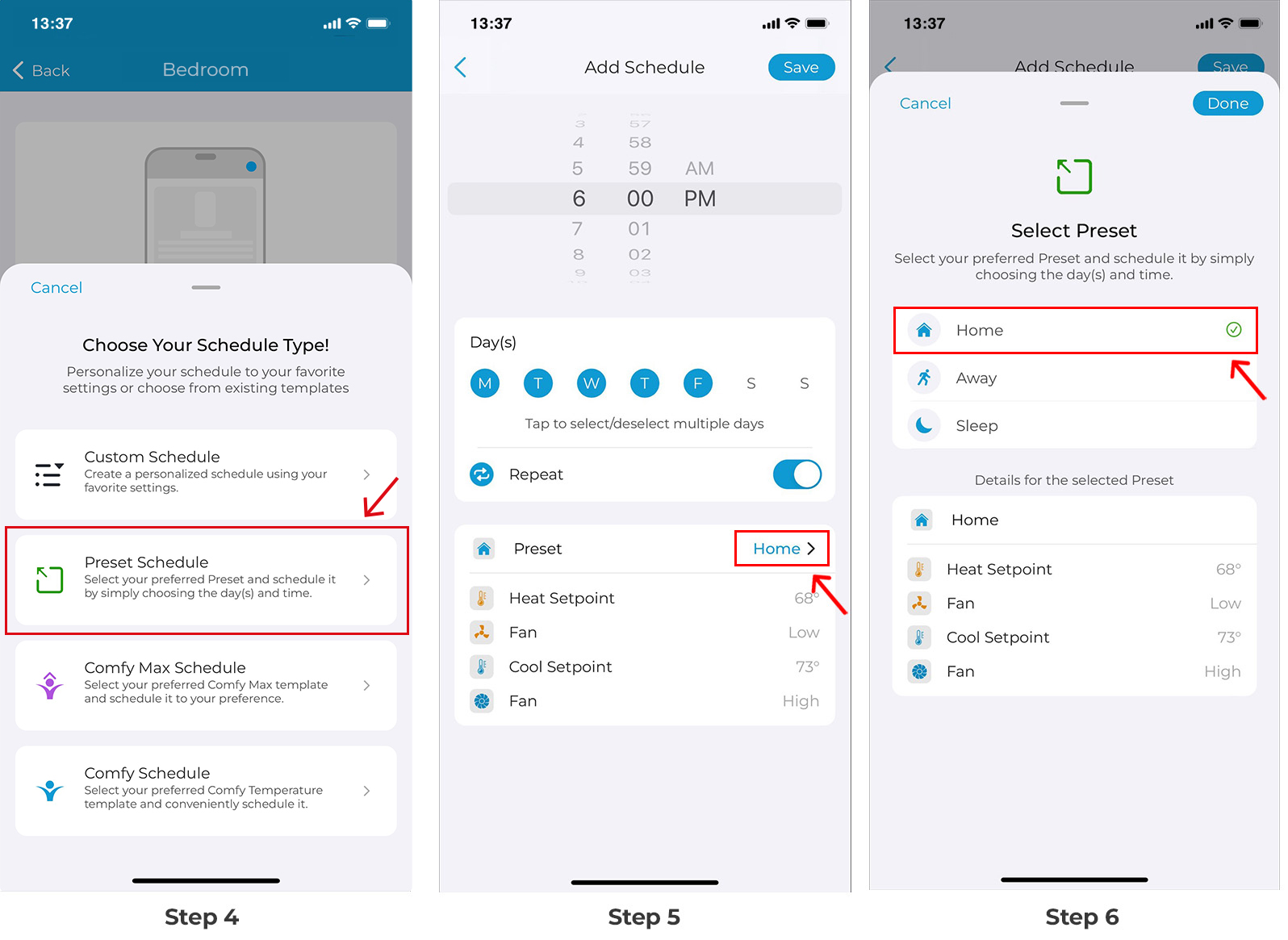

Step 4: Tap on ‘Preset Schedule’.

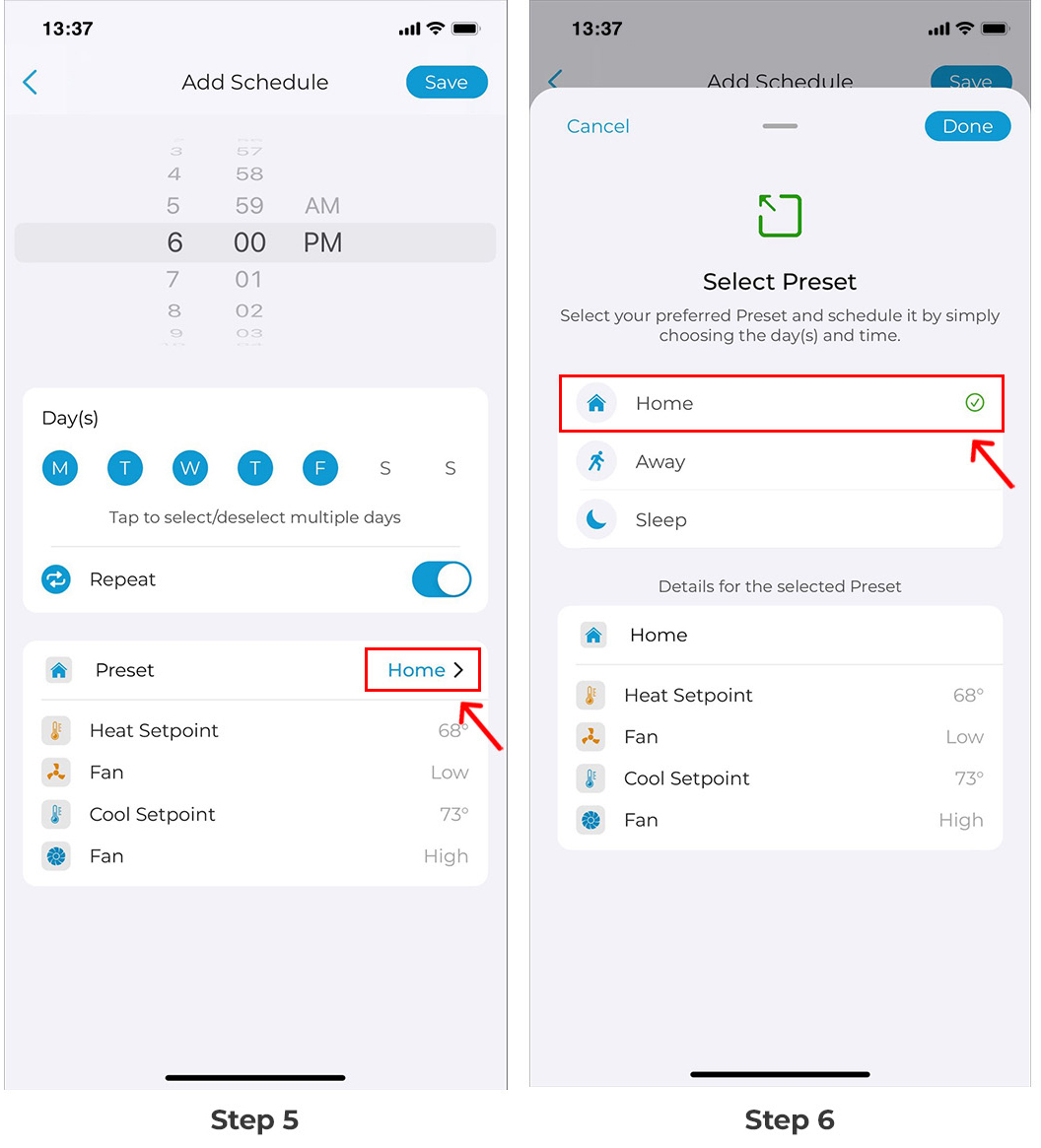

Step 5: Select the time/days you want to set the schedule for choose whether you want to set it as a repeat schedule.

Step 6: Select the Preset you want to schedule.

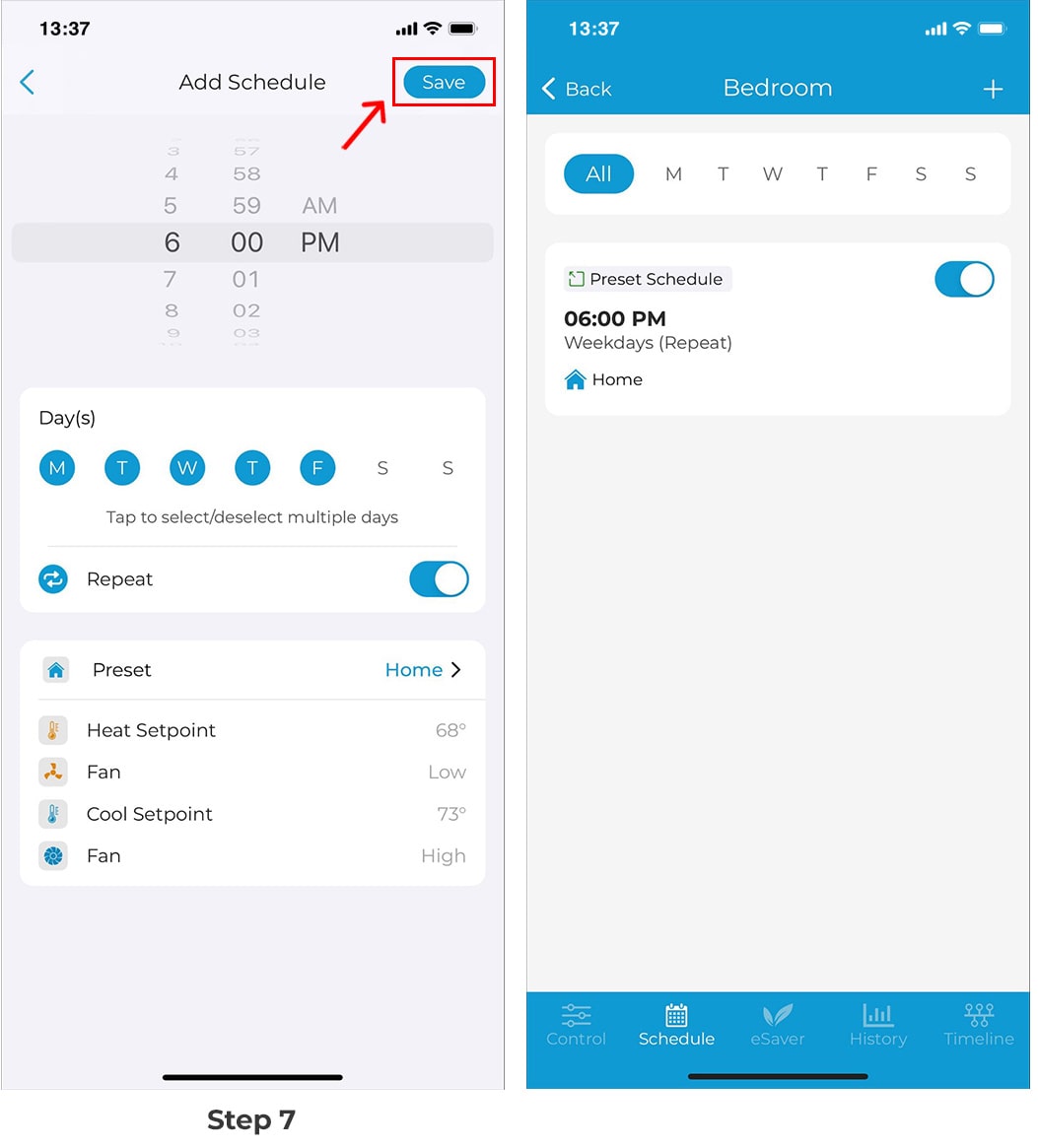

Step 7: Tap on 'Save' to set up the schedule.

3. Scheduling Comfy Max

To schedule Comfy Max, you need to save at least one template setting for Comfy Max in the app. After you have done that, follow the steps below to schedule your Comfy Max.

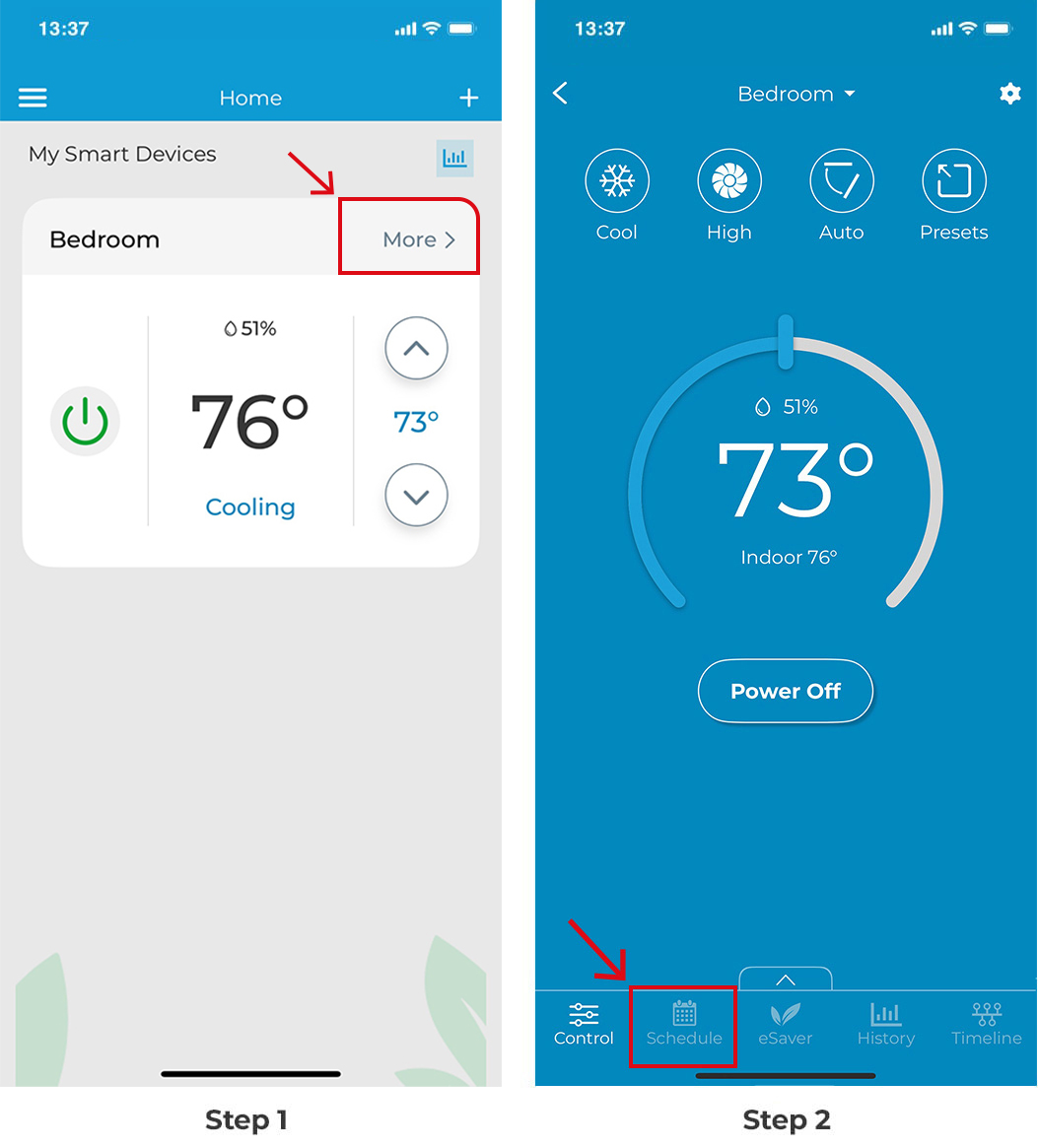

Step 1: On the Home screen, tap on the mini-split you want to schedule.

Step 2: Tap on ‘Schedule’ in the navigation bar.

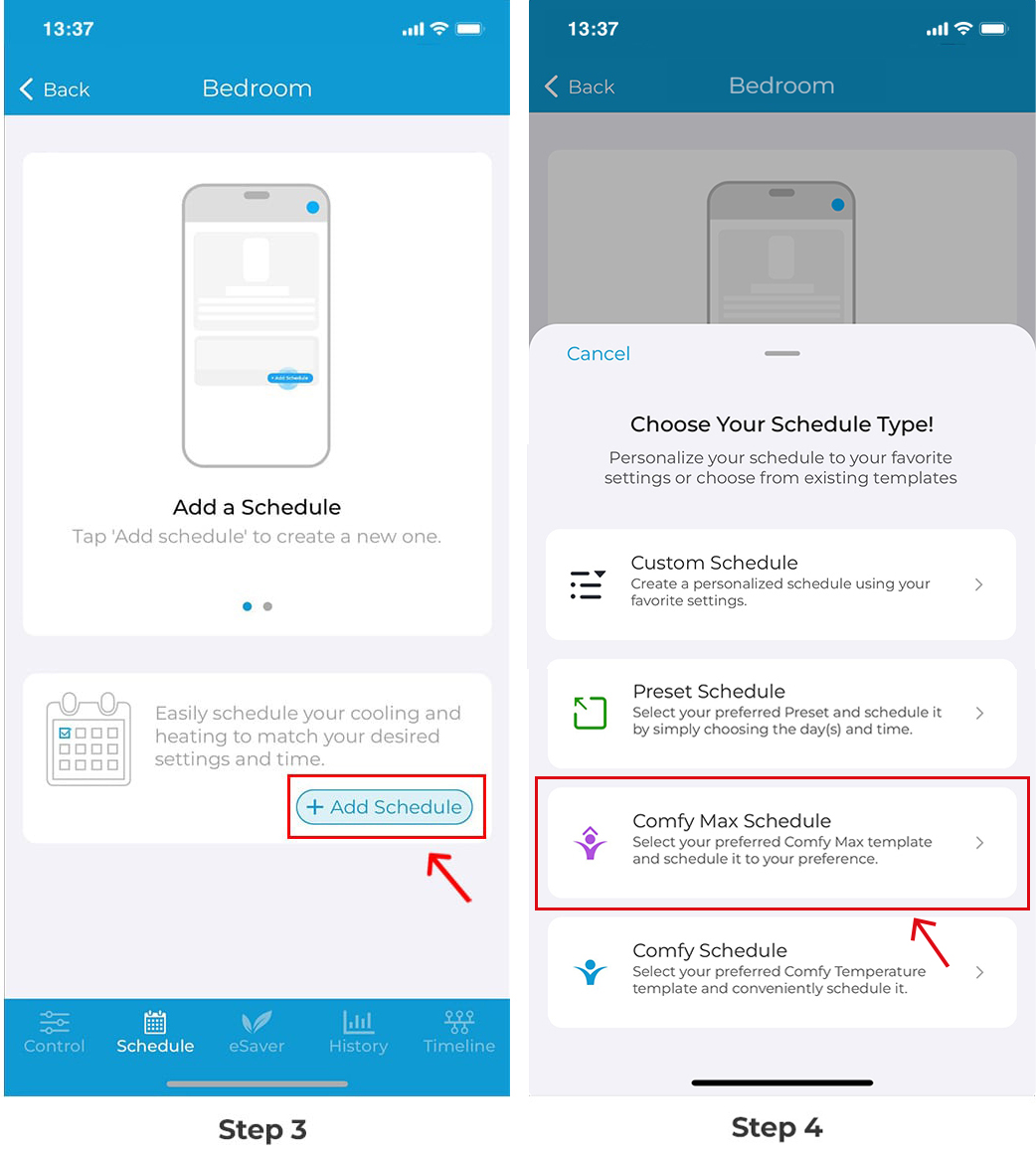

Step 3: Tap on ‘+ Add Schedule’.

Group 10.png Group 11.png

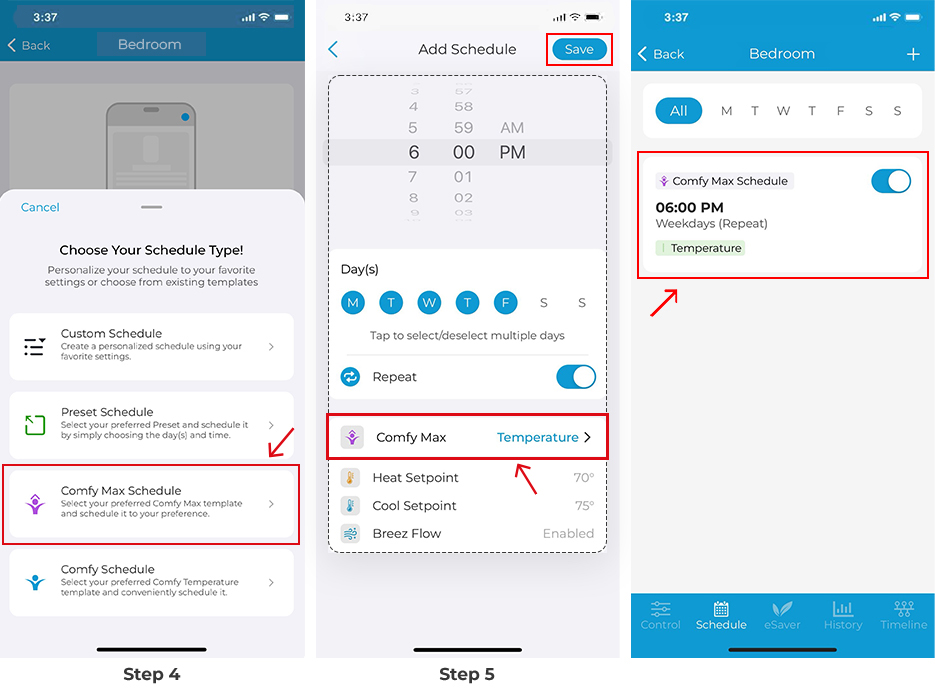

Step 4: Select ‘Comfy Max Schedule’.

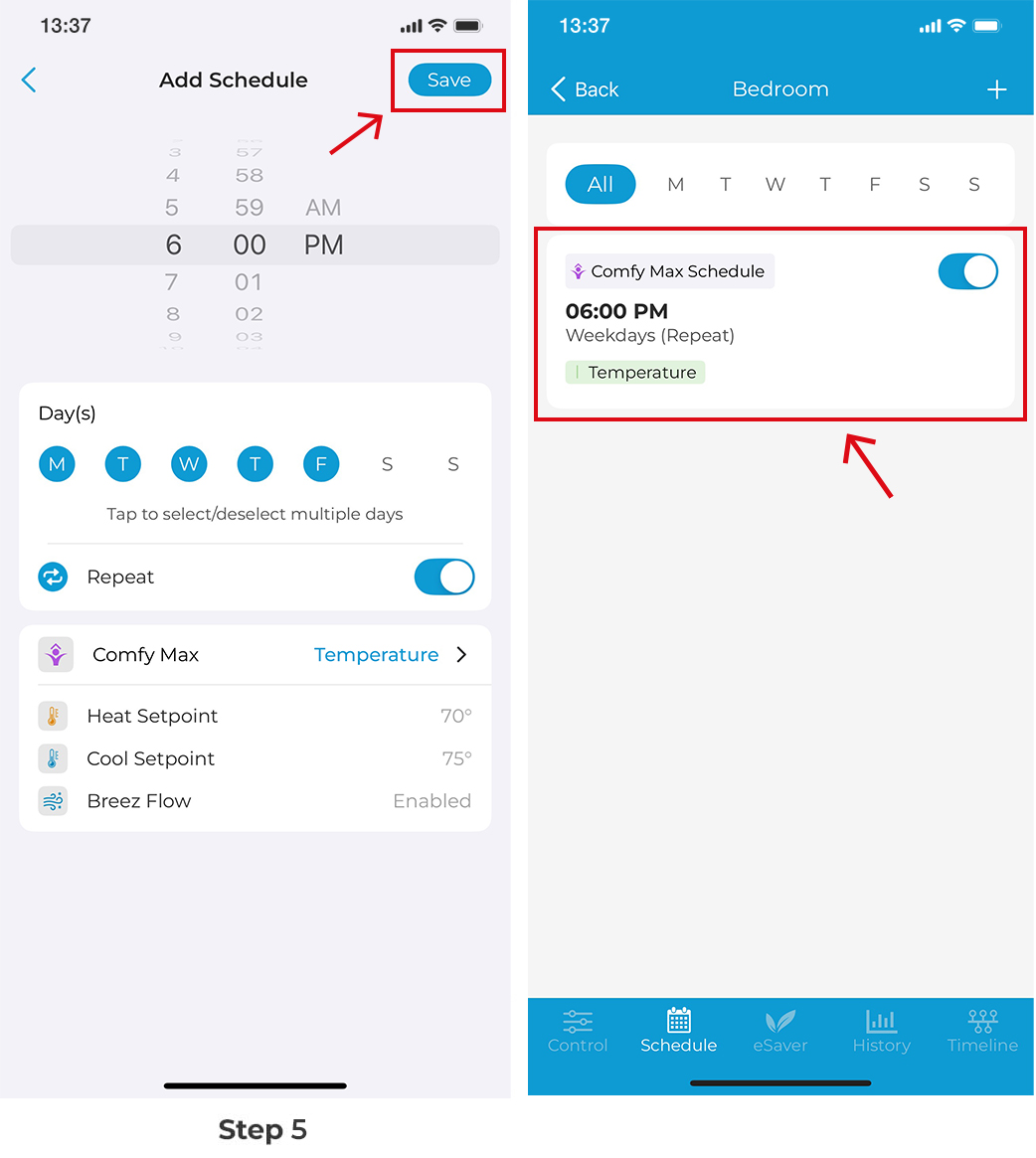

Step 5: Select the time and day(s) and choose whether you want to set it as a repeat schedule. Then, select your desired Comfy Max template.

Once the Comfy Max schedule is set, it will appear on the schedules tab. You can enable/disable it by toggling the slider against the schedule.

4. Adding Comfy Schedule

To schedule Comfy mode, you need to save at least one template setting in the app. After you have done that, follow the steps below.

Step 1: On the Home screen, tap on the mini-split you want to schedule.

Step 2: Tap on ‘Schedule’ in the navigation bar.

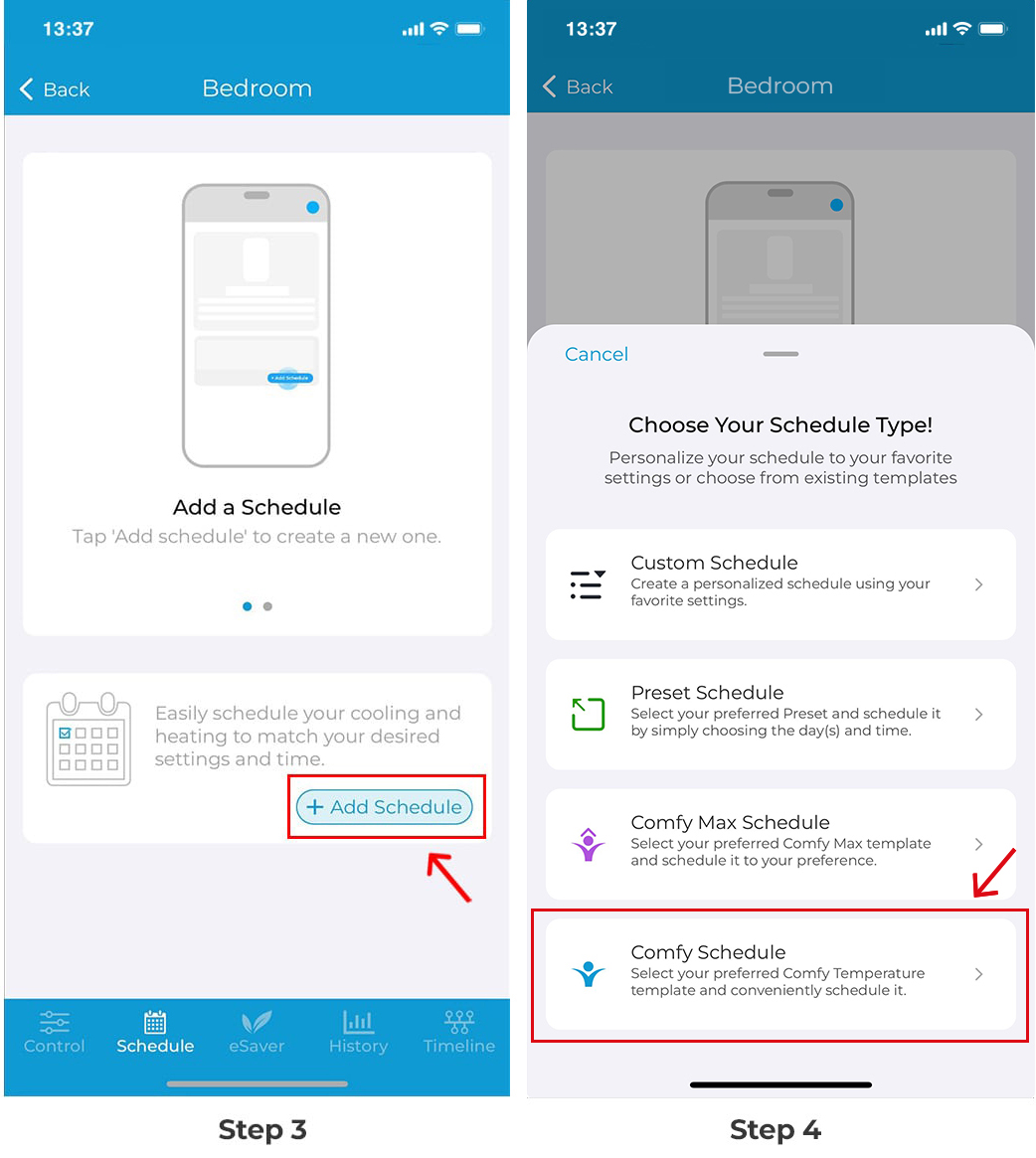

Step 3: Tap on ‘+ Add Schedule’.

Group 10.png Group 11.png

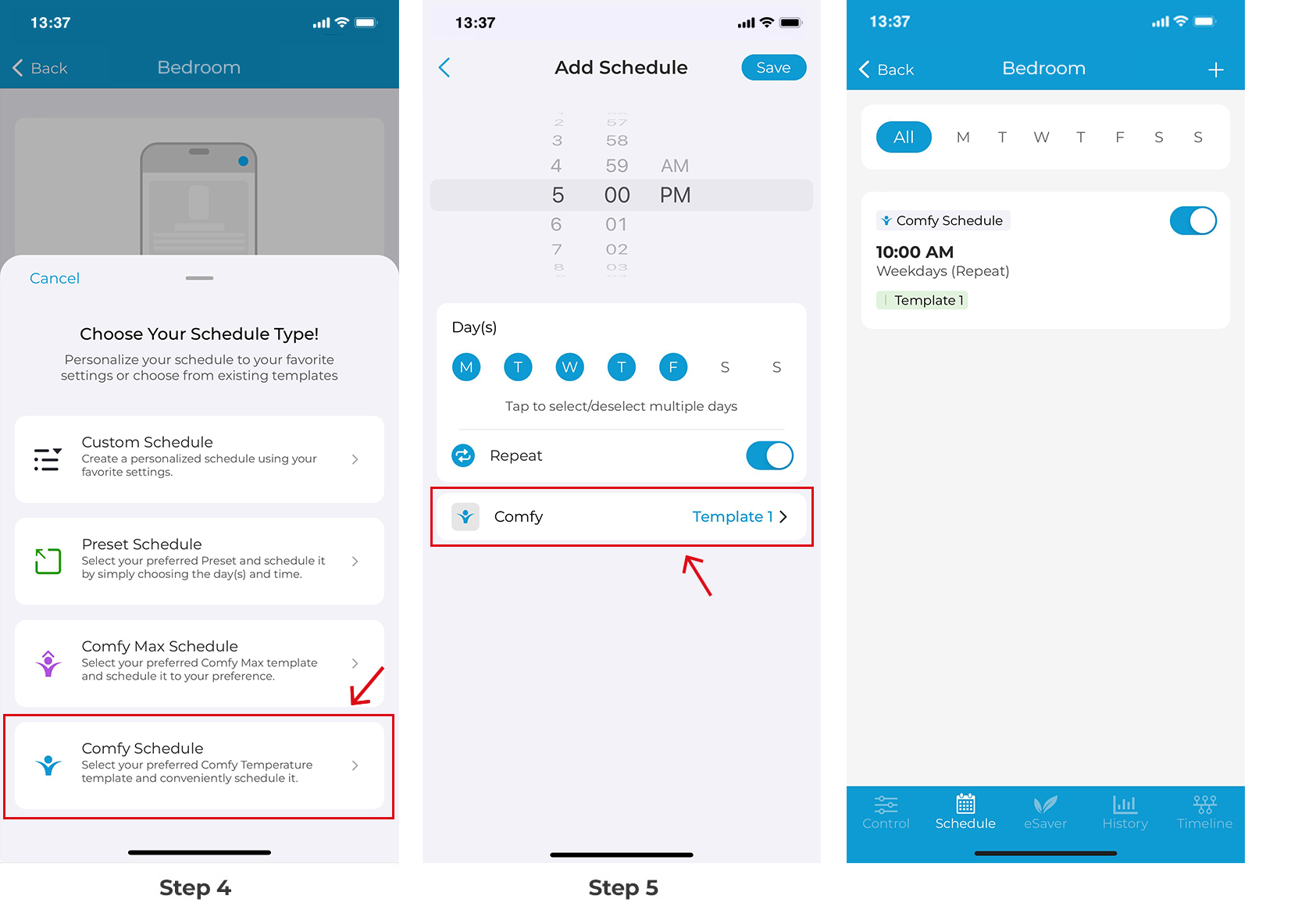

Step 4: Select ‘Comfy Schedule’.

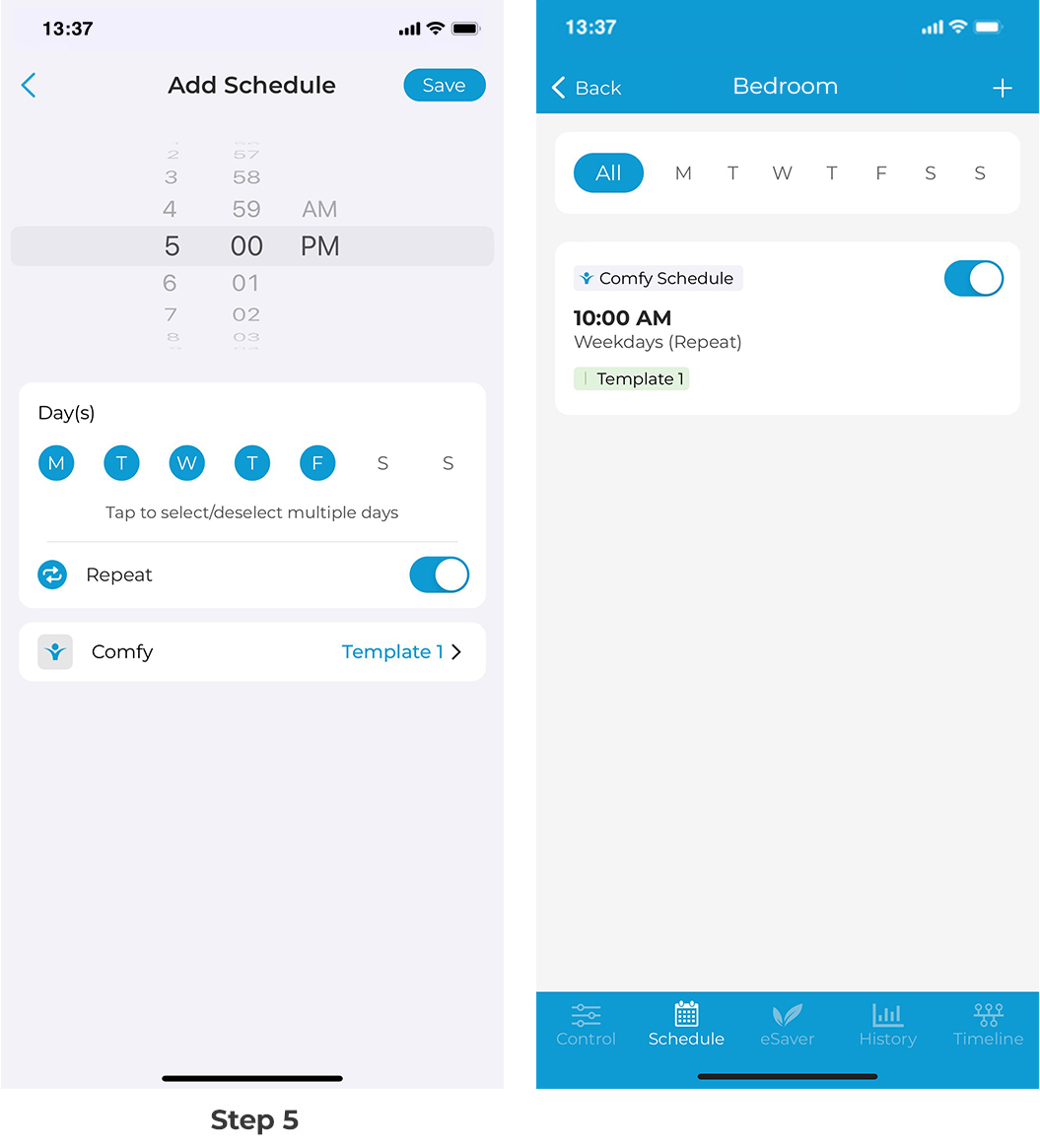

Step 5: Select the time and day(s) and choose whether you want to set it as a repeat schedule. Then, select your desired Comfy template.

Once the Comfy schedule is set, it will appear on the schedules tab. You can enable/disable it by toggling the slider against the schedule.

5. Deleting/Editing a schedule

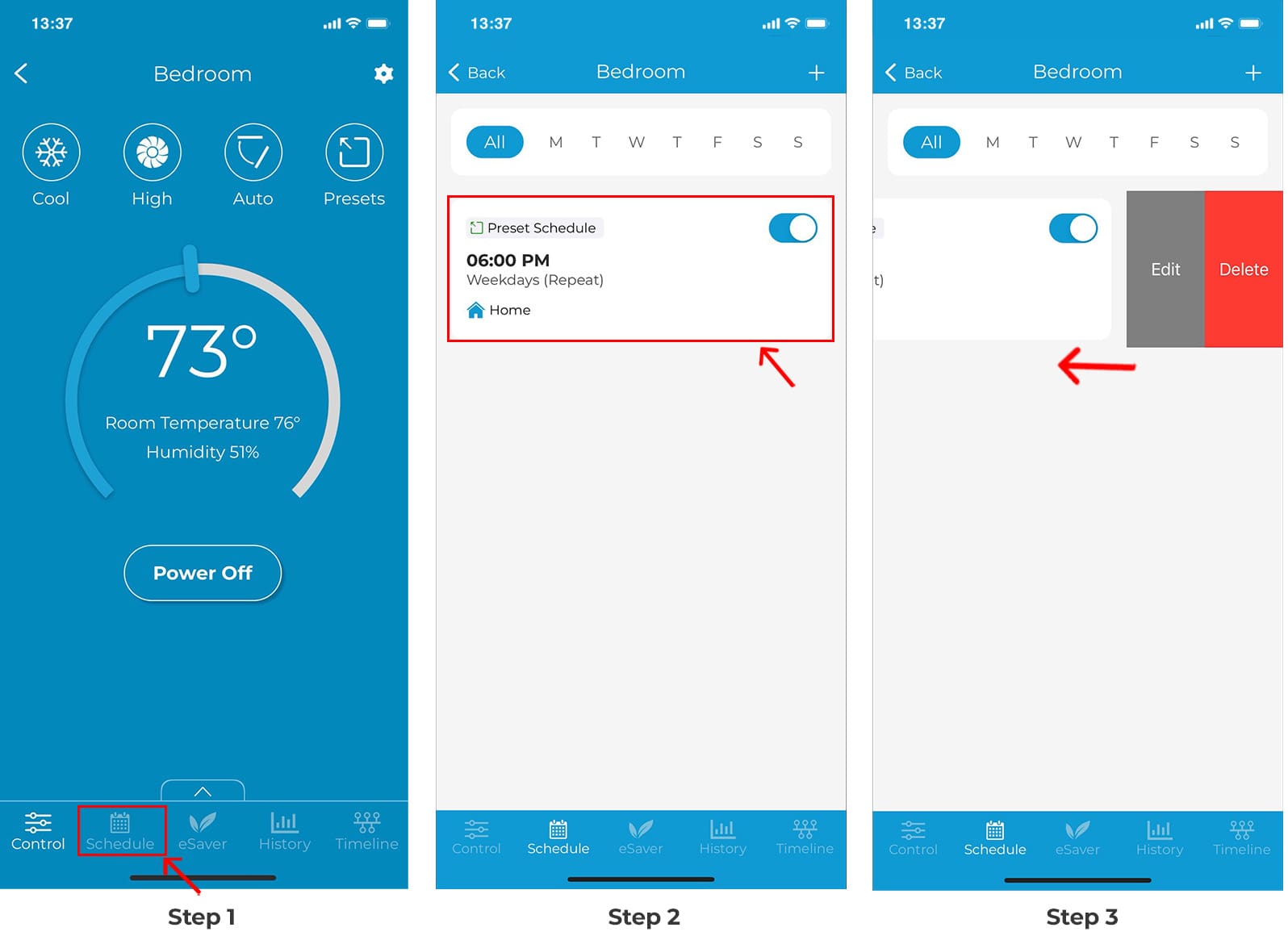

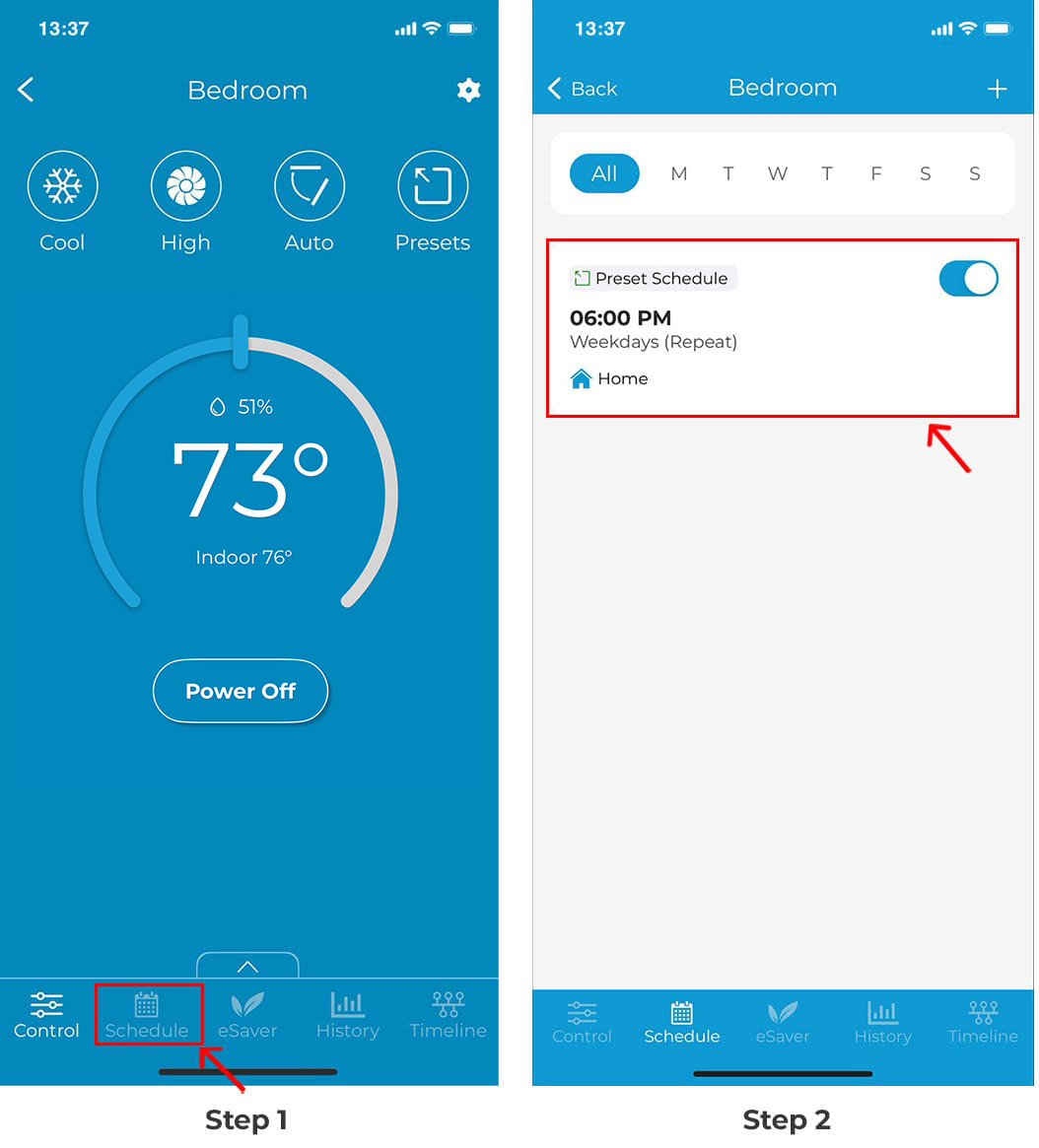

Step 1: From the device control screen, tap on ‘Schedule’ in the navigation bar.

Step 2: In the 'Schedule' tab, you will see all your set schedules.

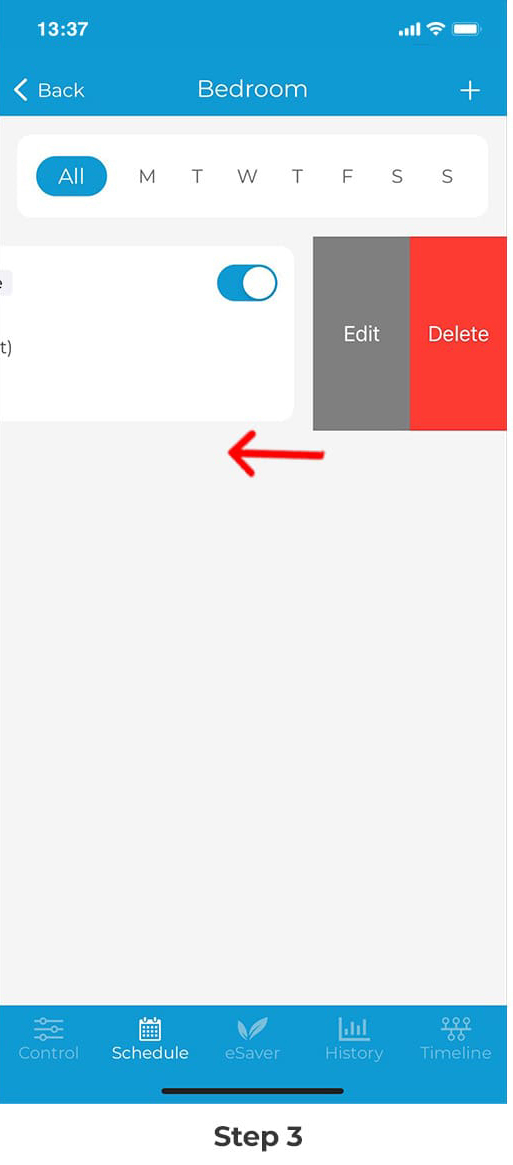

Step 3: Swipe left on the schedule you want to edit or delete until both options for Edit/Delete appear.
Choose your desired option and proceed.

Setting up Comfy Max

Comfy Max transforms Cielo Breez Max into a true smart thermostat for your mini-split. It enables your mini-split to work in a configurable and intelligent mode. It prevents overheating/overcooling while maintaining your desired comfort settings at all times.

You can set up Comfy Max by performing these steps via Cielo Home app:

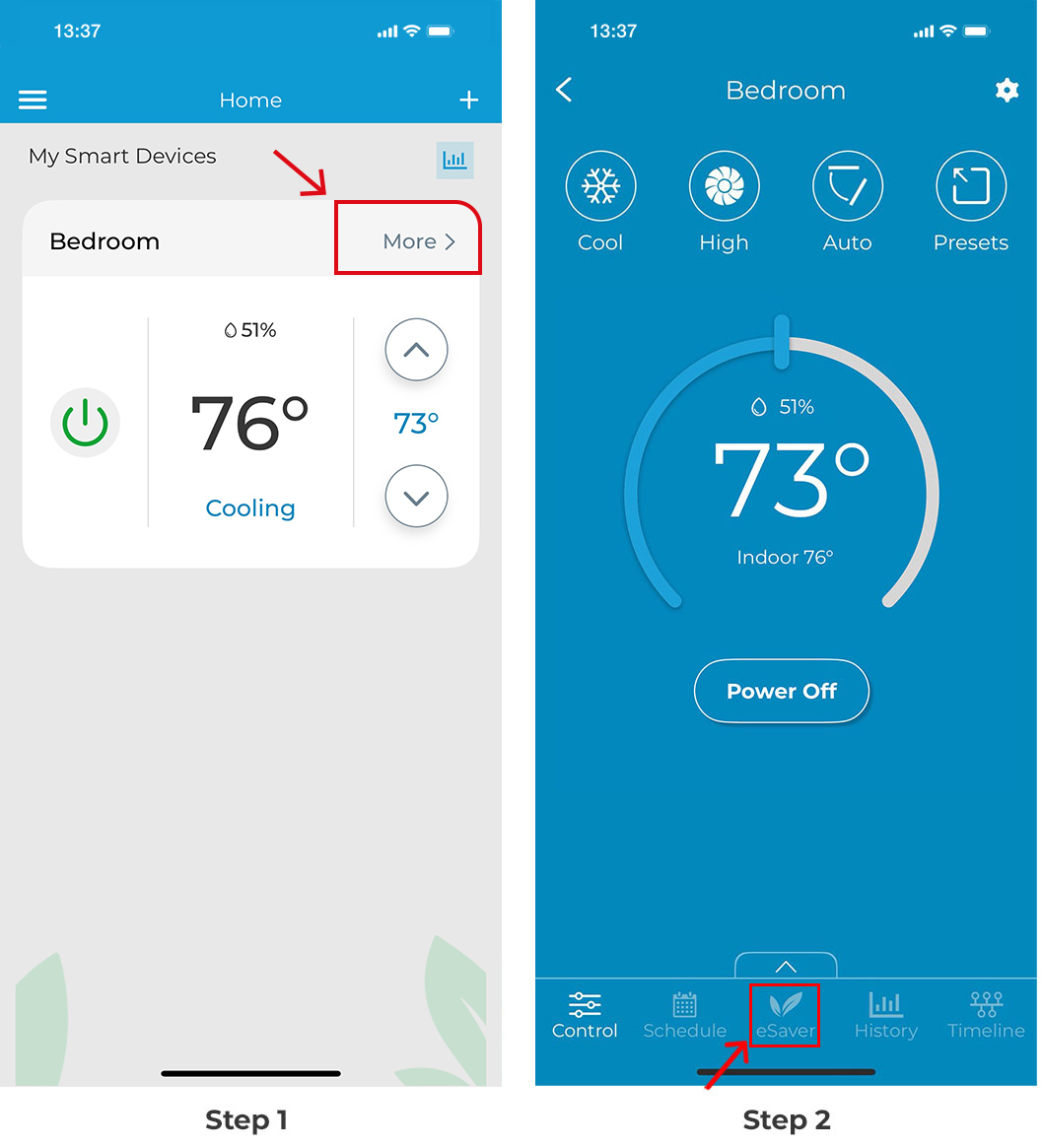

Step 1: On the Home screen, tap on the Breez Max you want to set comfy max on.

Step 2: Tap on ‘eSaver’ in the navigation bar.

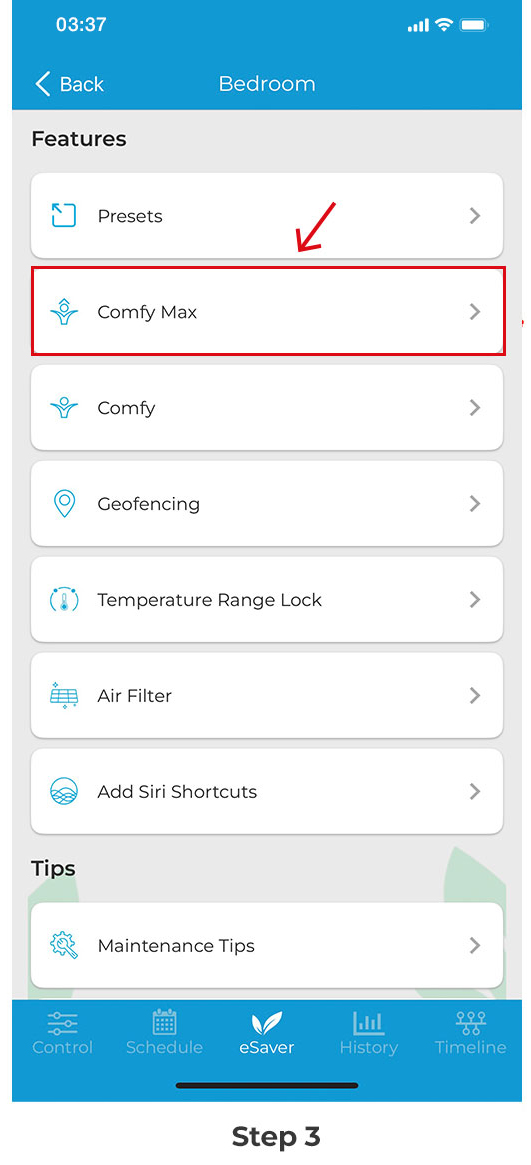

Step 3: Tap on 'Comfy Max'.

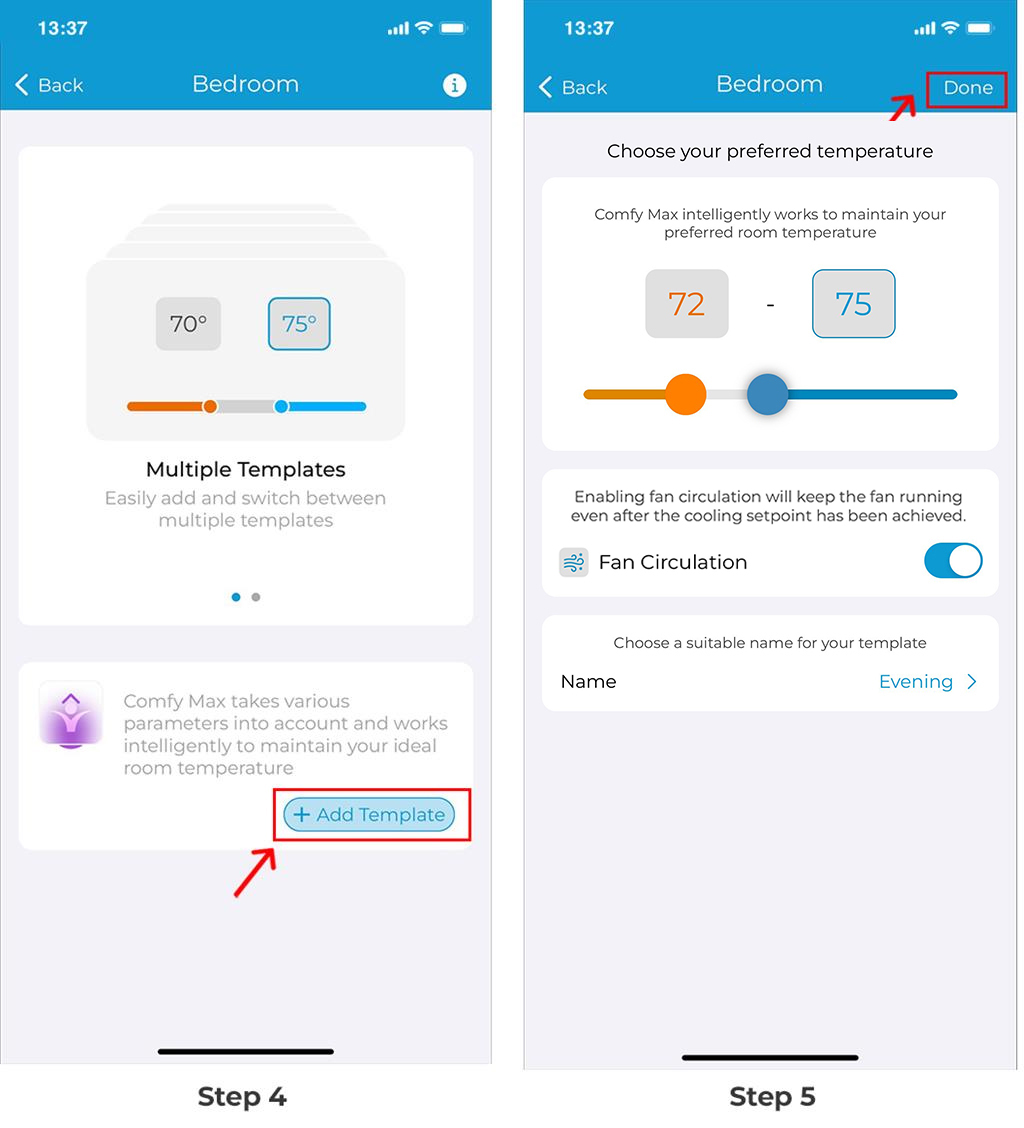

Step 4: Tap on ‘Add Template’ to set up Comfy Max.

Step 5: Choose your preferred temperature, and select whether you want the fan to run after your desired cooling temperature is reached. Add a name for this template and tap on ‘Done’.

Step 6: Your Comfy Max settings are now saved. You can turn Comfy Max 'On' from the toggle next to the name of the Comfy Max template.

Setting up Comfy Temperature Mode

Comfy mode helps prevent temperature extremes by maintaining your desired settings based on your defined setpoints.

You can set up comfy temperature mode for your mini-split, window, or portable units by performing these steps via Cielo Home app:

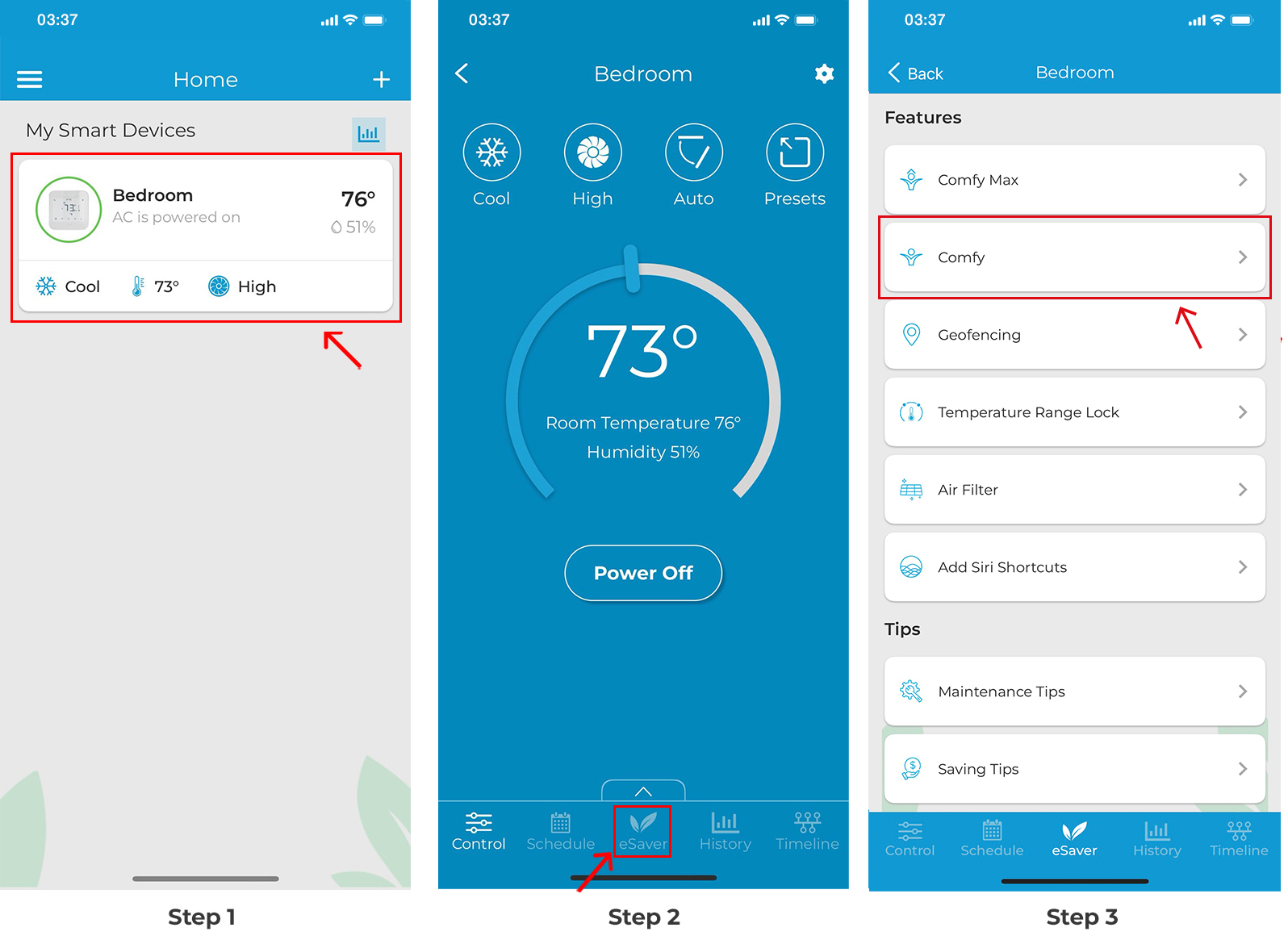

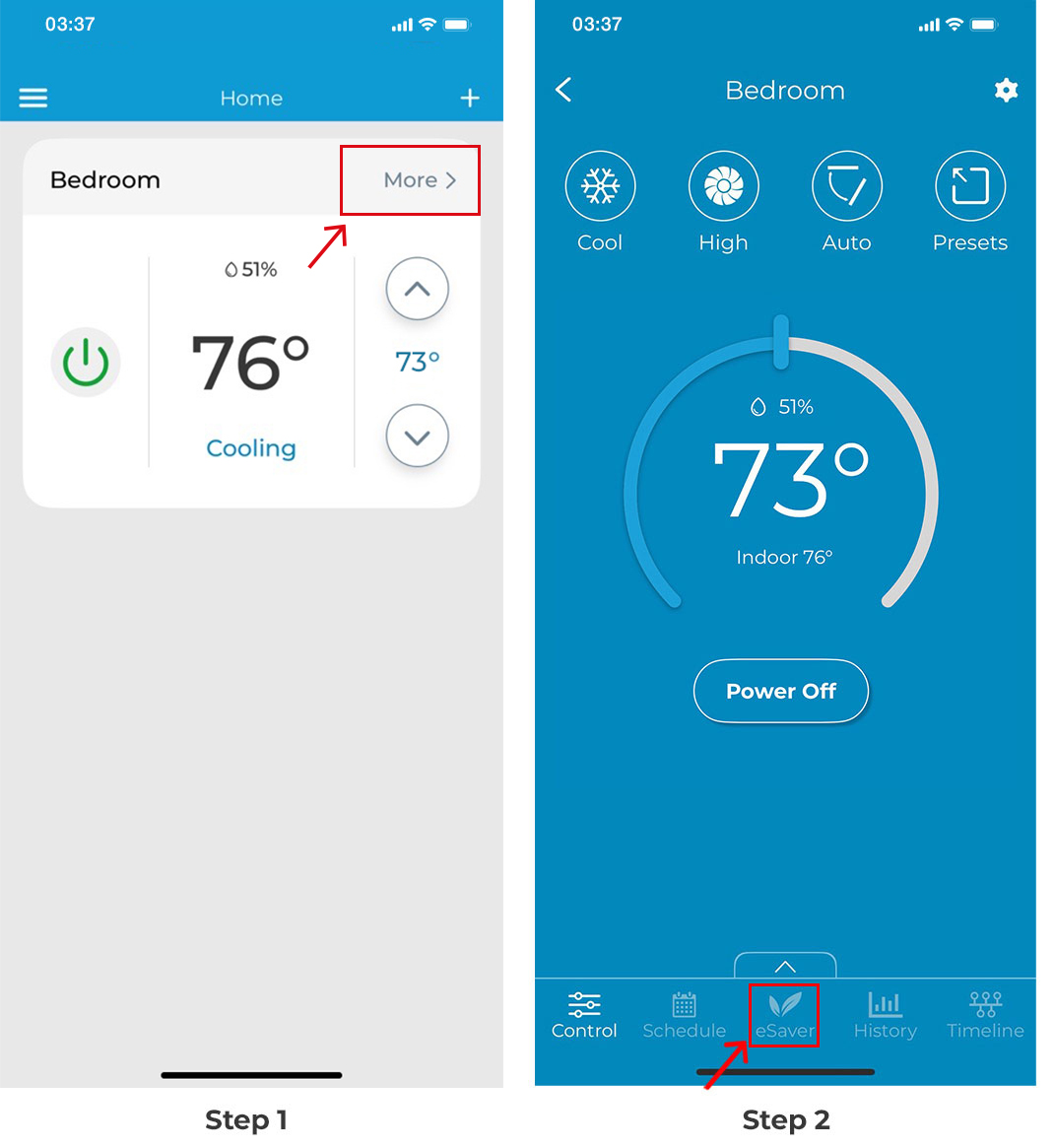

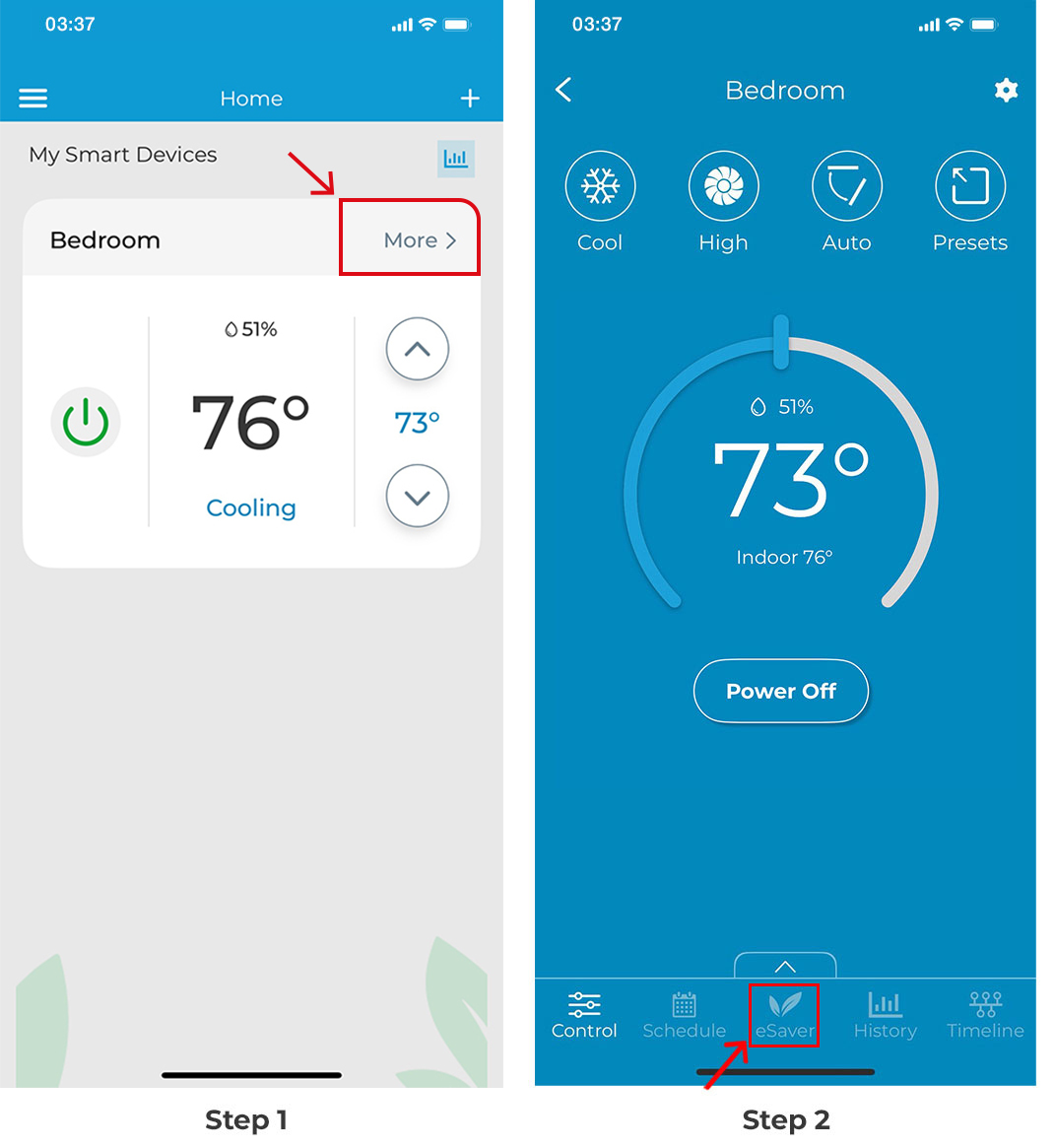

Step 1: On the Home screen, tap on the Breez Max you want to set comfy temperature mode on.

Step 2: Tap on ‘eSaver’ in the navigation bar.

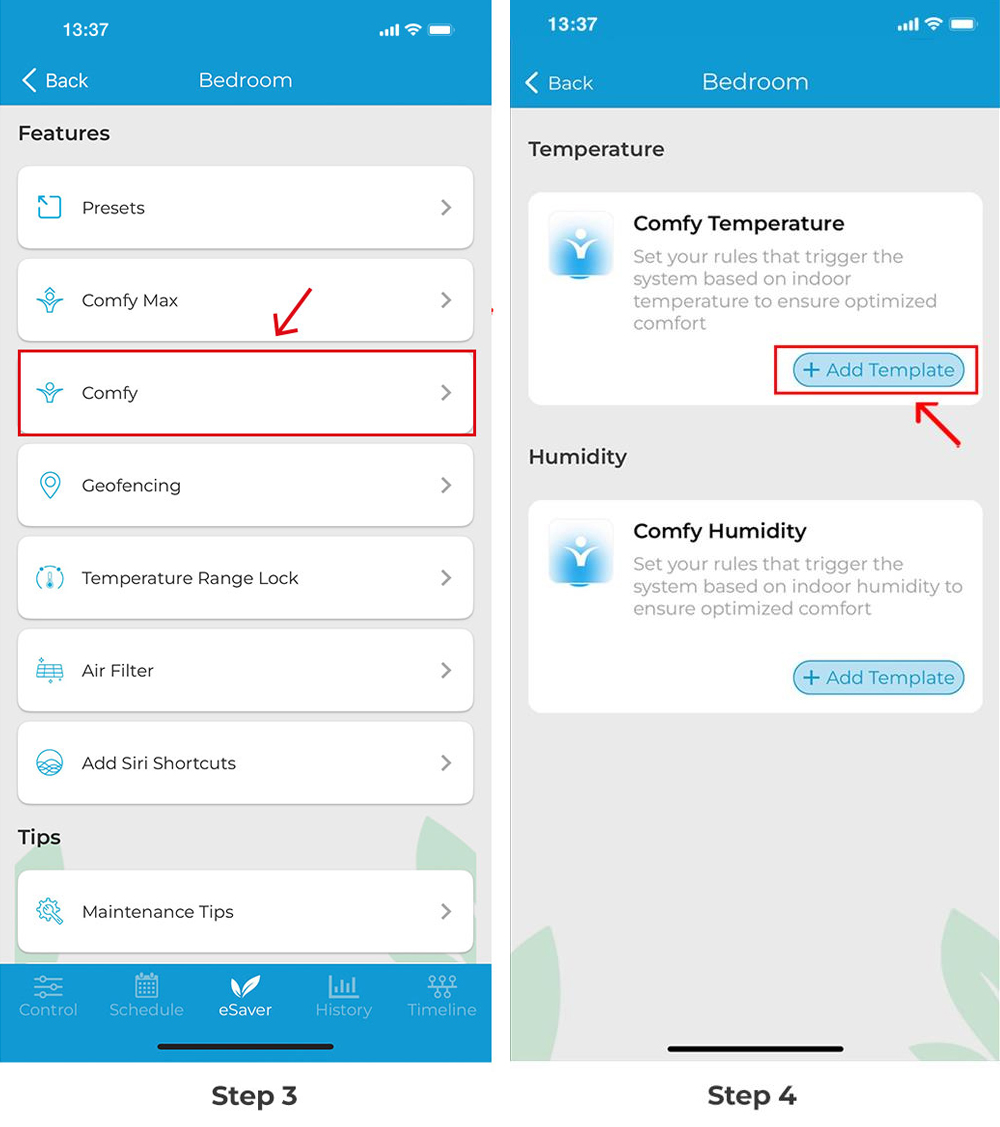

Step 3: Tap on 'Comfy'.

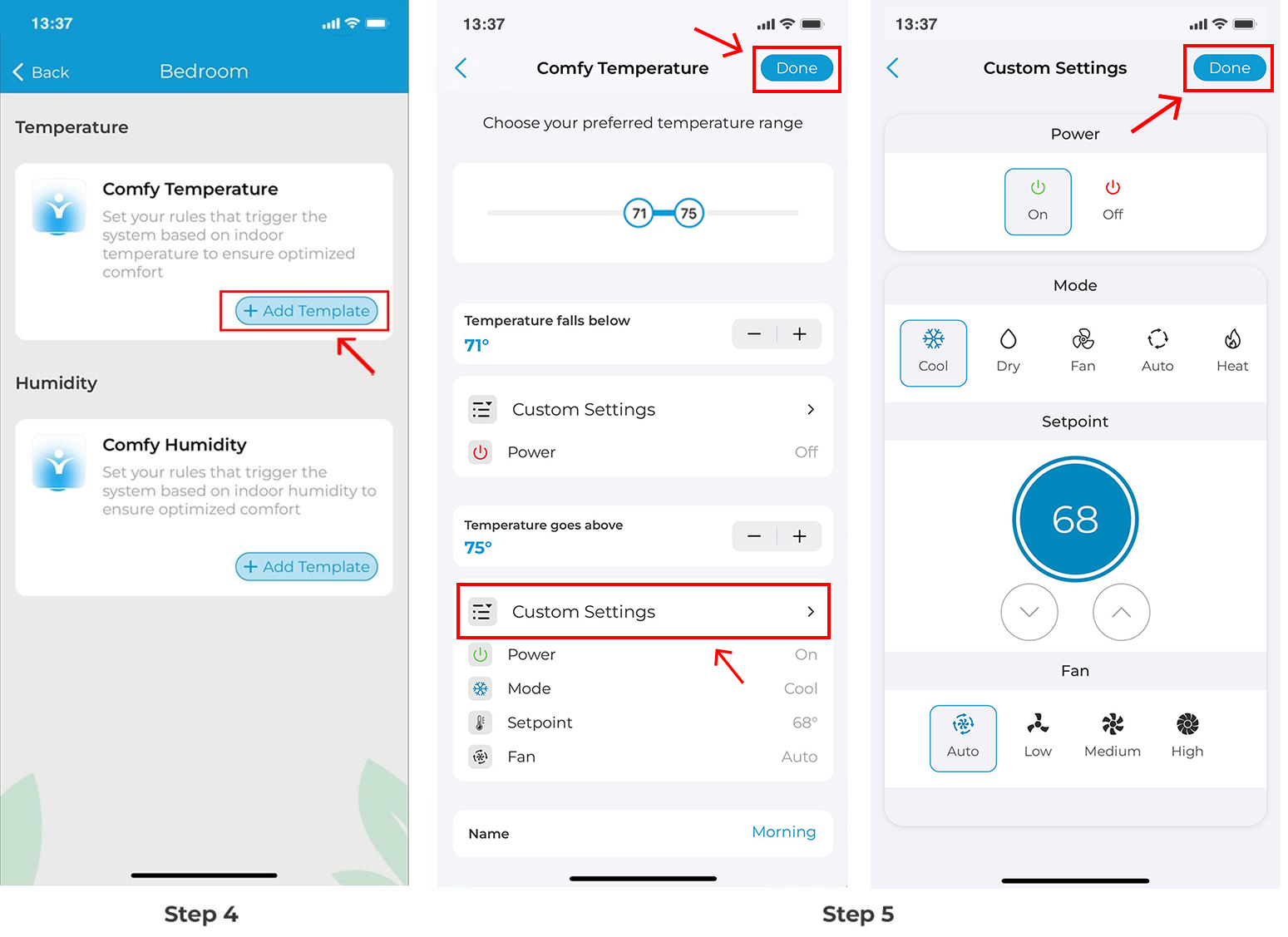

Step 4: Tap on 'Add Template' under the Comfy Temperature heading.

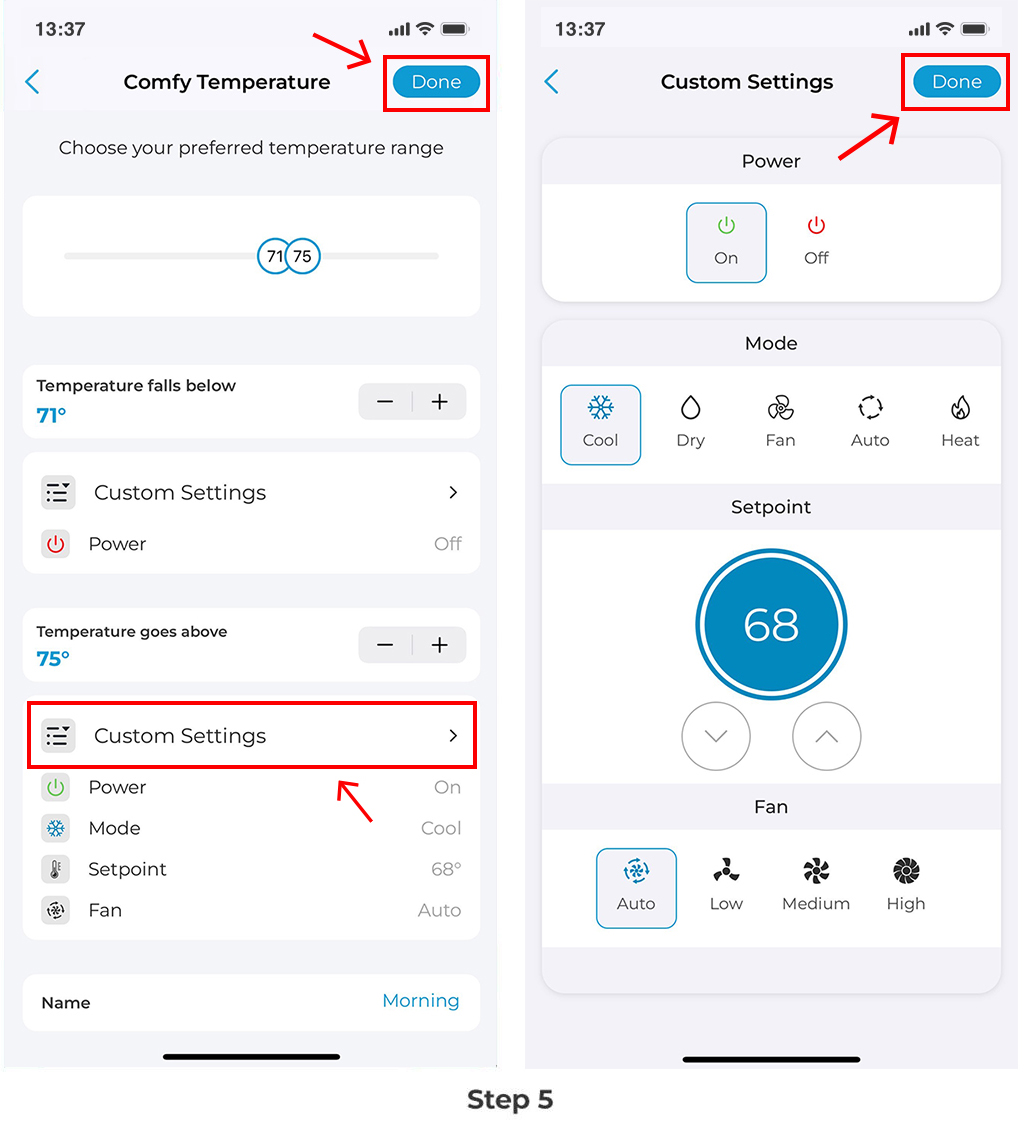

Step 5: Choose your preferred temperature range. Then, select what actions to perform if the temperature falls below or goes above the set range, e.g. turning the unit off or on, changing its mode, setpoint, fan speed, and swing position to help it get back into the preferred temperature range. Add a name for this template and tap on ‘Done’.

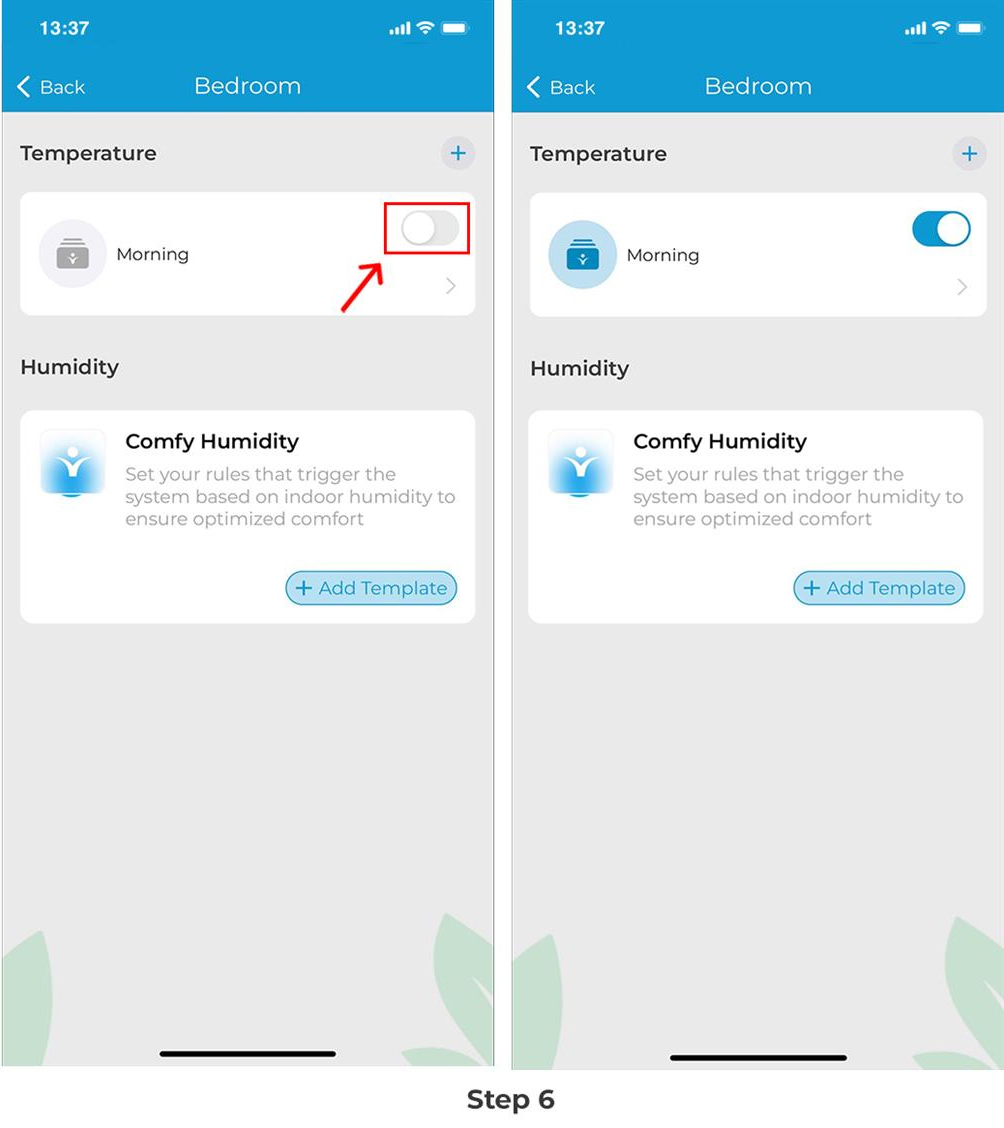

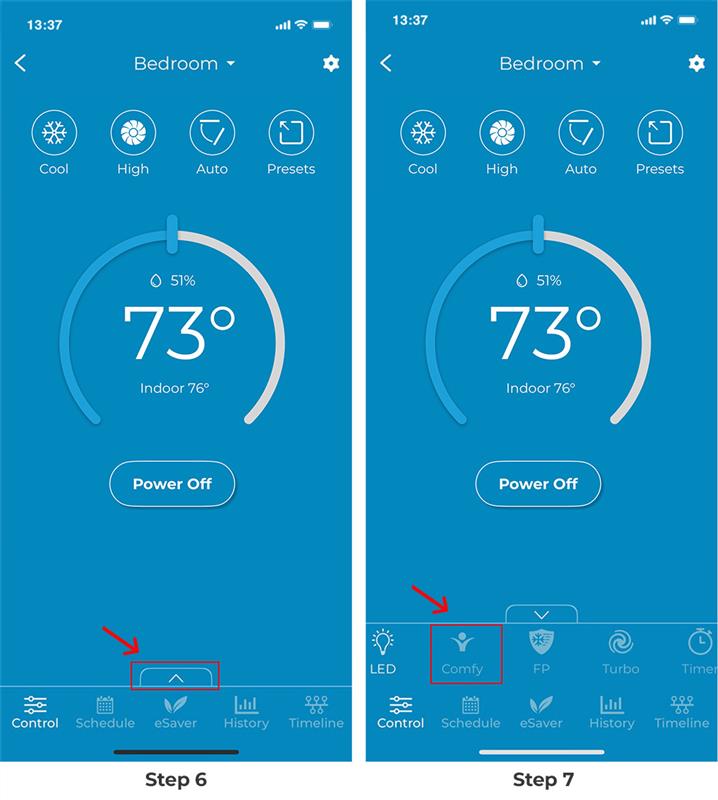

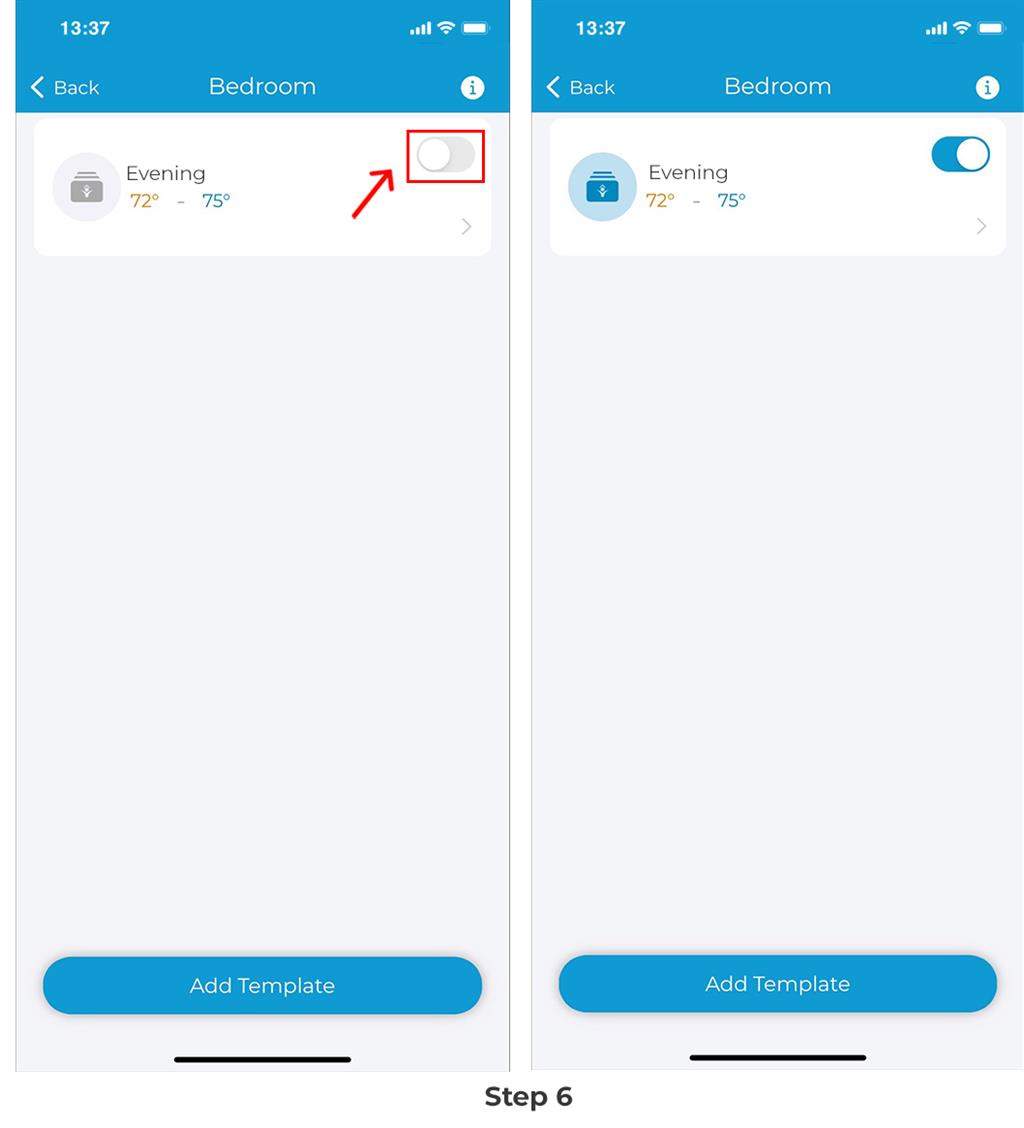

Step 6: Your Comfy settings are now saved. It is disabled by default. You can turn Comfy 'On' from the toggle next to the name of the Comfy template. Once the device triggers the defined comfy temperature mode actions, you will get a notification in your app timeline.

Note: You can set up multiple Comfy settings through Comfy templates. Each of the templates can be turned 'On' or 'Off' from the toggle next to its name. You can have a different Comfy Mode for the morning, a different mode for the afternoon, and so on.

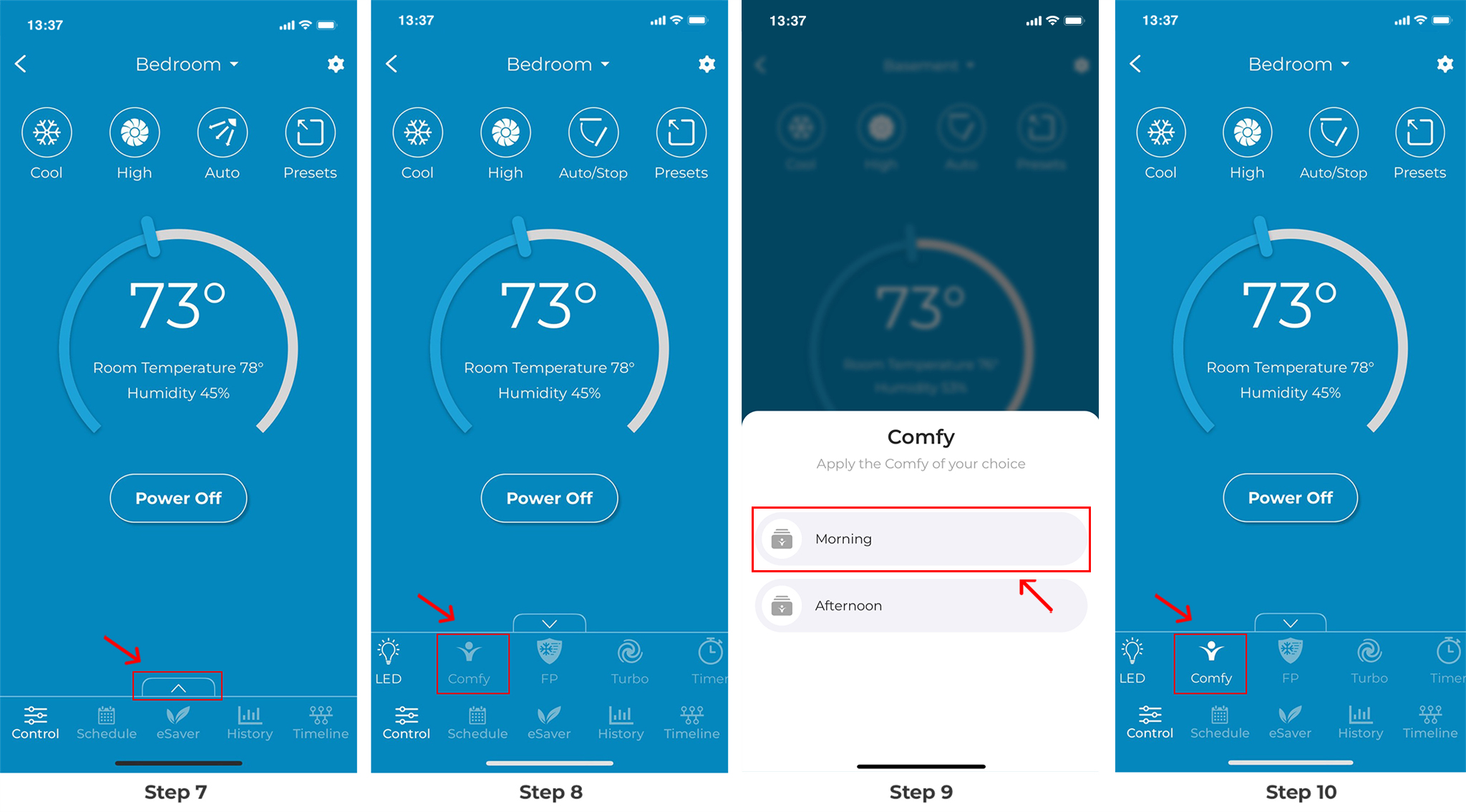

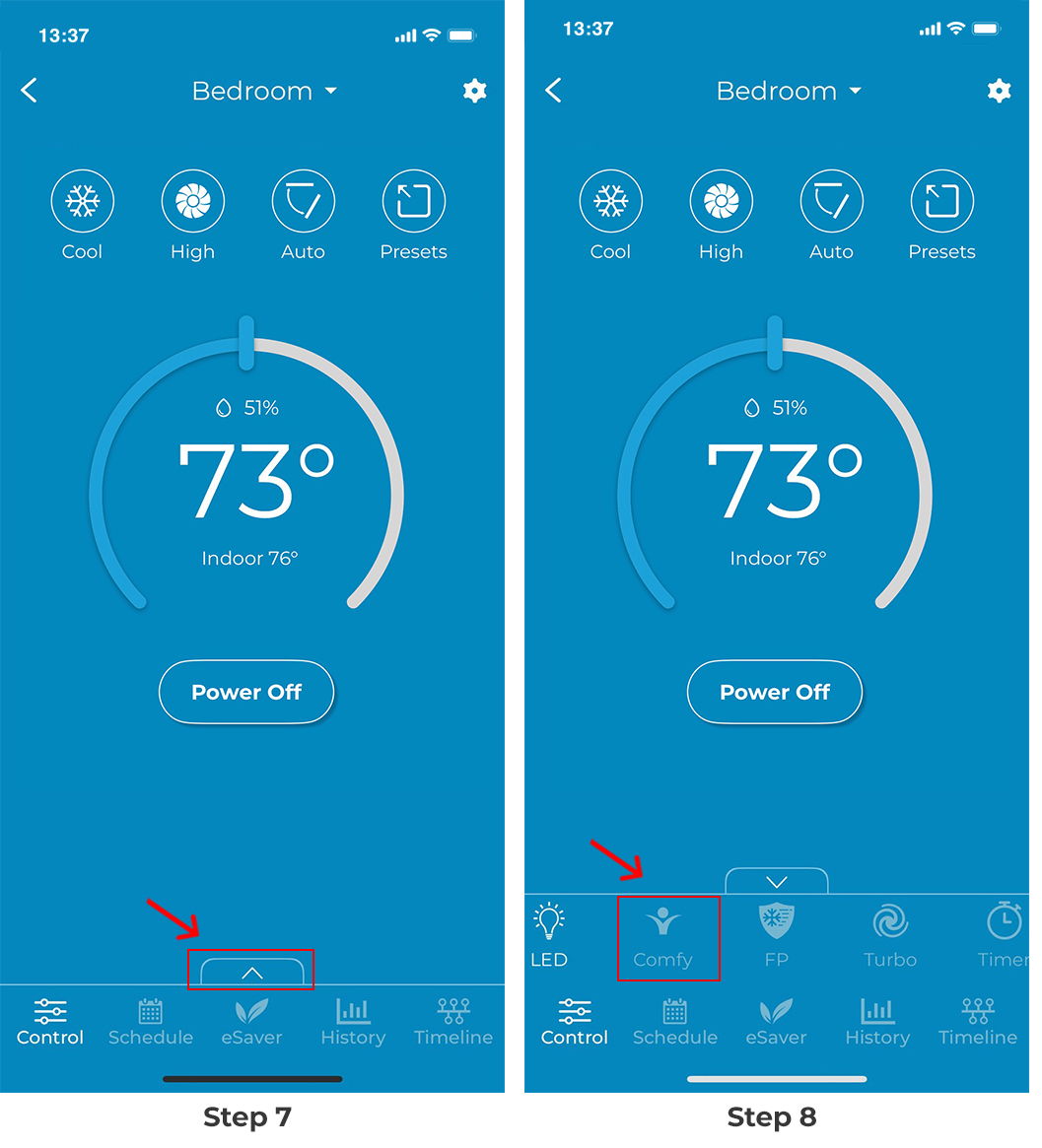

Step 7: You can turn Comfy Mode On/Off from the app control screen. Tap on the 'Up' arrow icon at the bottom of the control screen.

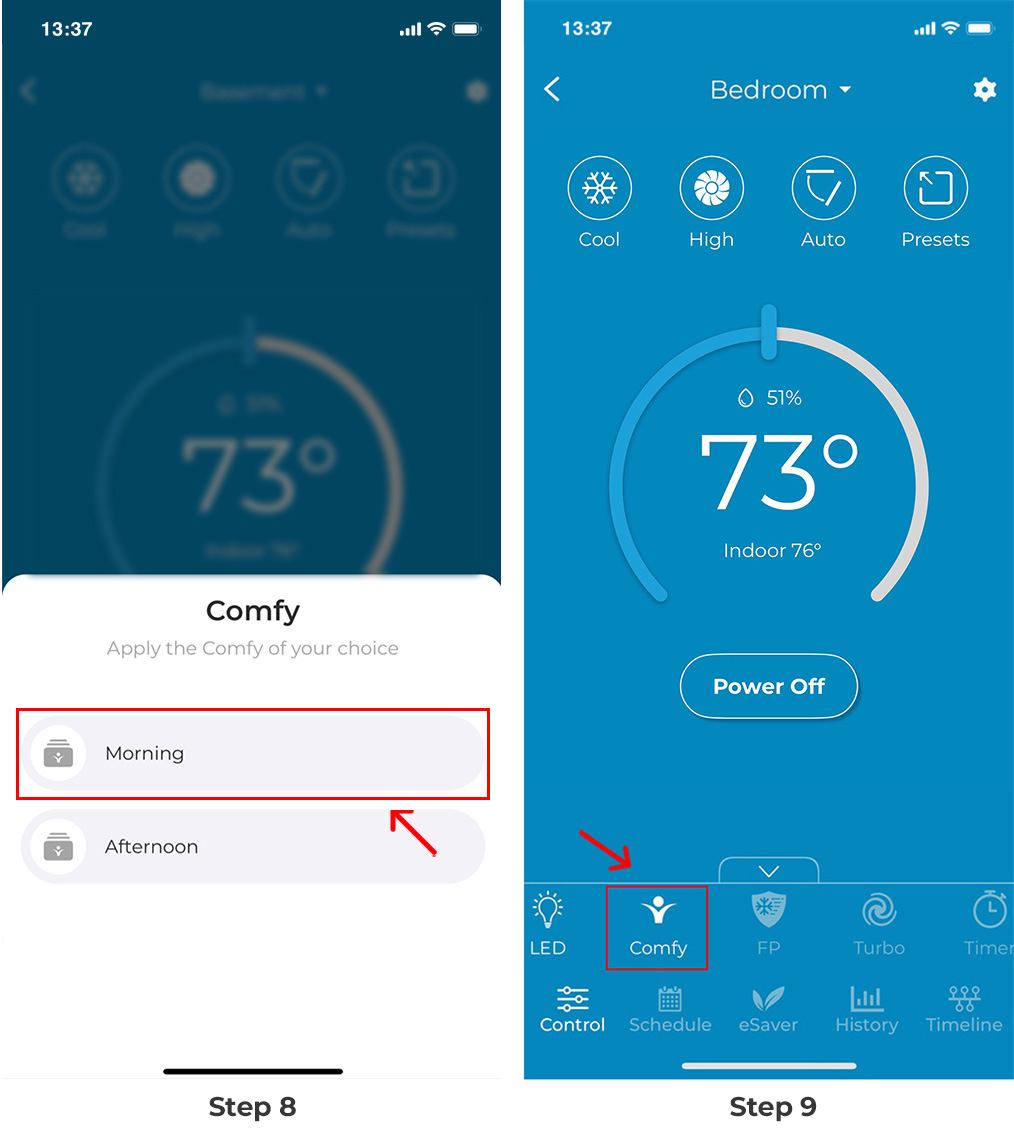

Step 8: In the pop-up navigation bar, tap on 'Comfy' to toggle it On or Off. The greyed-out icon shows that it is currently Off.

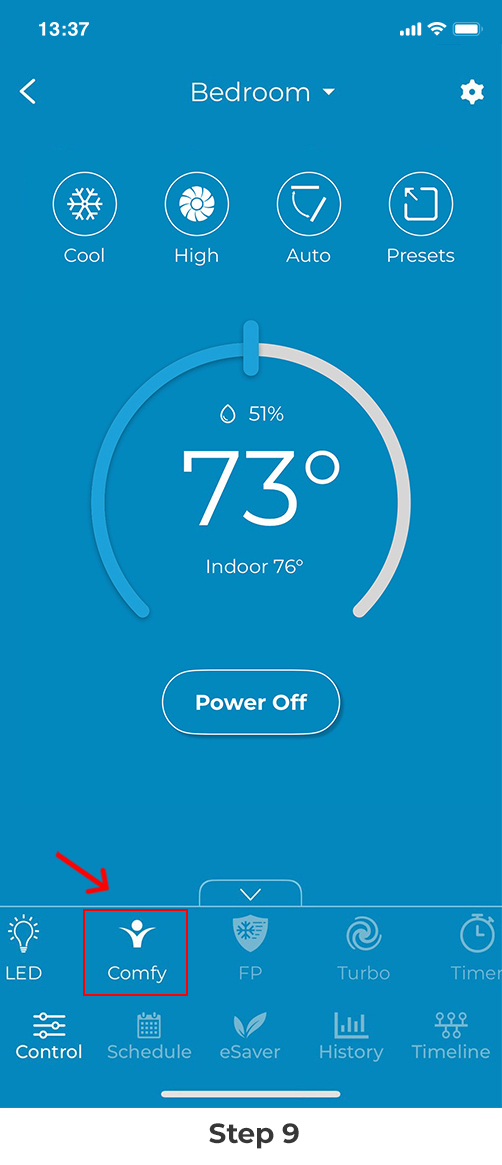

Step 9: Select the desired Comfy Mode from the list of available Comfy settings.

Step 10: Comfy Mode is now active, and the Comfy icon will turn white. It is now turned 'On'.

Setting up Comfy Humidity Mode

Comfy Humidity automatically changes your settings if the room humidity goes above or falls below a pre-set value, helping to maintain your ideal humidity levels.

You can set up comfy humidity mode for your mini-split, window, or portable units by performing these steps via Cielo Home app:

Step 1: On the Home screen, tap on the Breez Max you want to set comfy
humidity mode on.

Step 2: Tap on ‘eSaver’ in the navigation bar.

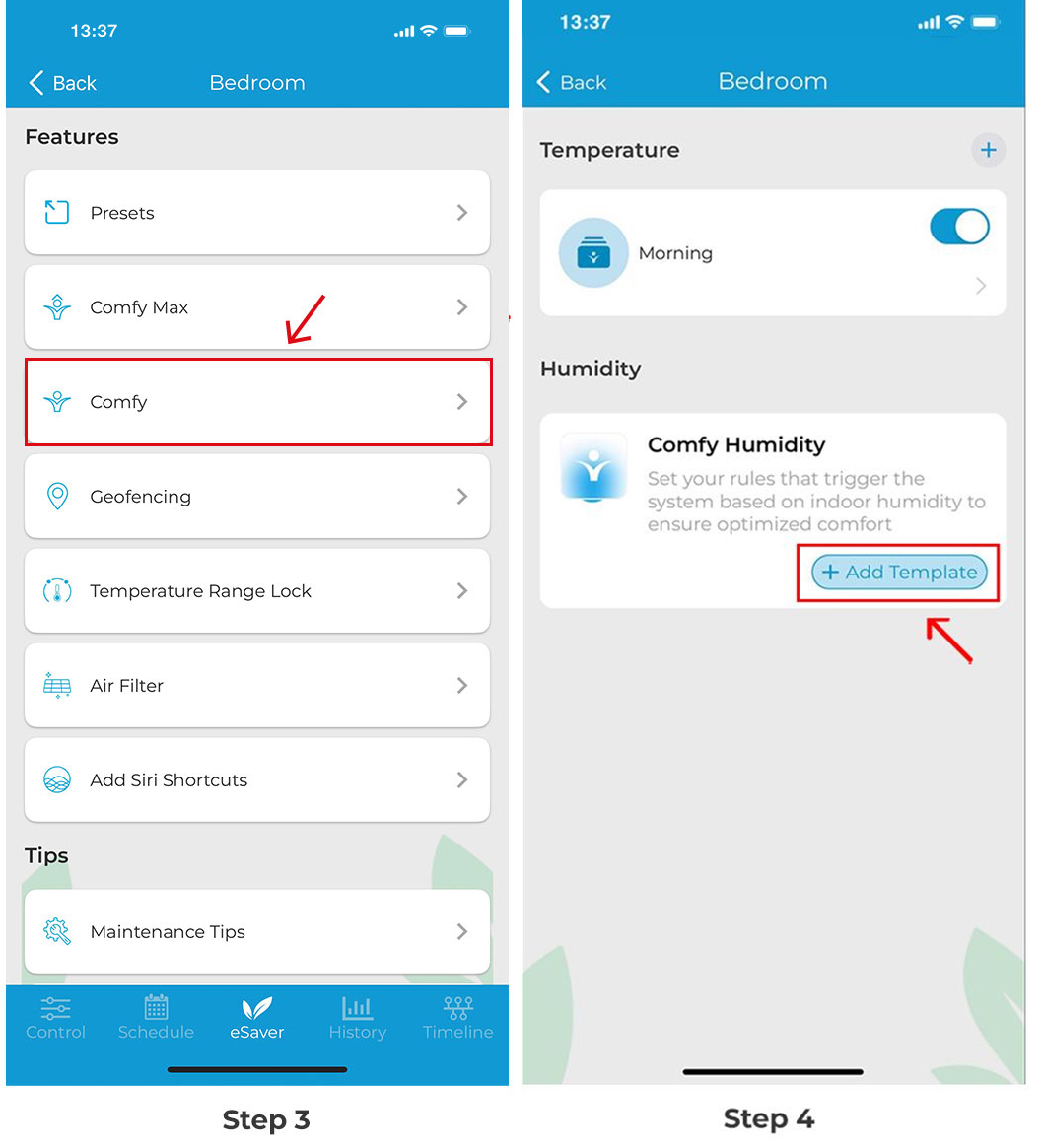

Step 3: Tap on 'Comfy'.

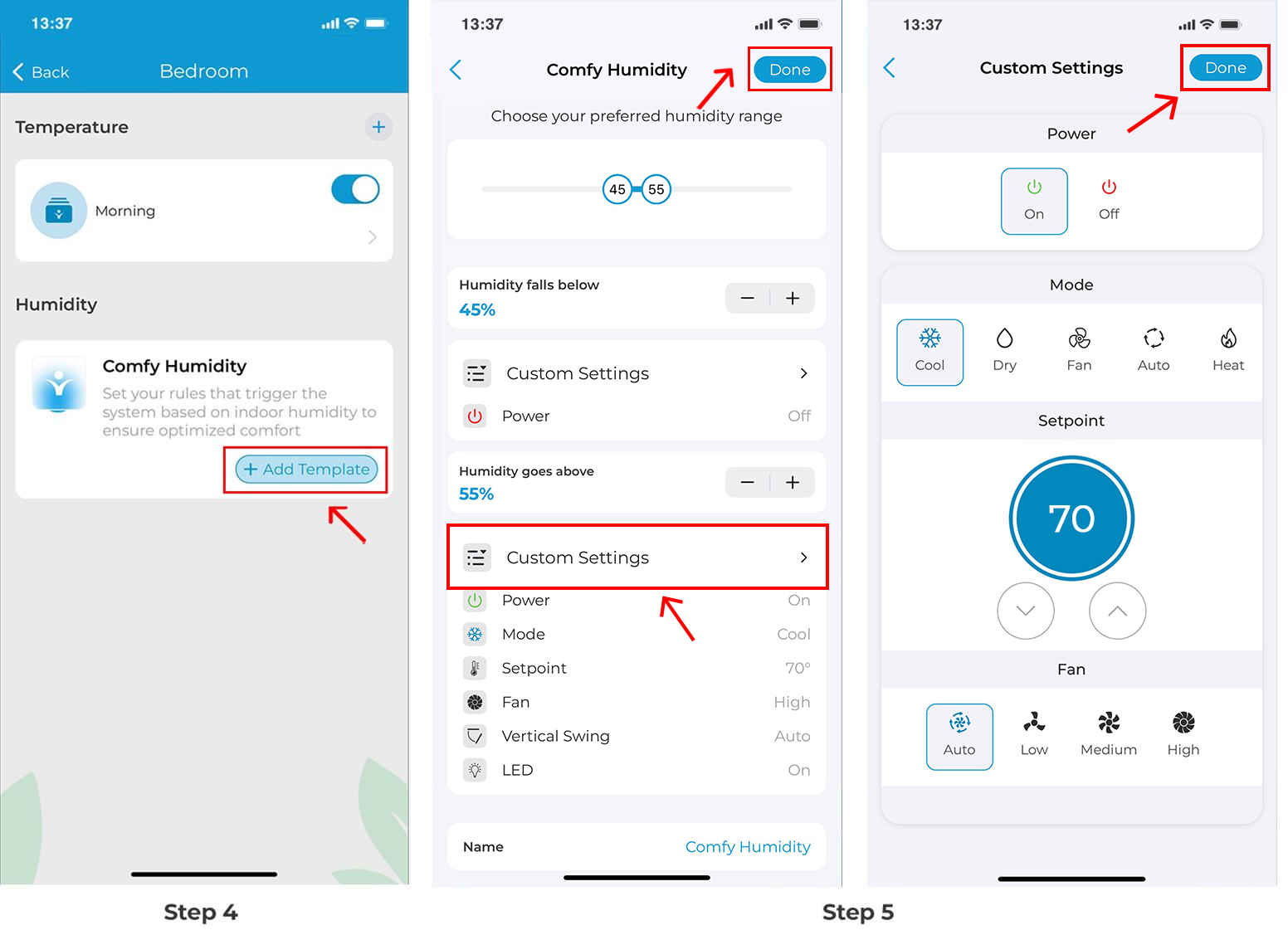

Step 4: Tap on ‘Add Template' to set up a Comfy Humidity template.

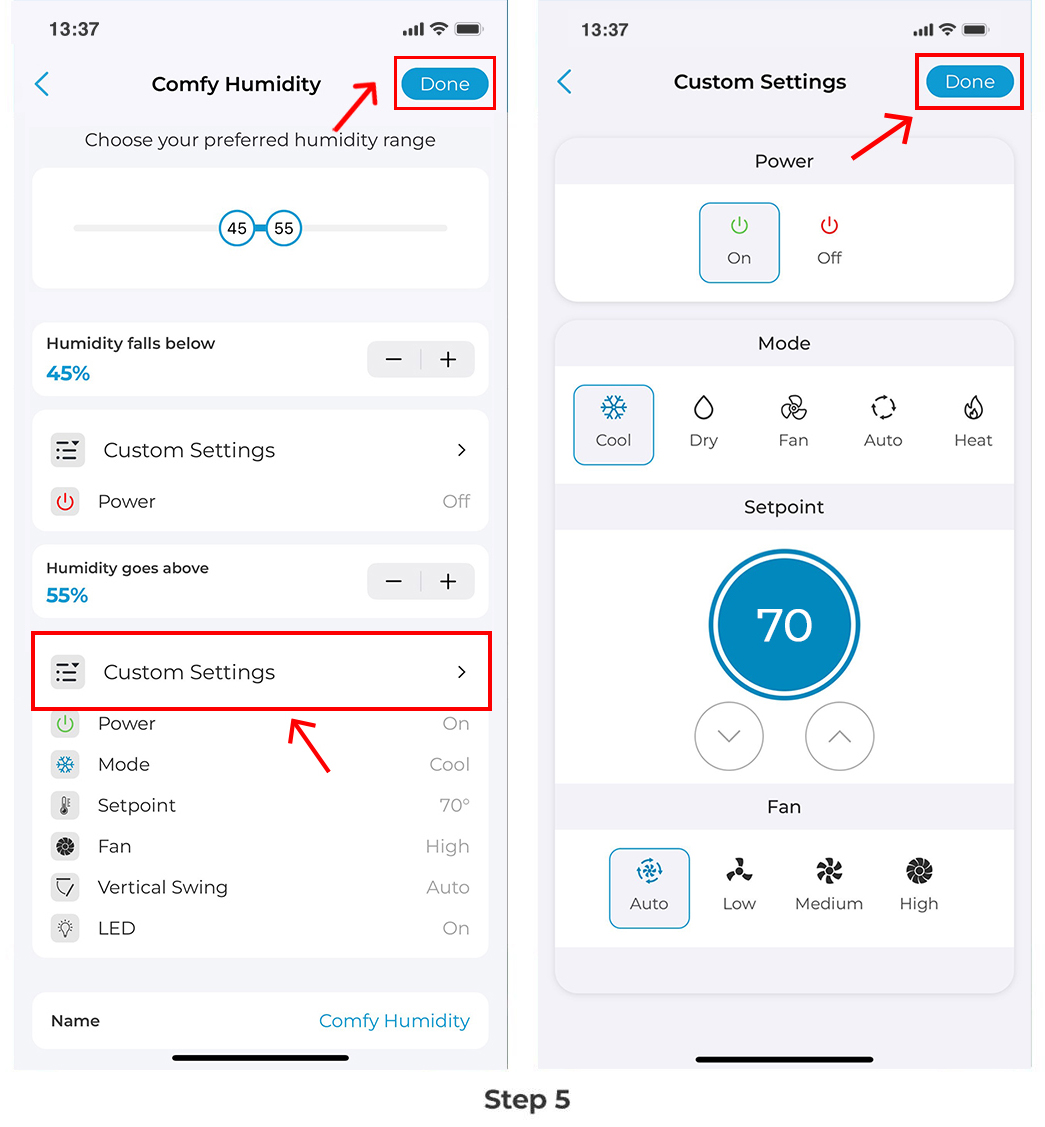

Step 5: Choose your preferred humidity range. Then, select what actions to perform if the humidity falls below or goes above the set range e.g. turning the unit off or on, changing its mode, setpoint, and fan speed helping it get back into the preferred humidity range. Add a name for this template and tap on ‘Done’.

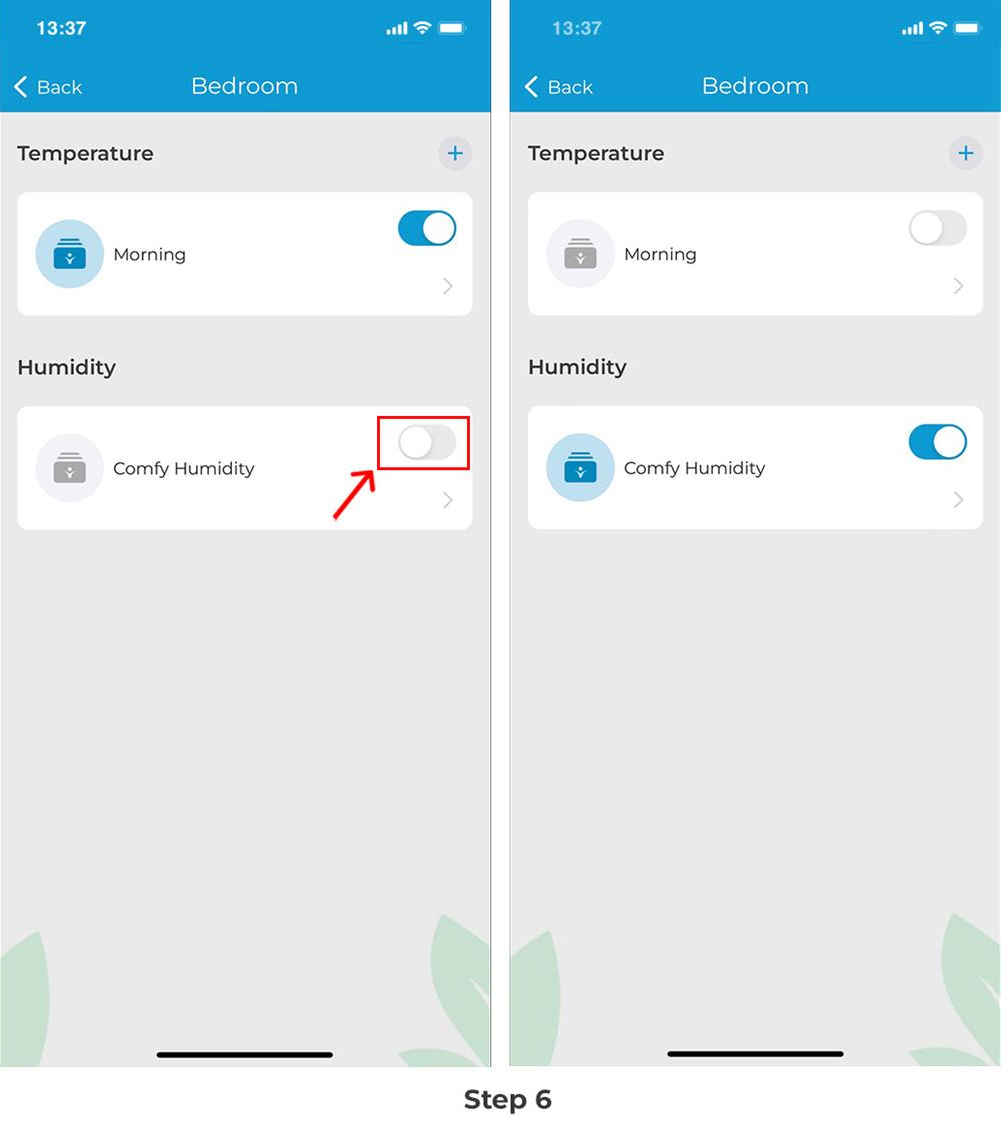

Step 6: 'Comfy Humidity' is now set. You can turn Comfy Mode 'On' or 'Off' from the toggle next to the name of the Comfy Mode. Once the device triggers the defined comfy humidity mode actions, you will get a notification in your app timeline.

Step 7: You can also turn Comfy Mode On/Off from the app control screen.Tap on the 'Up' arrow icon at the bottom of the control screen.

Step 8: On the pop-up navigation bar, tap on 'Comfy' to toggle it On or Off. Currently, it is turned 'Off', shown by the greyed-out icon.

Step 9: To turn it 'On', tap on the Comfy icon, and it will turn white. It is now turned 'On'.

Enabling Geofencing or Location-Based Controls

Geofencing turns your mini-split on before you arrive and turns it off after you have left the pre-set location.

You can configure location-based control for your mini-split, window, or portable units by performing these steps via the Cielo Home app:

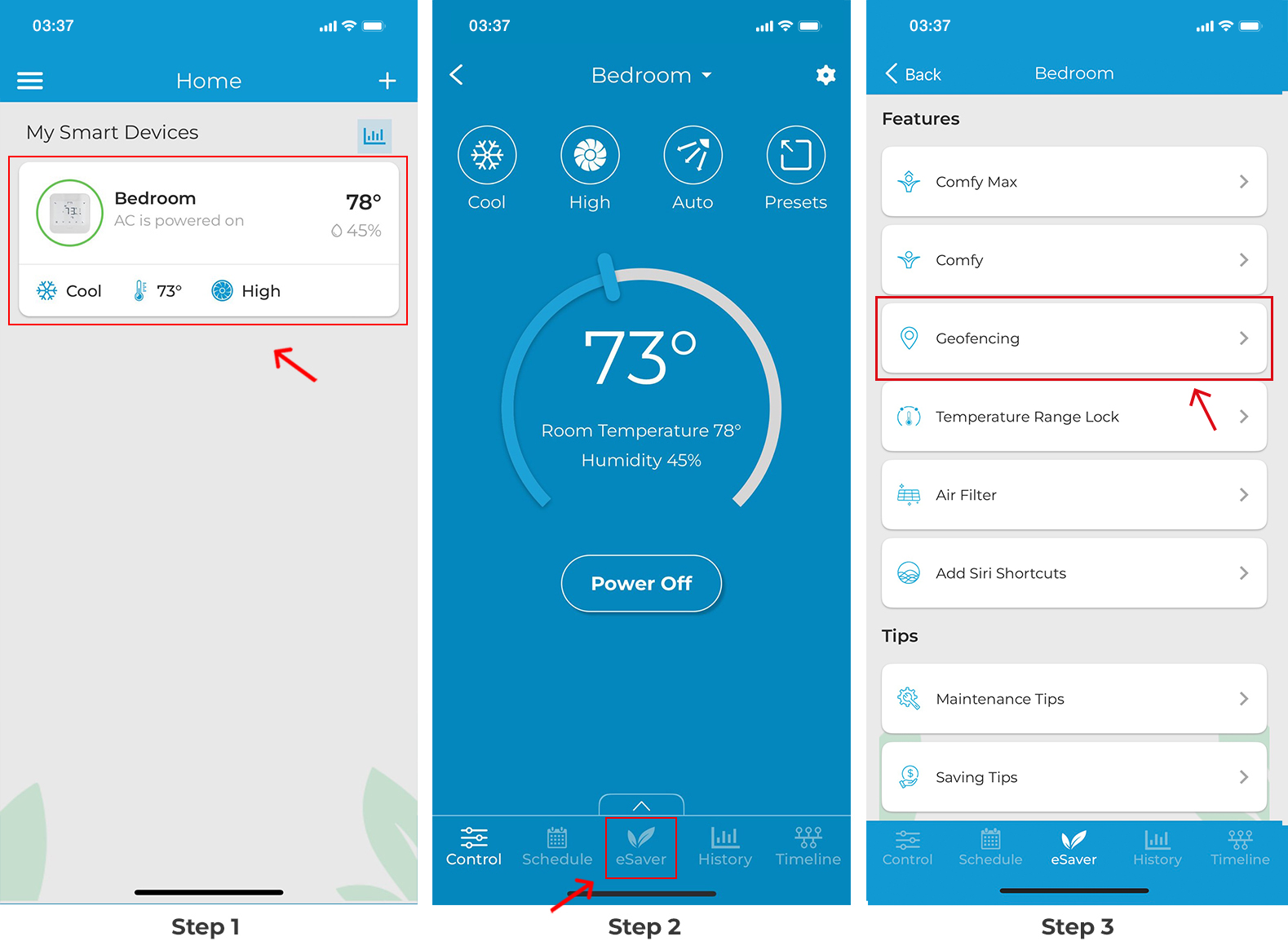

Step 1: On the Home screen, tap on the Breez Max you want to control through location controls.

Step 2: Tap on ‘eSaver’ in the navigation bar.

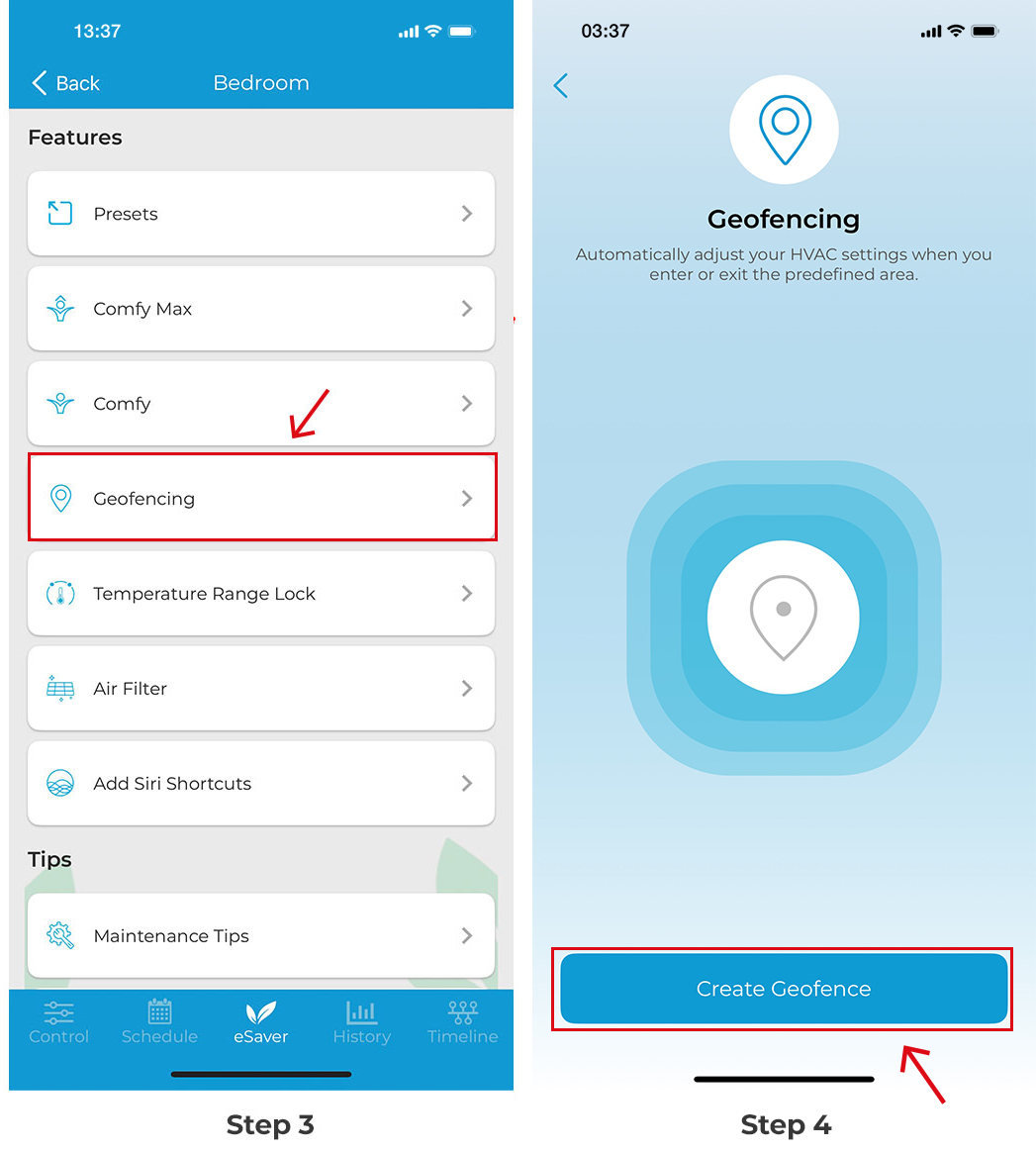

Step 3: Tap on ‘Geofencing’.

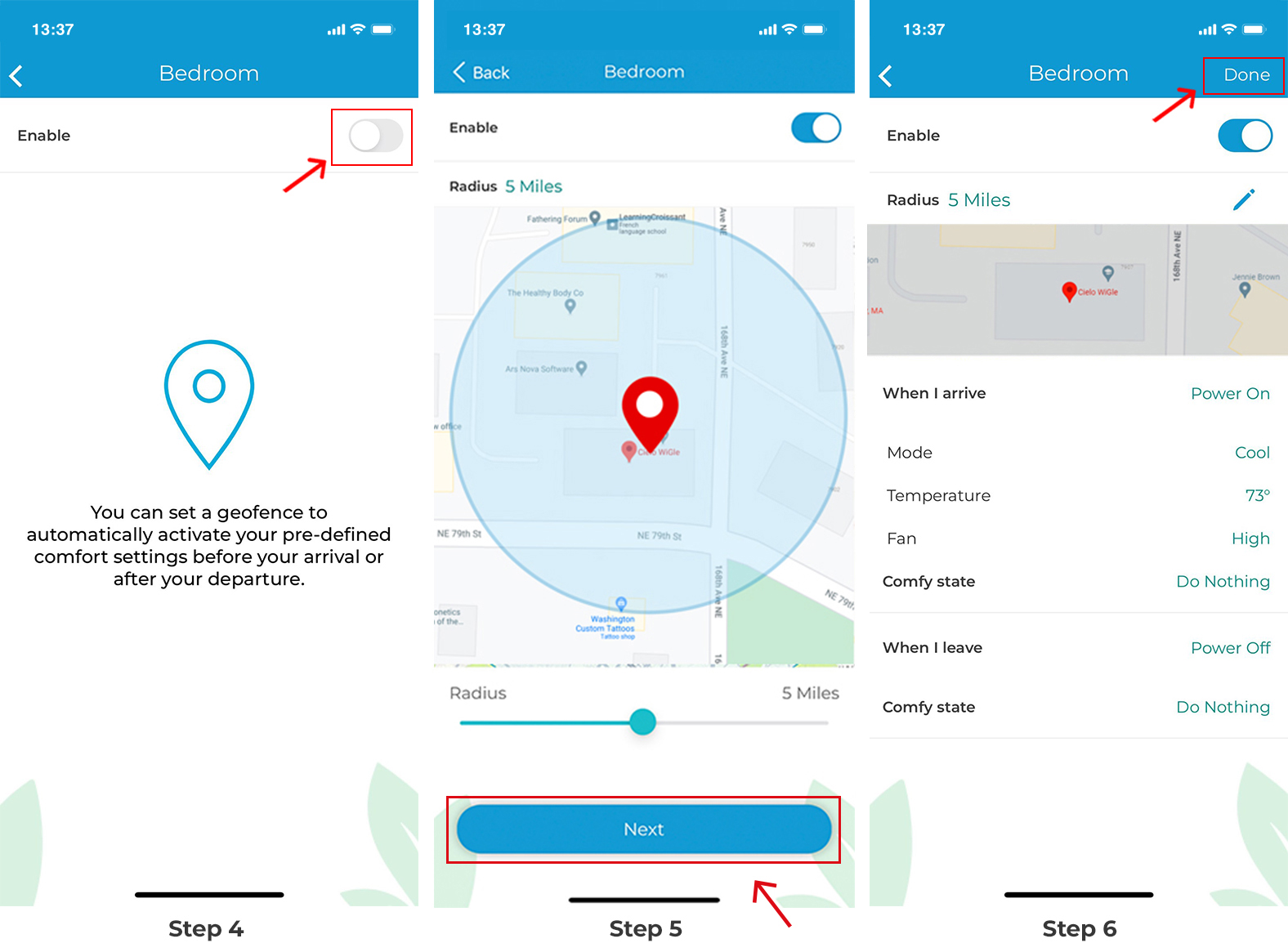

Step 4: Toggle the slider to enable Location Control, as shown in the red box.

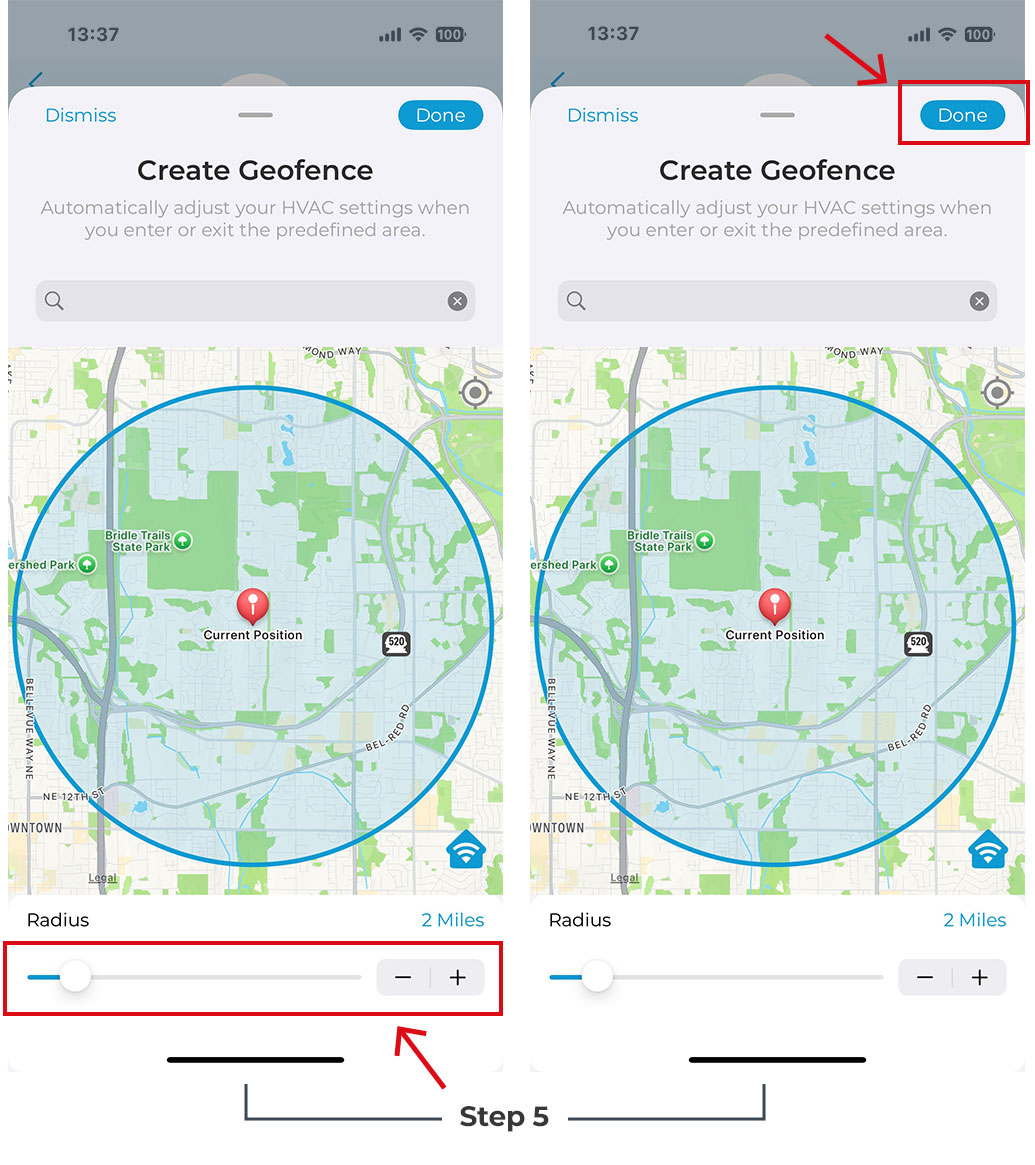

Step 5: You will see your current location on the map. Set a Geo-Fence range for your mini-split, window, or portable units between 1 - 10 Miles using the slider. Entering or exiting this range will trigger your unit ON/ OFF. Tap on 'Next'.

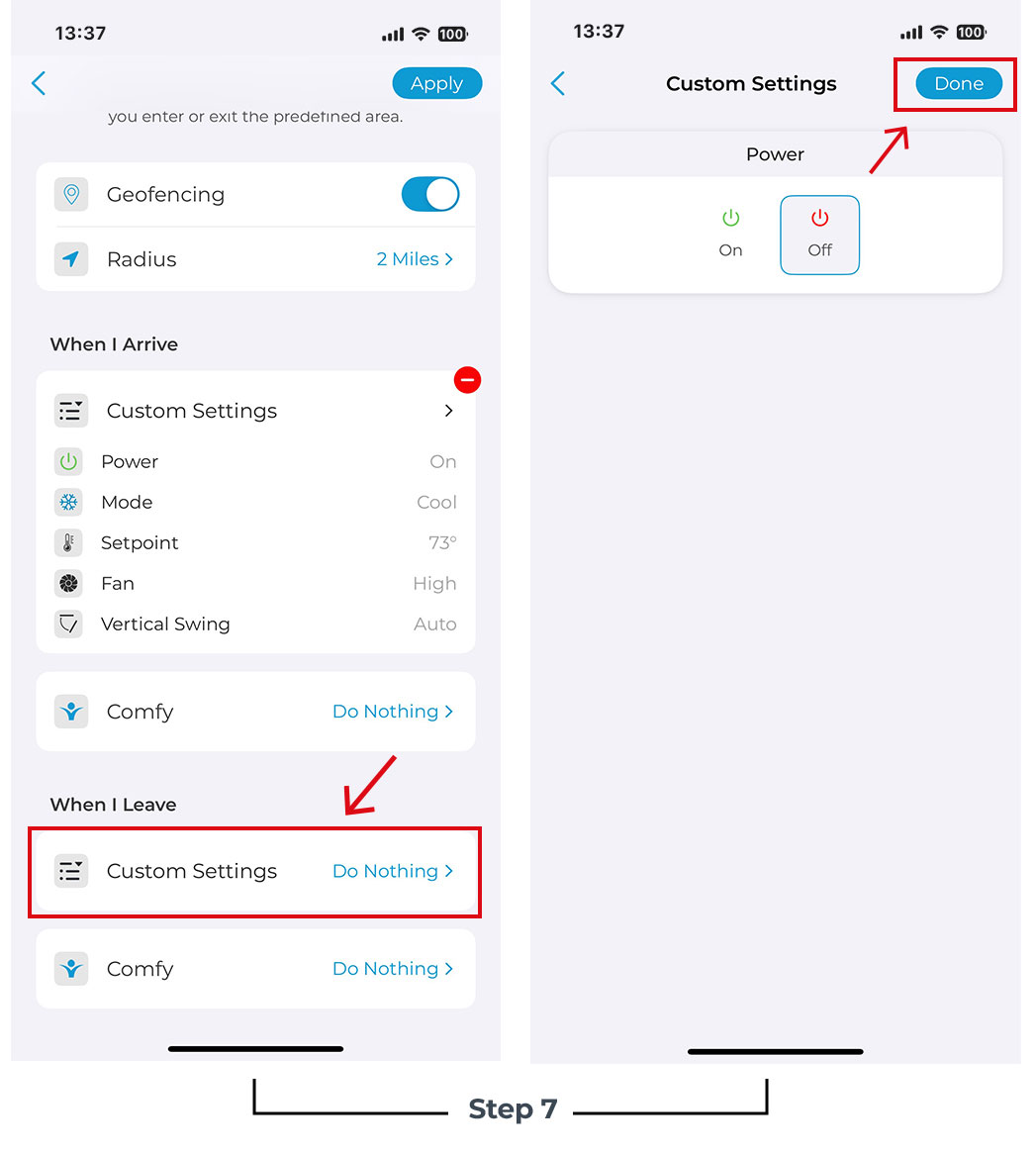

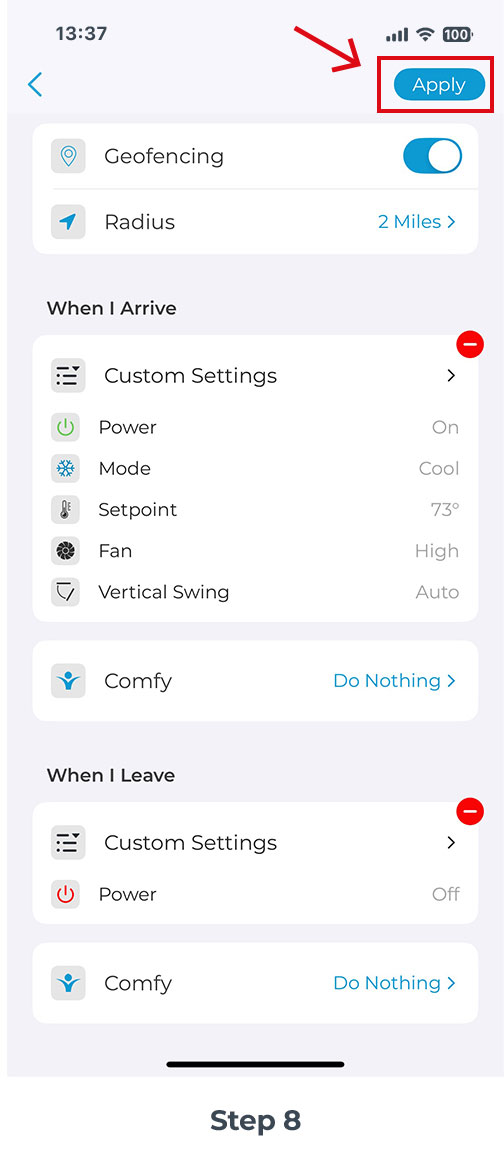

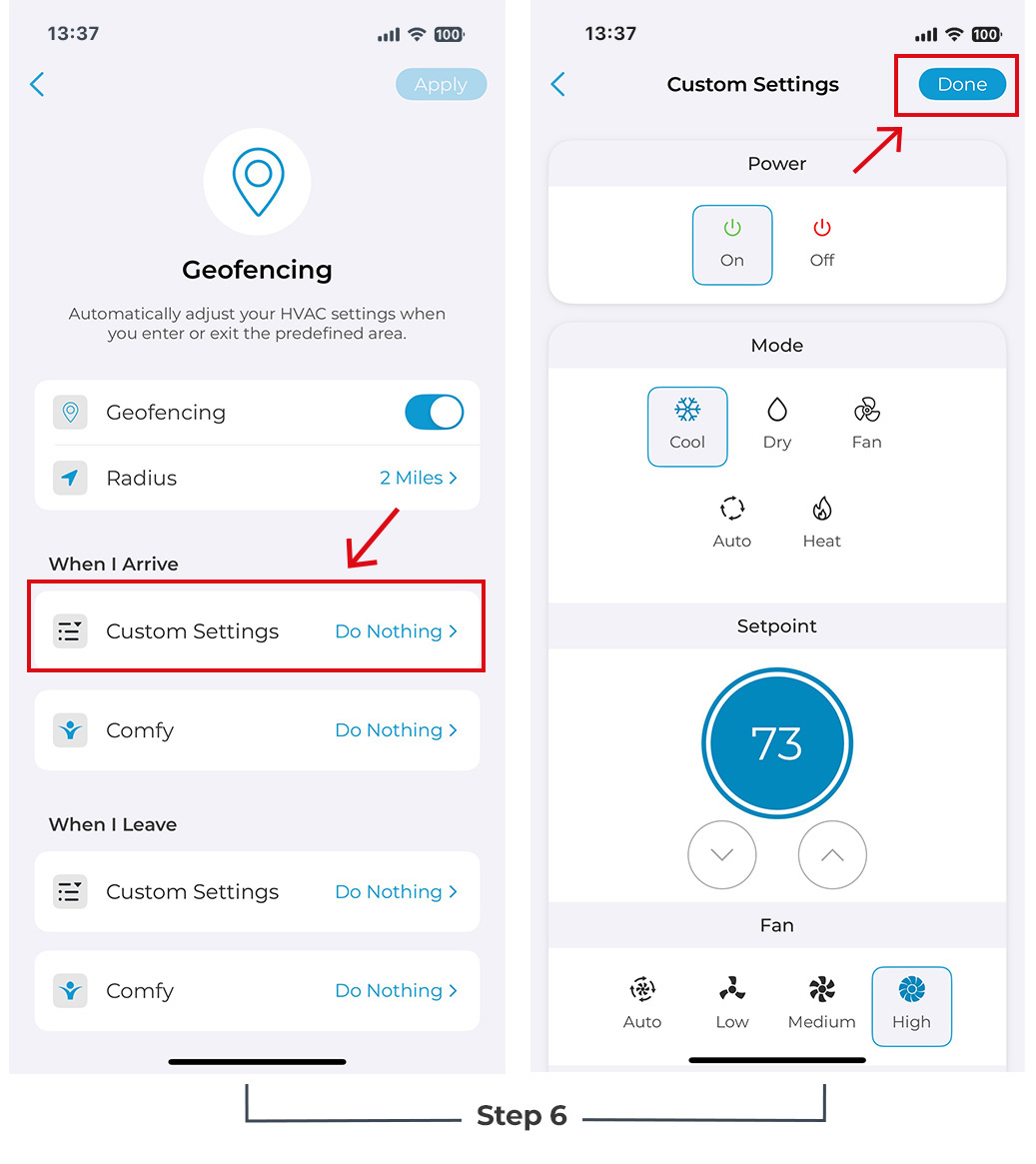

Step 6: Select your desired AC settings to be performed when you enter or exit the pre-set location and tap on ‘Done’. Once location controls are triggered, you will get a notification in your app timeline.

Setting up Temperature Range Lock

Temperature Range Lock allows you to set a minimum and maximum temperature value so that your mini-split, window, or portable unit runs within that range.

You can set up a temperature range lock by performing these steps via the Cielo Home app:

Step 1: On the Home screen, tap on the Breez Max you want to set the temperature range lock on.

Step 2: Tap on ‘eSaver’ in the navigation bar.

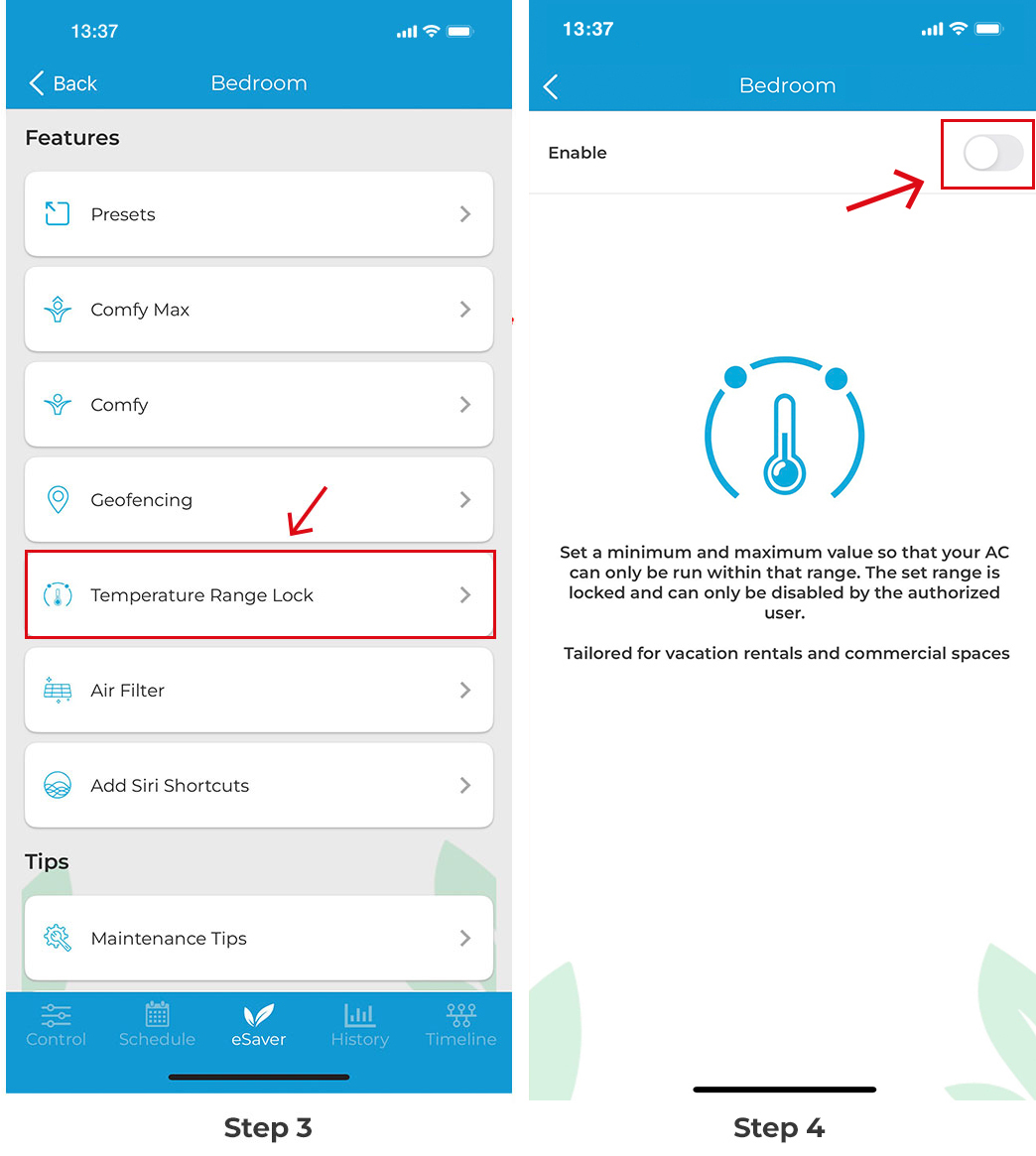

Step 3: Tap on 'Range Temperature Lock'.

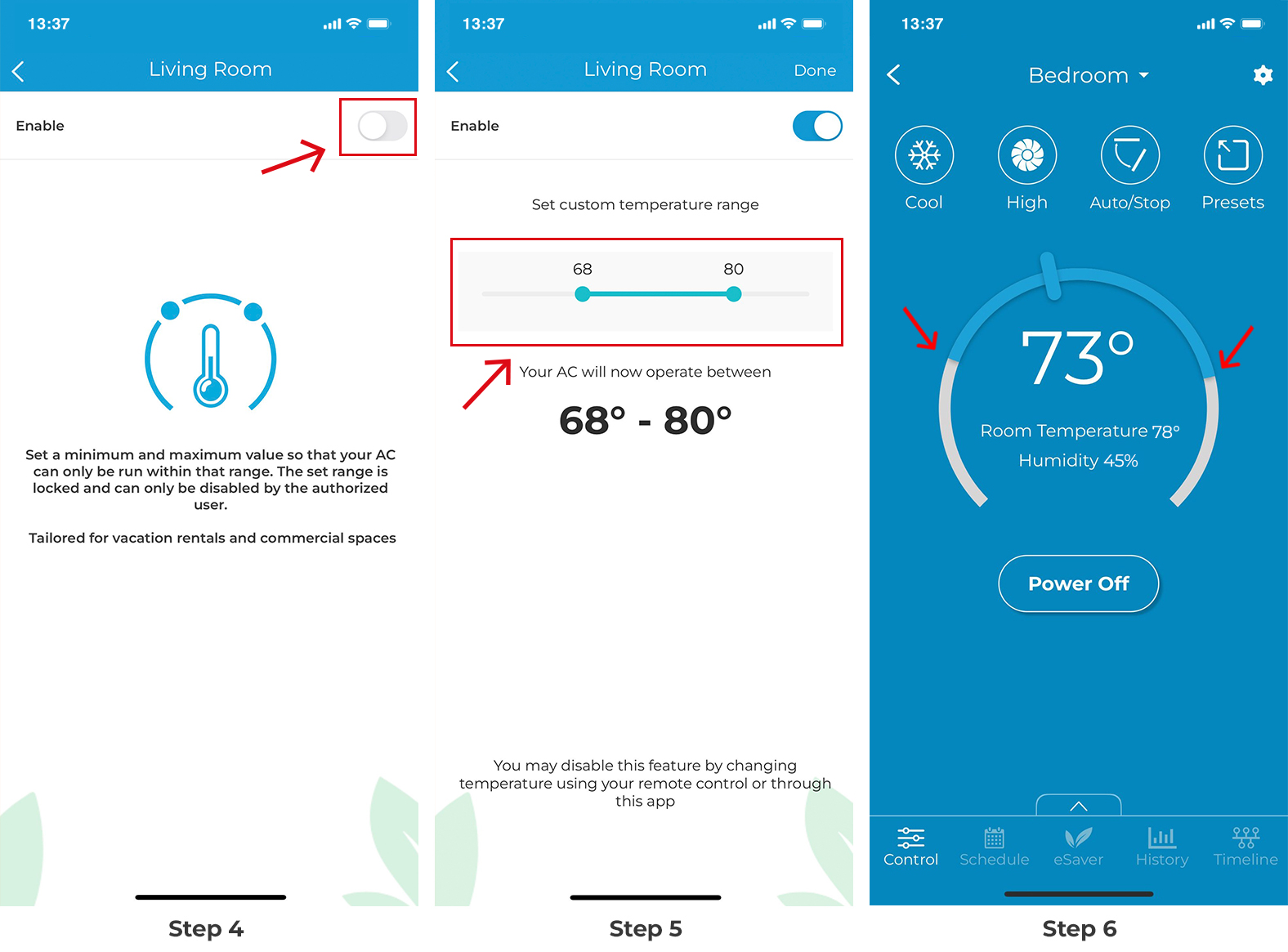

Step 4: Toggle the slider to enable range range lock, as shown in the red box.

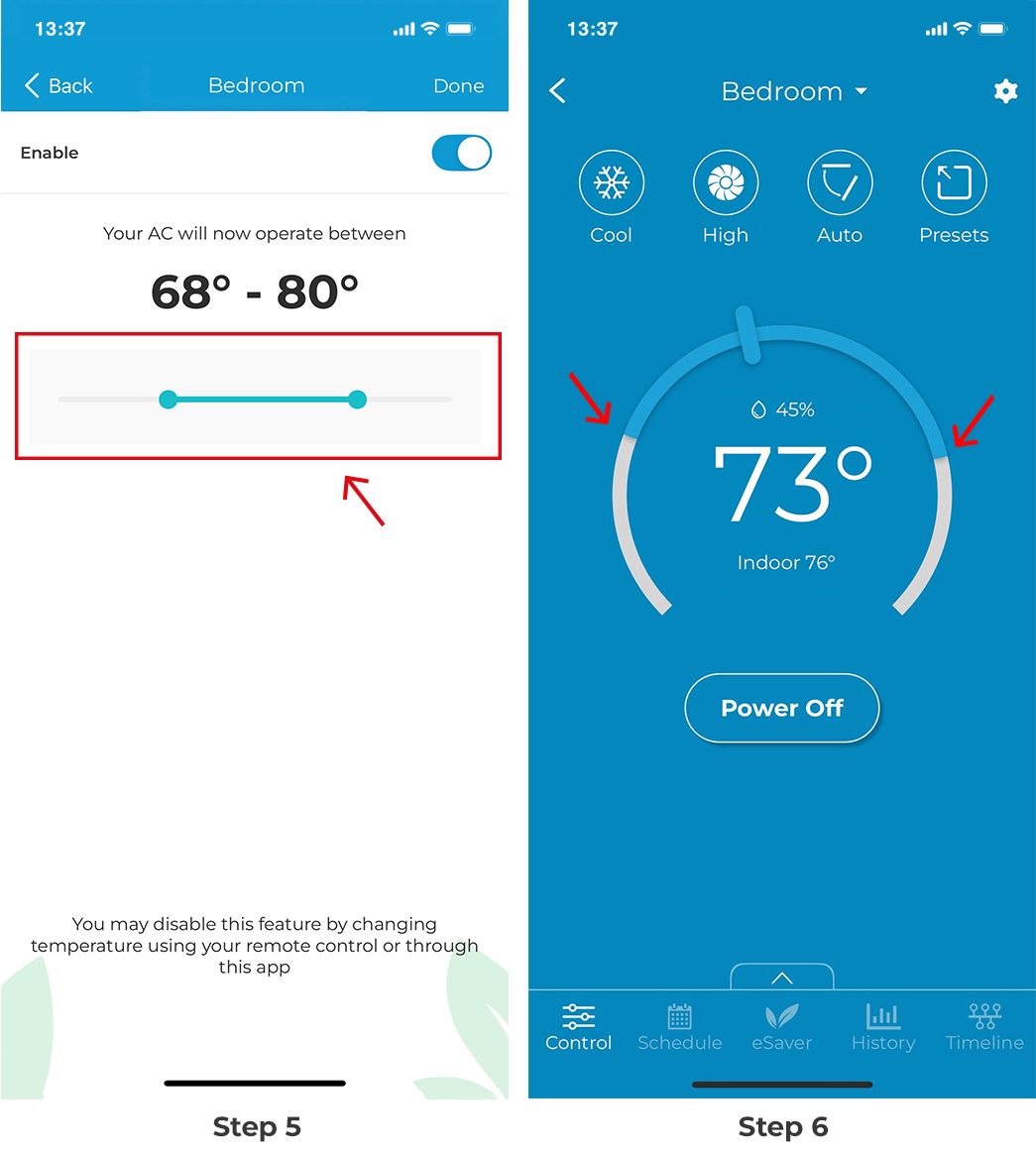

Step 5: Choose your preferred temperature range to operate the AC in. Tap on 'Done'.

Step 6: Now the device control screen temperature slider will be restricted to the temperature range specified. The white region on the temperature slider is inaccessible.

Note: Setting a temperature range will disable all schedules, location controls, and comfy mode in case the selected temperature range conflicts with the previously set values. These modes can be set later again within the specified temperature range. If you have a Preset outside the set temperature range, you'll have to edit the preset in order to enable temperature range control.

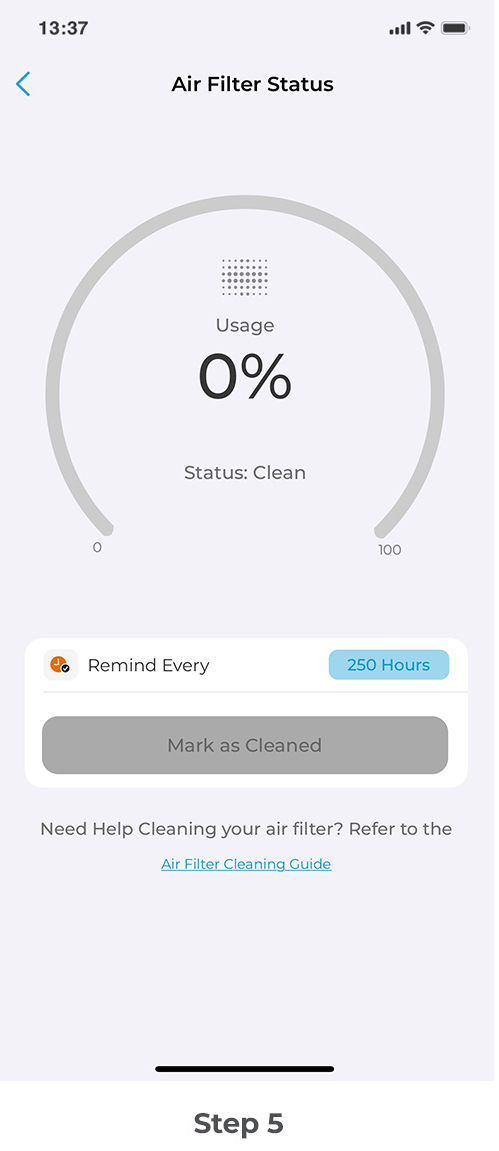

Checking Your AC’s Air Filter Status

You can check the live filter status of your mini-split, window, or portable units. Simply follow the steps listed below:

Step 1: On the Home screen, tap on the mini-split, window, or portable units you want to check the air filter status for.

Step 2: Tap on ‘eSaver’ in the navigation bar.

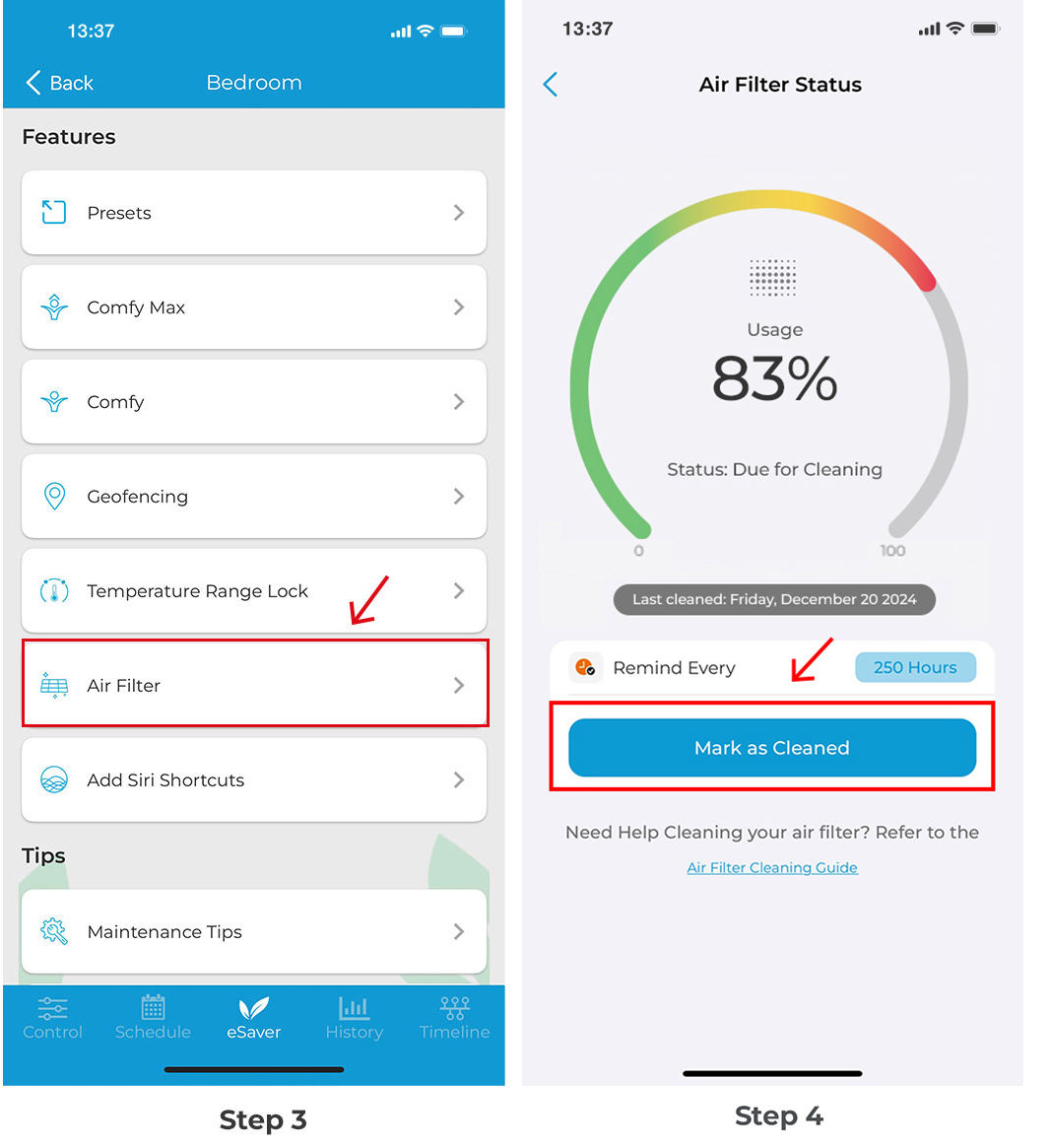

Step 3: Tap on ‘Air Filter’.

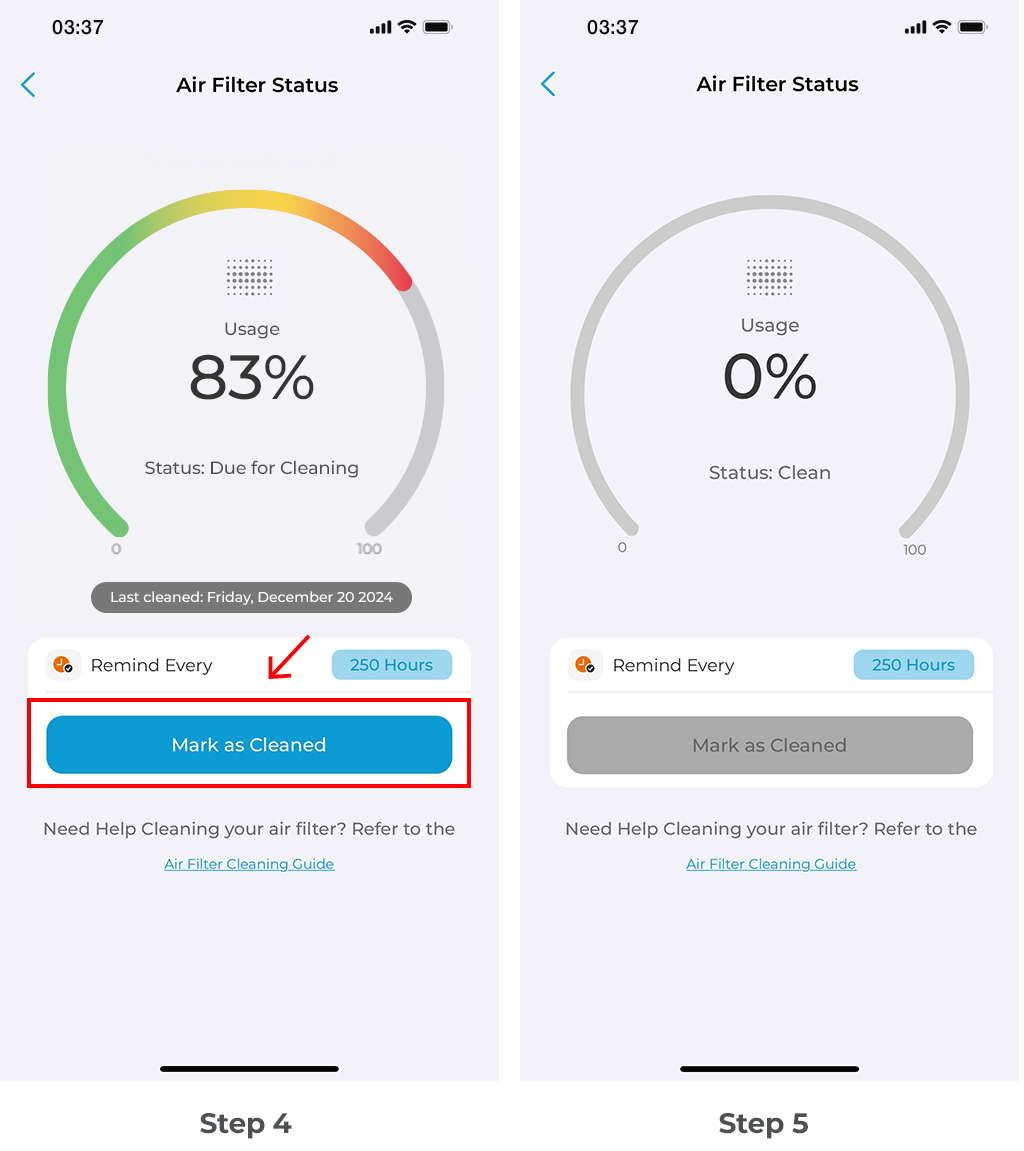

Step 4: You will see your current air filter status since registration (or since the last cleaning). When the range is about to fill up, manually remove the air filter and clean it. Once done, place the filter back into the mini-split. Tap on ‘Mark as Cleaned’. Additionally, you can set the number of hours after which you want to be notified for the next cleaning.

Step 5: Your filter status has now begun a new cycle.

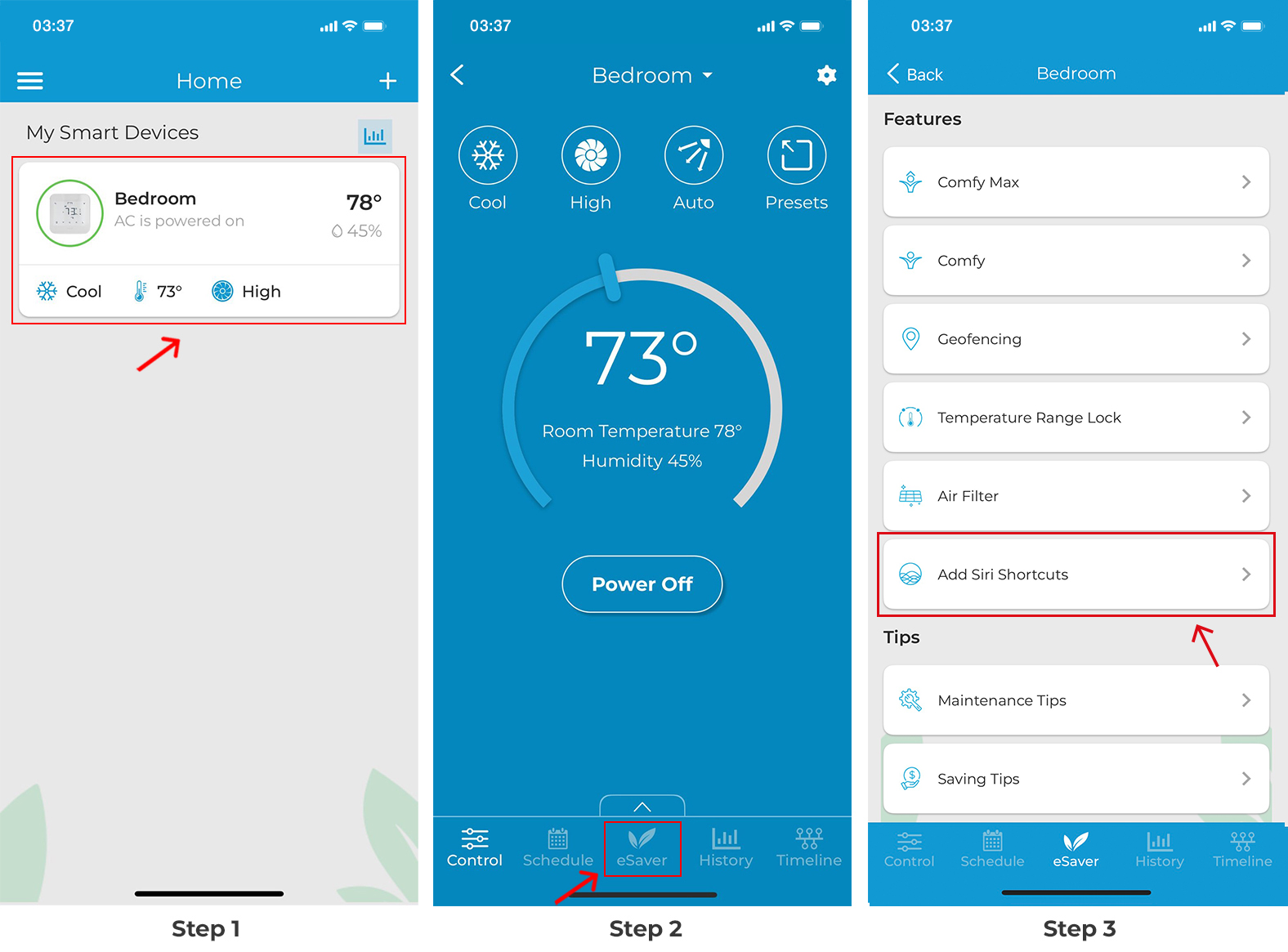

Adding Siri Shortcuts to Cielo Home (For iOS users)

Step 1: On the Home screen, tap on the Breez Max you want to add Siri Shortcuts for.

Step 2: Tap on ‘eSaver’ in the navigation bar.

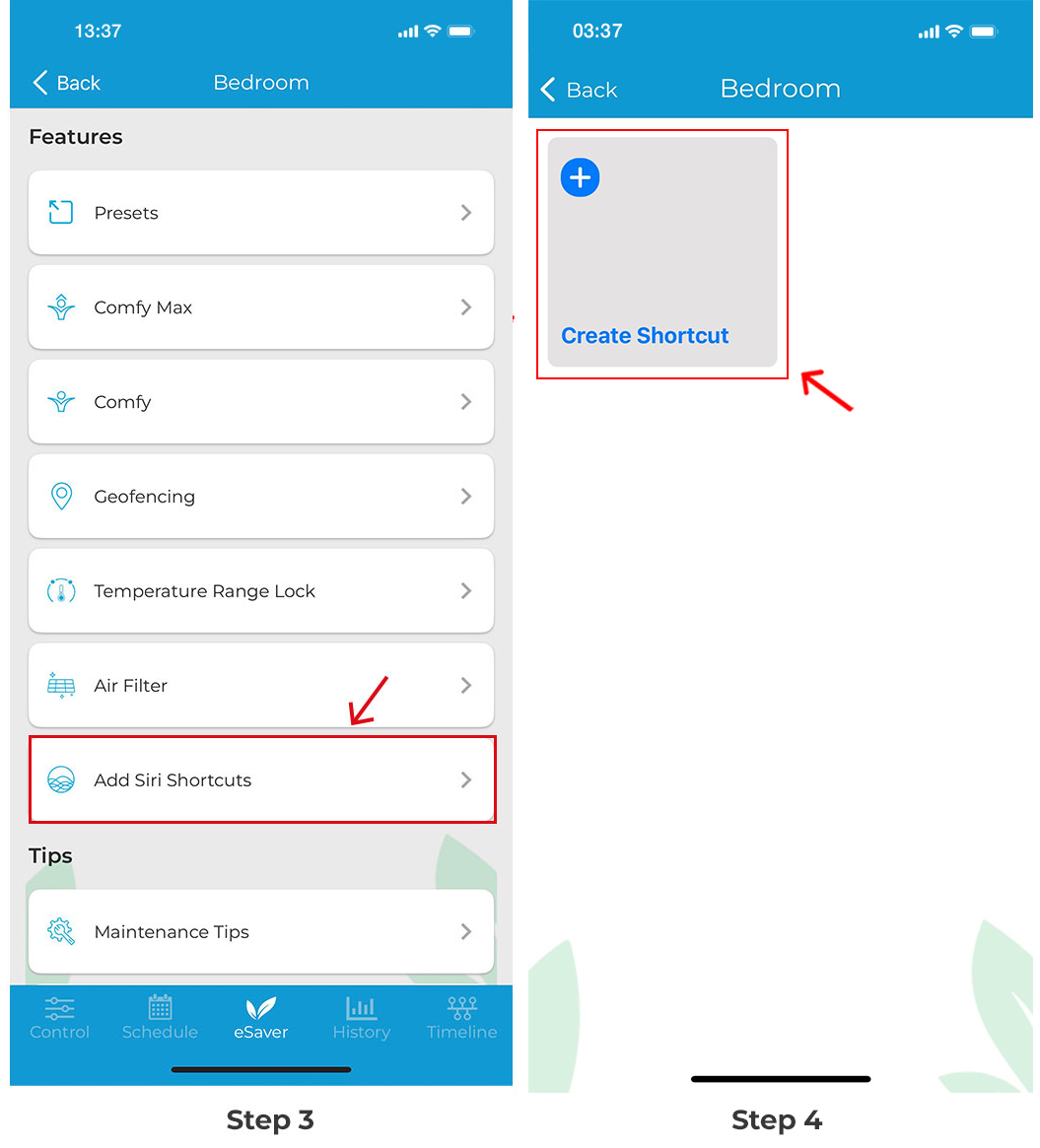

Step 3: Tap on ‘Siri Shortcuts’.

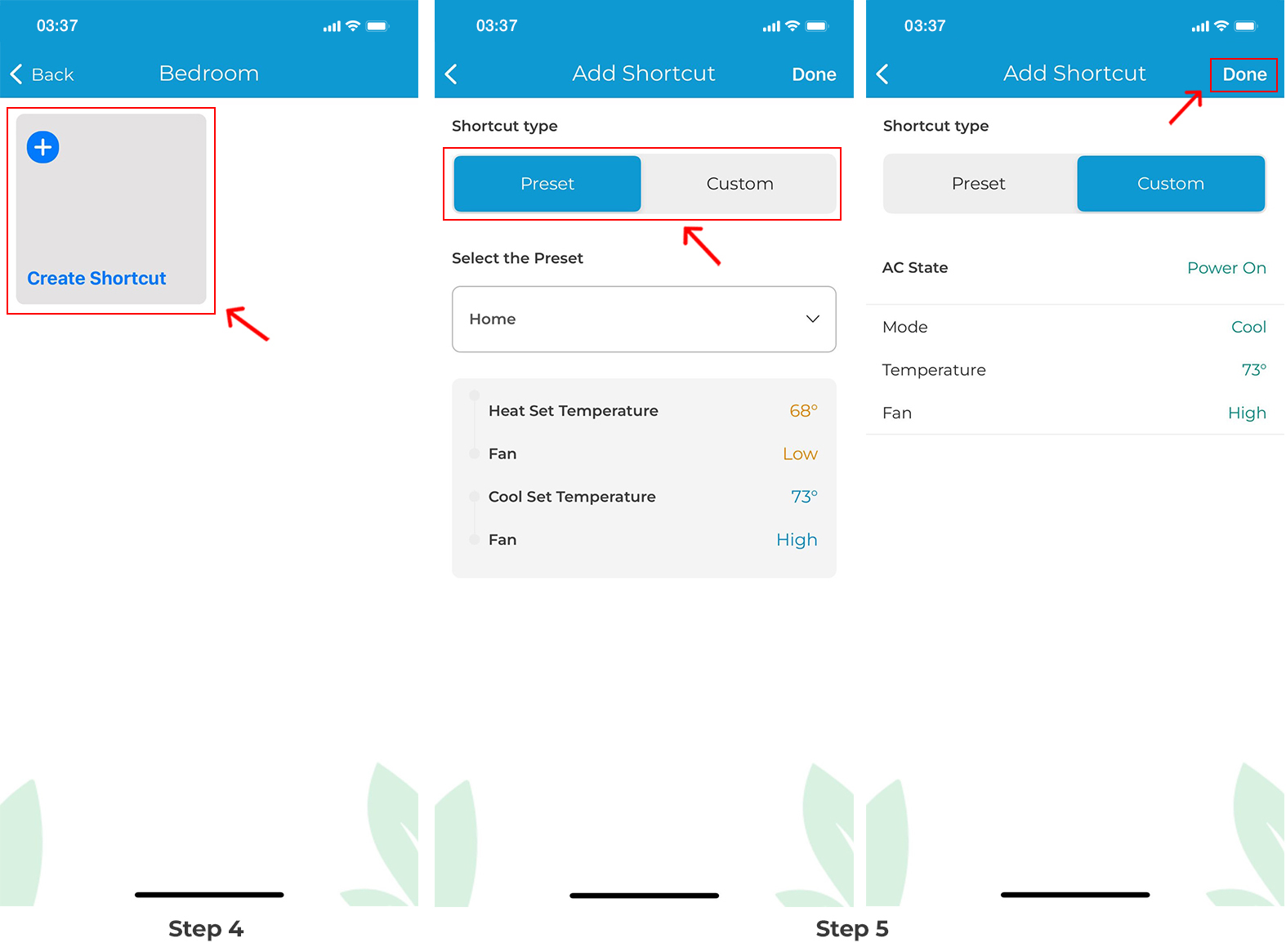

Step 4: Tap on 'Create Shortcut' to make a new Siri Shortcut.

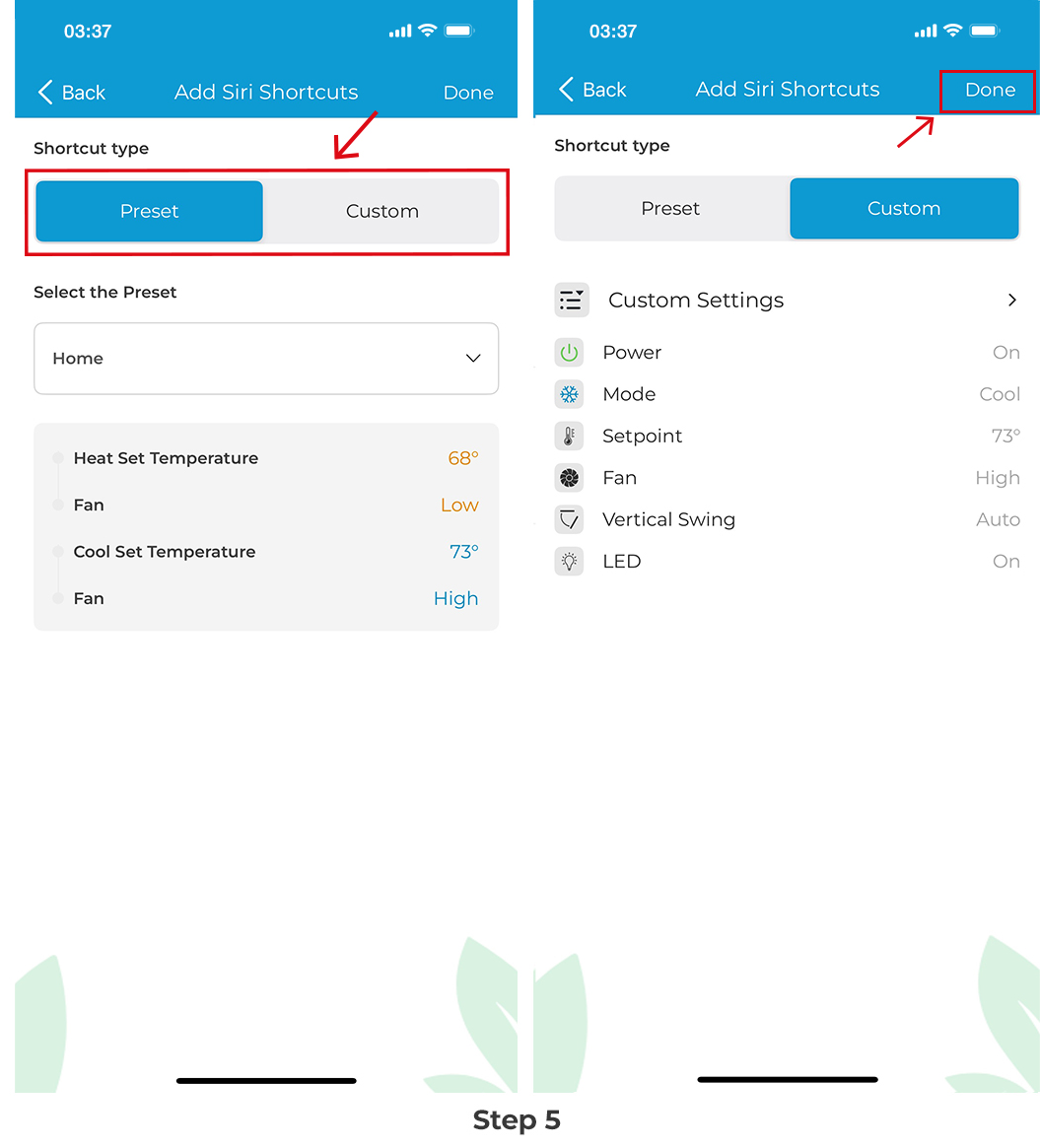

Step 5: Choose whether you want to add "Preset" as a shortcut or select "Custom" and enter the desired AC settings. You can set the AC operating mode, temperature set point, and fan speed. Tap on ‘Done’.

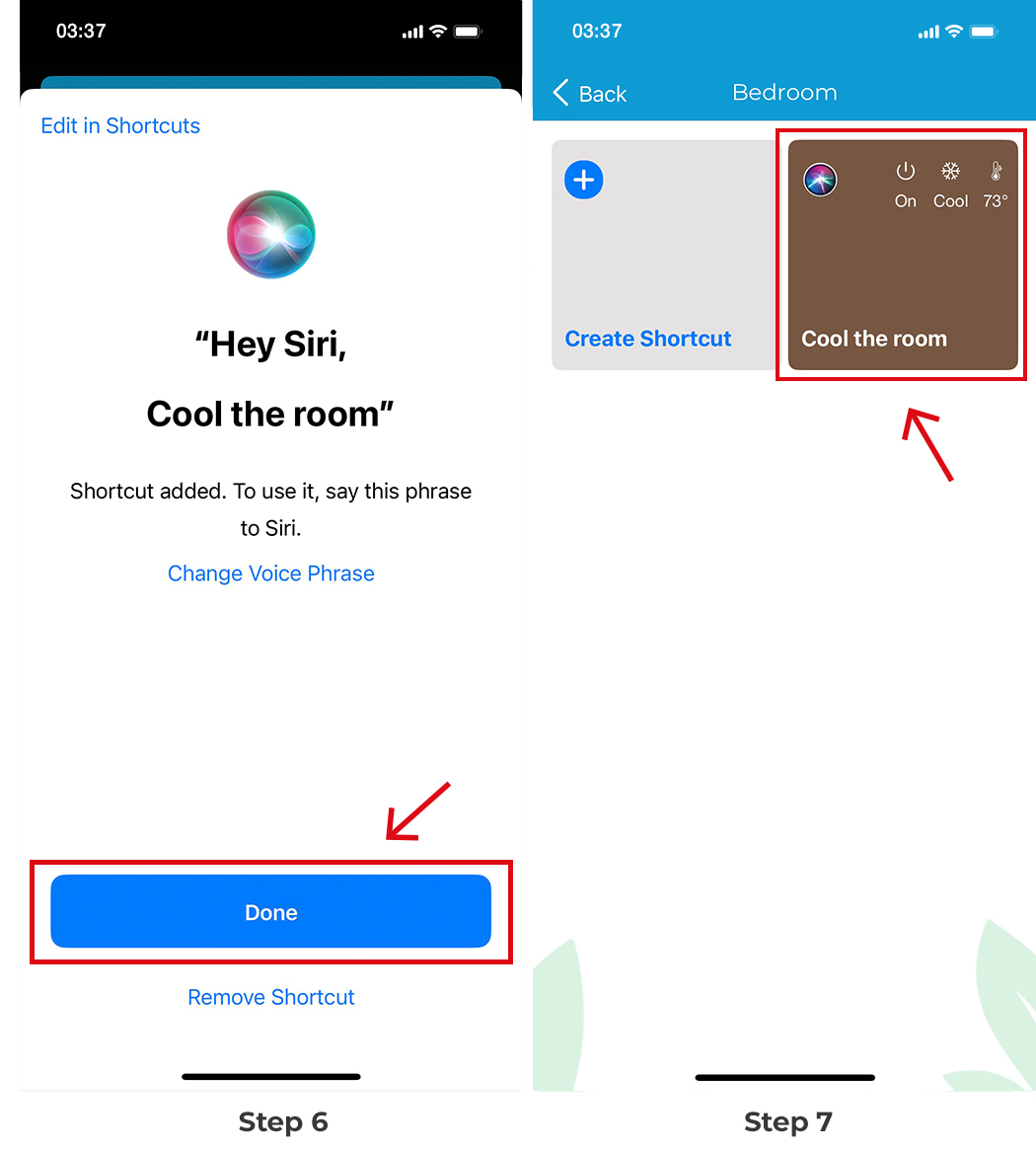

Step 6: Next, enter the phrase you want the Shortcut to be activated on. In this example, 'Cool The Room'. Tap on 'Add to Siri'.

Step 7: All your currently active Siri Shortcuts will now be displayed. In this example, when you say to Siri 'Cool The Room', the AC will turn on at 73 degrees in cool mode at high fan speed.

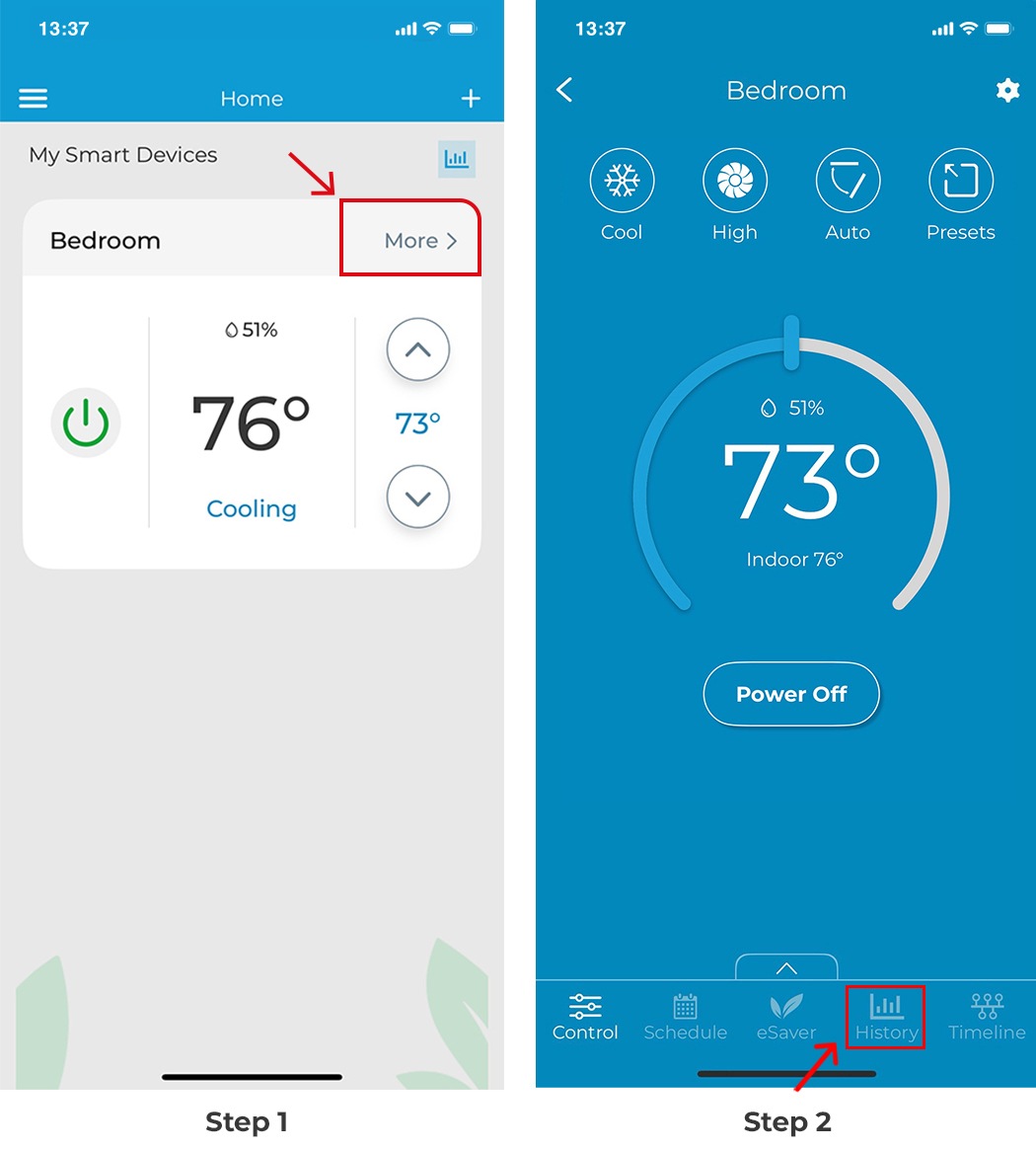

Checking Usage History

Step 1: On the Home screen, tap on the Breez Max you want to check Usage history for.

Step 2: On the Control screen, Tap on 'History'.

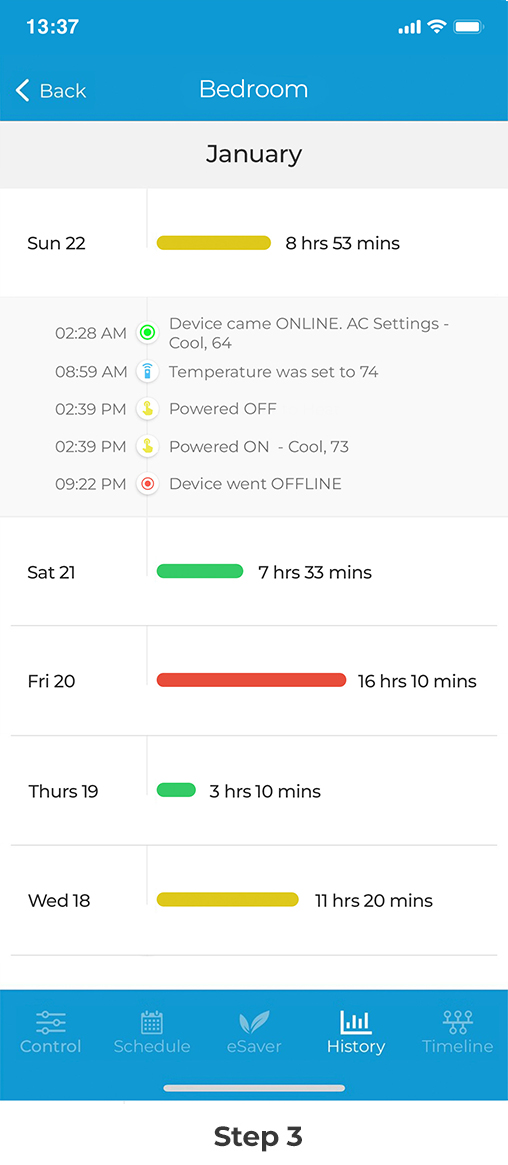

Step 3: Your 30-day usage summary should appear on the screen. Tap on any day to learn more details about your detailed usage history.

Step 4J: Checking Timeline of Actions

Timeline of Actions provides details of all the changes happening on your unit, including actions performed through the app, the remote, or over voice commands. For instance, you can check when the AC is being turned on and off.

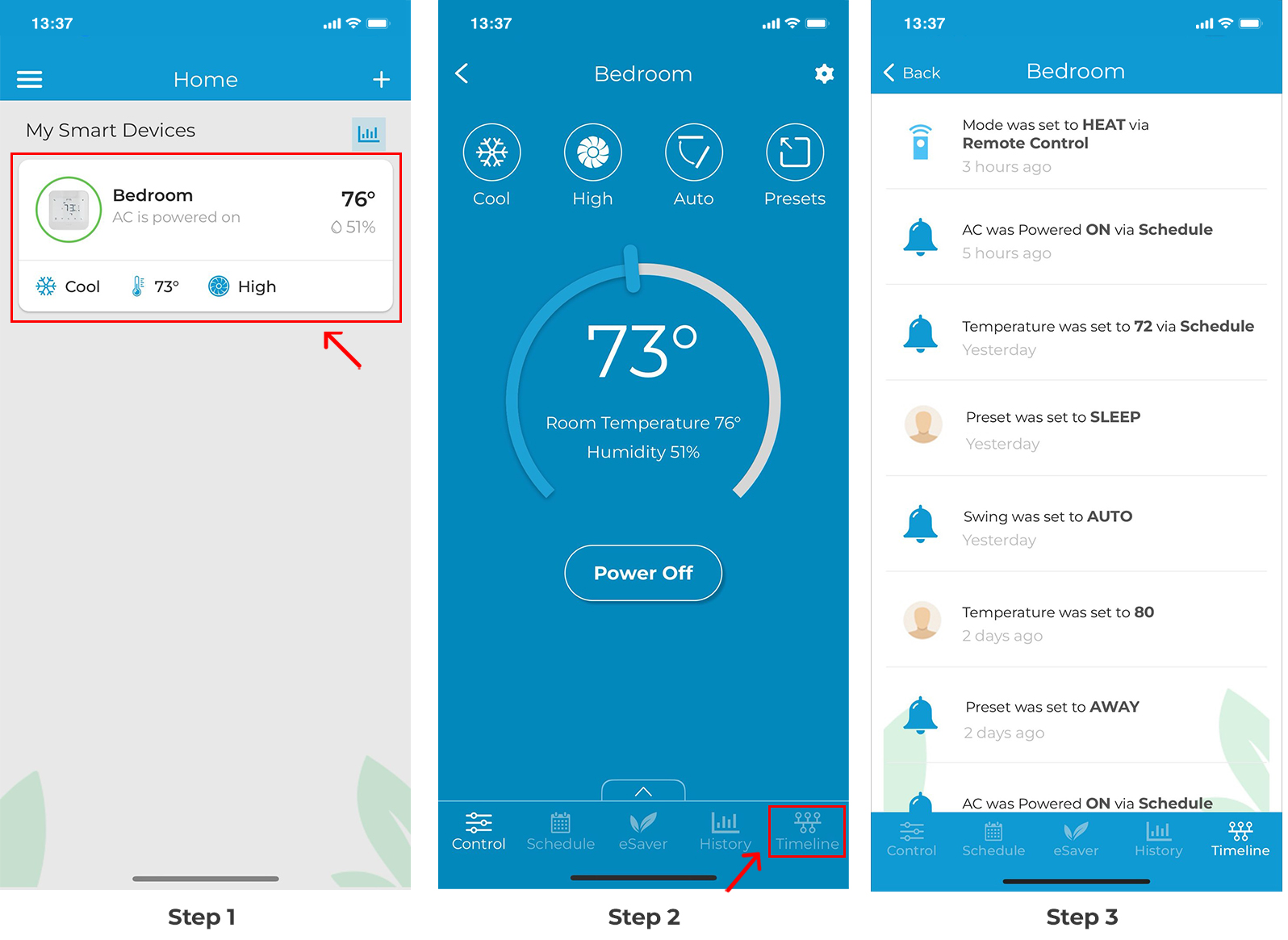

Step 1: On the Home screen, tap on the Breez Max you want to check the timeline of.

Step 2: On the Control screen, Tap on 'Timeline'.

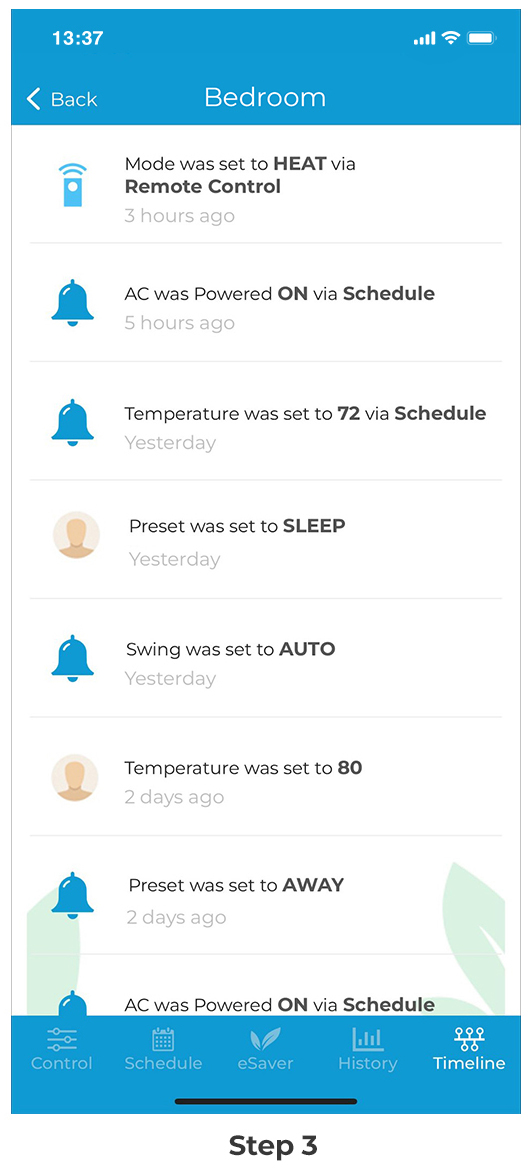

Step 3: You'll see a complete list of actions performed over the last 90 days.

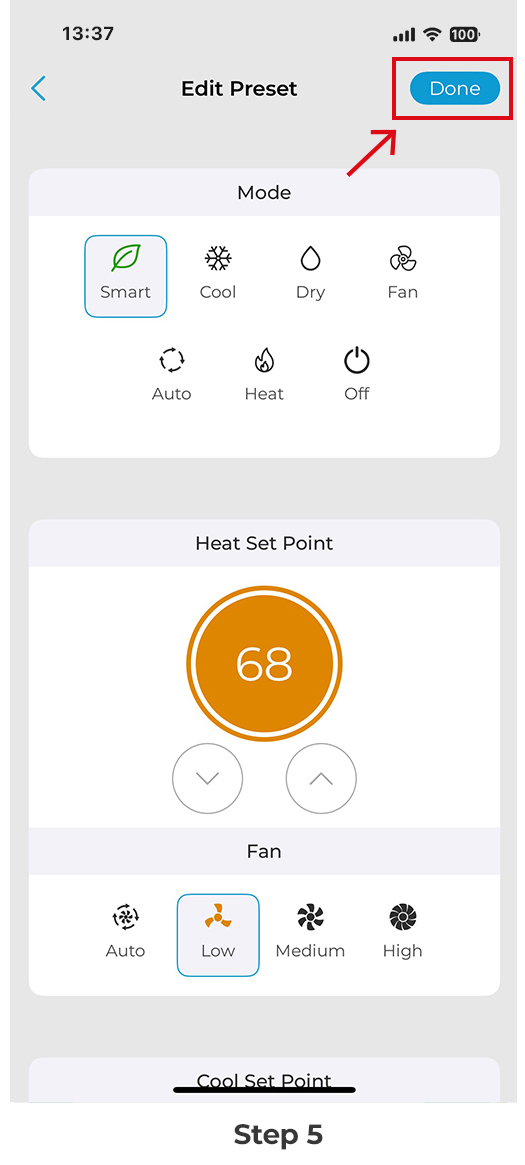

Editing a preset

You can enjoy a truly tailored experience with predefined comfort settings, including Home, Away, and Sleep.

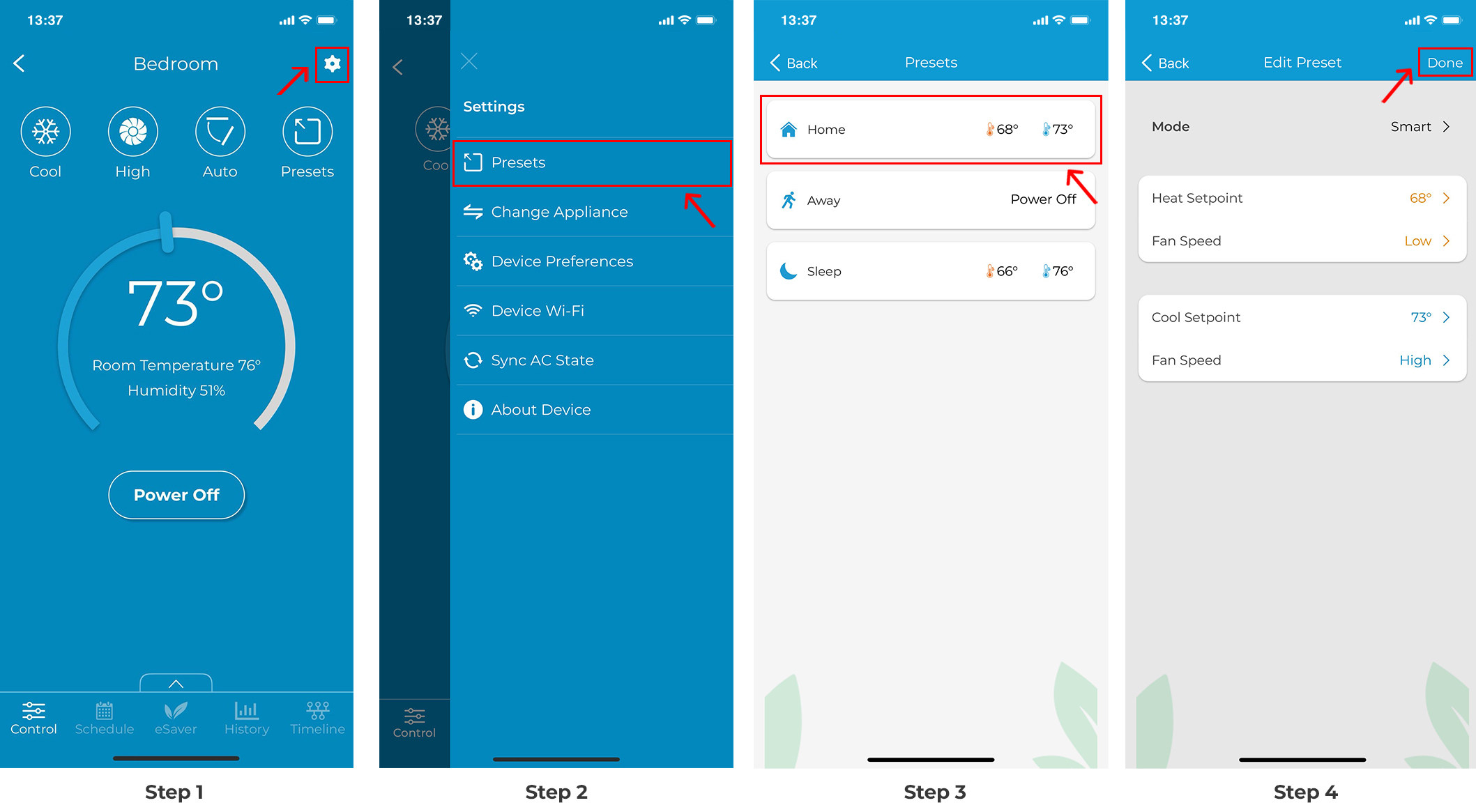

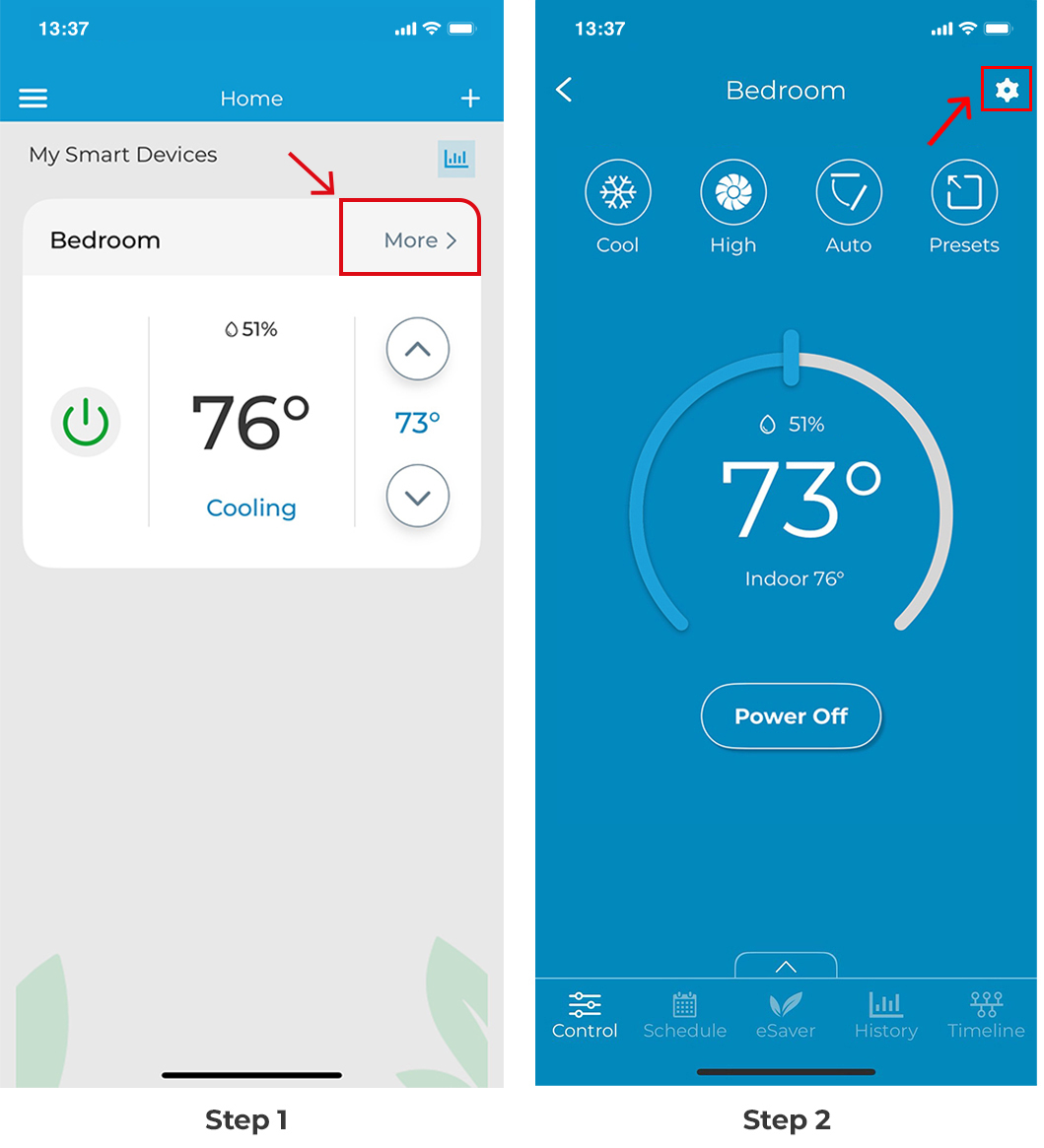

Step 1: From the device control screen, tap on the ‘Settings’ icon on the top right corner.

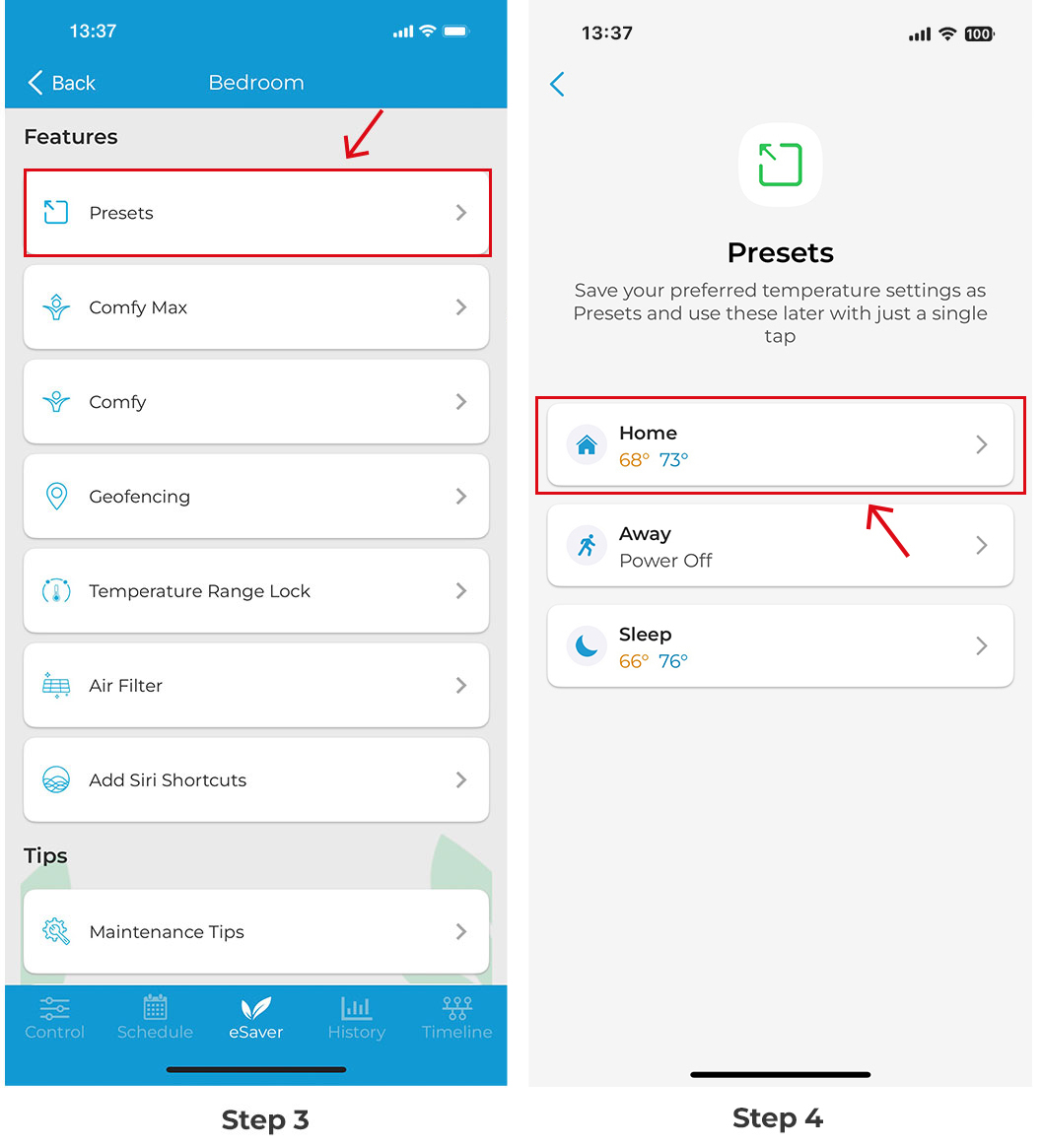

Step 2: Tap on ‘Preset’.

Step 3: Select the Preset you want to edit.

Step 4: Make your desired changes and tap on the ‘Done’ button.

Your Preset has been updated successfully.

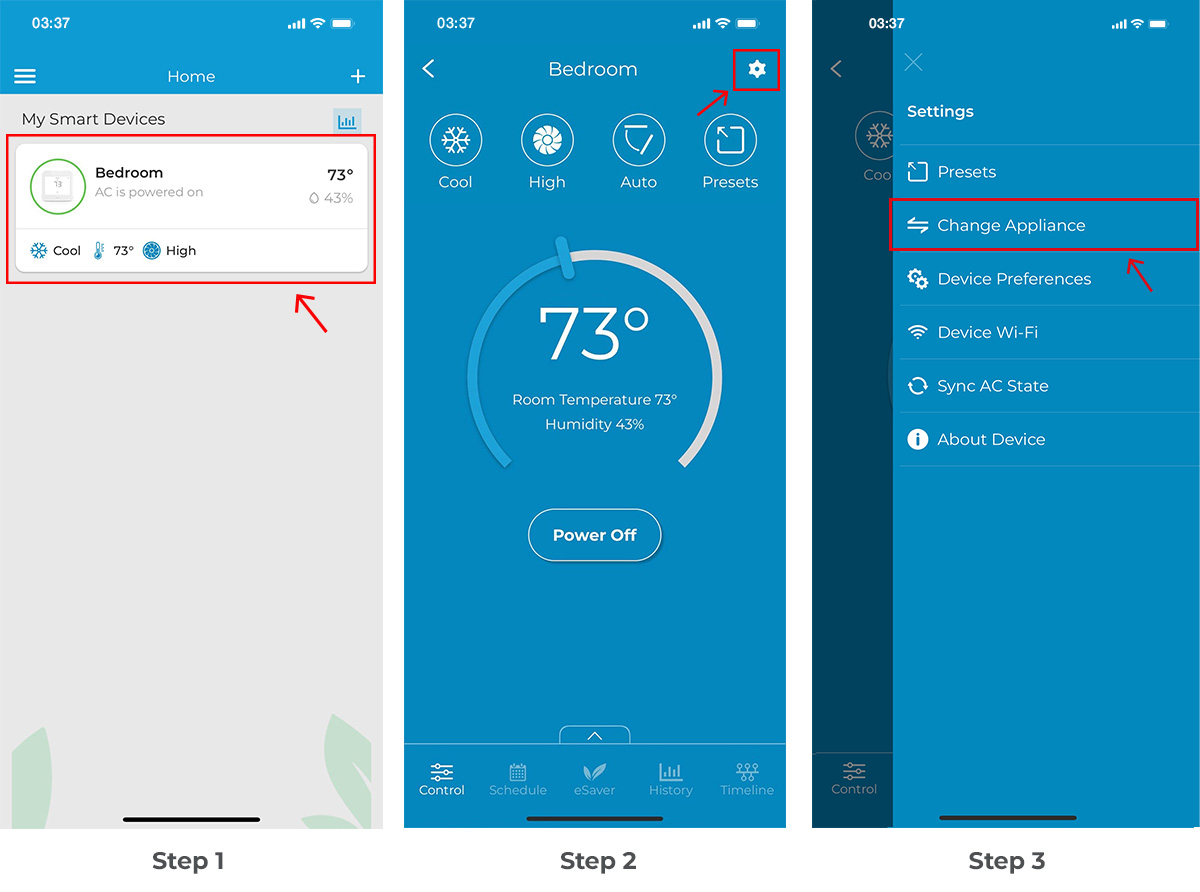

Change Appliance (Manufacturer/Model Number)

Step 1: On the Home screen, tap on the Breez Max device you want to change the appliance for.

Step 2: Tap on the ‘Settings’ icon on the top right.

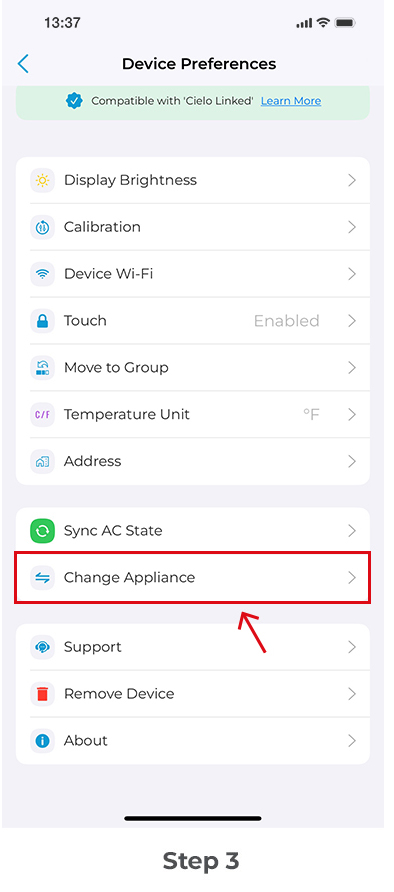

Step 3: Tap on ‘Change Appliance’.

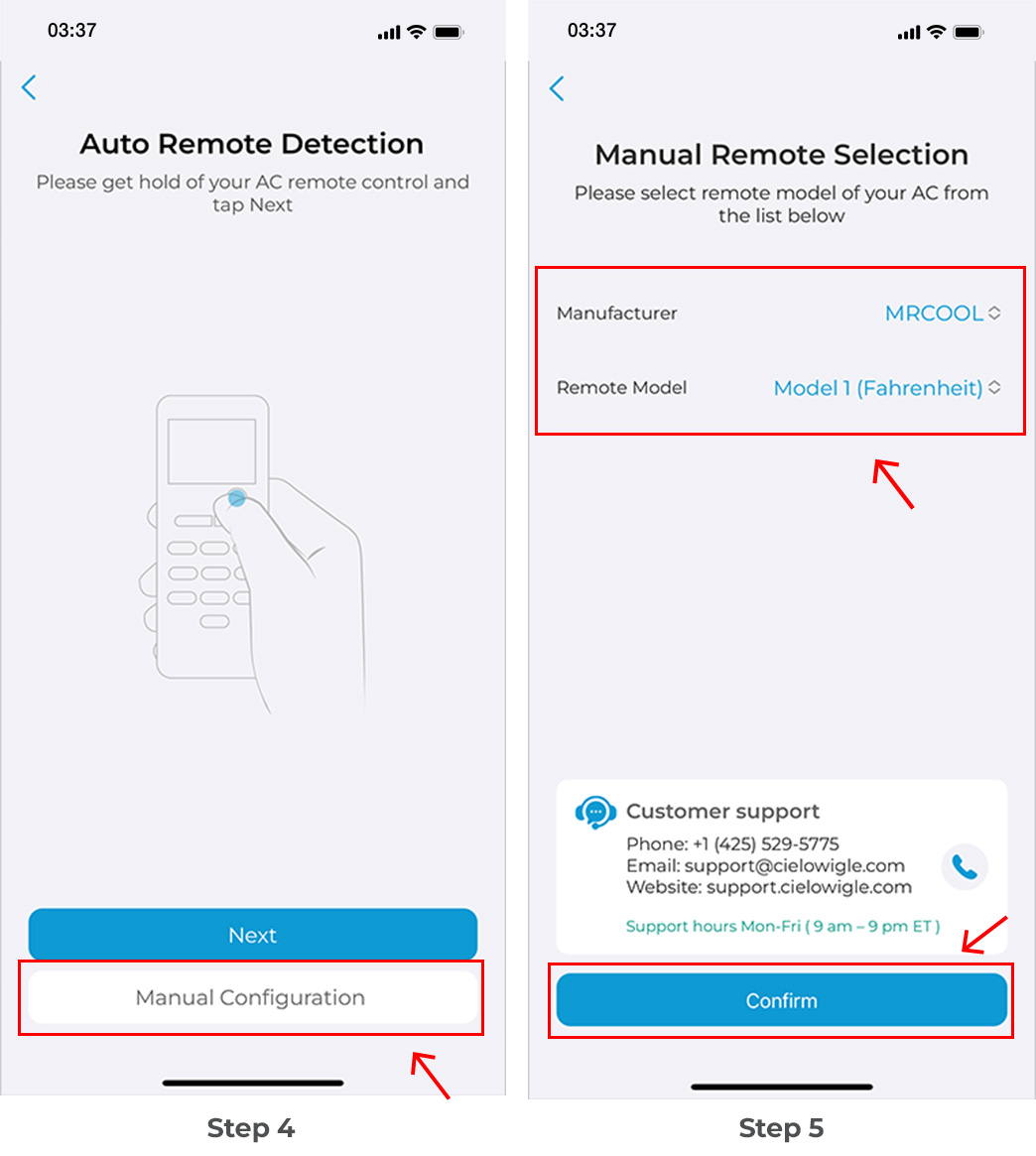

Step 4: Tap on 'Manual Configuration'.

Step 5: Select the 'Manufacturer' & 'Remote Model' of your AC from the drop-down list and tap 'Confirm'.

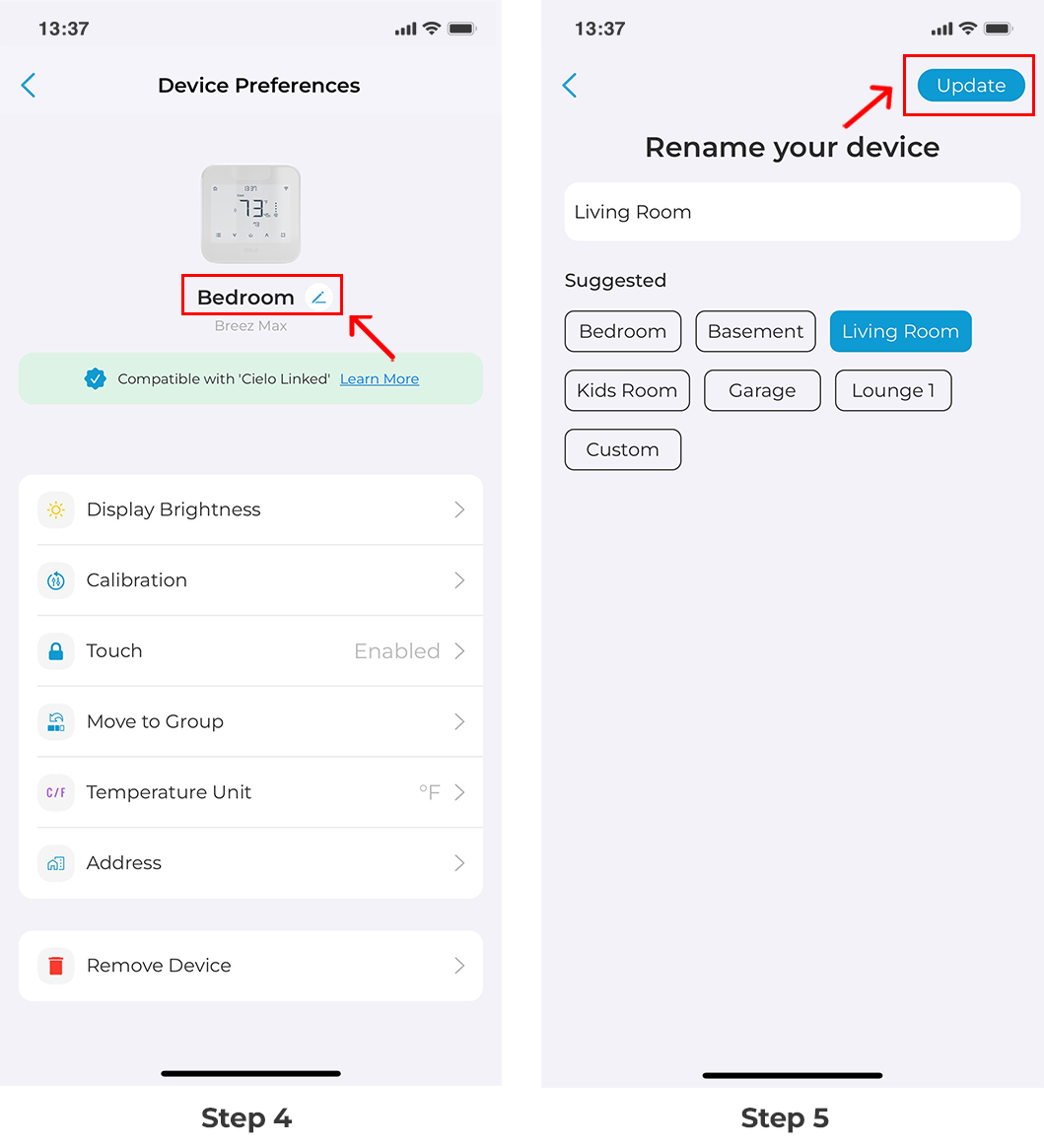

Changing Device Name (e.g. bedroom, lounge etc.)

Step 1: On the Home screen, tap on the Breez Max device you want to change the name of.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on the pencil icon in front of the device name.

Step 5: Select the new name from a list of common names or type a custom name.

Step 6: Tap on 'Update.' The device name is now changed.

Breez Max Device Display Settings

Step 1: On the Home screen, tap on the Breez Max device you want to adjust the display settings.

Step 2: Tap on the ‘Settings’ icon on the top right.

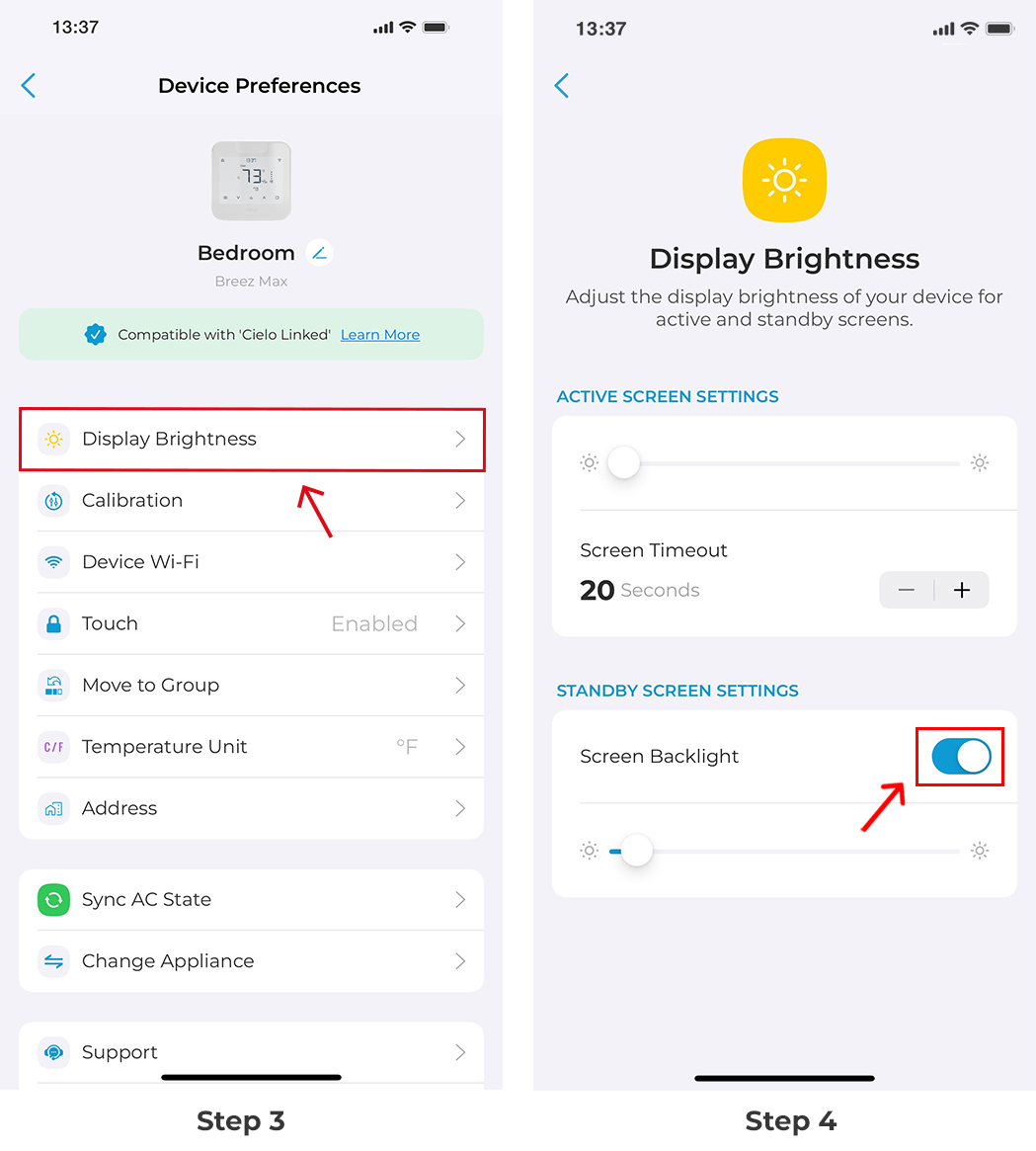

Step 3: Tap on ‘Device Preferences’.

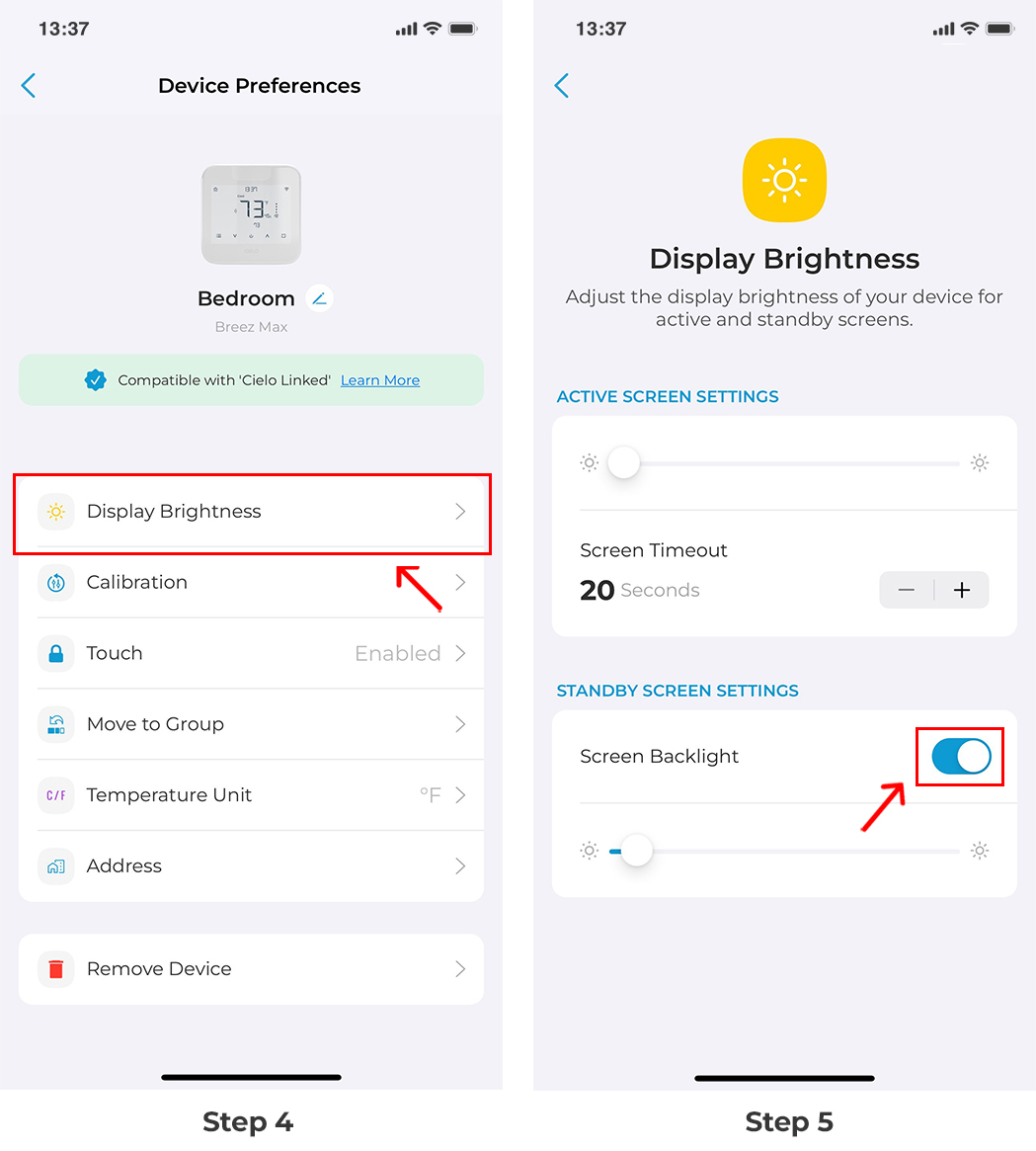

Step 4: In Device Preferences, tap on 'Display Brightness'.

Step 5: Adjust the active screen brightness as needed. You can also toggle the backlight on/off of the standby screen.

Calibrate Room Temperature

Temperature calibration helps correct inaccuracies caused by differences between the ambient temperature near your Breez Max and the rest of your room.

Step 1: On the Home screen, tap on the Breez Max you want to calibrate.

Step 2: Tap on the ‘Settings’ icon on the top right.

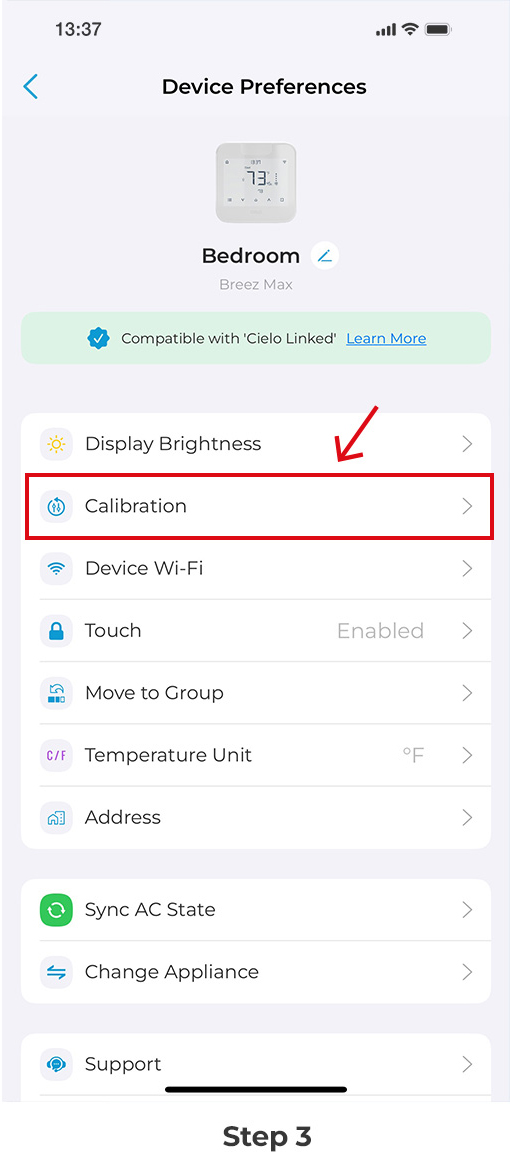

Step 3: Tap on ‘Device Preferences’.

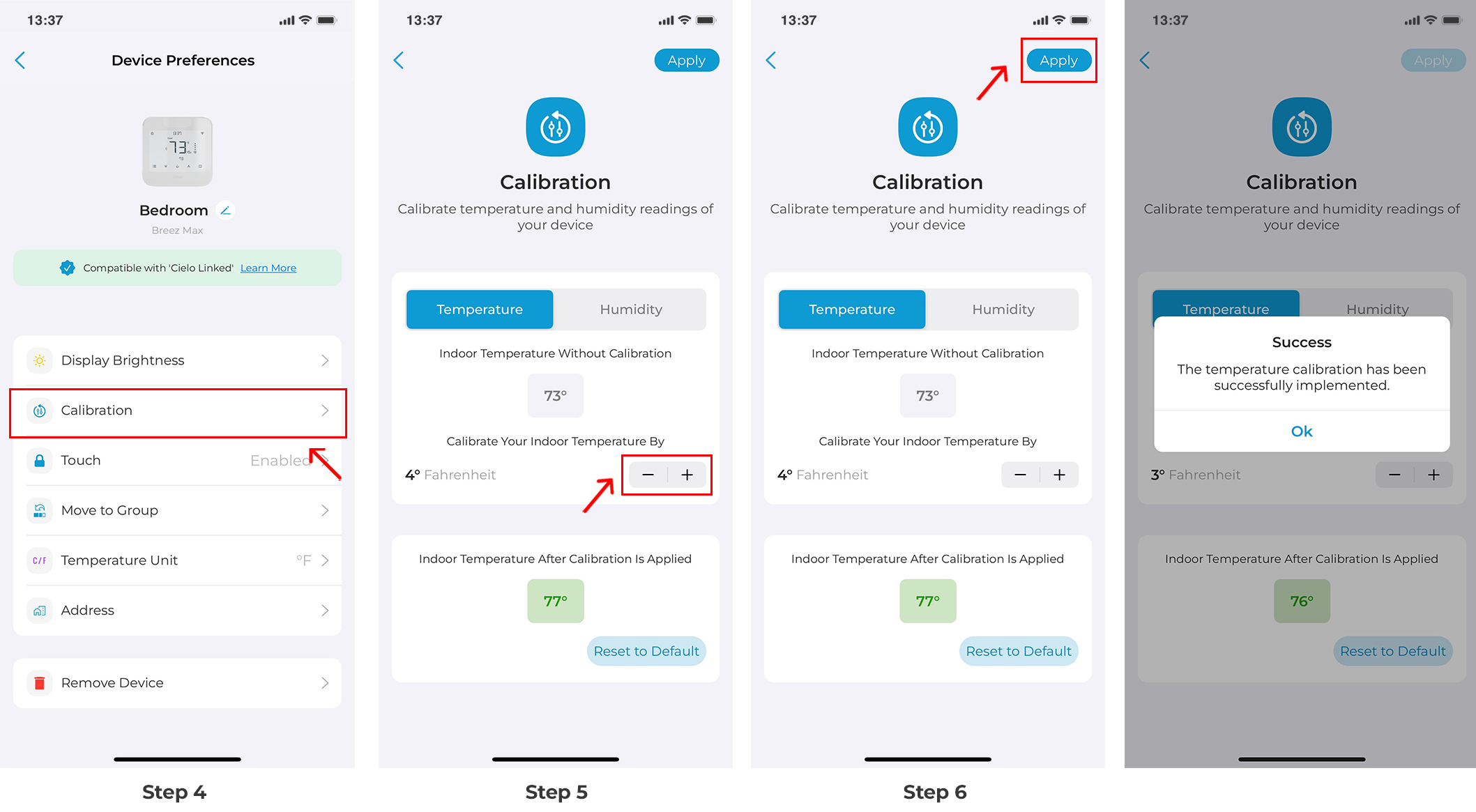

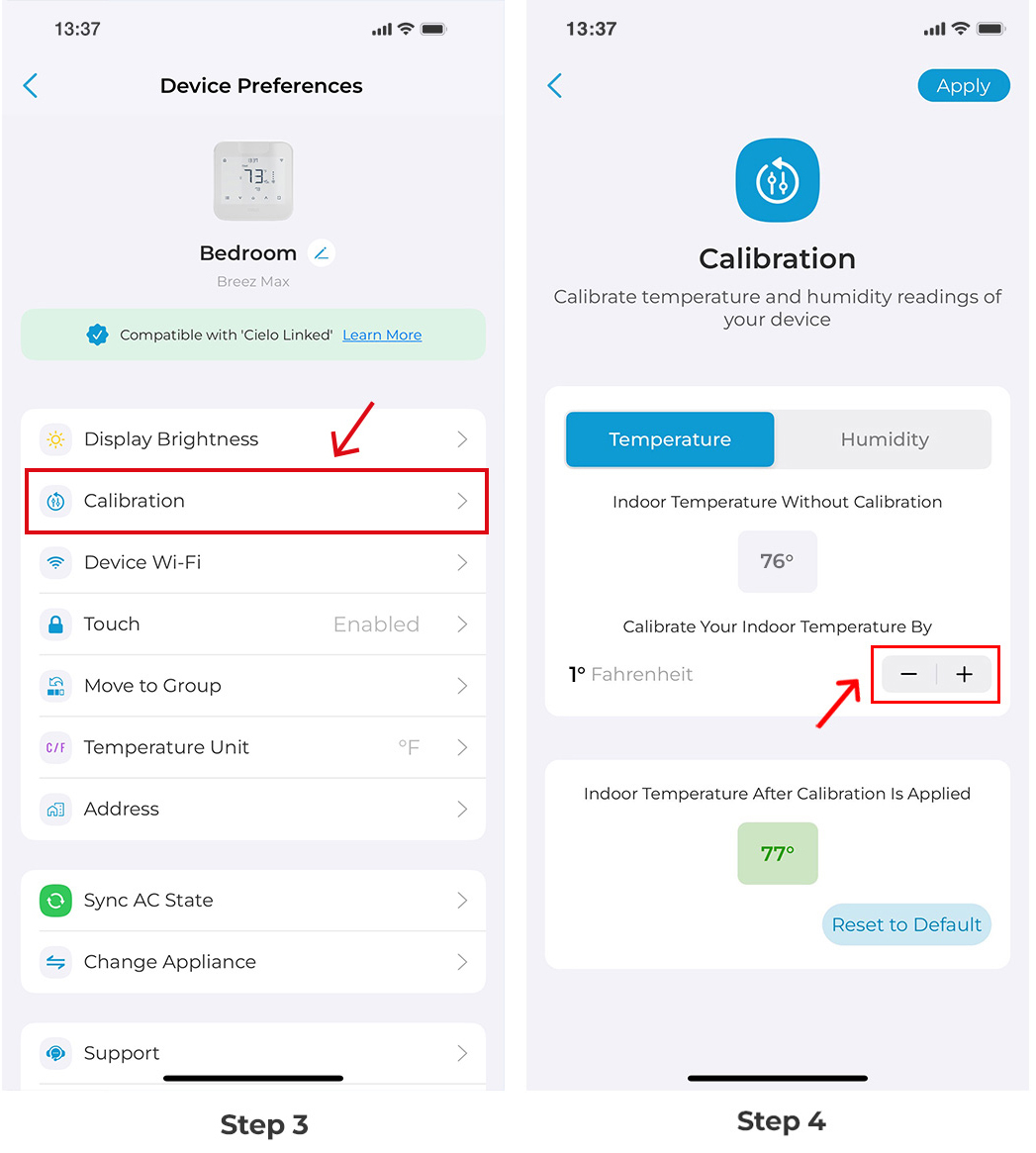

Step 4: Tap on 'Calibration'.

Step 5: Calibrate the temperature by tapping - or + according to your requirements.

Step 6: Tap on ‘Apply’.

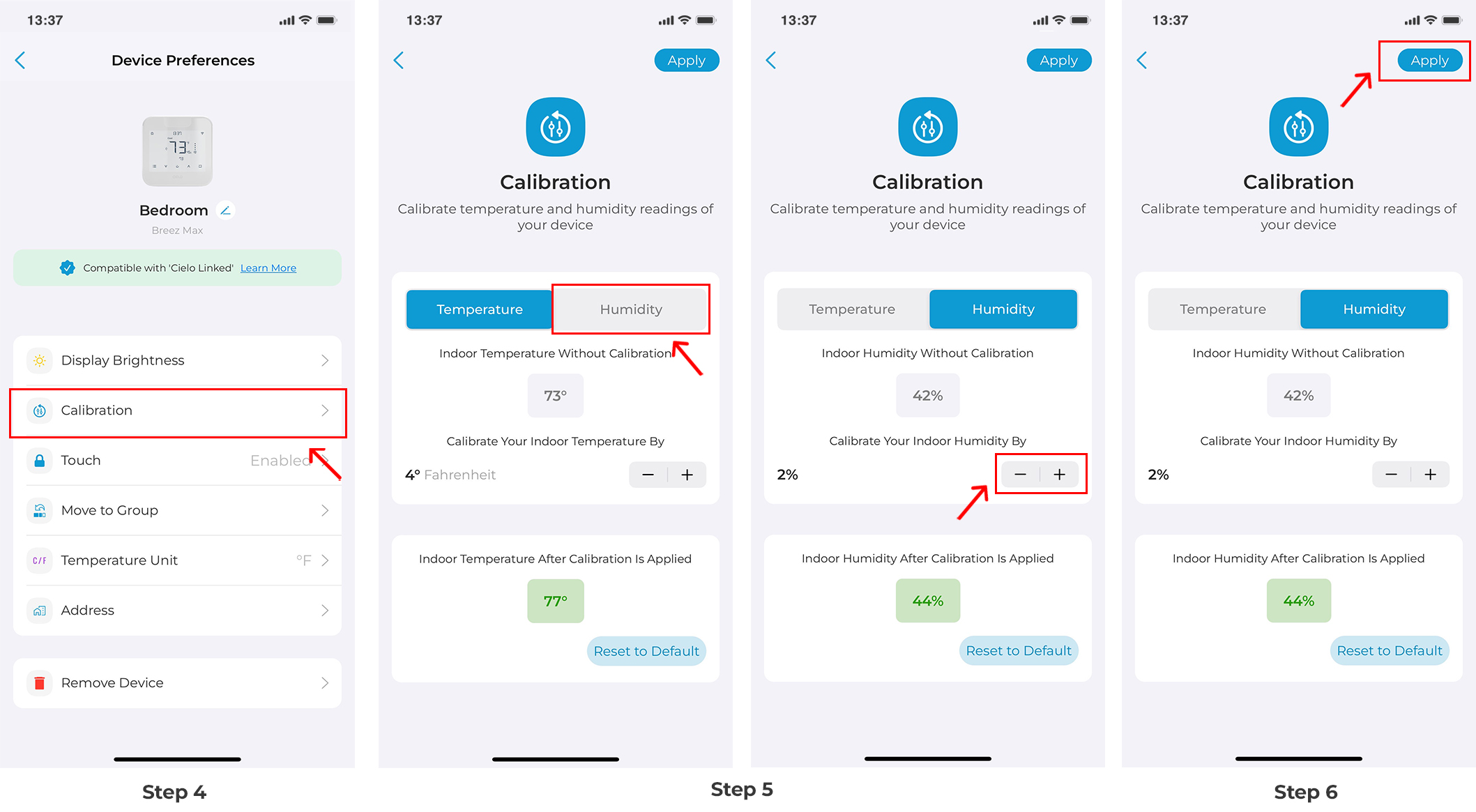

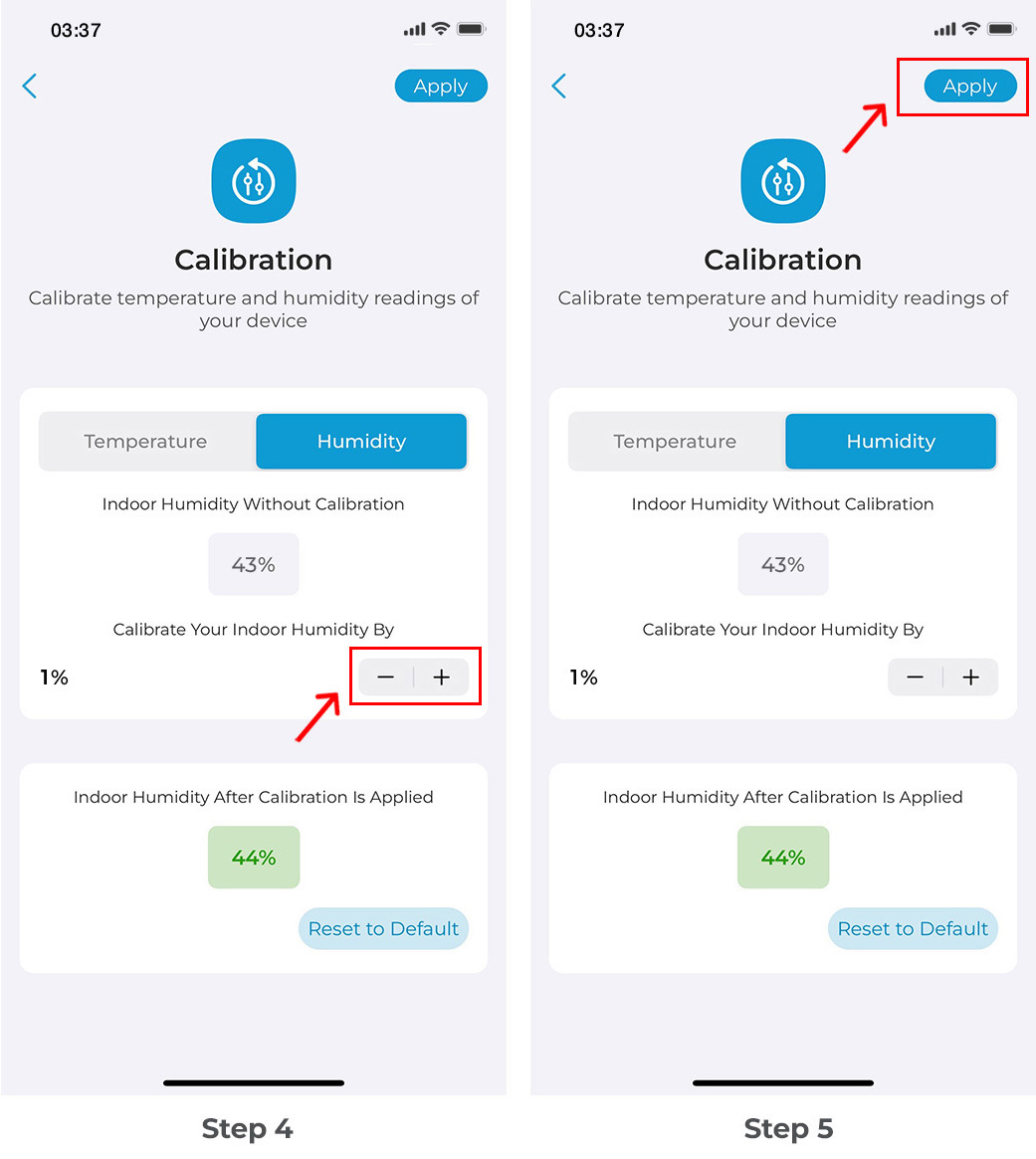

Calibrate Room Humidity

Humidity calibration helps correct inaccuracies caused by differences between the humidity levels near your Breez Max and the rest of your room.

Step 1: On the Home screen, tap on the Breez Max you want to calibrate.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

Step 4: Tap on 'Calibration'.

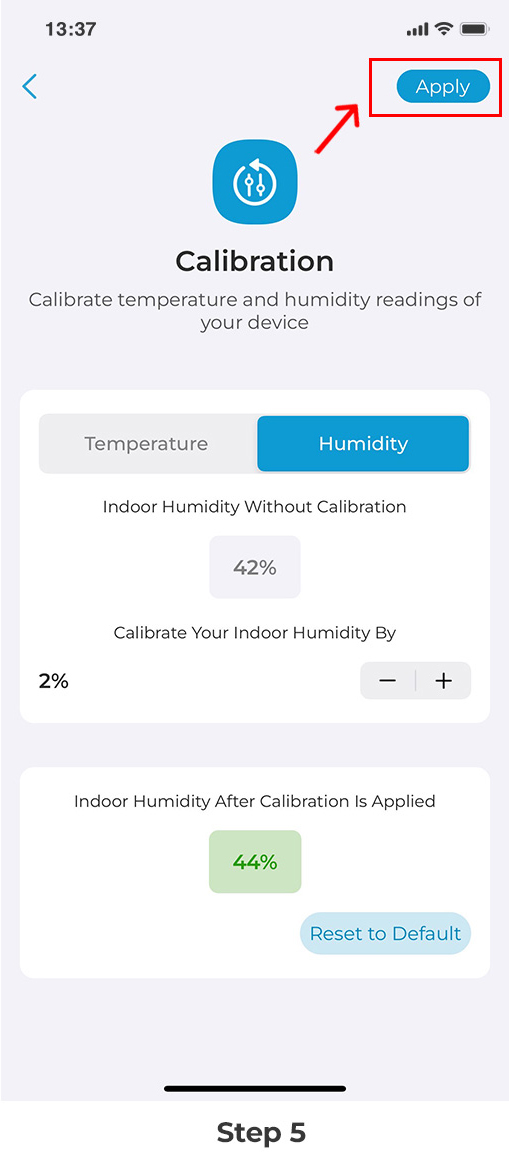

Step 5: Tap on ‘Humidty’ tab. Calibrate the humidity by tapping - or + according to your requirements.

Step 6: Tap on ‘Apply’.

Enable or disable the on-device touch controls on Breez Max

Step 1: On the Home screen, tap the Breez Max device for which you want to enable or disable the on-device touch controls.

Step 2: Tap on the ‘Settings’ icon on the top right.

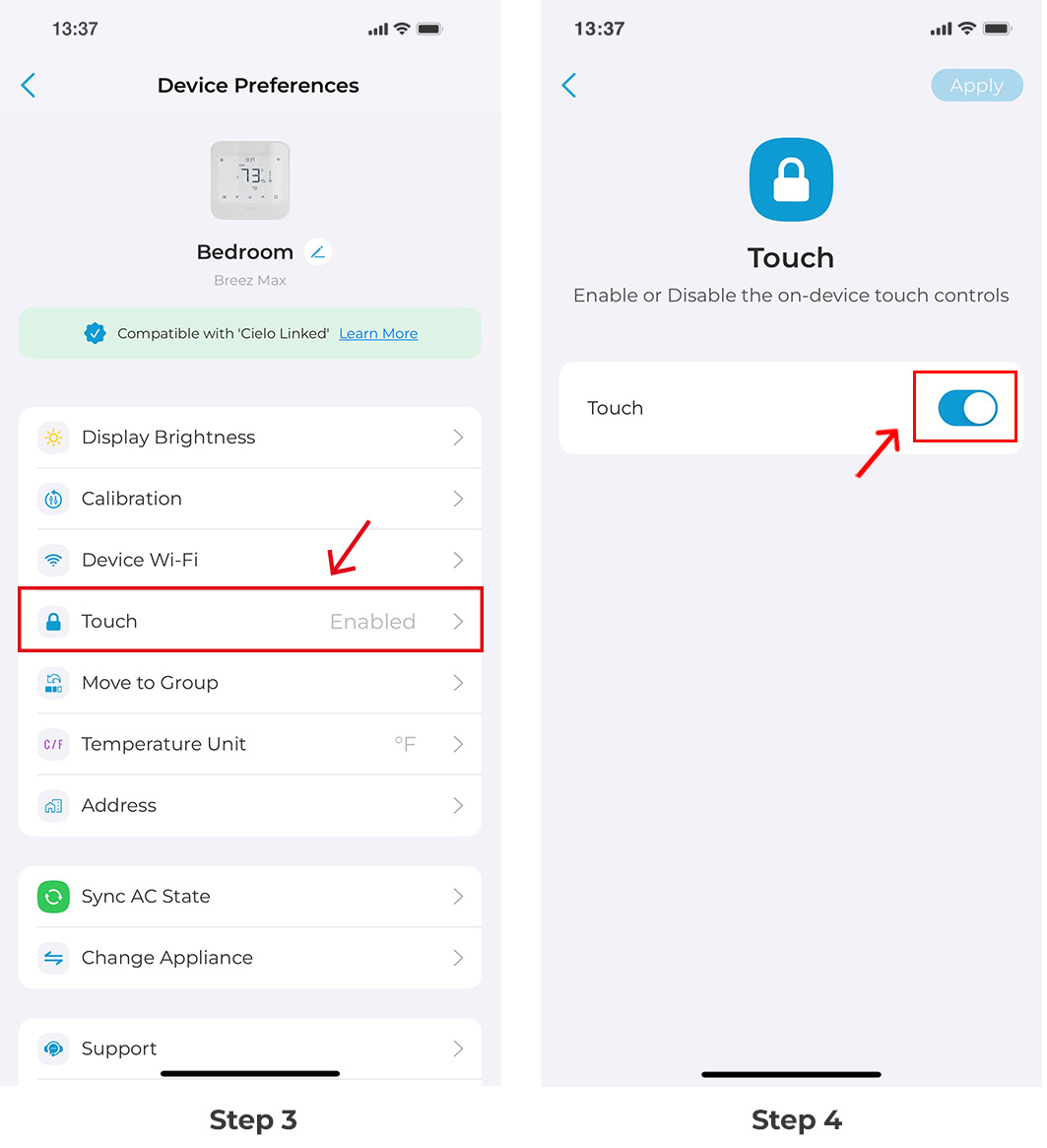

Step 3: Tap on ‘Device Preferences’.

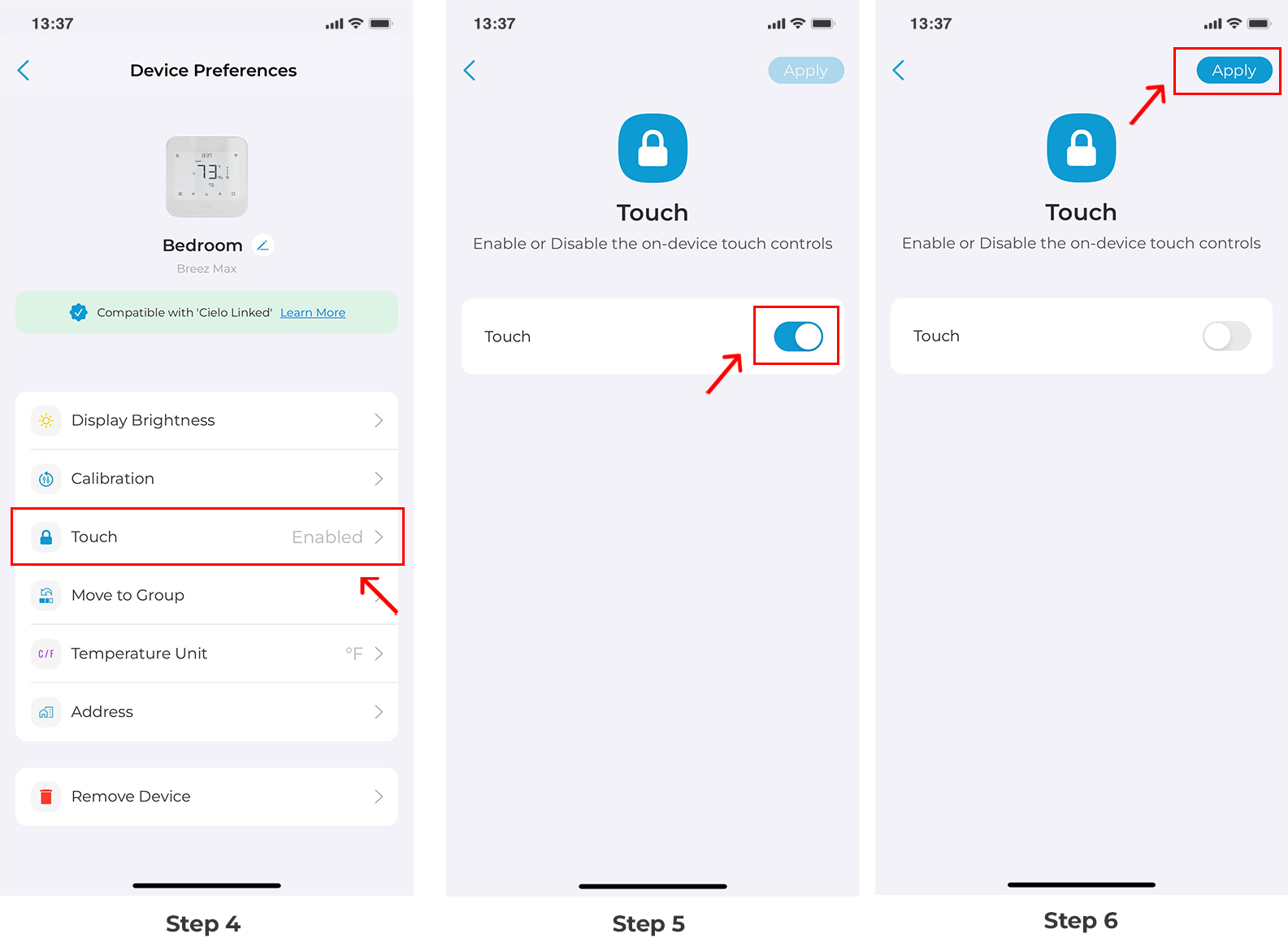

Step 4: Tap on ‘Touch’.

Step 5: Toggle to enable or disable the on-device touch controls.

Step 6: Tap 'Apply' once done.

Group Settings of your connected Air Conditioners

A group will allow you to control all your registered devices together with a simple tap.

1. Creating a group

To create a Group in the Cielo Home app, follow these steps:

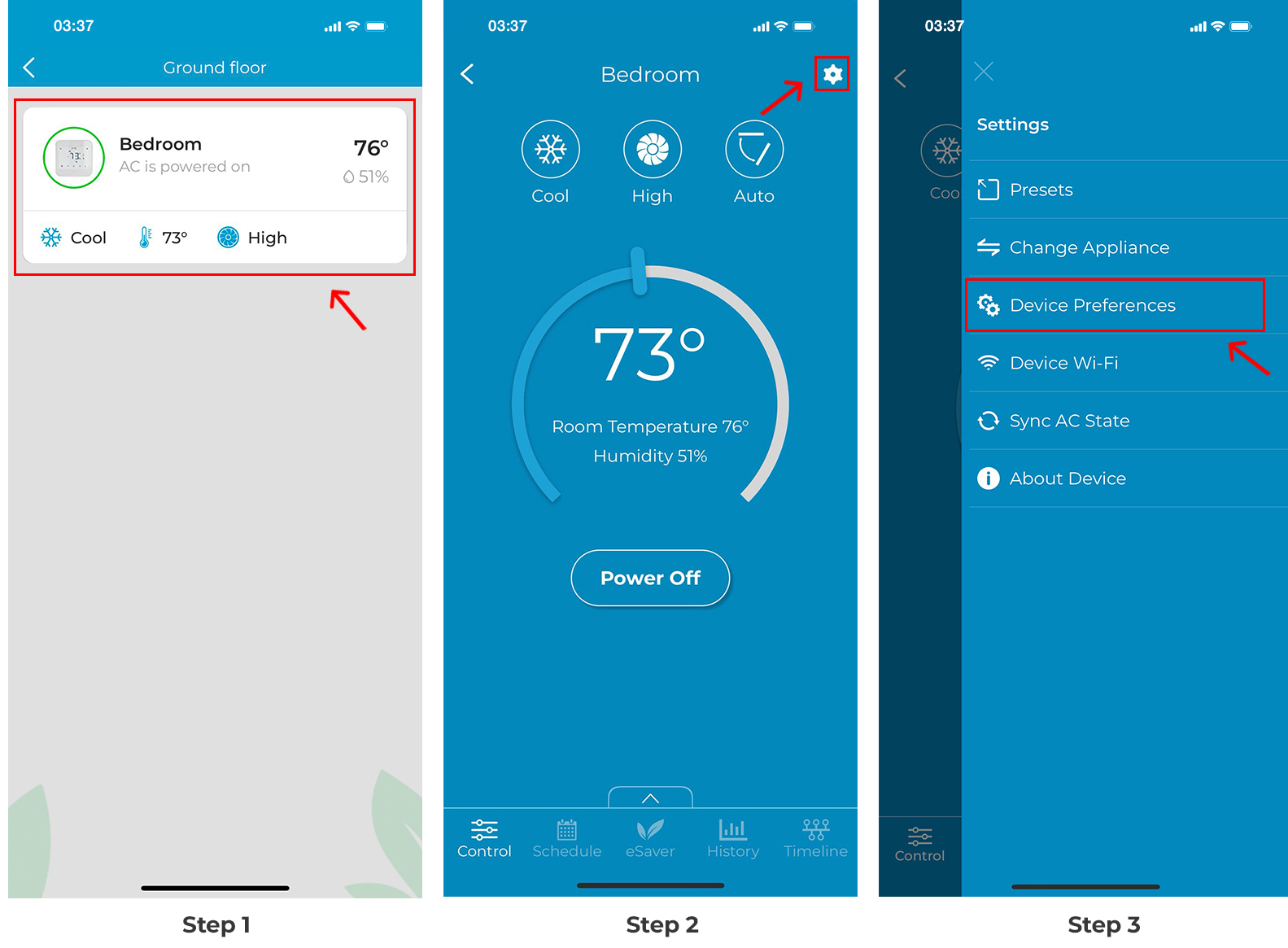

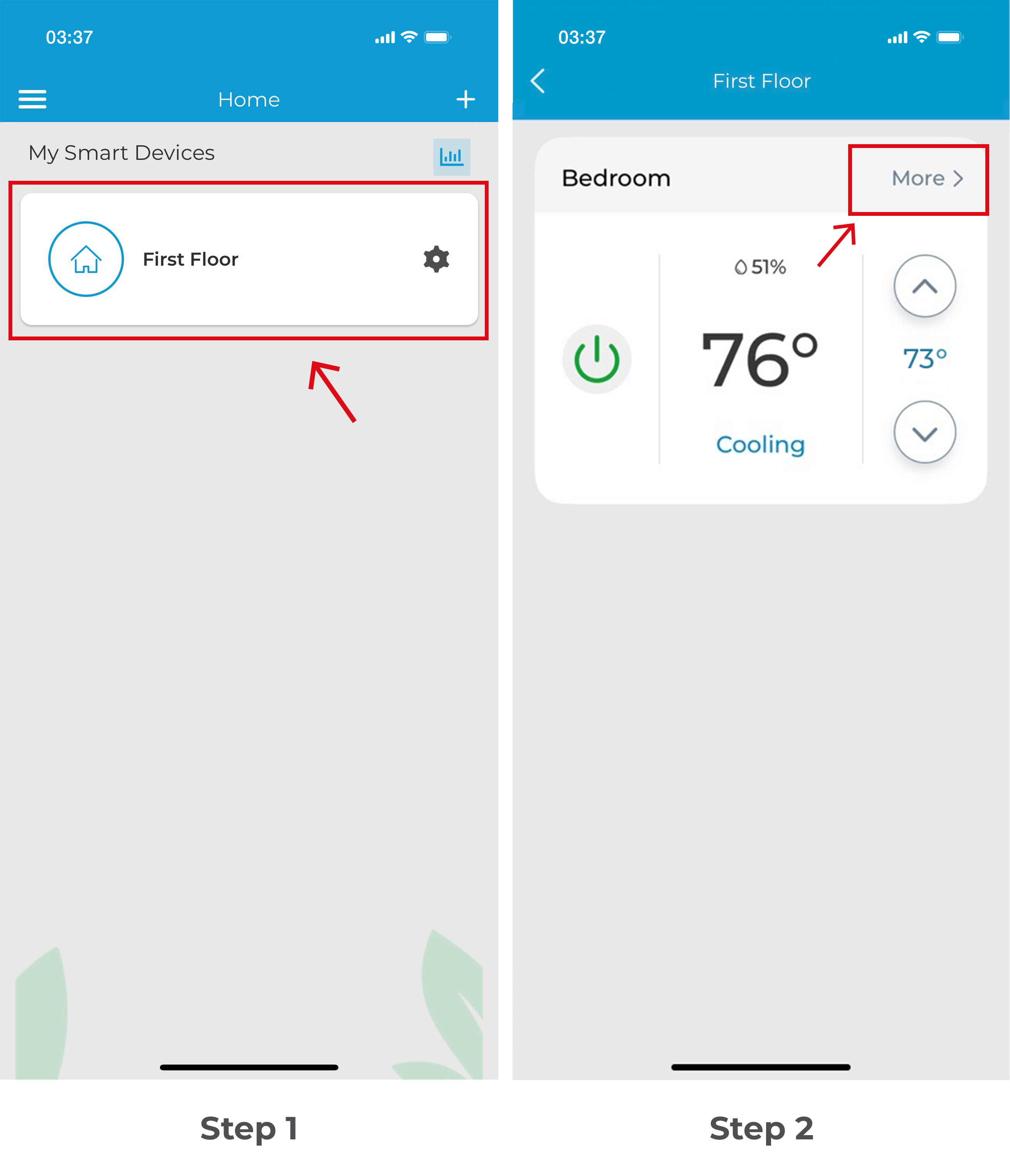

Step 1: On the Home screen, tap on your Breez Max device.

Step 2: Tap on the ‘Settings’ icon on the top right.

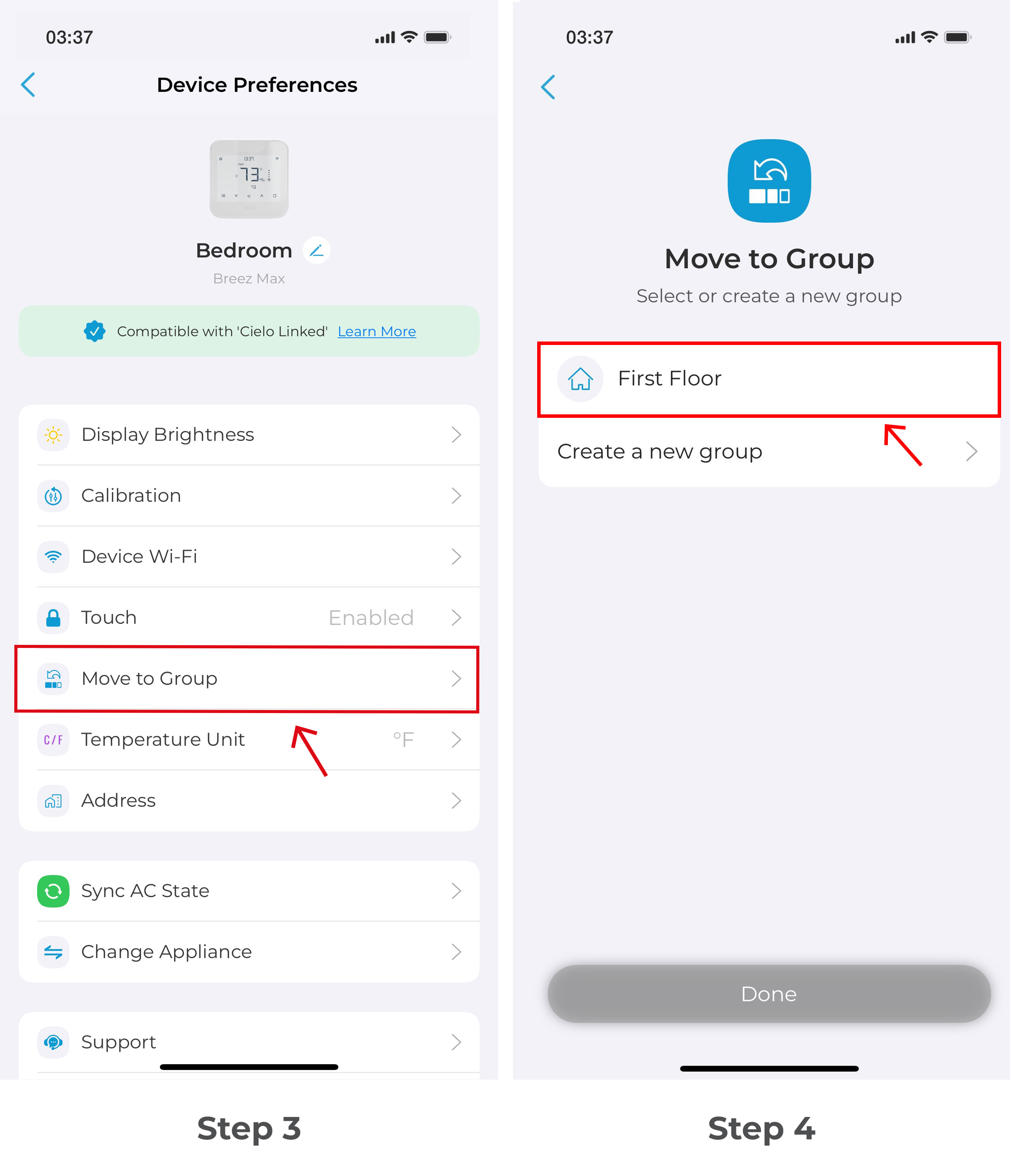

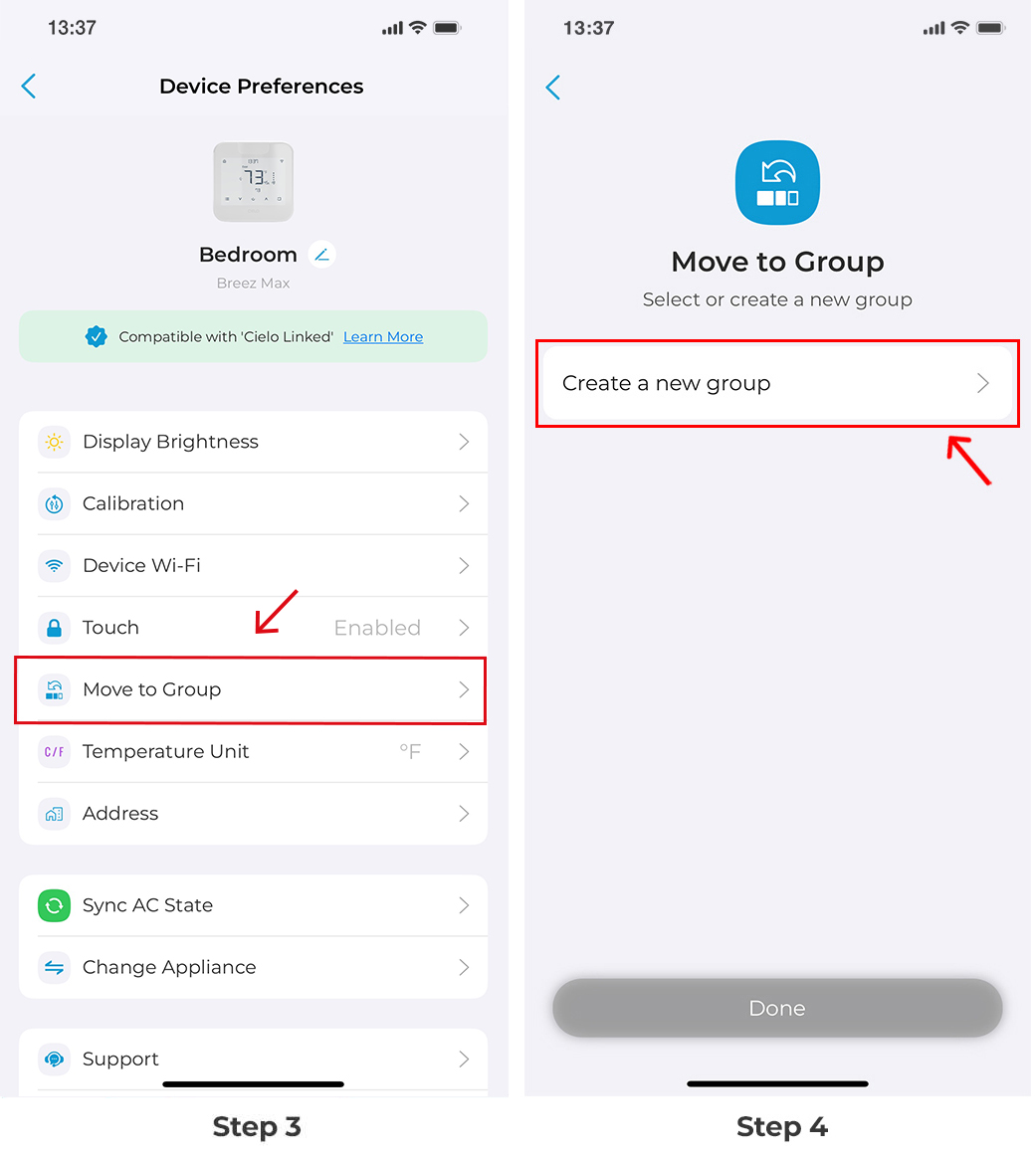

Step 3: Tap on ‘Device Preferences’.

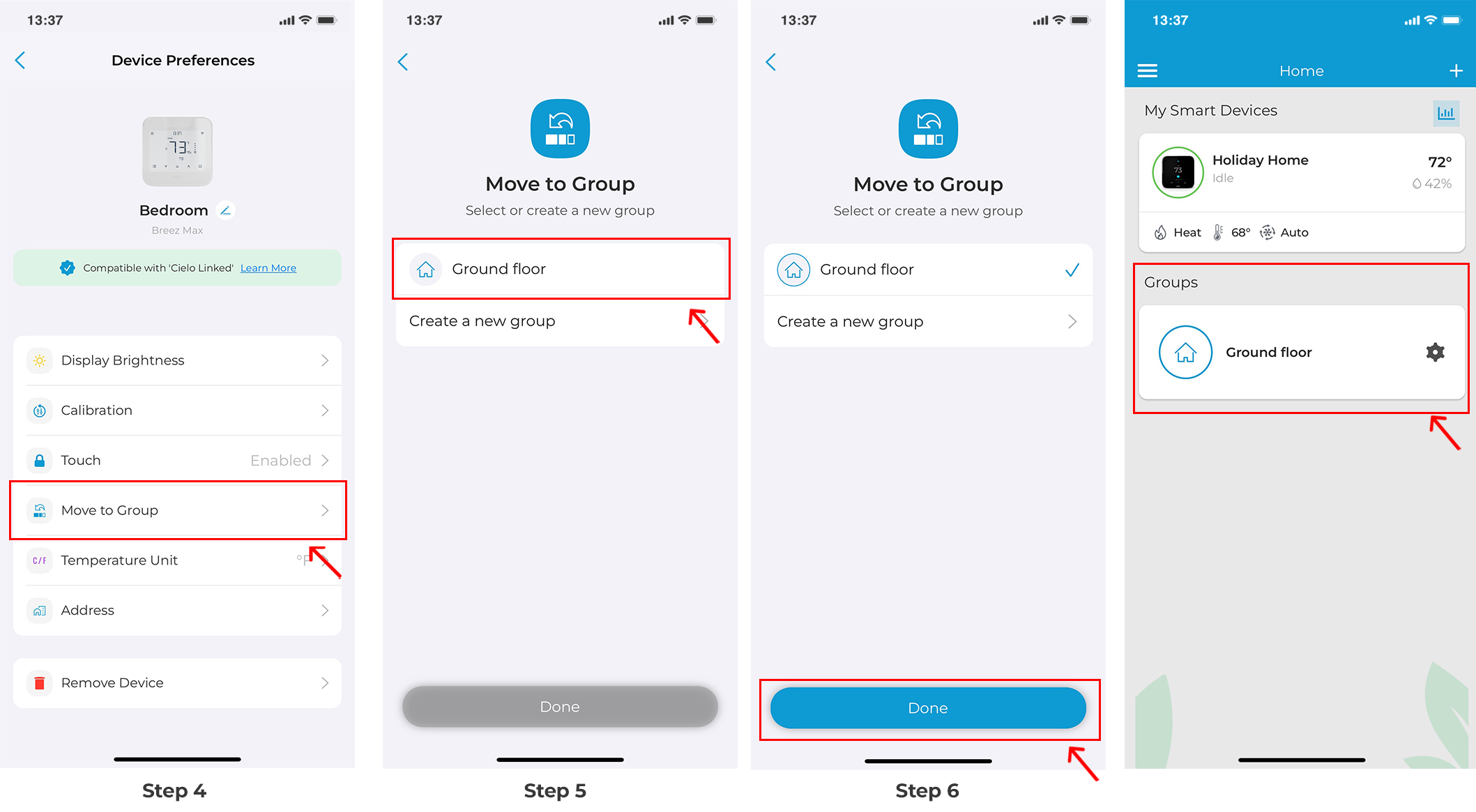

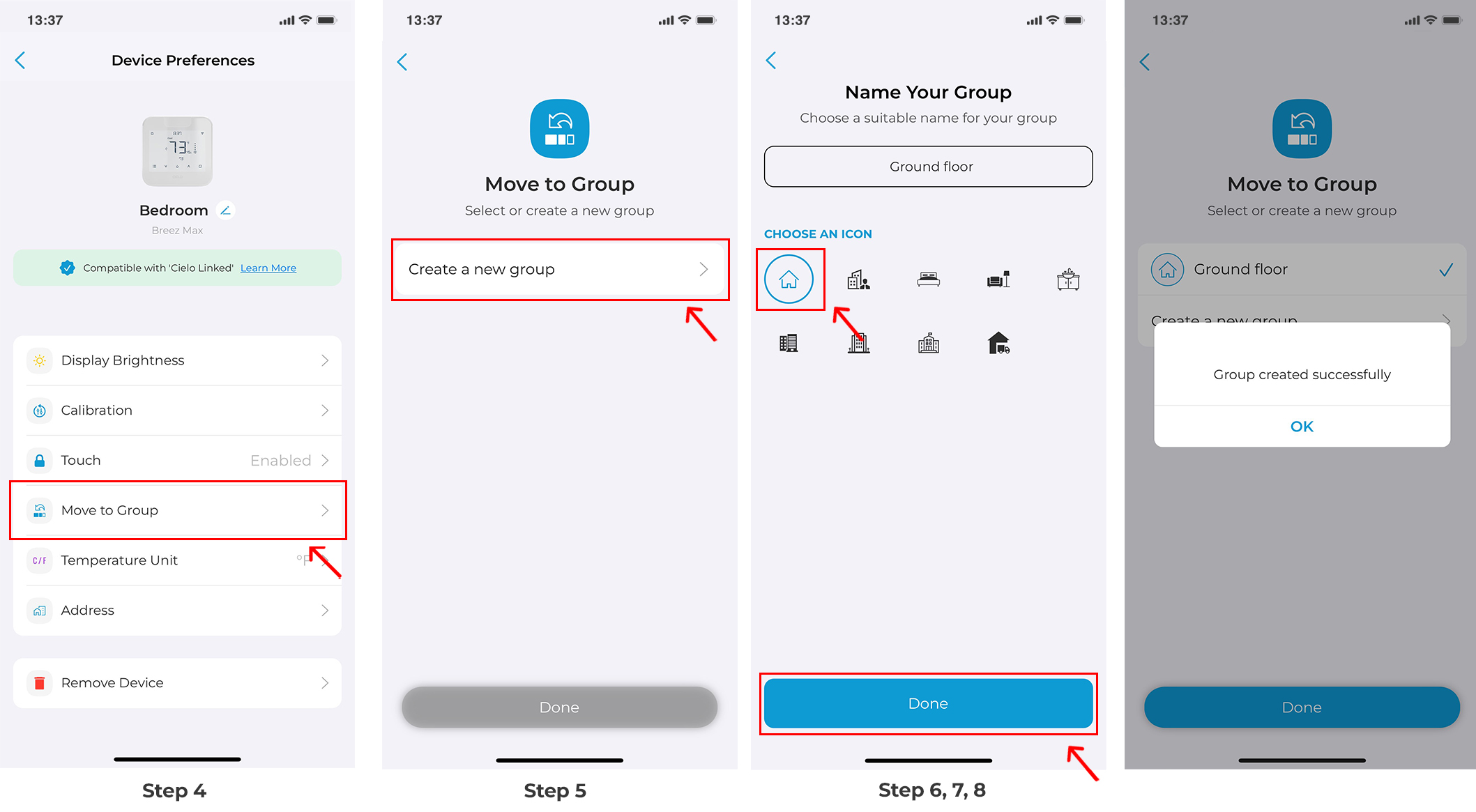

Step 4: Tap on ‘Move to Group.

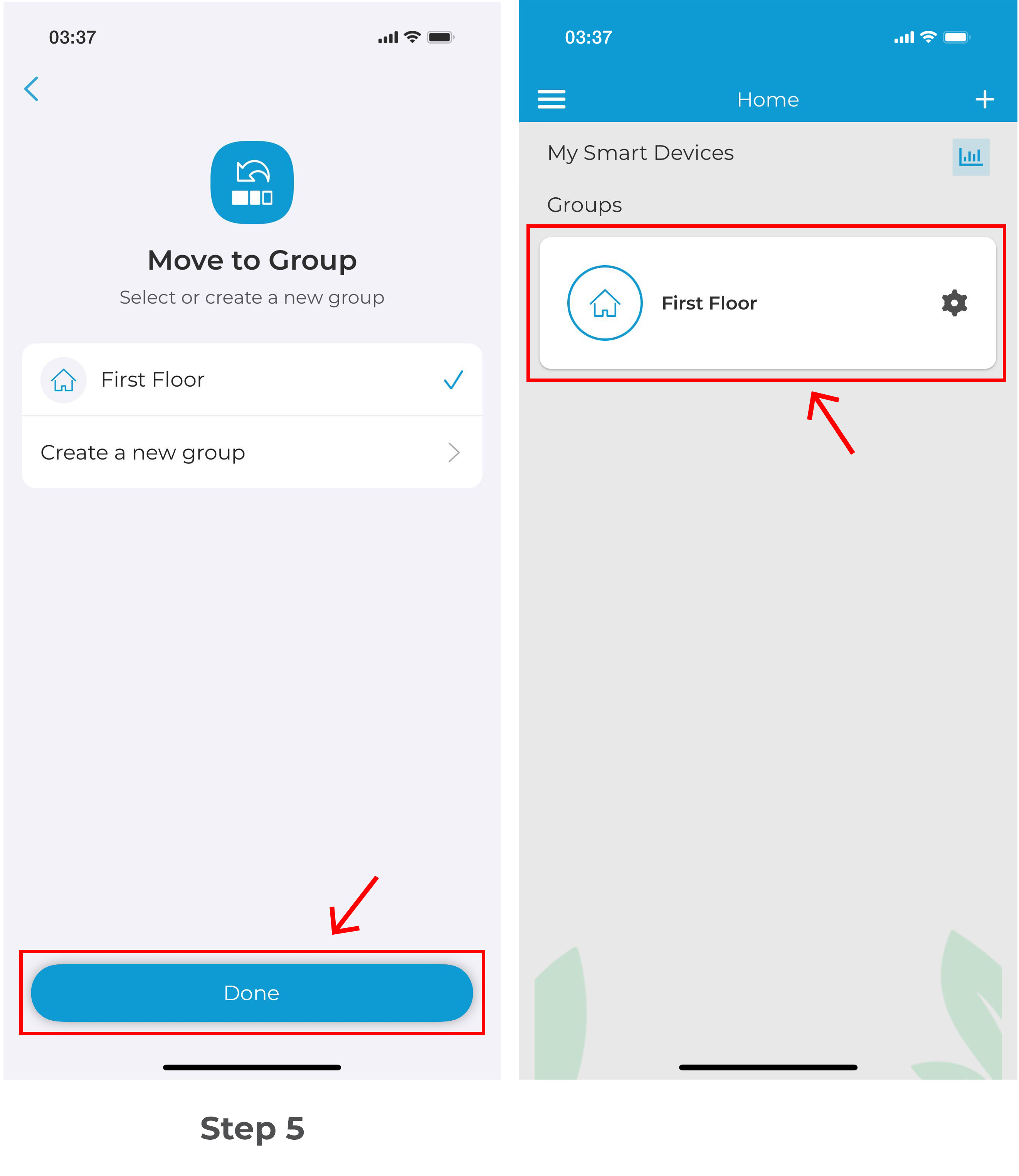

Step 5: Tap on Create a new group.

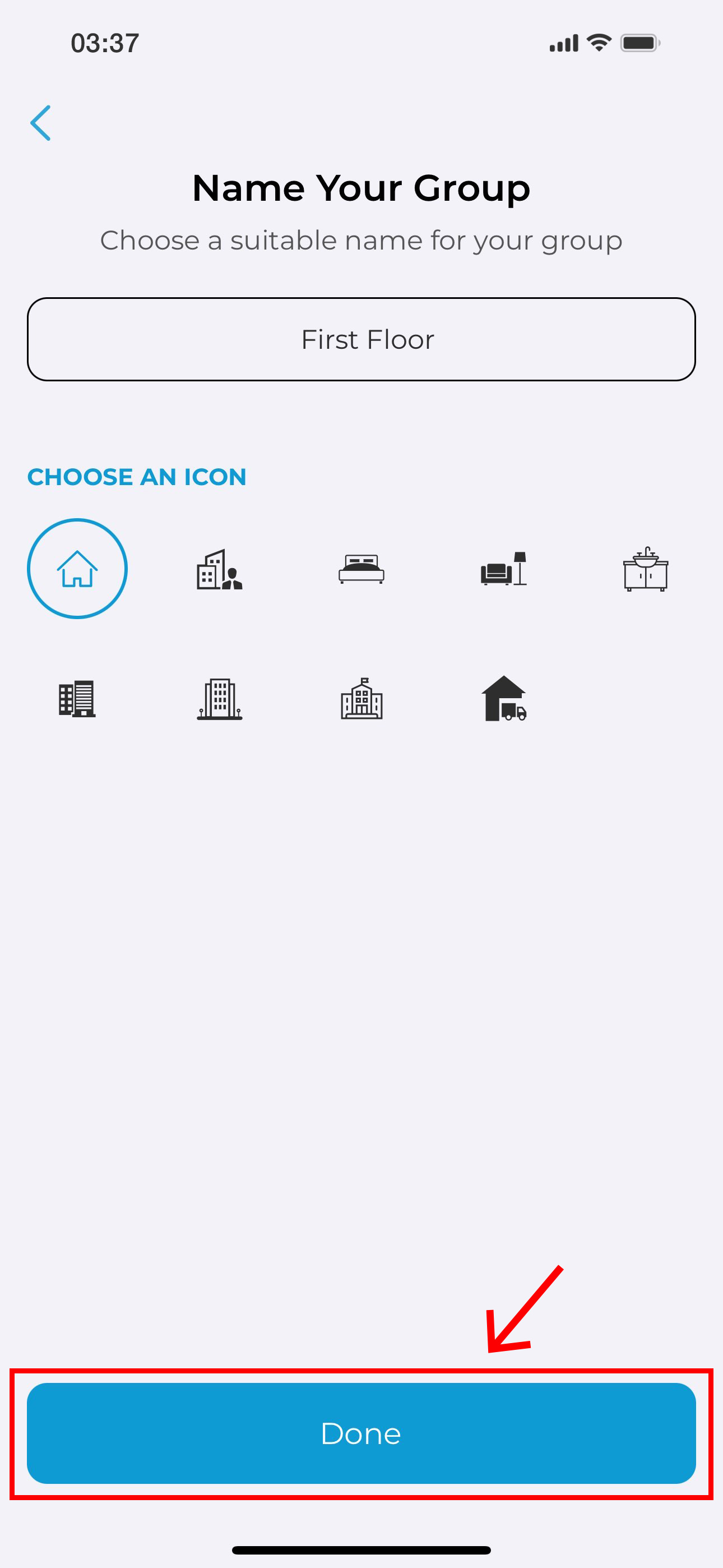

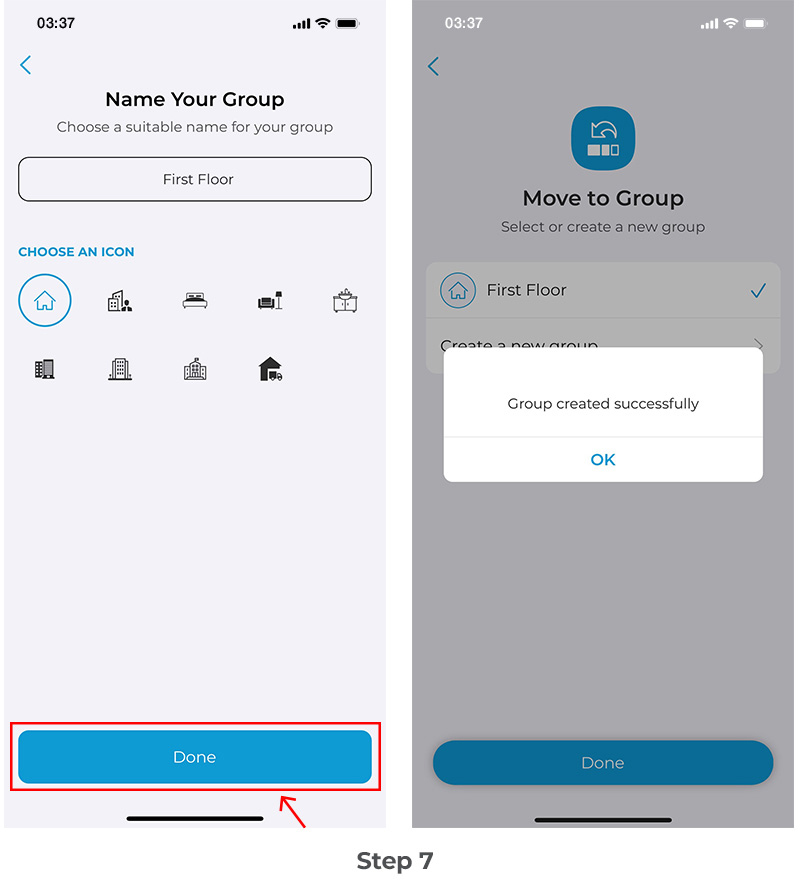

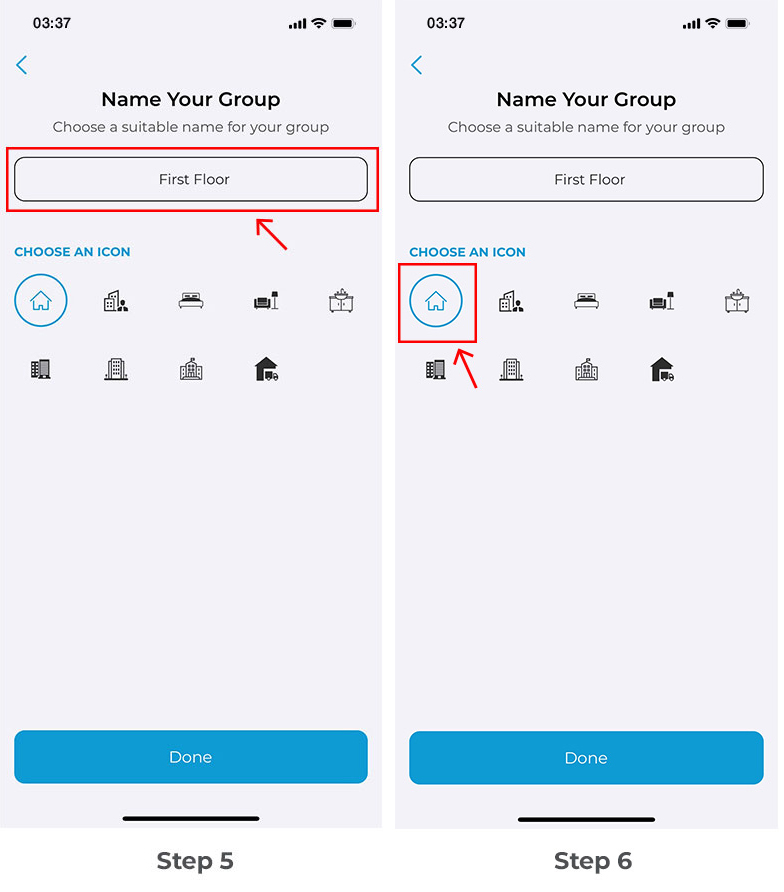

Step 6: Give your group a name (e.g. Ground floor, First floor, Basement, etc.)

Step 7: Choose an icon.

Step 8: Tap on ‘Done’. Group is created successfully.

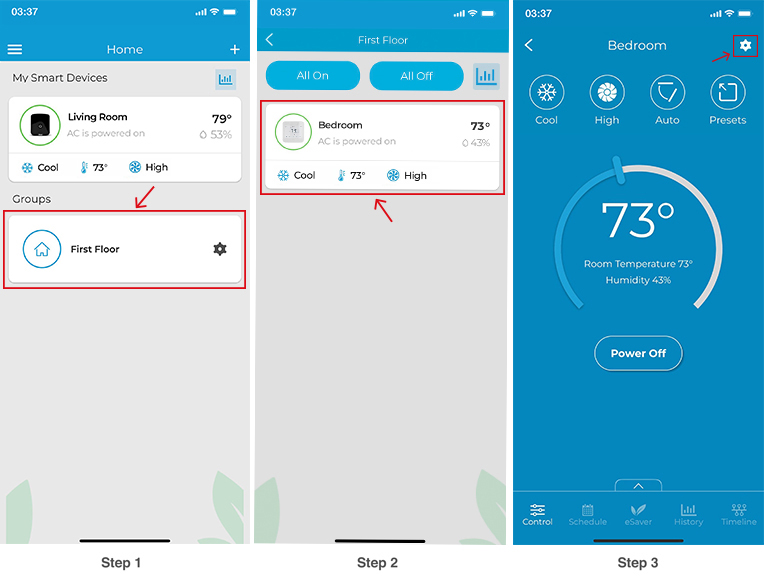

2. Adding a Device to a Group

Step 1: Tap on the Breez Max device you want to move to that group.

Step 3: Tap on the ‘Settings’ icon on the top right.

Step 4: Tap on ‘Device Preferences’.

Step 4: Tap on ‘Move to Group’.

Step 5: On the Group screen, you will see a list of all of your active groups. Tap on the group you wish to move the device to.

Step 6: You will see a checkmark next to the group name. Tap on ‘Done’.

On the Home screen, you will see a separate ‘Groups’ tab. You can tap on the group to see your all your devices in that group.

3. Removing a Device from a group

Step 1: On the Home Screen, go to the ‘Groups’ section at the bottom and select your created group.

Step 2: Tap on the device you want to remove from your group.

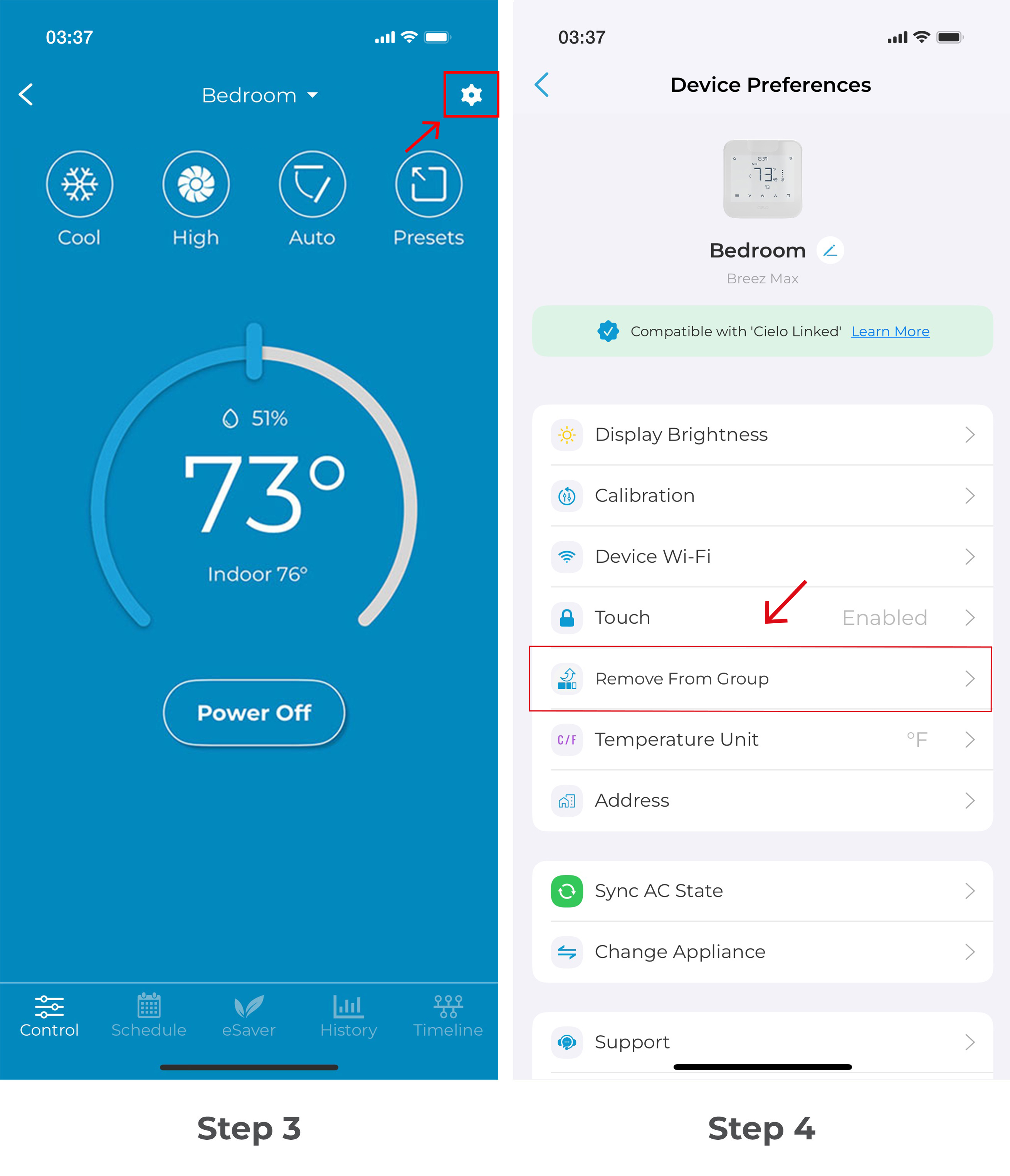

Step 3: Go to the ‘Settings’ on the top right.

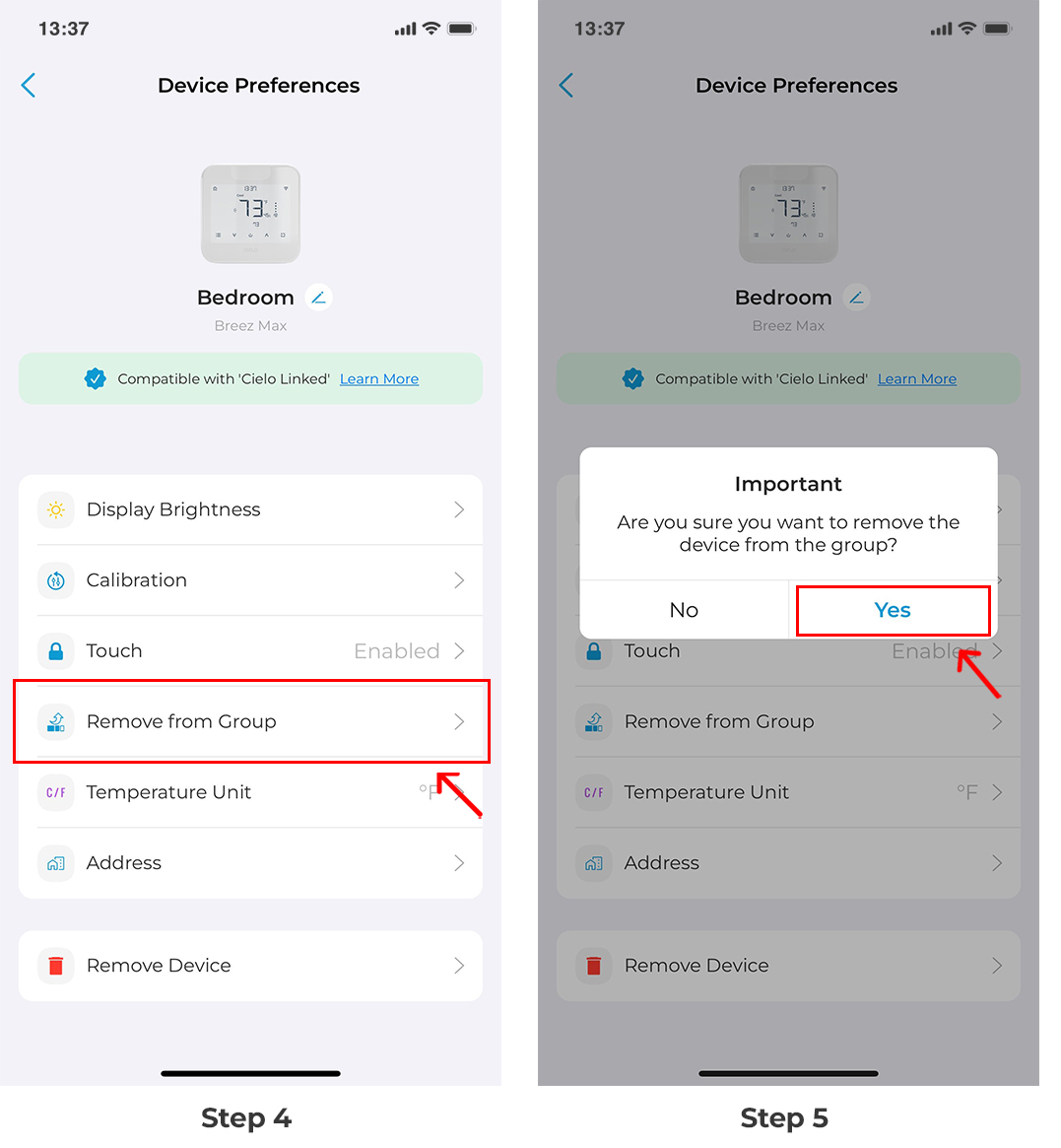

Step 4: Tap on ‘Device Preferences’.

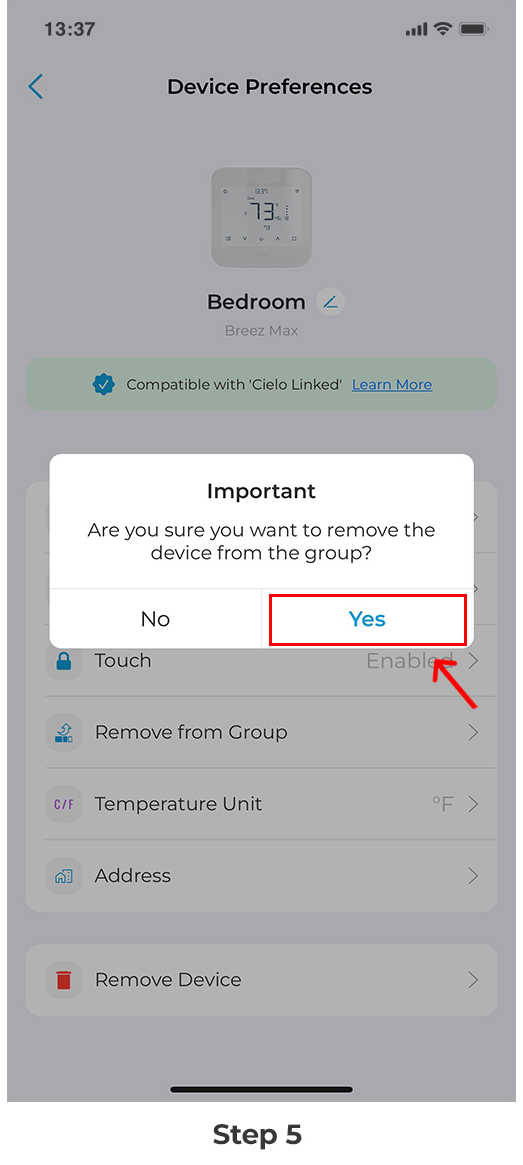

Step 5: Tap on ‘Remove from Group.’ Tap on ‘Yes’.

Device removed from the group successfully.

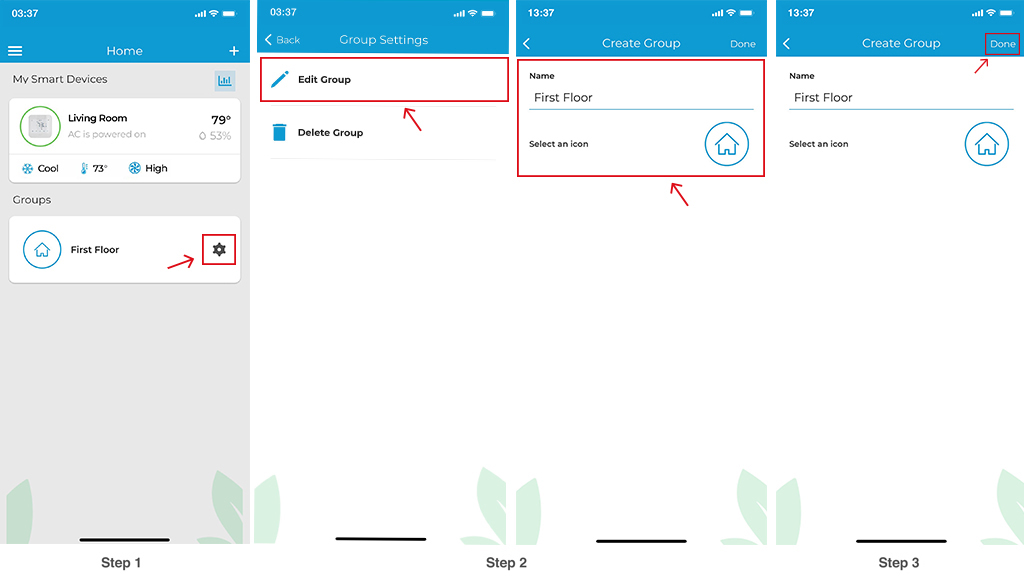

4. Editing a Group

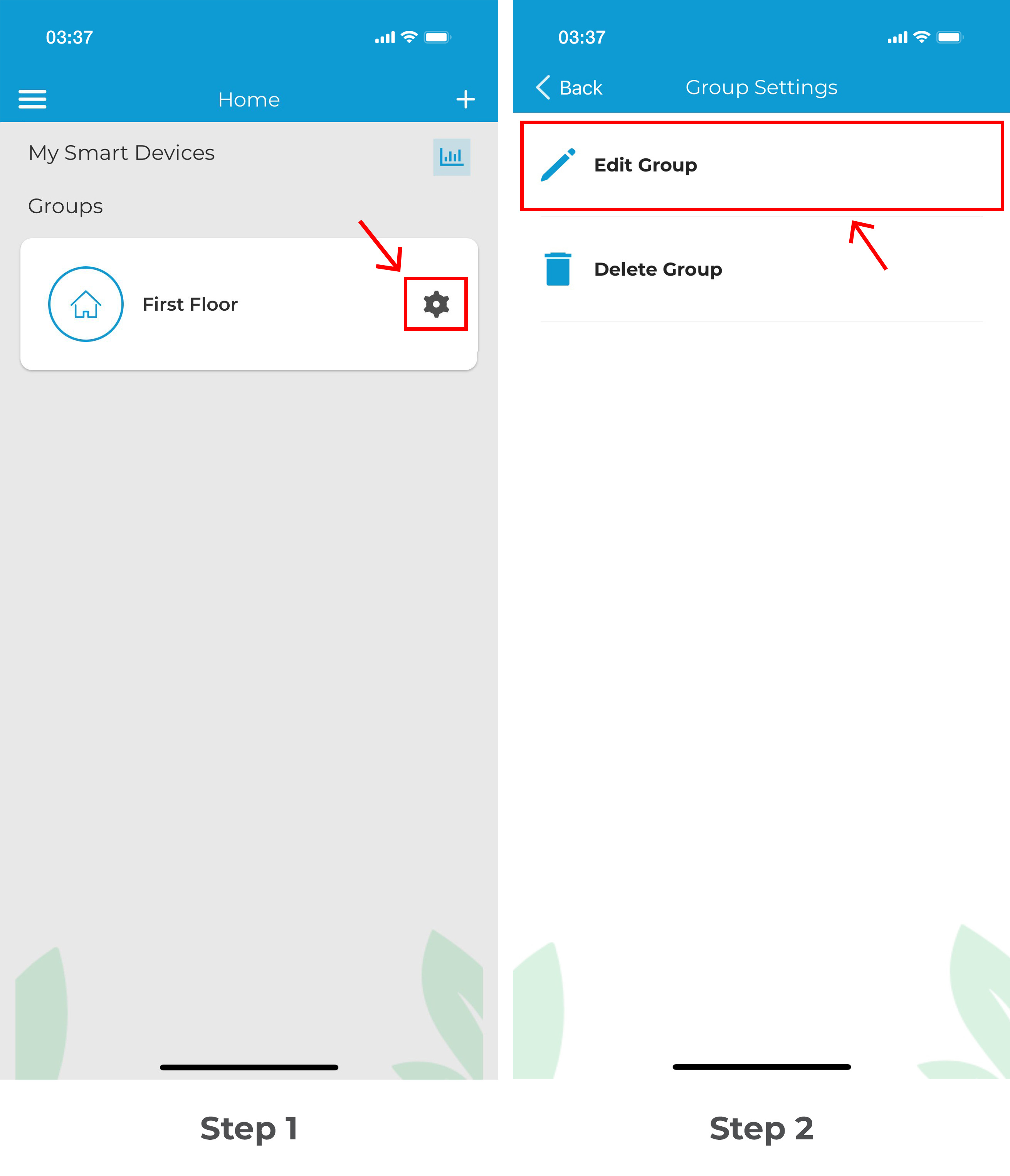

Step 1: Tap on the ‘Settings’ icon of the group you wish to edit.

Step 2: In group settings, tap on ‘Edit Group. You can change the icon and name of the group as you desire.

Step 3: Tap on 'Done'.

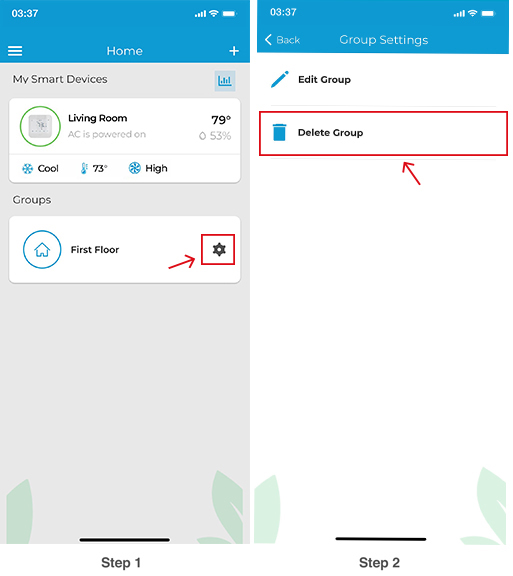

5. Deleting a Group

Note: To delete a group, you have to remove all the devices added to it individually. You may not be allowed to delete a group otherwise. To delete a device from a group, refer to Section 3.

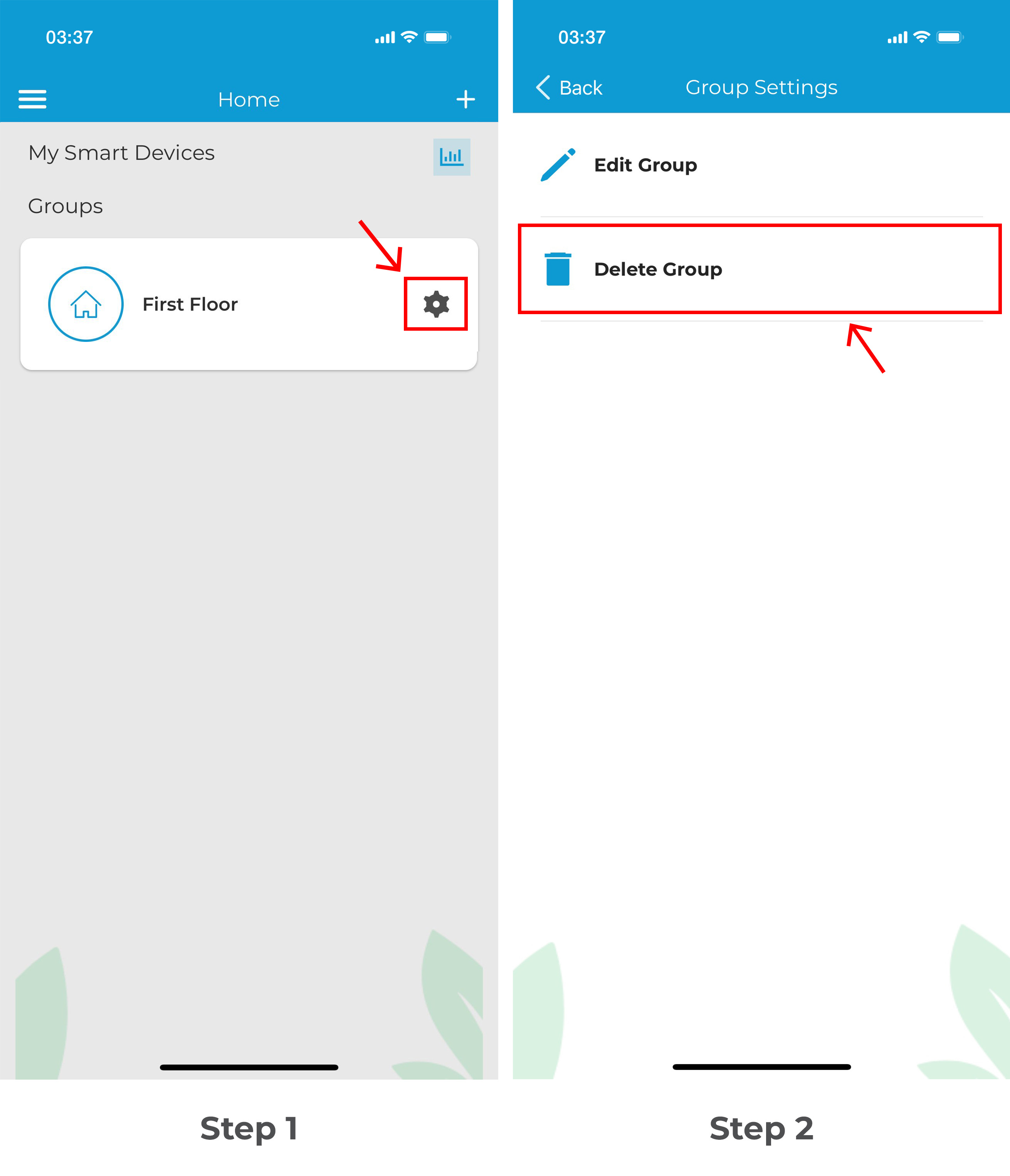

Step 1: Tap on the ‘Settings’ icon of the group you wish to edit.

Step 2: In group settings, tap on ‘Delete Group’.

Switch temperature units between Centigrade and Fahrenheit

Step 1: On the Home screen, tap on the Breez Max you want to change the units of.

Step 2: Tap on the ‘Settings’ icon on the top right.

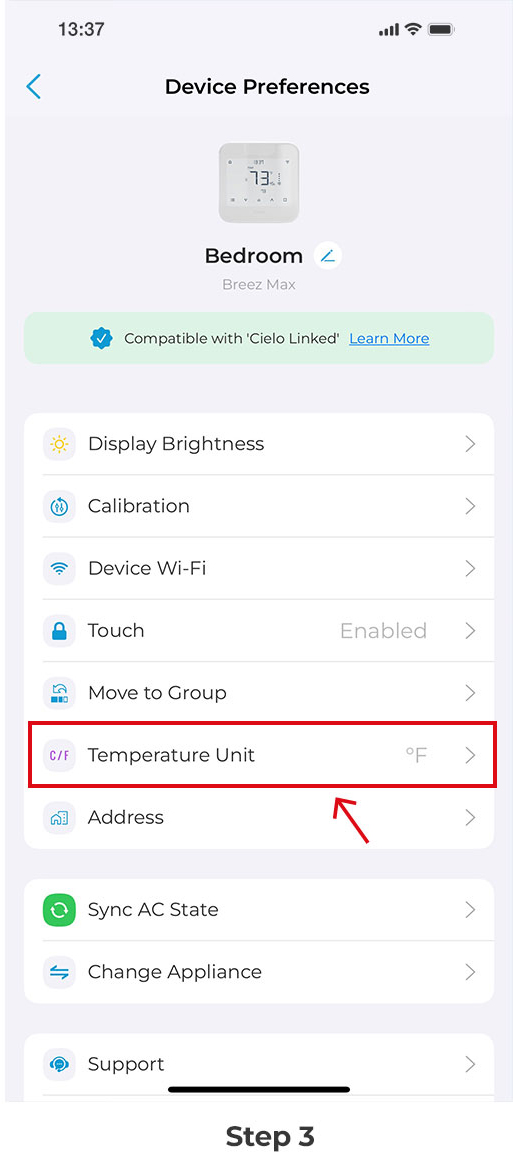

Step 3: Tap on ‘Device Preferences’.

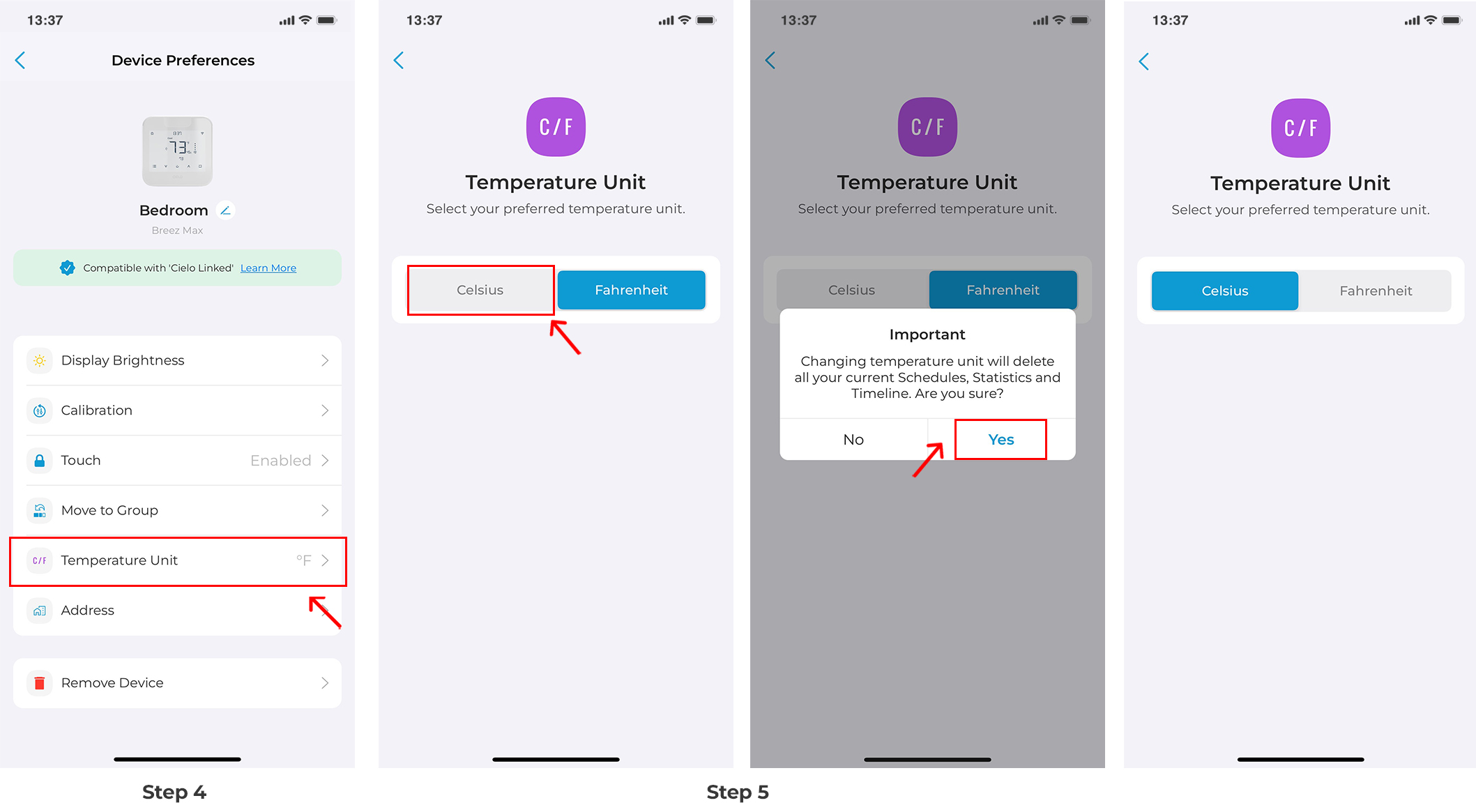

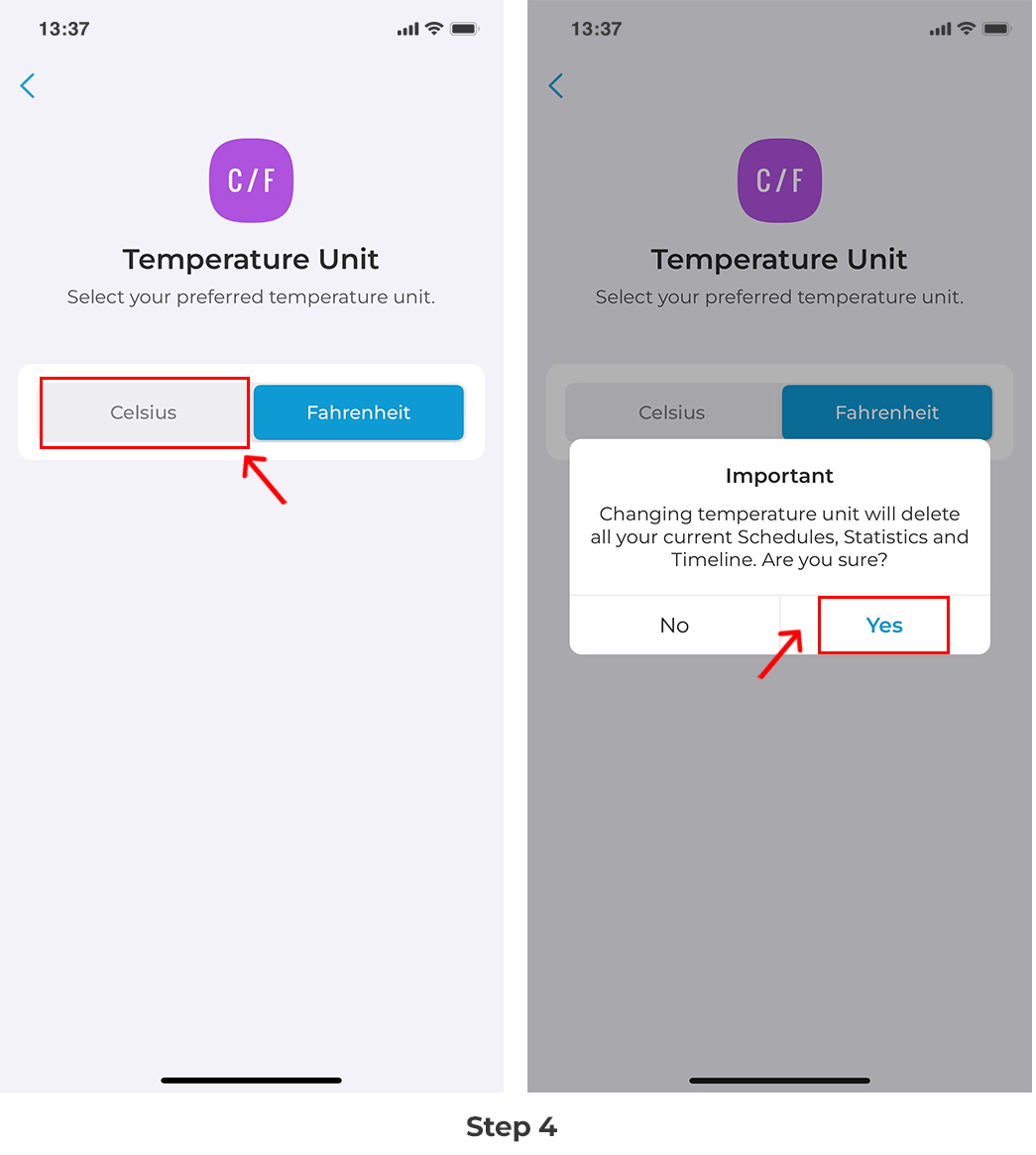

Step 4: Tap on ‘Temperature Unit’.

Step 5: Select your preferred unit. Note that changing temperature unit will delete your current schedule, statistics and timeline. Tap ‘Yes’ to proceed.

Adding Address

Add your address to sync weather data. This will allow you to use exciting features like integrated controls (set-up automation based on outdoor temperature).

Step 1: On the Home screen, tap on the Breez Max you want to change the units of.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Device Preferences’.

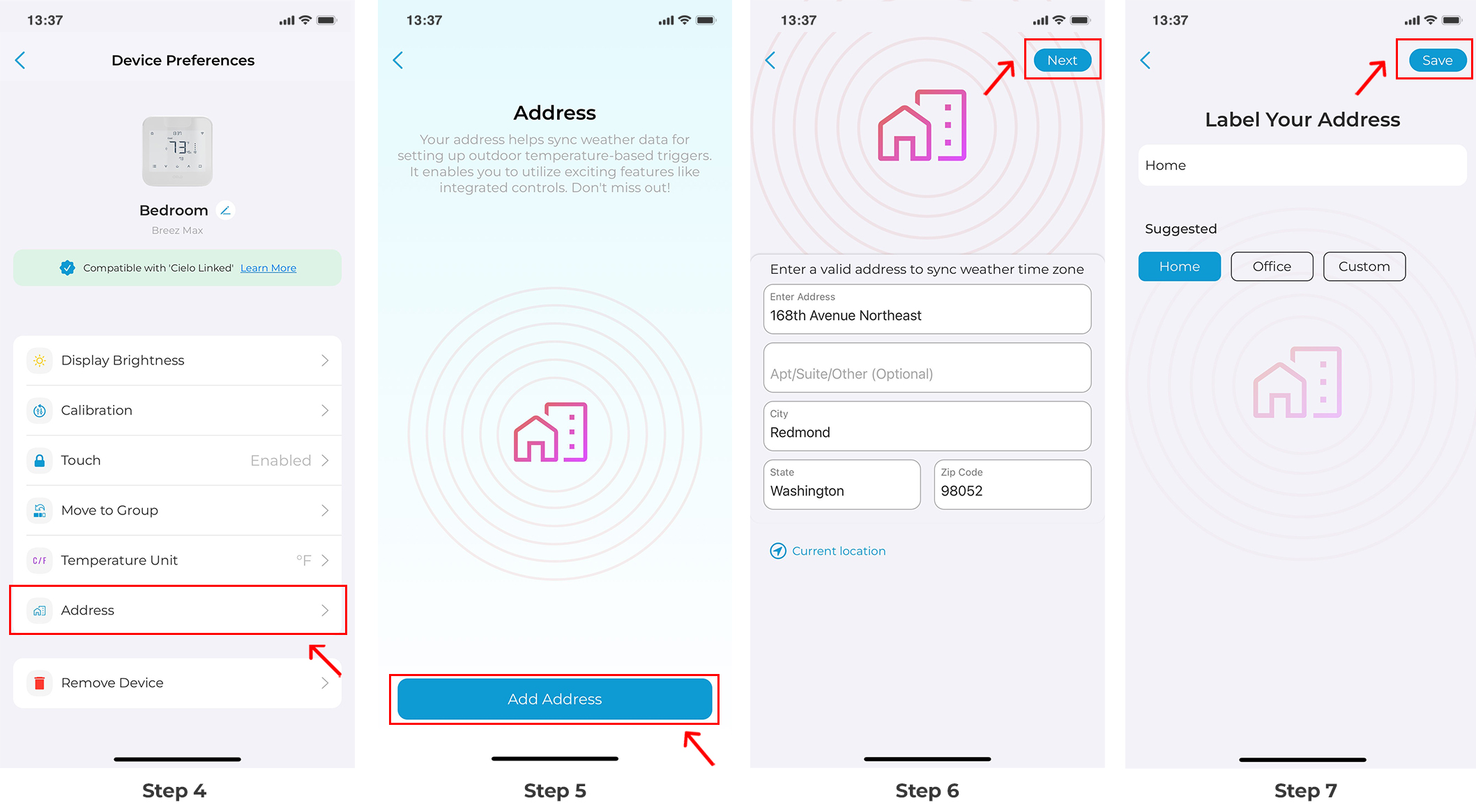

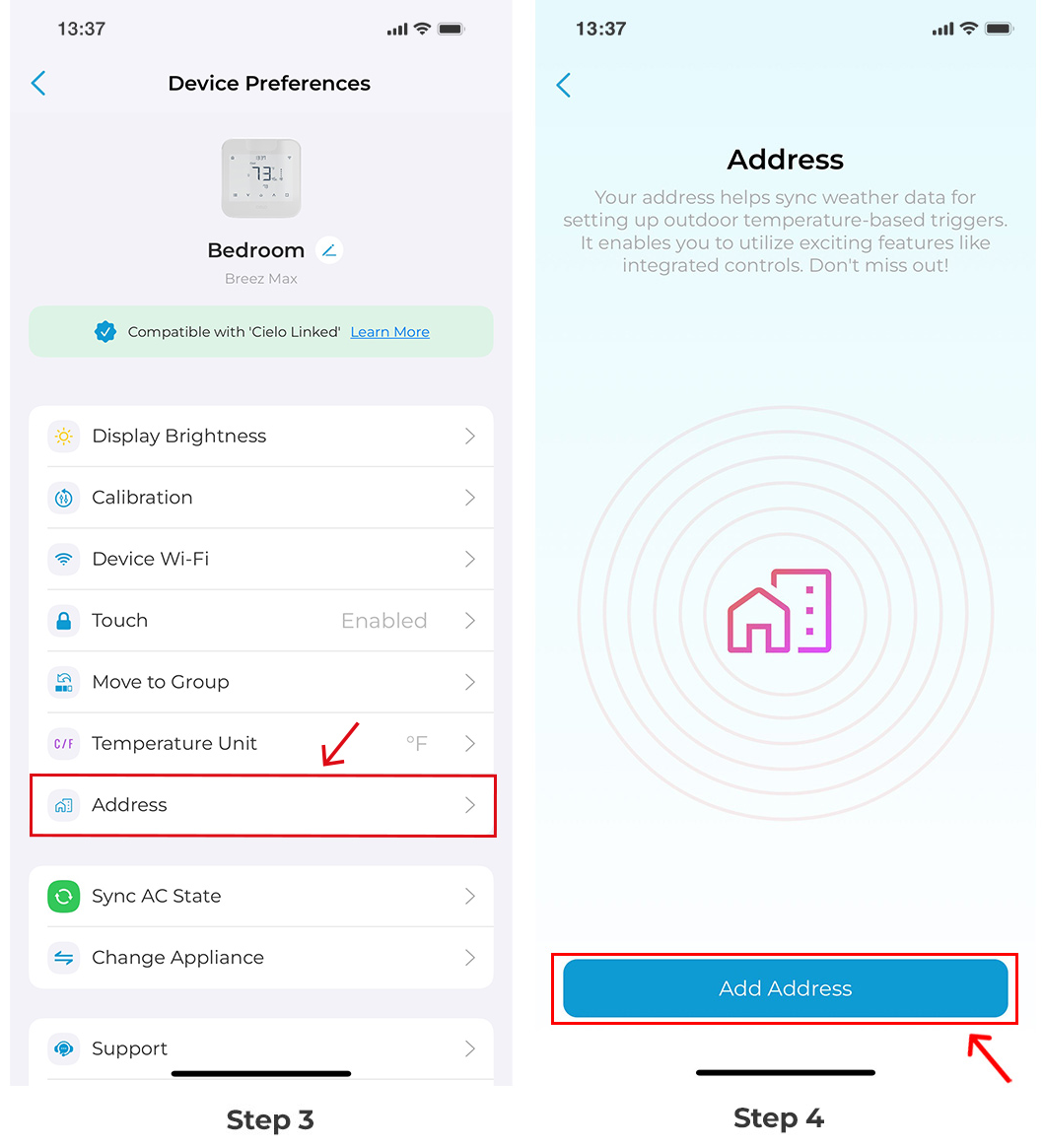

Step 4: Tap on 'Address'.

Step 5: Tap on 'Add Address'. Allow Cielo Home to access your location.

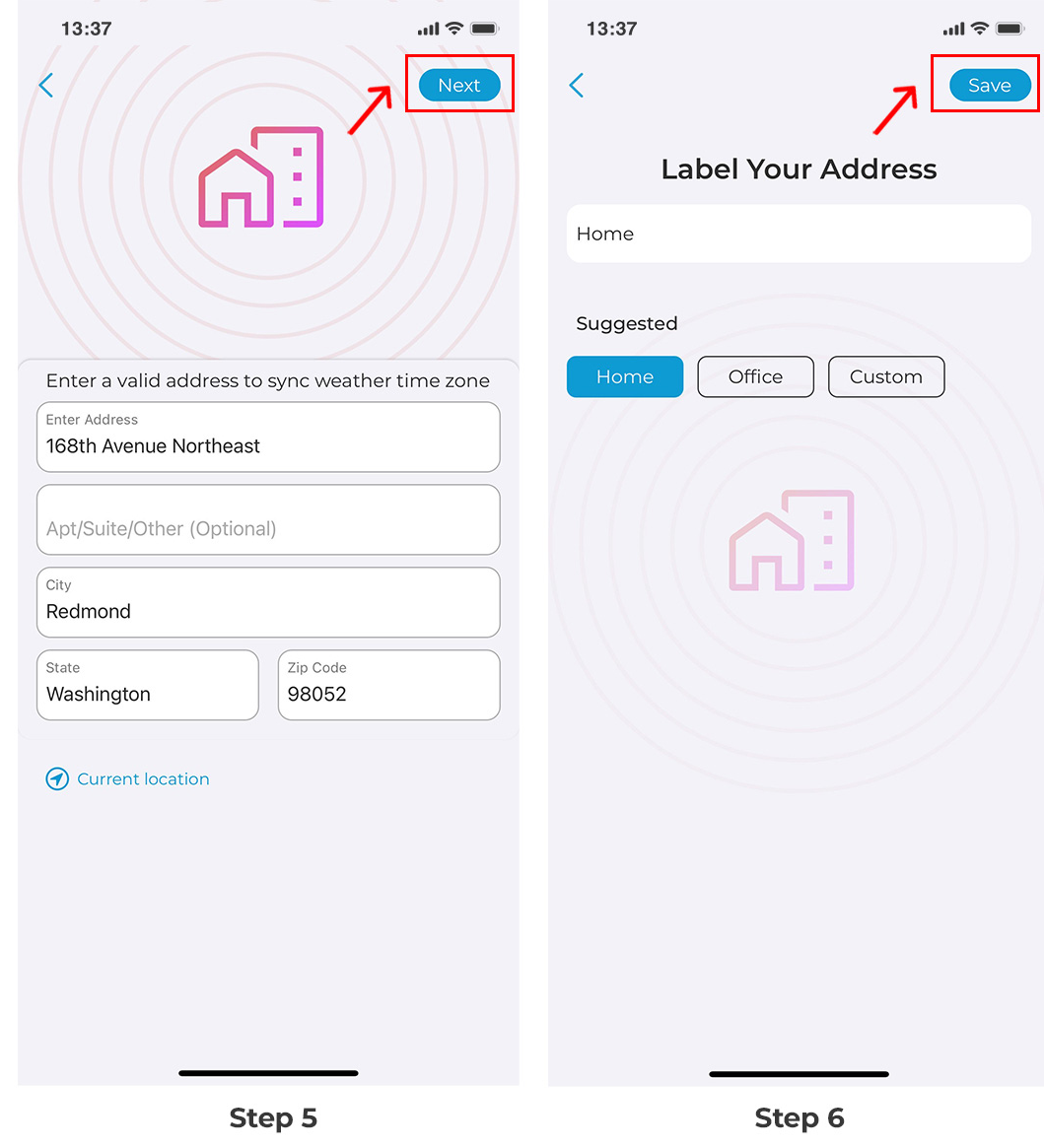

Step 6: Enter your address and tap on 'Next'.

Step 7: Add a label to your address, and tap on 'Save'.

Removing your Device

Step 1: On the Home screen, tap on the Breez Max device you want to delete.

Step 2: Tap on the ‘Settings’ icon on the top right.

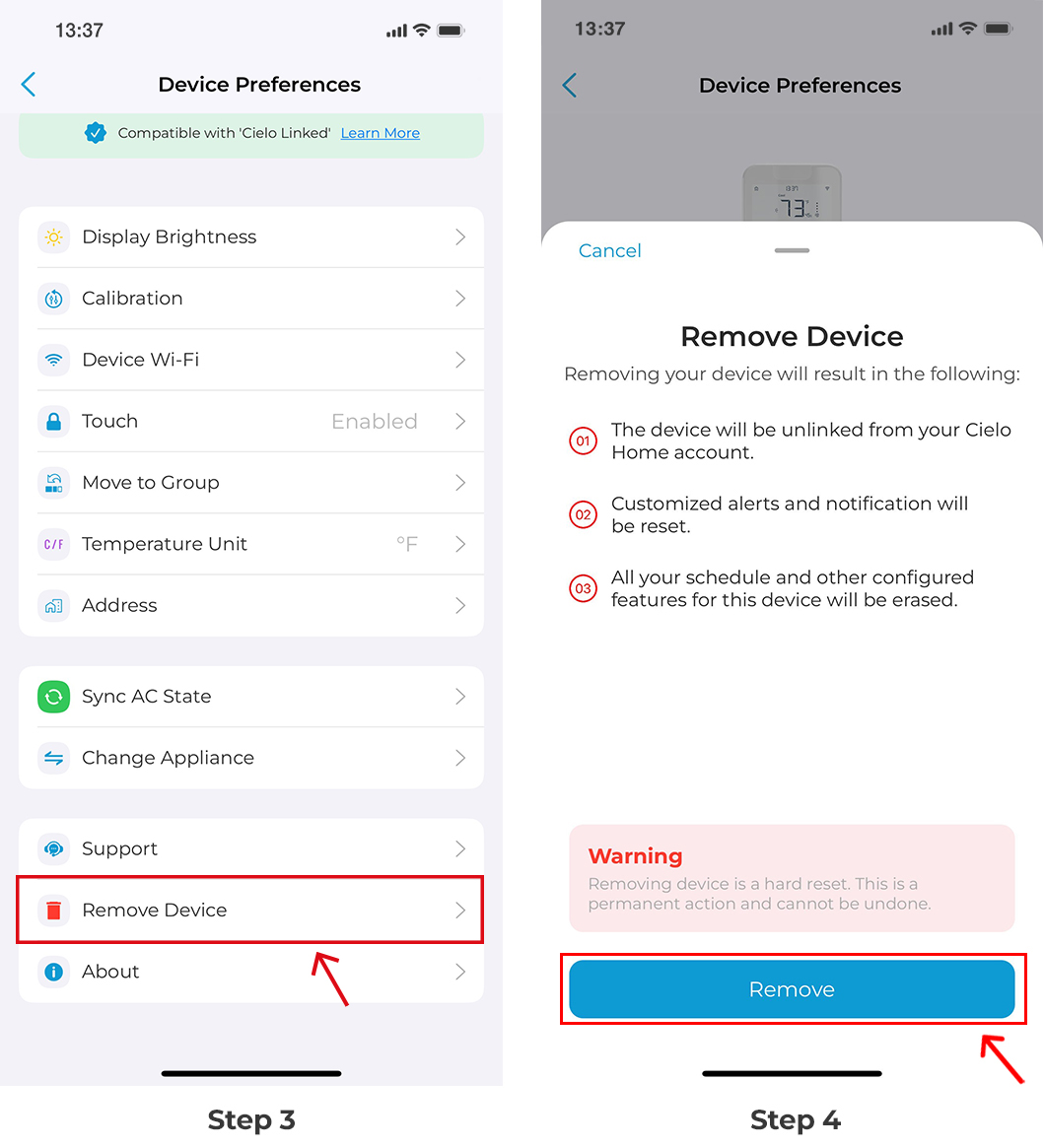

Step 3: Tap on ‘Device Preferences’.

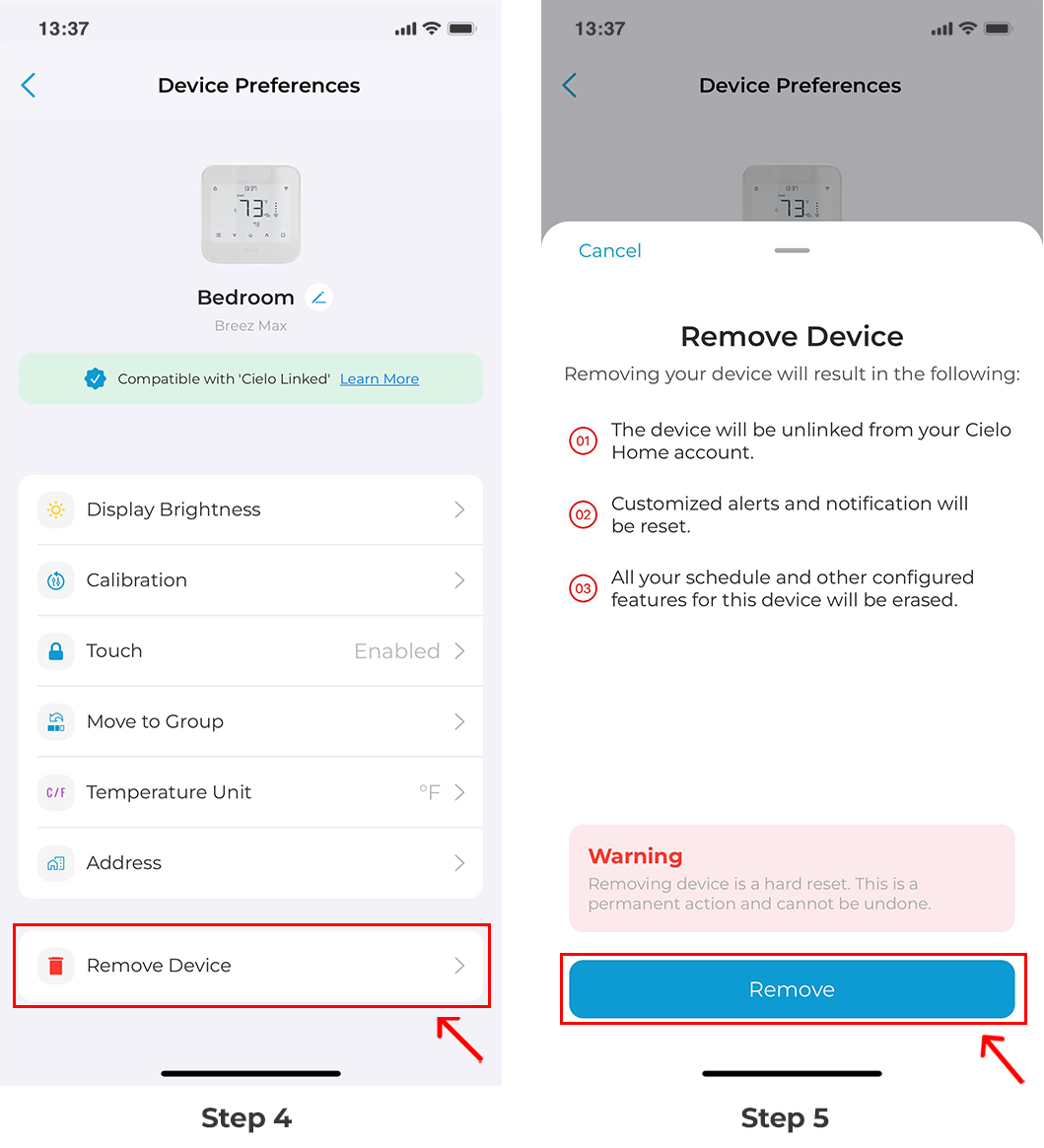

Step 4: Tap on 'Remove Device’.

Step 5: Tap on ‘Remove’. Your device is now removed.

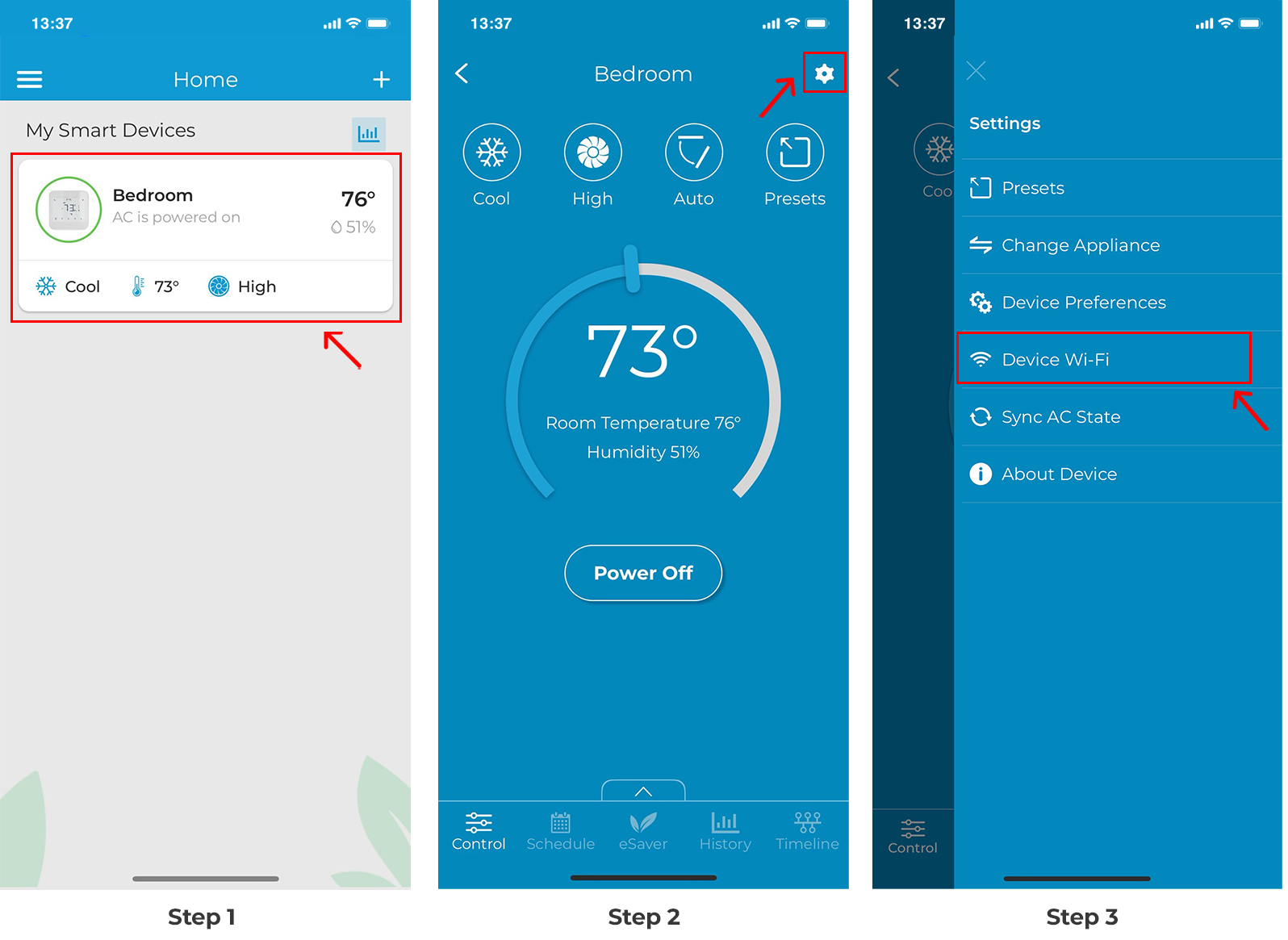

Changing Wi-Fi

Step 1: On the Home screen, tap on the Breez Max device you want to change the Wi-Fi of.

Step 2: Tap on the ‘Settings’ icon on the top right.

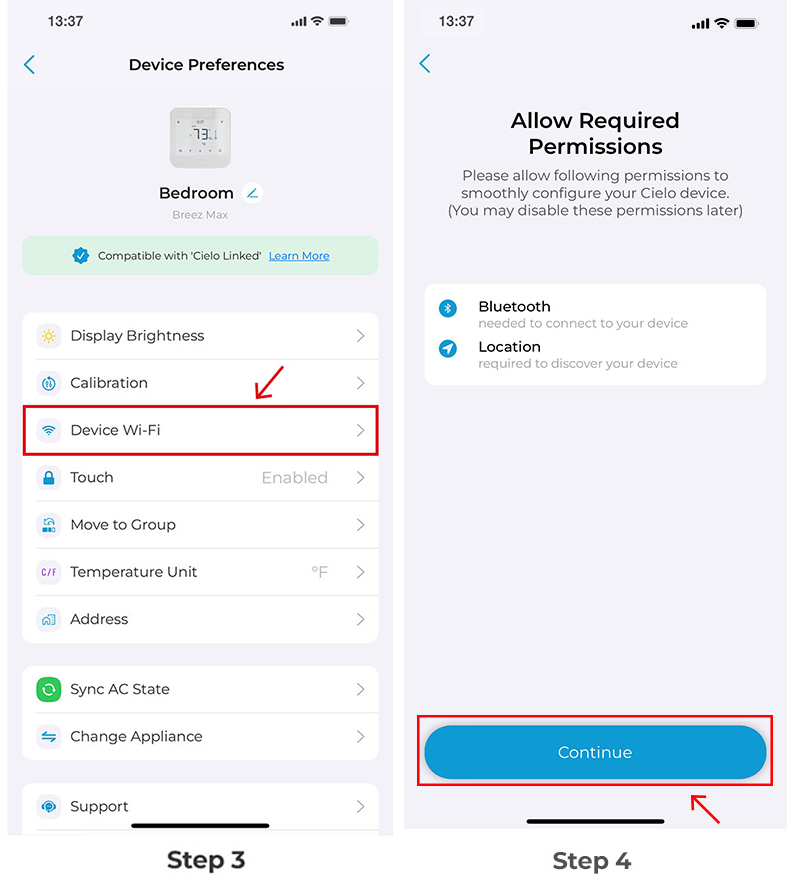

Step 3: Tap on ‘Device Wi-Fi’.

Step 4: Allow required permissions.

Note: In case Breez Max does not appear, touch and hold the Power and Temperature Up buttons simultaneously for 6 seconds. The Bluetooth icon on the screen should start blinking, and the app will automatically move to the next screen.

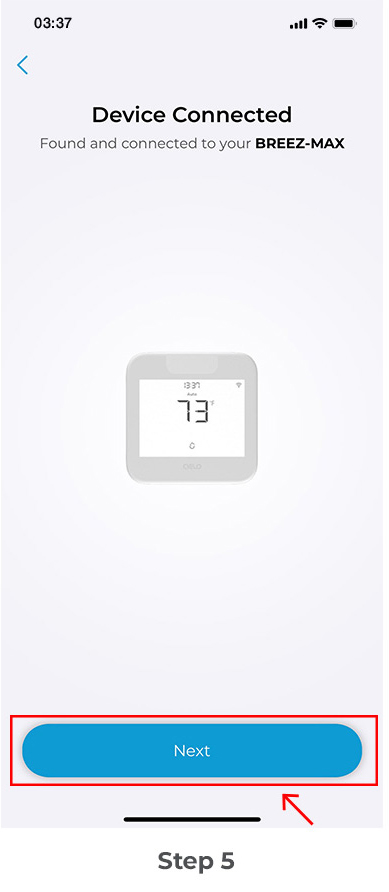

Step 5: Cielo Home app will show your connected device. Tap "Next".

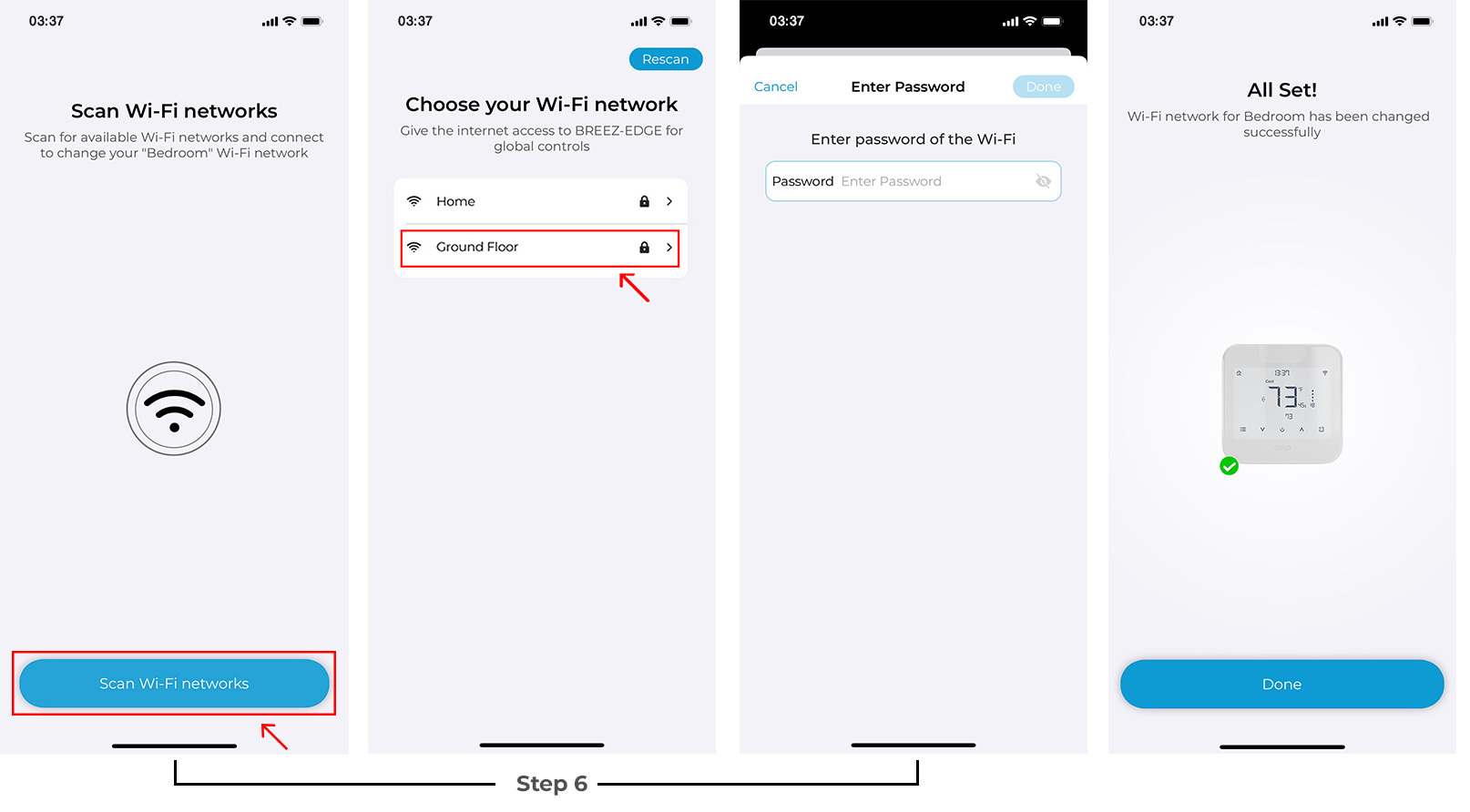

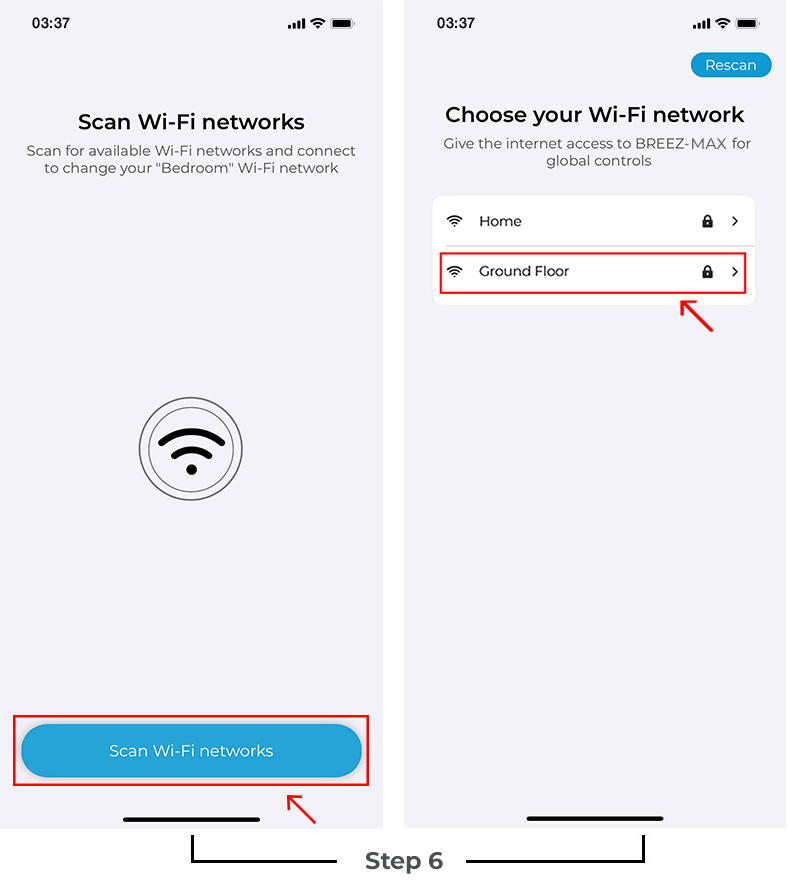

Step 6: Tap 'Scan Wi-Fi Networks'. A list of available Wi-Fi networks will appear. Select your desired Wi-Fi network, and enter the password to connect.

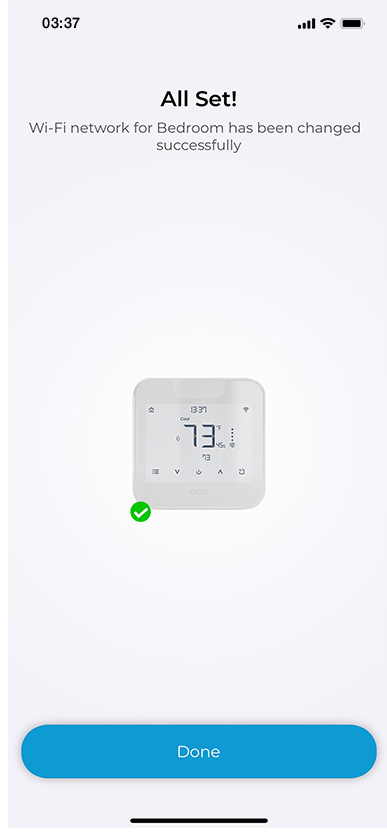

Wi-Fi network will be changed successfully.

Sync AC State (e.g. AC is ON and App is showing it as OFF)

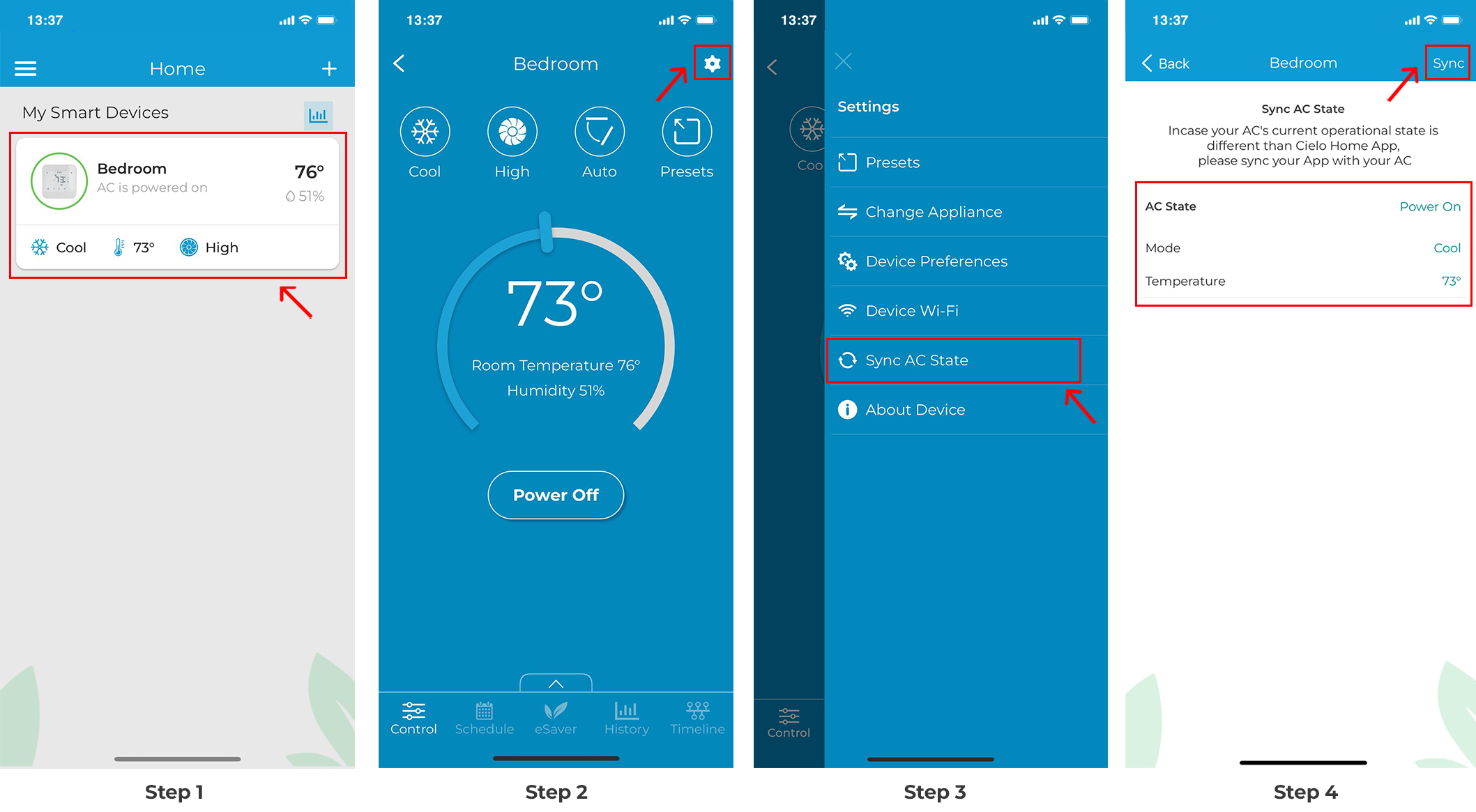

Step 1: On the Home screen, tap on the Breez Max device you want to sync with your AC.

Step 2: Tap on the ‘Settings’ icon on the top right.

Step 3: Tap on ‘Sync AC State’.

Step 4: From the drop-down menus, select the AC parameters which you want on your Breez Max device. Then tap on 'Sync'. The Breez Max device will now display these selected parameter values.
