Installation Manual - Cielo Breez Max

Getting Started

Cielo Breez Max can be mounted on a wall using the backplate or placed on a table using the table stand (both included in the box).

Note: Before finalizing the placement, it is recommended to first power up, register, and test the device to ensure signals can easily reach the AC.

For optimal placement and control:

• Make sure Breez Max is within the line of sight of your AC.
• To avoid deviated sensor readings, do not place Breez Max where it may be exposed to excessive
  sunlight or other heat sources.

Special Note: It is strongly advised that whenever there is a need to use the remote control for AC/heat pump, point it towards Breez Max while performing any action. This way, your AC/heat pump and Cielo Home app will always be in sync.

Powering Up

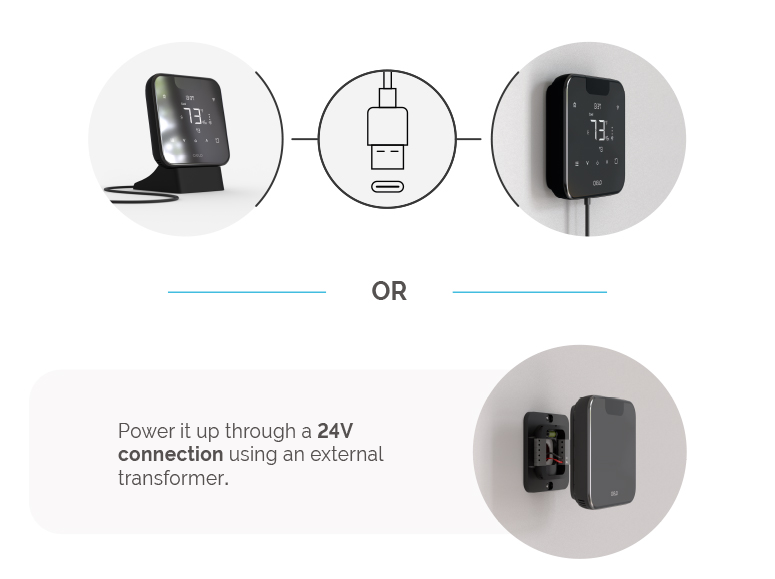

Breez Max can be powered up using a 5V adapter (always use the provided power adapter and USB cable for optimal results).



Please DO NOT use any other voltage level to power up Breez Max. Please choose ONLY ONE power-up option, i.e., either 5V OR 24V.

Powering Up Using 24V Connection

Step 1: Switch off the power by using the circuit breaker. This is very important for your safety.
Step 2: Find a point where 24V is available (In case of non-availability of 24V point, you can either DIY or consult a professional installer). Ensure that the chosen point is also in the line of sight of your AC.

Note: Please DO NOT use any other voltage level to power up Breez Max.

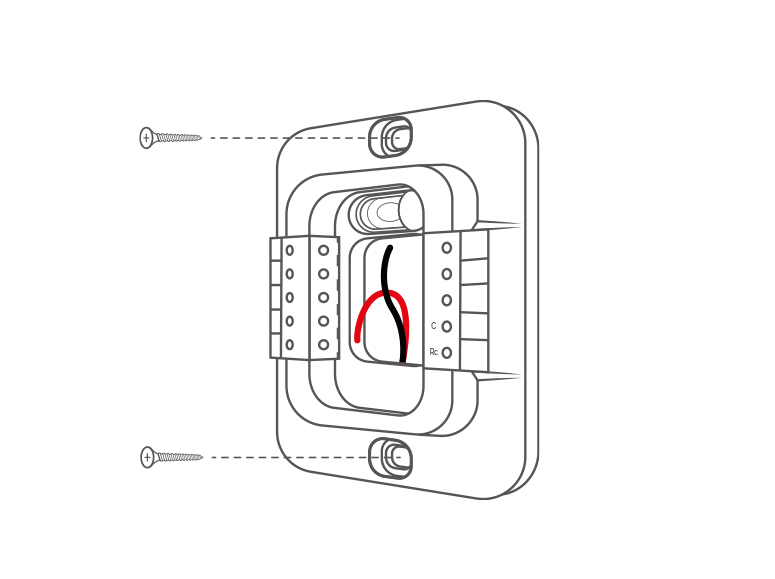

Step 3: Take out the wires through the hole in the middle of the backplate. Screw in the backplate using the provided pair of drywall anchors and screws.

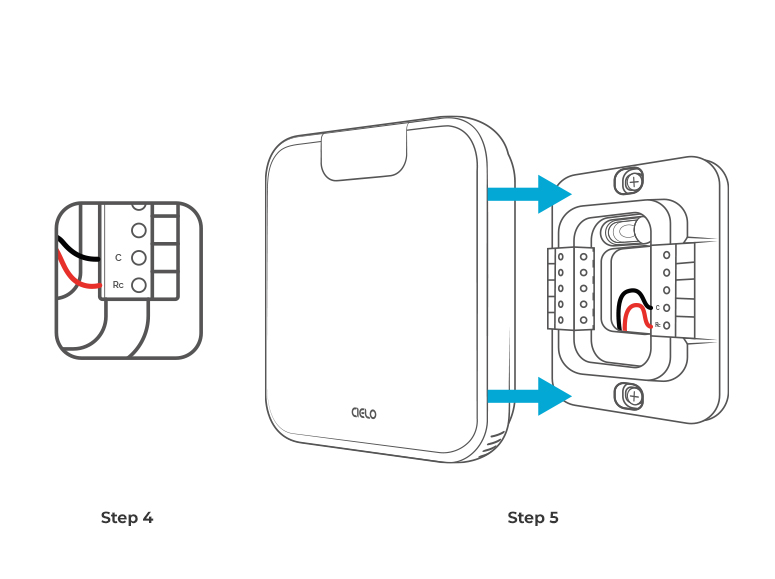

Step 4: Cielo Breez Max has two terminals marked as Rc and C on its backplate. Insert red wire
into Rc and black wire into C from the side (press the terminal block buttons for ease of insertion).

Step 5: Align your Cielo Breez Max with the backplate and press gently to fix it properly.

Your installation is complete. Please switch on the power from the circuit breaker.

Prior to App Installation

For your phone:

• Make sure your smartphone’s Bluetooth is turned ON.
• Make sure your smartphone’s Wi-Fi is turned ON.
• Make sure your smartphone has internet access.

For your Wi-Fi router:

• Make sure you have a working internet connection on your Wi-Fi router.
• Make sure there is no proxy server or authentication server configured on your internet connection.
• Make sure there is no captive portal on your Wi-Fi router.

Note: Make sure IP isolation or client isolation is turned OFF on your Wi-Fi router.

App Installation & Registration

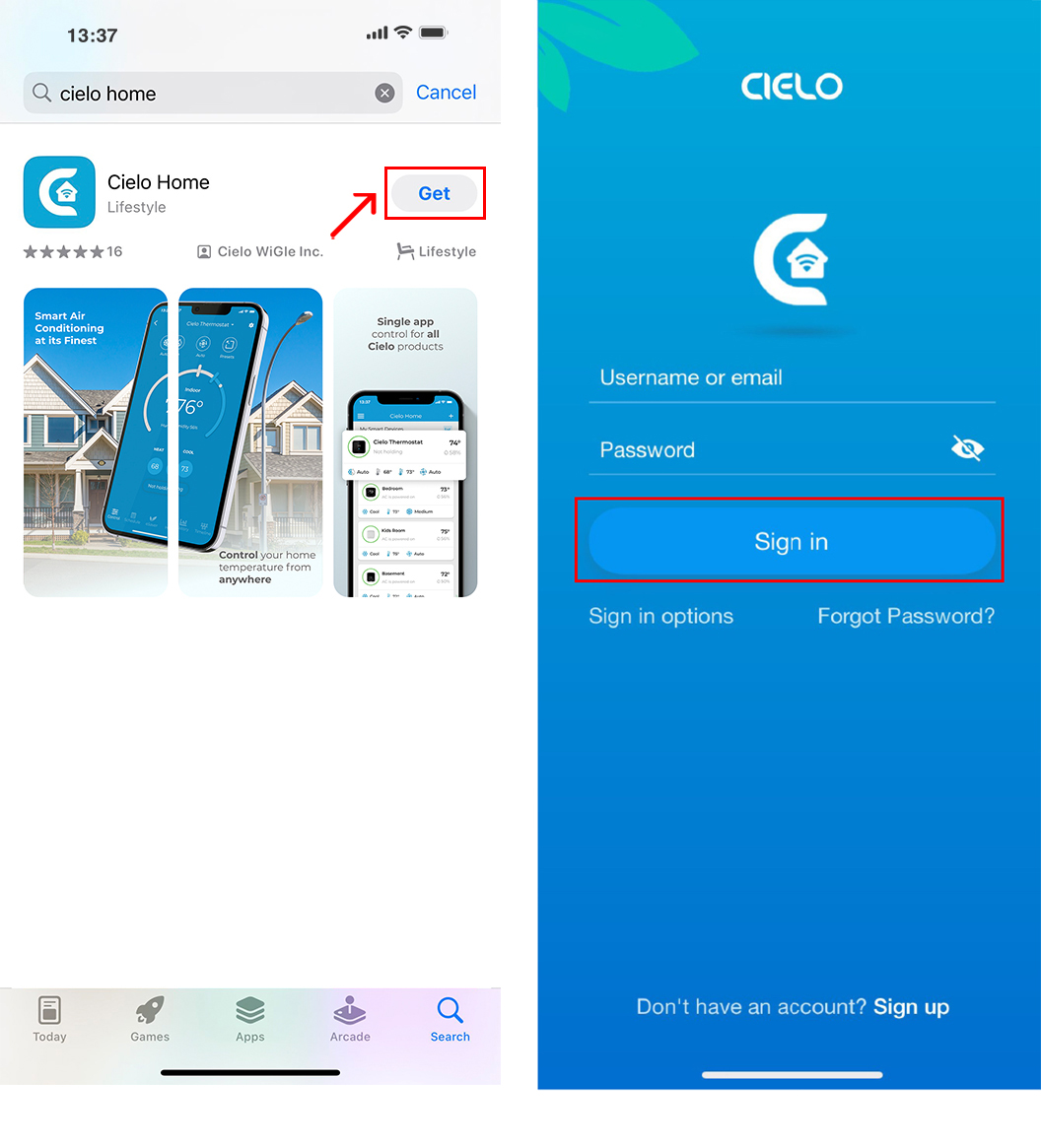

Install the ‘Cielo Home’ app from the App Store/Play Store.
Log in to the app if you already have an account; otherwise, create one using the sign-up option.

Device Registration

Device registration process connects Breez Max to your home Wi-Fi network through the Cielo Home app.

Note for iOS users:

• For iOS 13.0 & above, location permission is required to complete the registration process. You may disable it later.

Note for Android users:

• For Android OS 8.1 and above, location permission is required to complete the registration process. You may disable it later.

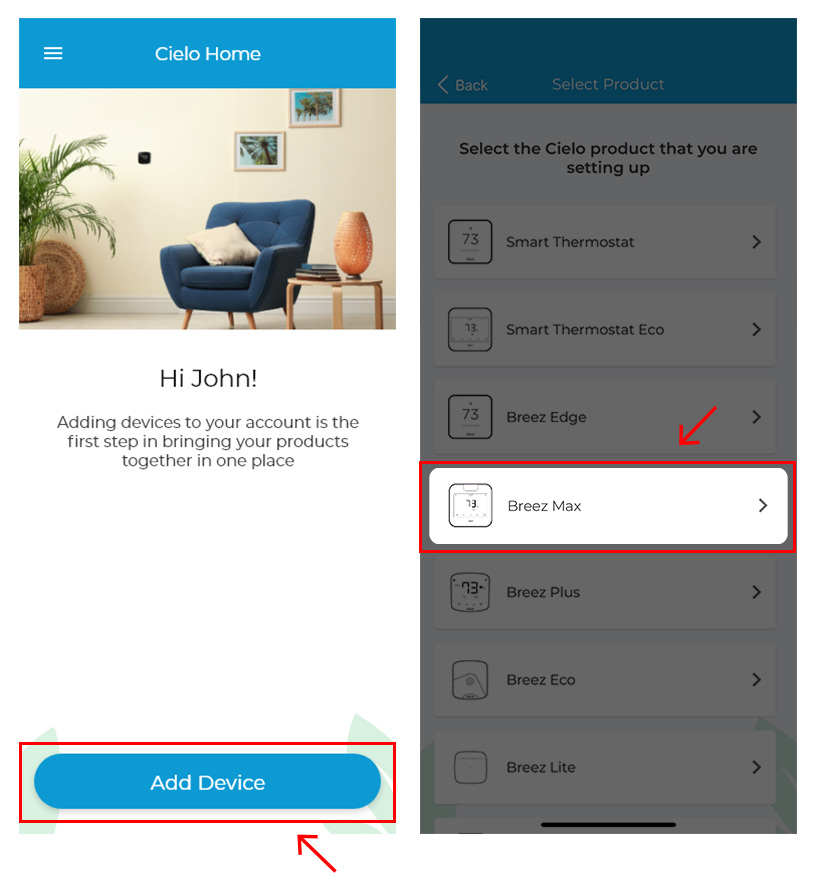

Open the Cielo Home app, tap ‘Add Device’ on the home screen, and select Breez Max from the list of devices.

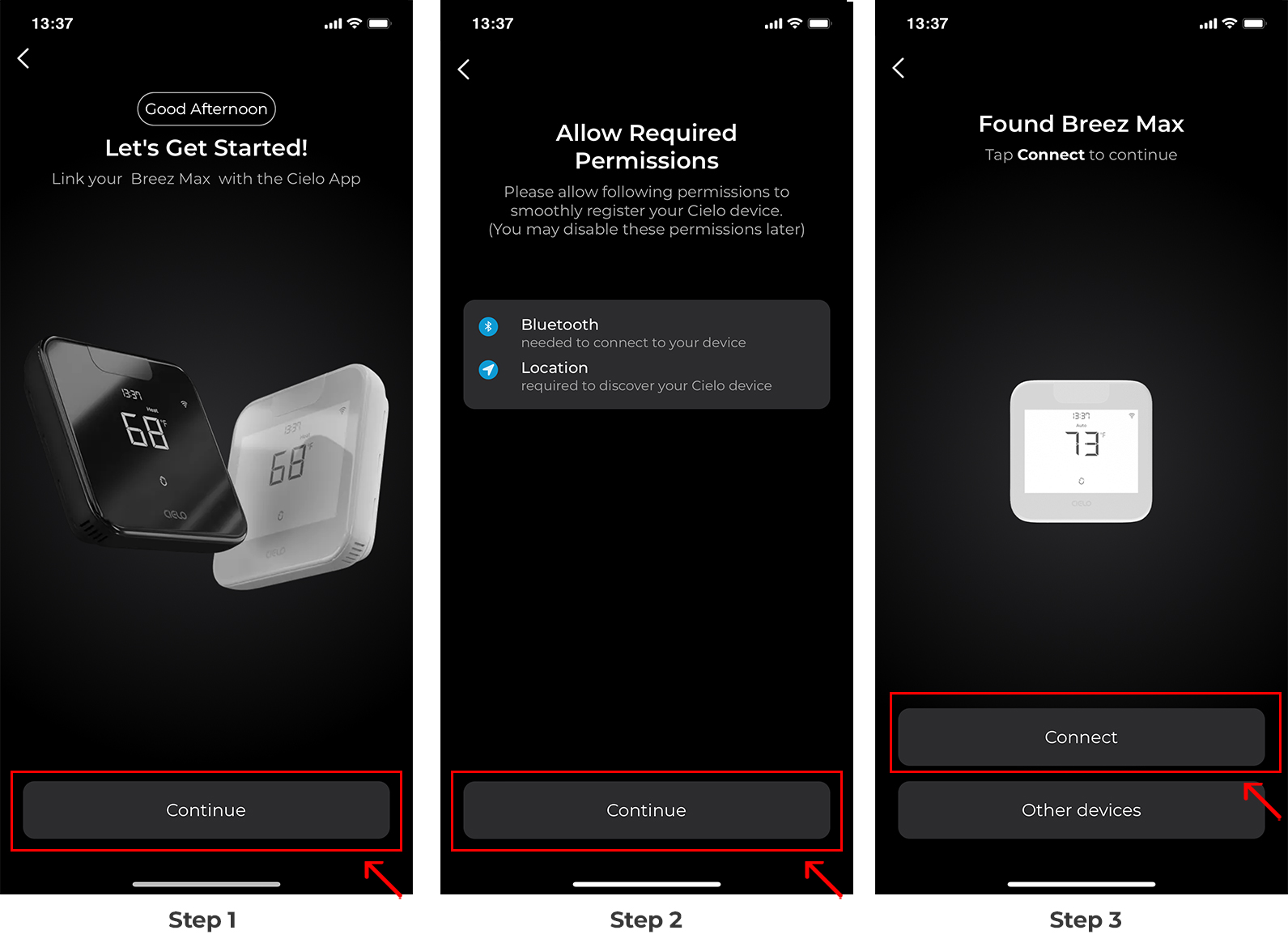

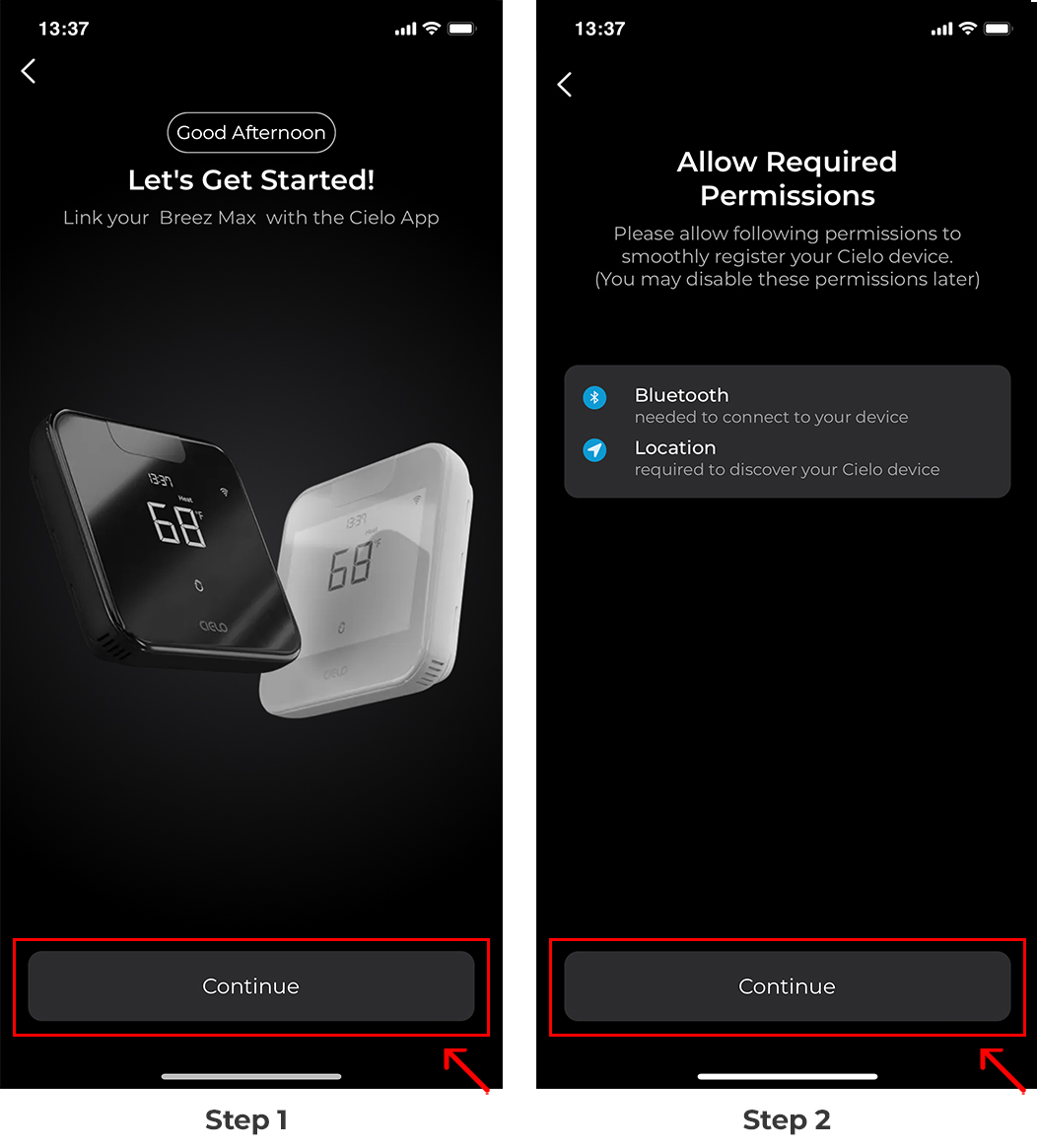

Step 1: Tap on 'Continue' to start the registration process.

Step 2:  Please give necessary permissions and tap 'Continue', Breez Max will appear on the screen. Tap connect.

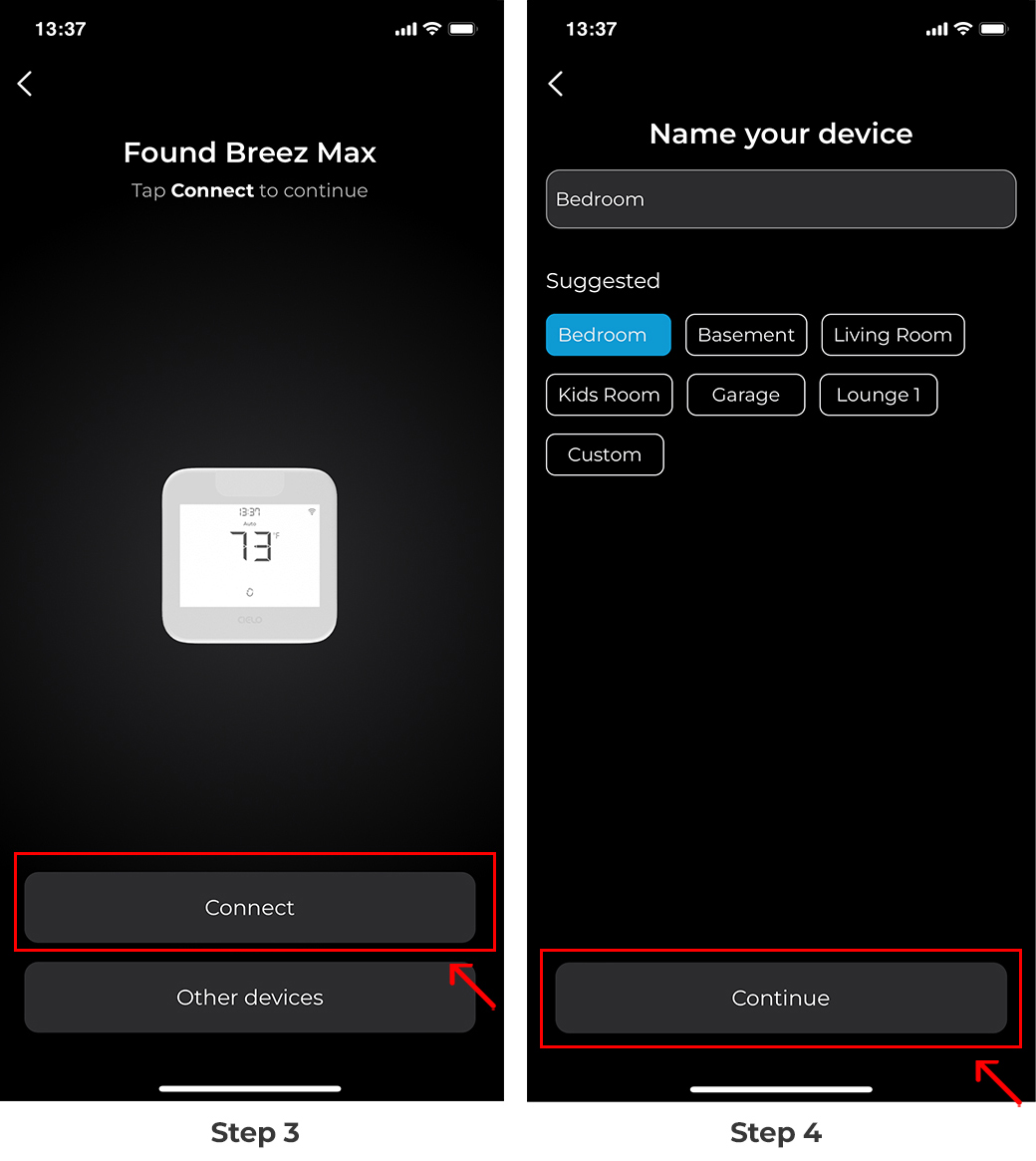

Step 3: Tap ‘Connect’ to proceed.

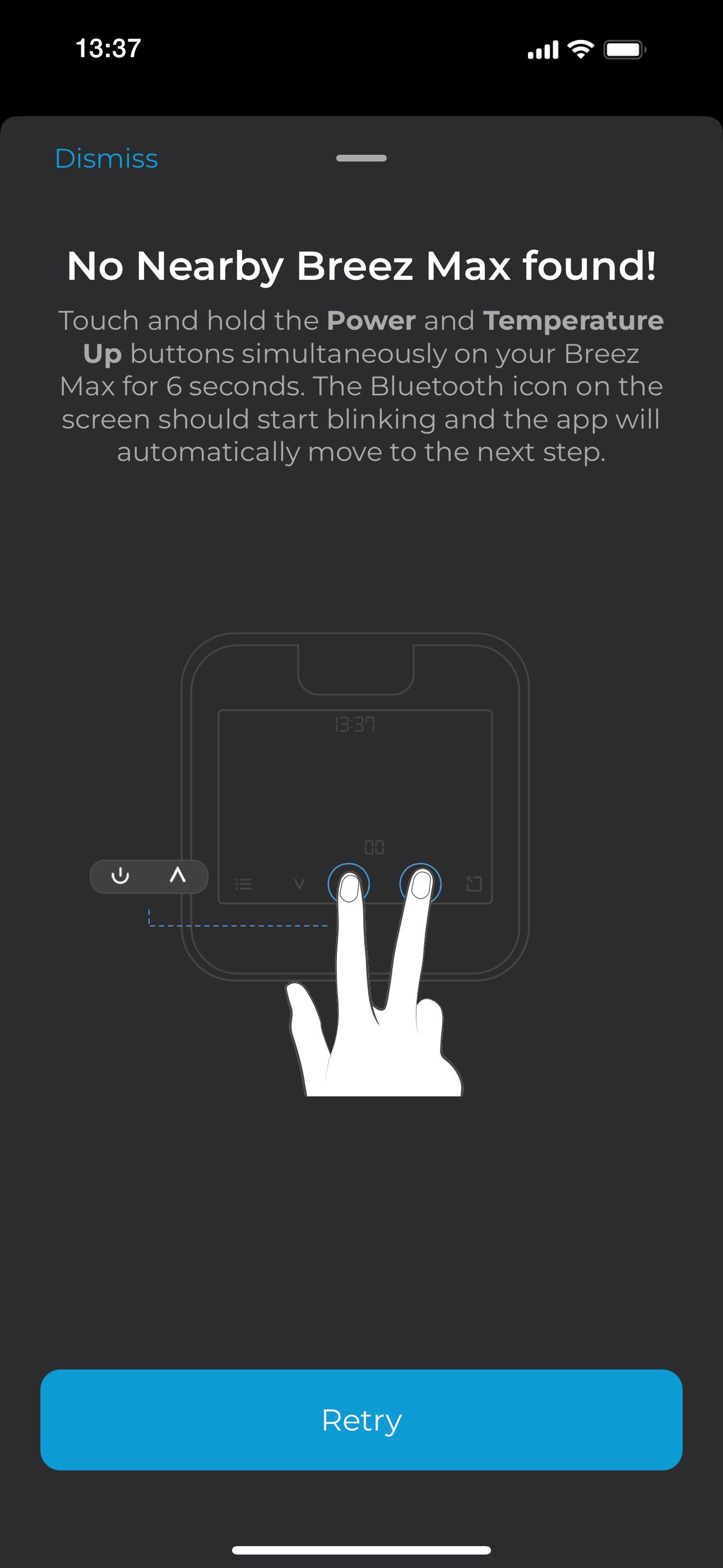

Note: In case Breez Max does not appear, touch and hold the Power and Temperature Up buttons simultaneously for 6 seconds. The Bluetooth icon on the screen should start blinking, and the app will automatically move to the next screen.

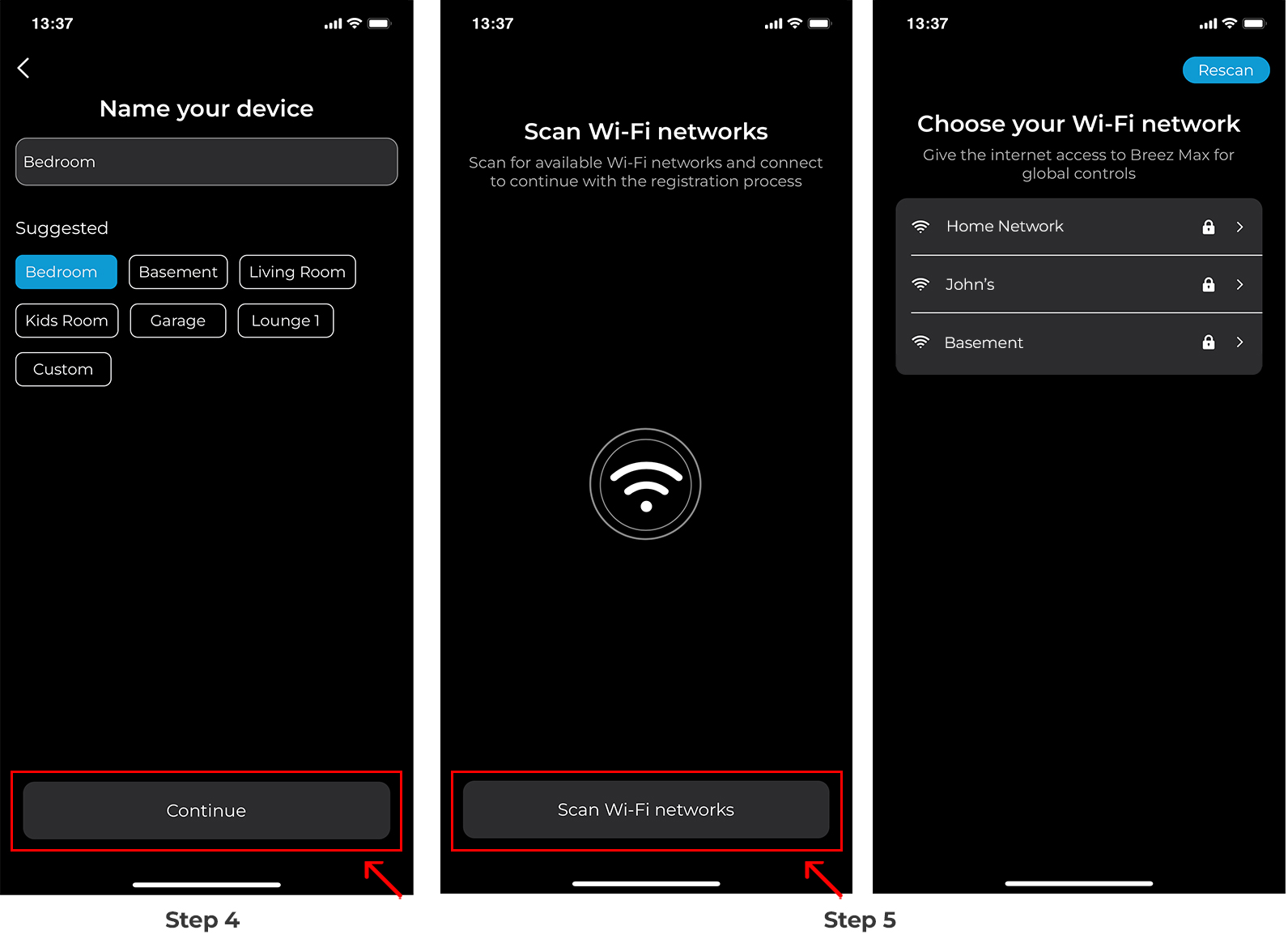

Step 4: Name your device and tap 'continue.'

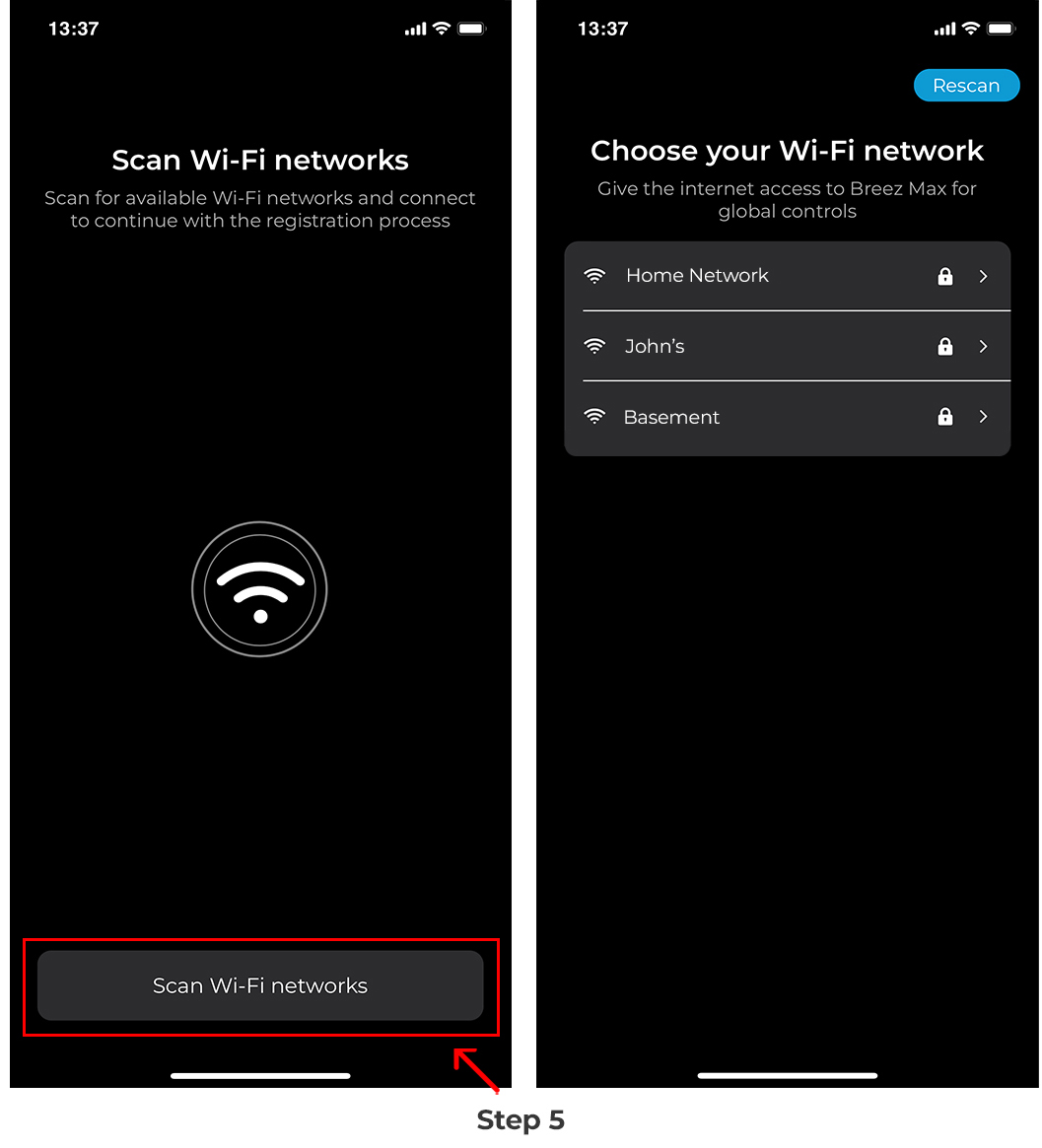

Step 5: Tap on 'Scan Wi-Fi networks.' Connect to your preferred Wi-Fi network.

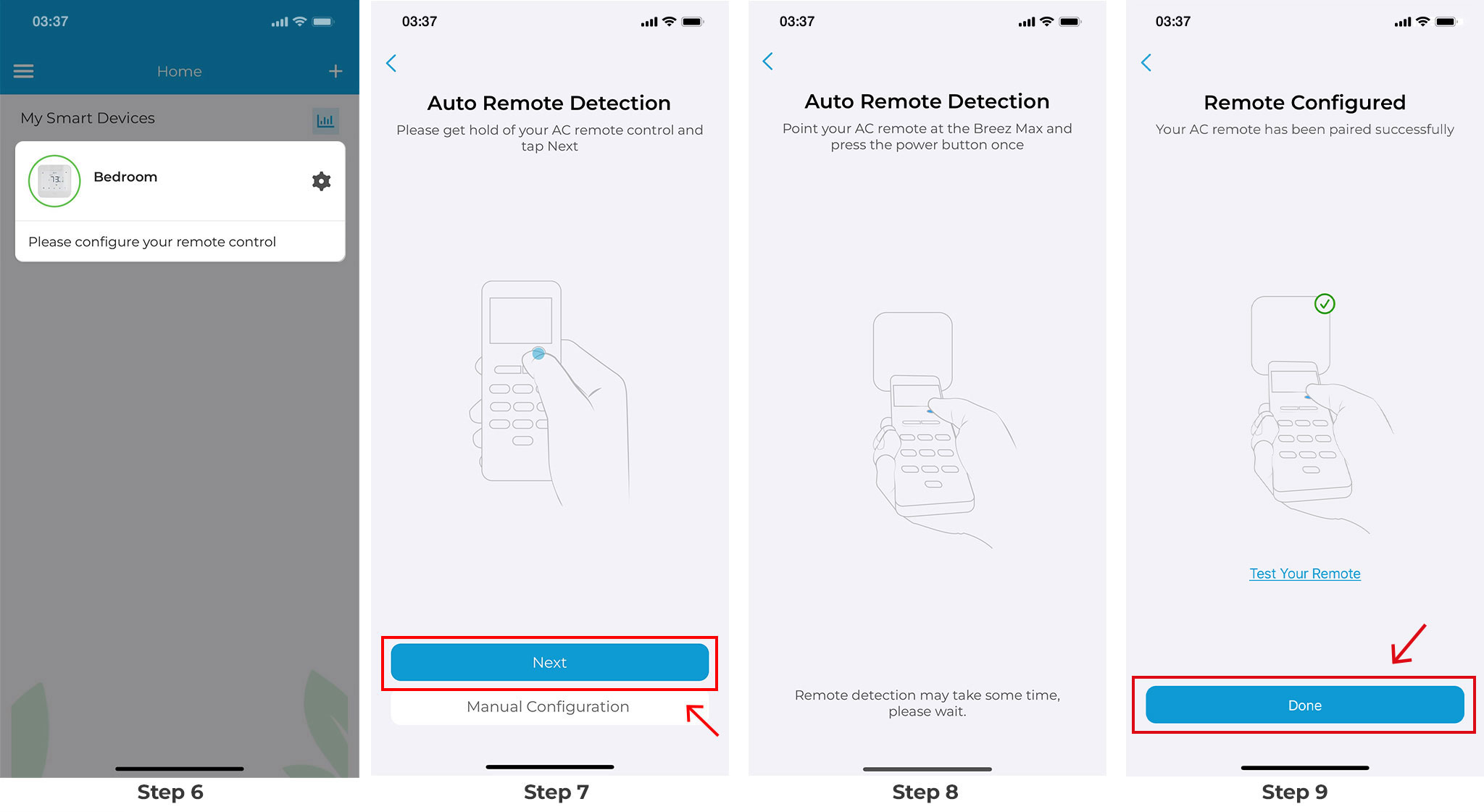

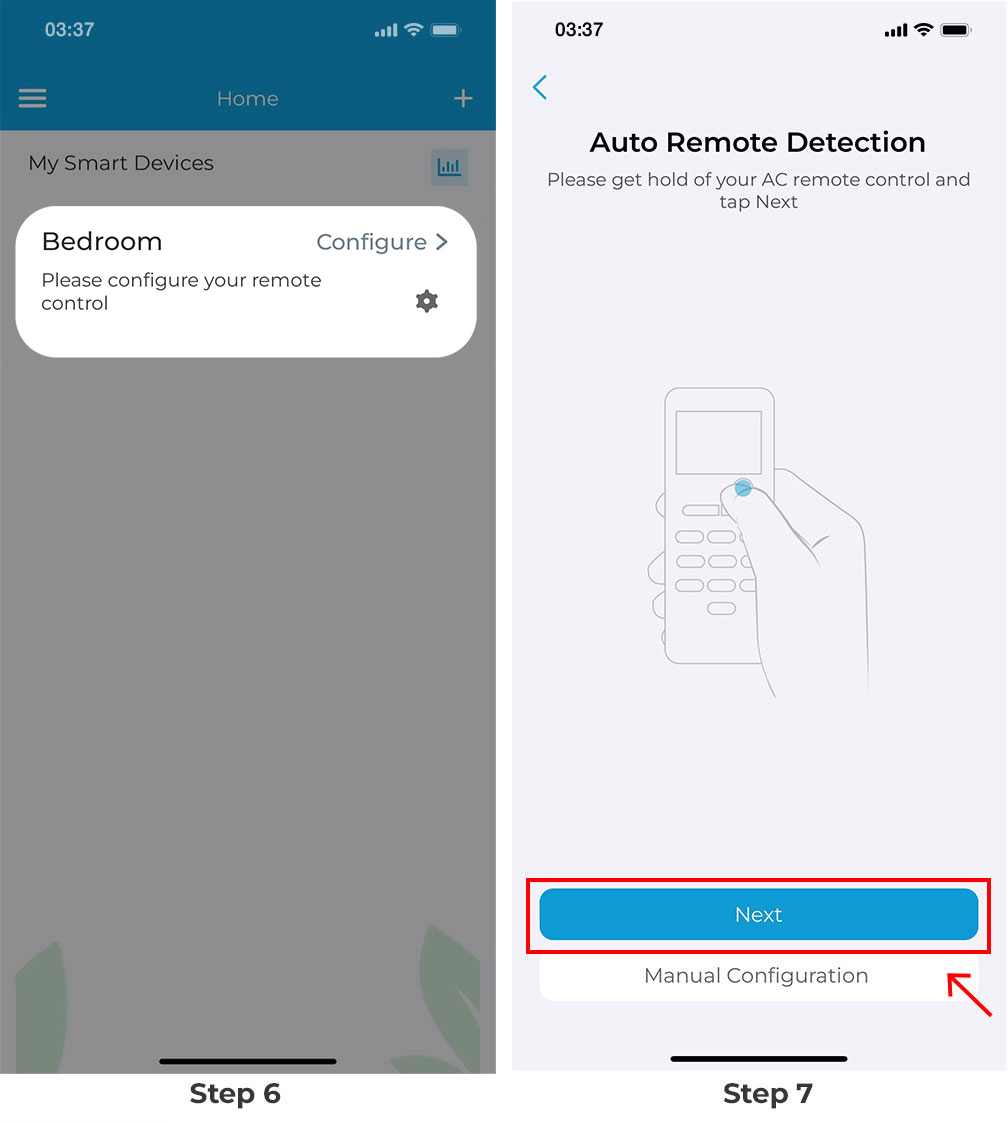

Step 6: After Wi-Fi configuration, your device will appear on the home screen. Tap the device to start the remote configuration process.

Step 7: Get hold of your AC remote and tap ‘Next’.

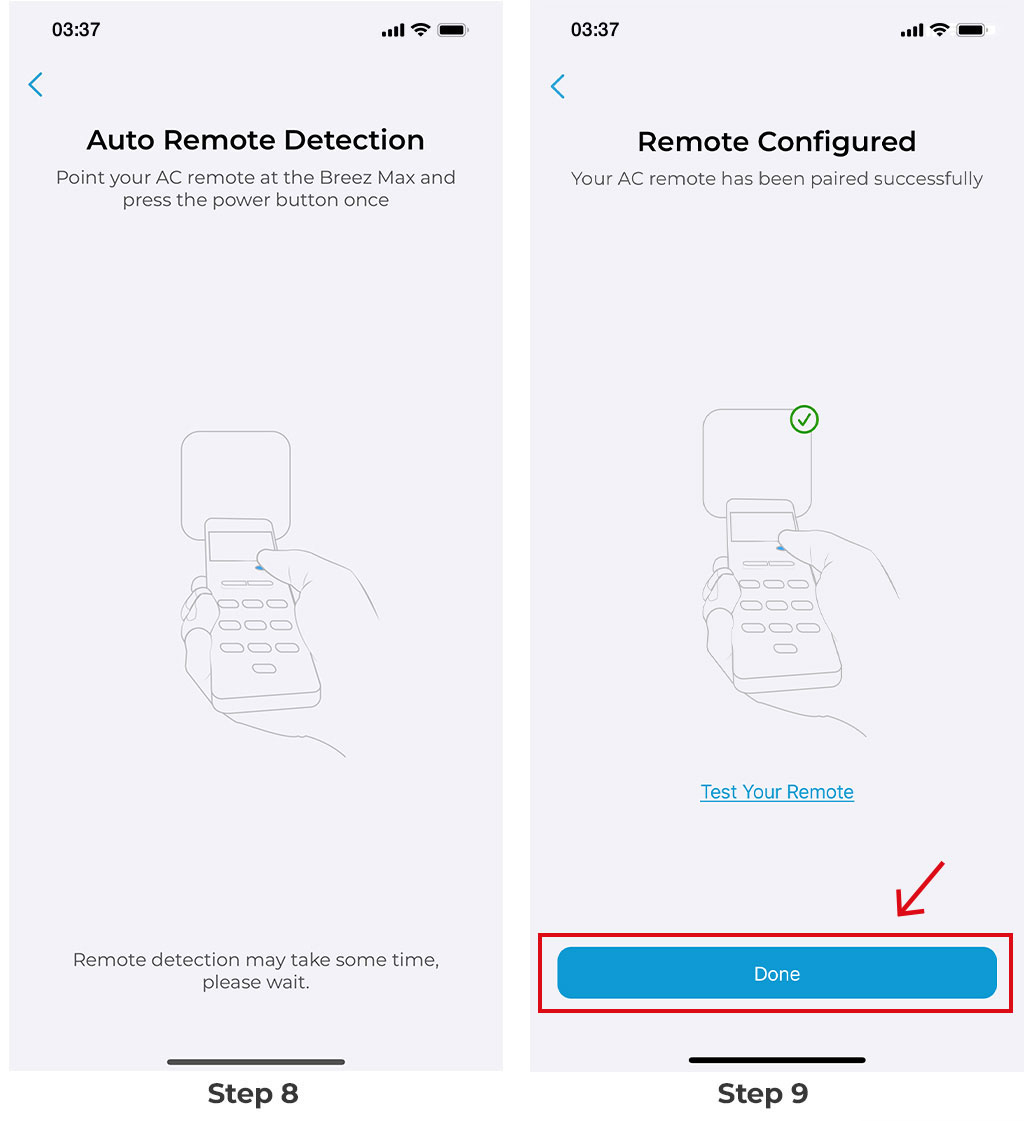

Step 8: Point your AC remote at Breez Max and press the remote’s ‘Power button’ once. It will start the configuration process.

Step 9: Your remote is now paired with Breez Max. Tap on ‘Done’.

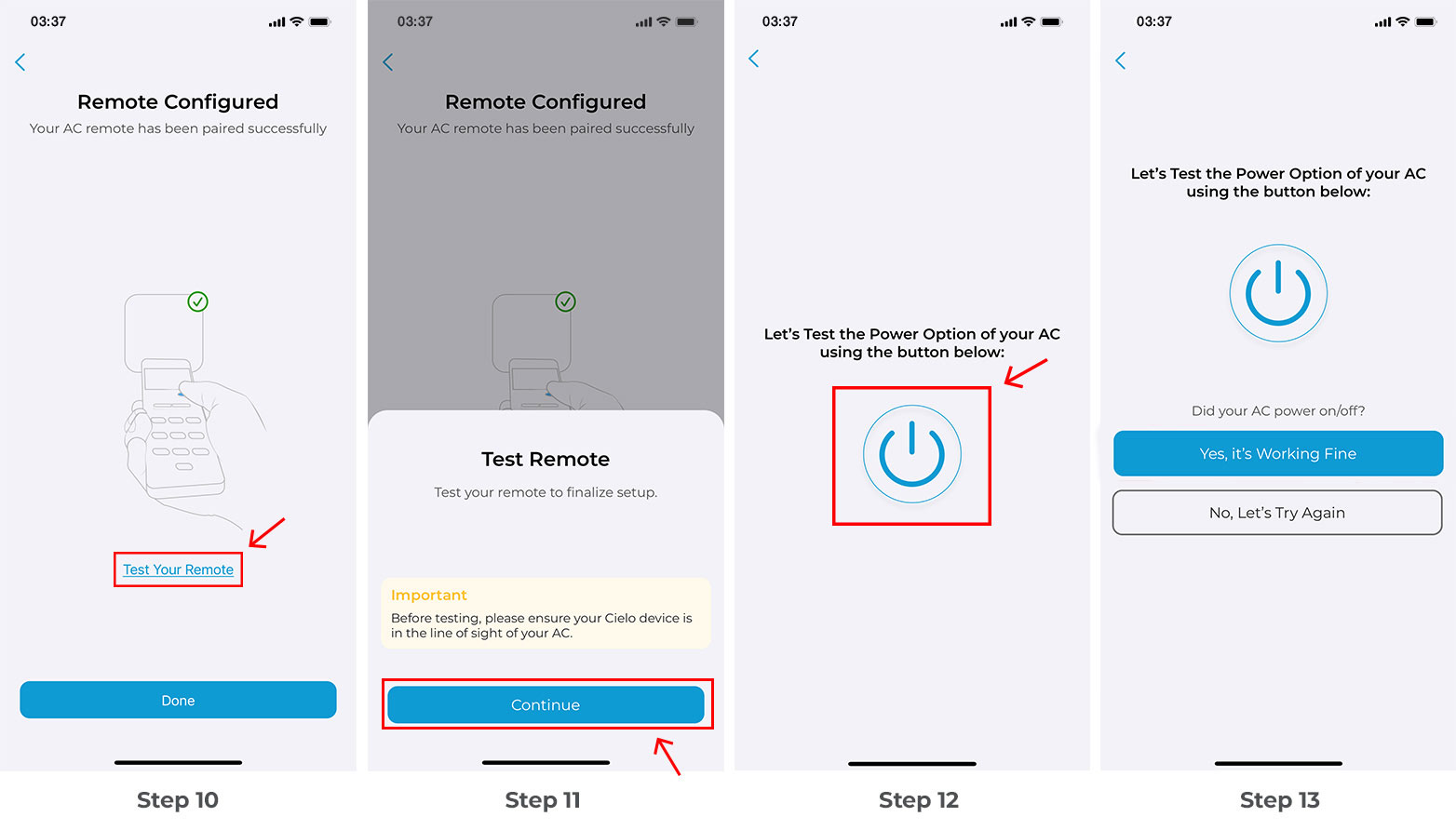

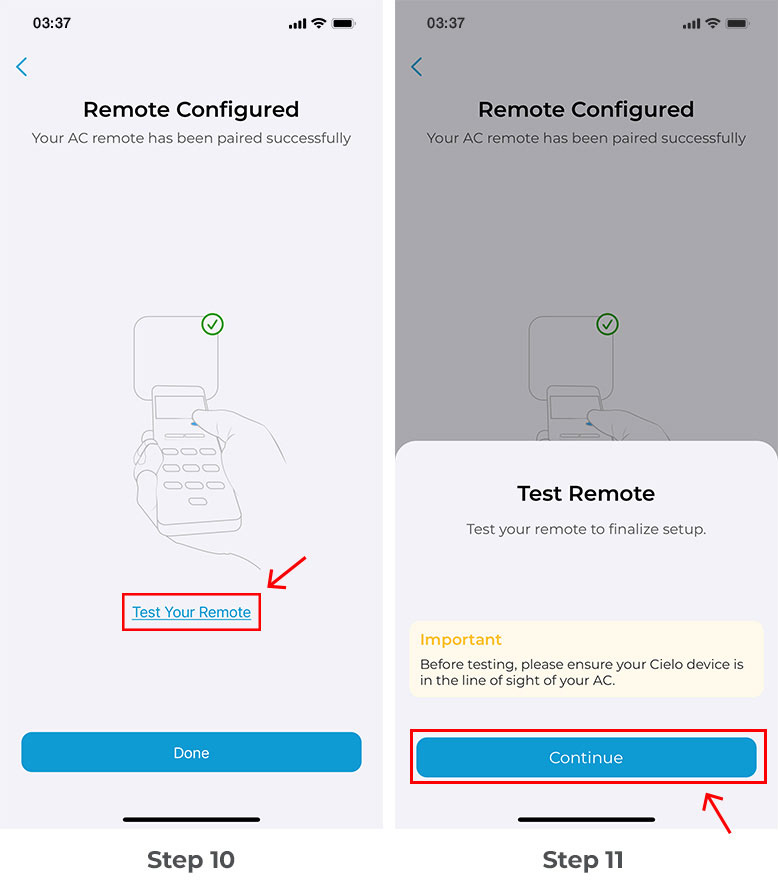

Step 10: To verify if your remote is configured correctly, tap on 'Test your remote.'

Step 11: Tap 'Continue.'

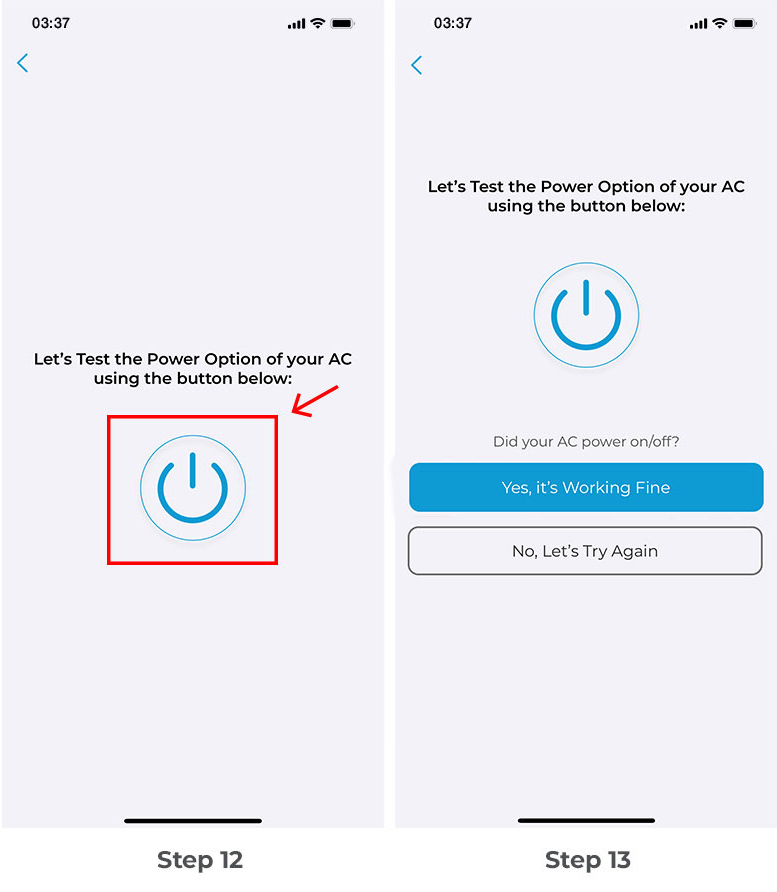

Step 12: Tap on the On/Off icon as shown.

Step 13: If your AC responds correctly, tap 'Yes, it's working fine.' If it doesn't, select 'Let's try again.'

The registration process is complete.

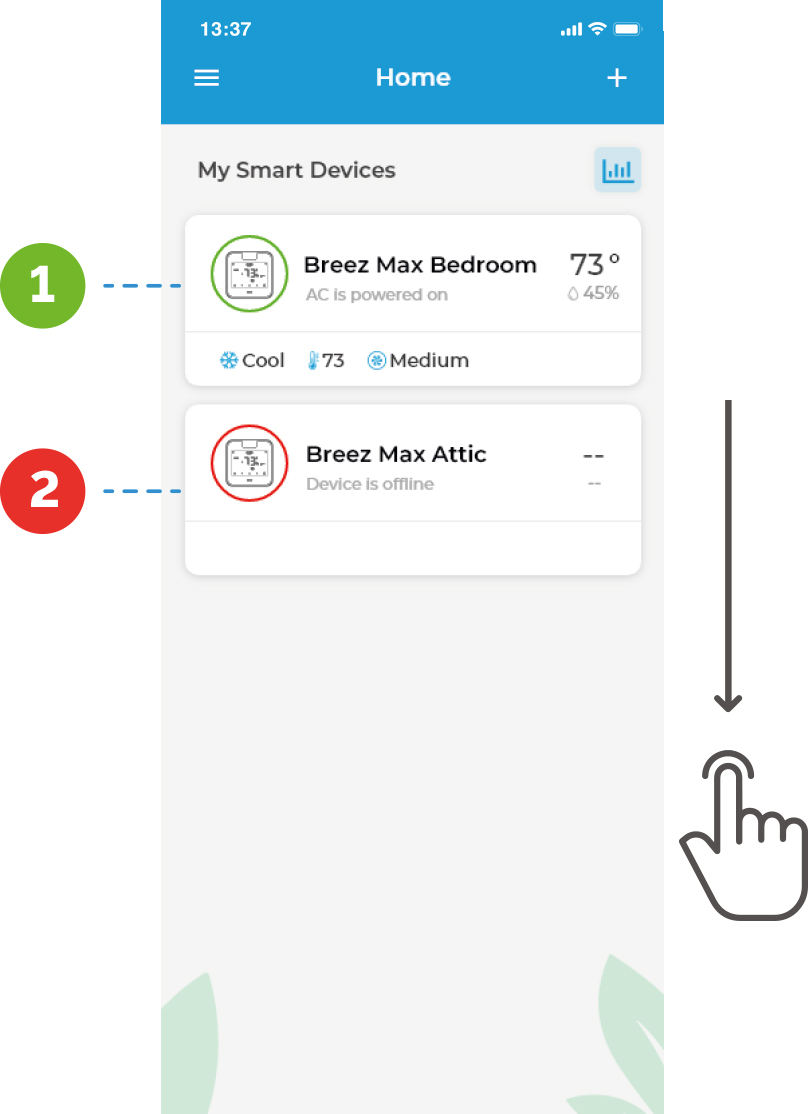

Your Home Screen

Your home screen shows the real-time status of all your Cielo devices. A registered Cielo device can show either of the 2 statuses outlined in circles:

1 - Green - Device is online. You’re good to go!

2 - Red - Device is offline.

• Ensure your phone/device is connected to a working internet connection.
• Refresh the home screen by swiping downwards (Pull-to-refresh).





Configuring the Right Remote Control for Your AC

Breez Max auto-detects the relevant remote control for your AC during the registration process. You can also configure your AC remote manually.

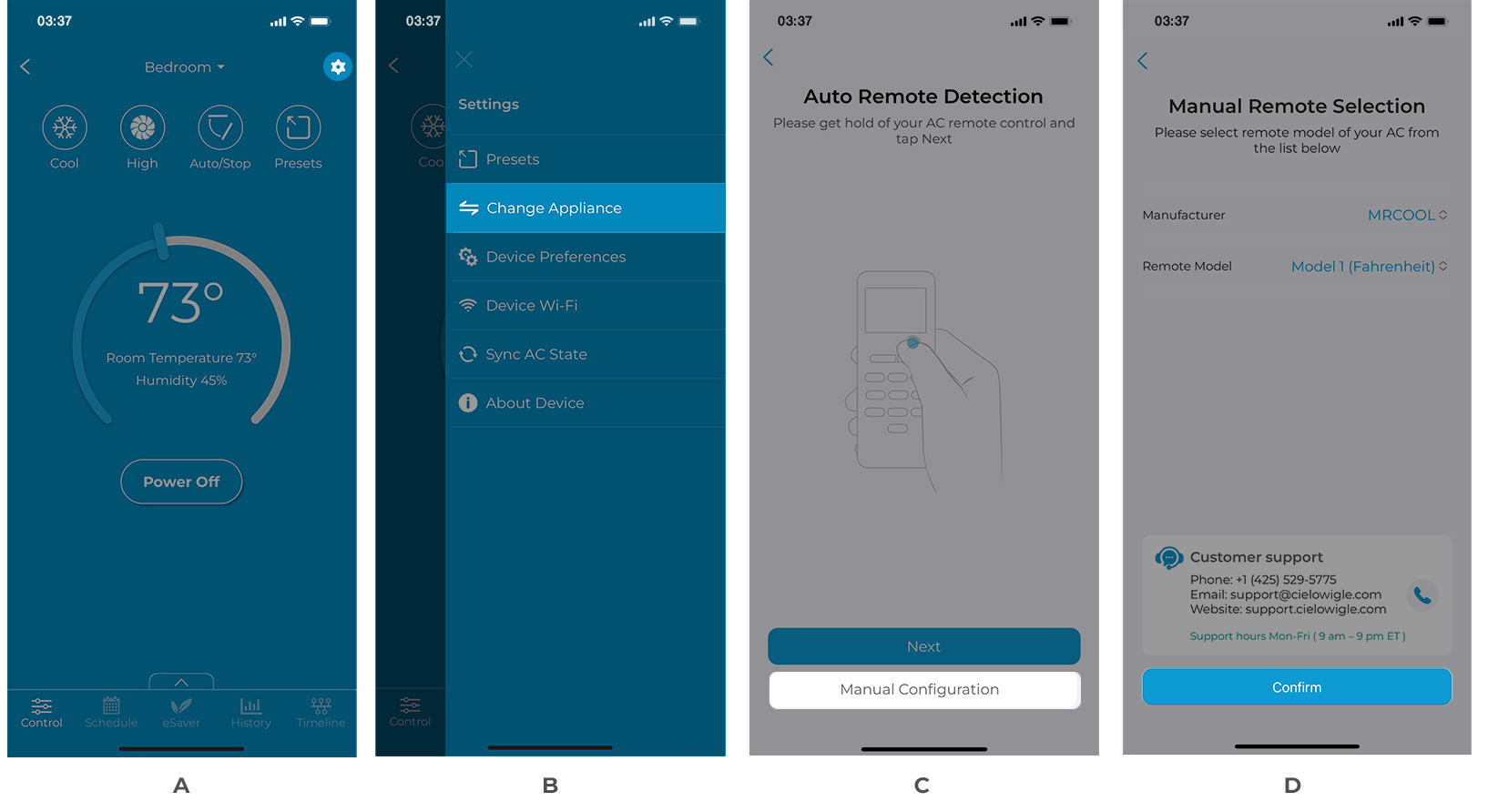

For manual selection, follow these steps:

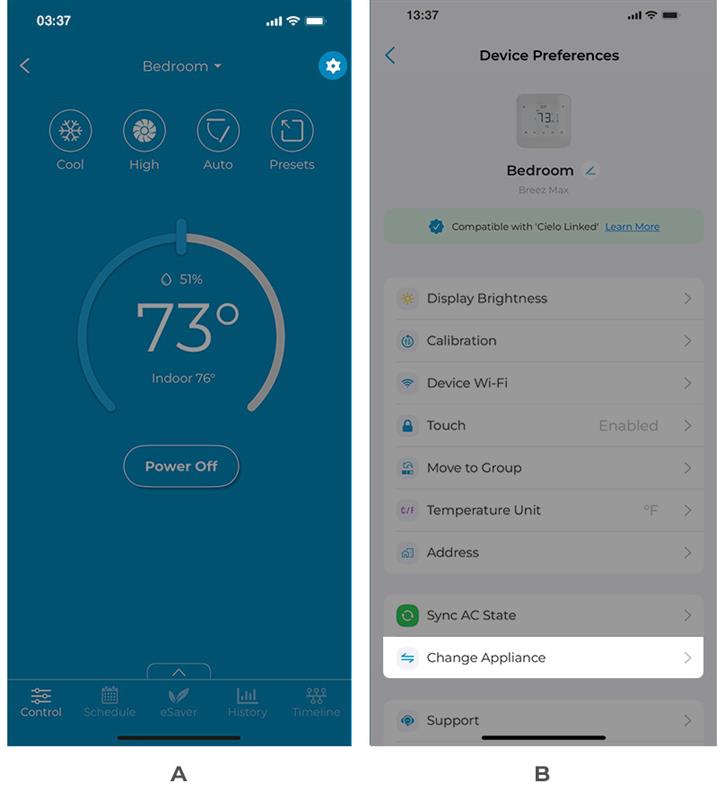

A: Go to settings by tapping the ‘Settings’ icon on the control screen.

B: Select ‘Change Appliance’.

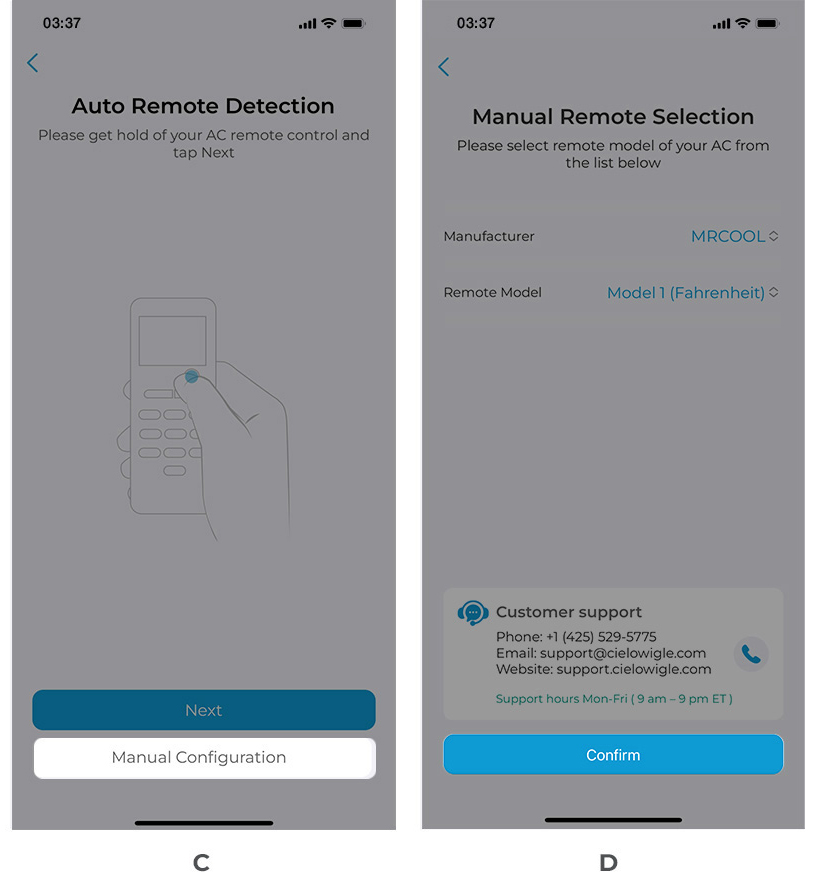

C: Select ‘Manual Configuration’.

D: Select the ‘Manufacturer’ & ‘Remote Model’ from the drop-down list and tap ‘Confirm’.

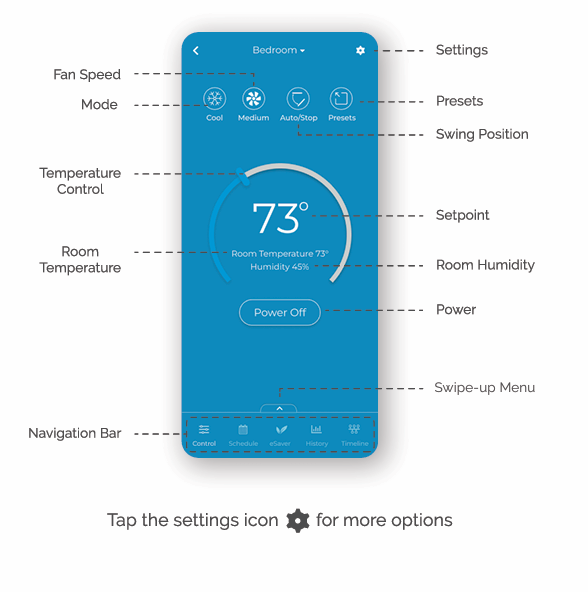

Cielo Home App Control Screen

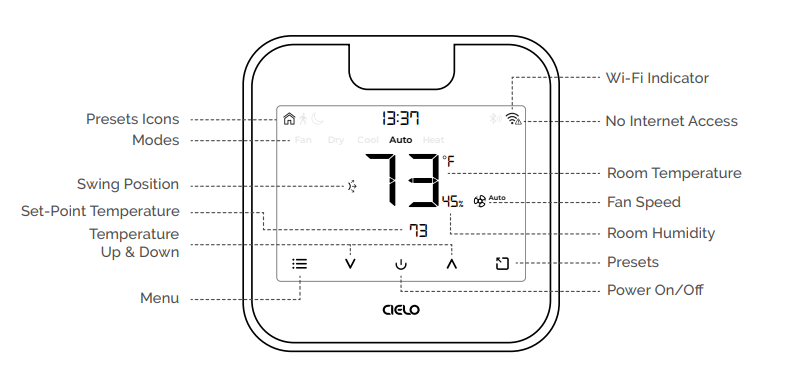

Know Your Breez Max

Adjusting the temperature of your AC:
Use the up or down button to set the temperature of your choice.

Changing the mode of your AC:
Touch the menu button once. The AC modes will start blinking. Use the up or down
button to select the mode (e.g. Cool, Heat etc.).

Changing the fan speed:
Touch the menu button twice. The fan speed icon will start blinking. Use the up or down
button to change the fan speed.

Adjusting the swing position:
Touch the menu button thrice. The swing position icon will start blinking. Use the up or
down button to select the swing position.

Changing multiple settings:
You can set the mode, swing position & fan speed. Touch the menu button once and select
the mode of your choice. Touch the menu button again and adjust the fan speed. Touch
the menu button again and select the swing position.

Applying a Preset:

Tap on the preset icon to select the preset you want to apply.

Locking/Unlocking the display interface:
Touch and hold the Temperature Up and Down buttons simultaneously until the lock icon on the top right of the screen turns solid/disappears.

Resetting the Wi-Fi of Breez Max:
Touch and hold the Temperature Up and Power buttons simultaneously until the Wi-Fi icon disappears and the Bluetooth icon starts blinking.

Wi-Fi Icon:

Case 1:- Stable Wi-Fi icon - Device is connected to the internet, showing Wi-Fi strength.

Case 2:- Wi-Fi icon with small triangle - Device is connected to the router but has no internet
access. Please ensure you have a working internet connection and restart the device.

Bluetooth Icon:

Blinking Bluetooth icon - Device is in broadcast (AP) mode. Please complete the registration
process.
