Detailed User Manual Breez Eco

Getting Started

For best results, connect Cielo Breez Eco with the provided USB cable and adapter. Mount your Breez Eco on a wall or place it on a table in the AC's line of sight and plug it into a power source.

For optimal placement and control:

• Make sure Breez Eco is in the line of sight of your air conditioner or heat pump.
• To avoid deviated sensor readings, do not place Breez Eco where it may be exposed to excessive sunlight or other heat sources.

Note: It is strongly advised that whenever there is a need to use the remote control for AC/heat pump, point it towards Breez Eco while performing any action. This way, your AC/heat pump, and Cielo Home app will always be in sync.

Prior to App Installation
For your phone:

• Make sure your smartphone’s Bluetooth is turned ON.
• Make sure your smartphone’s Wi-Fi is turned ON.
• Make sure your smartphone has internet access.

For your Wi-Fi router:

• Make sure you have a working internet connection on your Wi-Fi router.
• Make sure there is no proxy server or authentication server configured on your internet connection.
• Make sure there is no captive portal on your Wi-Fi router.

Note: Make sure IP isolation or client isolation is turned OFF on your Wi-Fi router.

App Installation & Registration

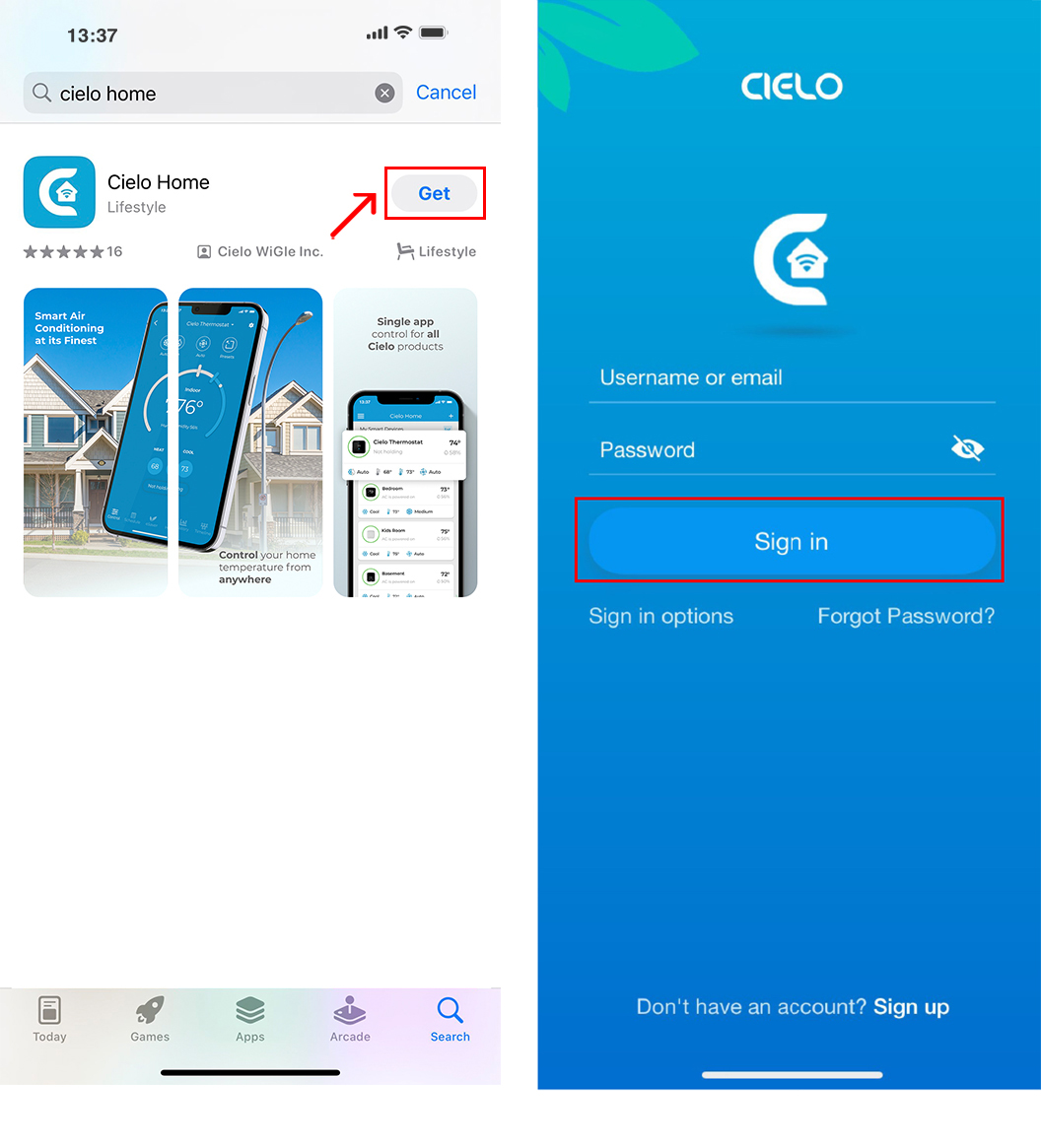

Install the ‘Cielo Home’ app from the App Store.
Log in to the app if you already have an account; otherwise, create one using the sign-up option.

Device Registration

Device registration process connects Breez Eco to your home Wi-Fi network through the Cielo Home app.

Note:

• For iOS 13.0 & above, location permission is required to complete the registration process. You may disable it later. For iOS 14.0 and above, Local Network Access permission is a requirement to successfully register the device.
• For Android OS 8.1 and above, location permission is required to complete the registration process. You may disable it later.  For Android 14 and above, Local Network Access permission is a requirement to successfully register the device.

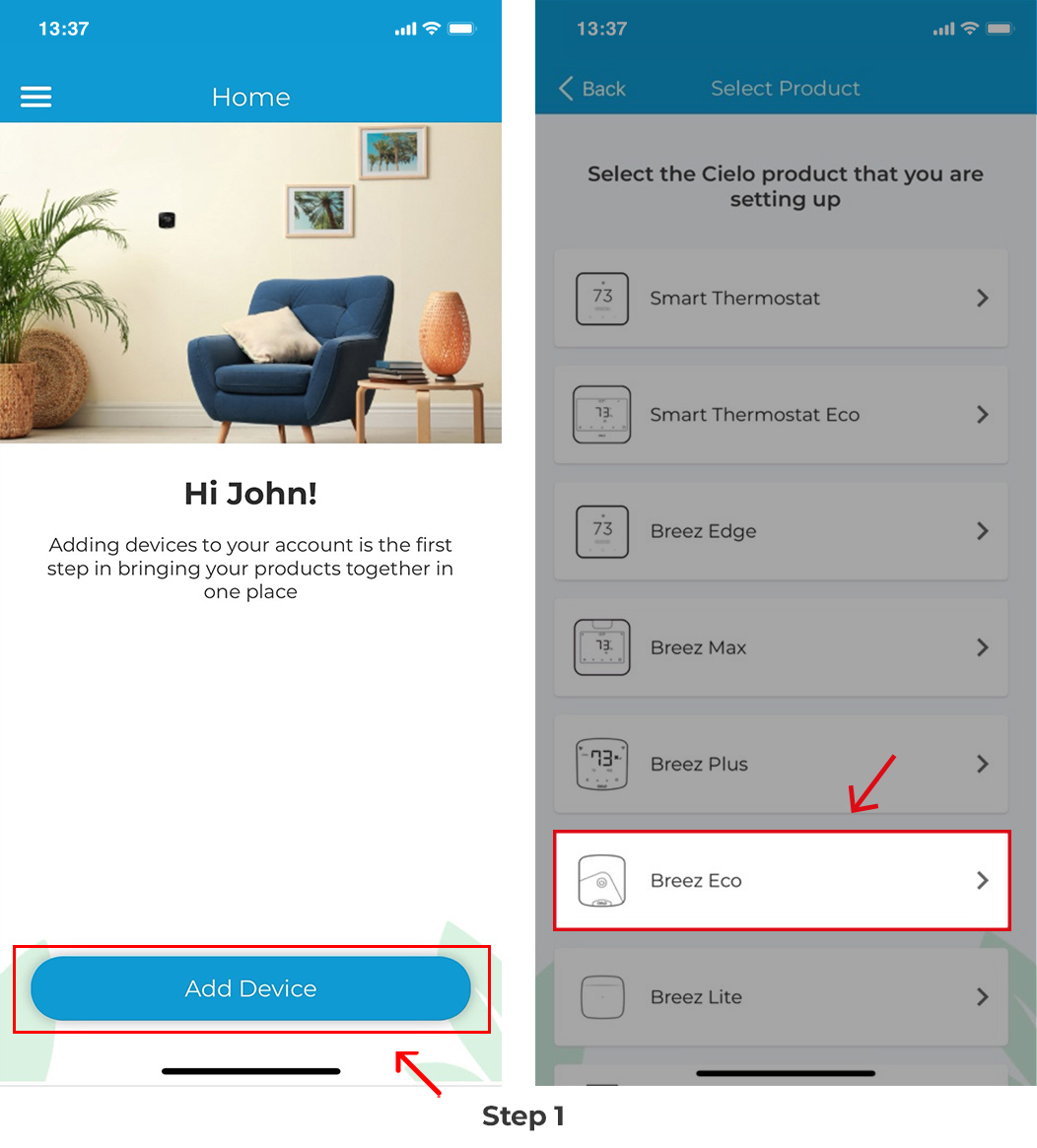

Step 1: Open the Cielo Home app, tap ‘Add Device' on the home screen, and select Breez Eco from the list of devices.

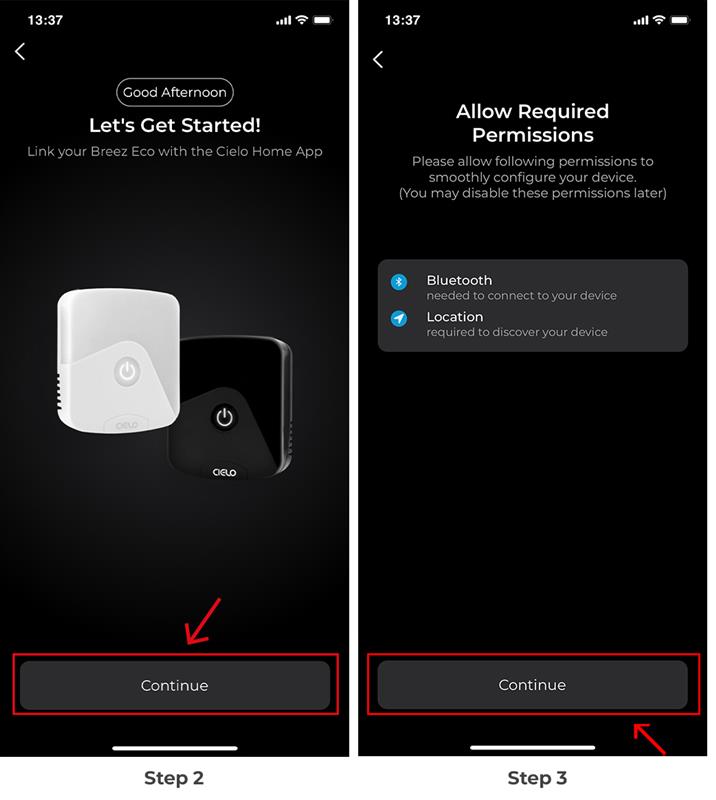

Step 2: Tap on ‘ Continue’.

Step 3: Allow required permissions. You may disable them later. Tap on ‘ Continue’.

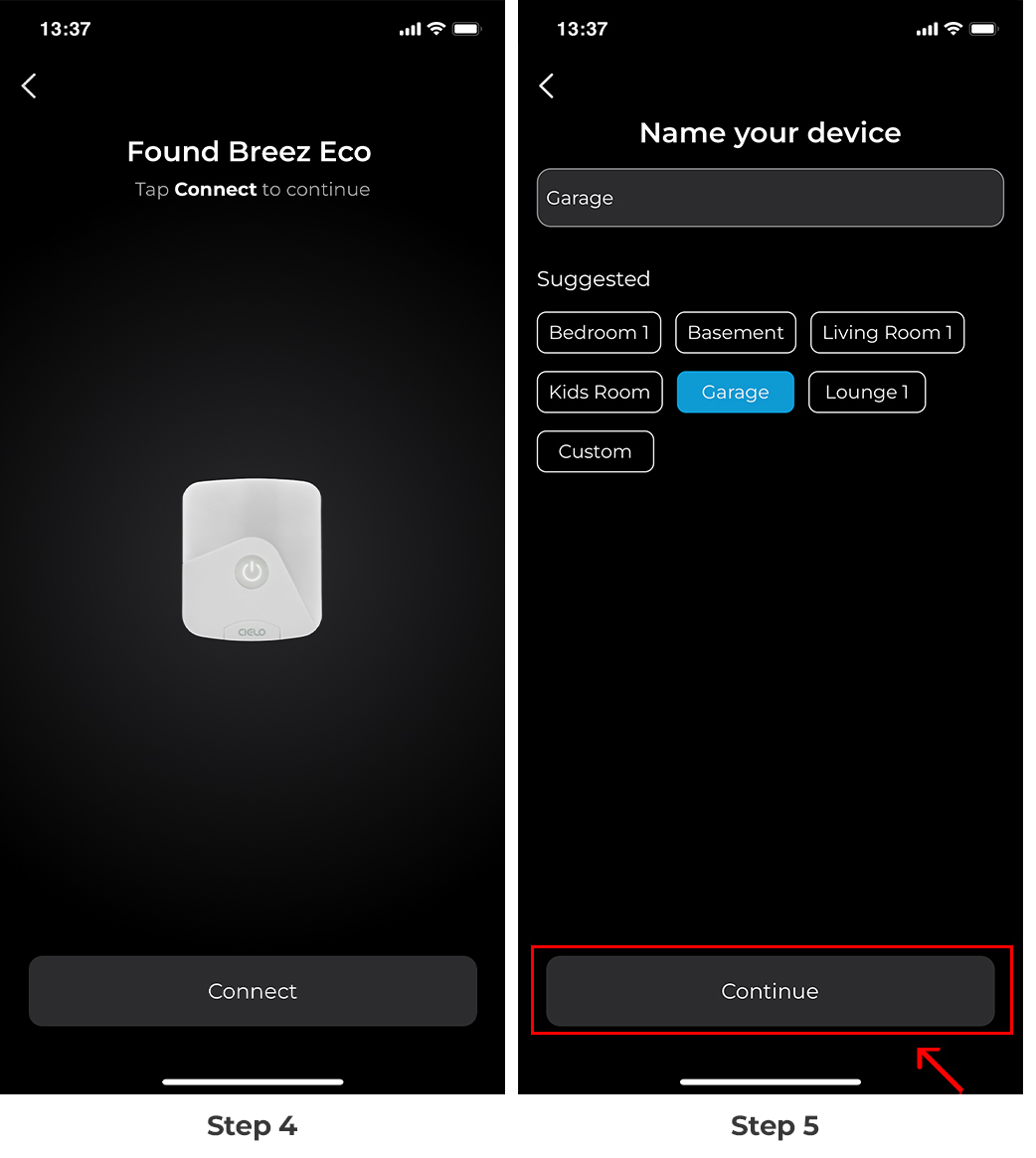

Step 4: Tap ‘Connect’.

Step 5: Customize your device with a name of your choice (for example, Bedroom, Lounge, Office, etc.). Then tap on 'Continue'.

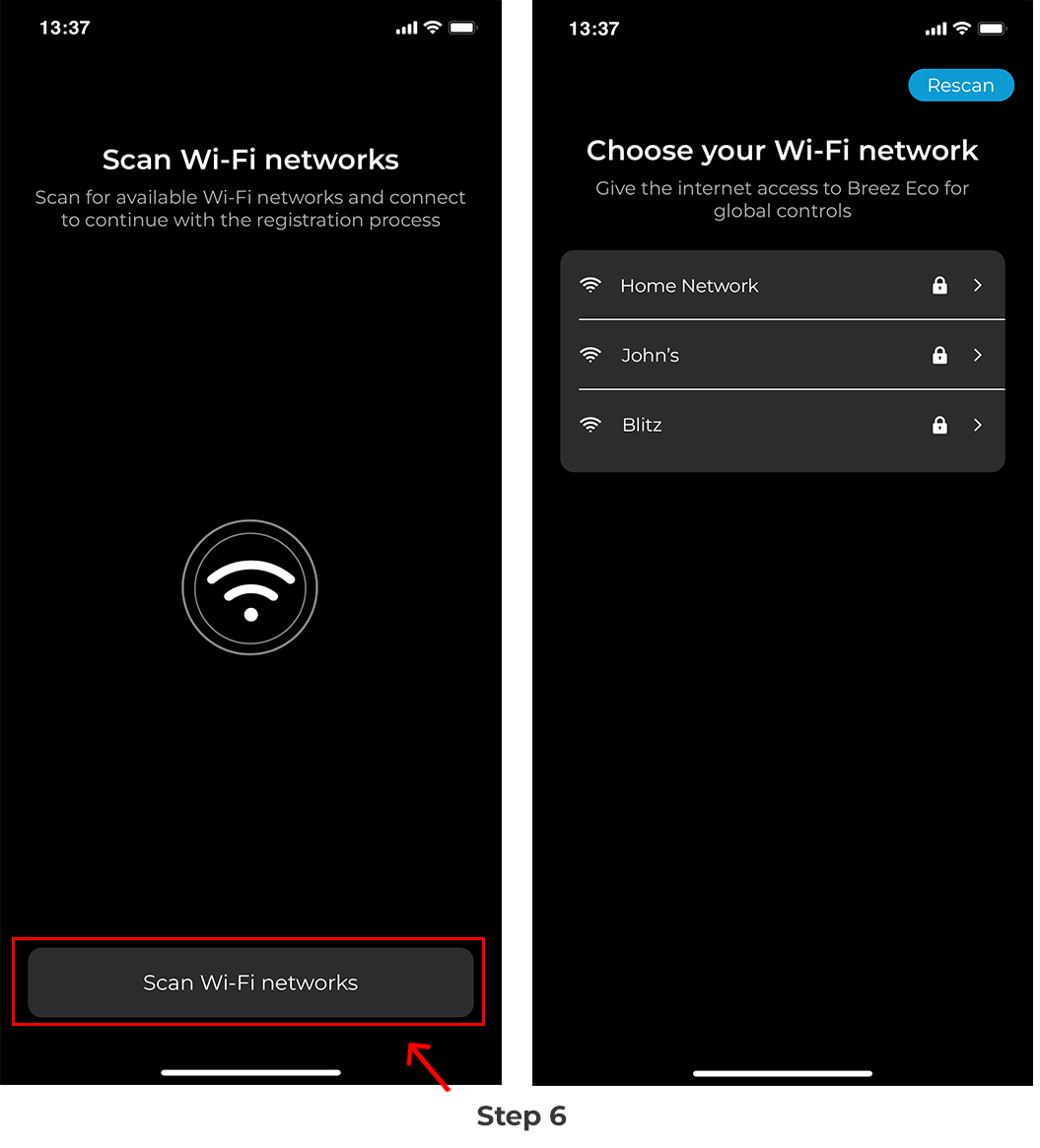

Step 6: Tap on ‘Scan Wi-Fi Networks’ to connect your device to Wi-Fi.

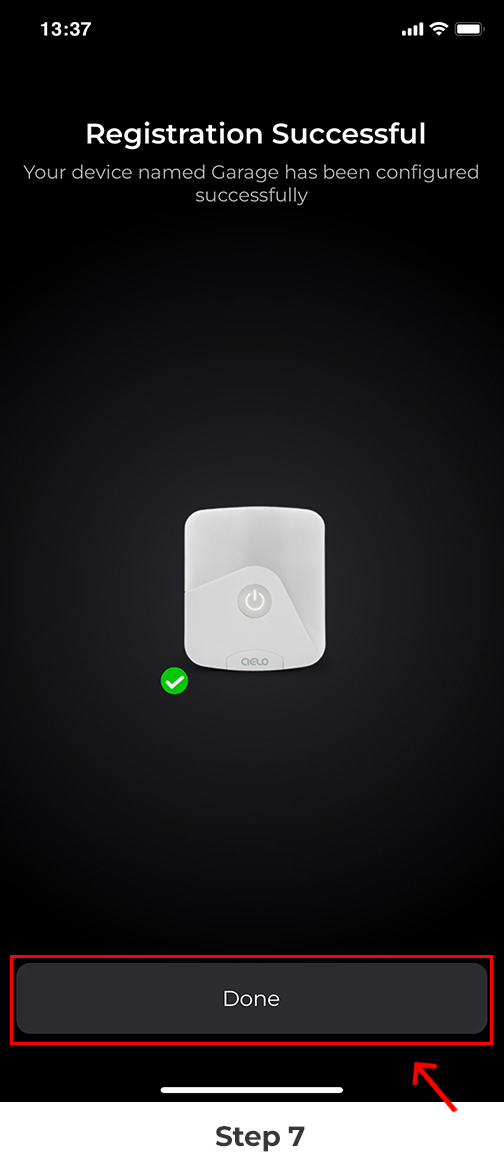

Step 7: Your device has been successfully registered. Tap on ‘Done’.

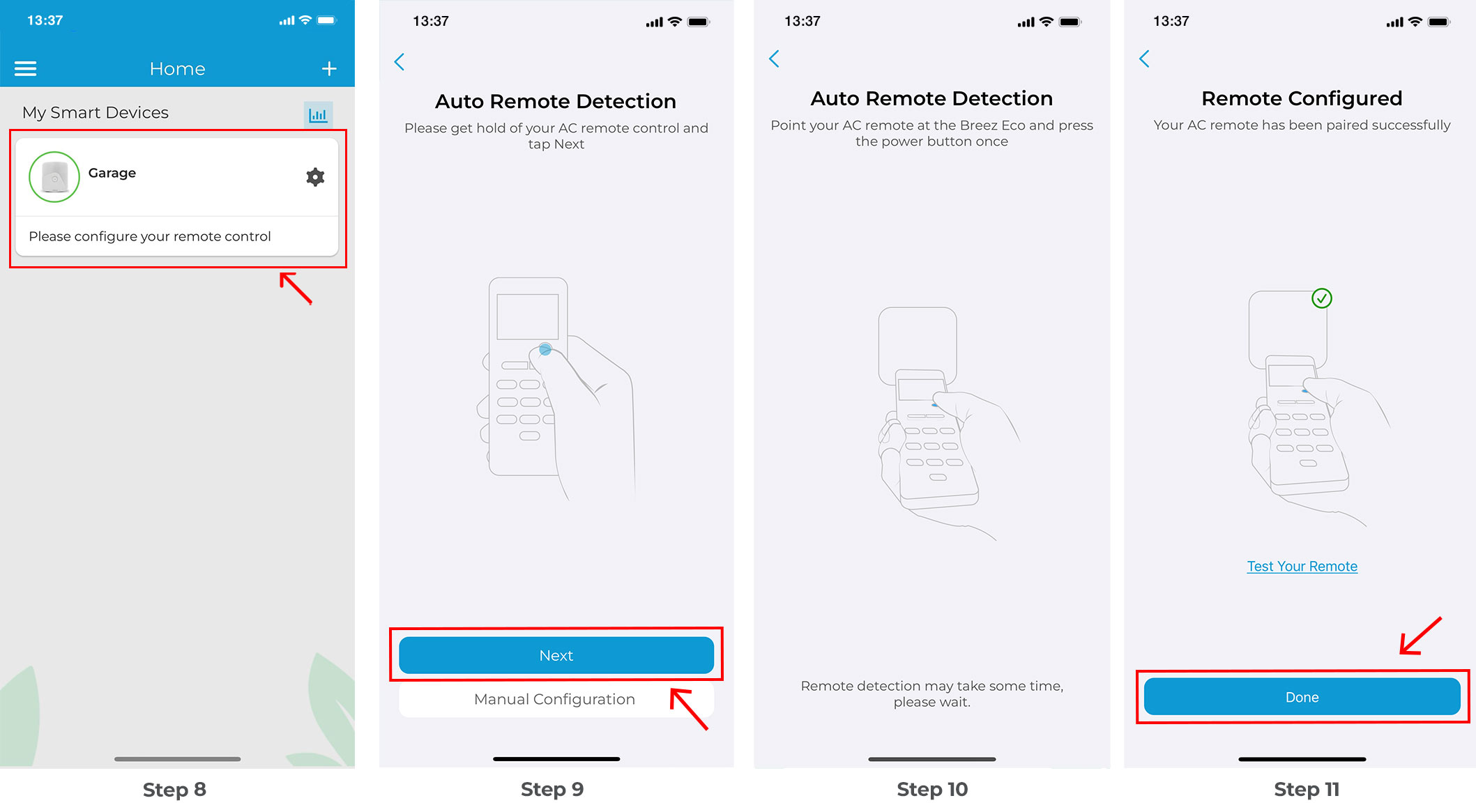

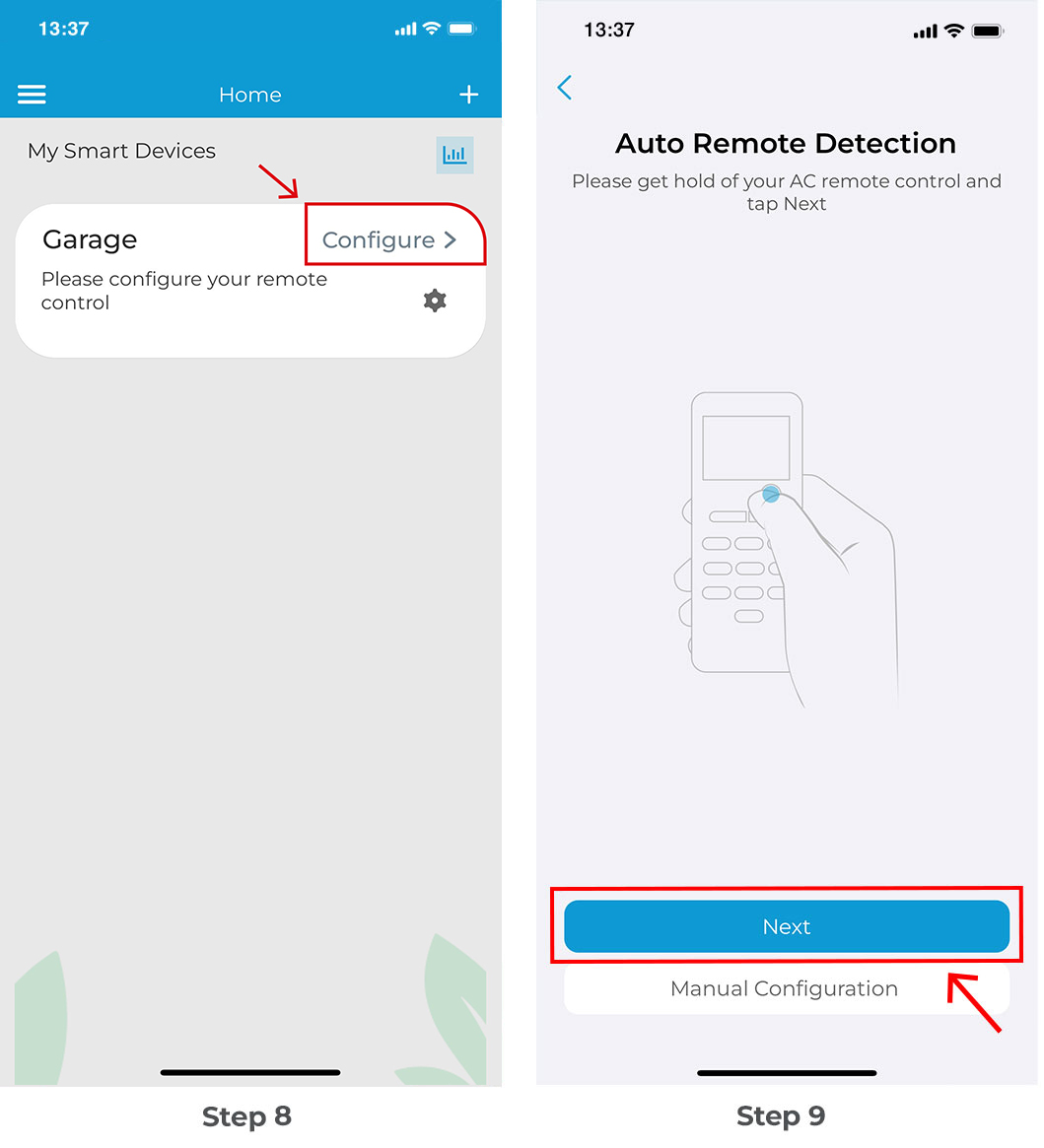

Step 8: Tap 'Configure'.

Step 9: Get a hold of your AC’s remote and tap ‘Next’.

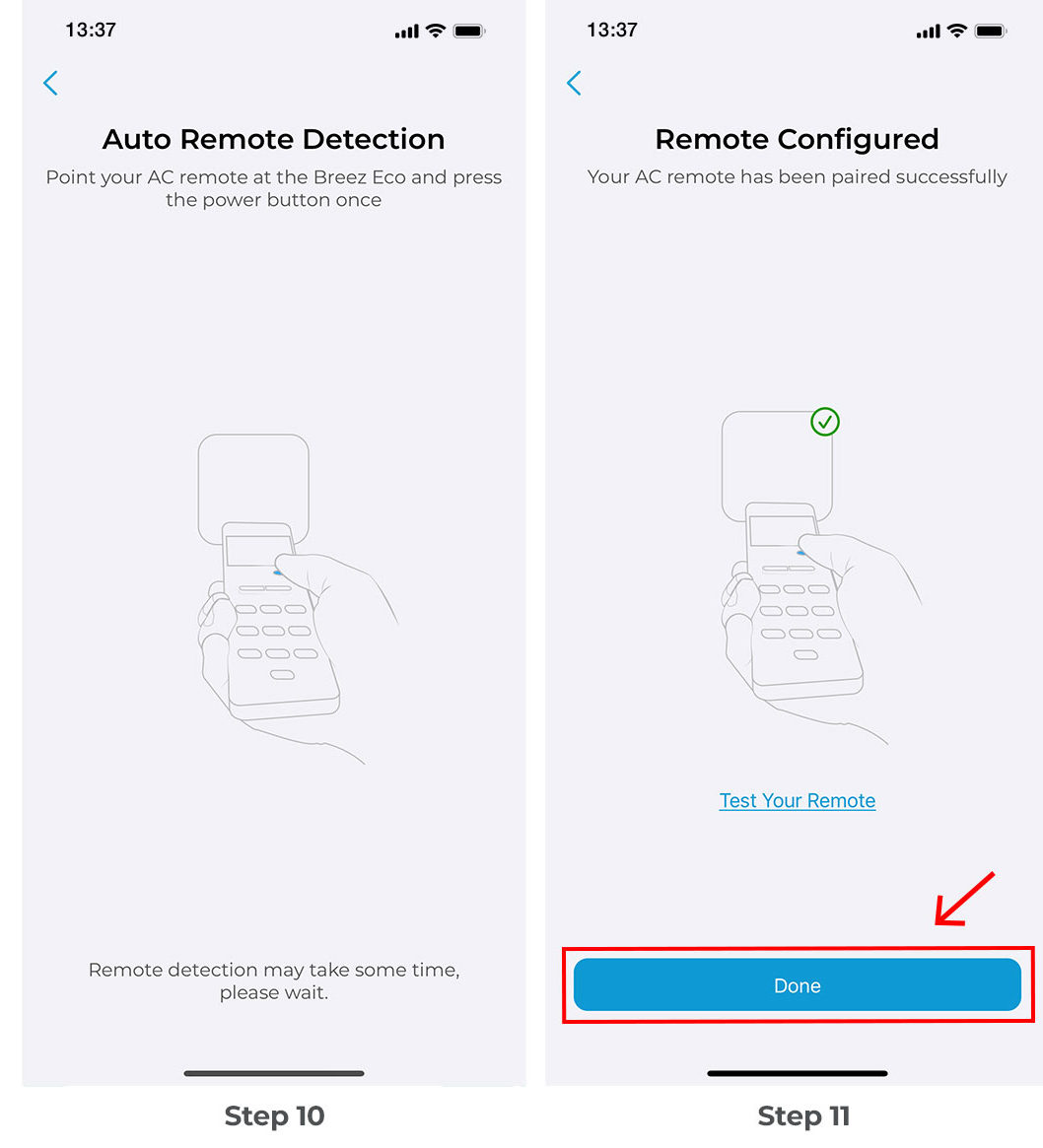

Step 10: Point your AC's remote at the Cielo Device and press the remote’s 'Power Button' once. It will start the processing & configuration process.

Step 11: Your remote is now paired with Breez Eco. Tap on ‘Done’.

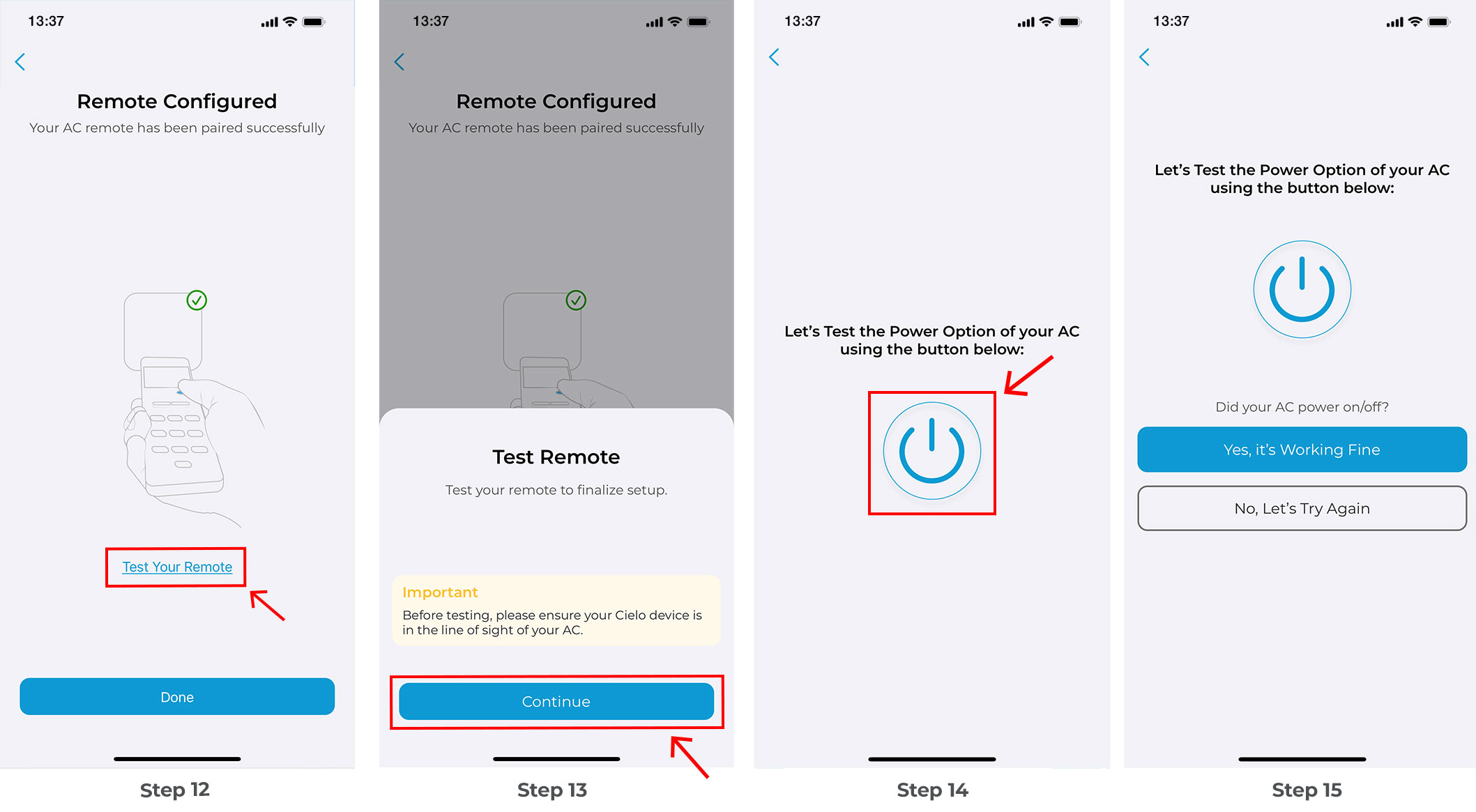

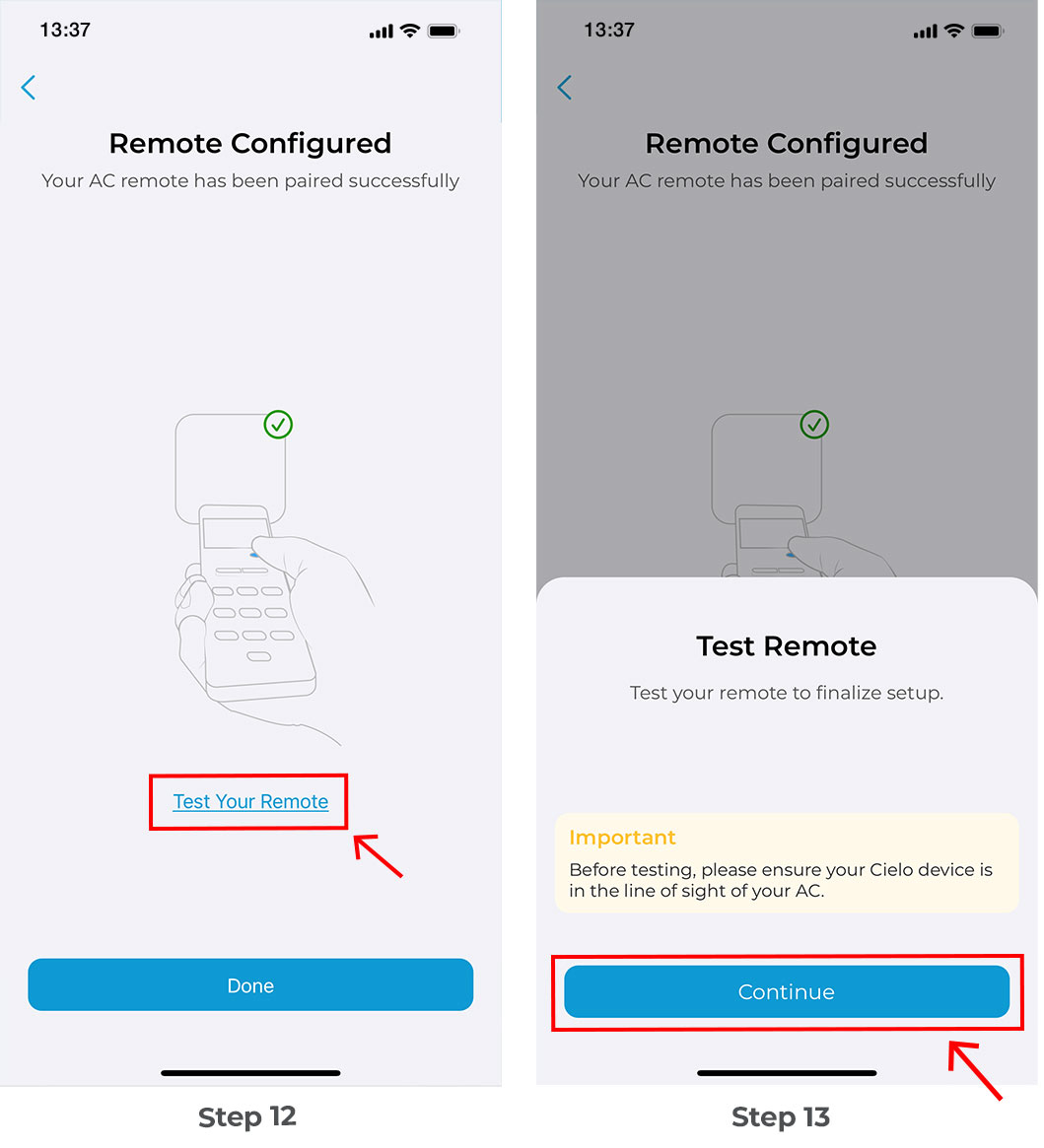

Step 12: To verify if your remote is configured correctly, tap on 'Test your remote.'

Step 13: Tap 'Continue.'

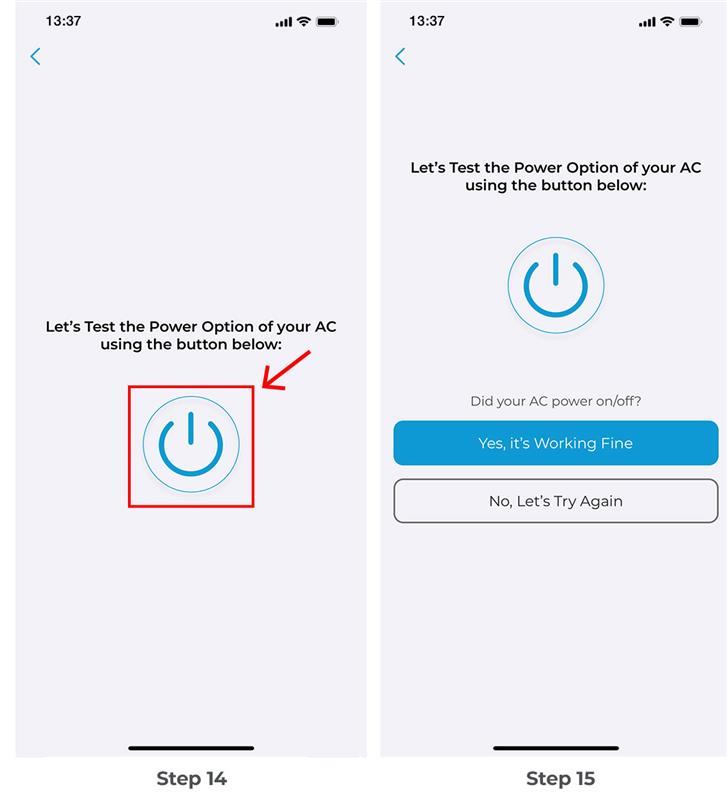

Step 14: Tap on the On/Off icon as shown.

Step 15: If your AC responds correctly, tap 'Yes, it's working fine.' If it doesn't, select 'Let's try again.'

Registration process is complete. Enjoy your smart air conditioning!

Quick Tip: LED indicator in the power button breez eco should blink once after receiving the remote control's signal. If it does not blink, please check the batteries of the remote control.


Device Status

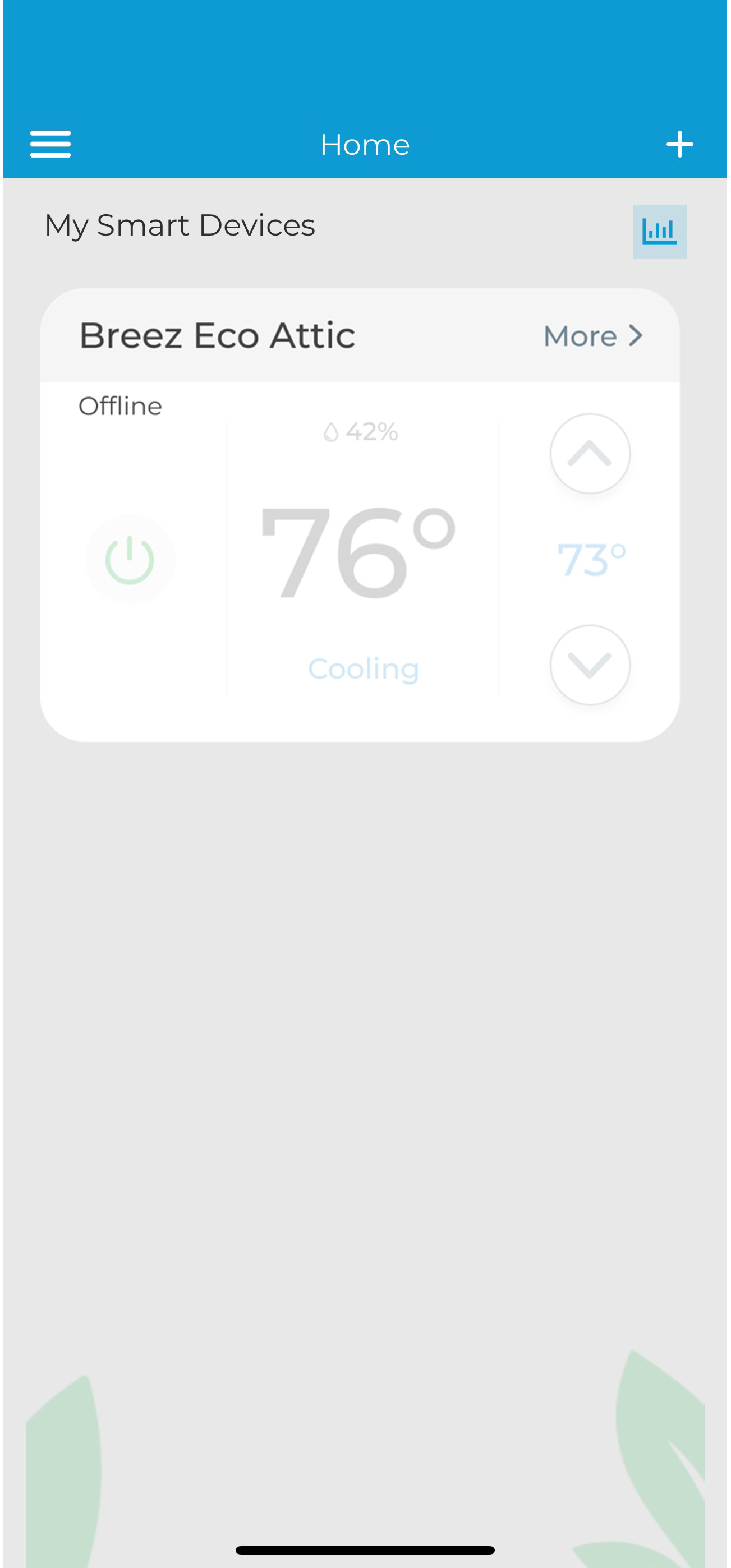

Your home screen shows the real-time status of all your Cielo Devices.

Your device is offline when quick control options are greyed out and it says 'Offline' under the device name.

If your device if offline, try the following options:

- Ensure your phone/device is connected to a working internet connection.

- Refresh the home screen by swiping downwards (Pull-to-refresh).

Enjoy the Unlimited Functionalities

Cielo Breez Eco works with Amazon Alexa, Google Assistant, Siri Shortcuts, Samsung SmartThings, and IFTTT.

Troubleshooting

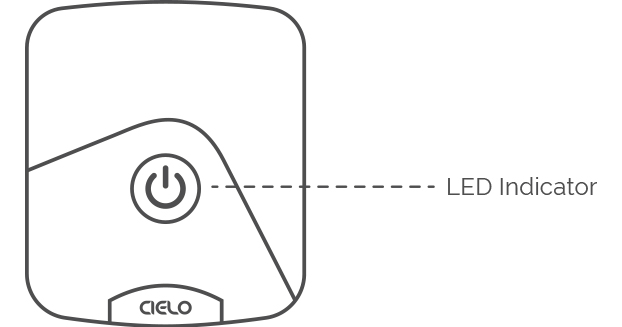

Breez Eco has an LED indicator on its front for status indication.

Case 1: If your device is powered up and connected to a working internet connection, the light stays off, meaning the device is working perfectly.
Case 2: If there is a single blink every 2 seconds, it indicates the device is in broadcast (AP) mode. If you have not registered the device yet, please follow the ‘Device Registration’ steps.
Case 3: If the light blinks twice every 2 seconds, it indicates the device is connected to the router but has no internet access.

Configuring the Right Remote Control for Your AC

Cielo Breez Eco auto detects the relevant remote control for your AC during the registration process. If it is not working with your AC, please select your remote model manually.

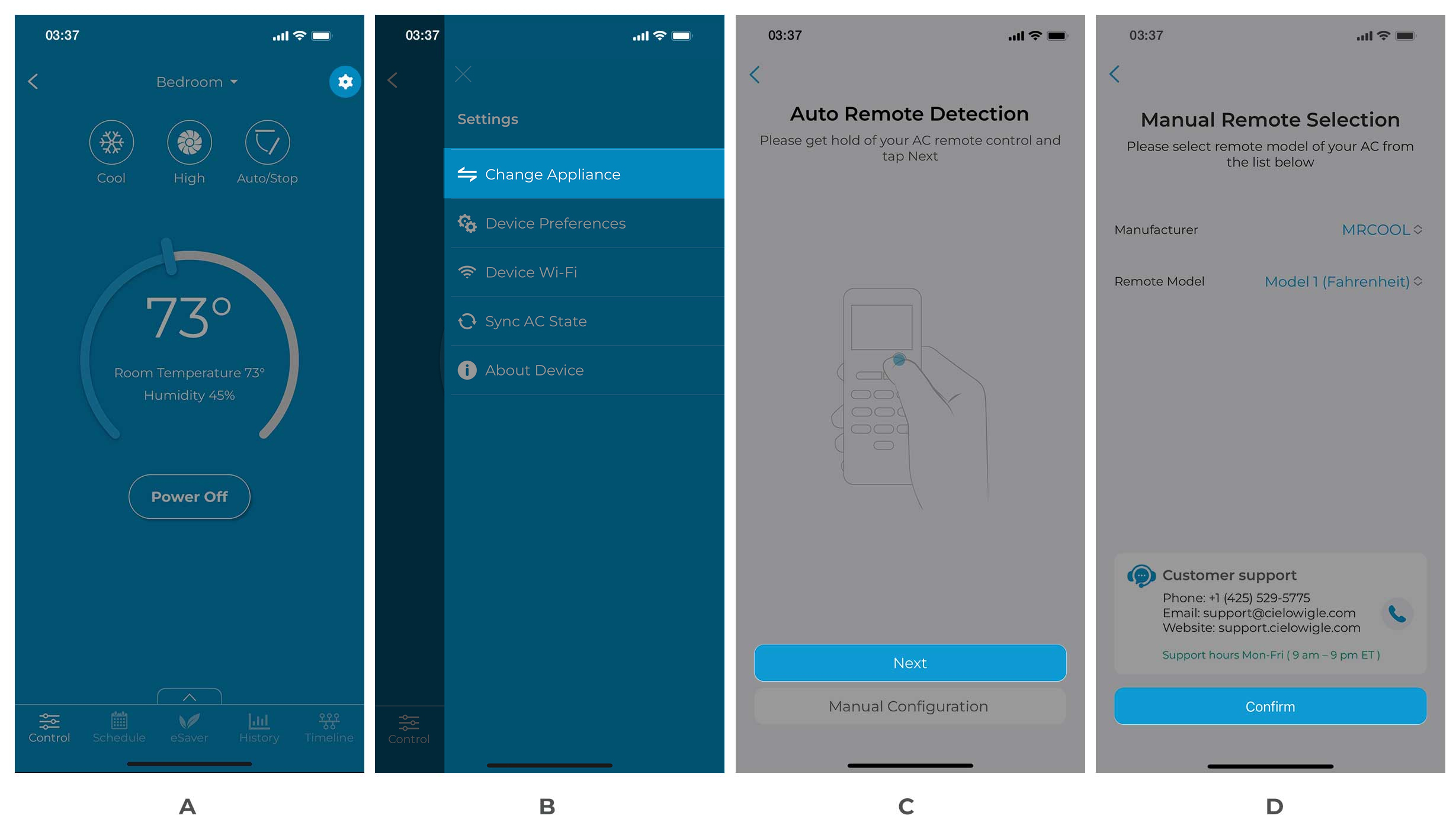

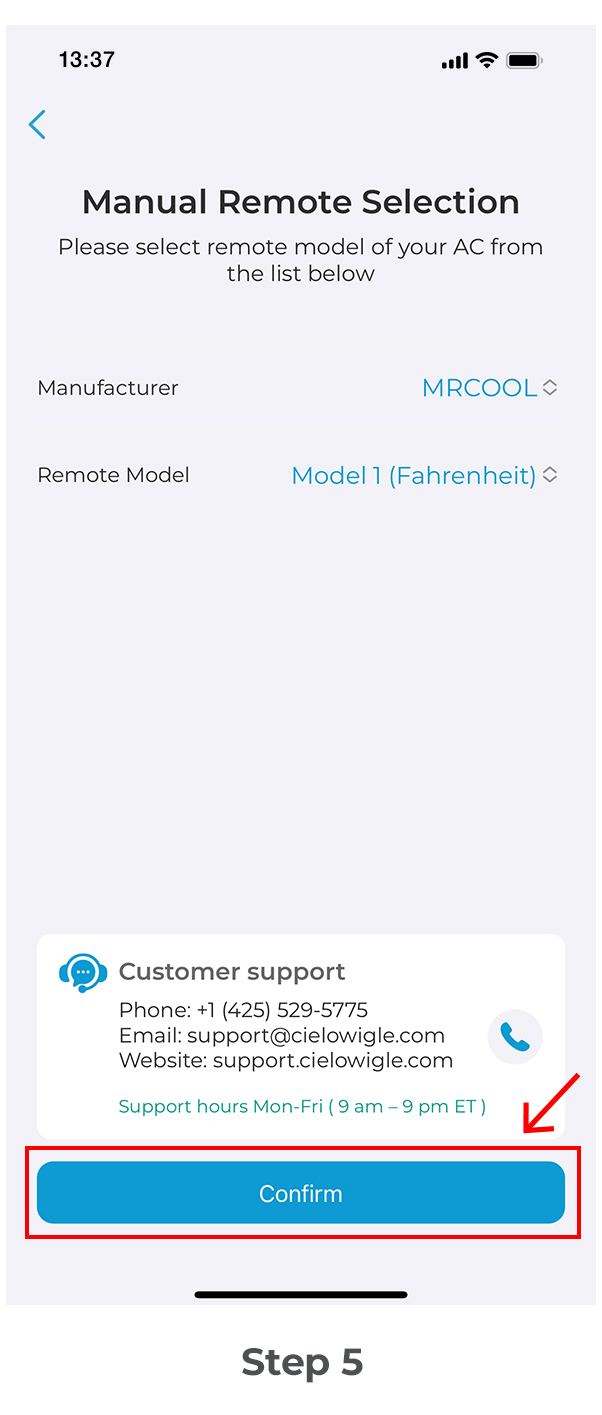

For manual selection, follow these steps:

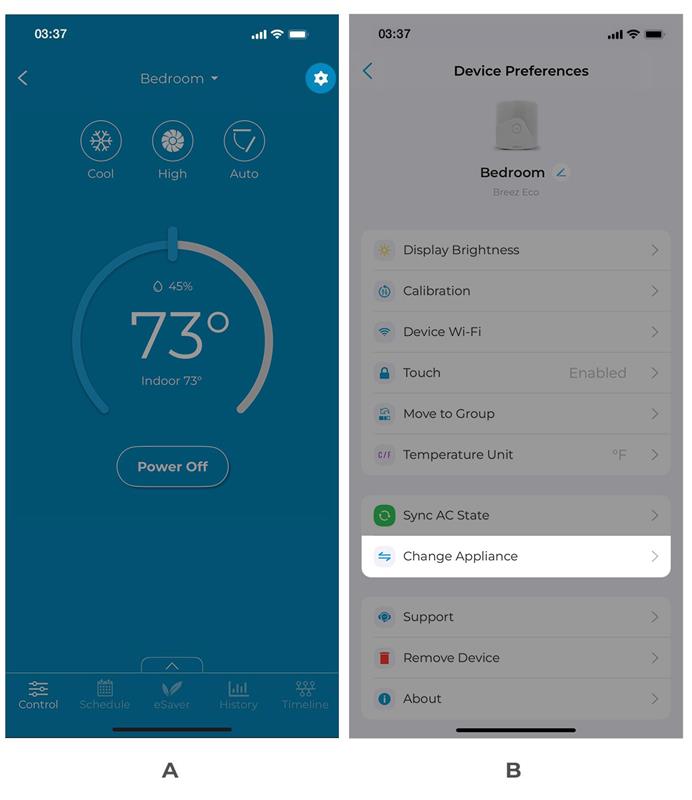

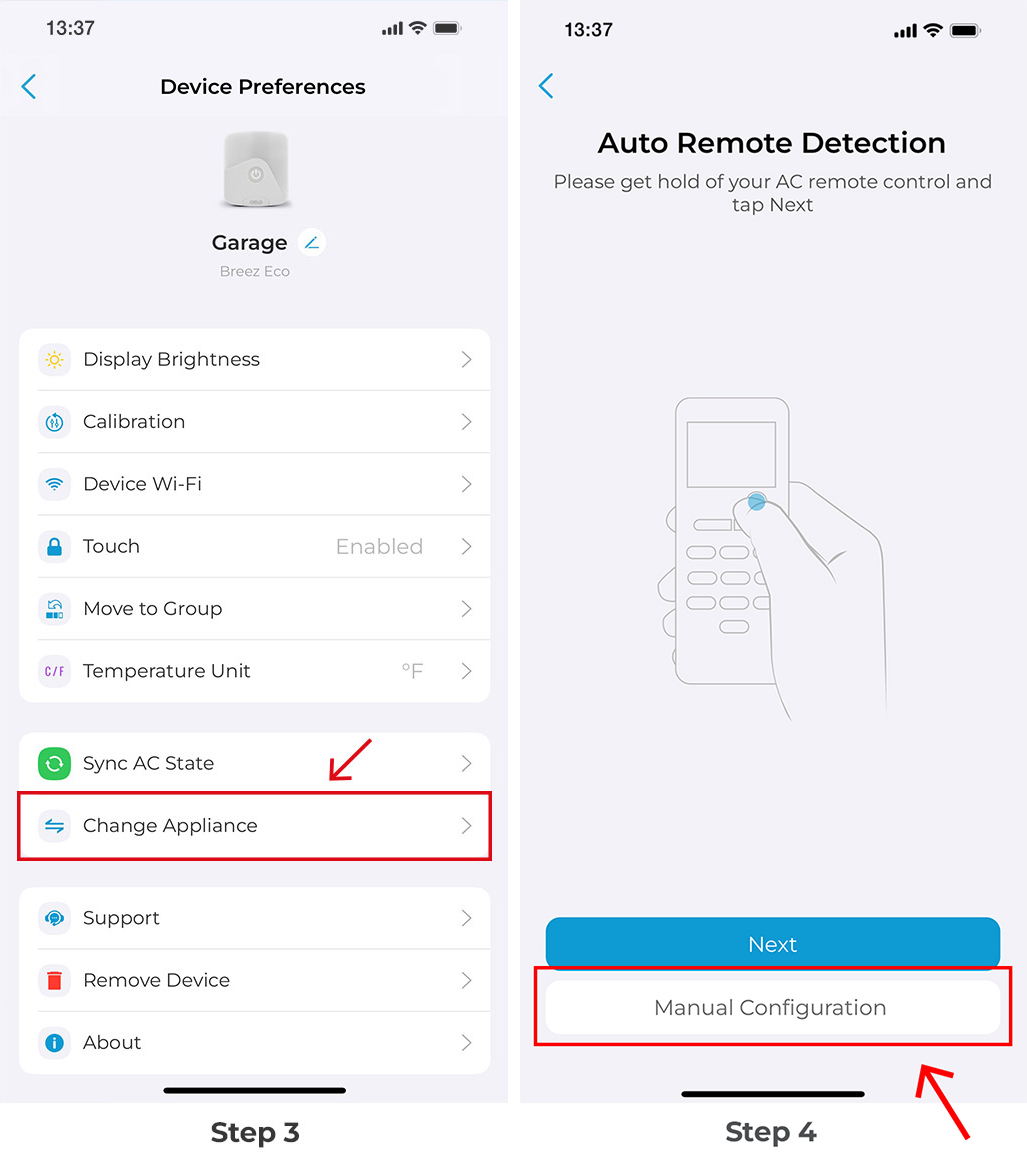

A. Go to settings by tapping the ‘Settings’ icon on the control screen

B. Select 'Change Appliance'.

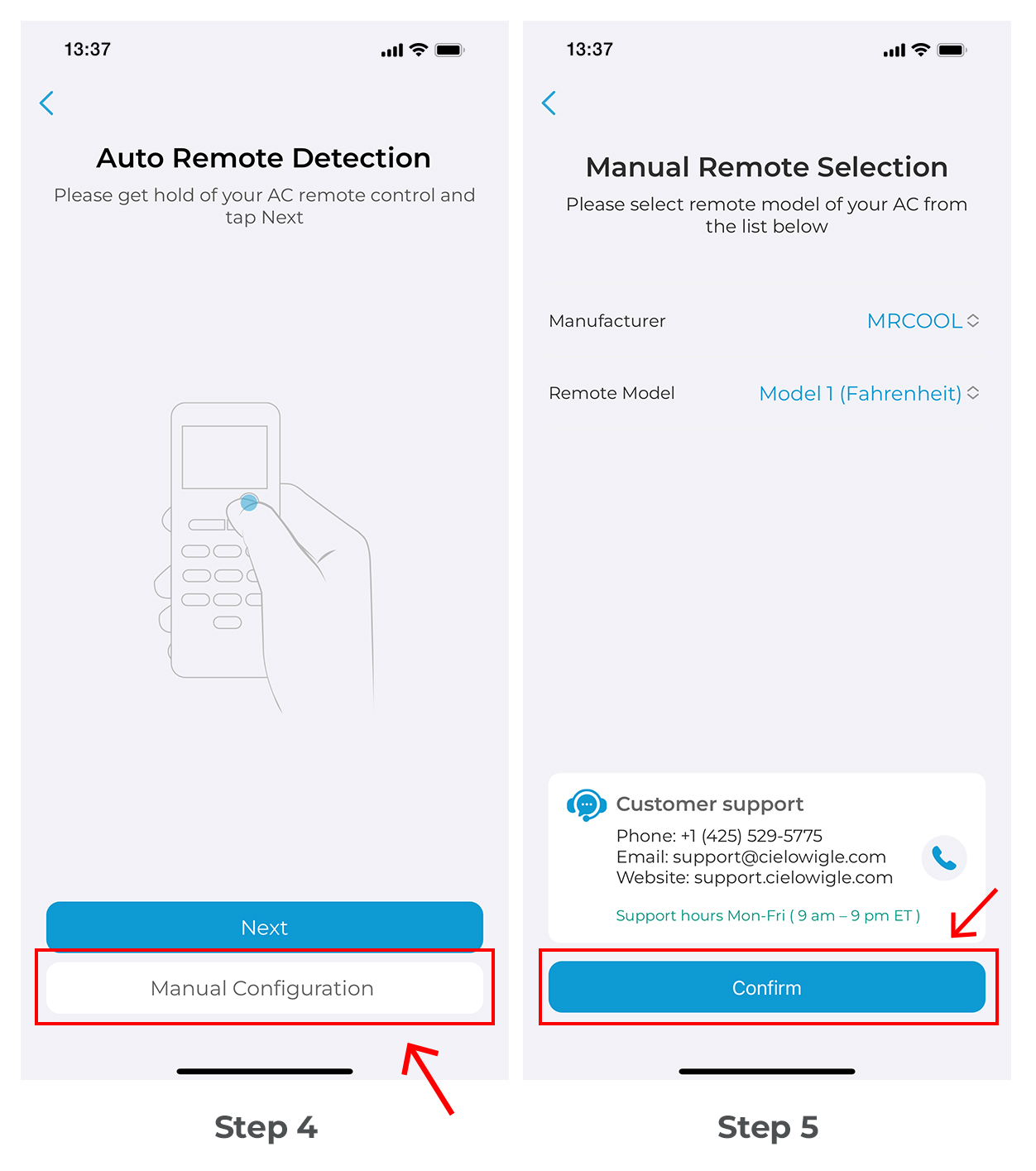

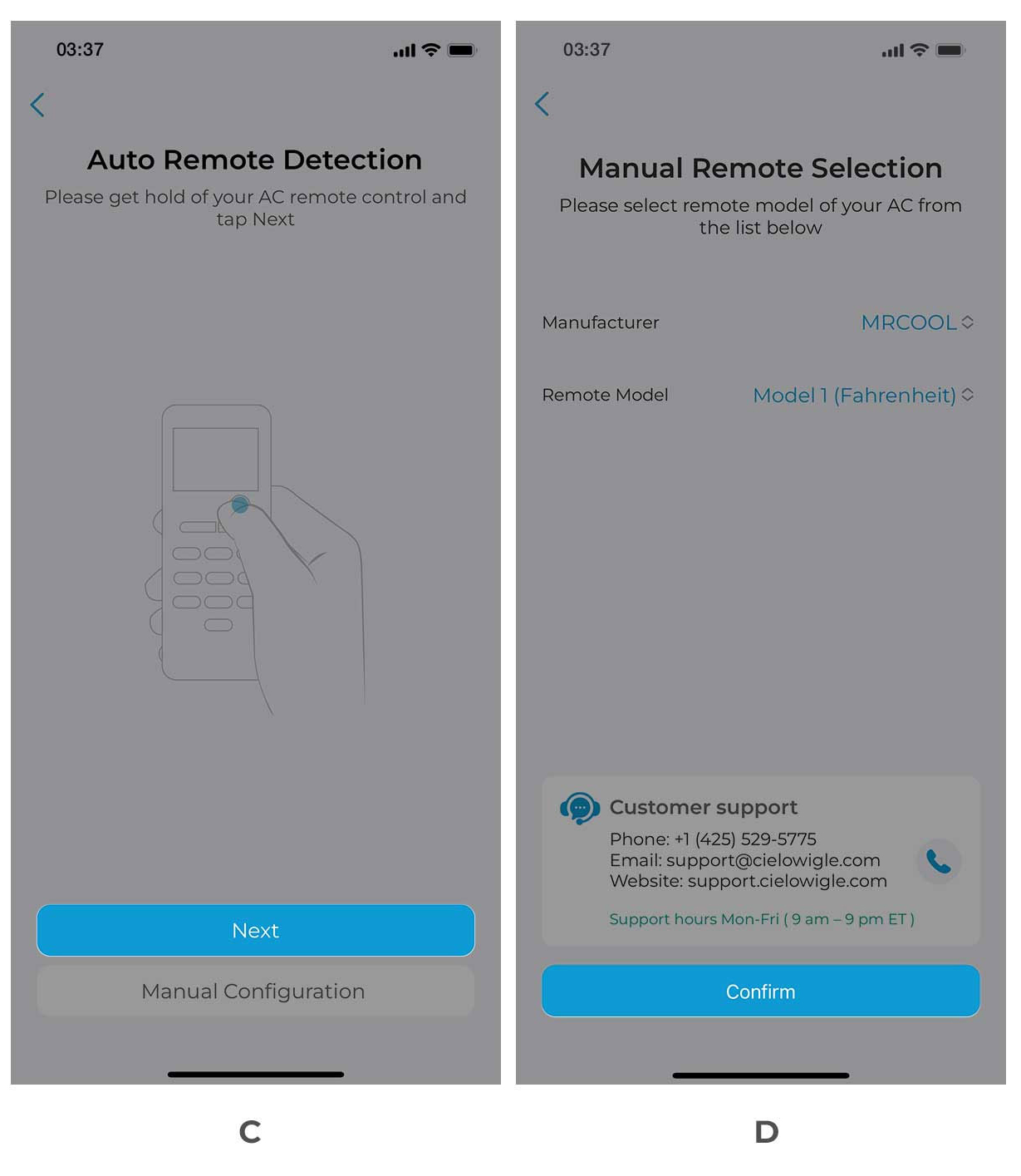

C. Select 'Manual Configuration'.

D. Select the 'Manufacturer' & 'Remote Model' of your AC from the drop-down list and tap 'Confirm'.

Quick Tip: Remote control model number is usually found on the back side of the remote control.

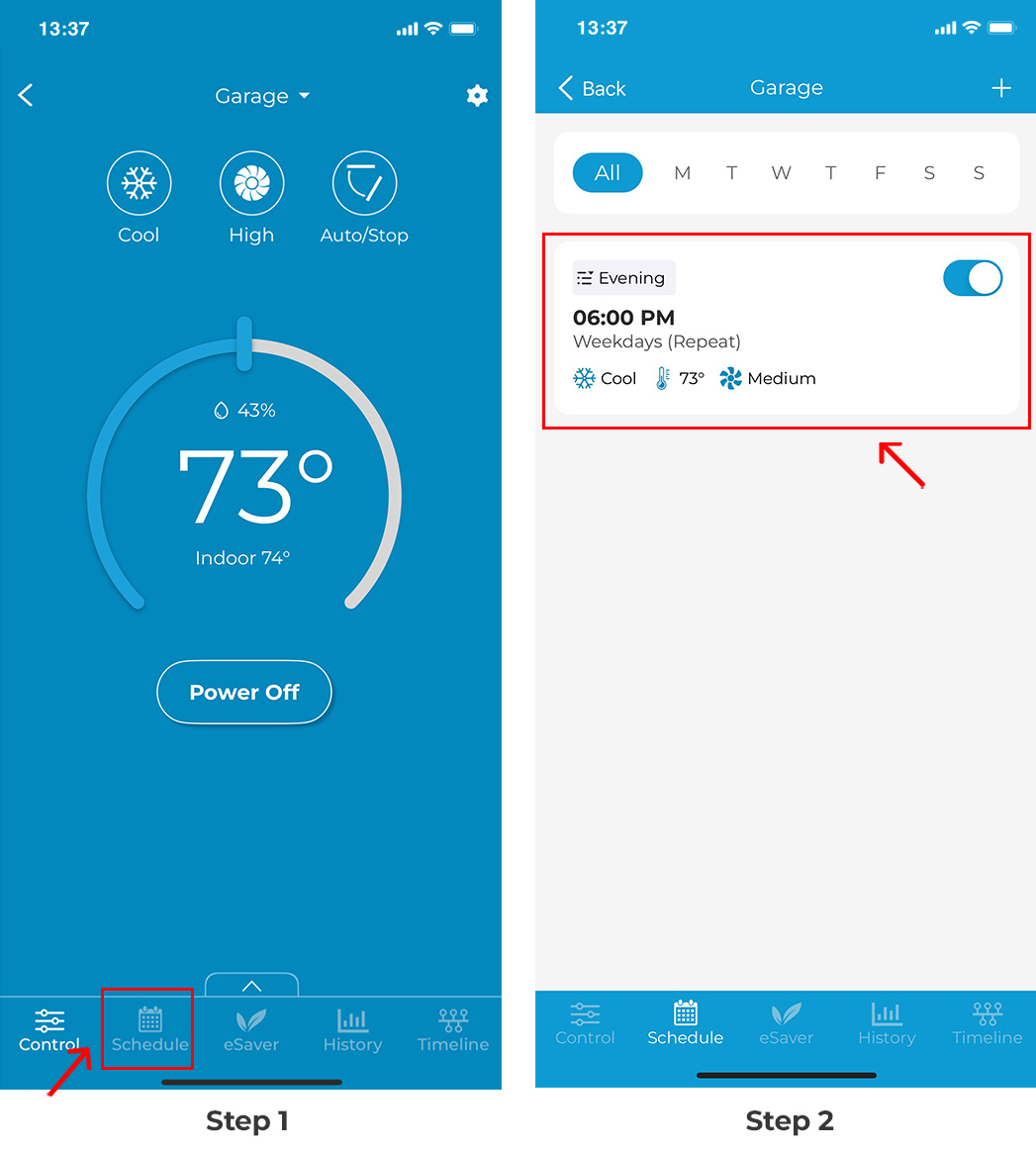

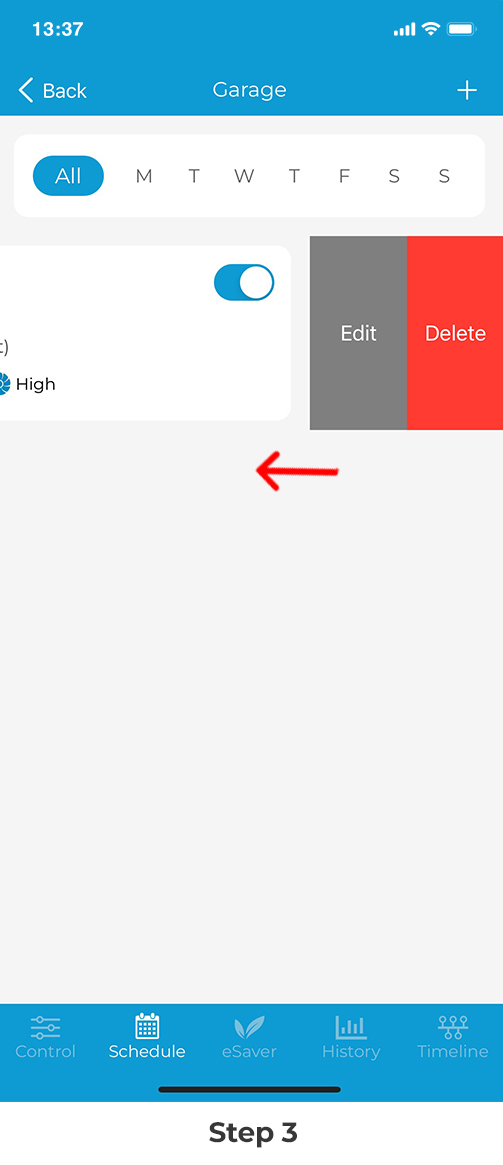

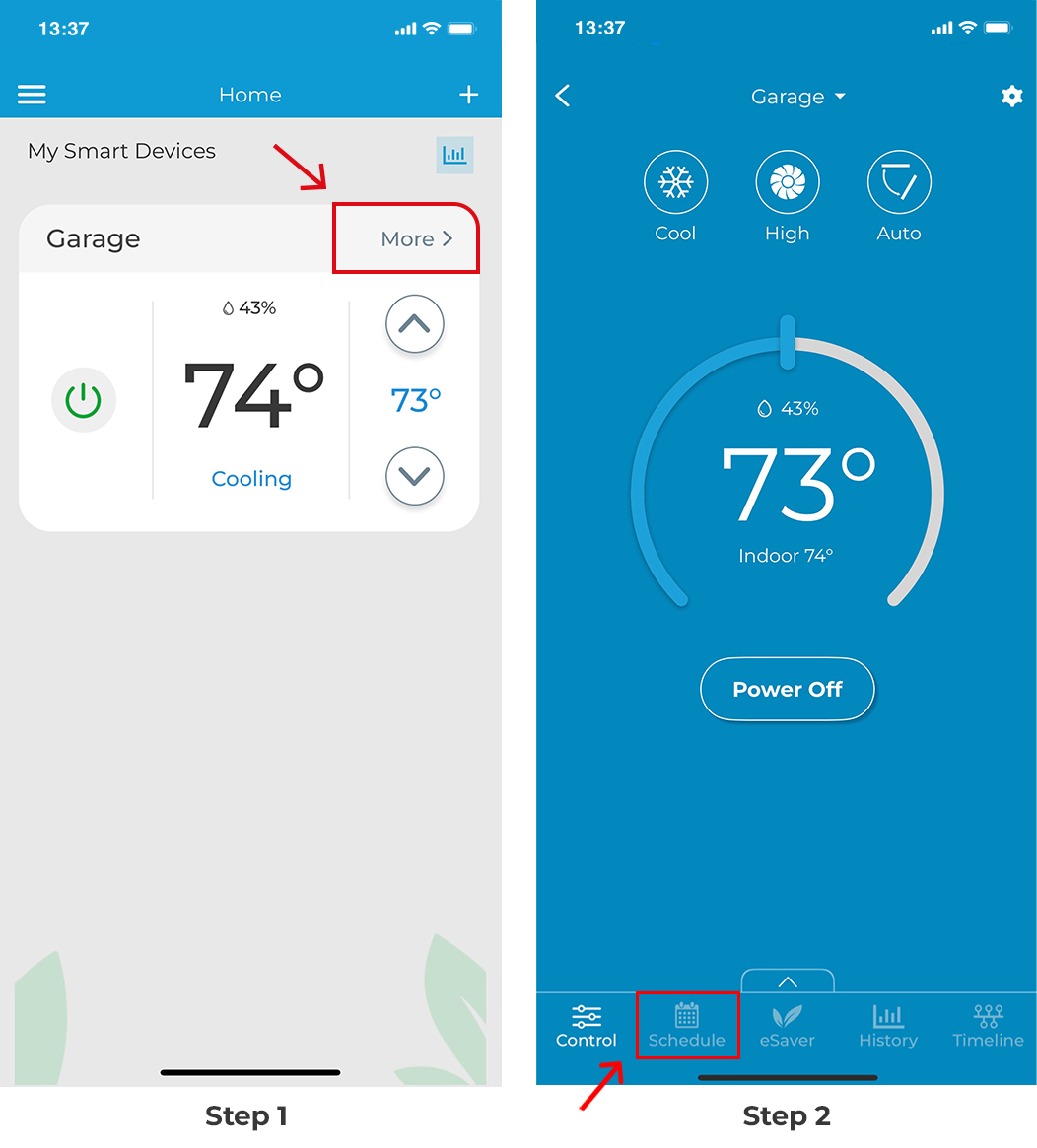

Setting up schedules for your heating and cooling

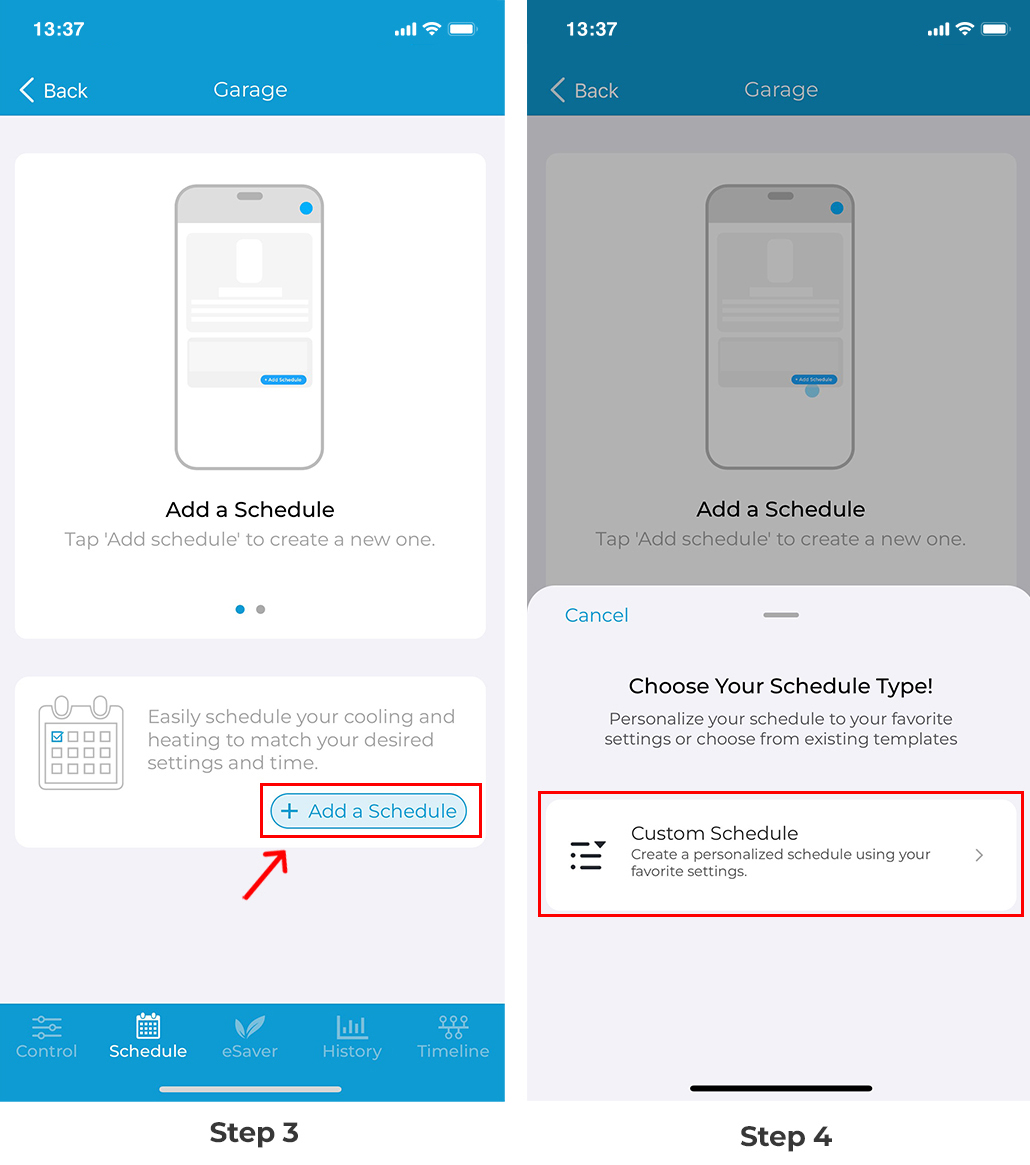

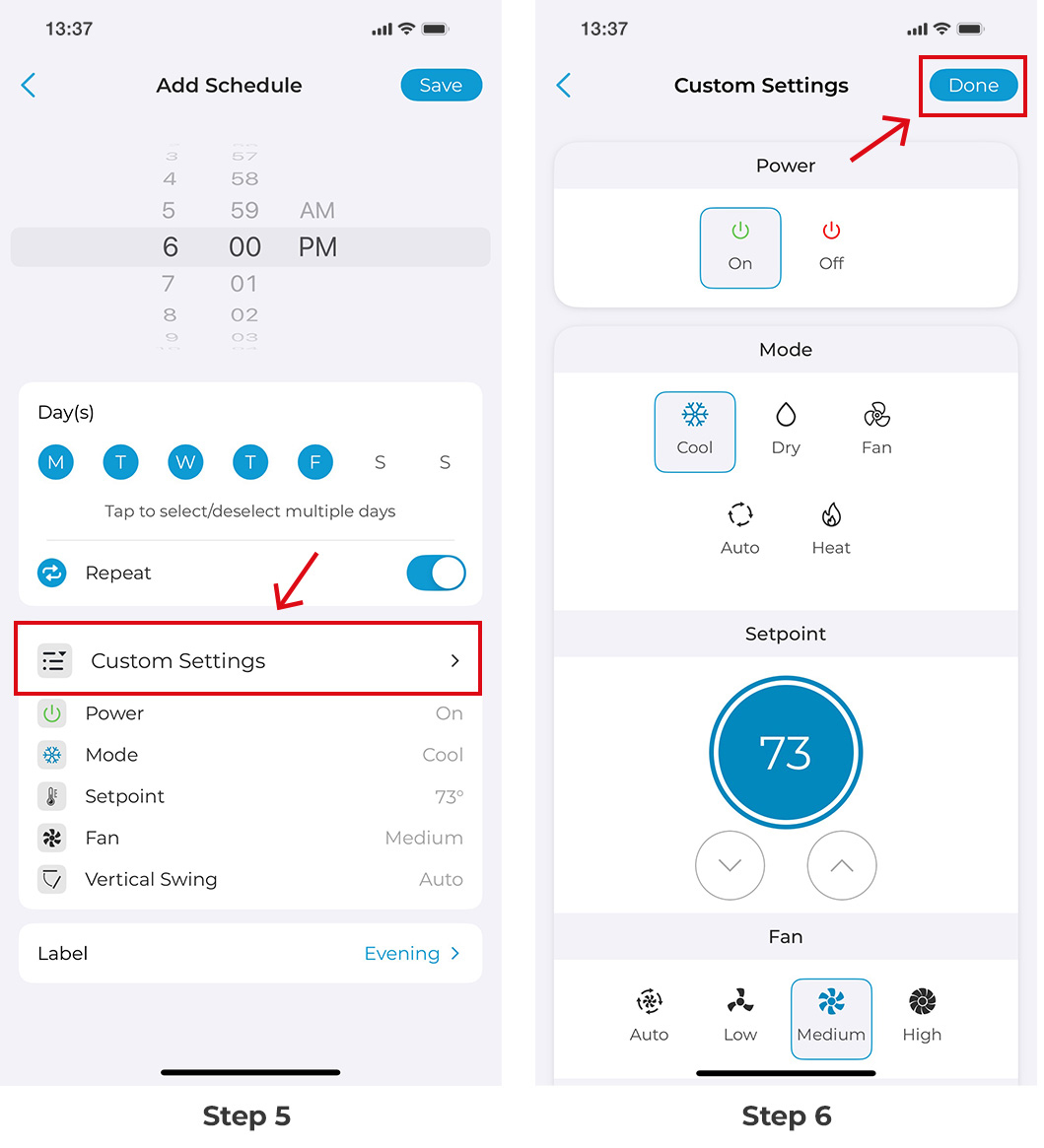

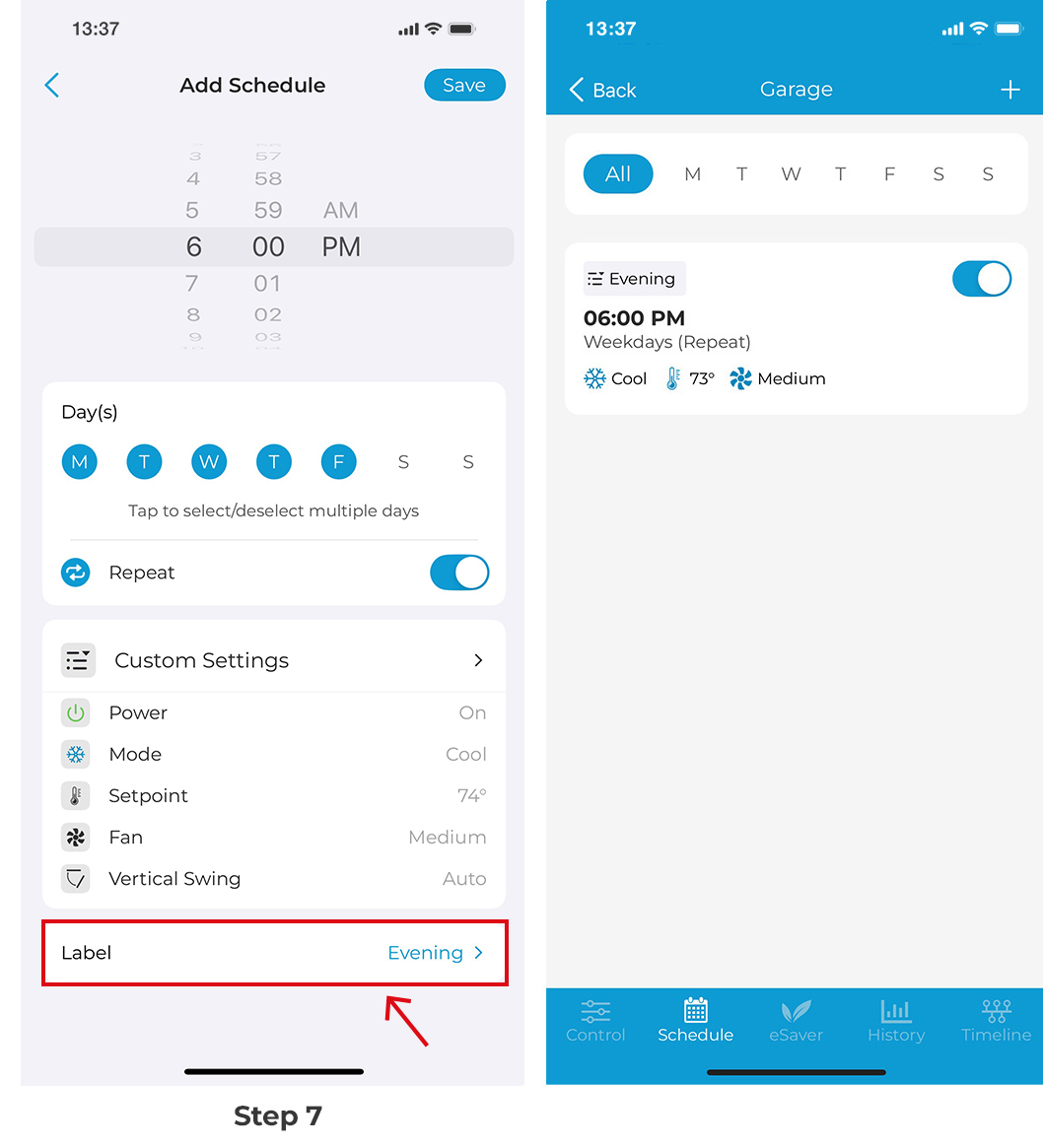

Custom Schedule

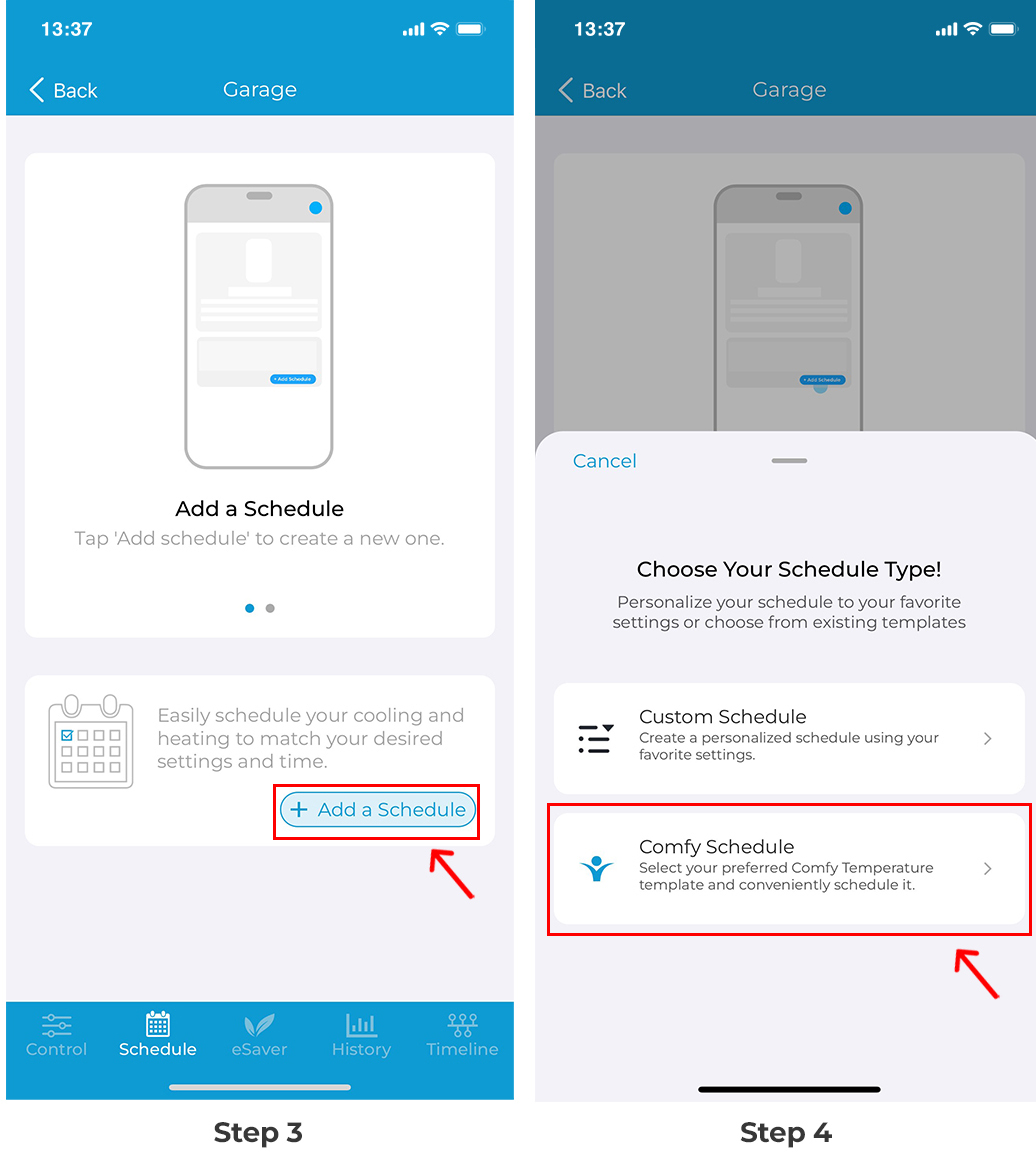

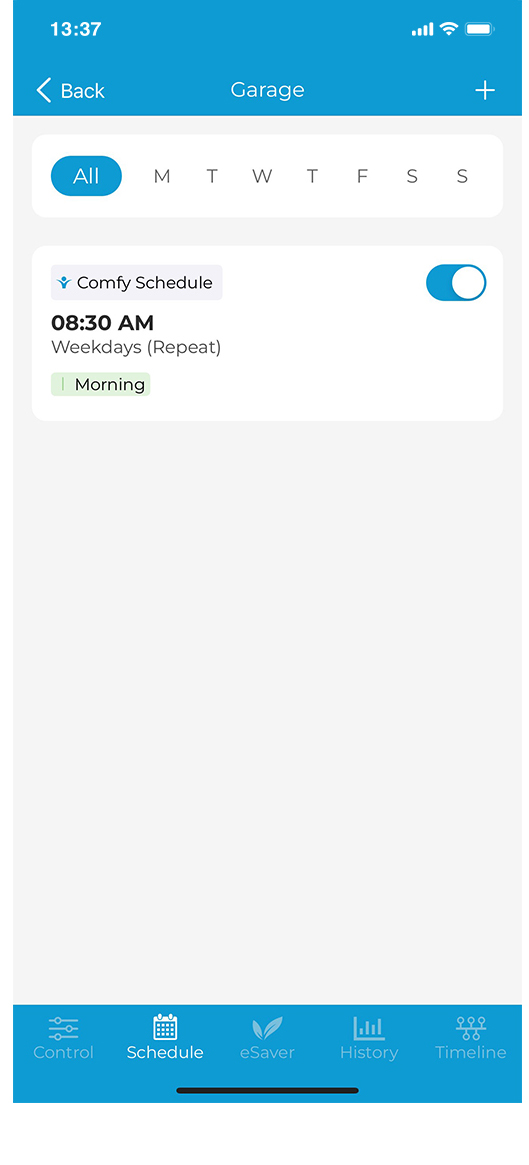

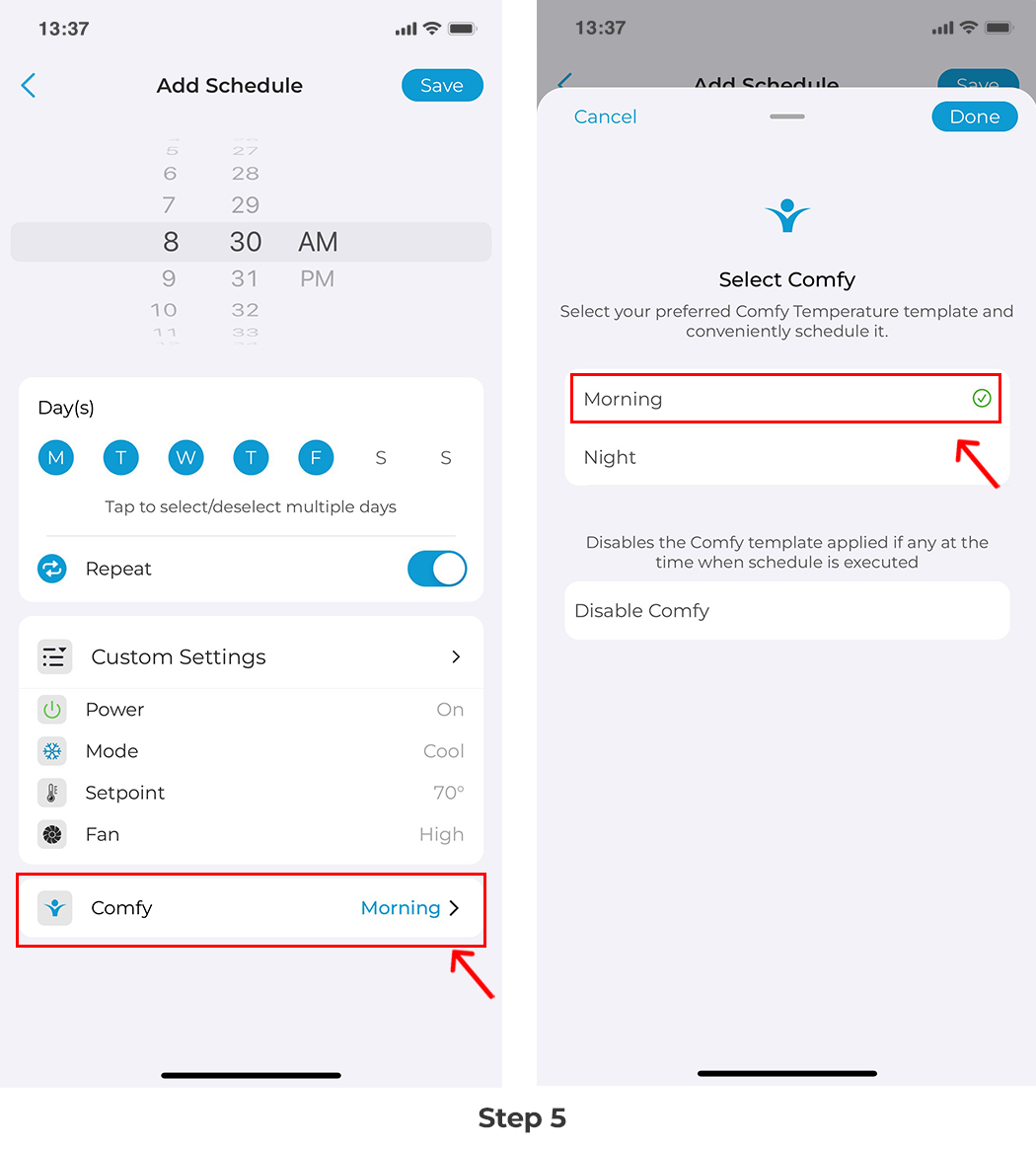

Comfy Schedule

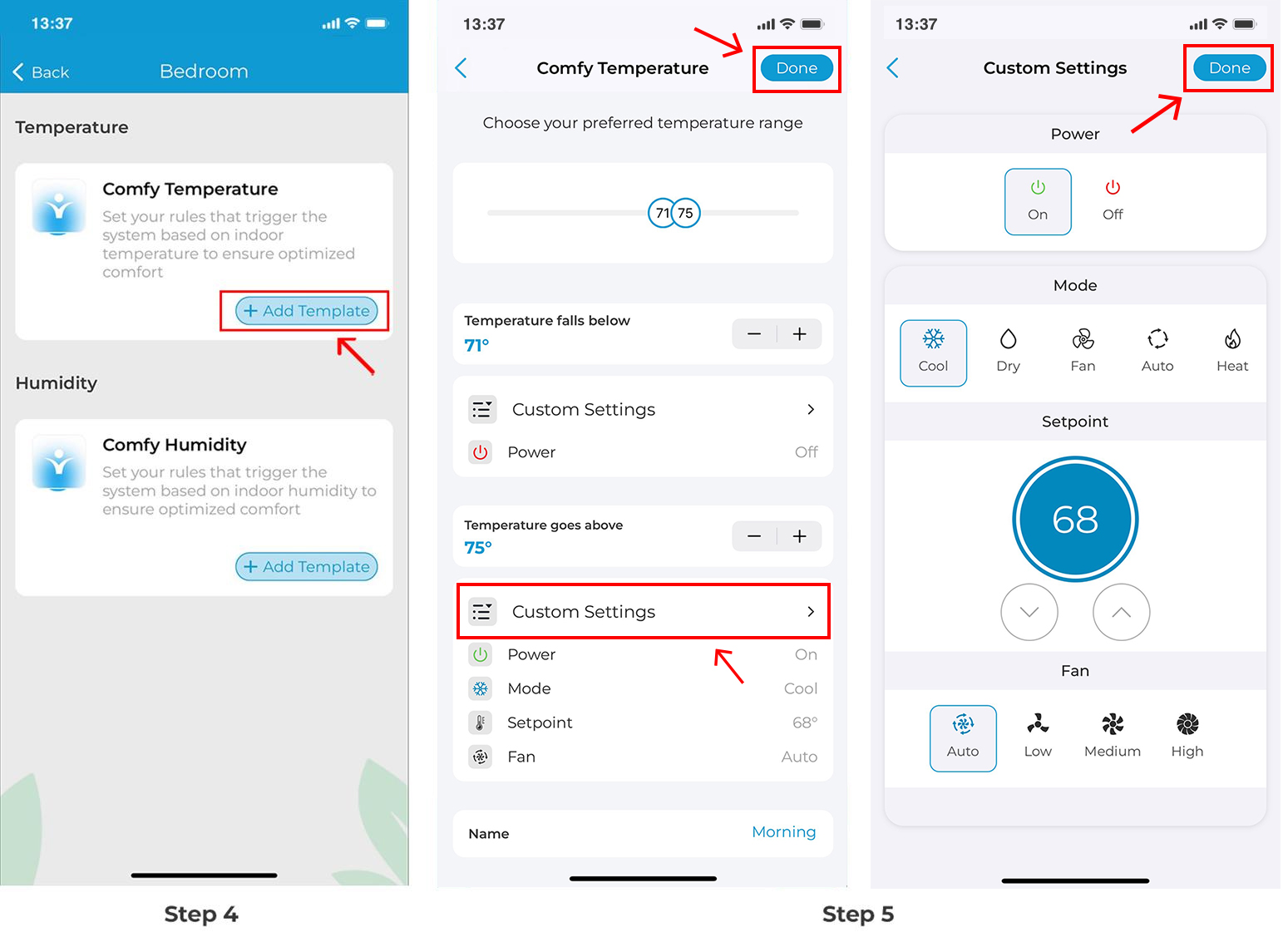

Setting up Comfy Temperature Mode

Comfy mode helps prevent temperature extremes by maintaining your desired settings based on your defined setpoints.

When the room temperature deviates above or below your set range, Comfy mode automatically applies your chosen AC settings, including mode, temperature, and fan speed, to maintain your preferred climate.

Setting up Comfy Humidity Mode

Comfy Humidity Mode automatically adjusts the AC settings to maintain ideal indoor air quality when the room’s humidity falls outside your set range. This helps prevent discomfort from excessive dryness or dampness & maintain consistent indoor comfort without the need for constant manual adjustments.

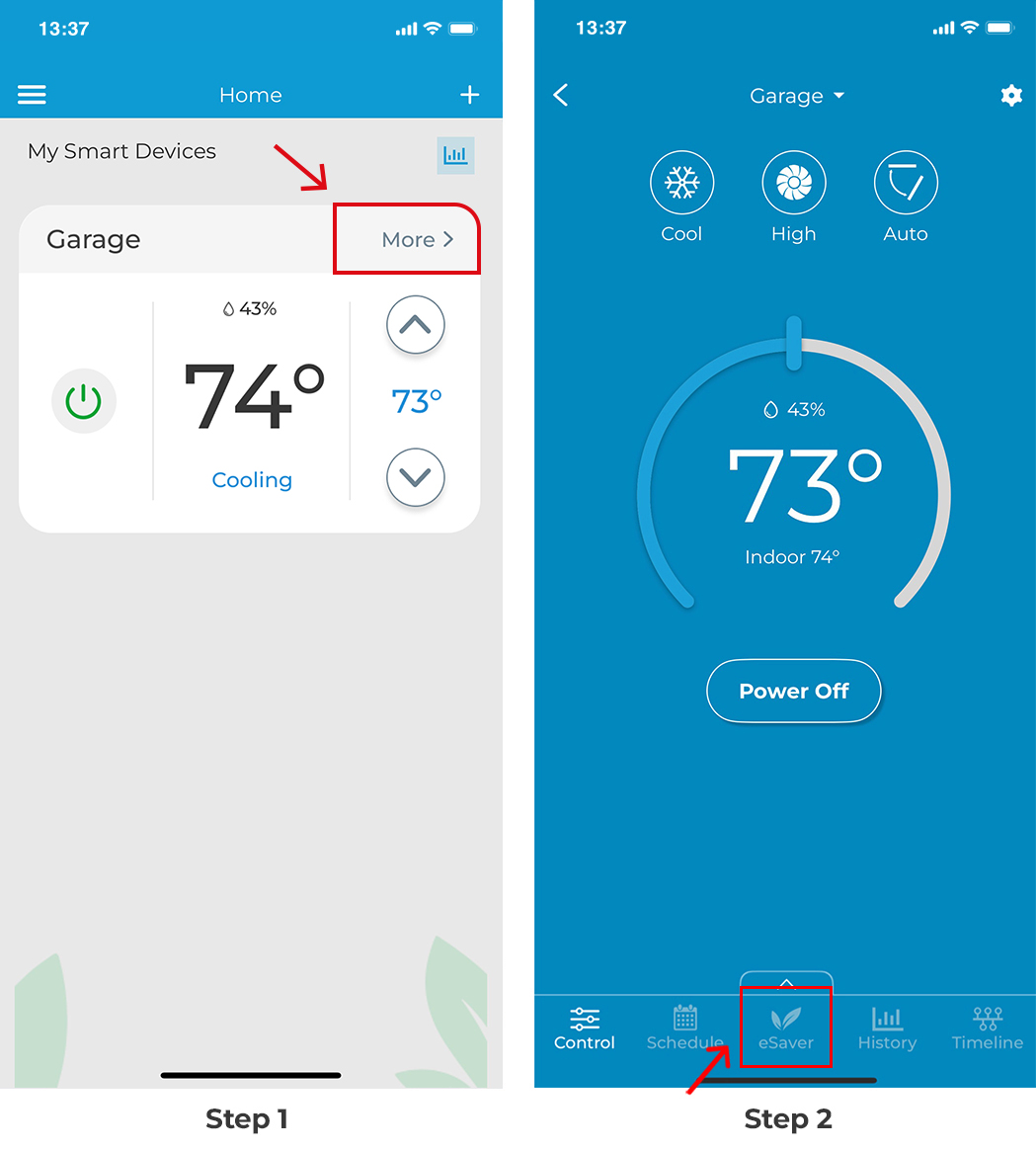

Step 1: On the Home screen, tap 'More' to access additional settings.

Step 2: Tap on ‘eSaver’ in the navigation bar.

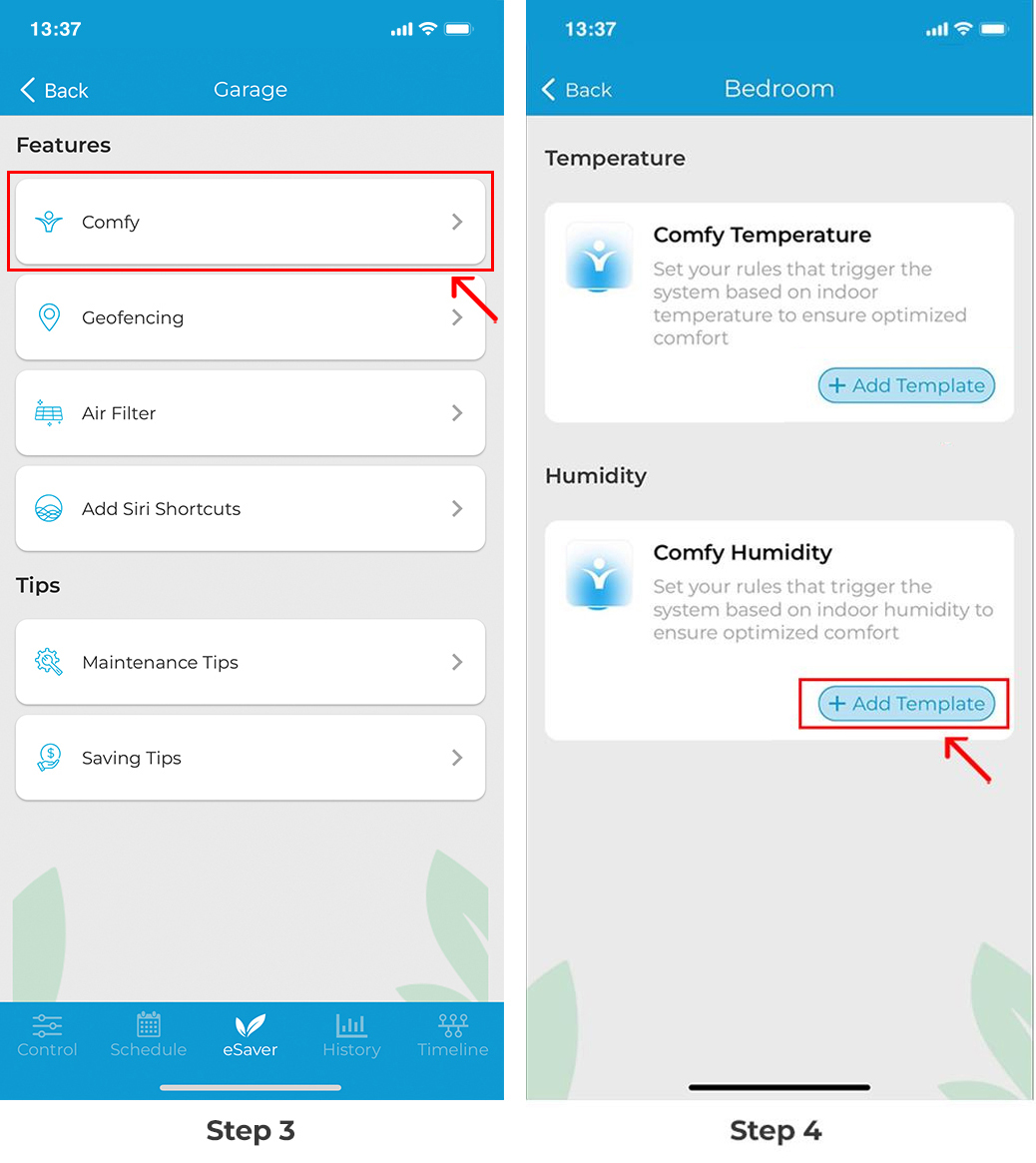

Step 3: Tap on 'Comfy'.

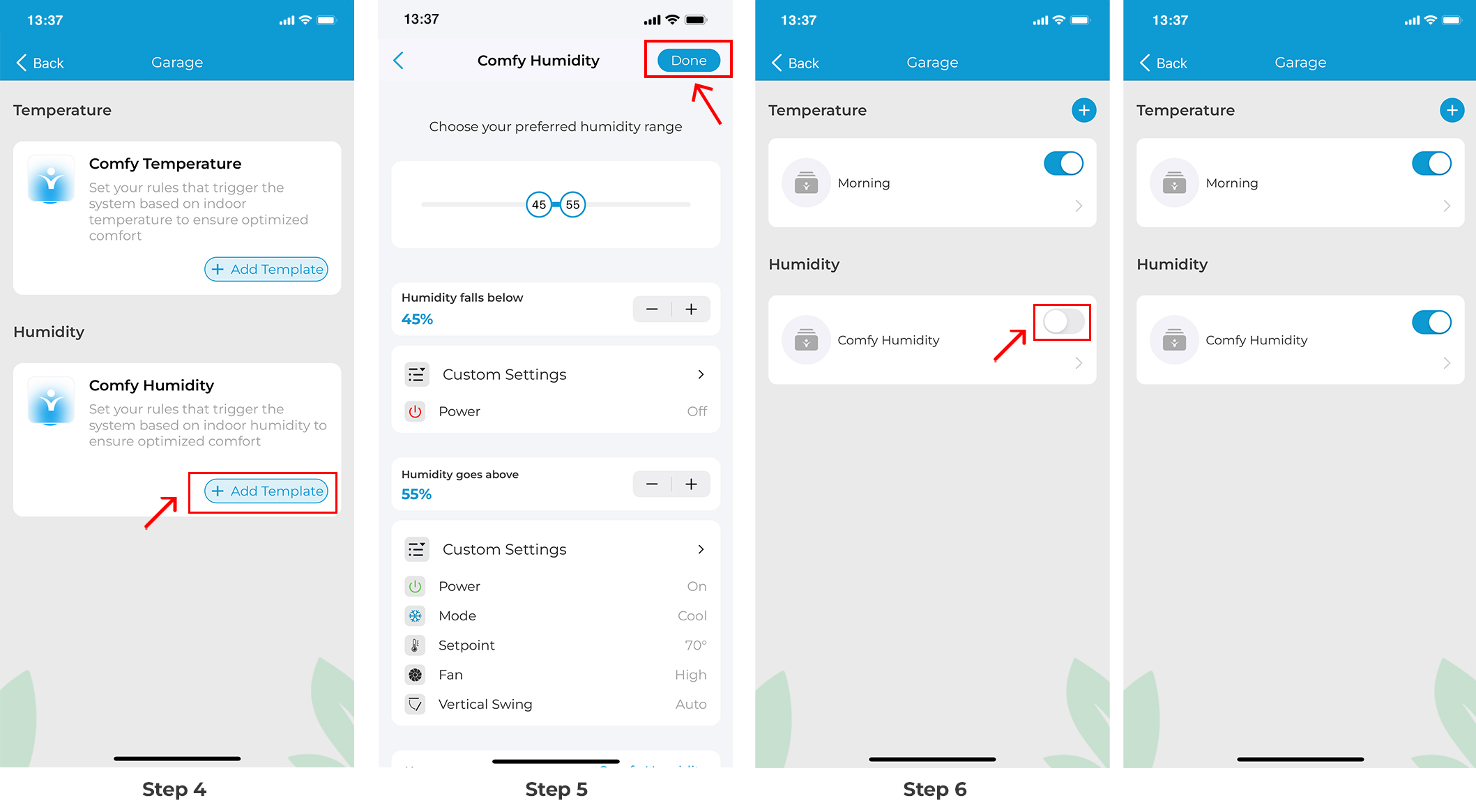

Step 4: Tap on ‘+ Add Template' to set up a Comfy Humidity template.

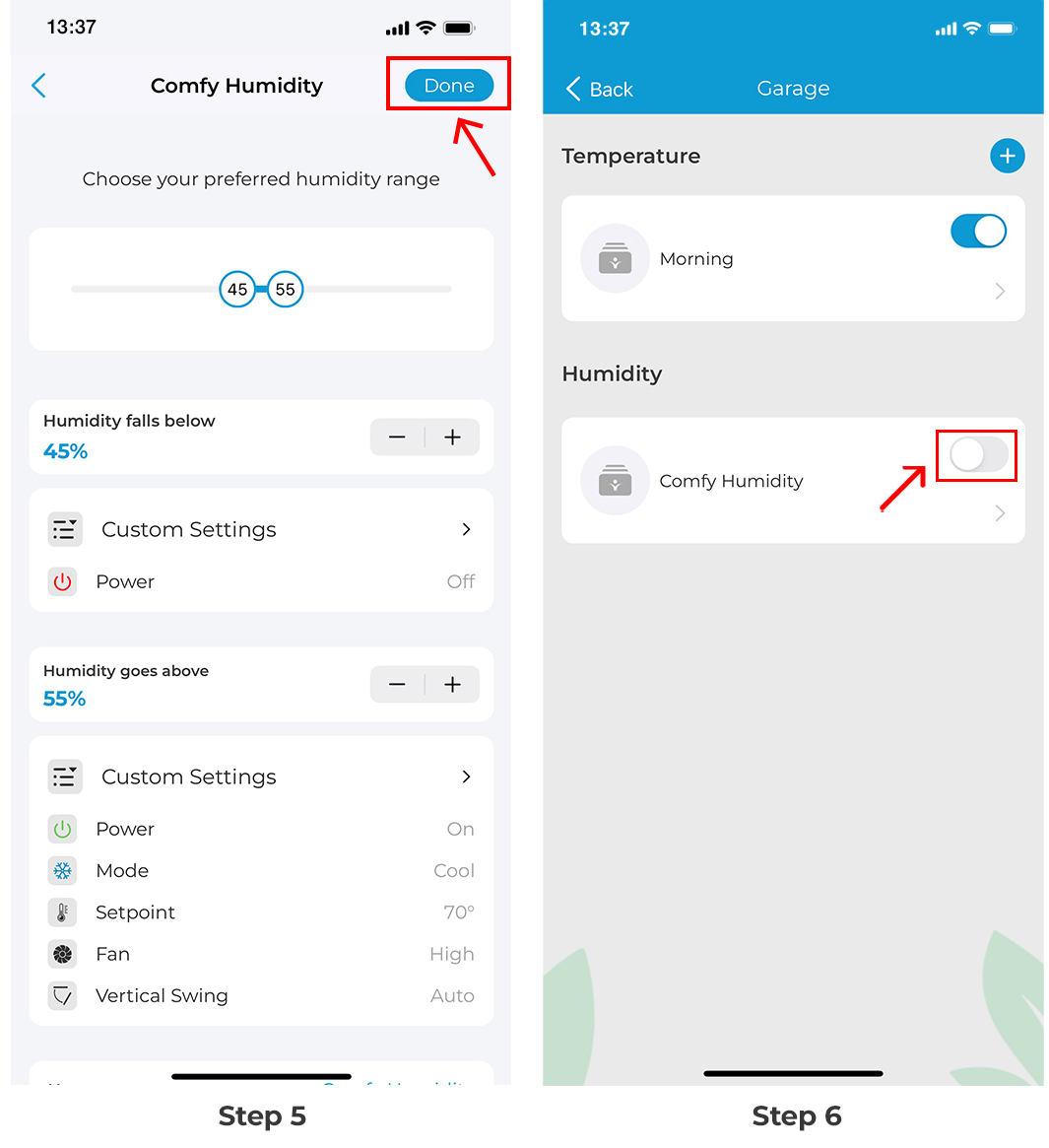

Step 5: Select what actions to perform if the humidity falls below or goes above the set range, e.g., turning the AC off or on, changing its mode, setpoint, and fan speed, helping it get back into the preferred humidity range. Add a name for this template and tap on ‘Done’.

Step 6: Comfy Humidity is now set. You can turn Comfy Mode 'On' or 'Off' from the toggle next to the name of the Comfy Mode. Once the device triggers the defined comfy humidity mode actions, you will get a notification in your app timeline.

You can also turn Comfy Mode On/Off from the app control screen.

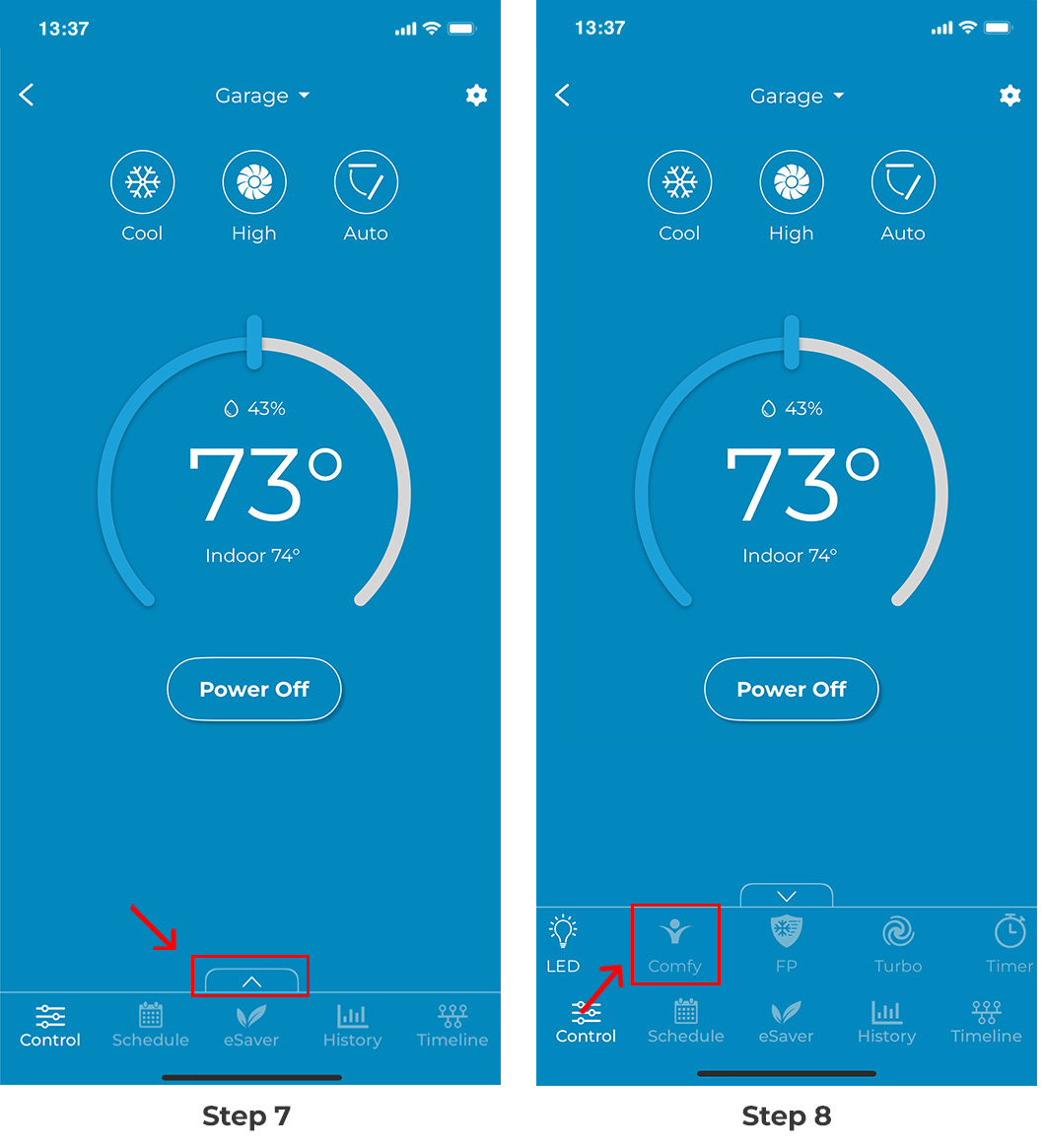

Step 7: Tap on the 'Up' arrow icon at the bottom of the control screen.

Step 8: On the pop-up navigation bar, tap on 'Comfy' to toggle it On or Off. Currently, it is turned 'Off', shown by the greyed-out icon.

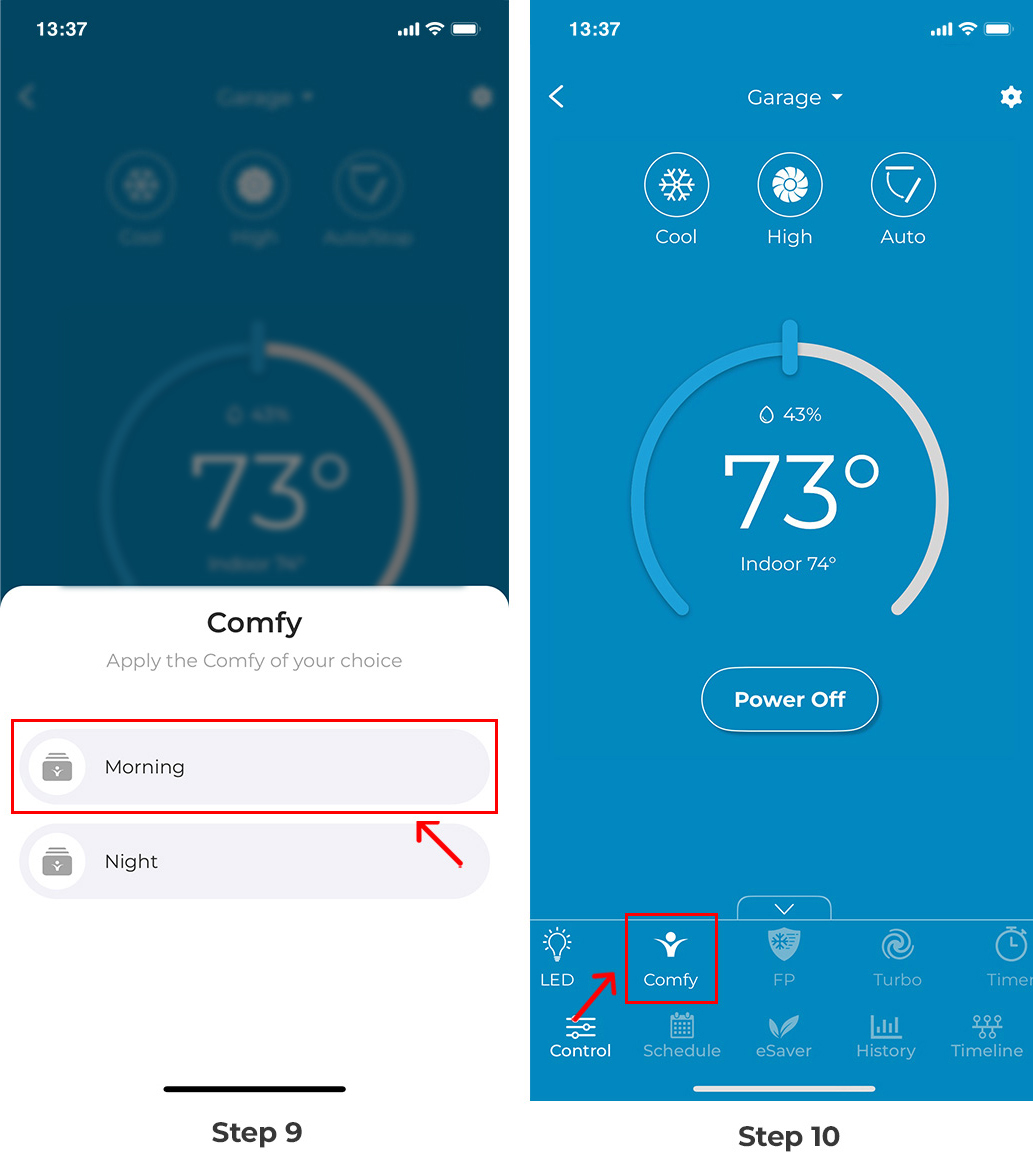

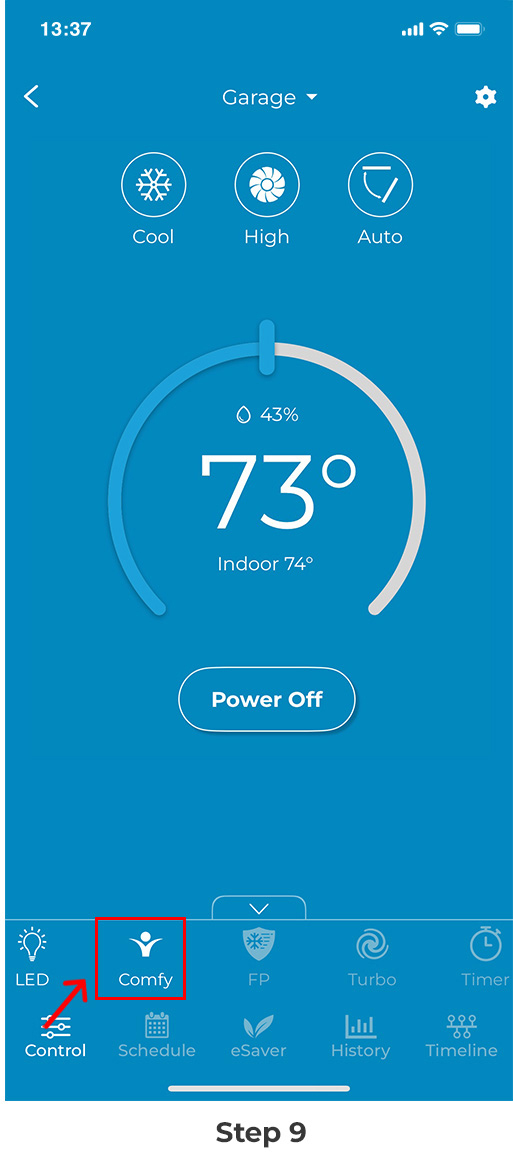

Step 9: To turn it 'On', tap on the Comfy icon, and it will turn white. It is now turned 'On'.

Geofencing (Location-Based Controls)

The geofencing feature automatically triggers your defined settings (on/off or changing temperature and fan speed) as you leave or enter your predefined area. This feature helps optimize comfort while also saving energy by automating your AC usage.

Step 1: On the Home screen, tap 'More' to access additional settings.

Step 2: Tap on ‘eSaver’ in the navigation bar.

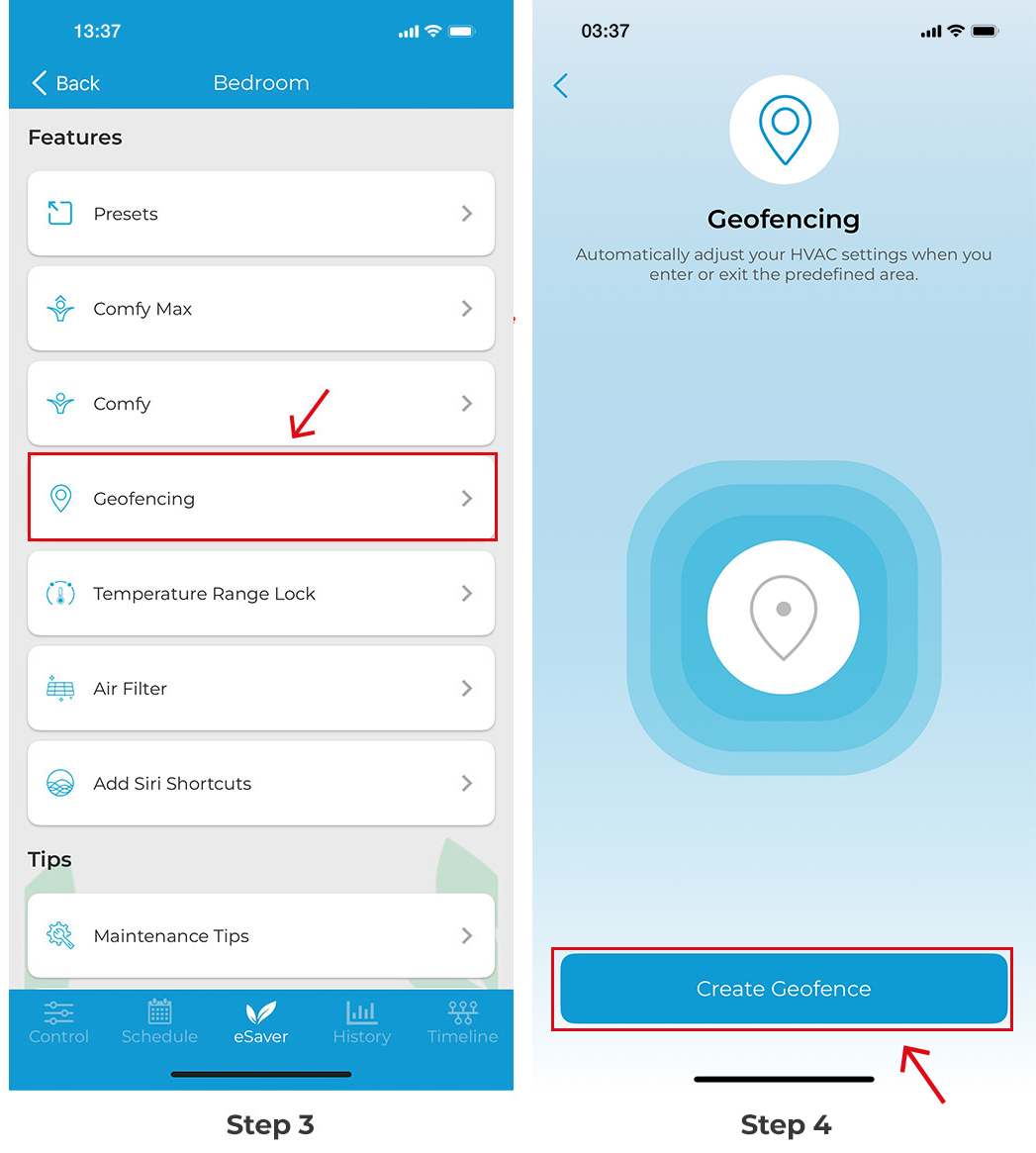

Step 3: Tap on ‘Geofencing’.

Step 4: Tap on ‘Create Geofence’.

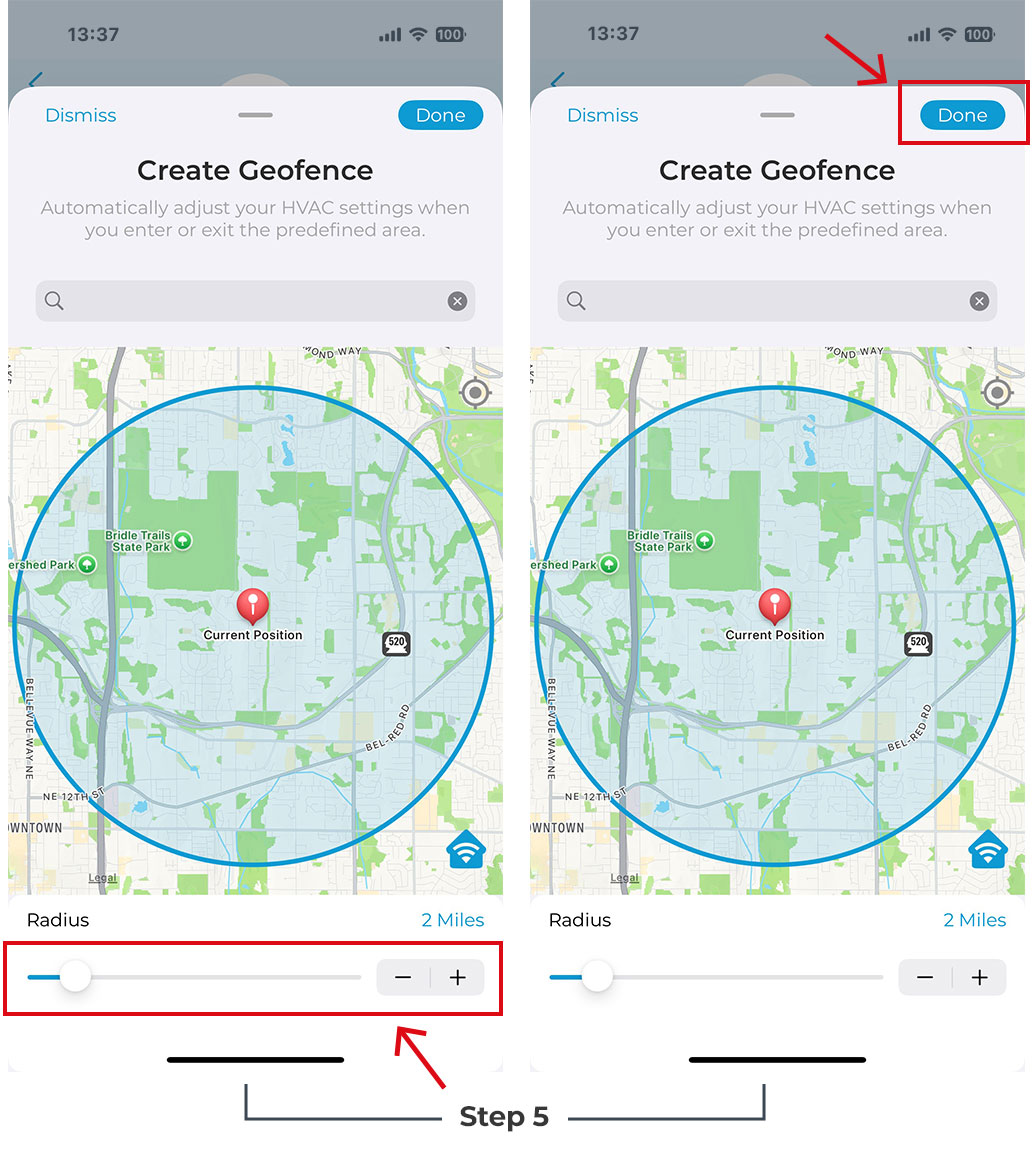

Step 5: Your current location will be displayed on the map. You can also use the search bar to manually find and select a different location.

Tap ‘Done’ to proceed.

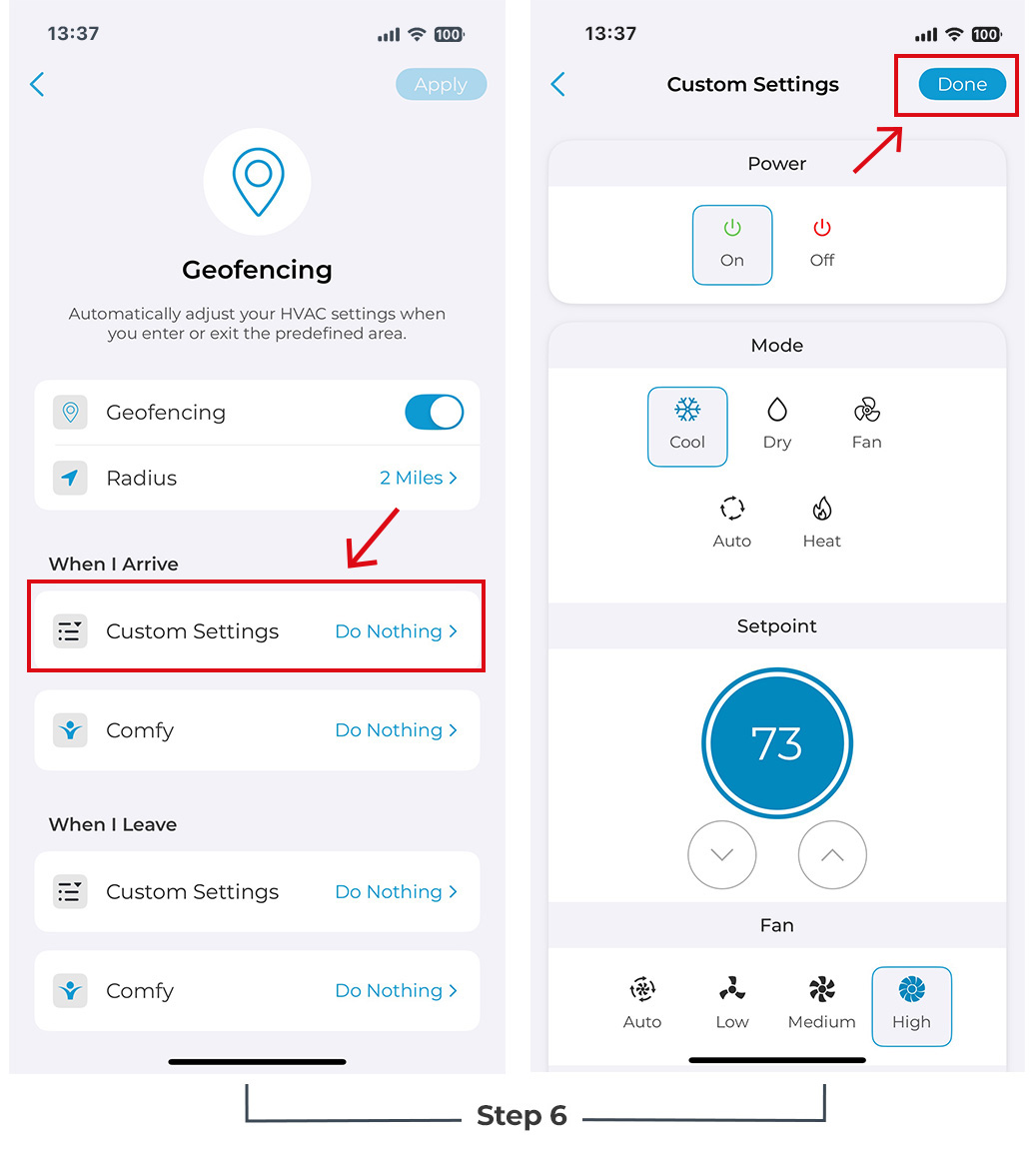

Step 6: Choose the AC settings (mode, Setpoint, fan speed, etc.) to be implemented when you enter the predefined location.

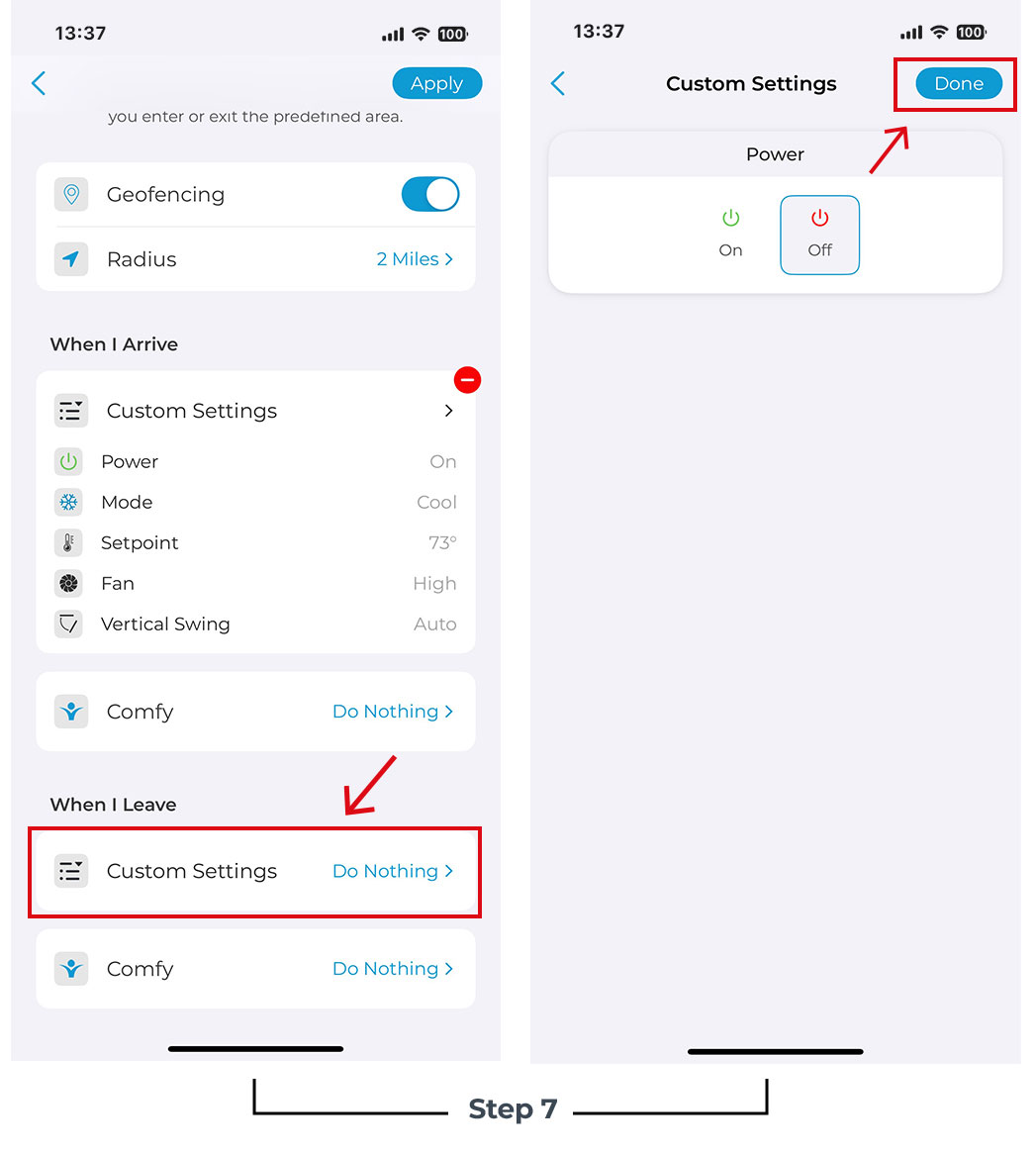

Step 7: Select the AC settings to be applied when you exit the geofence area.

Step 8: Tap ‘Apply’ to save your settings.

Checking Air Filter Status

A clogged or dirty air filter can reduce the efficiency of your AC unit, increase power consumption, and negatively impact indoor air quality. With Cielo Breez Eco, you can easily track the usage of your AC filter and get notified when it’s time to clean it.

Step 1: On the Home screen, tap 'More' to access additional settings.

Step 2: Tap on ‘eSaver’ in the navigation bar.

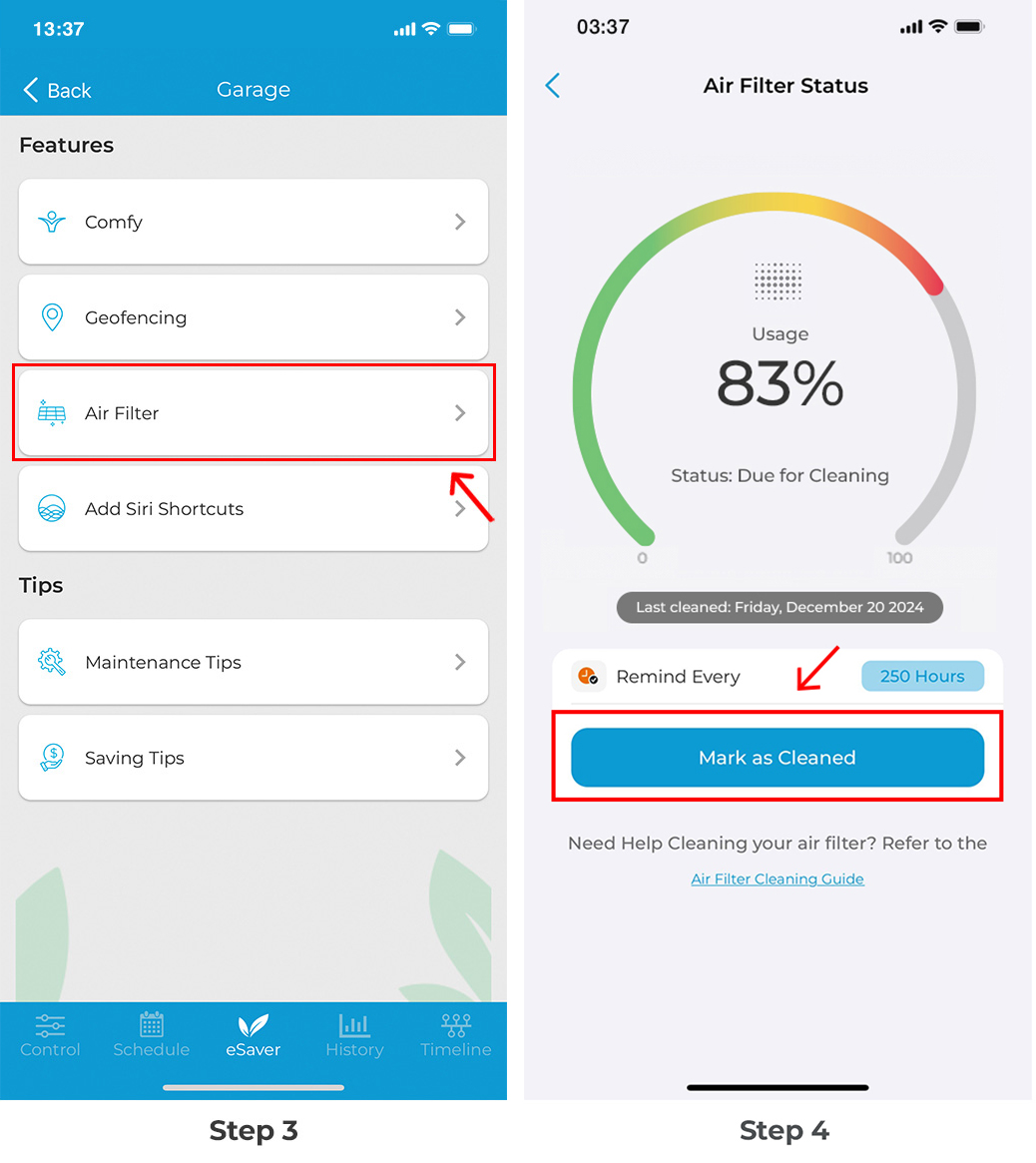

Step 3: Tap on ‘Air Filter’.

Step 4: You will see your current air filter status since registration (or since the last cleaning). When the range is about to fill up, manually remove the air filter and clean it. Once done, place the filter back into the mini-split. Tap on ‘Mark as Cleaned’. Additionally, you can set the number of hours after which you want to be notified for the next cleaning.

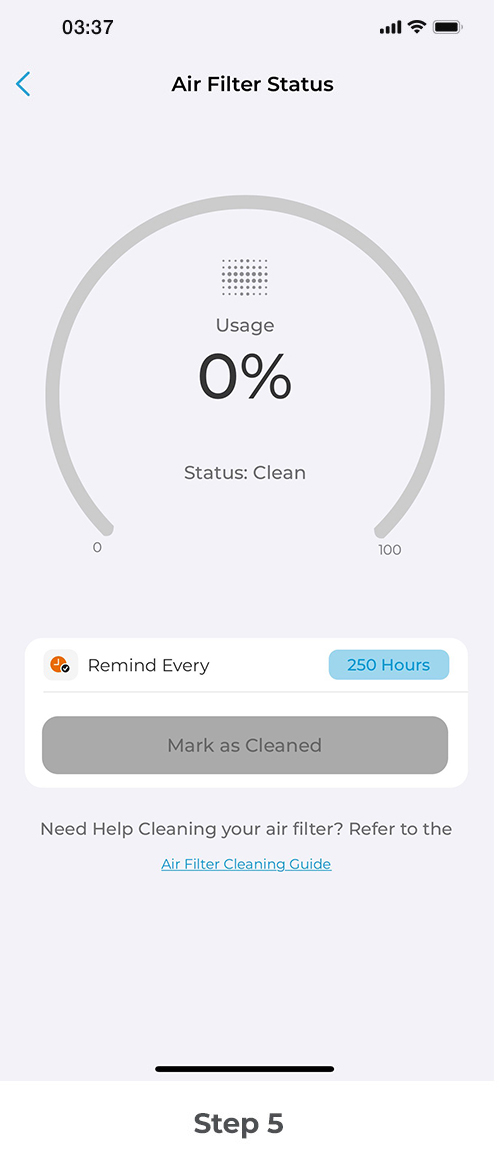

Step 5: Your filter status has now begun a new cycle.

Note: You can set the number of usage hours (from 250 to 500 hours) after which you'd like to be notified for the next filter cleaning via the Cielo Home App.

Adding Siri Shortcuts to Cielo Home (For iOS users)

Cielo Breez Eco is compatible with Siri Shortcuts, allowing you to control your unit using simple voice commands. With Siri Shortcuts, you can activate your favorite presets hands-free, perfect for quick comfort adjustments.

Step 1: On the Home screen, tap on the Breez Eco you want to add Siri Shortcuts for.

Step 2: Tap on ‘eSaver’ in the navigation bar.

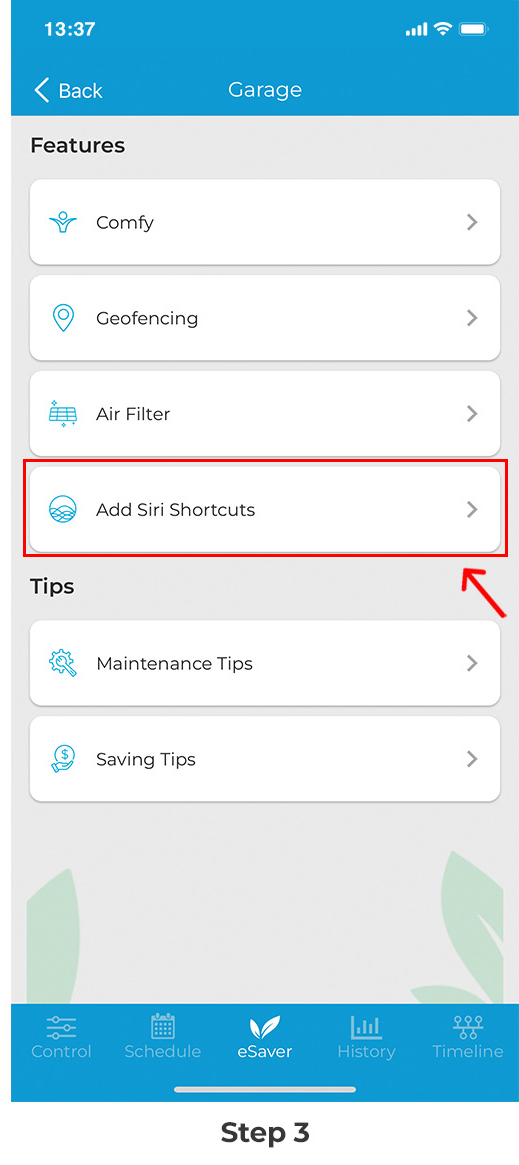

Step 3: Tap on ‘Add Siri Shortcuts’.

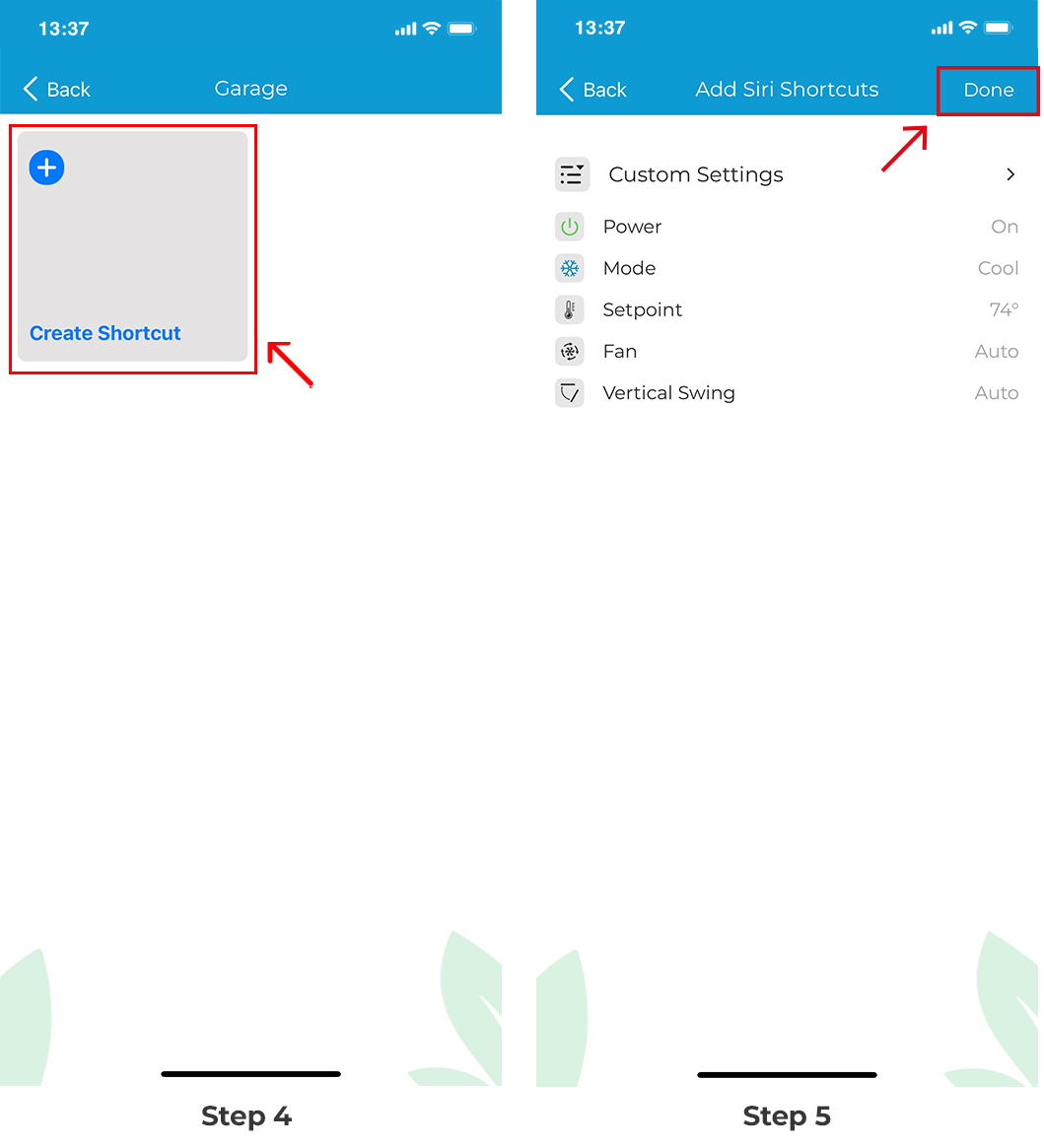

Step 4: Tap on 'Create Shortcut' to make a new Siri Shortcut.

Step 5: Enter the desired AC settings when the command is sent through Siri Shortcuts. You can set the AC operating mode, temperature set point, fan speed, and swing position. Tap on ‘Done’.

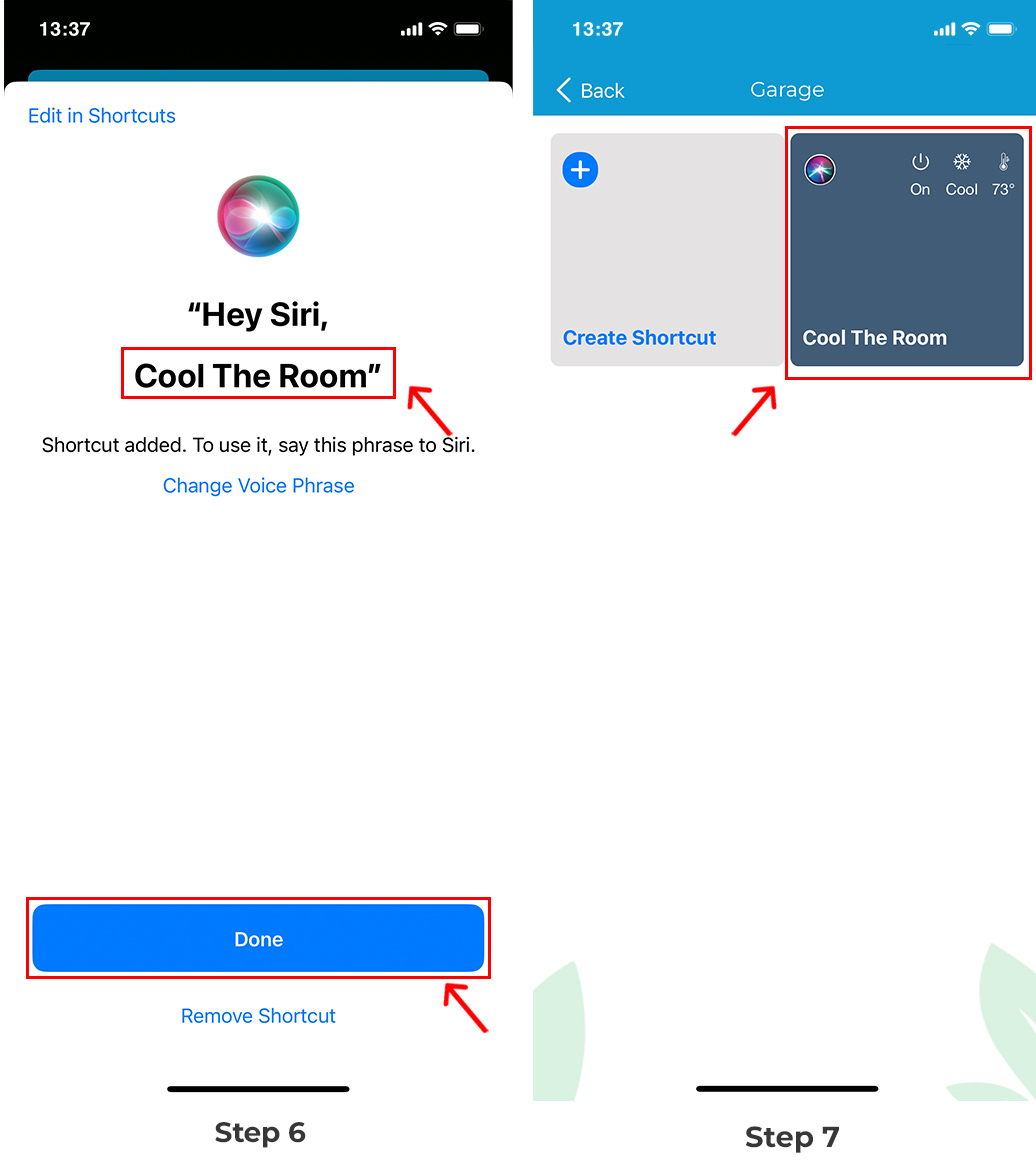

Step 6: Next, enter the phrase you want the Shortcut to be activated on. For example, here it is , 'Cool The Room'. Tap on 'Done'.

Step 7: All your currently active Siri Shortcuts will now be displayed. In this example, when you say to Siri 'Cool The Room', the AC will turn on at 73 degrees in cool mode at high fan speed.

Checking Usage History

Step 1: On the Home screen, tap 'More' to access additional settings.

Step 2: On the Control screen, tap on 'History'.

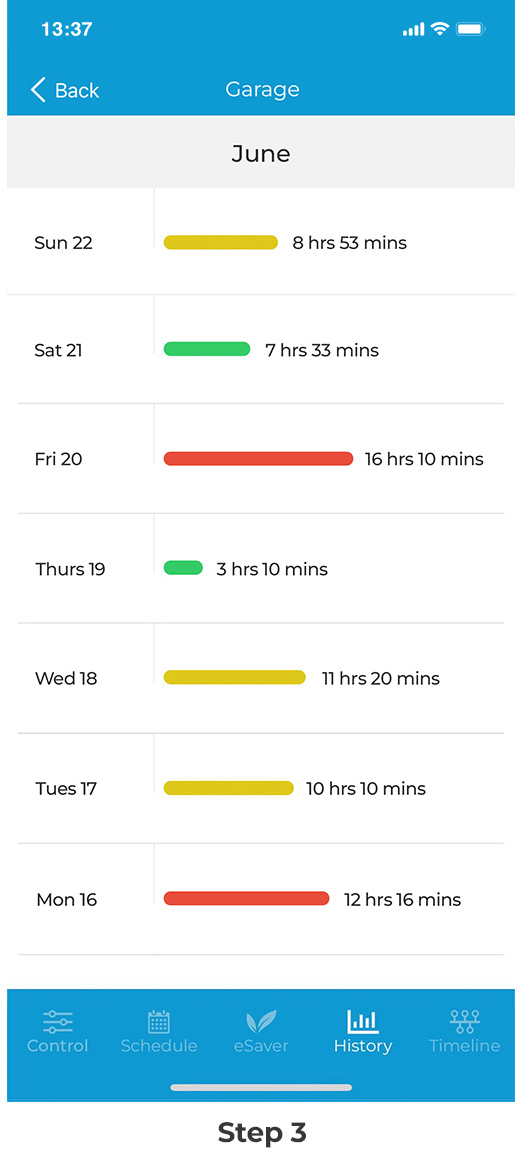

Step 3: Your 30-day usage summary should appear on the screen. Tap on any day to learn more details about your detailed usage history.

Checking Timeline of Actions

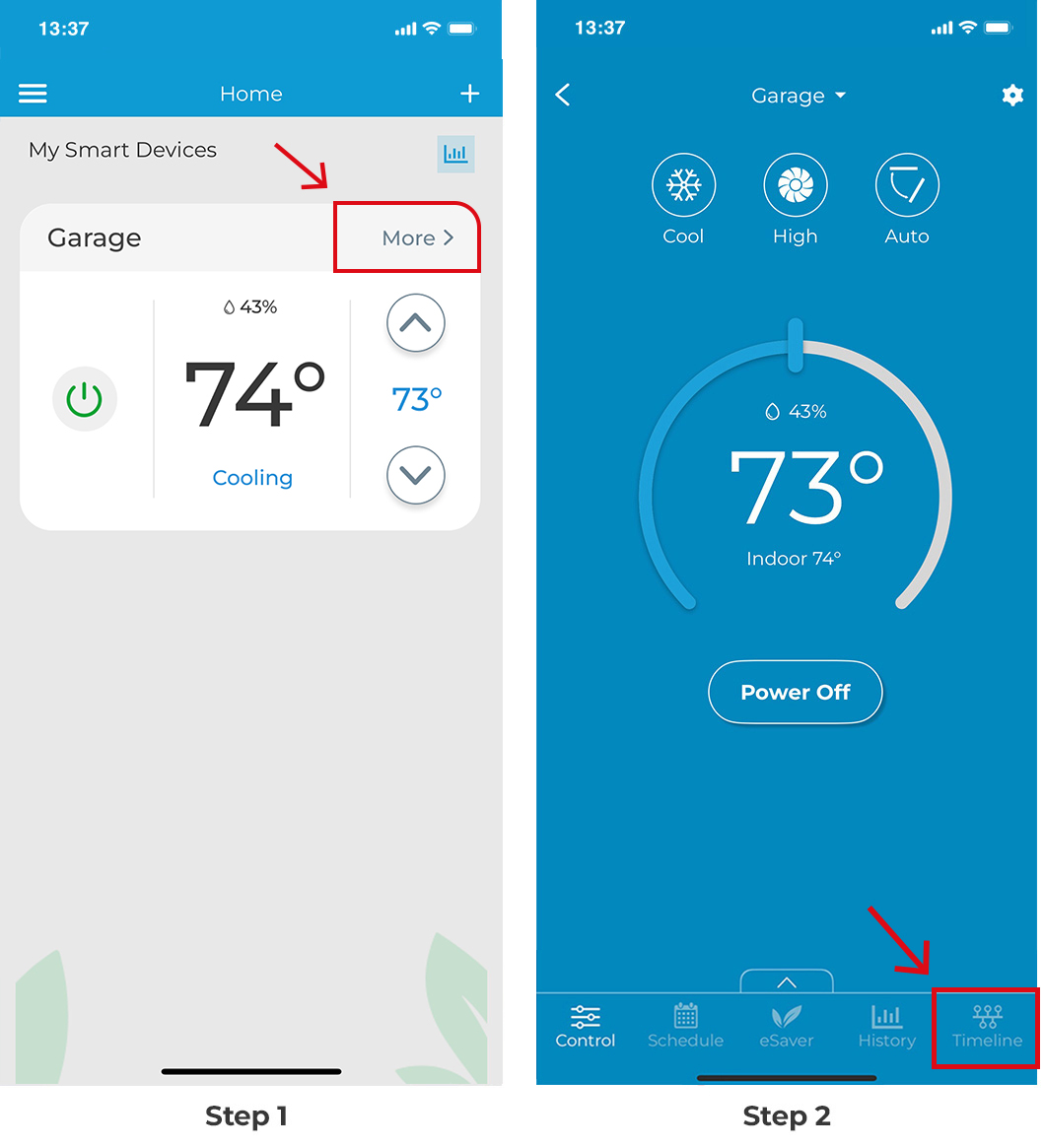

Step 1: On the Home screen, tap 'More' to access additional settings.

Step 2: On the Control screen, tap on 'Timeline'.

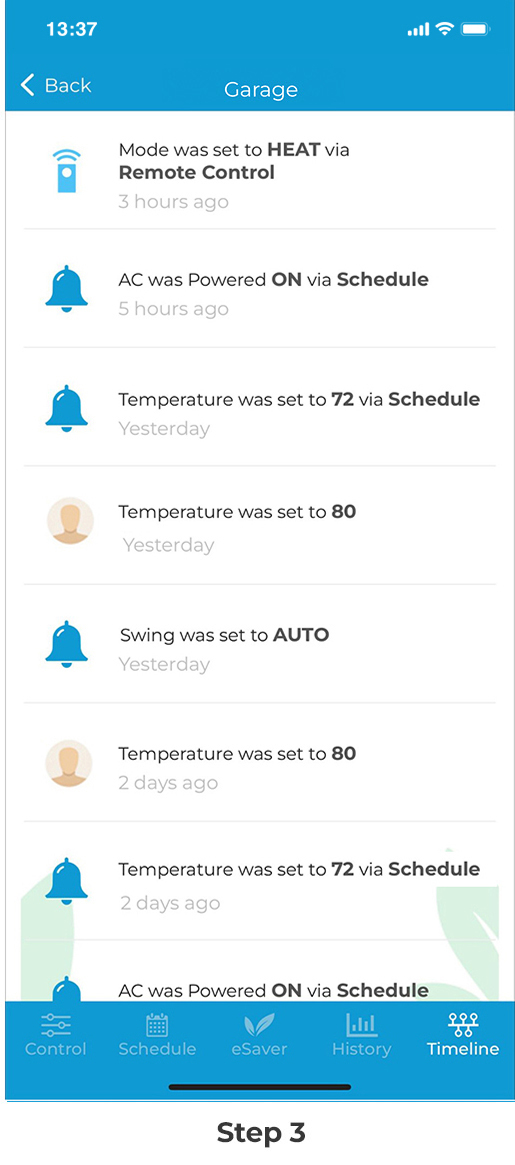

Step 3: You'll see a complete list of actions performed over the last 90 days.

Changing Device Name (e.g. bedroom, lounge etc.)

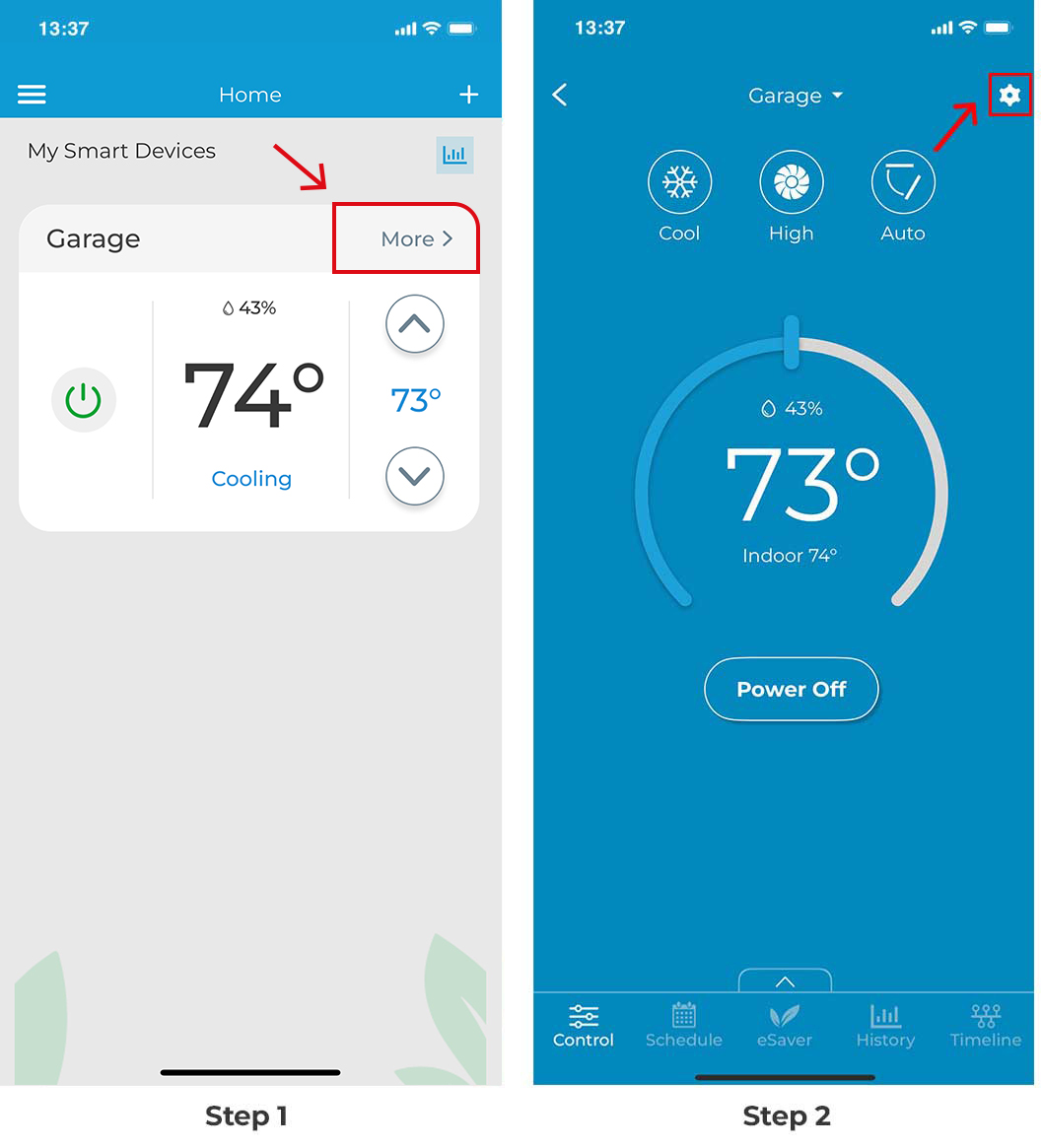

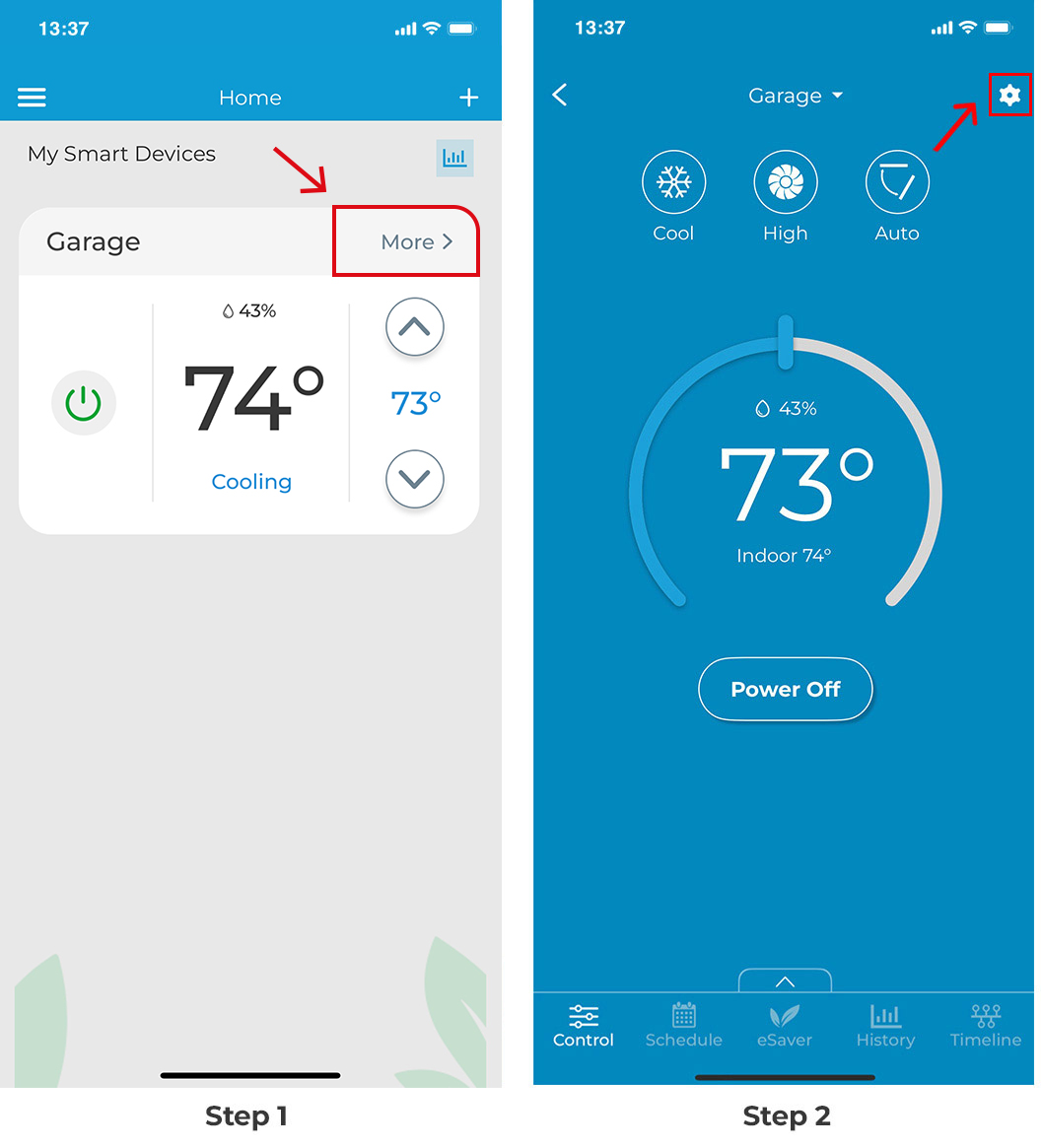

Step 1: On the Home screen, tap 'More' to access additional settings.

Step 2: Tap on the ‘Settings’ icon on the top right.

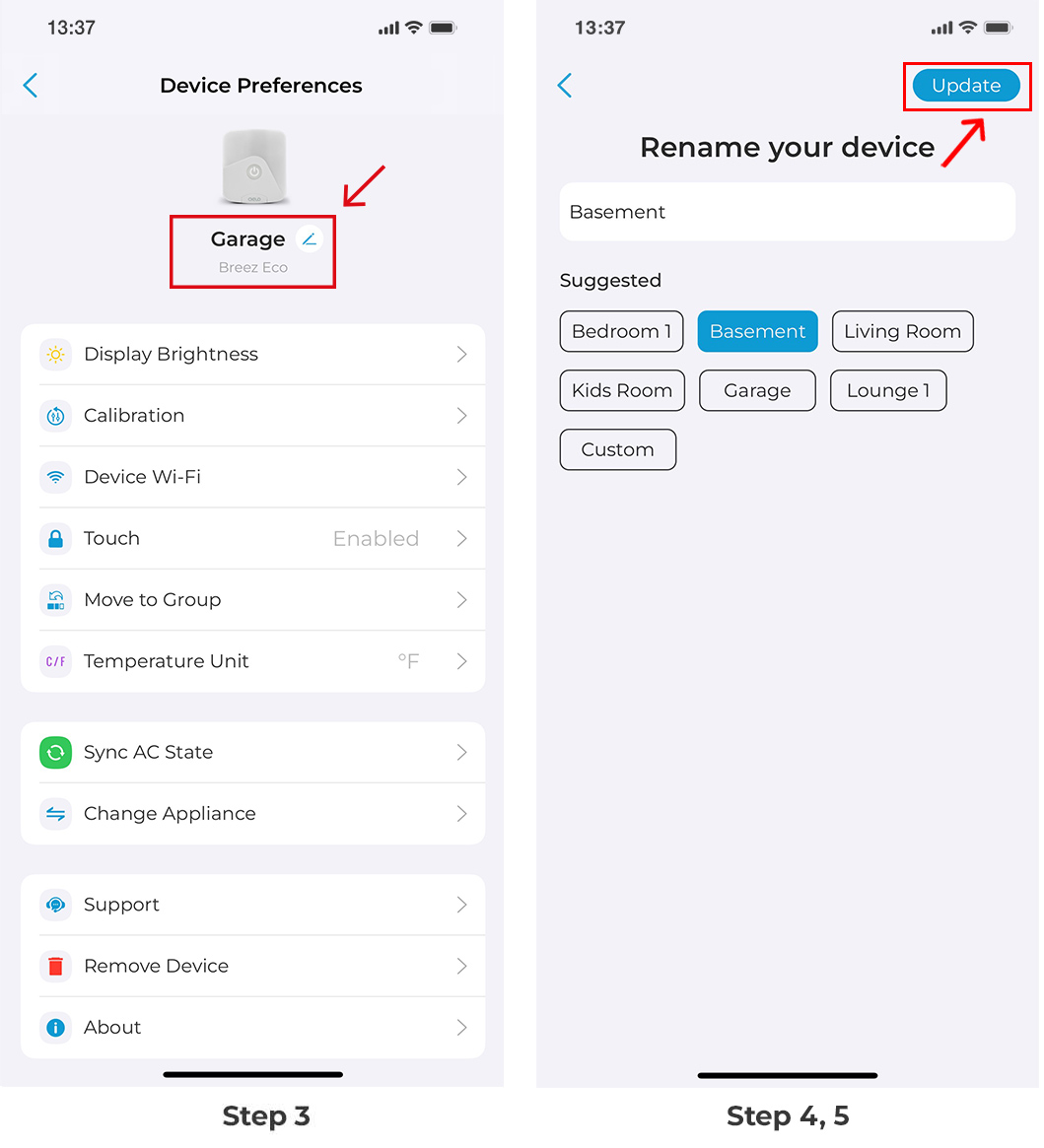

Step 3: Tap on the pencil icon in front of the device name.

Step 4: Select the name from a list of common names, or type a custom name.

Step 5: Tap on 'Update.' The device name has now changed.

Adjusting the Brightness of the Device

Step 1: On the Home screen, tap on the Breez Eco device you want to change the LED brightness of.

Step 2: Tap on the ‘Settings’ icon on the top right.

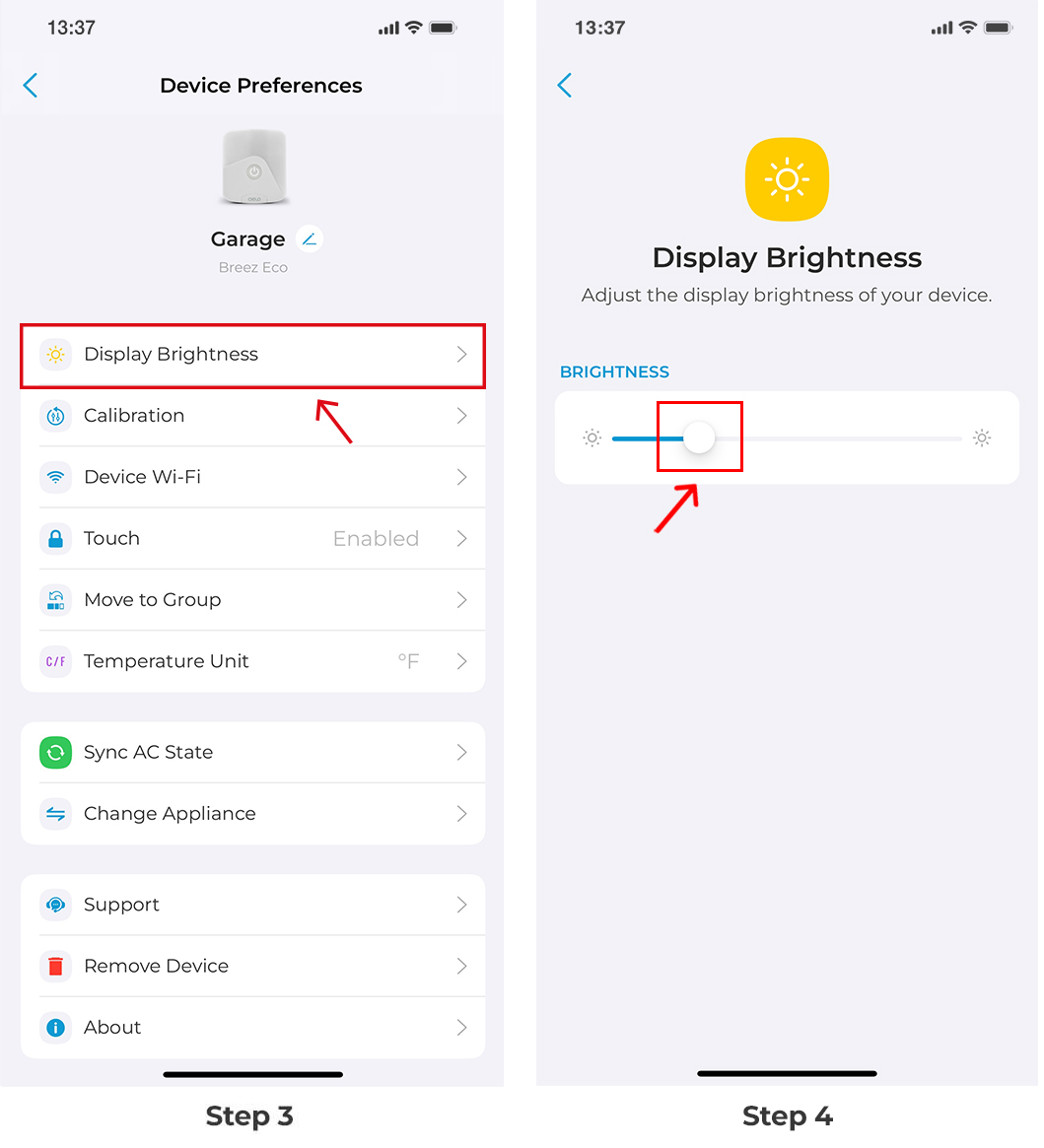

Step 3: Tap on 'Display Brightness'.

Step 4: Toggle the 'Brightness' slider to change the brightness of the Breez Eco device power button.

Calibrate Room Temperature

The Cielo Breez Eco features a built-in temperature sensor that monitors your room climate. If the displayed temperature doesn’t quite match the actual room conditions, you can calibrate the temperature sensor using the Cielo Home app. Calibration adjusts the reading so your device reflects the true ambient temperature of your room.

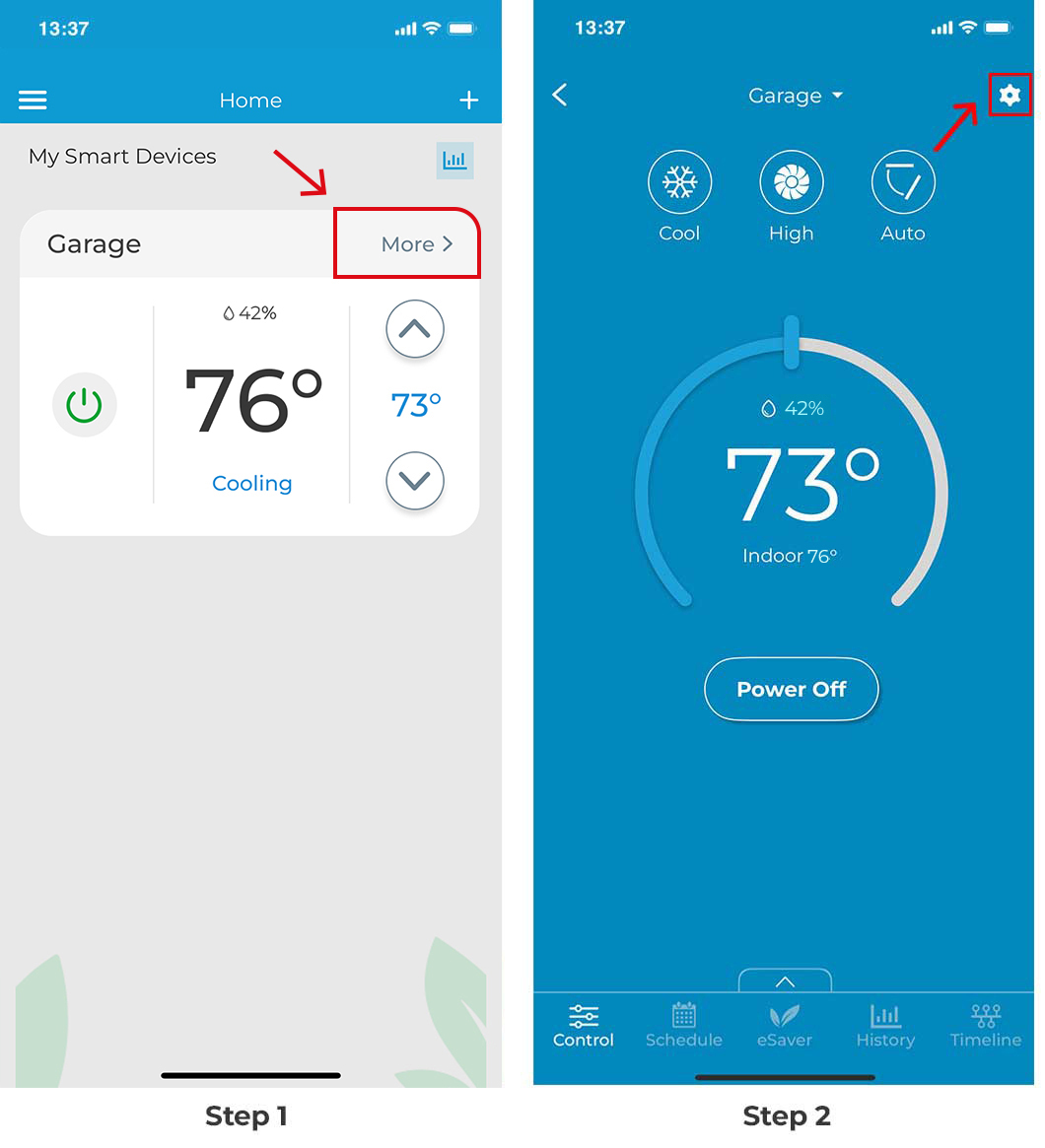

Step 1: On the Home screen, tap 'More' to access additional settings.

Step 2: Tap the 'Settings' on the top right.

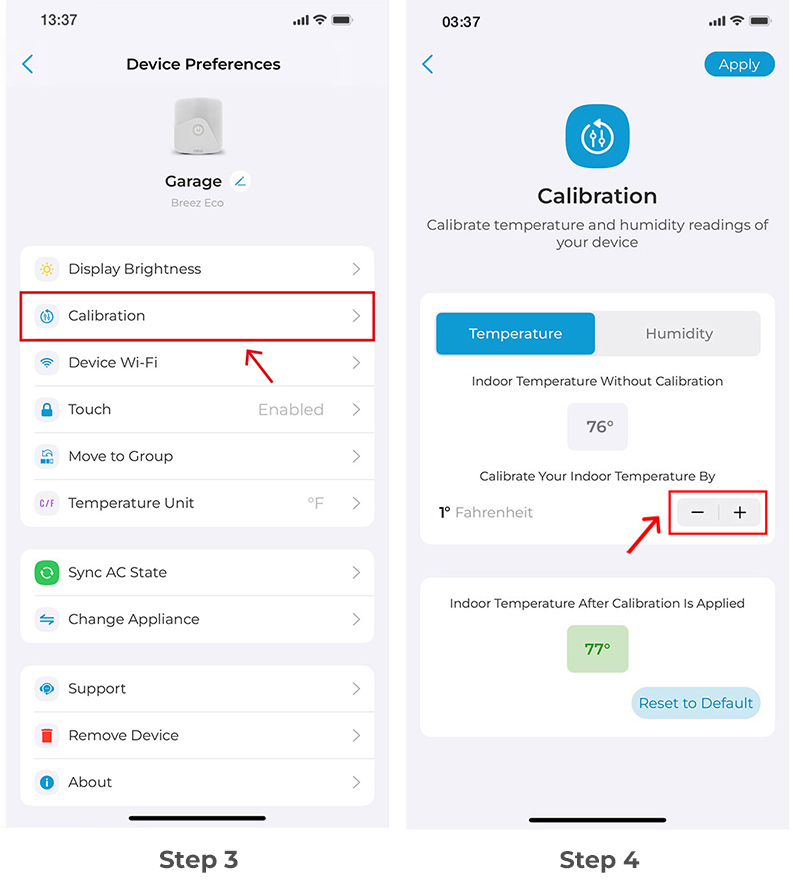

Step 3: Scroll down and tap on 'Calibration'.

Step 4: Calibrate the indoor temperature as required.

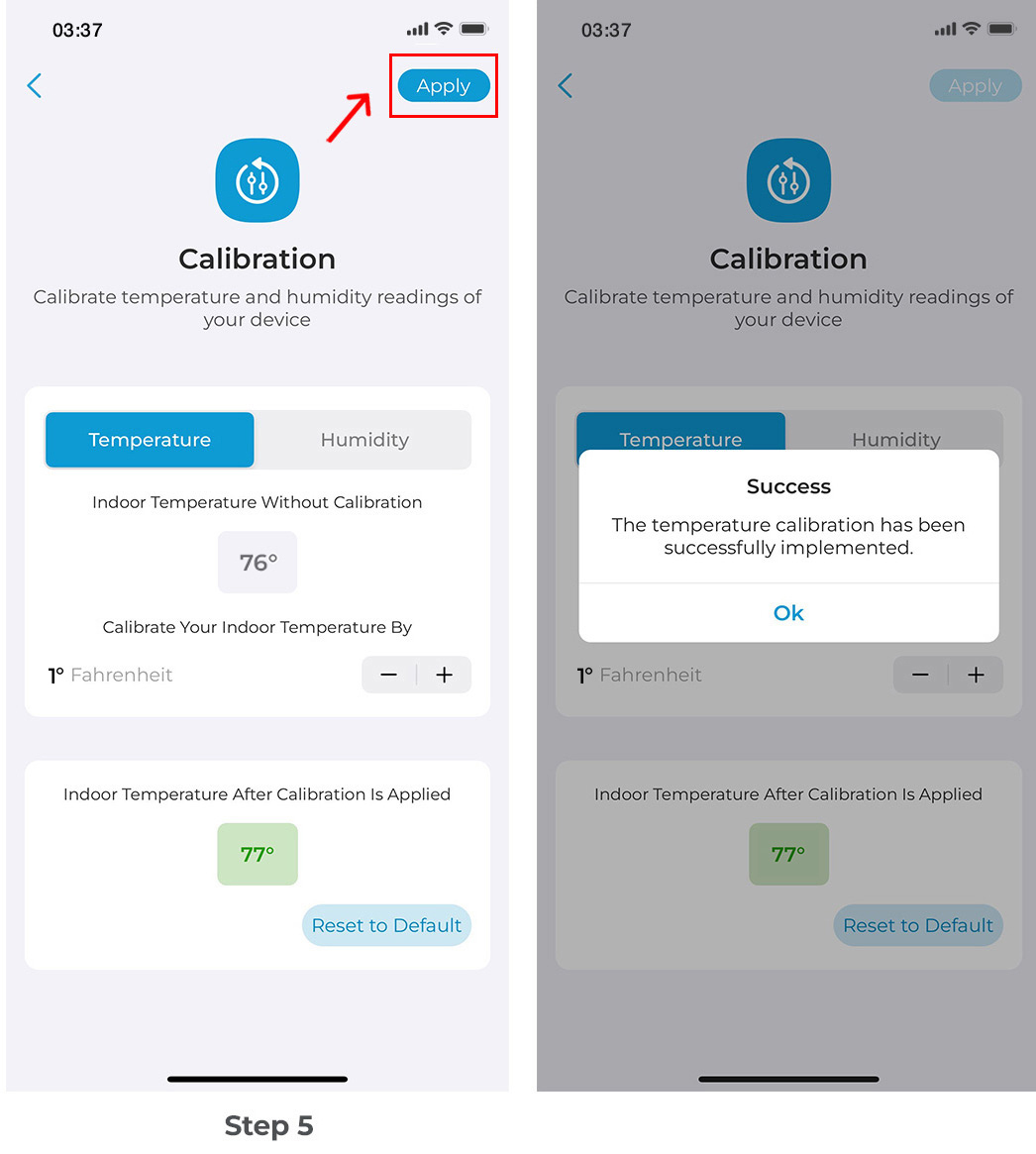

Step 5: Tap on 'Apply'. The Temperature sensor in Breez Eco has been successfully calibrated.

Calibrate Room Humidity

Calibration allows you to adjust the readings so that they closely match the actual room humidity.

Step 1: On the Home screen, tap 'More' to access additional settings.

Step 2: Tap on the ‘Settings’ icon on the top right.

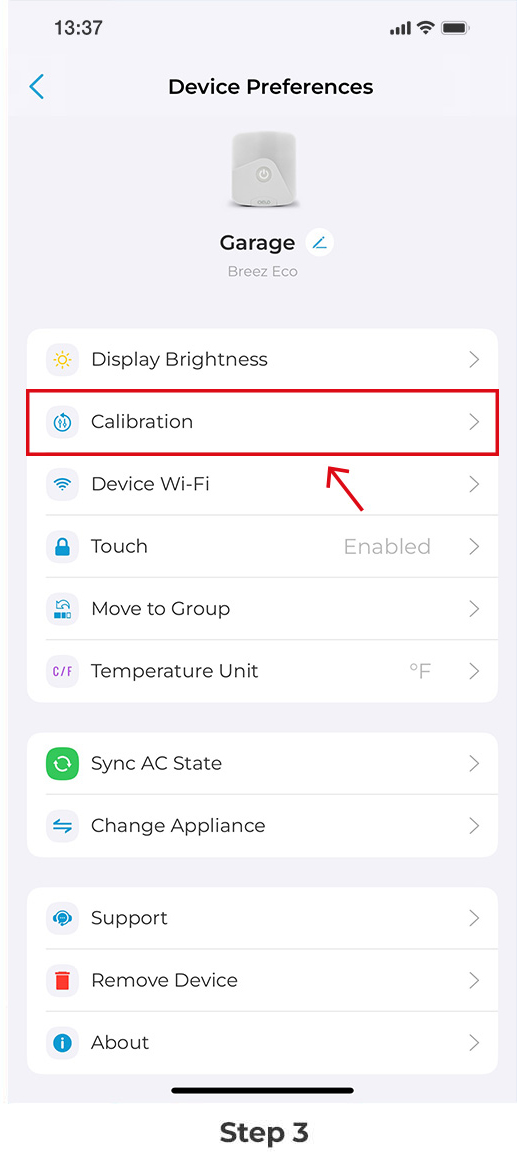

Step 3: Tap on ‘Calibration ‘.

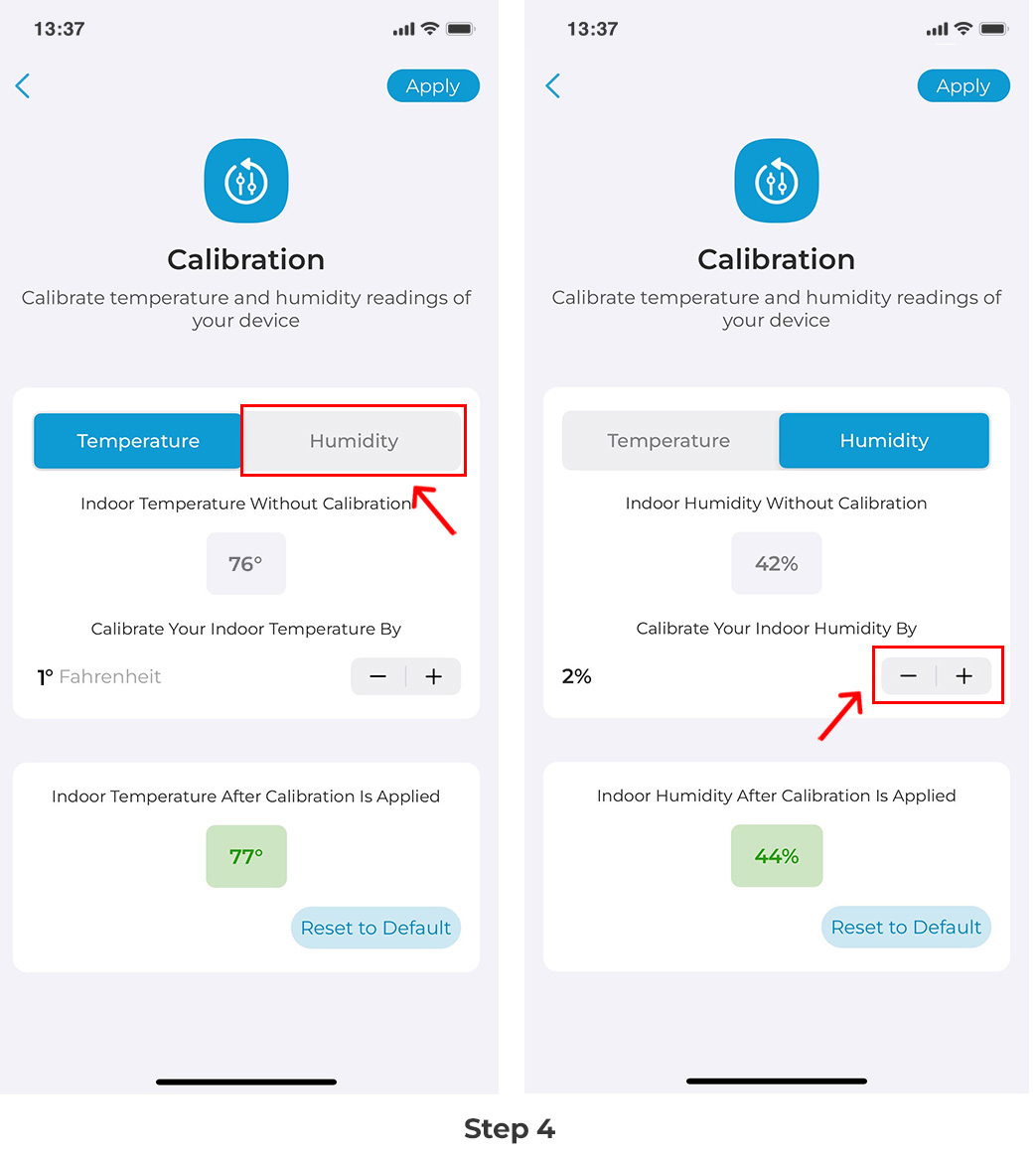

Step 4: Tap on 'Humidity'. Calibrate the indoor humidity as required

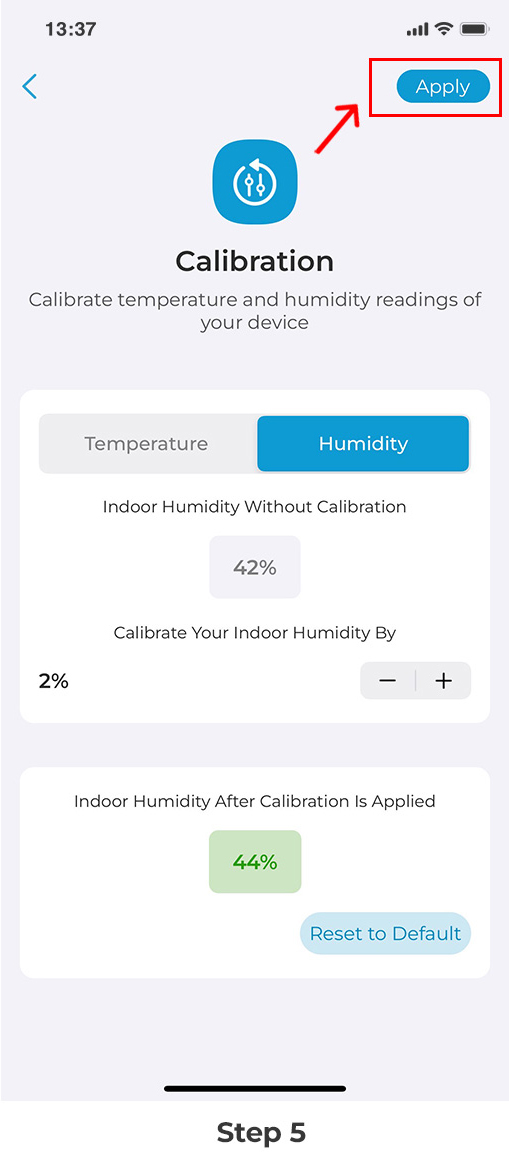

Step 5: Tap on 'Apply'. The humidity sensor in Breez Eco has now been calibrated.

Note: You can calibrate humidity by up to ±10% in either direction.

Changing Device Wi-Fi

Step 1: On the Home screen, tap 'More' to access additional settings.

Step 2: Tap on the ‘Settings’ icon on the top right.

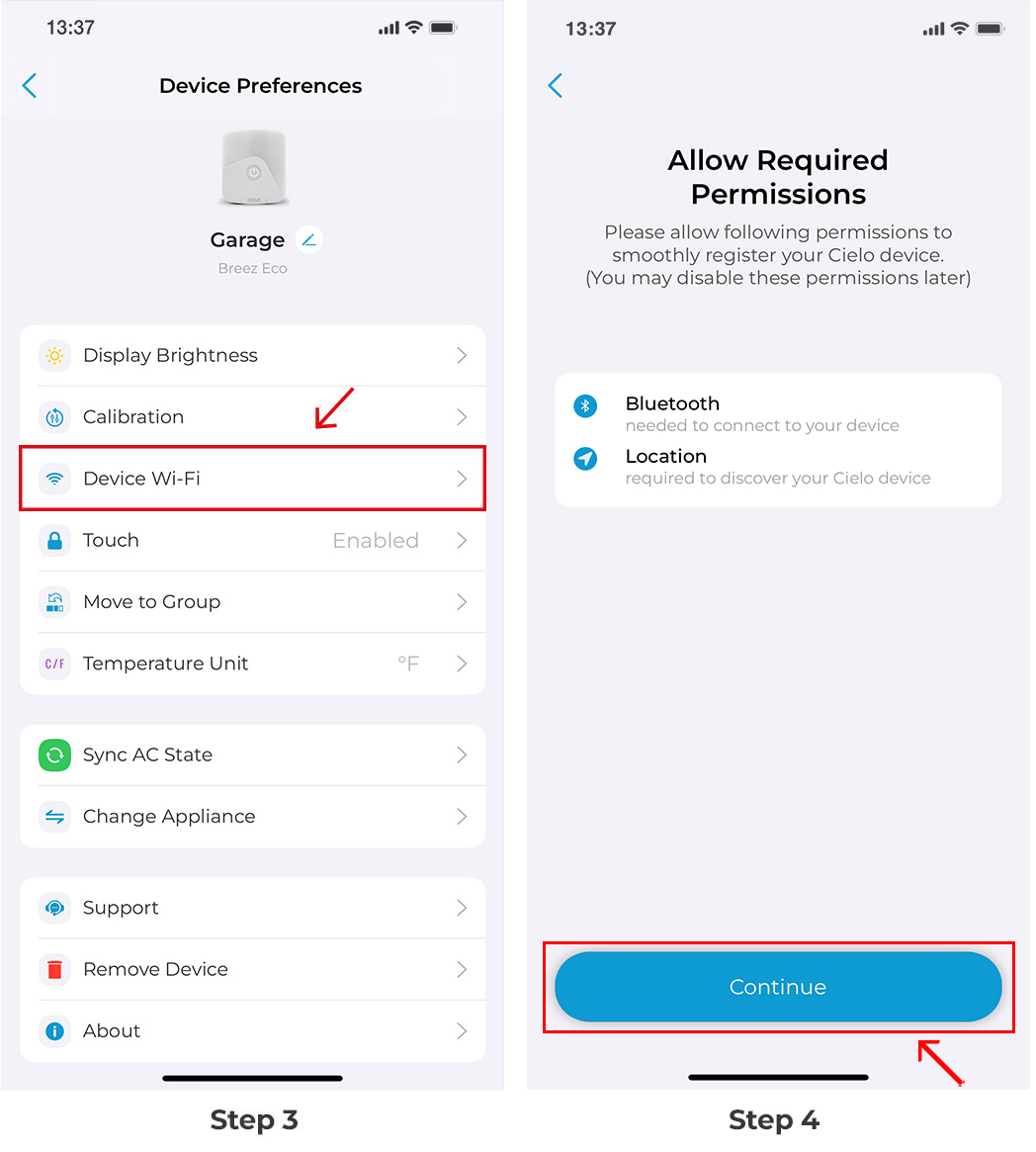

Step 3: Tap on ‘Device Wi-Fi’.

Step 4: Allow the required permissions. Tap ‘Continue’.

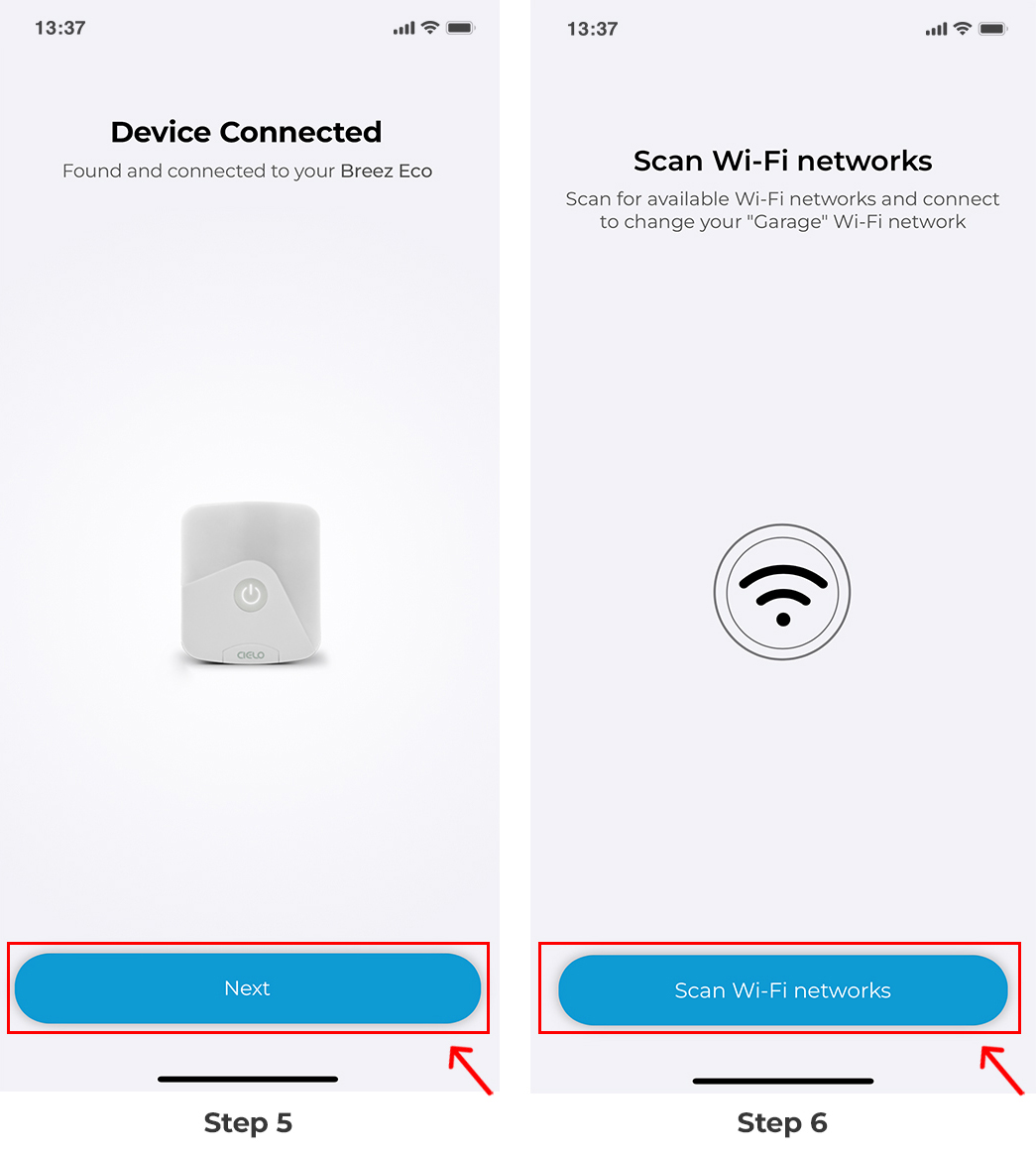

Step 5: It will start searching for your device. Once the device is connected, tap, ‘Next.’

Step 6: Tap on ‘Scan Wi-Fi’.

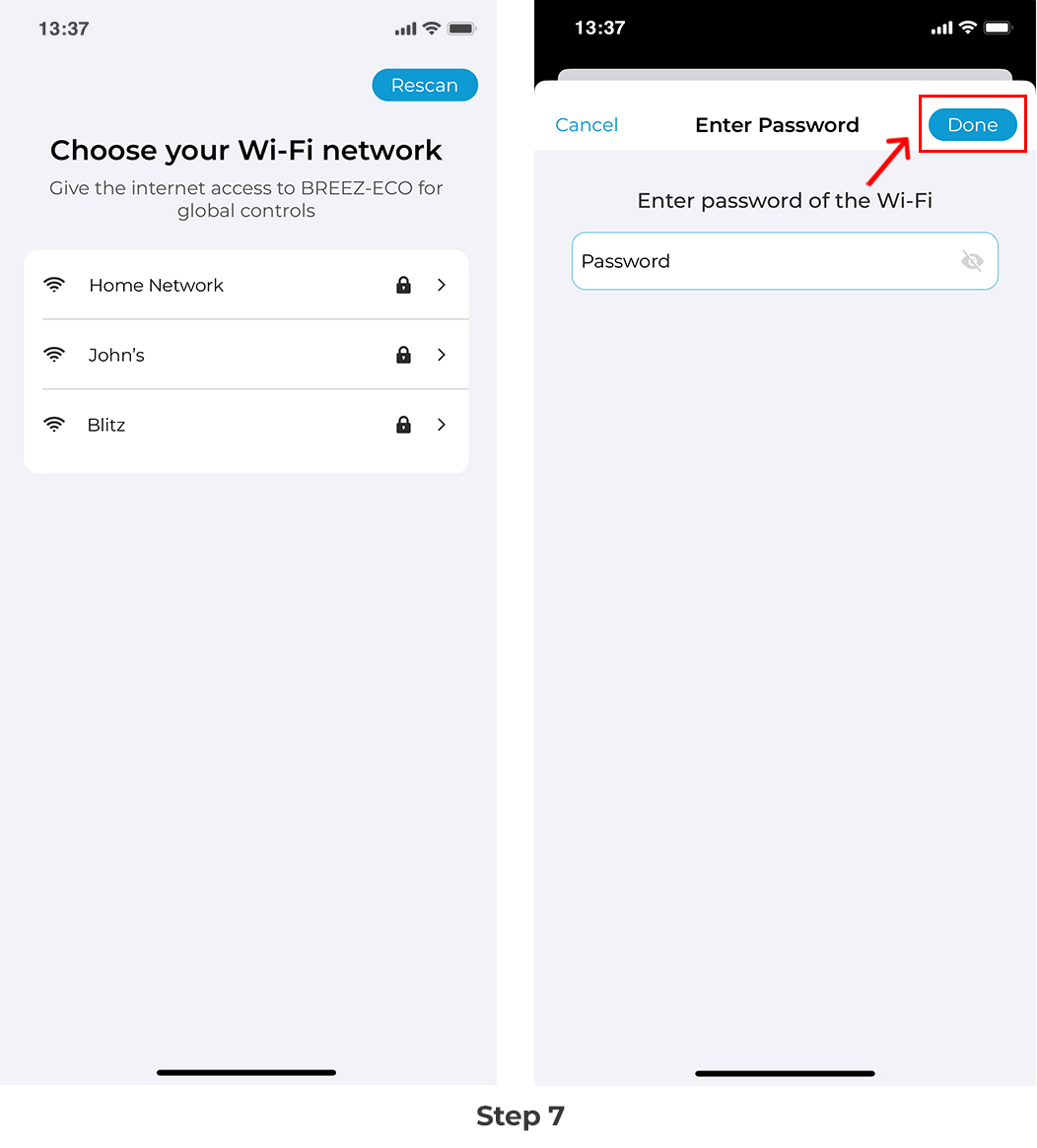

Step 7: Select your intended Wi-Fi network.  Enter the password. Tap on 'Connect'.

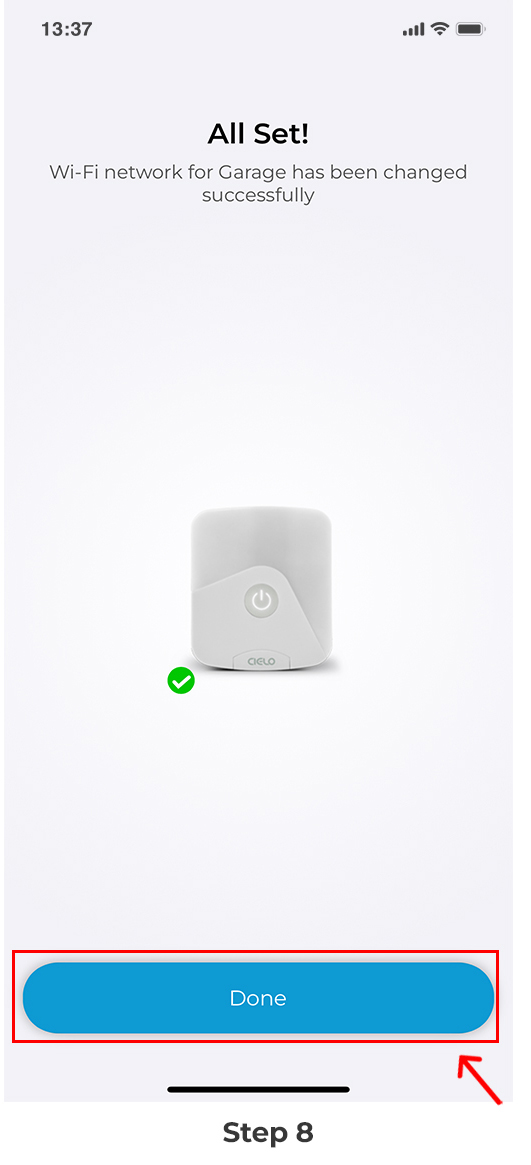

Step 8: The device Wi-Fi is now changed.

Enable or disable the touch function on the device

Step 1: On the Home screen, tap 'More' to access additional settings.

Step 2: Tap on the ‘Settings’ icon on the top right.

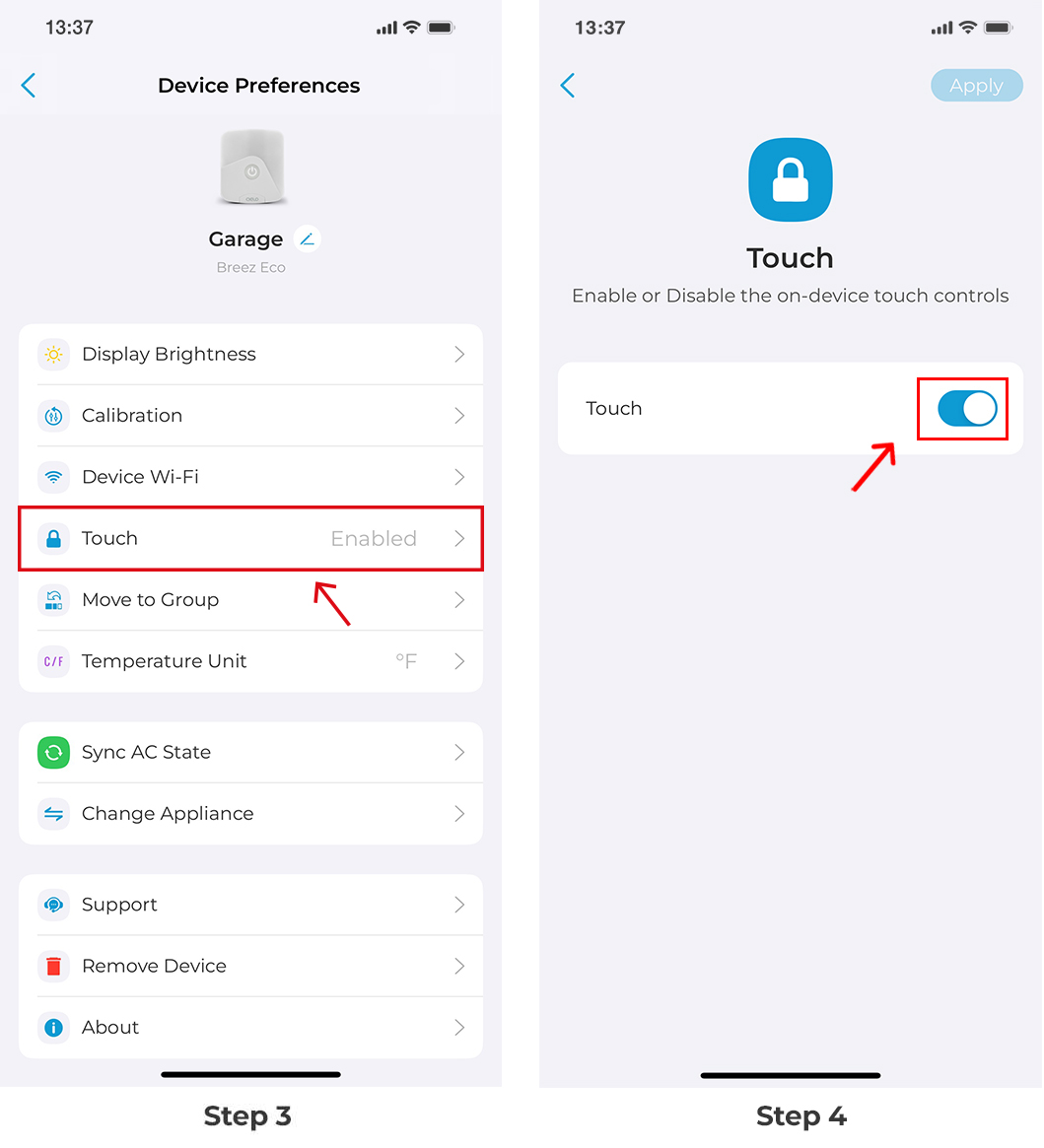

Step 3: Tap on 'Touch'.

Step 4: You can now enable or disable the device power touch control.

Group Settings

A group will allow you to control all your registered devices together with a simple tap.

Creating a Group

To create a Group in the Cielo Home app, follow these steps:

Step 1: On the Home screen, tap 'More' to access additional settings.

Step 2: Tap on the ‘Settings’ icon on the top right.

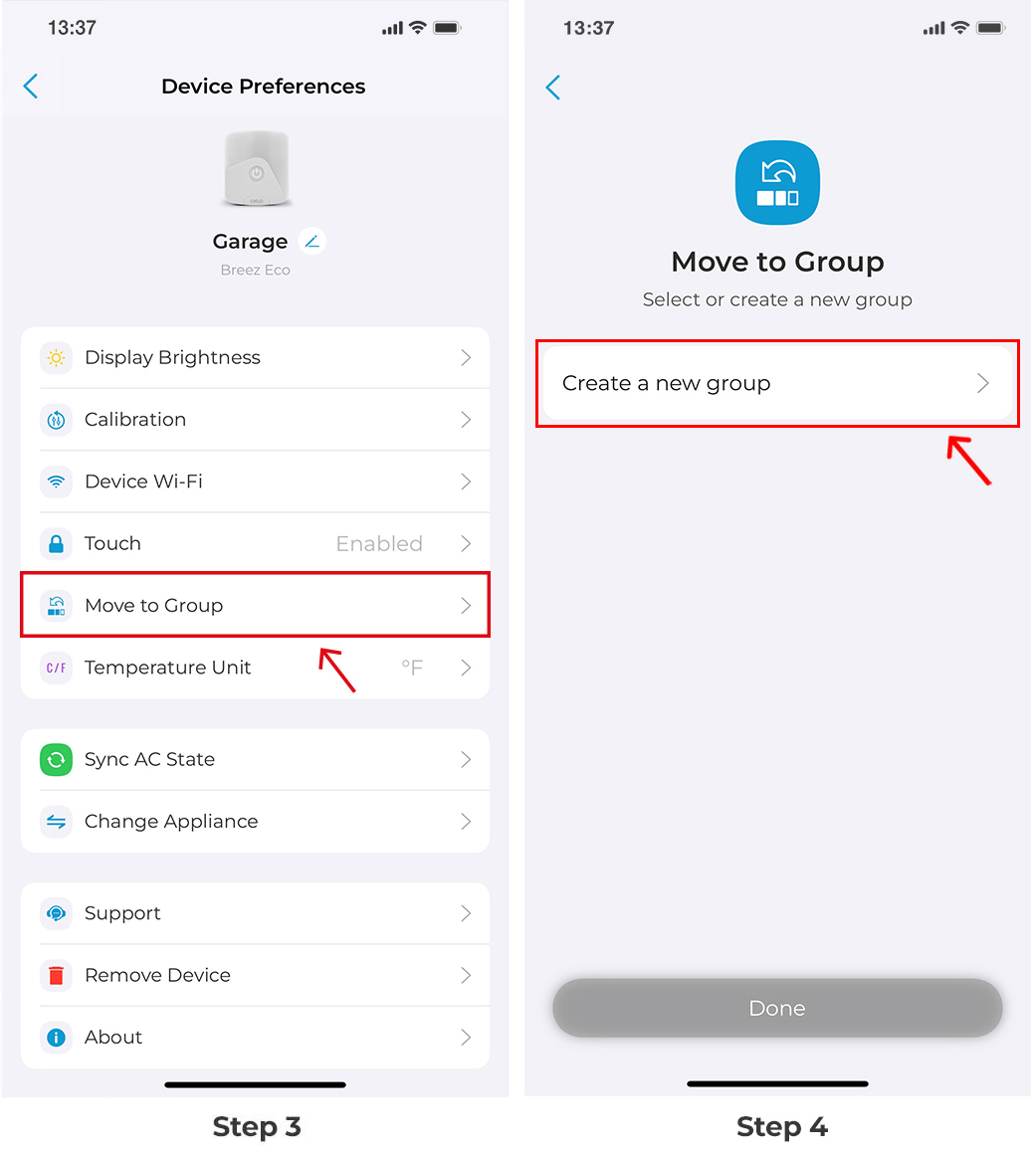

Step 3: Tap on ‘Move to Group.

Step 4: Tap on Create a new group.

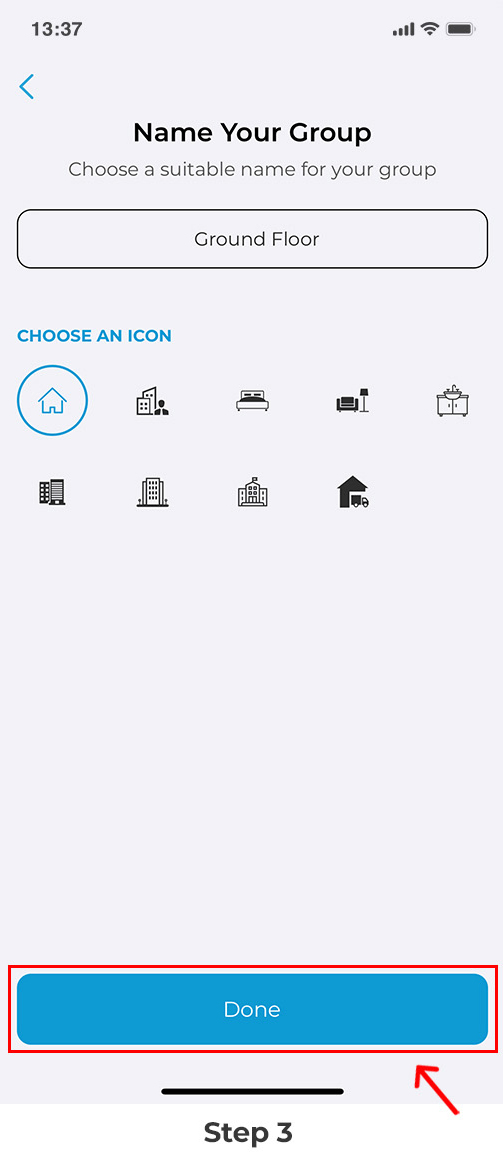

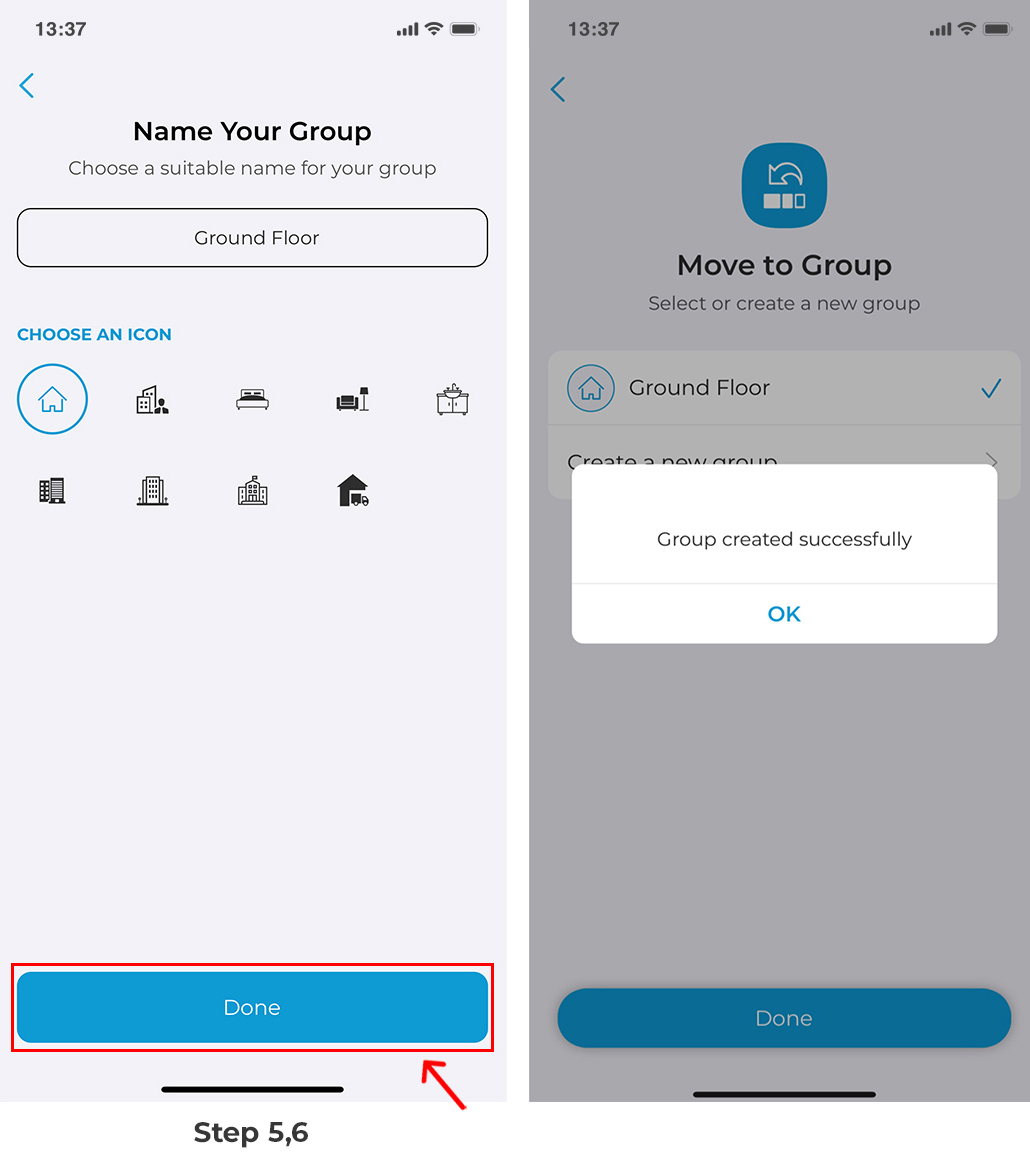

Step 5: Give your group a name (e.g. Ground floor, first floor, basement, etc.). Choose an icon.

Step 6: Tap on ‘Done’. Group is created successfully.

Adding a Device to a Group

Step 1: On the Home screen, tap 'More' to access additional settings.

Step 2: Tap on the ‘Settings’ icon on the top right.

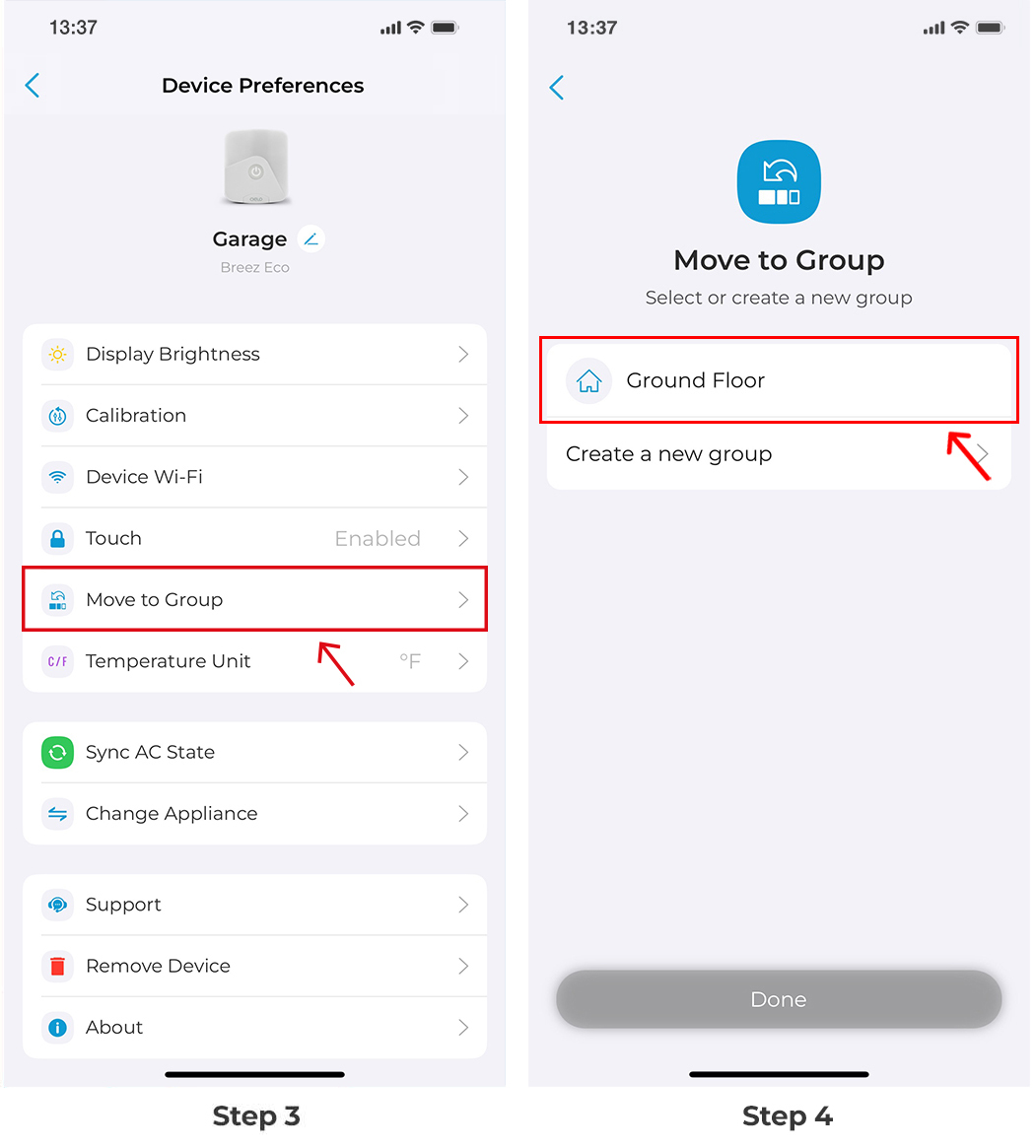

Step 3: Tap on ‘Move to Group.

Step 4: On the Group screen, you will see a list of all of your active groups. Tap on the group you wish to move the device to.

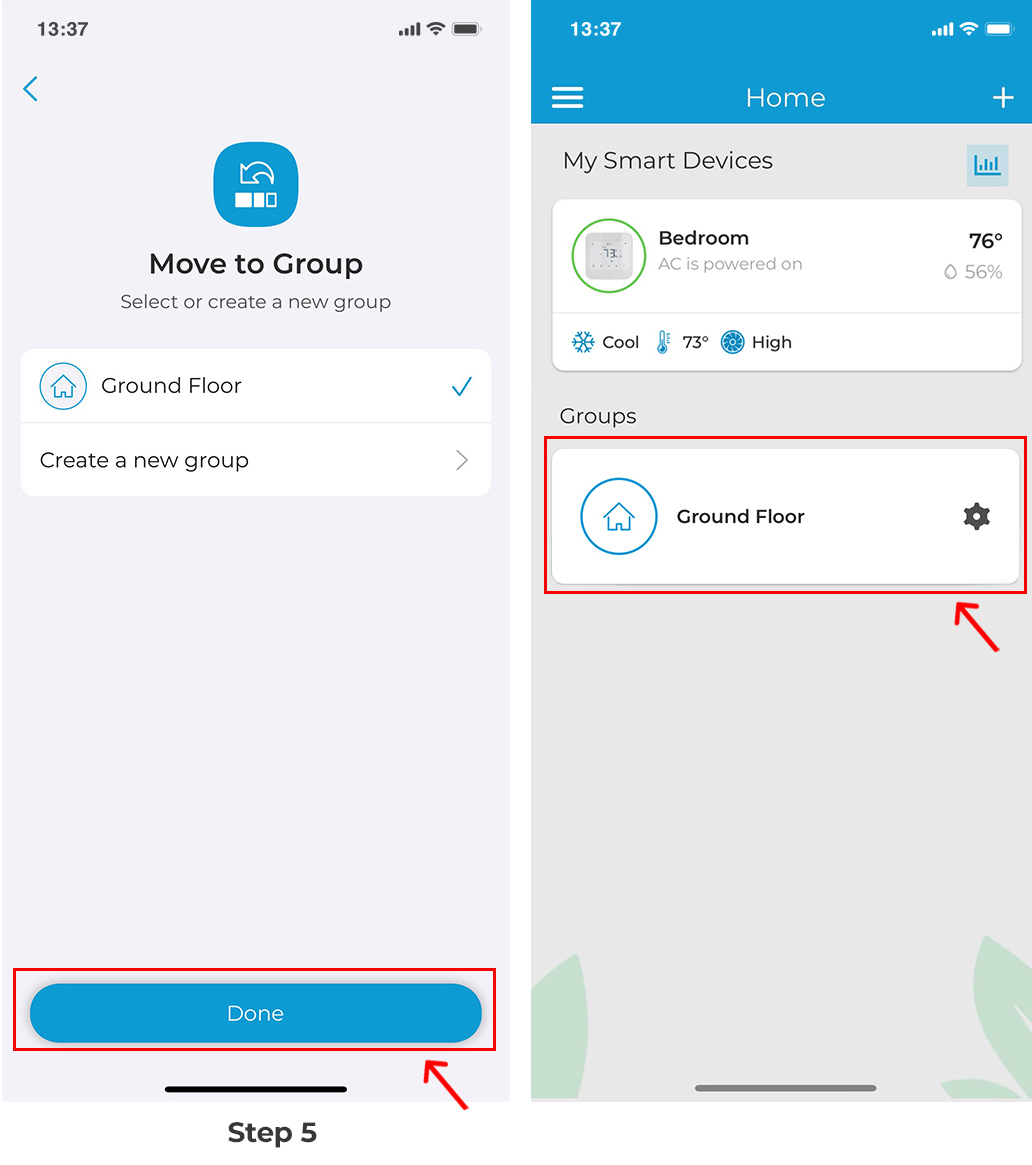

Step 5: You will see a check mark next to the group name. Tap on ‘Done’.

On the Home screen, you will see a separate ‘Groups’ tab. You can tap on the group to see all your devices in that group.

Removing a Device from a Group

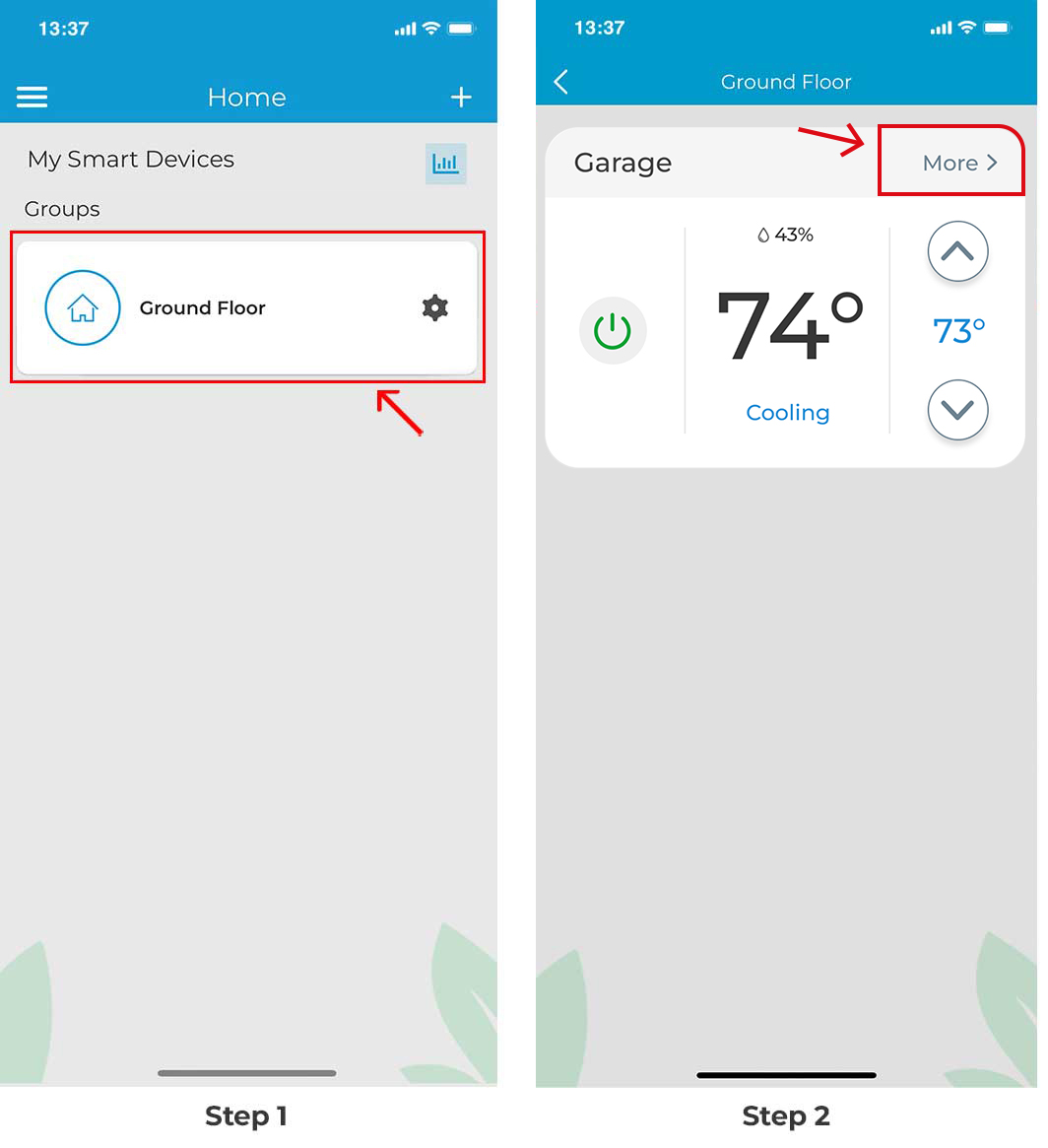

Step 1: On the Home Screen, go to the ‘Groups’ section and select your created group.

Step 2: Tap 'More' to access additional settings.

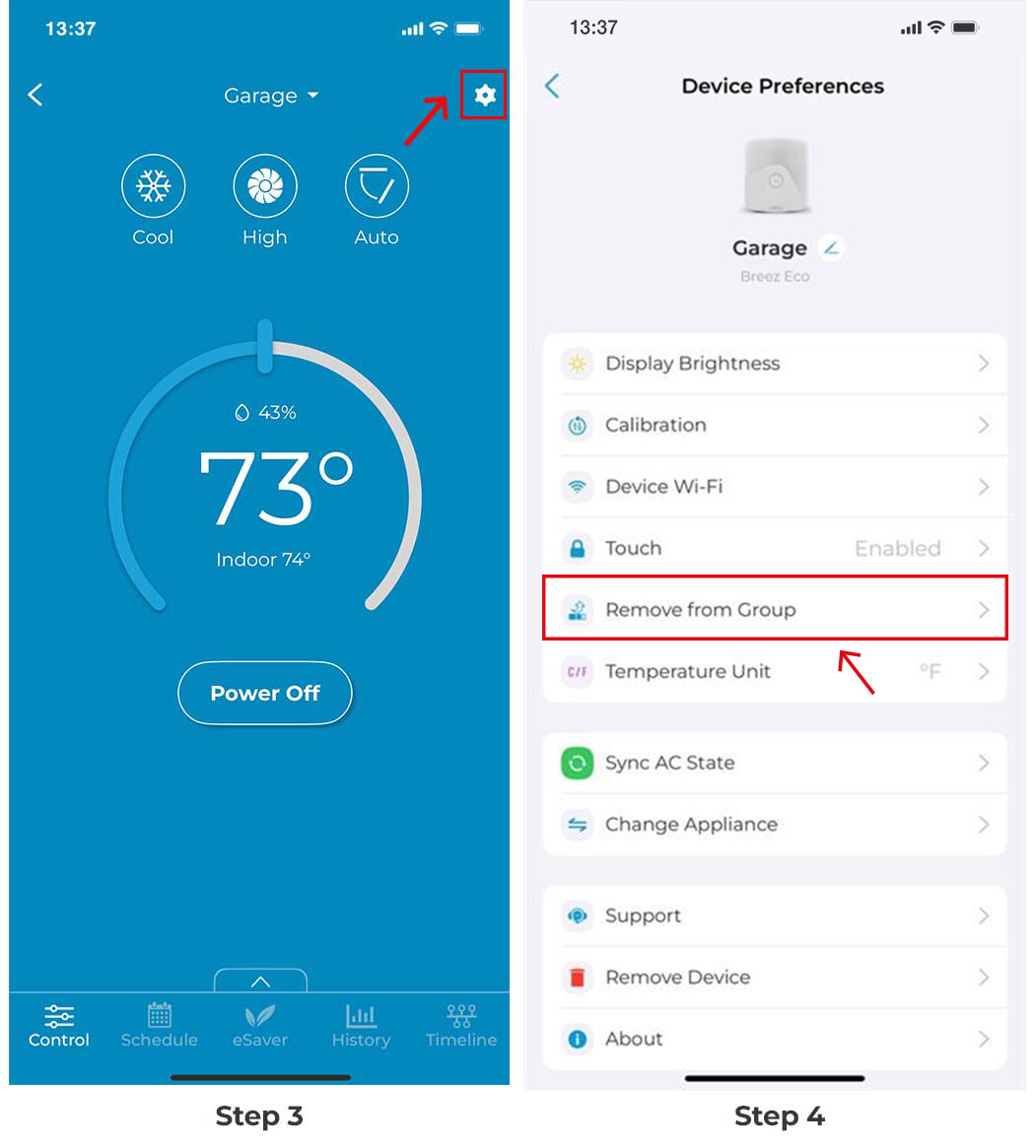

Step 3: Go to the ‘Settings’ on the top right.

Step 4: Tap on ‘Remove from Group.’

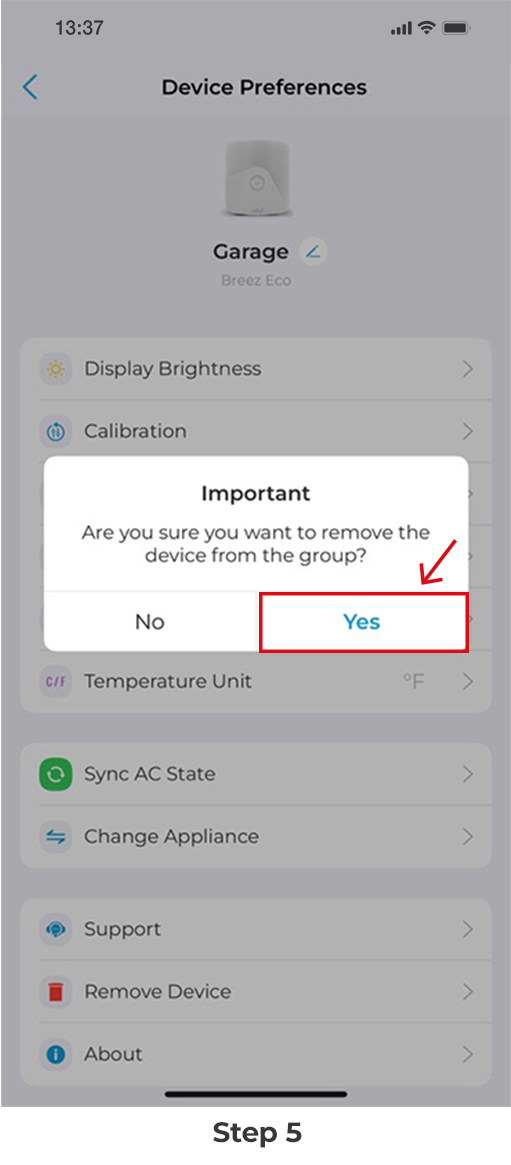

Step 5: Tap on ‘Yes’. Device will be removed from the group.
