User Manual (Screenless Remote)



Step 1A: Unpacking & plugging in

For best results, connect Cielo Breez Eco Smart Wi-Fi Controller with the provided USB cable and adapter. Mount your Breez Eco on a wall or place it on a table in AC's line of sight and plug it into a power source.

For optimal placement and control:

• Place Breez Eco around 6½ –13 feet (2 – 4 meters) away and in the line of sight of your air conditioner or heat pump.
• To avoid deviated sensor readings, do not place Breez Eco where it may be exposed to excessive sunlight or other heat sources.

Special Note: It is strongly advised that whenever there is a need to use remote control for AC/Heat Pump, point it towards Breez Eco while performing any action. This way, your AC/Heat Pump and Cielo Home App will always be in sync.

Step 1B: Prior to app installation

Your Smart Phone

• Make sure your smart phone’s Wi-Fi is turned ON.
• Make sure your smart phone has internet access.

 Your Wi-Fi Router

• Make sure you have working internet connection on your Wi-Fi router.
• Make sure there is no proxy server or authentication server configured on your internet connection.
• Make sure there is no captive portal on your Wi-Fi router.

Important: Make sure IP isolation or client isolation is turned OFF on your Wi-Fi router.

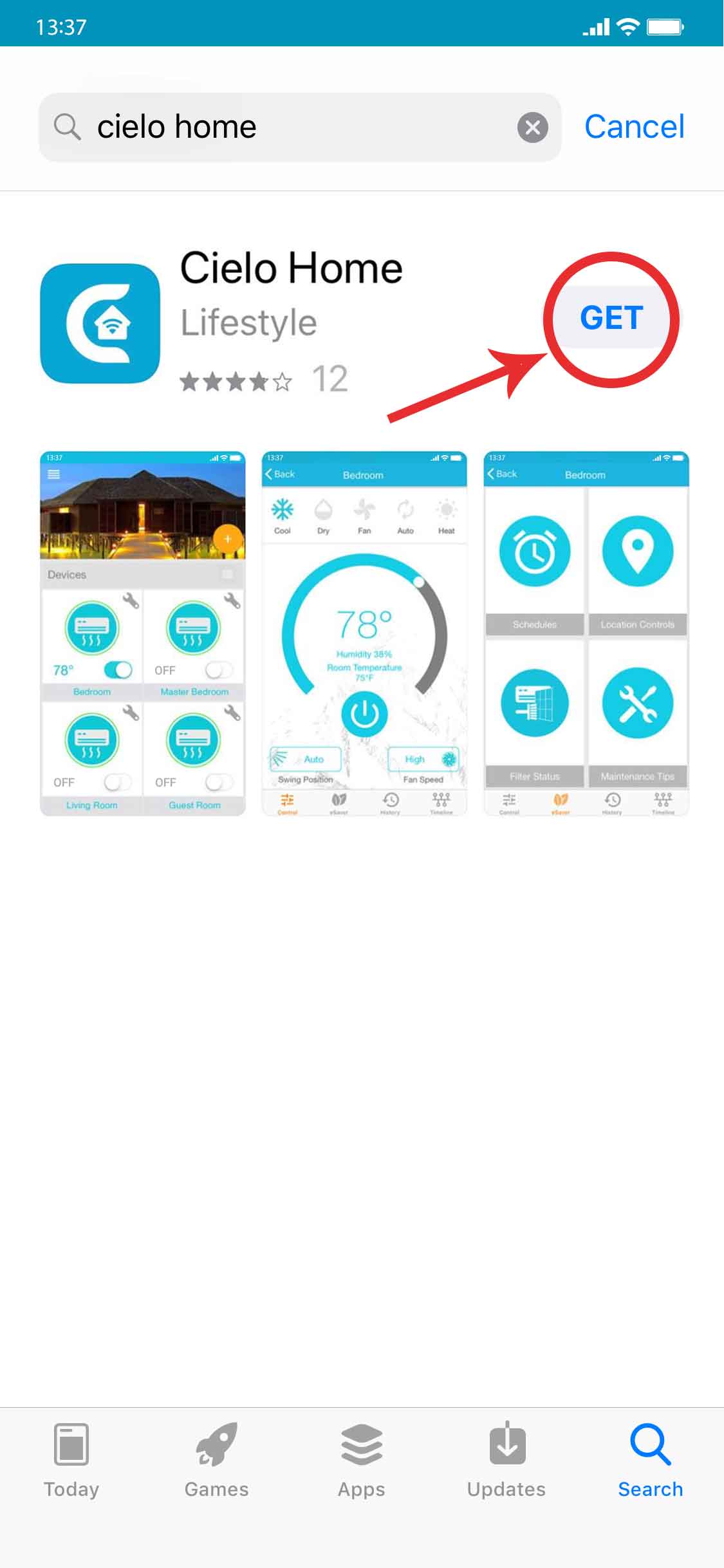

Step 2A: App installation

• Go to the App Store / Play Store.
• In ‘search’ section type ‘Cielo Home’.
• Once ‘Cielo Home’ App is displayed, tap the ‘GET’ button.
• Open the App after installation is complete.

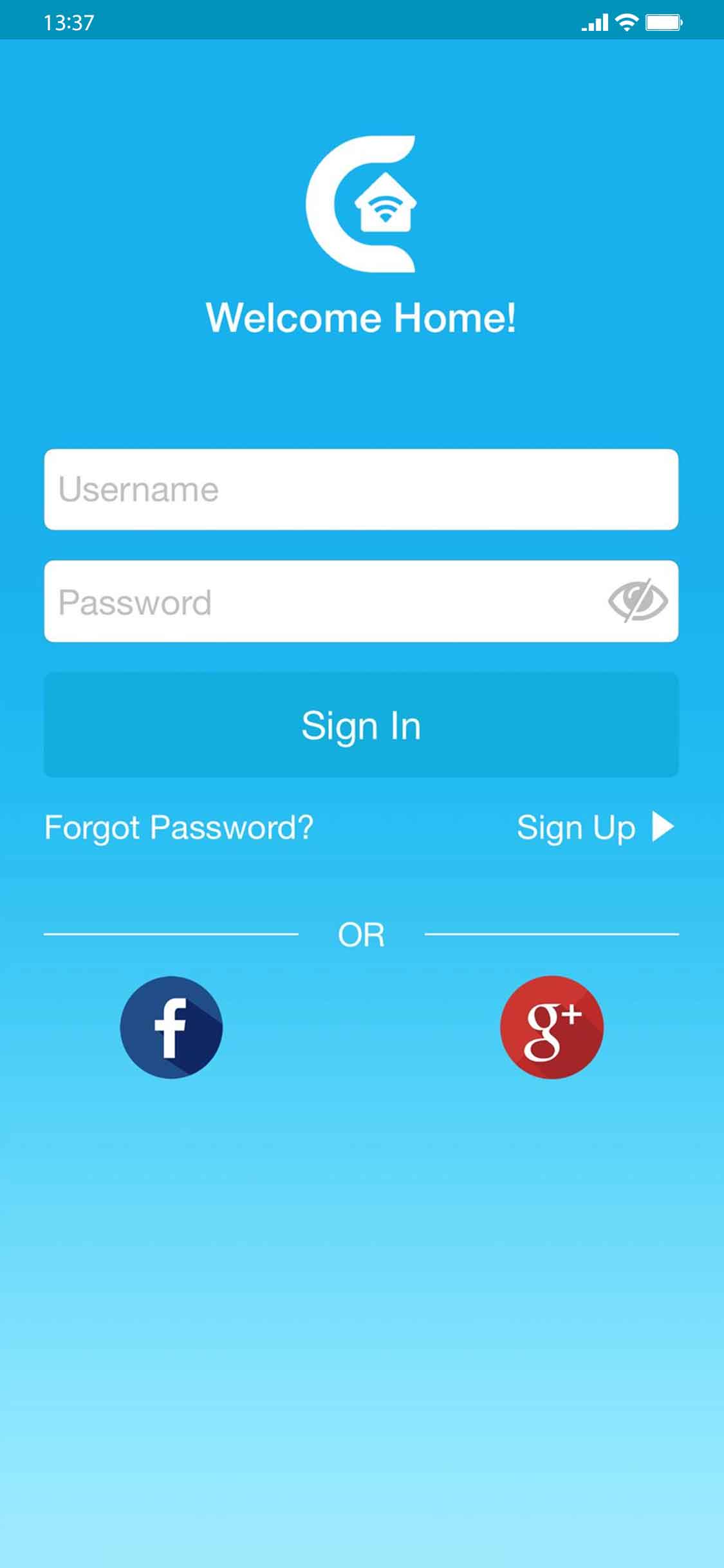

Step 2B: Login/Register

• Tap ‘Let’s Get Started’ button on the next screen.
• You can either create a new user account or login as an existing user.
• As an existing user, enter username and password and tap the ‘Sign In’ button.
• If you are a new user, tap the ‘Sign Up’ button and fill in the information.

Step 3: Registration

Note: Registration process is meant to connect the Breez Eco to your home Wi-Fi network through the ‘Cielo Home’ App.

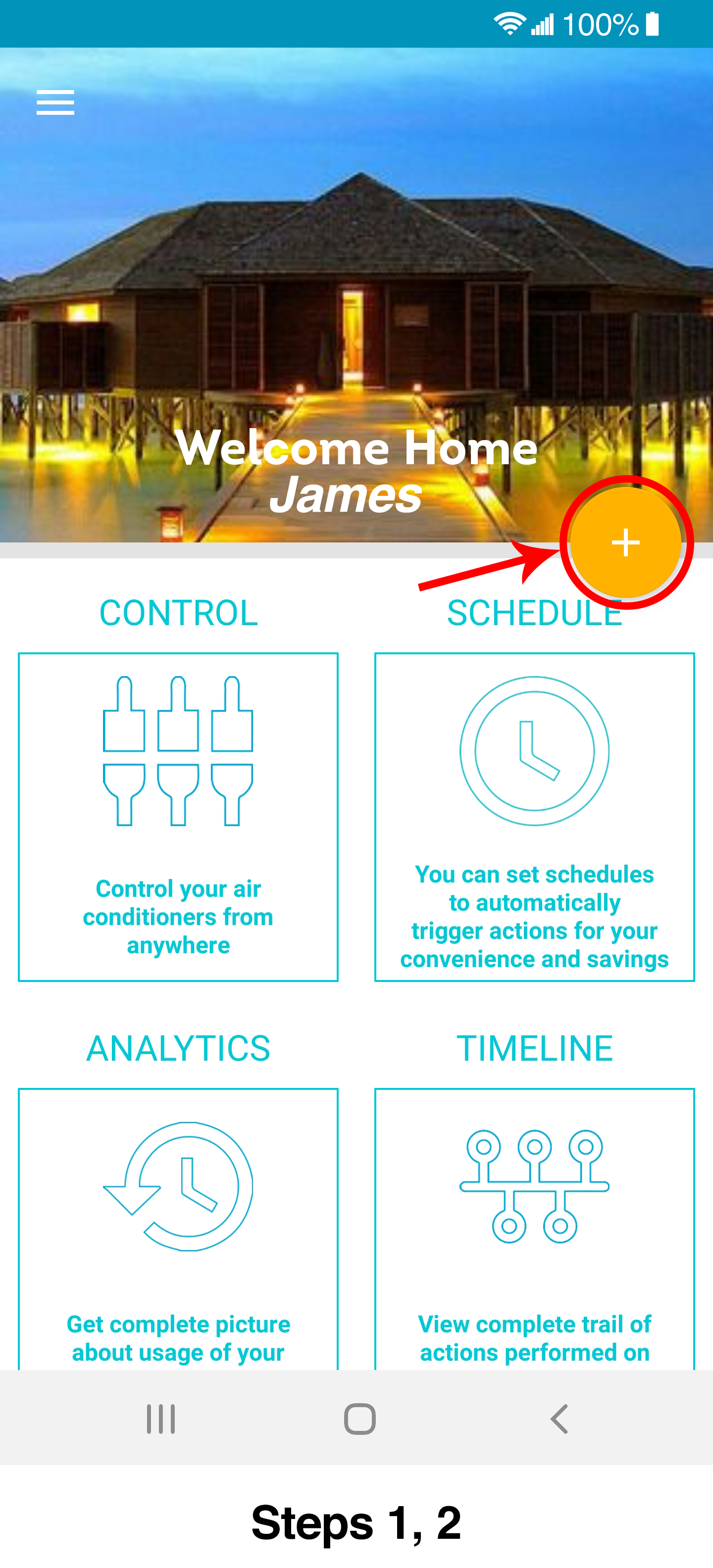

Step 1: After successful login, you are at the home screen.

Step 2: Tap the ‘+’ button as shown in the red circle.

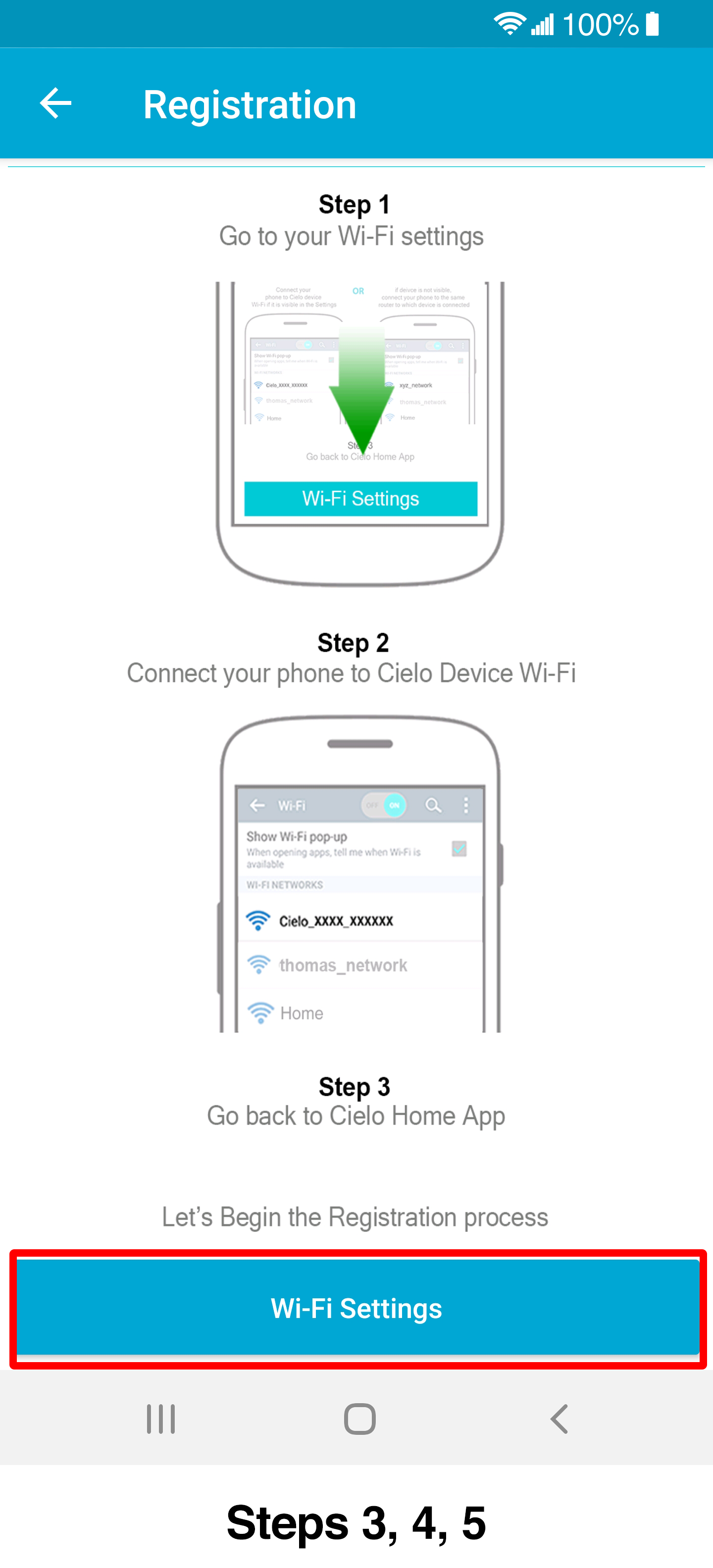

Step 3: Tap the ‘Wi-Fi Settings’ button as shown in red rectangle.

Step 4: Connect your phone to Cielo Device Wi-Fi (Cielo_xxxx_xxxxxx).

Step 5: Go back to ‘Cielo Home’ App.

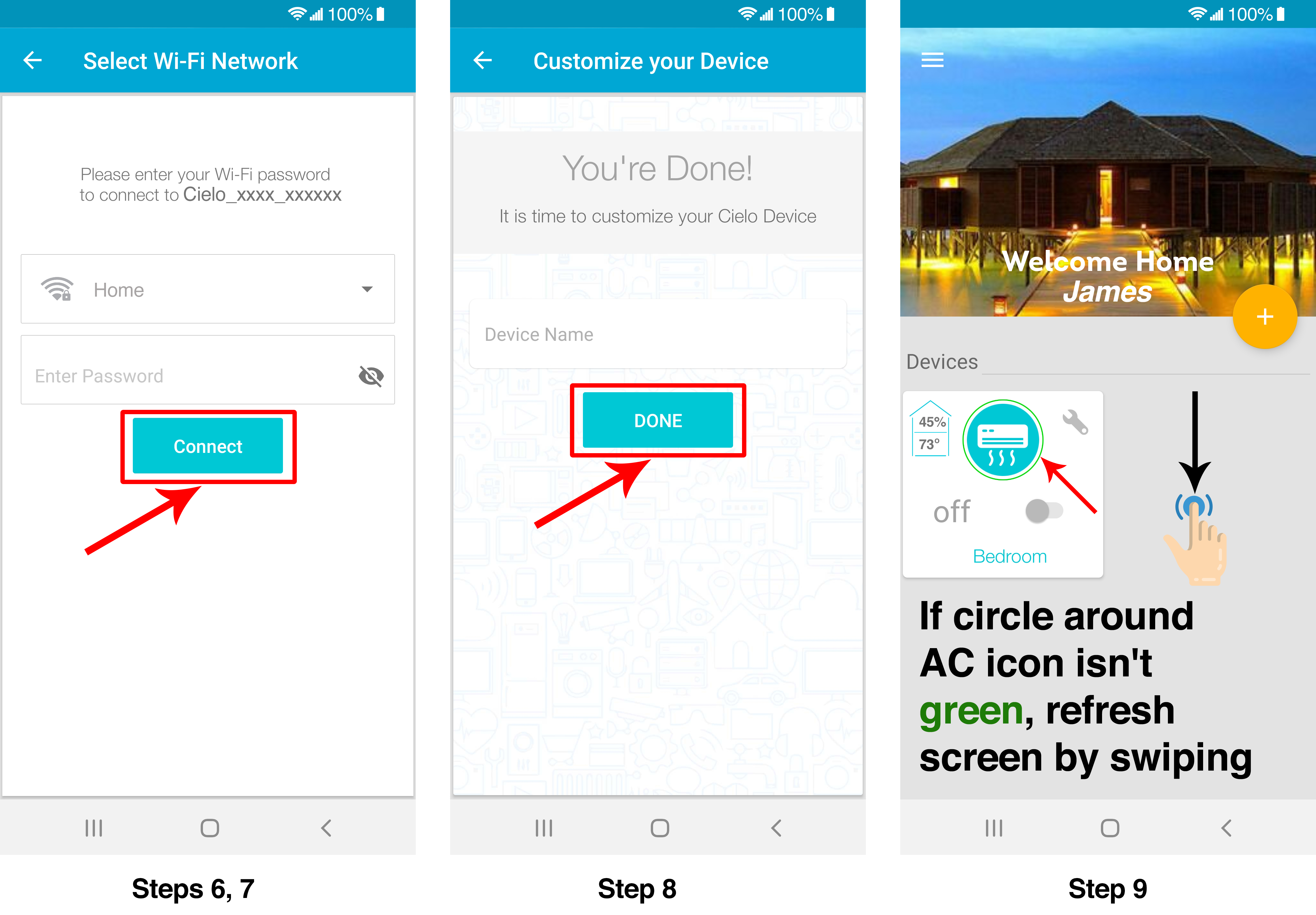

Step 6: Select your Wi-Fi from the list (there should be No captive portal or port blocking on your selected network).

Step 7: Enter the password of your Wi-Fi network and tap the ‘Connect’ button.

Step 8: Customize your device with a name of your choice (for example, Bedroom, Lounge, Office, etc.) and tap on ‘Done’.

Step 9: If the circle around AC icon is not green please refresh the home screen by swiping downwards (Pull-to-refresh).

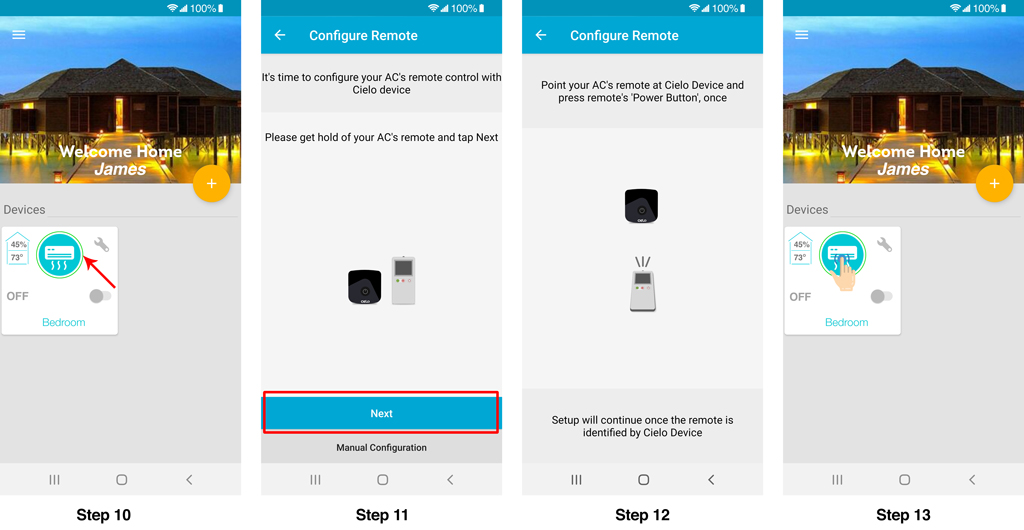

Step 10: Once the circle around AC icon is green, tap on it to start AC’s remote control configuration process.

Step 11: Get hold of your AC’s remote and tap ‘Next’.

Step 12: Point your AC's remote at Cielo Device and press remote’s 'Power Button' once. It will start processing & configuration.

Step 13: After configuration you are directed to Home Screen, tap on AC icon to enter control screen.

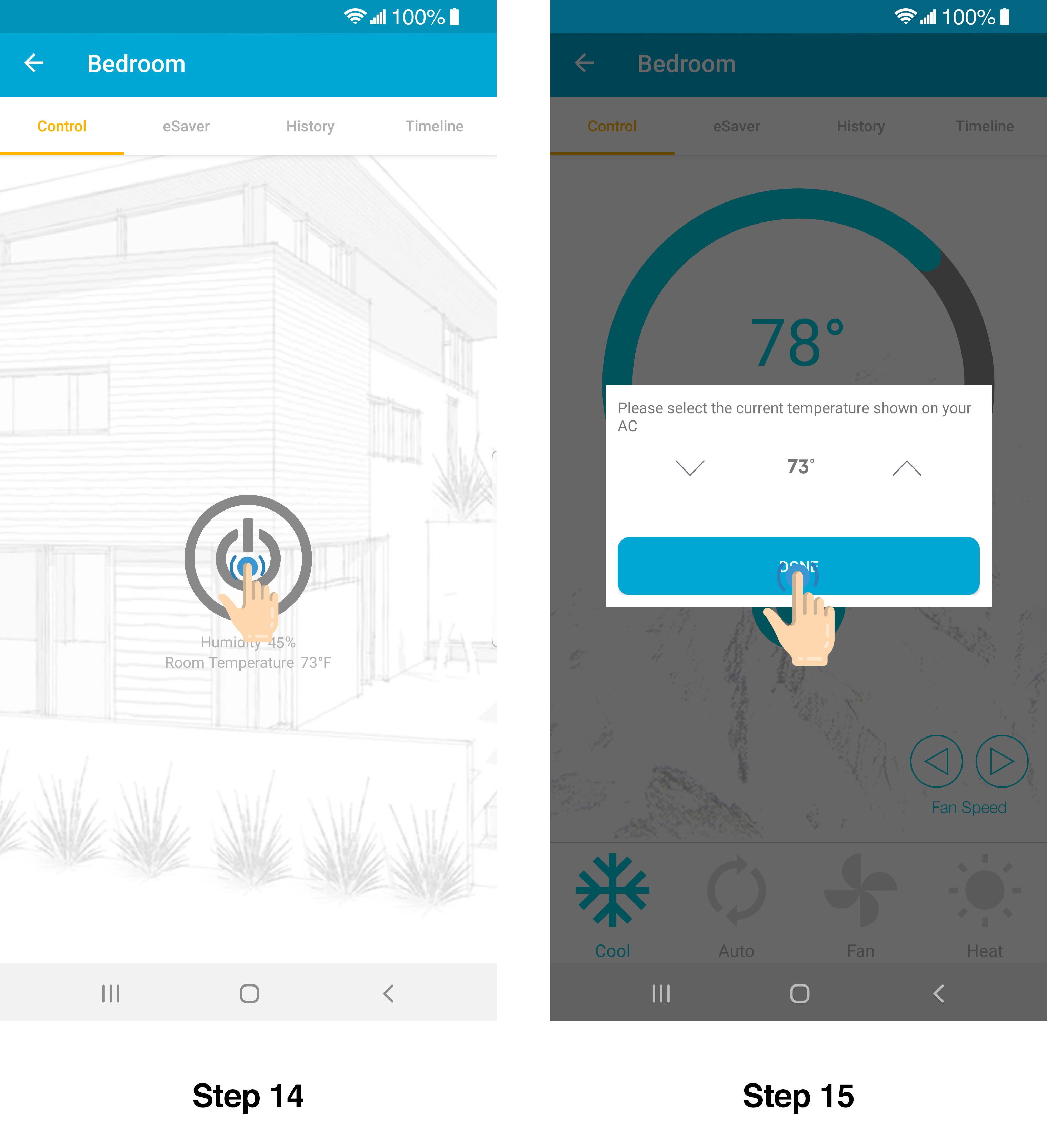

Step 14: Tap the 'Power' button on your control screen.

Step 15: On the popup window select the current temperature shown on your AC & tap on 'Done'.

Registration process is complete. Enjoy the unlimited controls!

Quick Tip: All four buttons at the bottom of Breez Eco will blink once at the same time after receiving the remote control's signal. If they do not blink, please check the batteries of remote control.

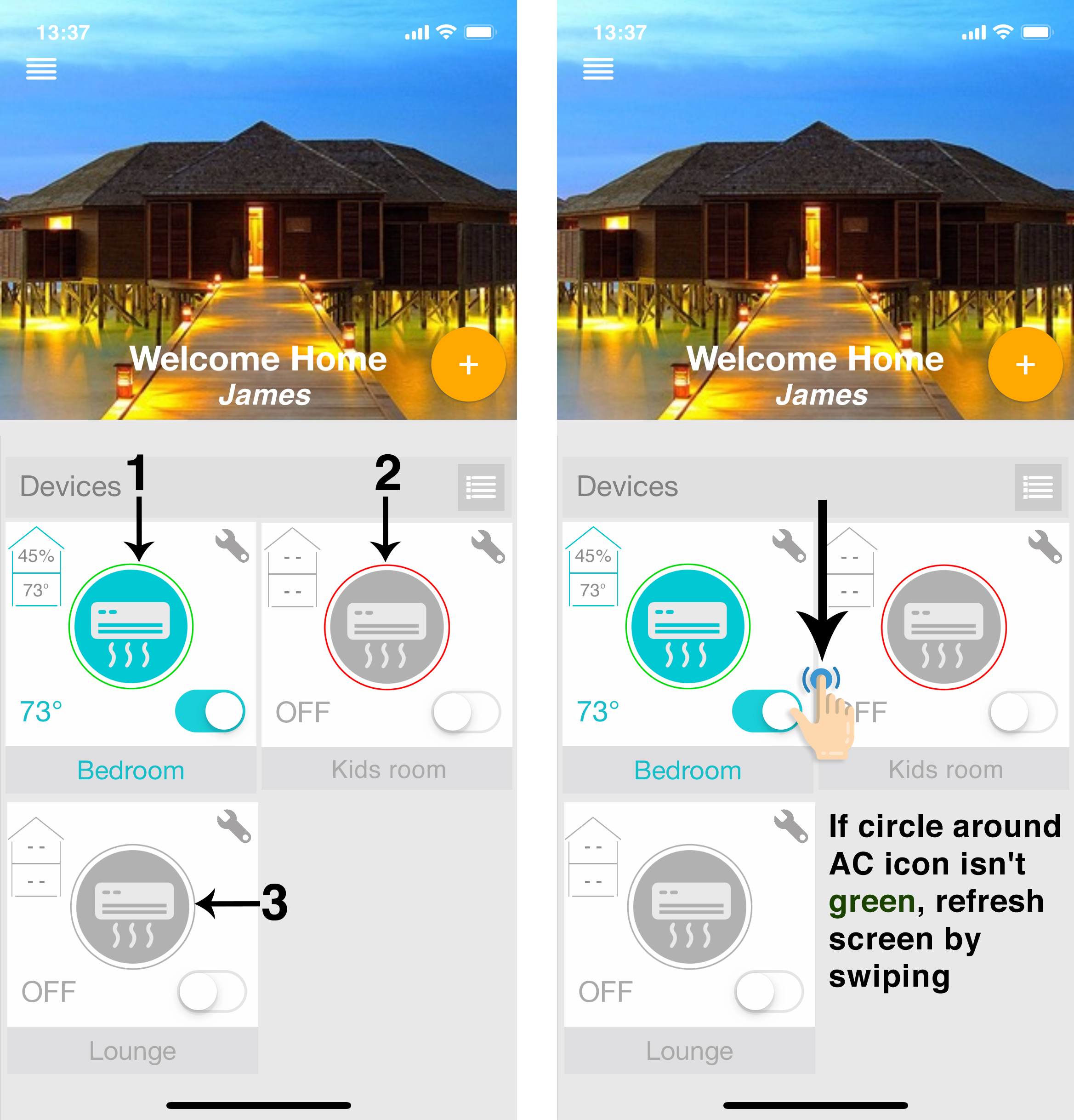

Your home screen

Your home screen shows the real time status of all your Cielo Devices.

A registered Cielo Device can show either of the 3 status, outlined in circles:

1 - Green - Device is online. You’re good to go!

2 - Red - Device is offline. (try following options)

- Ensure your phone is connected to a working internet connection.

- Refresh home screen by swiping downwards (Pull-to-refresh).

- Ensure device is connected to a working internet connection.

3 - Grey - Device is offline. (try following options)

- Ensure your phone is connected to a working internet connection

- Refresh home screen by swiping downwards (Pull-to-refresh).

Enjoy the unlimited functionalities

Quick tip: Configuring the right remote control for your AC

Cielo Device auto detects relevant remote control for your AC during registration process. If it is not working with your AC, please select your remote model manually.

For manual selection, follow these steps:

1. Go to device settings by tapping 'wrench' symbol on the registered device.
2. Select 'Change Appliance'.
3. Select 'Manual Configuration'.
4. Select the 'Manufacturer' & 'Remote Control Model Number' of your AC from the drop down lists and tap 'Update'.

Step 4A: Setting up schedules for your heating and cooling

1. Setting up a schedule

You can schedule your Air-Conditioner / Heat Pump connected to Breez Eco by performing following steps on your Cielo Home app:

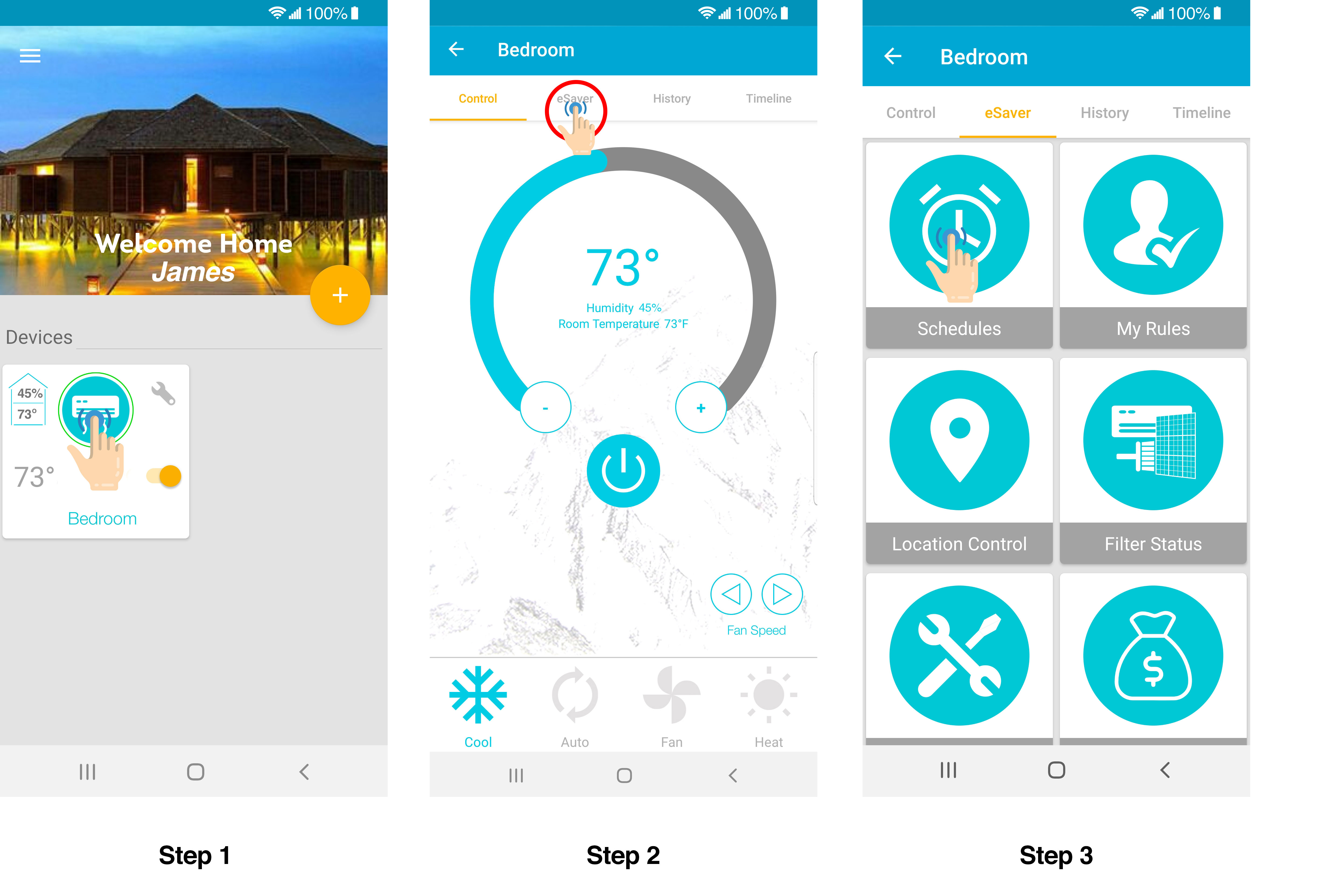

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to schedule.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on 'Schedule'.

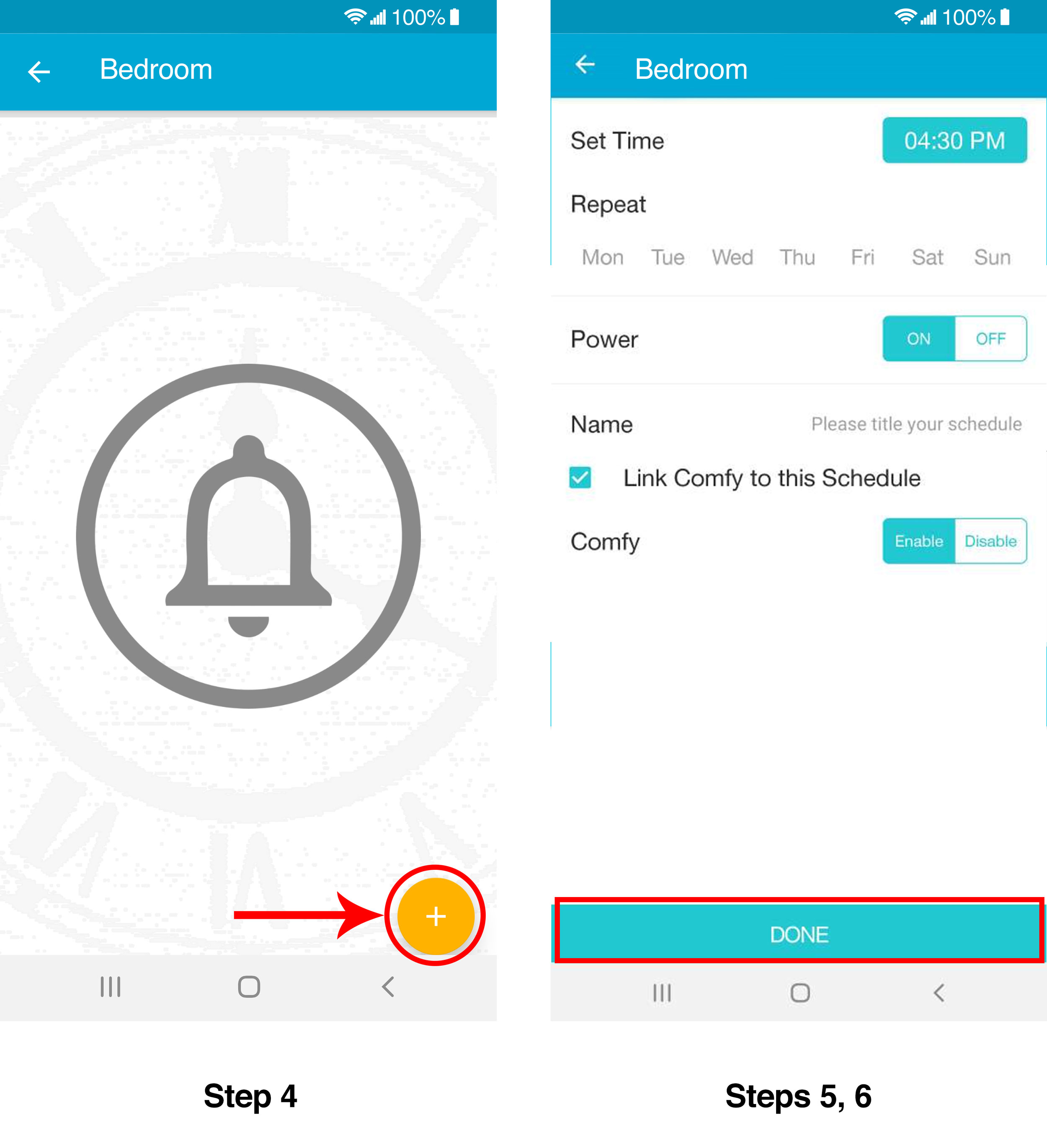

Step 4: Tap the ‘+‘ icon as shown in the red circle.

Step 5: If you want to turn the Air-Conditioner / Heat Pump ON/OFF via schedule, select the time,
            select power ON/OFF and select the day/days you want to set the schedule for. You may also
            choose the schedule name of your choice.

Step 6: Tap 'Done' to set-up the schedule. Once the device performs the schedule on your
            Air-Conditioner / Heat Pump you will get a notification in your app timeline.

Note: You can also link your Comfy Settings to execute within your Schedules and may also enable or
           disable them to your liking.

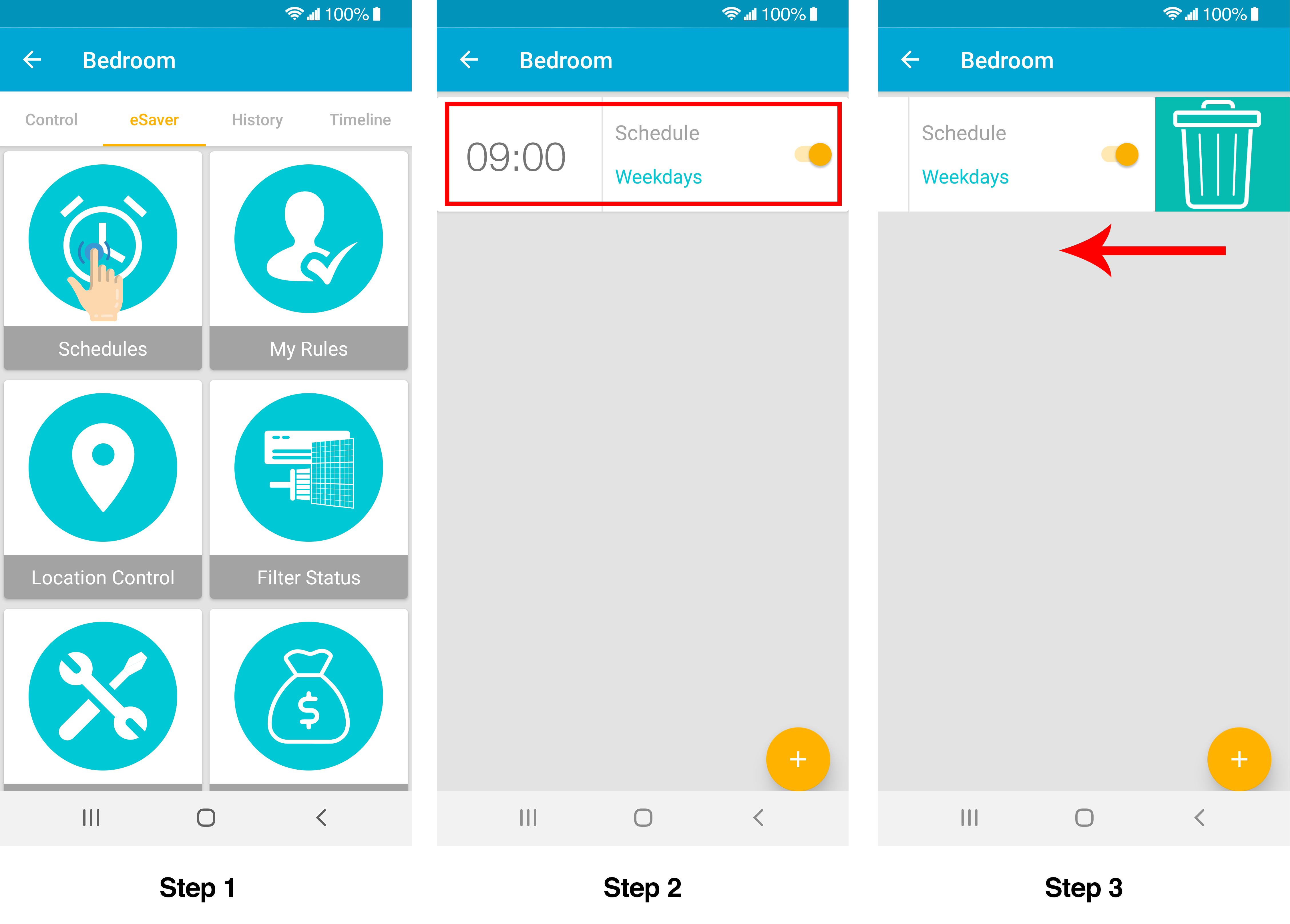

2. Deleting/Editing a schedule

For Android

Step 1: Tap on ‘Schedule’. Here you will see all your set schedule/schedules.

Step 2: Tap on the schedule if you wish to edit it.

Step 3: Swipe left on the schedule if you want to delete it.

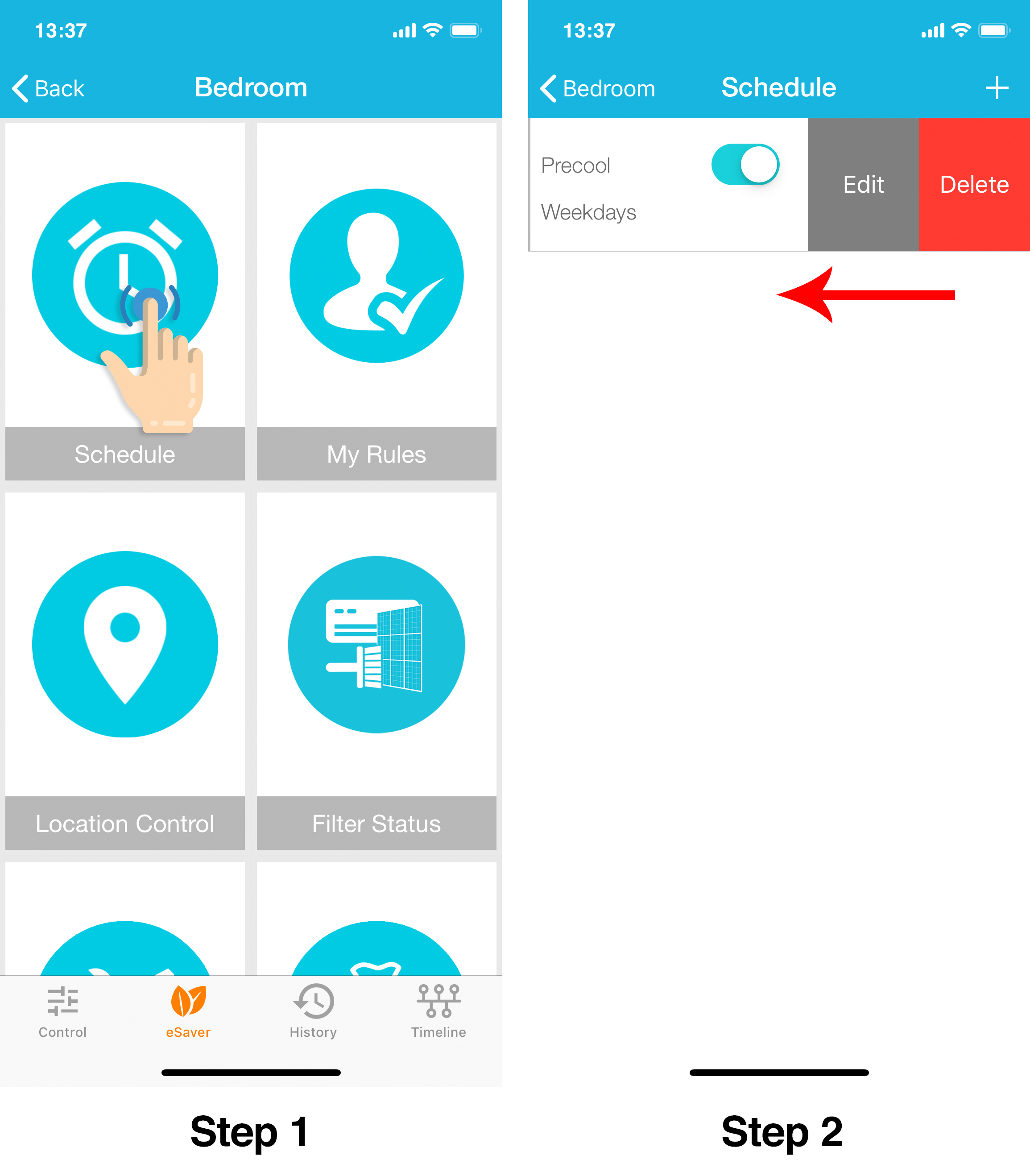

For iOS

Step 1: Tap on ‘Schedule’. Here you will see all your set schedule/schedules.

Step 2: Swipe left on the schedule you want to edit or delete until both options appear.
            Choose your desired option and proceed.

Step 4B: Setting up Comfy Temperature Mode (Automatically
               change your AC settings if room temperature goes
               above or falls below a pre-set value)

You can set up comfy temperature mode for your Air-Conditioner / Heat Pump by performing these steps via Cielo Home app:

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to set comfy
            temperature mode on.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on 'My Rules'.

Step 4: Tap on ‘Comfy Temperature’.

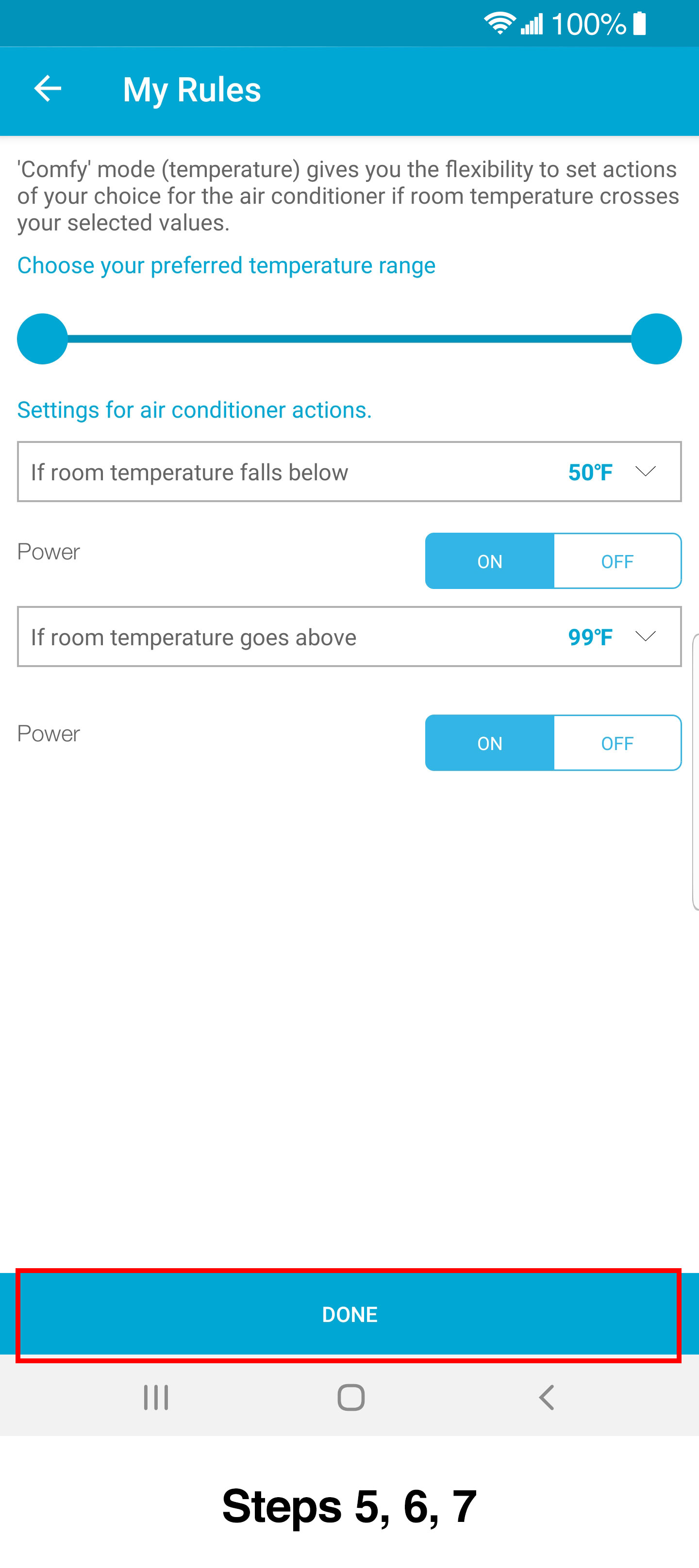

Step 5: Choose your preferred temperature range.

Step 6: Select what actions to perform if the temperature falls below or goes above the set range
            e.g. turning the AC off or on, helping it get back into the preferred temperature range.

Step 7: Tap 'Done' to enable it. Once the device triggers the defined comfy temperature mode
            actions you will get a notification in your app timeline.

Step 4C: Setting up Comfy Humidity Mode (Automatically
               change your AC settings if room humidity goes
               above or falls below a pre-set value)

You can set up comfy humidity mode for your Air-Conditioner / Heat Pump by performing these steps via Cielo Home app:

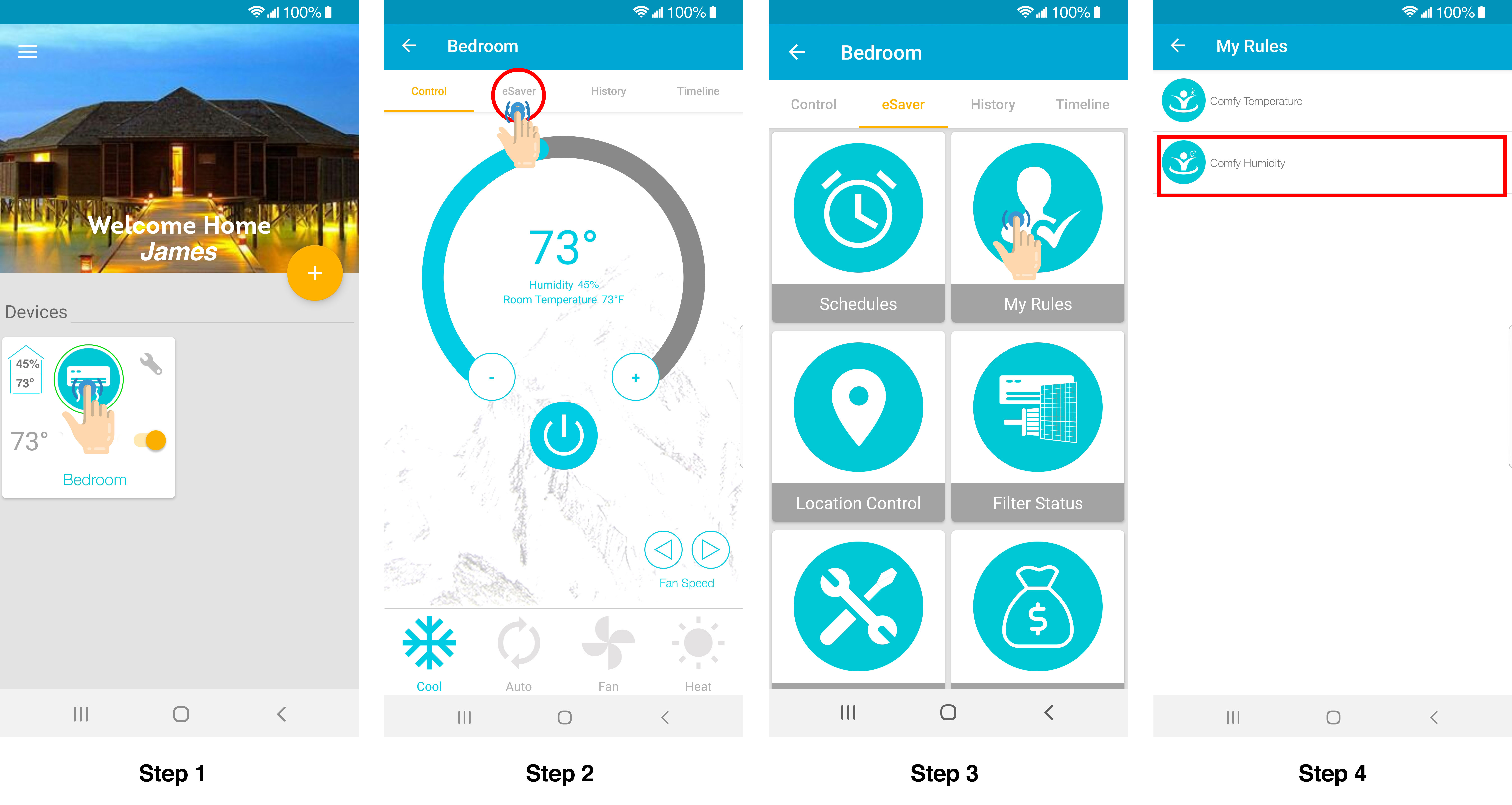

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to set comfy
            humidity mode on.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on 'My Rules'.

Step 4: Tap on ‘Comfy Humidity’.

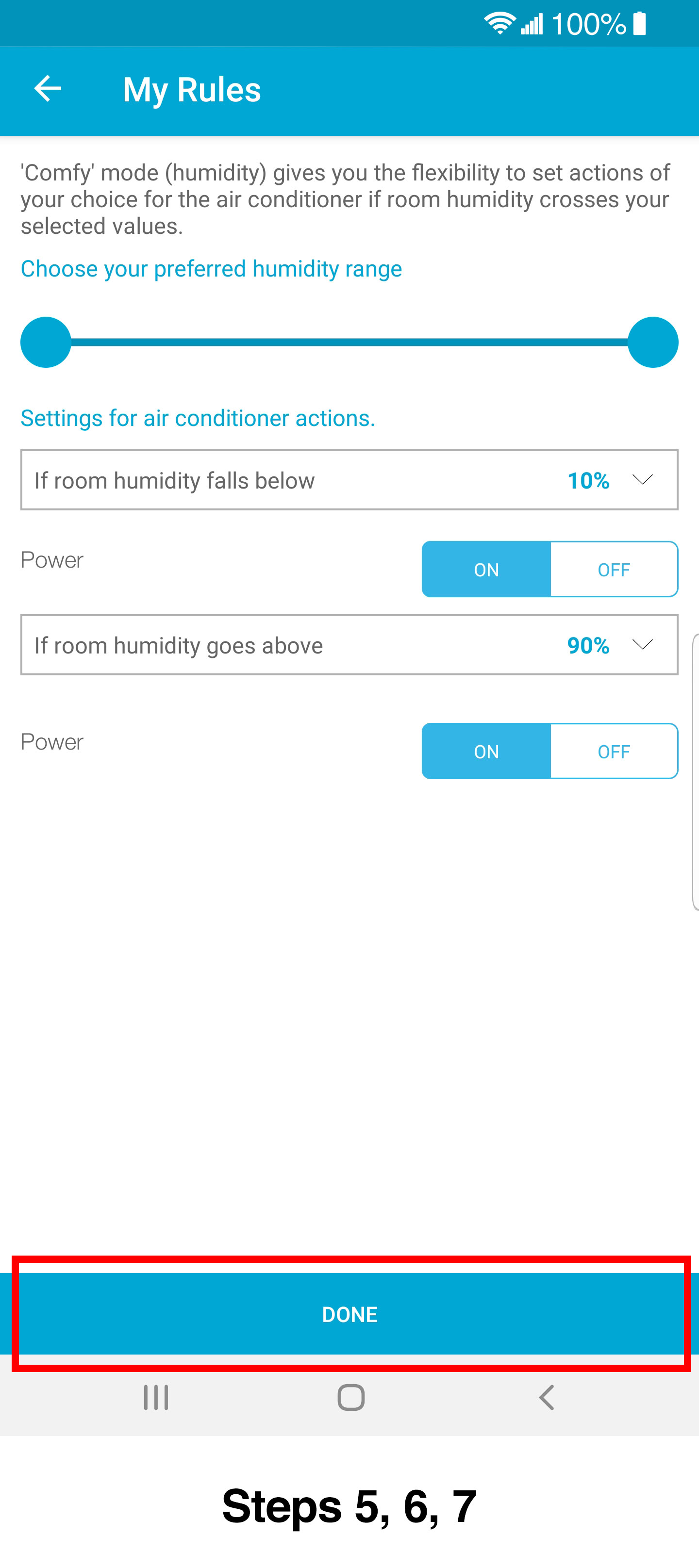

Step 5: Choose your preferred humidity range.

Step 6: Select what actions to perform if the humidity falls below or goes above the set range
            e.g. turning the AC off or on, helping it get back into the preferred humidity range.

Step 7: Tap 'Done' to enable it. Once the device triggers the defined comfy humidity mode
            actions you will get a notification in your app timeline.

Step 4D: Enabling Location Control (Turn your AC on before you
               arrive and turn it off after you have left the pre-set
               location)

You can configure location based control for your Air-Conditioner / Heat Pump by performing these steps via Cielo Home app:

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to control through
             location controls.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on ‘Location Control’.

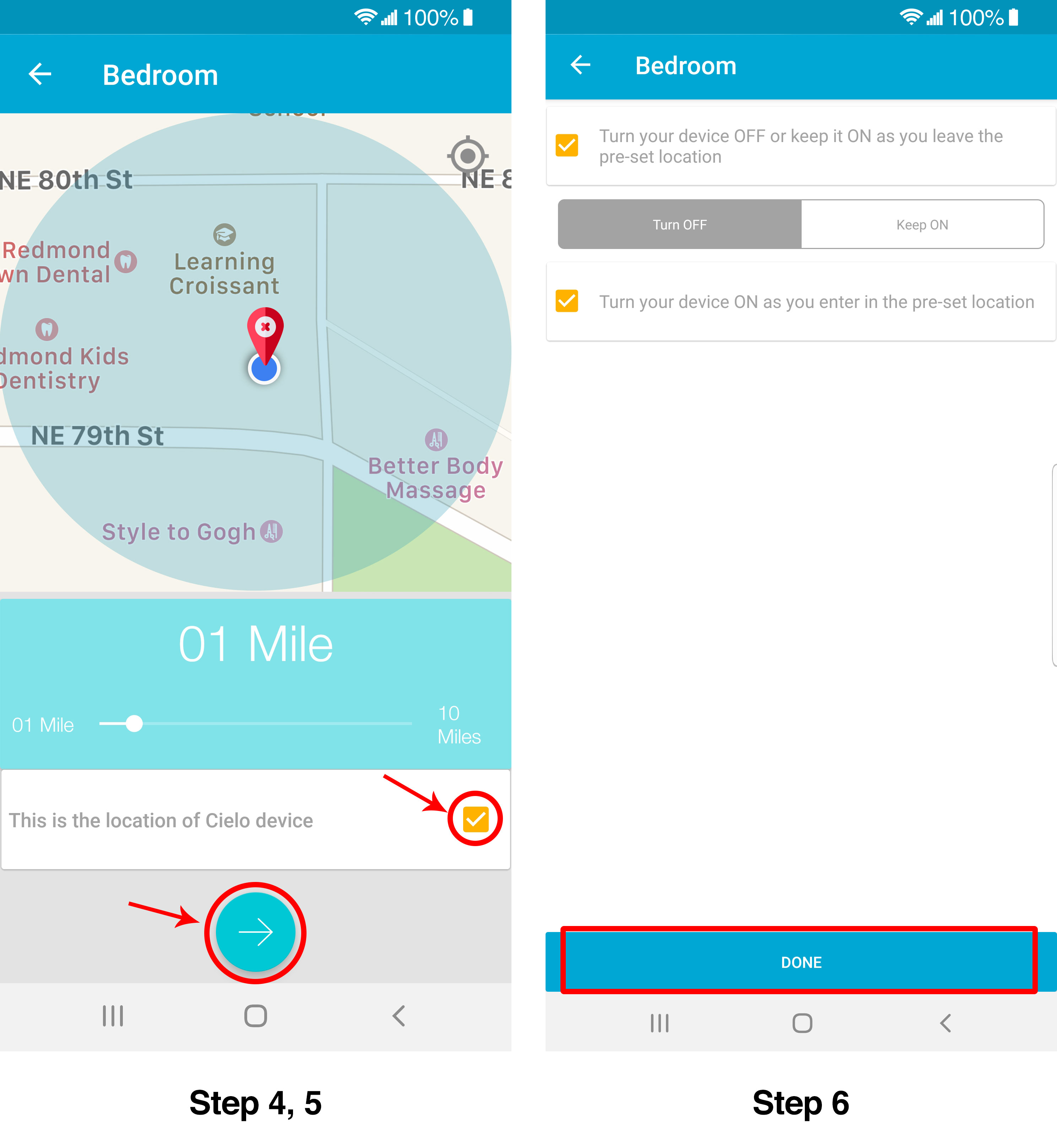

Step 4: You will see your current location on the map. Set a Geo-Fence range for
            your Air-Conditioner / Heat Pump between 1 - 10 Miles. Entering or exiting
            this range will trigger the Air-Conditioner / Heat Pump ON/ OFF.

Step 5: Check the box to mark the location of Cielo device and tap on ‘Next Arrow’.

Step 6: Select your desired AC settings to be performed when you enter or exit the pre-set
            location and tap on ‘Done’. Once locations controls are triggered you will get a
            notification in your app timeline.

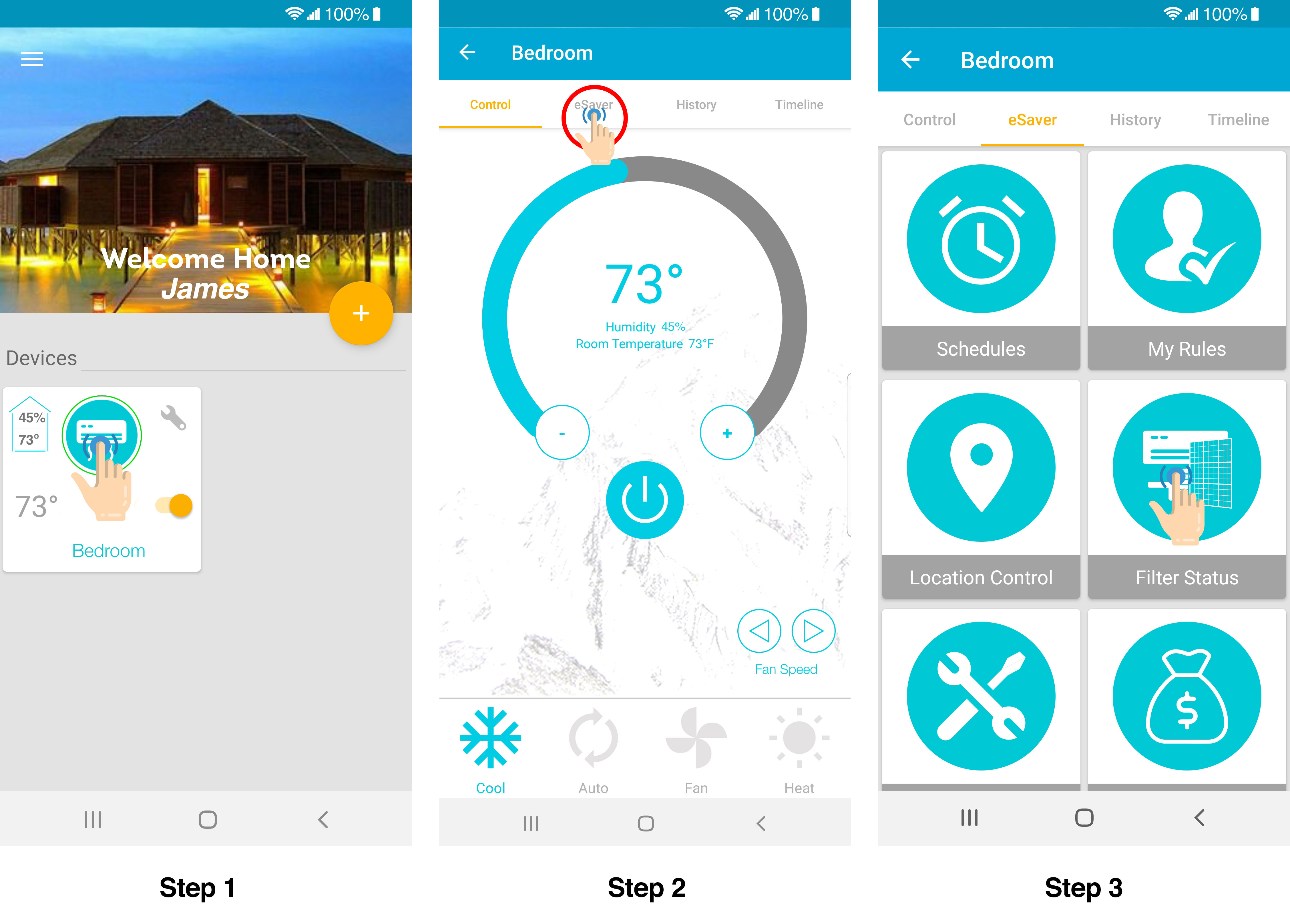

Step 4E: Checking your AC’s Air Filter Status

You can check the live air filter status of your Air-Conditioner / Heat Pump. Simply, follow the steps listed below:

Step 1: On the Home screen, tap on the Air-Conditioner / Heat Pump you want to check the
            air filter status for.

Step 2: Tap on ‘eSaver’ in the navigation bar.

Step 3: Tap on ‘Filter Status’.

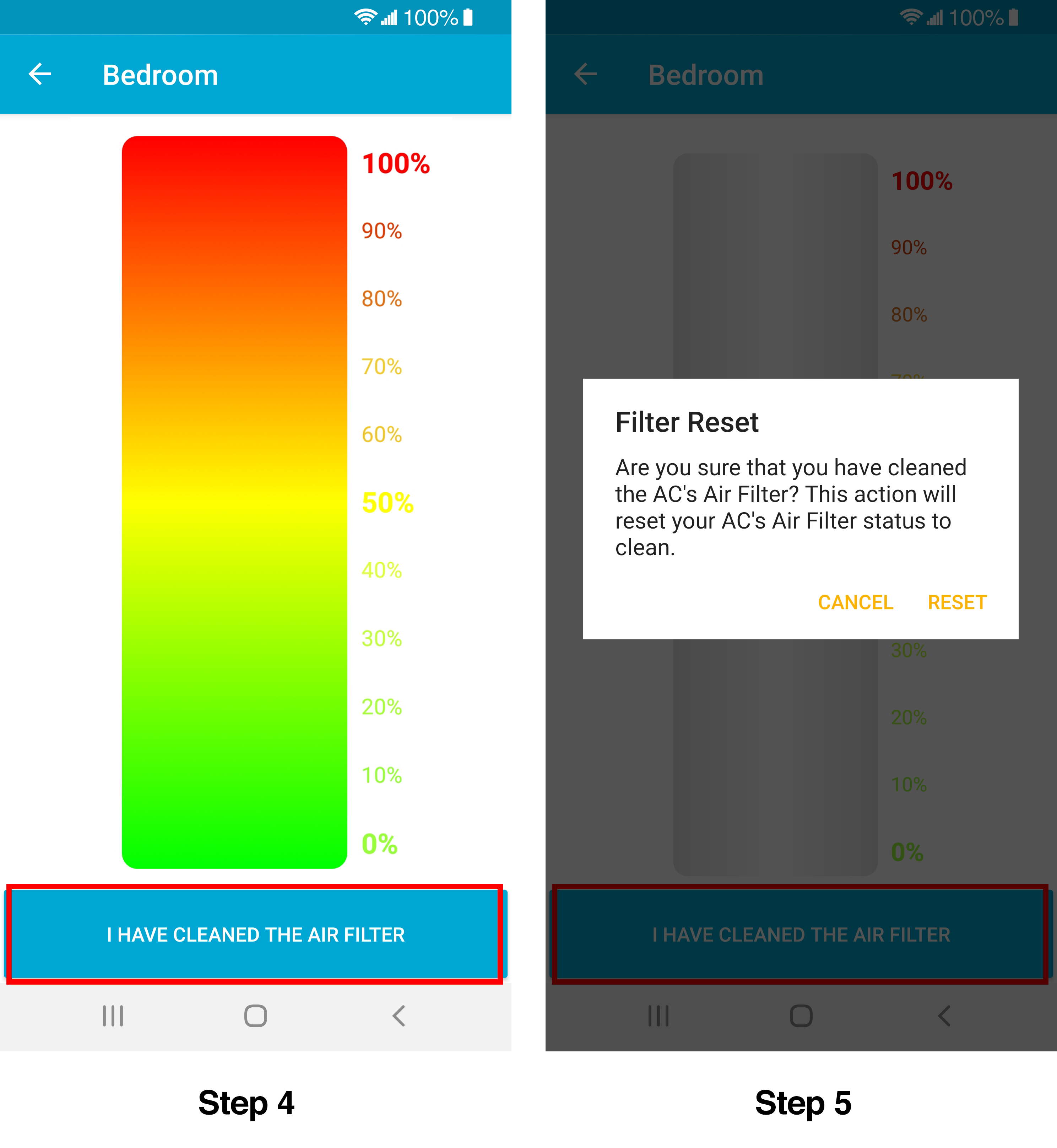

Step 4: You will see your current air filter status of the AC being used with the Device since
            registration. When the bar is about to fill up, manually remove the AC’s air filter and
            clean it. Once done place filter back into the AC.

Step 5: Tap on ‘I have cleaned the air filter’ and tap on ‘Reset’. Your filter status has now begun a
            new cycle.

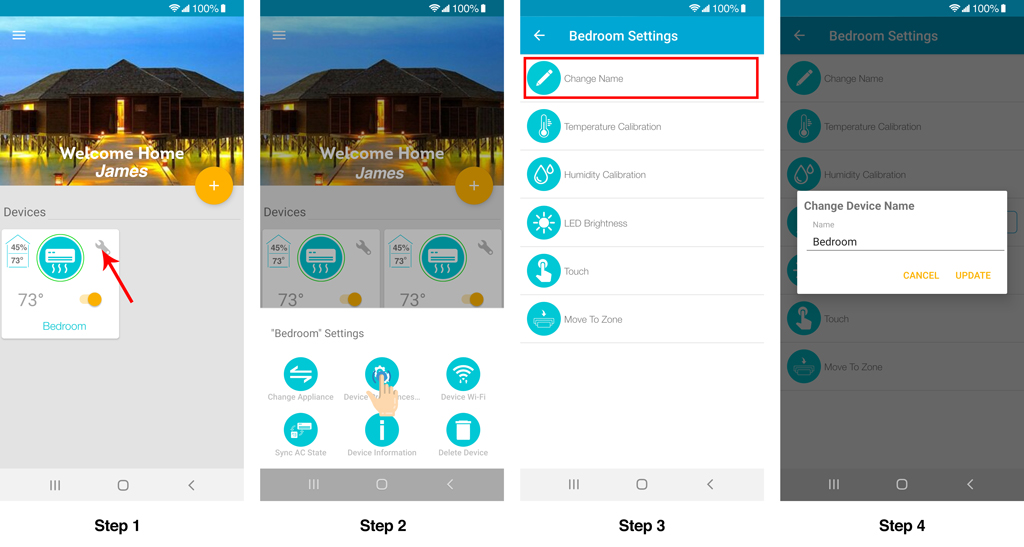

Step 4F: Changing Device Name (e.g. bedroom, lounge etc.)

Step 1: Tap on ‘Wrench’ of your registered Device.

Step 2: In Device settings, tap on 'Device Preferences'.

Step 3: In Device preferences, tap on ‘Change Name’.

Step 4: Enter the name of your choice and tap on ‘Update’.

Step 4G: Calibrate Room Temperature (Shown on Device)

Step 1: Tap on ‘Wrench’ of your registered Device.

Step 2: In Device settings tap on ‘Device Preferences’.

Step 3: In Device preferences tap on ‘Temperature Calibration’.

Step 4: Adjust the temperature and tap on ‘Done’.

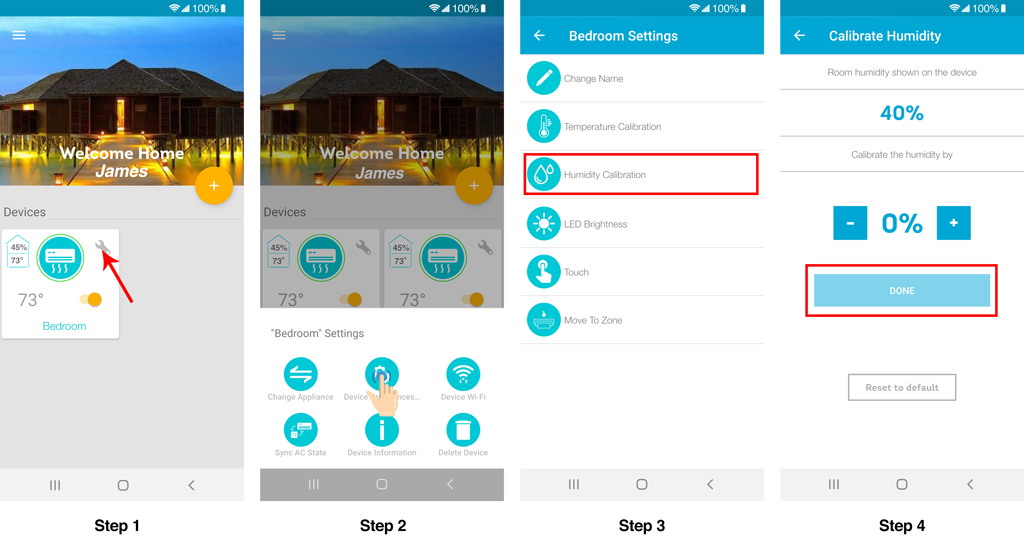

Step 4H: Calibrate Room Humidity (Shown on Device)

Step 1: Tap on ‘Wrench’ of your registered Device.

Step 2: In Device settings tap on ‘Device Preferences’.

Step 3: In Device preferences tap on ‘Humidity Calibration’.

Step 4: Adjust the humidity and tap on ‘Done’.

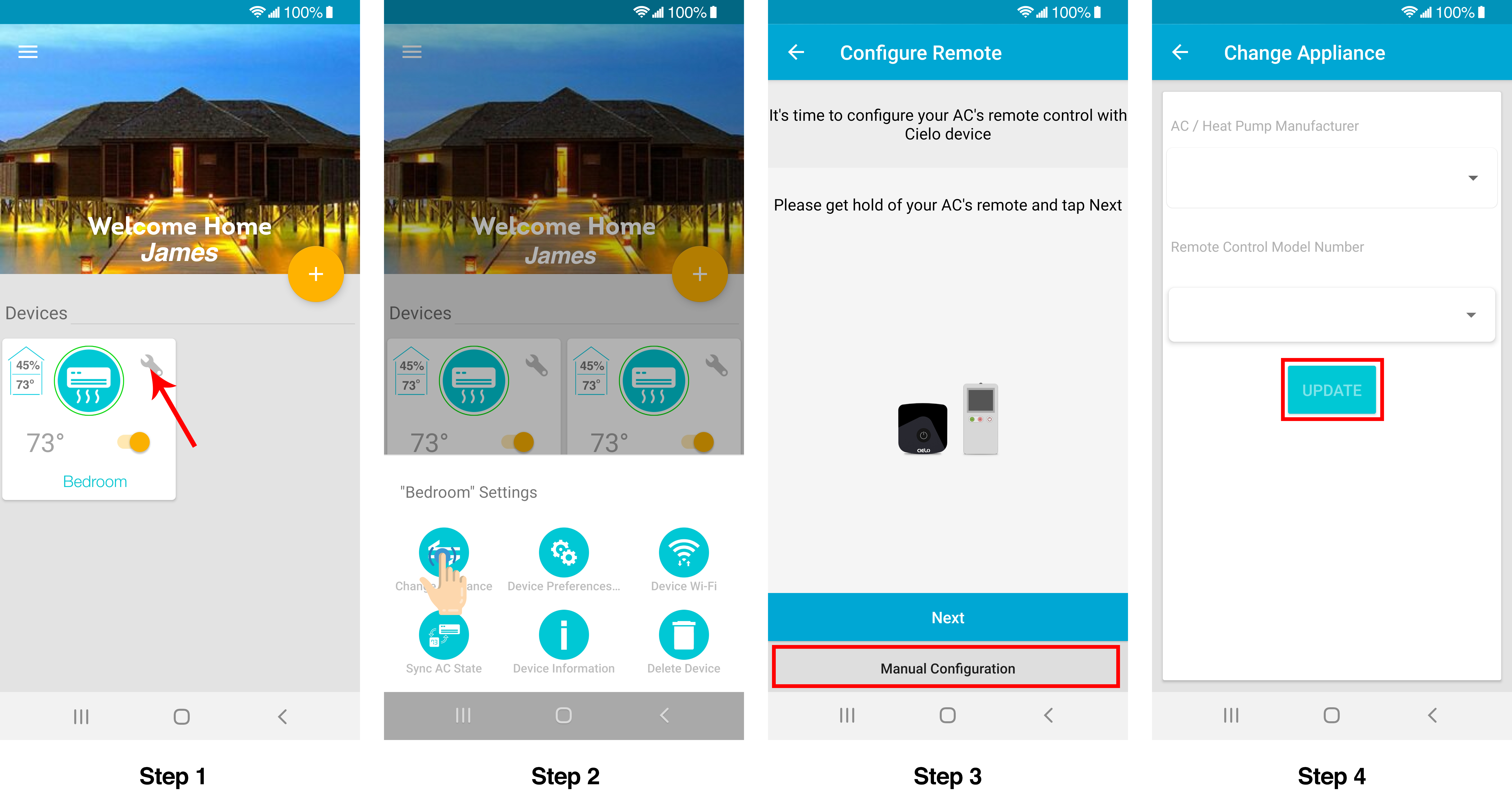

Step 4I: Change Appliance (Manufacturer/Model Number)

Step 1: Tap on ‘Wrench’ of your registered Device.

Step 2: In Device settings, tap on ‘Change Appliance’.

Step 3: Select 'Manual Configuration'.

Step 4: Select 'AC / Heat Pump Manufacturer' and 'Remote Control Model Number' from the lists and tap on ‘Update’.

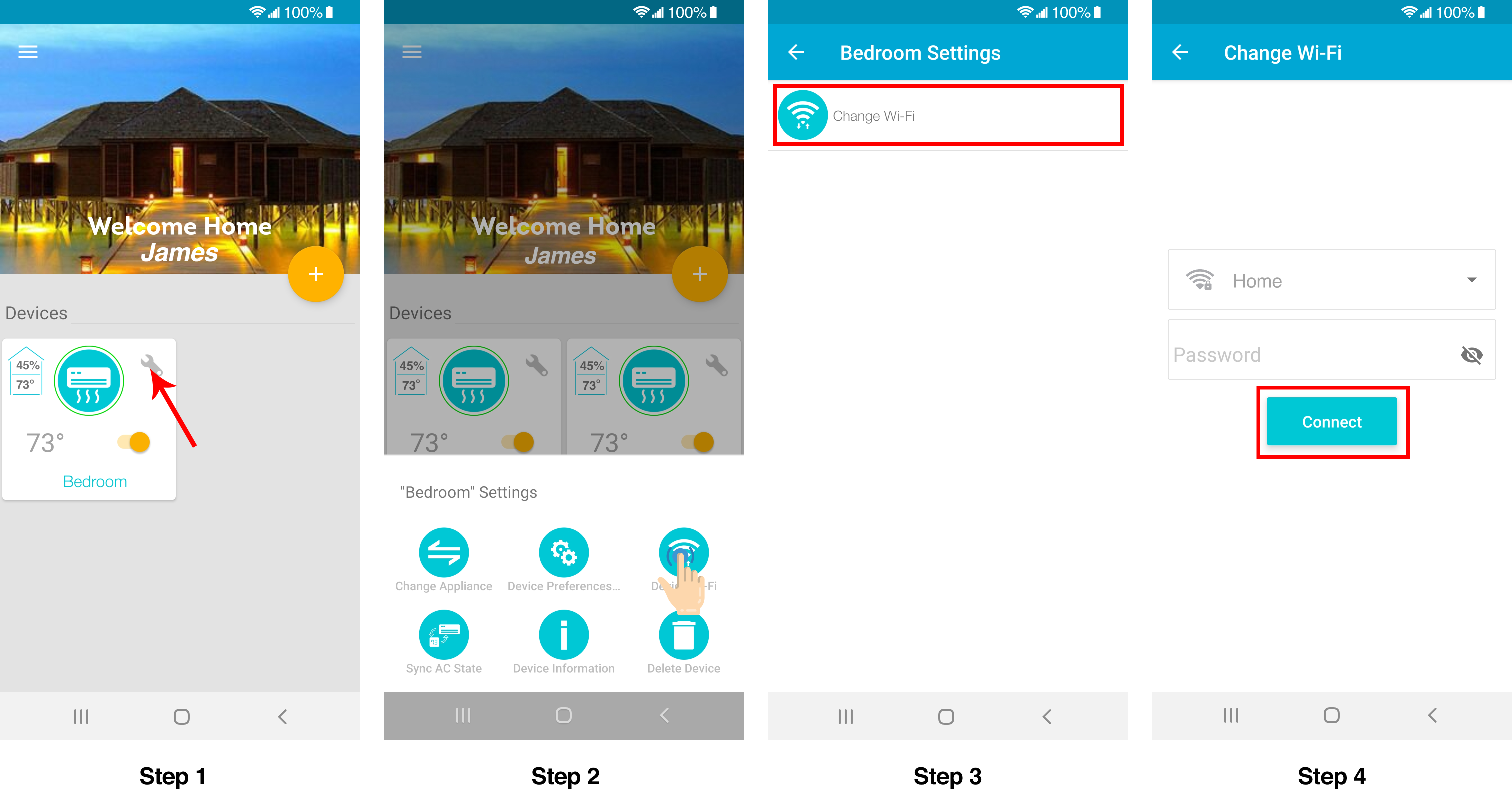

Step 4J: Changing Wi-Fi

Step 1: Tap on ‘Wrench’ of your registered Device.

Step 2: In Device settings, tap on ‘Device Wi-Fi’.

Step 3: In Device Wi-Fi settings, tap on 'Change Wi-Fi'.

Step 4: Select the Wi-Fi you wish to connect to, just enter the password and tap on ‘Connect’.

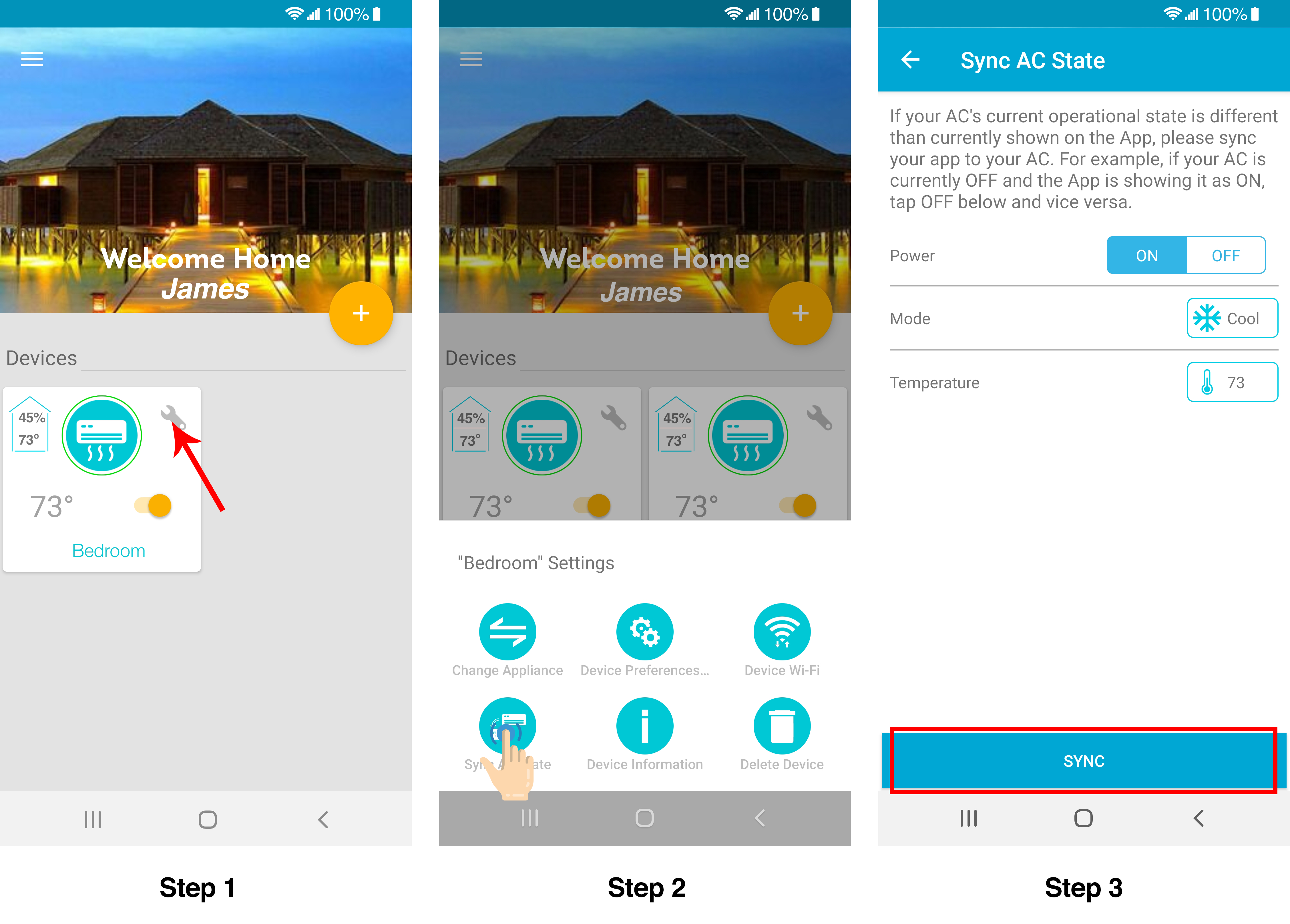

Step 4K: Sync AC State (e.g. AC is ON and App is showing it as
              OFF)

Step 1: Tap on ‘Wrench’ of your registered Device.

Step 2: In Device settings, tap on 'Sync AC State'.

Step 3: Select the current operational state of your air conditioner (e.g. Power, mode,
            temperature) and tap on 'Sync'.

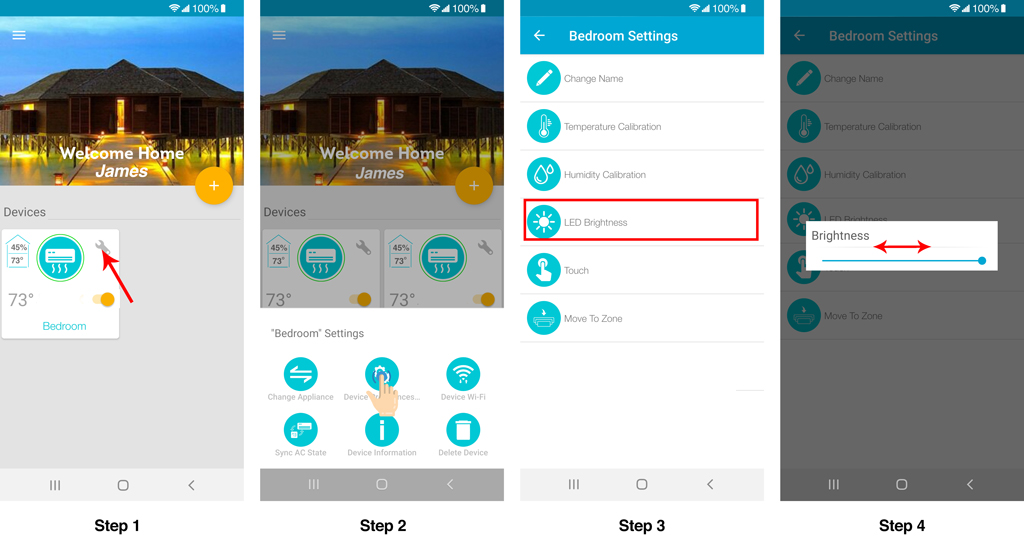

Step 4L: Adjusting the brightness of Device Power LED

For Android

Step 1: Tap on ‘Wrench’ of your registered Device.

Step 2: In Device settings, tap on 'Device Preferences'.

Step 3: In Device preferences, tap on ‘Brightness’.

Step 4: Adjust brightness of your Device by maneuvering the slider.

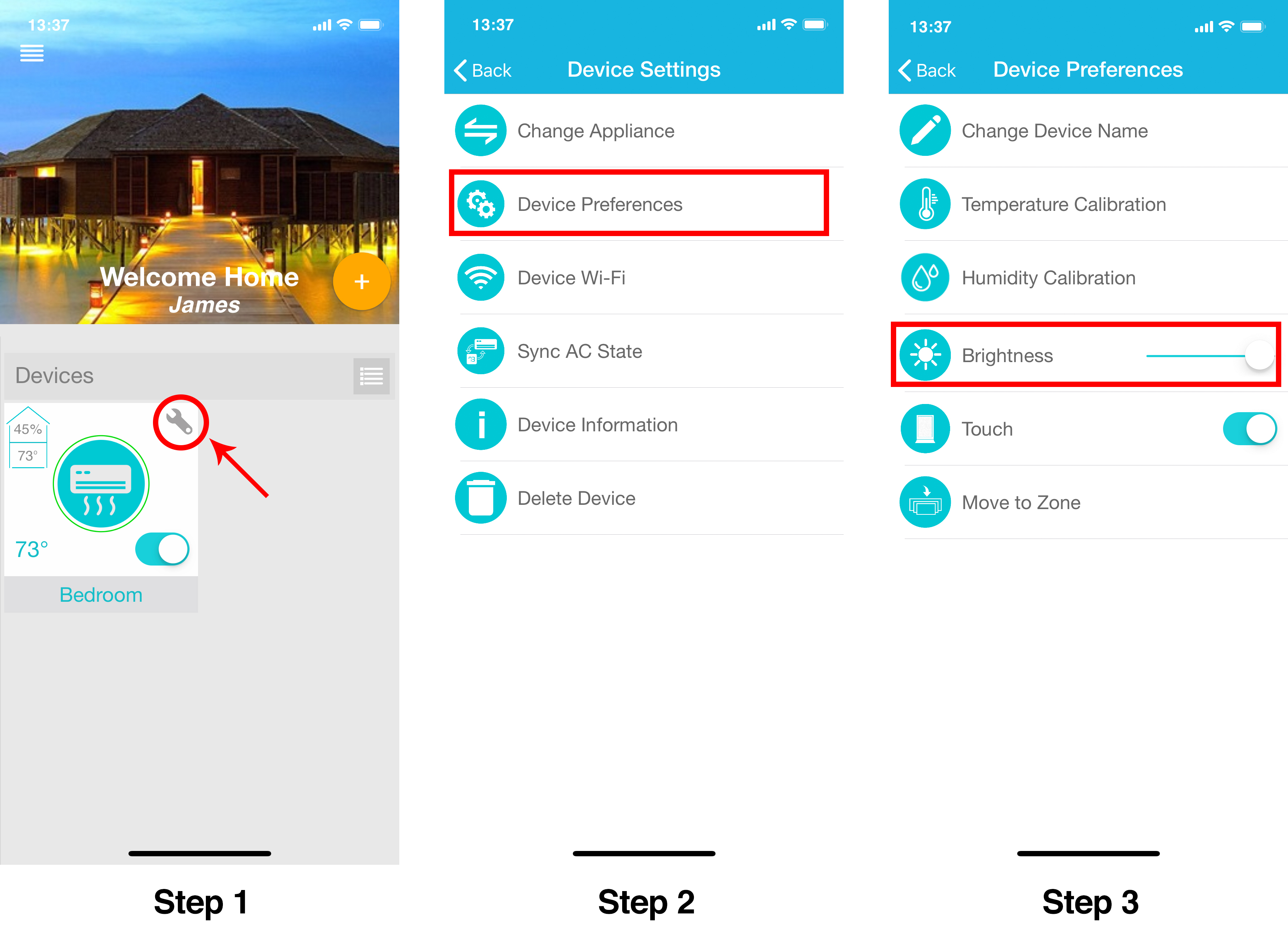

For iOS

Step 1: Tap on ‘Wrench’ of your registered Device.

Step 2: In Device settings, tap on 'Device Preferences'.

Step 3: In Device preferences, adjust brightness of your Device by maneuvering the slider.

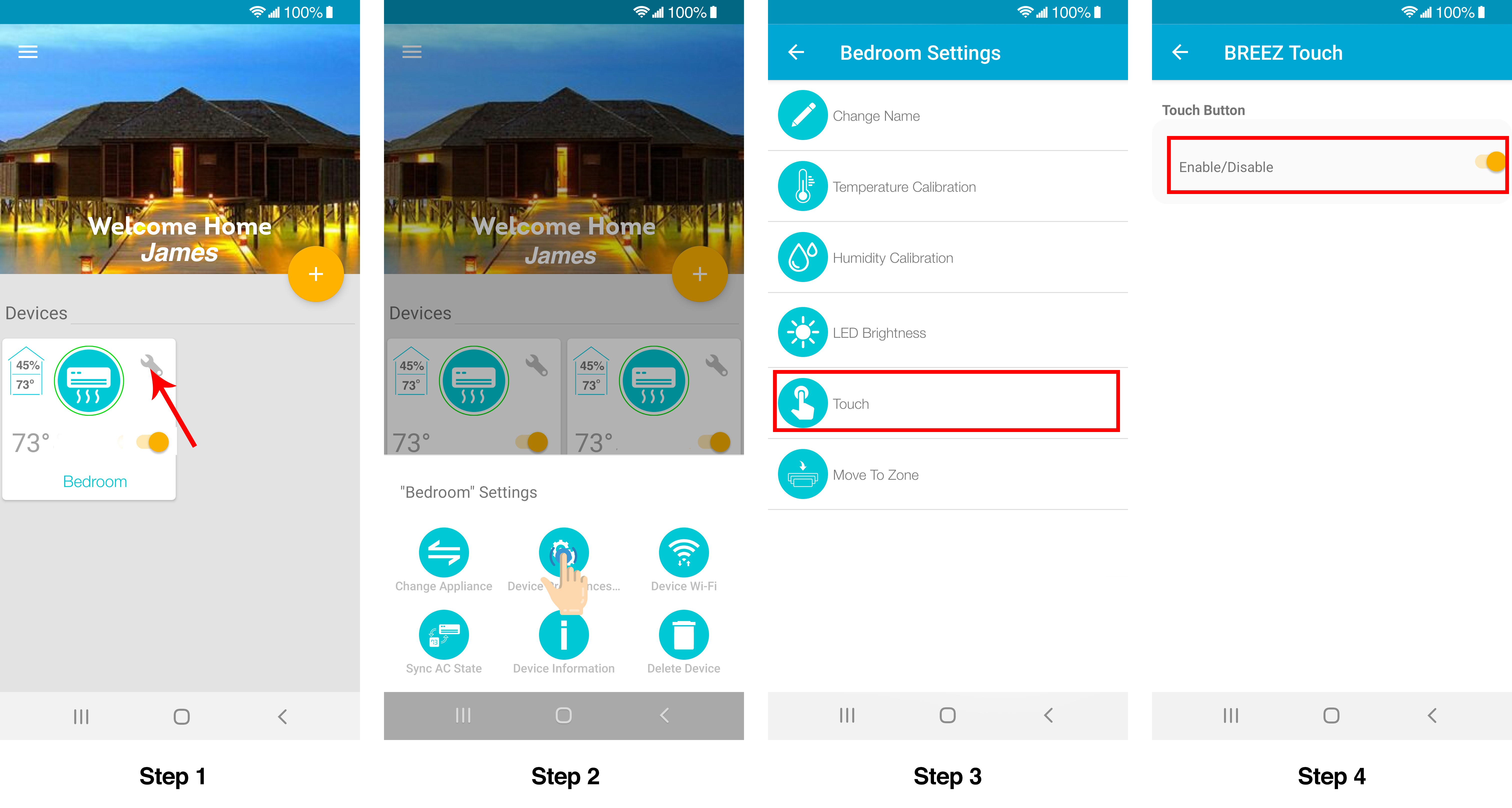

Step 4M: Enable or disable touch power On/Off function on Device

For Android

Step 1: Tap on ‘Wrench’ of your registered Device.

Step 2: In Device settings, tap on 'Device Preferences'.

Step 3: In Device preferences, tap on ‘Touch’.

Step 4: Enable or disable touch power On/Off function on device.

For iOS

Step 1: Tap on ‘Wrench’ of your registered Device.

Step 2: In Device settings, tap on 'Device Preferences'.

Step 3: In Device preferences, enable or disable touch power On/Off function on device.

Step 4N: Zone Settings of your connected Air Conditioners

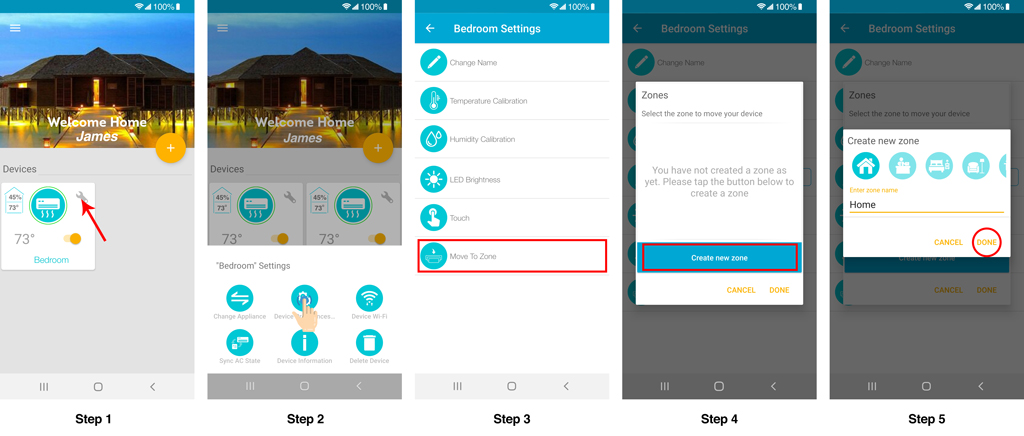

1. Creating a zone

A zone will allow you to control power of all your registered devices together with a simple tap. To create a Zone in app, follow these steps:

Step 1: Tap on ‘Wrench’ of the registered Device you want to create a zone with.

Step 2: In Device settings, tap on 'Device Preferences'.

Step 3: In Device preferences, tap on 'Move to Zone'.

Step 4: Tap on ‘Add’ to create a zone.

Step 5: Give your zone a name (e.g. Ground floor, First floor, Basement, etc.) and choose an icon.

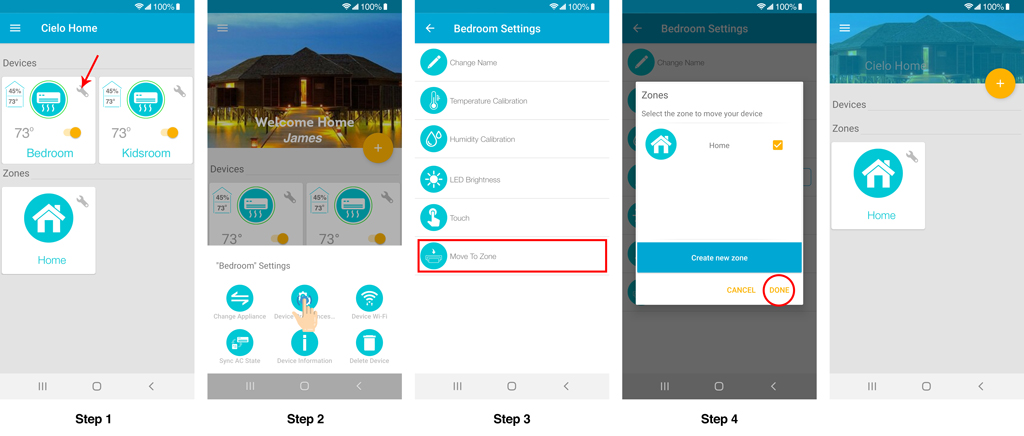

2. Adding a Device to a zone

Step 1: Tap on ‘Wrench’ of the device you would like to add in a zone.

Step 2: In Device settings, tap on 'Device Preferences'.

Step 3: In Device preferences, tap on "Move to Zone"

Step 4: A list of available zones will appear and you can add your device to one of the existing zones.

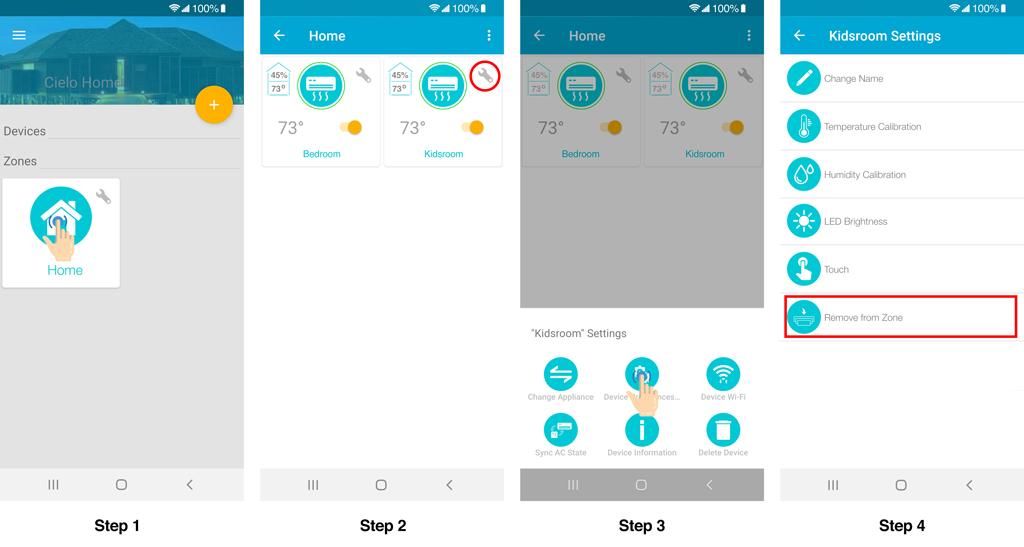

3. Removing a Device from a zone

Step 1: To remove a Device from a zone, tap on the zone where your Device has been added.

Step 2: Tap on ‘Wrench’ of the Device you wish to remove.

Step 3: In the Device settings, tap on 'Device Preferences'

Step 4: In Device preferences, tap on ‘Remove form Zone’.

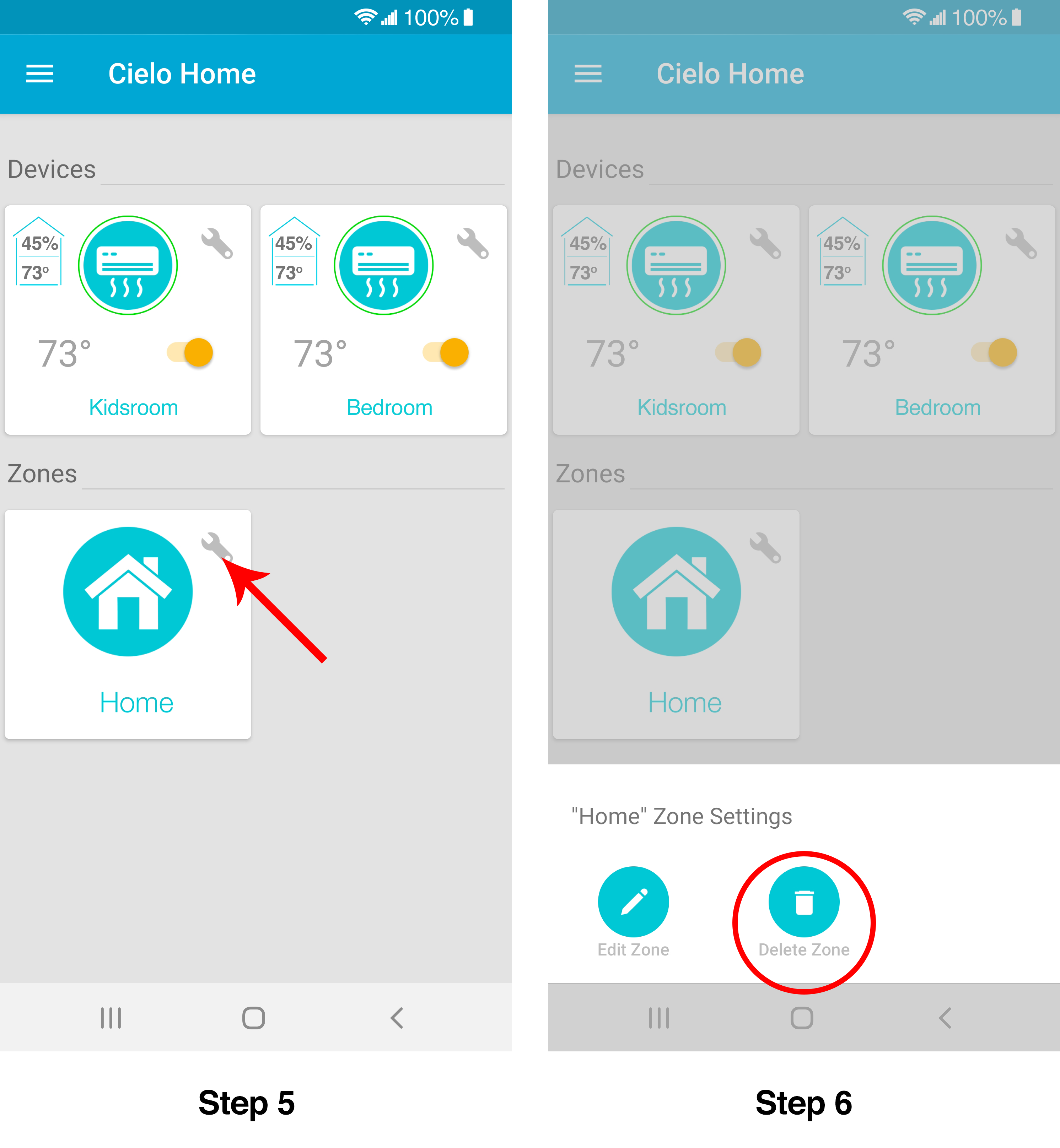

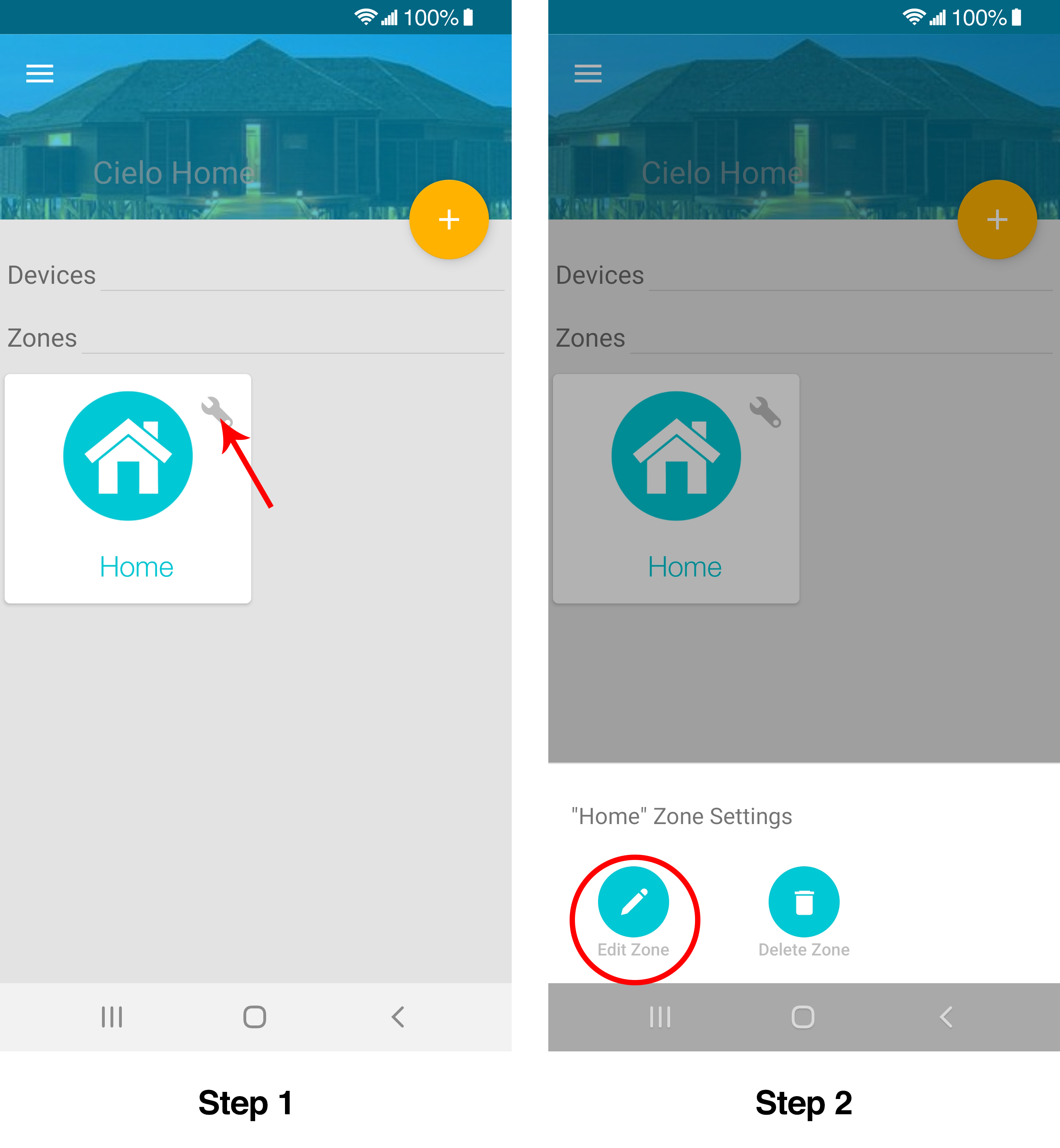

4. Editing a zone

Step 1: Tap on ‘Wrench’ of the zone you wish to edit.

Step 2: In zone settings, tap on ‘Edit Zone’. You can change the icon and name of the zone as you desire.



5. Deleting a zone

Note: To delete a zone, you have to remove all the devices added in a zone individually, you may not be allowed to delete a zone otherwise.

Step 1: Tap on the zone you wish to delete.

Step 2: Inside the zone tap on ‘wrench’ of each added device.

Step 3: In Device settings, tap on 'Device Preferences'.

Step 4: In Device preferences, tap on ‘Remove from Zone’.

Step 5: After you have removed all the devices from the Zone, tap on ‘Wrench’ of the Zone you want to delete.

Step 6: Tap on ‘Delete Zone’.



Step 4O: Deleting your Device (Breez Eco)

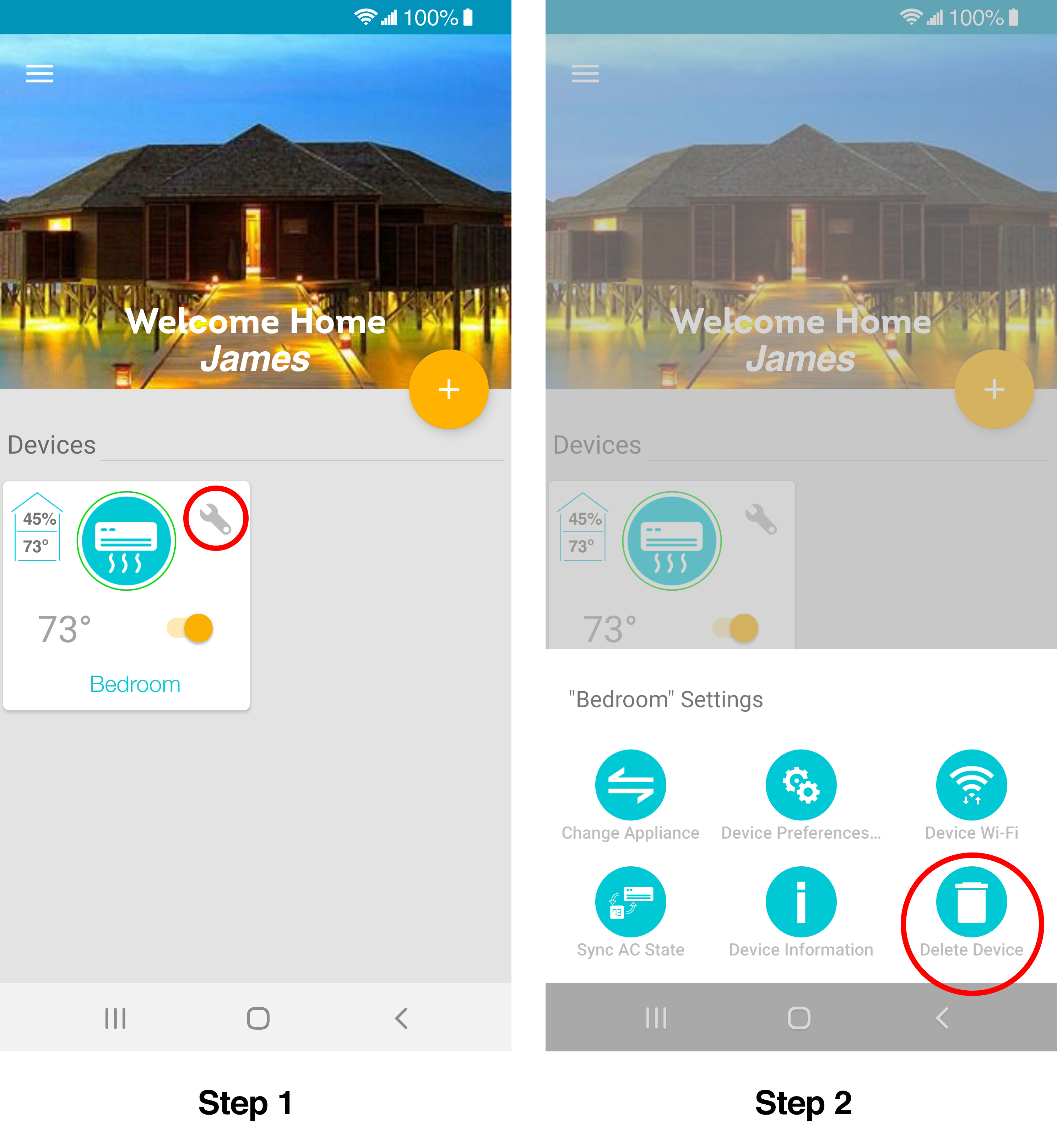

Step 1: Tap on ‘Wrench’ of your registered Device.

Step 2: In the Device settings, tap on ‘Delete Device’.
