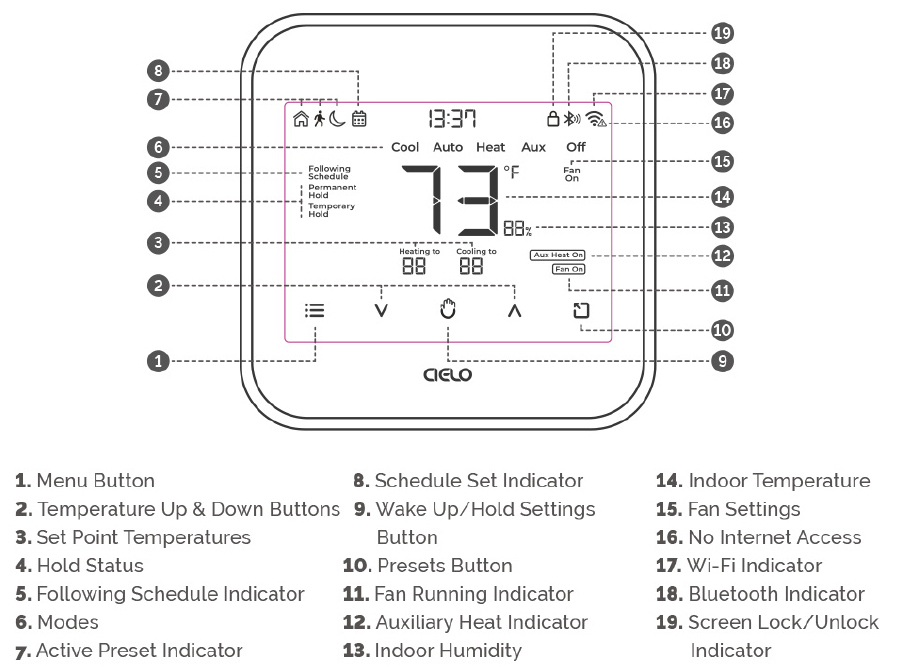

1. Menu
Tap on the menu button to cycle through the various settings, such as mode and fan settings.
2. Temperature Up & Down Buttons
Use the up & down buttons to set the desired setpoint temperature.
3. Setpoint Temperature
Desired temperature the HVAC system aims to achieve.
4. Hold Status
Indicates the current hold settings.
5. Following Schedule
Indicates that the thermostat is following the set schedule.
6. Mode
Indicates the current mode. To adjust, tap the menu button once. The modes will start blinking. Use the up or down button to select the mode (Cool/Auto/Heat/Aux/Off).
7. Active Preset Indicator
Indicates the active preset - Home, Away, or Sleep.
8. Schedule Set Indicator
Indicates that a schedule has been set.
9. Wake Up / Hold Settings Button
Tap to wake up the screen. To adjust the hold settings, tap on the wake-up button until the desired hold status appears.
10. Applying a Preset
Tap on the Preset button to select the desired preset.
11. Fan Running Indicator
Displays when the fan is actively running.
12. Auxiliary Heat Indicator
Displays when the auxiliary heat is active.
13. Indoor Humidity
Displays the current humidity levels.
14. Indoor Temperature
Displays the current indoor temperature.
15. Fan Settings
Displays the current fan settings. To adjust, tap the menu button twice. The fan settings icon will start blinking. Use the up or down buttons to change the fan settings (i.e., On, Circulation, Auto).
16. No Internet Access
Wi-Fi icon with a small triangle indicates that the thermostat is connected to the router but has no internet access. Please ensure a working internet connection and restart the device.
17. Wi-Fi Indicator
A stable Wi-Fi icon indicates the thermostat is connected to the internet.
18. Bluetooth Indicator
A blinking Bluetooth icon indicates that the thermostat is in pairing mode. Please complete the registration process.
19. Screen Lock/ Unlock Indicator
Displays the lock icon when the thermostat screen is locked. To lock/unlock, touch and hold the temperature up & down buttons simultaneously until the lock icon on the top right of the screen turns solid or disappears.
