Equipment Stage Control helps your HVAC system operate more efficiently by managing the use of different heating and cooling stages. When Equipment Stage Control is enabled, your thermostat gradually decreases operation from higher stages as it nears the desired temperature:
- The HVAC system begins running in Stage 1.
- If the temperature difference exceeds the threshold, Stage 2 activates for additional heating/cooling.
- Once the temperature approaches the setpoint, Stage 2 disengages, and Stage 1 continues running until the setpoint is reached.
This process optimizes comfort while conserving energy.
How to Find Equipment Stage Control Settings in the Cielo Home App
Follow the steps below on the Cielo Home app to find the Equipment Stage Control settings of your thermostat:

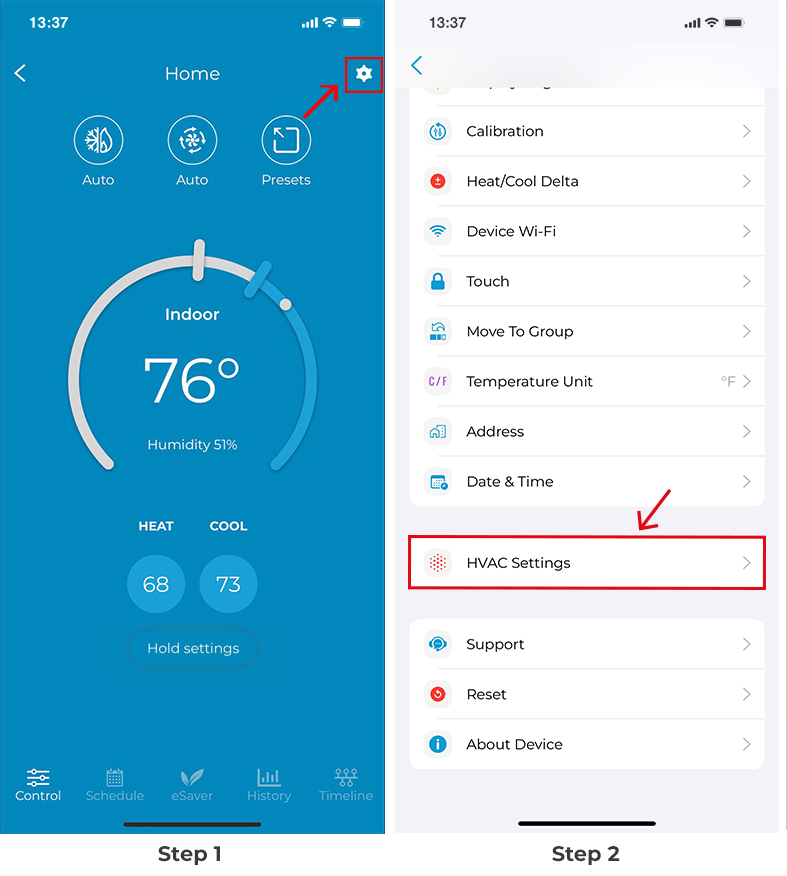

Step 1: Go to settings by tapping the 'Settings' icon on the control screen.
Step 2: Tap on 'HVAC Settings'.

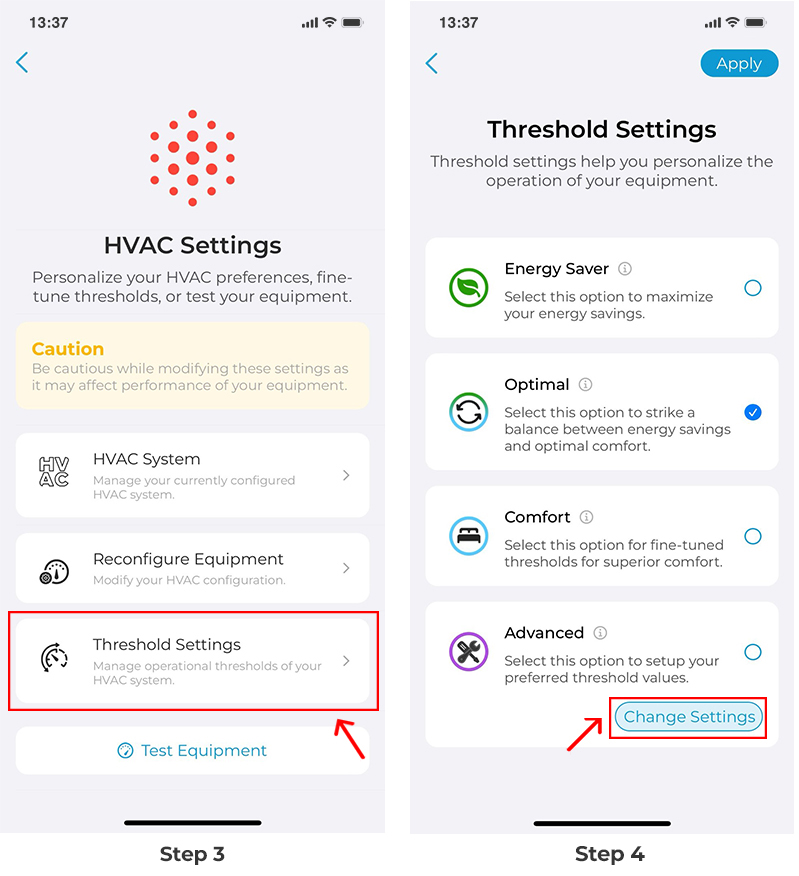

Step 3: Tap on 'Threshold Settings'.
Step 4: Tap on ‘Change Settings’.

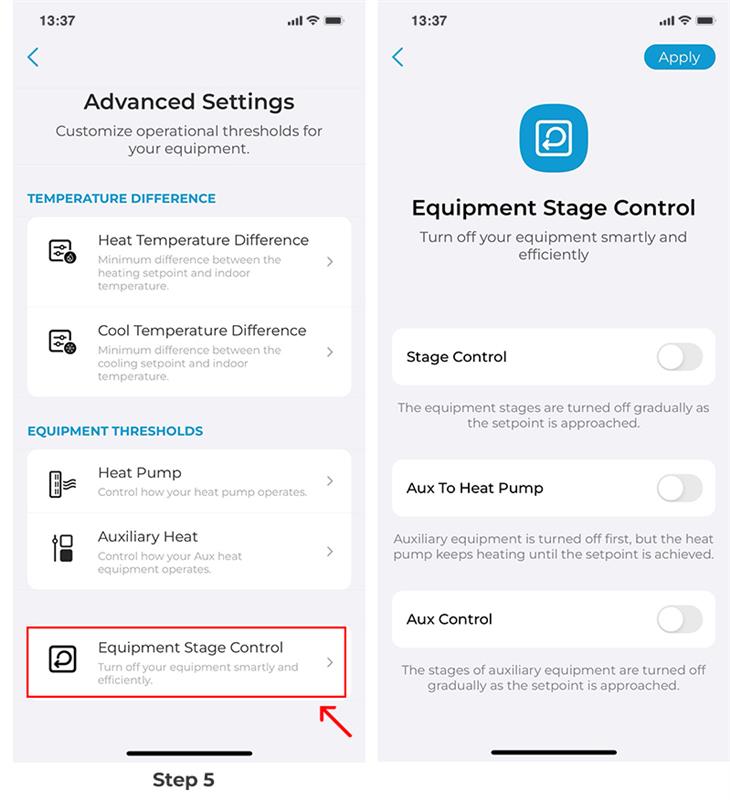

Step 5: Tap on 'Equipment Stage Control'.
Stage Control
- ON - Stage 2 of your equipment automatically turns off as your home temperature approaches your setpoint, and stage 1 can efficiently reach your setpoint on its own.
- OFF - Your equipment will keep on running in stage 2 until your setpoint is achieved.
Aux to Heat Pump
- ON - Auxiliary heat is automatically turned off as your home temperature approaches the setpoint, while the heat pump operates to attain your desired temperature.
- OFF - Auxiliary heat keeps on running until your setpoint is achieved.
Aux Control
- ON - Stage 2 of your auxiliary equipment automatically turns off as your home temperature approaches the setpoint, and stage 1 can efficiently reach your setpoint on its own.
- OFF - Stage 2 of auxiliary equipment keeps running until your setpoint is achieved.
