A C-wire (common wire) provides continuous power to your smart thermostat, allowing smart features to work properly. Not all homes have one, so it’s important to check before installing your Cielo Smart Thermostat Eco.
When to Check for a C-Wire
- Before installing a smart thermostat.
- If your current thermostat runs on batteries or loses power immediately.
Important Notes Before You Begin
- Always turn off the power to your HVAC system at the breaker before inspecting wiring.
- Have a flashlight and a screwdriver ready.
- The C-wire is typically colored blue or black, but colors may vary – look for a wire connected to a terminal labeled “C”.
How to Check for a C-Wire
Here’s how you can check if you have a C-wire:
Check Your Thermostat Wiring

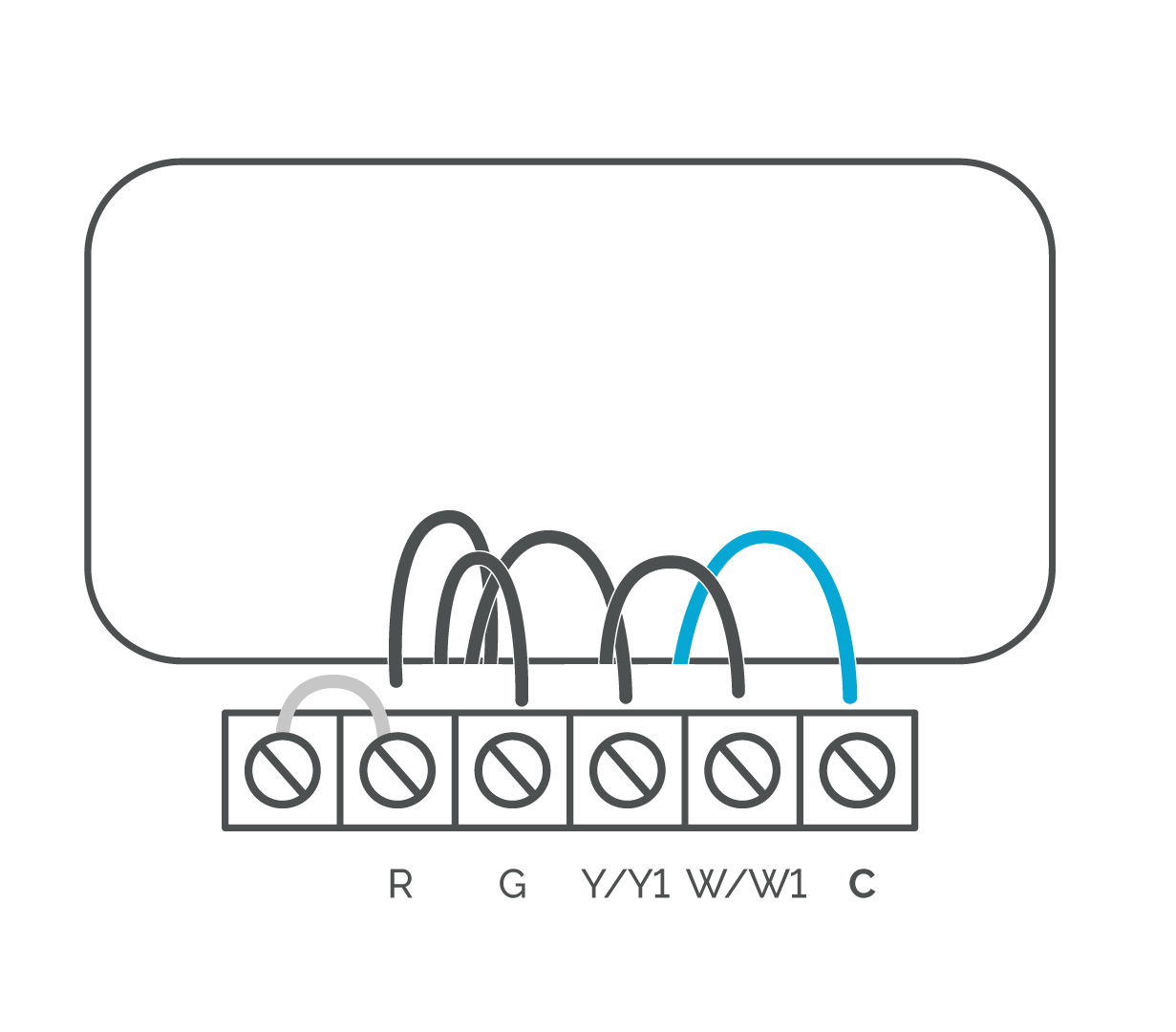

To check for thermostat C-Wire, turn off your HVAC system and remove the thermostat from the wall. You will see various connections to their terminals. Look for a black or blue wire connected to the C terminal.

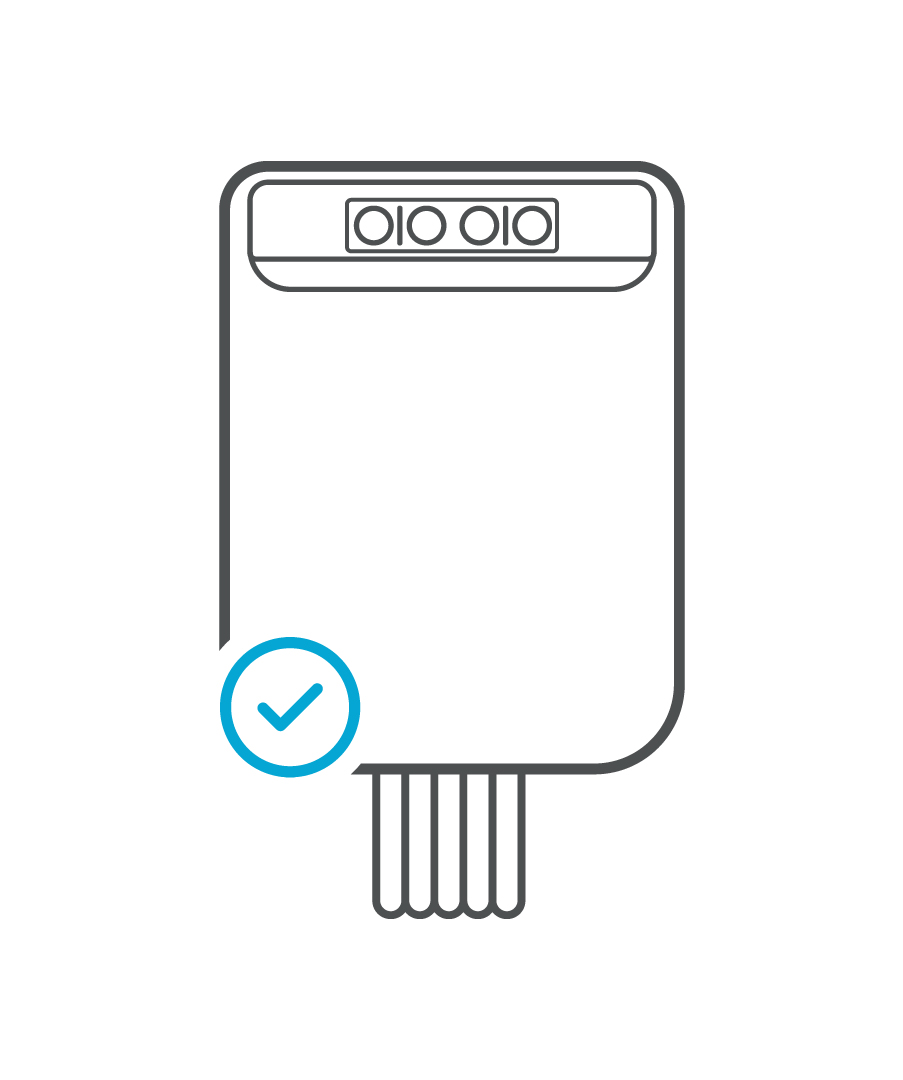

In some cases, the C-Wire will probably be tucked away in the wall behind your current thermostat. To find it, remove the thermostat faceplate and unscrew the backplate. Next, pull out all the wires. Search for the wire bundle and look for an extra black or blue wire, or one labeled ‘C’.
Check Your Control Board

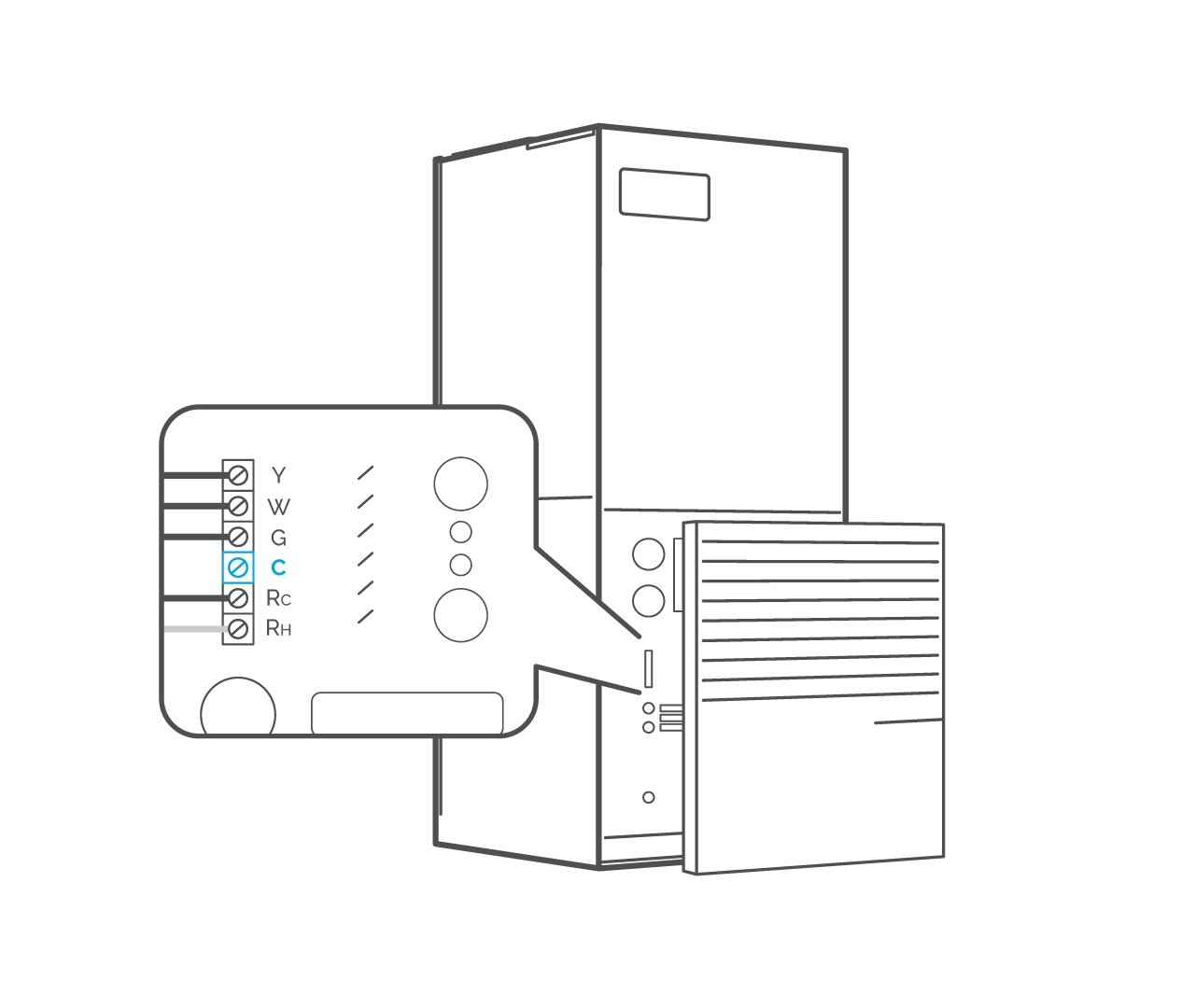

Go to your HVAC control board and look for a wire attached to the C terminal. Note down its color (mostly blue or black) and go to your thermostat. Check for the same-colored wire.
In some situations, your HVAC control panel has a C wire terminal, but there's no wire attached to it.
If there’s no wire connected to the C terminal on either your thermostat or the control panel, your home likely doesn’t have a C-wire. A C-wire adapter is helpful in this case. It provides a dedicated power source to the smart thermostat.
What If I Don’t Have a C-Wire?
No problem! The Cielo Smart Thermostat Eco comes with a C-wire Adapter (CWA) included in the box. This adapter allows your thermostat to receive continuous power without needing a dedicated C-wire from your HVAC system.
