The HVAC settings section allows you to view your configured equipment, adjust preferences, reconfigure equipment, and manage threshold settings for optimized performance and efficiency of Cielo Smart Thermostat.
⚠️ Caution
- Be cautious while modifying these settings as it may affect the performance of your equipment.
Accessing HVAC settings on Cielo Smart Thermostat
Viewing Your Configured Equipment
This gives you information about the equipment you have installed.

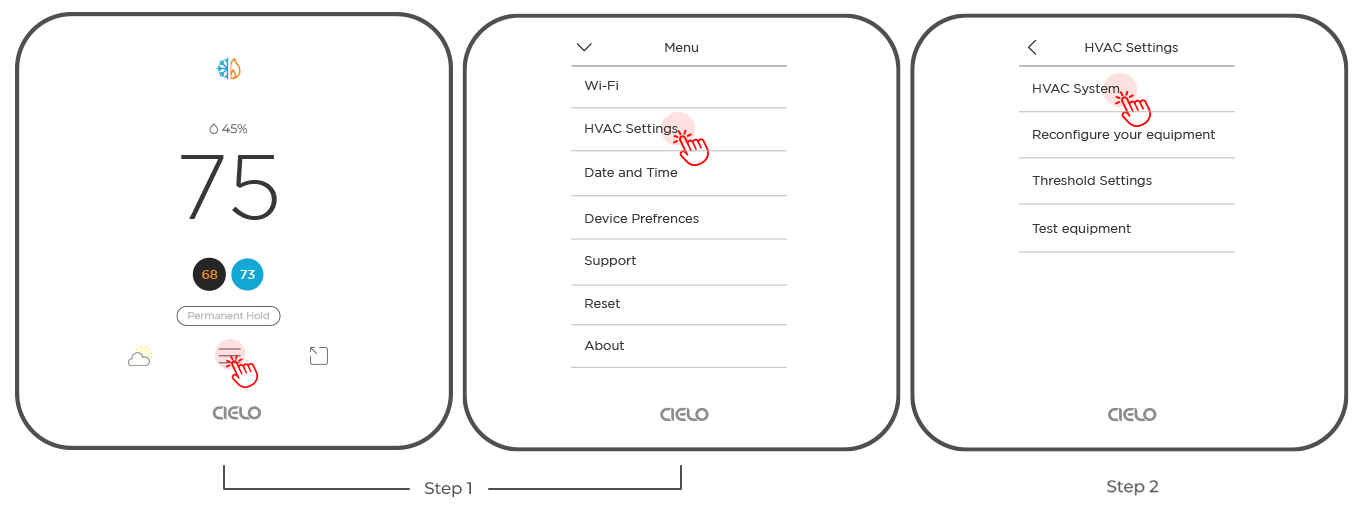

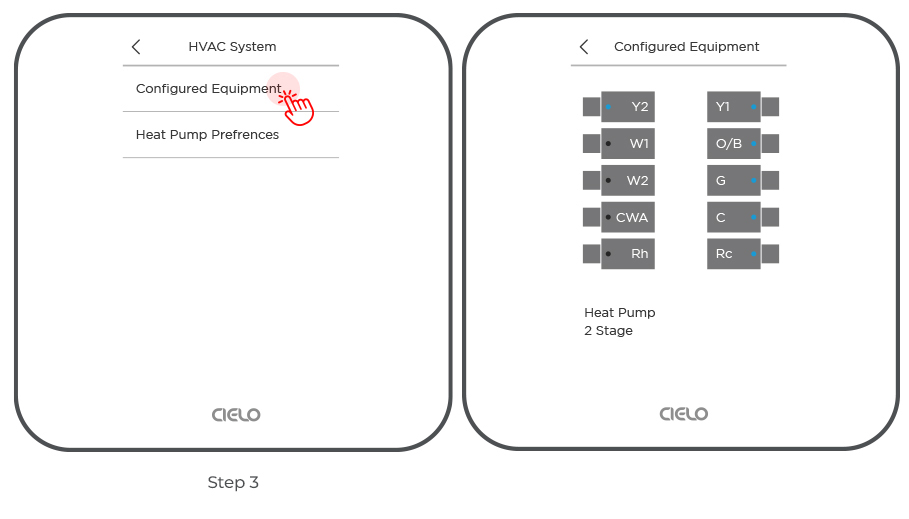

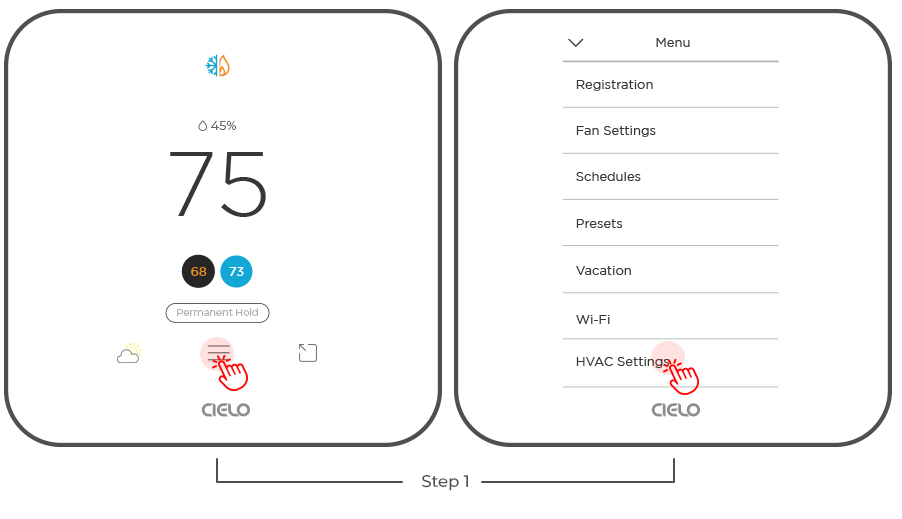

Step 1: Go to 'Menu' and select 'HVAC Settings.'
Step 2: Tap on 'HVAC System.'
Step 3: Tap on ‘Configured Equipment.' Your configured equipment is shown on the screen.
Adjusting Heat Pump Preferences
You can adjust your heat pump settings here.
Reconfigure Equipment

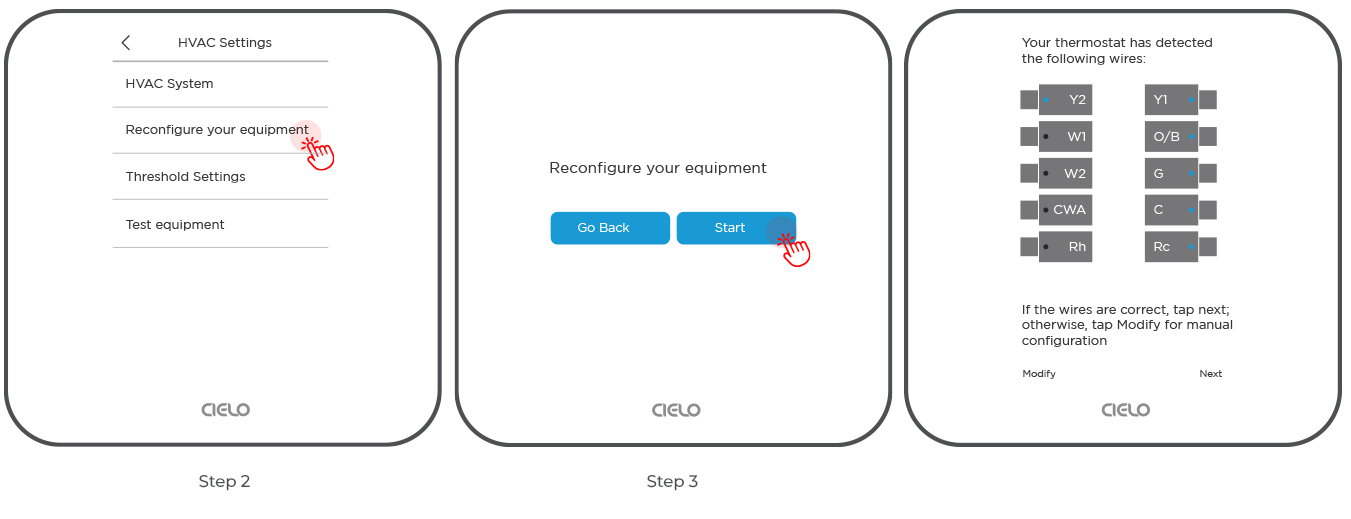

Step 1: Go to 'Menu' and select 'HVAC Settings'.
Step 2: Select 'Reconfigure your equipment'.
Step 3: Tap 'Start'.
Changing Threshold settings
Threshold settings allow you to optimize the performance of your HVAC system to enhance its energy efficiency.

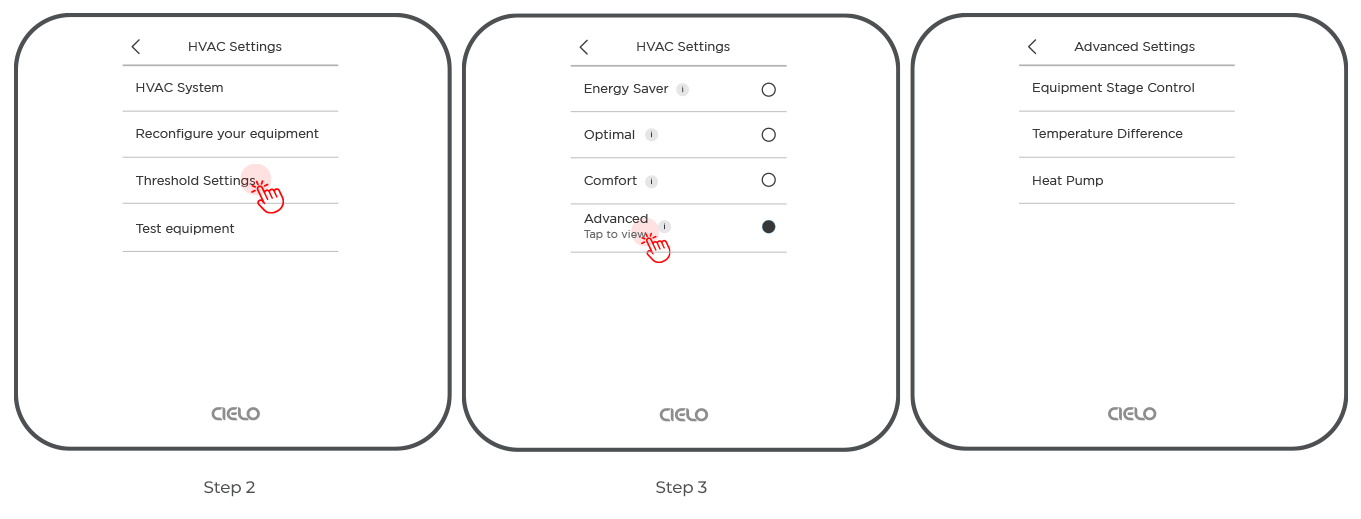

Step 1: Go to 'Menu' and select 'HVAC Settings'.
Step 2: Select ‘Threshold Settings’.
Step 3: You can choose from the premade threshold template:
- Energy Saver
These threshold values are carefully designed to ensure maximum energy savings. By applying the Energy Saver, you can optimize energy usage for the best possible savings.
- Optimal
These threshold values are designed to help you strike a balance between optimal home climate and energy savings. Using these pre-defined thresholds, you can achieve a perfect balance between optimized home comfort and lower energy bills.
- Comfort
These thresholds are meticulously set to maximize your comfort level. By applying these tailor settings, you can optimize your environment to achieve maximum comfort throughout.
- Advanced
These thresholds are for advanced customization, allowing you to tailor your home climate for greater control. You can fine-tune your environment to your preference, ensuring a personalized experience with the advantage of complete control.
Accessing HVAC settings on Cielo Home App
Checking Your Currently Configured HVAC Equipment

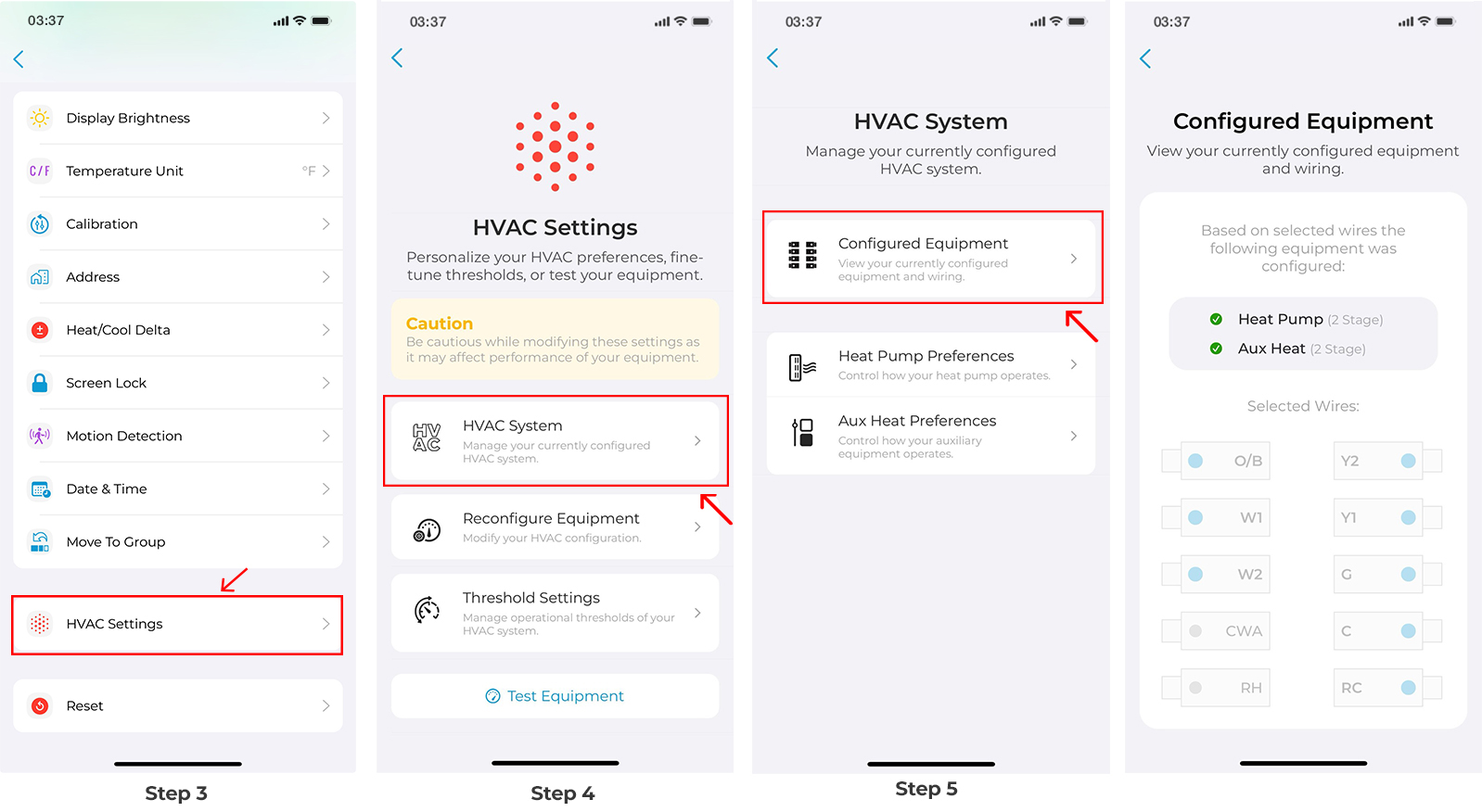

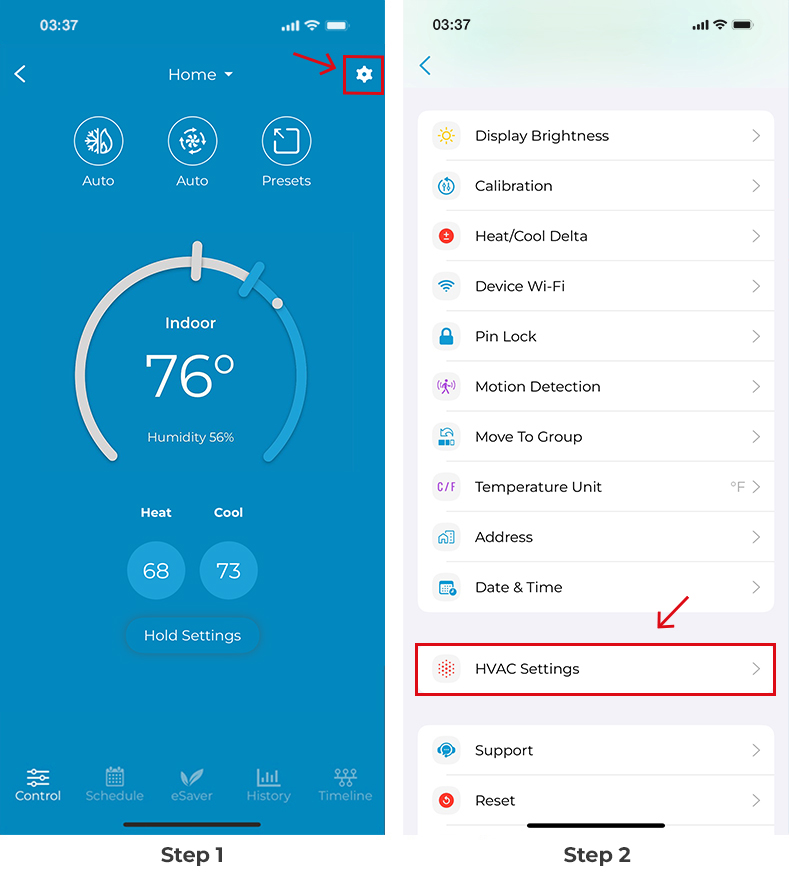

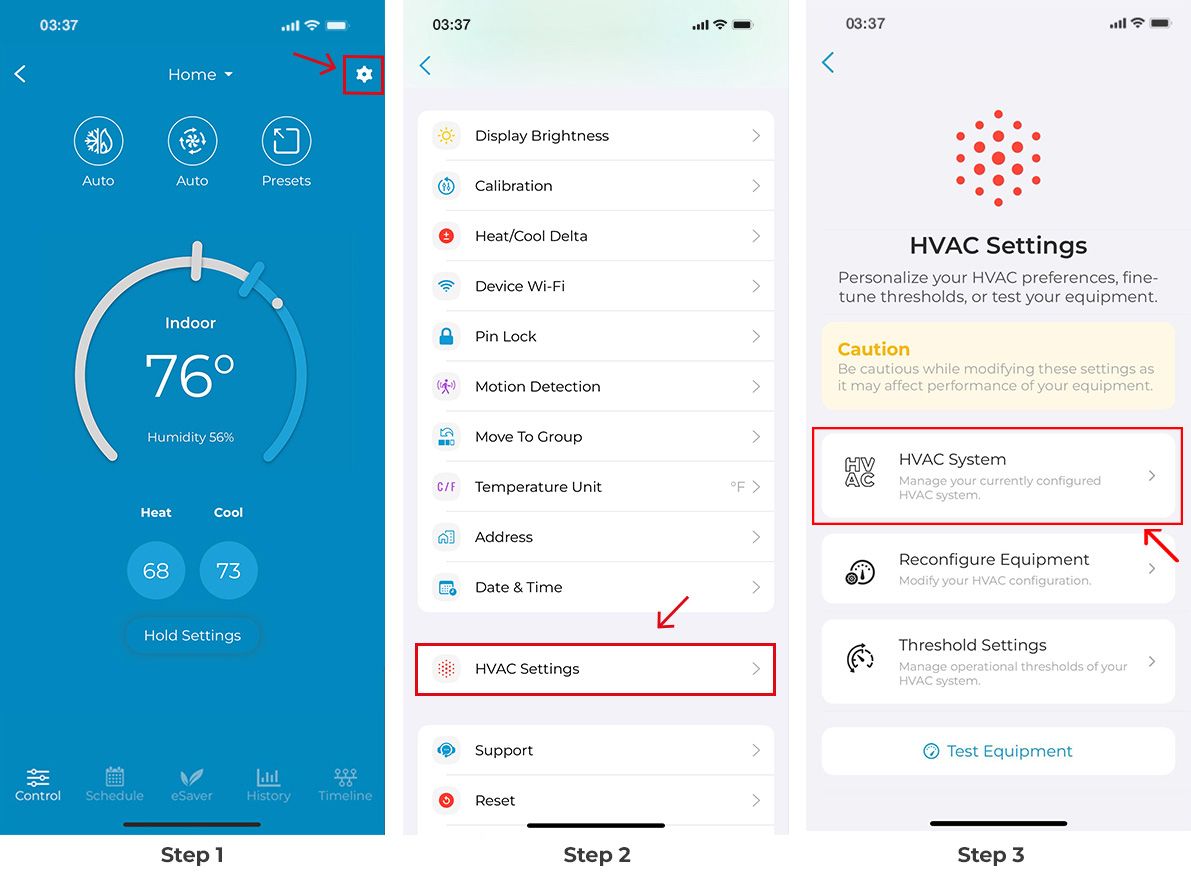

Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner.
Step 2: Choose 'HVAC Settings' from the menu.
Step 3: Now tap on 'HVAC System' from the list.

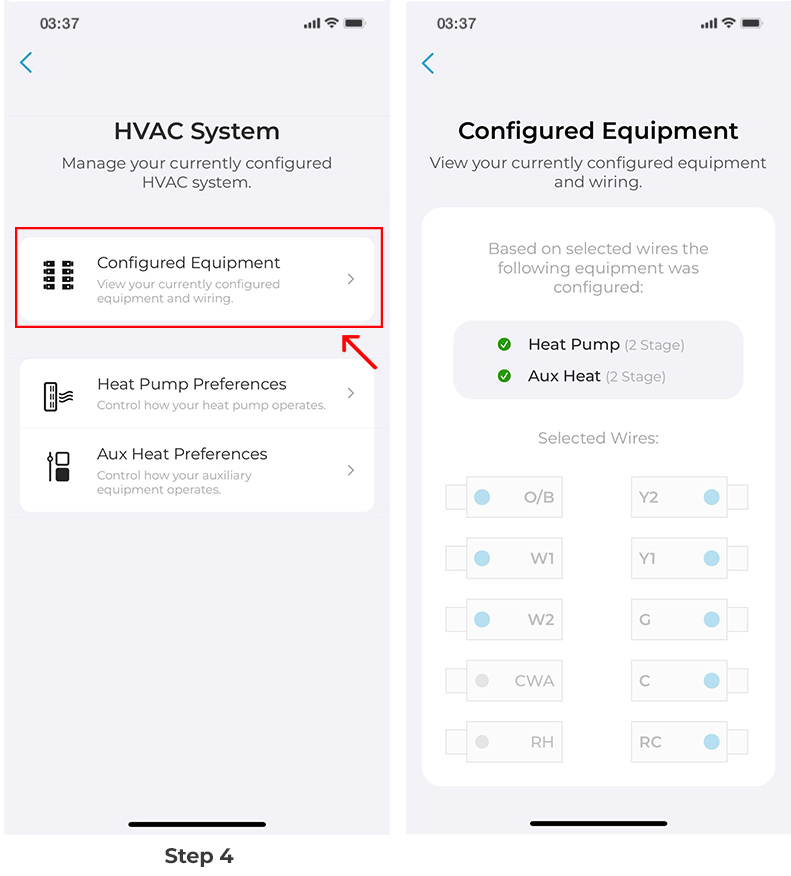

Step 4: Tap on 'Configured Equipment.'
You can check your currently configured HVAC equipment.
Changing Your Equipment's Preferences

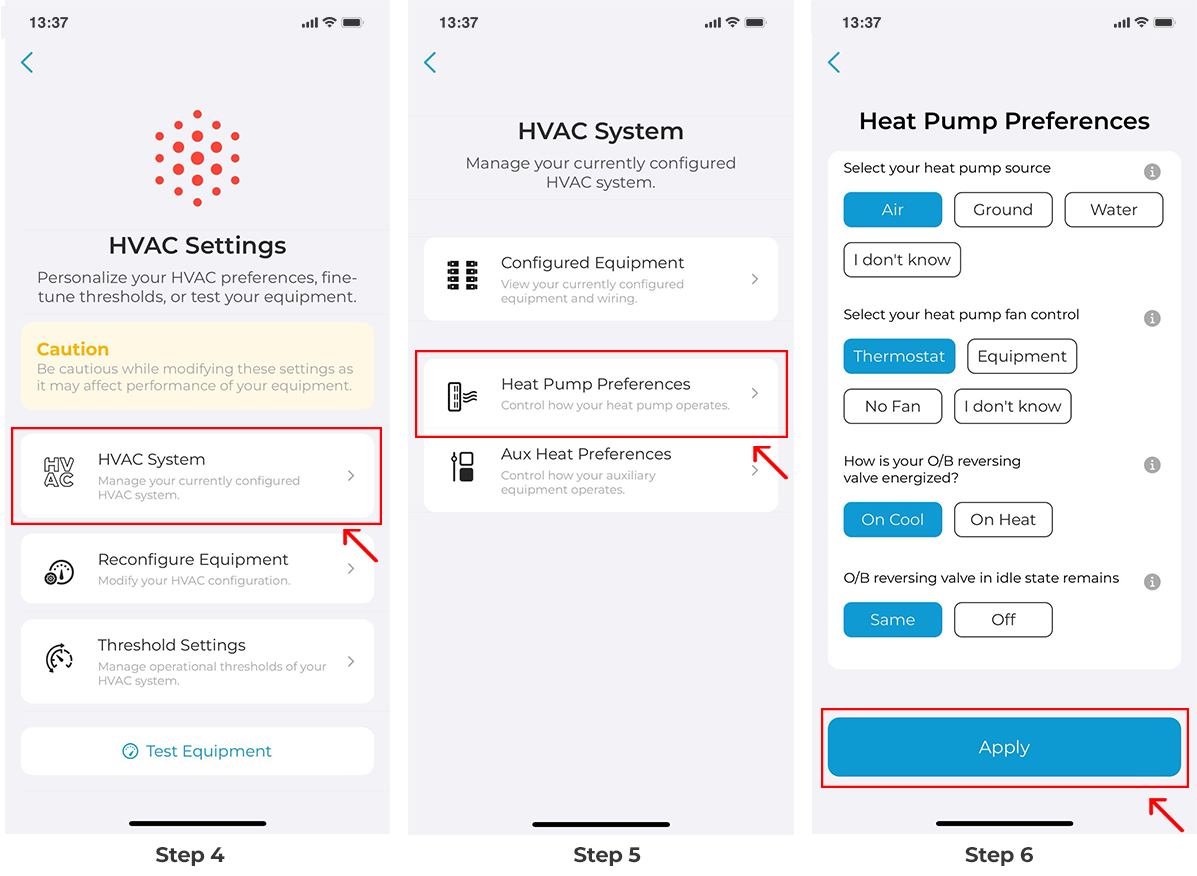

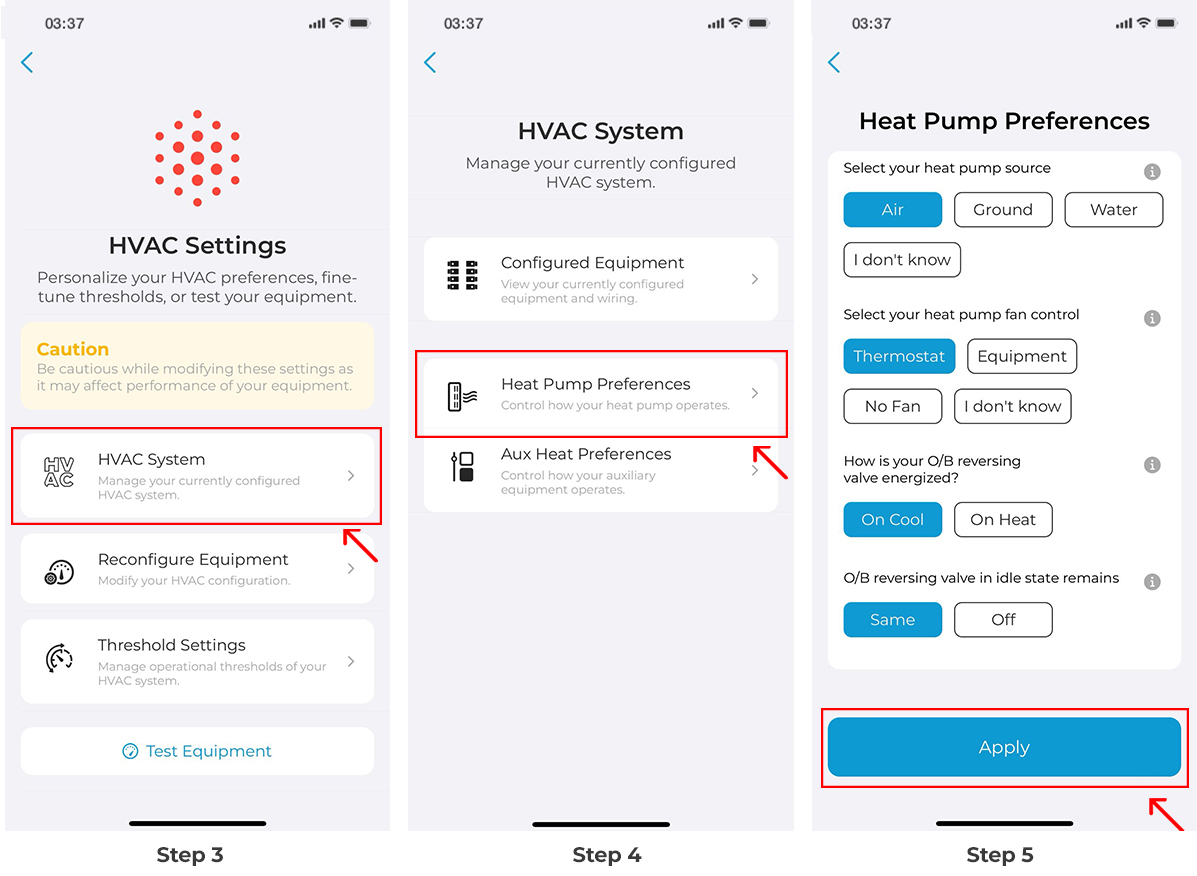

Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner.
Step 2: Tap on 'HVAC Settings.'
Step 3: Tap on 'HVAC System.'
Step 4: You'll see your configured equipment preferences here. In this case, heat pump & Aux. Select the equipment you want to change the preferences of.
Step 5: Make your desired changes and tap on 'Apply.' (Tap on the tooltip to learn about these settings)
Changing Your Currently Configured HVAC Equipment

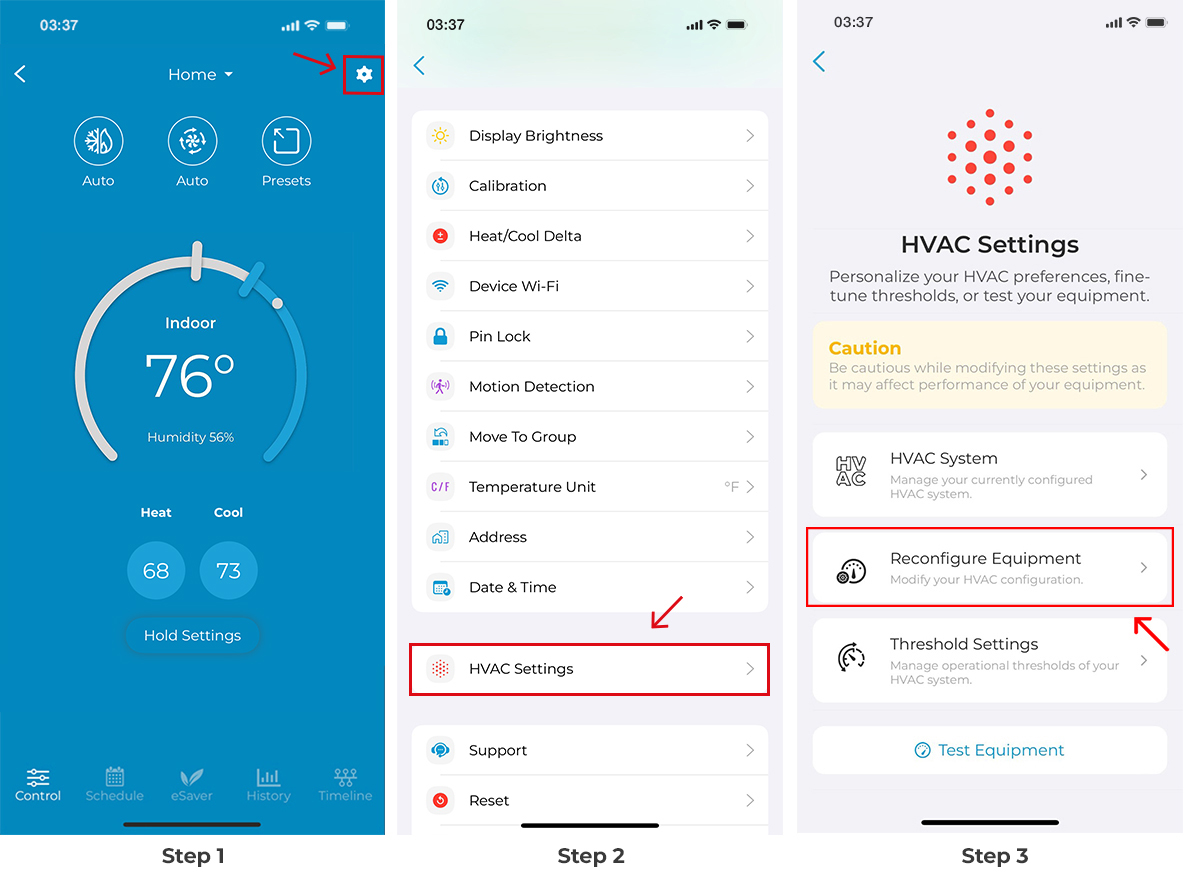

Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner.
Step 2: Tap on 'HVAC Settings.'
Step 3: Tap on 'Reconfigure Equipment.'

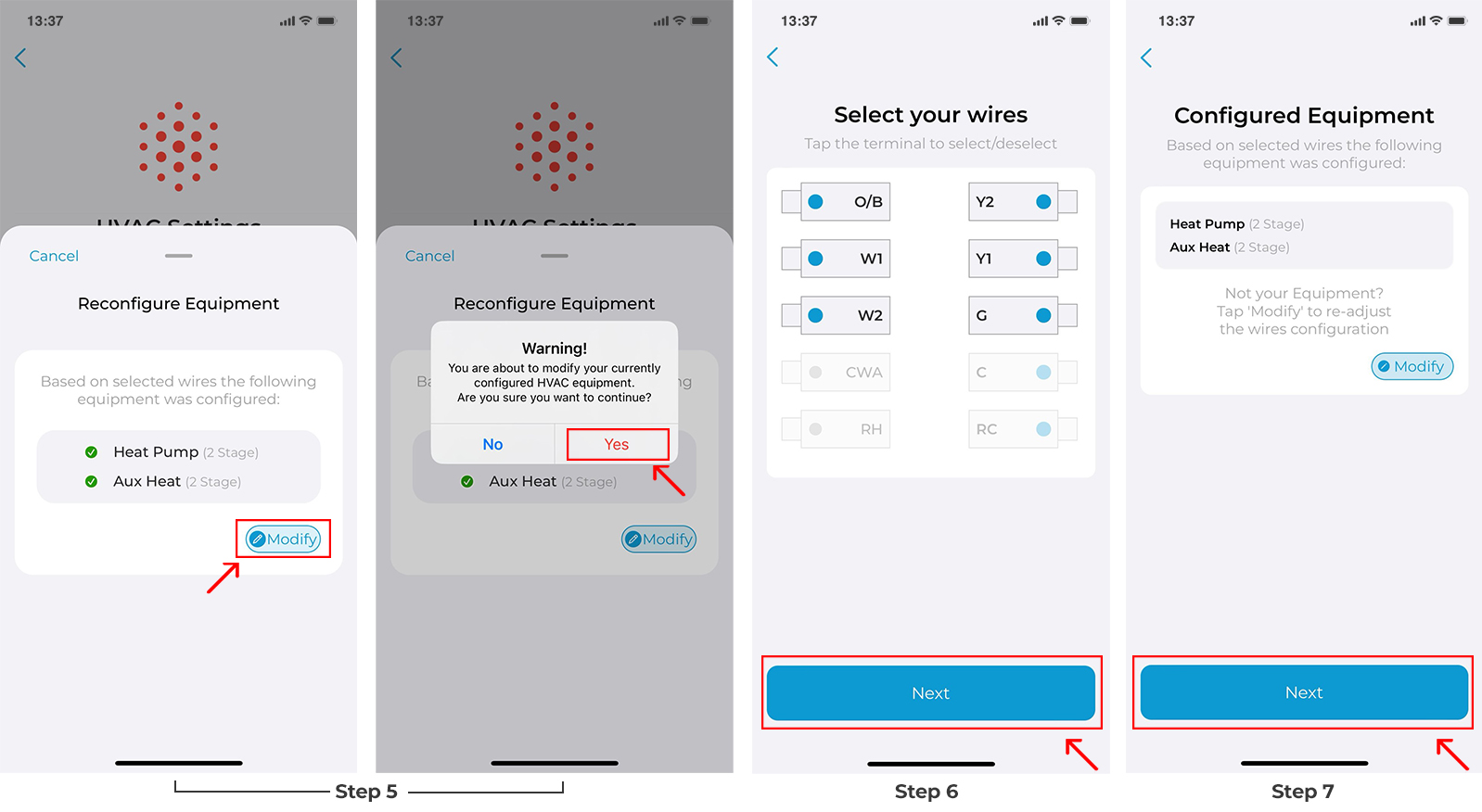

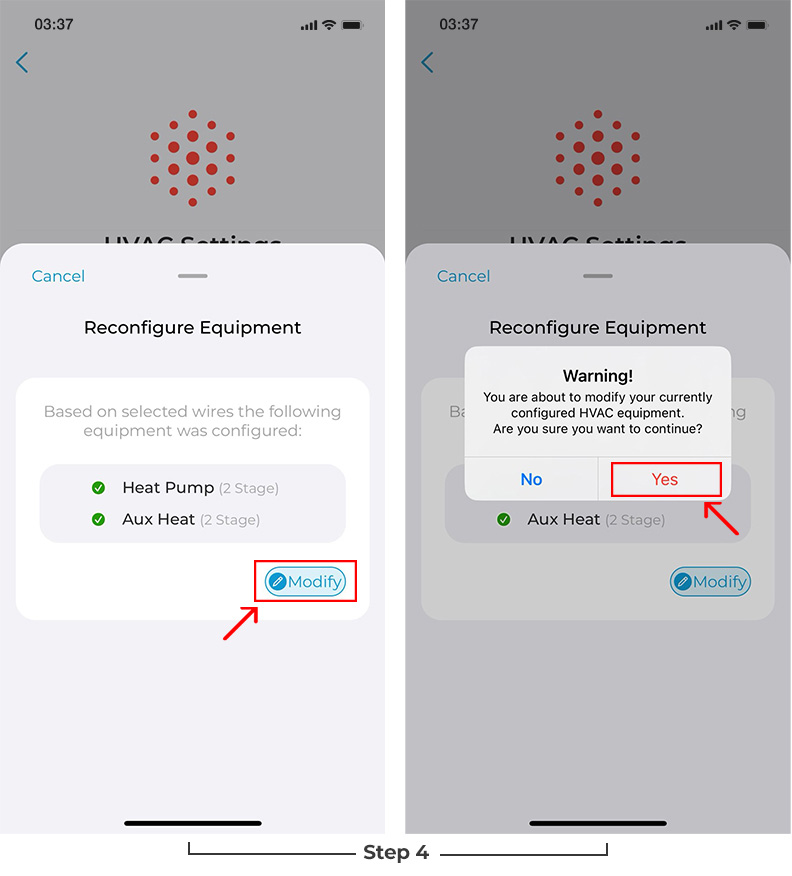

Step 4: Tap on 'Modify' and select 'Yes.'

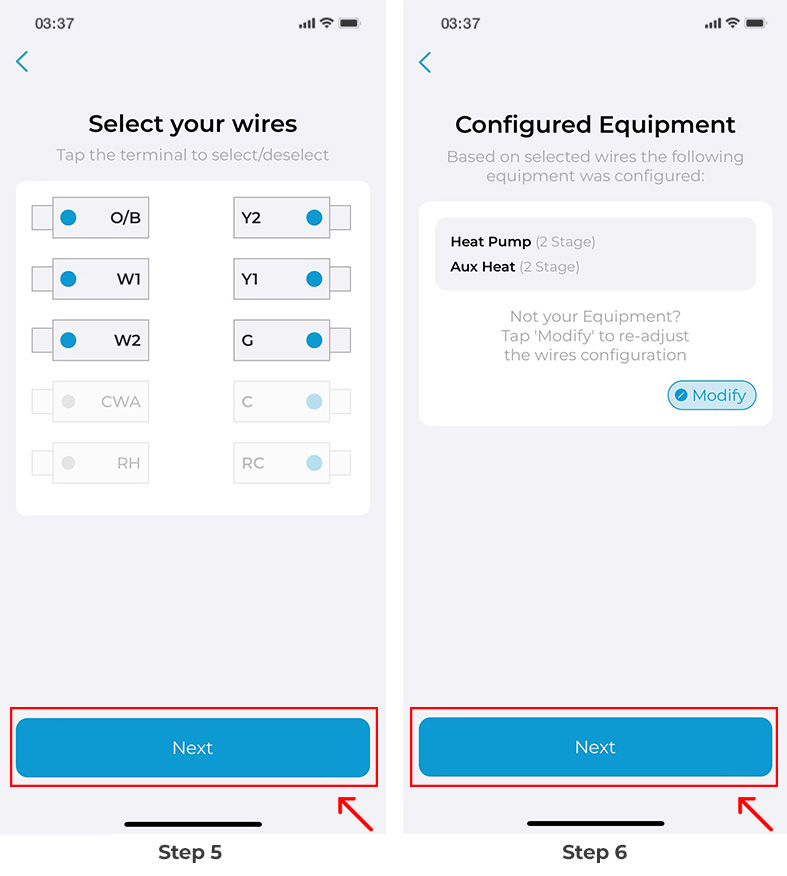

Step 5: Select the terminals that have wires connected to them. Then tap 'Next.'
Step 6: You will see your newly configured HVAC equipment. Tap 'Next.'

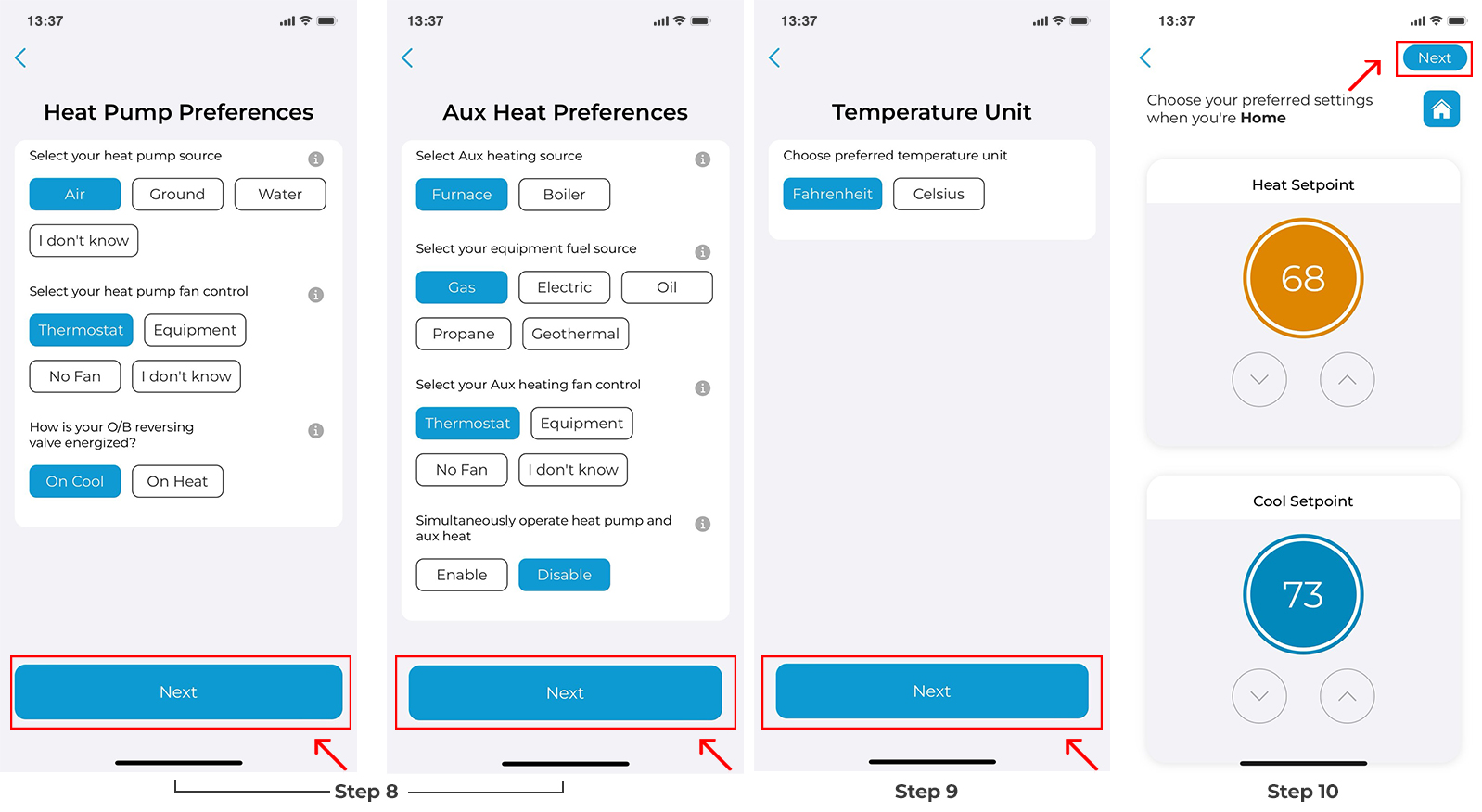

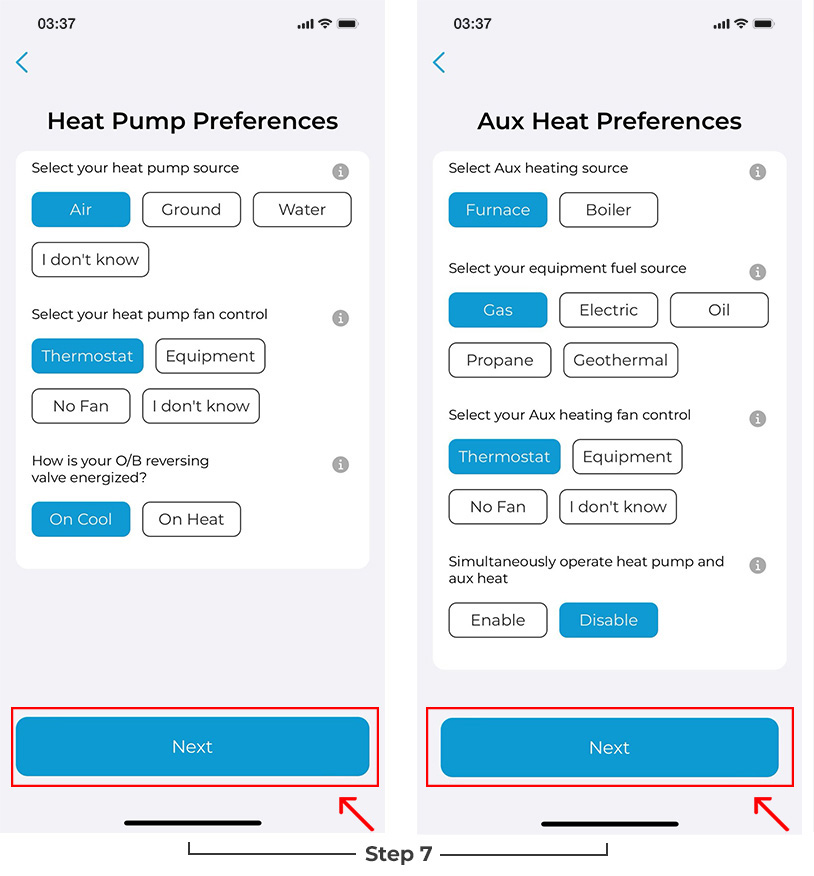

Step 7: Based on your wire selection, this step requires you to select your heating source and determine how you want your system to work. Tap on ‘Next’ after you have configured these settings.

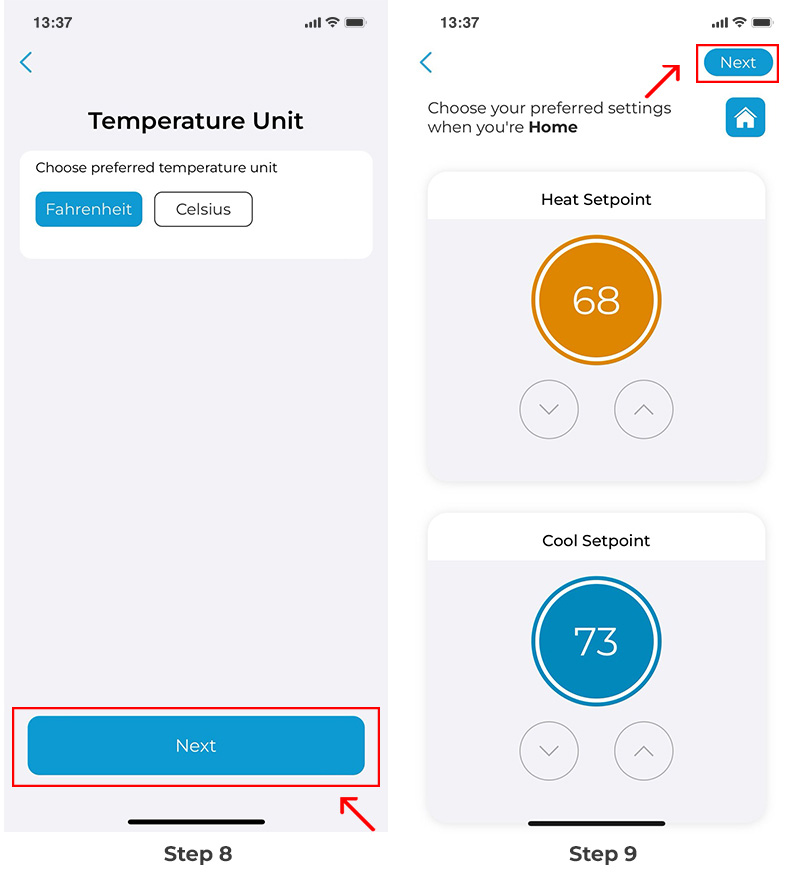

Step 8: Choose your preferred temperature unit and tap 'Next.'
Step 9: Personalize your desired comfort settings for Home, Away, or Sleep.
Your new HVAC equipment is now configured.
Changing Threshold Settings

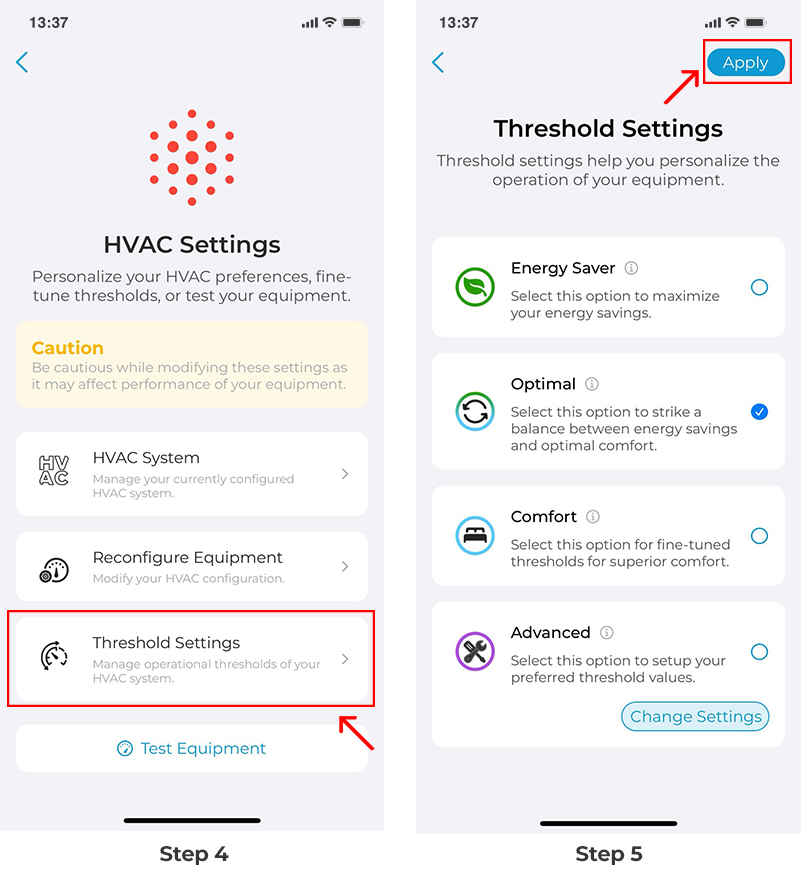

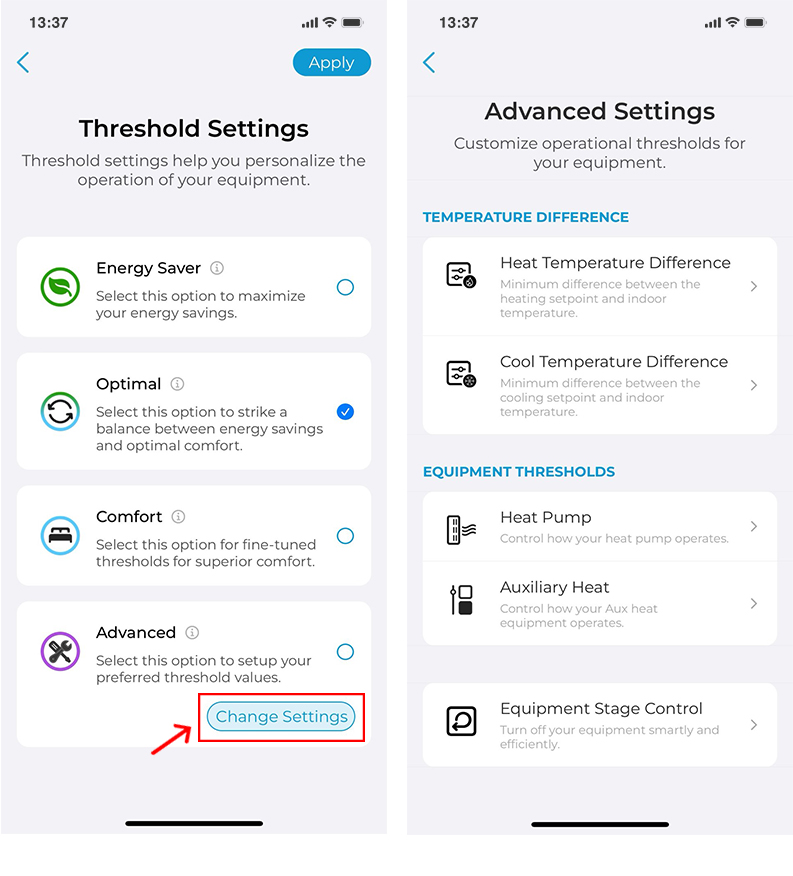

Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner.
Step 2: Tap on 'HVAC Settings.'

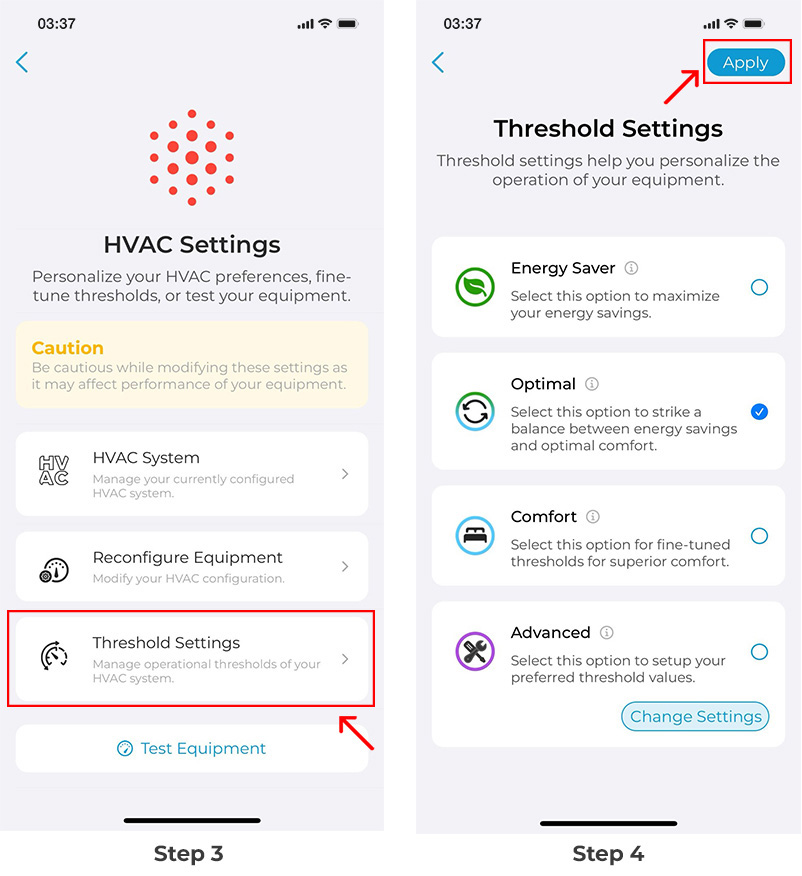

Step 3: Tap on 'Threshold Settings.'
Step 4: You can choose from the premade threshold templates (energy saver, optimal, or comfort) or select 'Advanced' to change settings according to your own preferences. Tap 'Apply' once done.
Advanced Threshold Settings

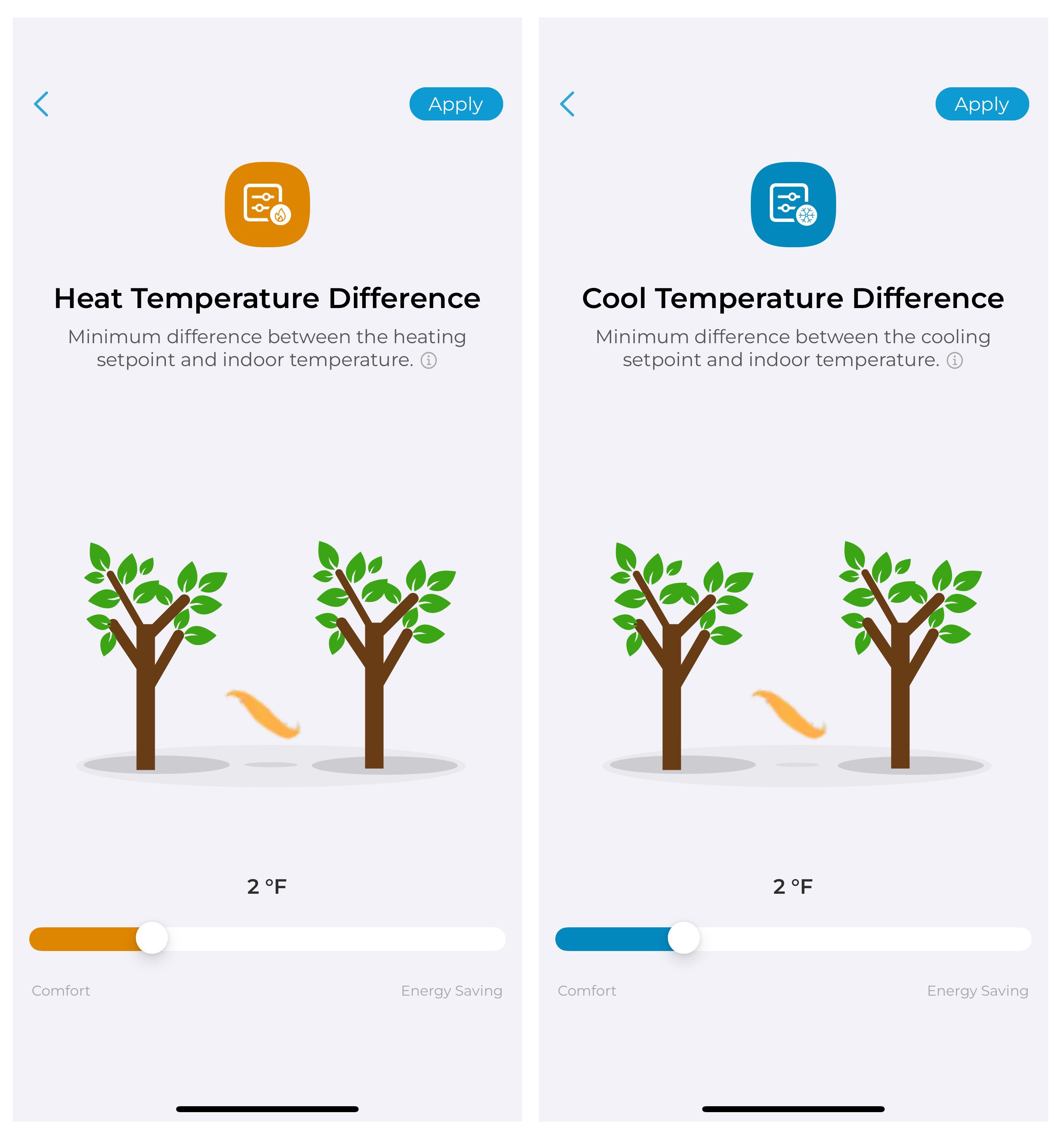

Temperature Difference
- Heat Temperature Difference: Minimum difference between the heating setpoint and indoor temperature.
- Cool Temperature Difference: Minimum difference between the cooling setpoint and indoor temperature.

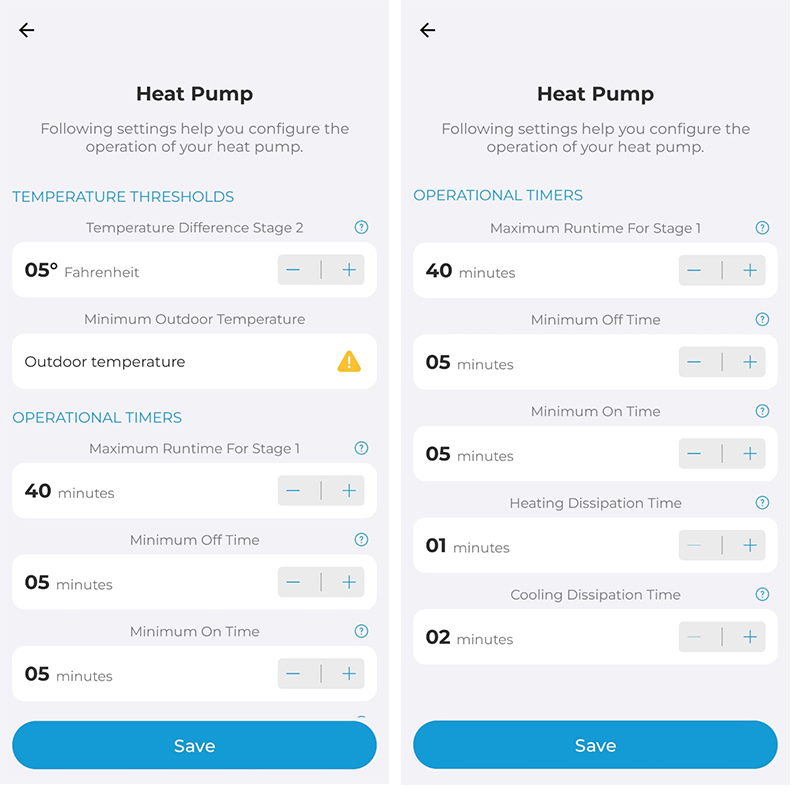

Equipment Thresholds
Temperature Thresholds
- Temperature Difference Stage 2
This is the difference between your indoor and setpoint temperature before stage 2 is activated to help achieve the setpoint. Setting a higher number will result in more savings because stage 2 may not be activated frequently.
In normal weather conditions, HVAC systems can efficiently maintain indoor temperature using stage 1 only and save you energy.
- Minimum Outdoor Temperature
If the outdoor temperature falls below a minimum threshold, the heat pump will turn off and switch to auxiliary heating. When the outdoor temperature goes above the maximum threshold, auxiliary heating will stop, and the heat pump will start running again.
Operational Timers
- Maximum Runtime For Stage 1
The maximum runtime for stage 1 before stage 2 is activated to achieve the temperature setpoint.
- Minimum Off Time
The minimum OFF time of the heating or cooling system before the thermostat turns it ON again. (A minimum value of 5 minutes is recommended to prevent the system from short cycling.
- Minimum On Time
The minimum ON time of the heating or cooling system before the thermostat turns it OFF again. (A minimum value of 5 minutes is recommended to prevent the system from short cycling.
- Heating Dissipation Time
Time for which the fan of your HVAC system will run after the heating has been turned off. This ensures that the hot air left in the ducts is blown into the room to maximize the use of generated heat.
- Cooling Dissipation Time
Time for which the fan of your HVAC system will run after the cooling has been turned off. This ensures that any remaining cool air in the ducts is circulated into the room to maximize the efficiency of the cooling cycle.
Equipment Stage Control
- Stage Control
ON - Stage 2 of your equipment automatically turns off as your home temperature approaches your setpoint, and Stage 1 can efficiently reach your setpoint on its own.
OFF - Your equipment will keep on running in stage 2 until your setpoint is achieved.
- Aux to Heat Pump
ON - Auxiliary heat is automatically turned off as your home temperature approaches the setpoint, while the heat pump operates to attain your desired temperature.
OFF - Auxiliary heat keeps on running until your setpoint is achieved.
- Aux Control
ON - Stage 2 of your auxiliary equipment automatically turns off as your home temperature approaches the setpoint, and stage 1 can efficiently reach your setpoint on its own.
OFF - Stage 2 of auxiliary equipment keeps running until your setpoint is achieved.
