The Test Equipment feature allows you to test heating, cooling, fan, or connected accessories to assist with troubleshooting and confirm the system is working properly. Cielo Smart Thermostat provides a convenient way to test your HVAC system.
Helpful Information
It's advisable to test your unit before seasonal transitions to ensure it operates efficiently. Checking the heating function as summer winds down ensures it's ready for colder temperatures. Testing your cooling system in the spring ensures it’s in good shape before the onset of summer. This proactive approach helps maintain your system's performance, allowing you to address any issues promptly if they arise.
Test Your HVAC System Using Cielo Smart Thermostat

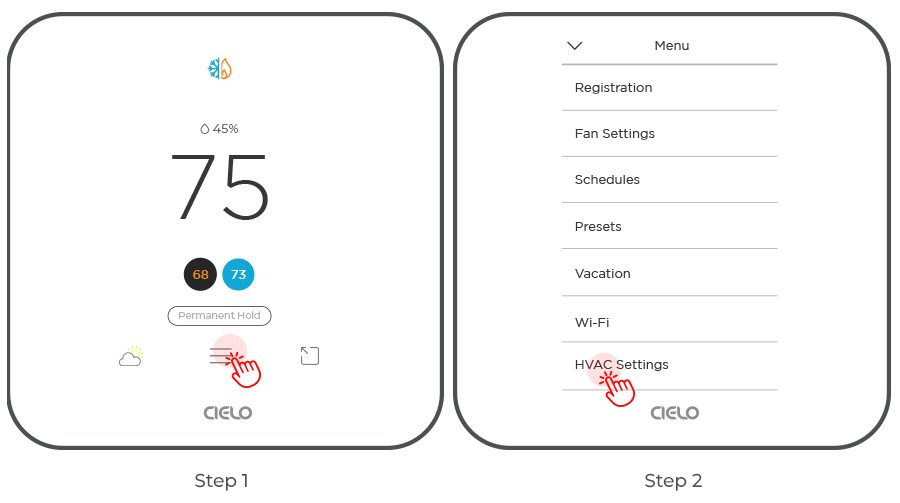

Step 1: Tap the ‘Menu’ icon.
Step 2: Go to ‘HVAC Settings’.

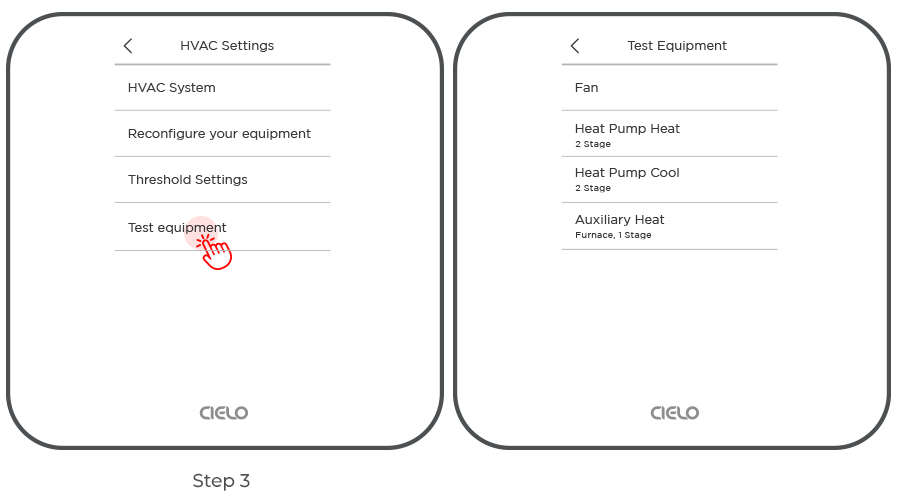

Step 3: Tap on ‘Test Equipment’.
You will find the various system functions available for testing. Select the function you wish to test.
📢 Note: The options displayed on the ‘Test Equipment’ screen will vary based on the configured equipment.
Test Your HVAC System Using the Cielo Home App

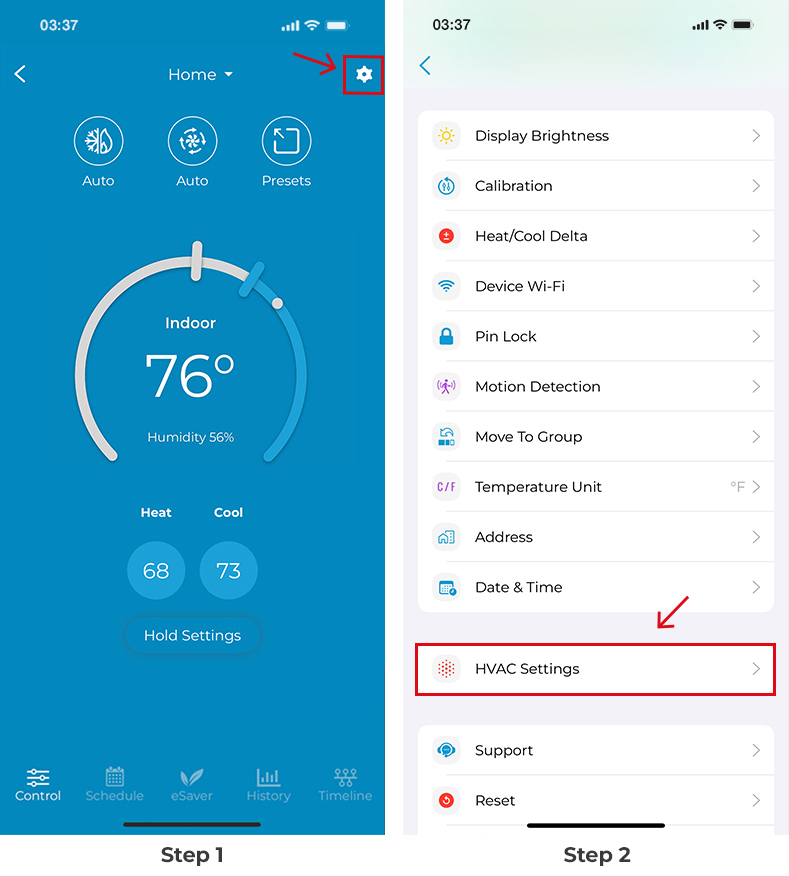

Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner.
Step 2: Go to ‘HVAC Settings.'

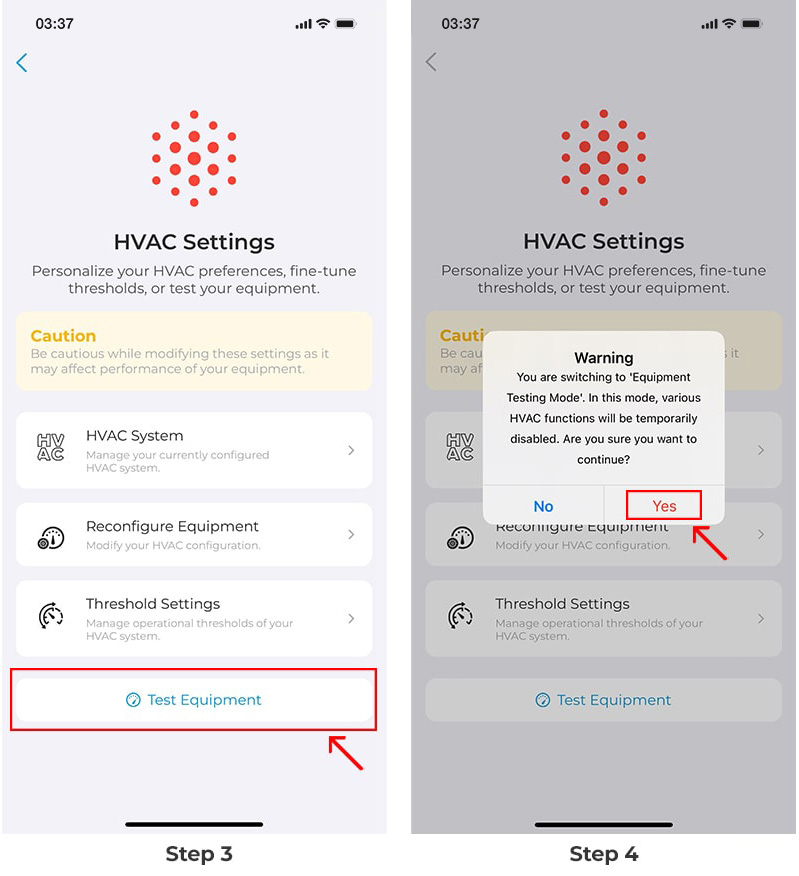

Step 3: Tap on ‘Test Equipment.'
Step 4: Tap ‘Yes’ to proceed.
Note: The options shown on the Test Equipment screen will vary based on your configured equipment. For instance, if you only have a heat pump, the available options will differ from when you have both a heat pump and auxiliary heat connected.
Next, you will find the system components available for testing (depending on your configured equipment). You can select a particular function to test, such as the fan, heating, cooling, or auxiliary stages 1 and 2.
Step 5: Simply click on ‘Test’ to initiate the testing process.
Once initiated, Cielo Smart Thermostat will run the selected function briefly, allowing you to confirm that system is working properly.
💡 Tip: Always perform HVAC testing before a seasonal transition, after installing the thermostat, or after making any changes in the wiring.
