How to configure O/B reversing valve for idle state in Cielo Smart Thermostat?

Configuring O/B reversing valve in Cielo Smart Thermostat

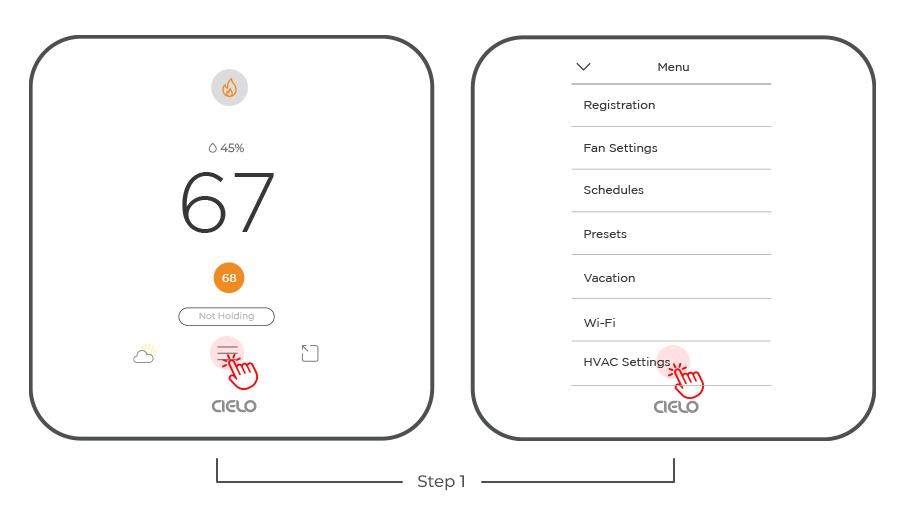

Step 1: Go to 'Menu' and select 'HVAC Settings'.

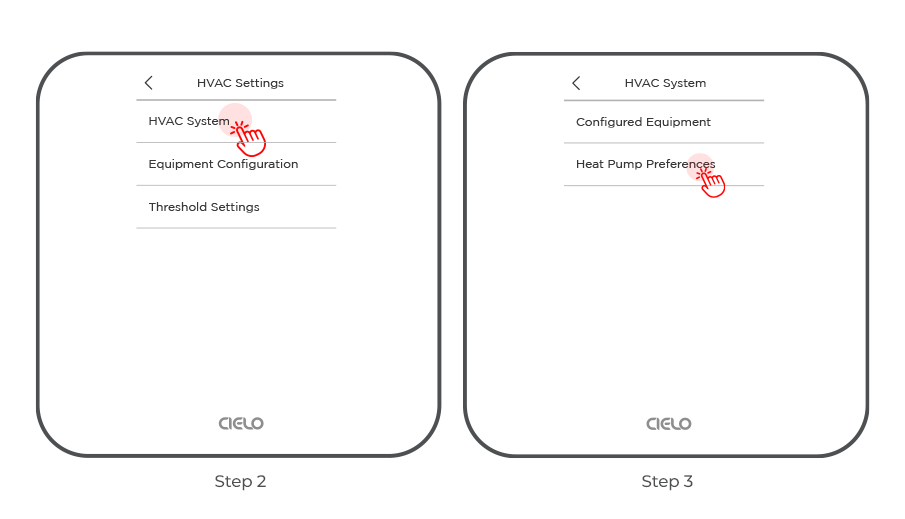

Step 2: Select 'HVAC System'.

Step 3: Tap on ‘Heat Pump’.

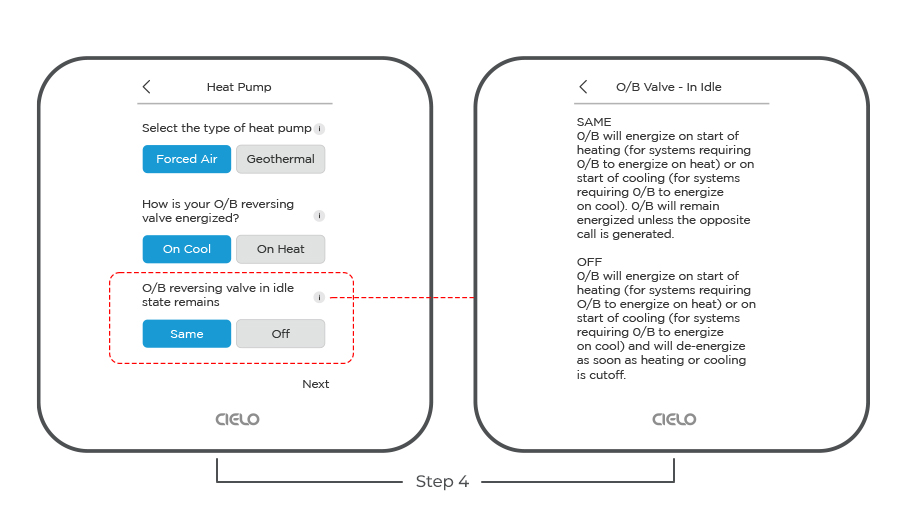

Step 4: You can choose whether the O/B reversing valve in the idle state should remain ‘Same’ or ‘Off’. This depends on whether you want the O/B valve to stay energized until the opposite of heating or cooling is called or to be left unenergized whenever there is no heating or cooling. (Tap on the tooltip to learn about these settings.)

Configuring O/B reversing valve via Cielo Home App

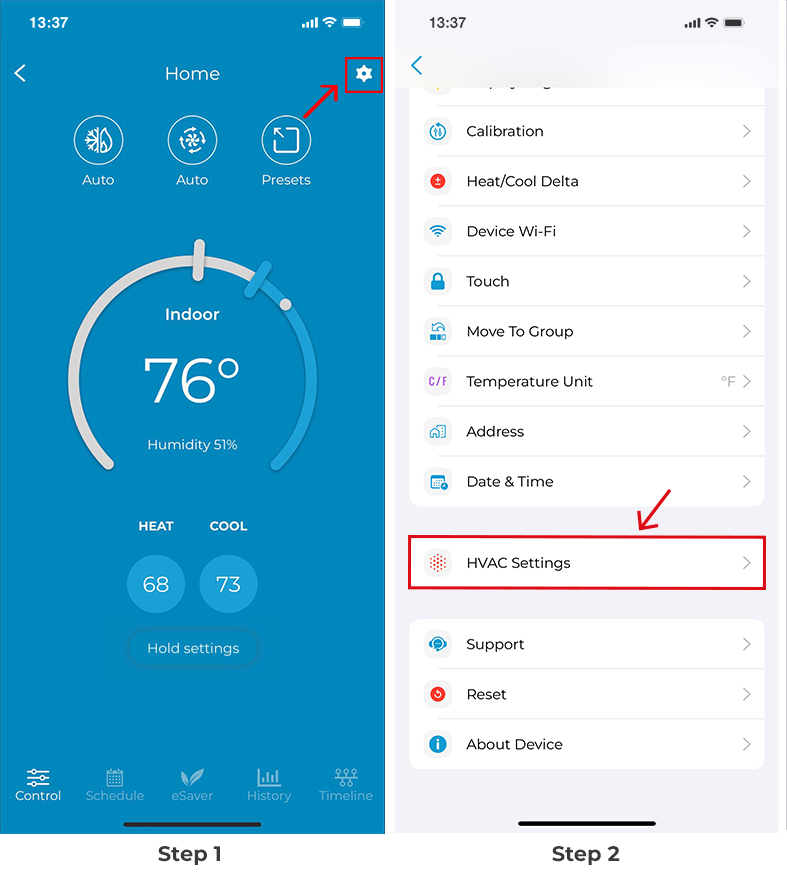

Step 1: On the Control Screen, tap on the ‘Settings’ icon at the top right corner.

Step 2: Tap on ‘Device Preferences’.

Step 3: Tap on 'HVAC Settings'.

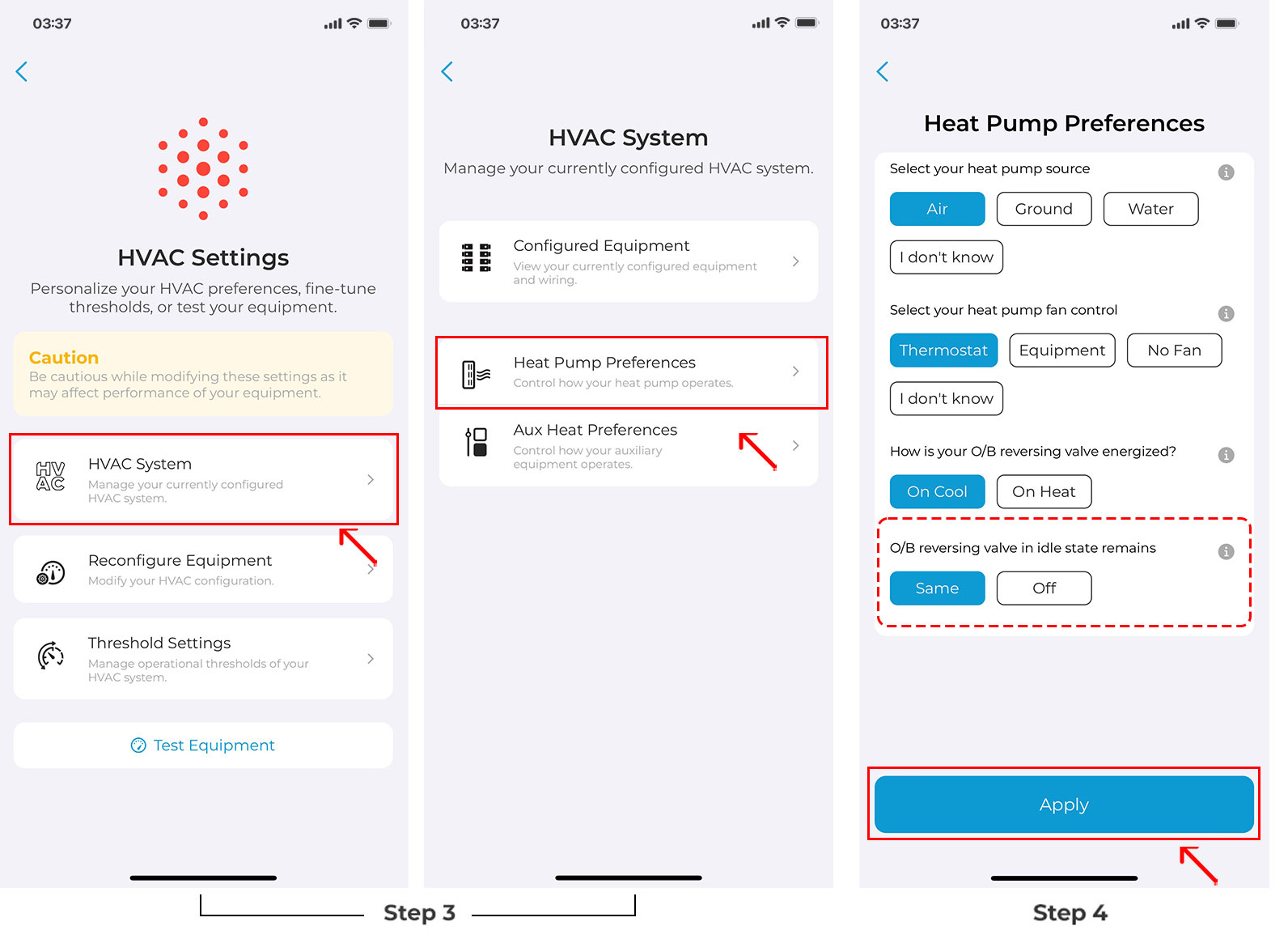

Step 4: Tap on ‘HVAC system’, then ‘Heat Pump Preferences.’

Step 5: You can choose whether the O/B reversing valve in the idle state should remain ‘Same’ or ‘Off’. This depends on whether you want the O/B valve to stay energized until the opposite of heating or cooling is called or to be left unenergized whenever there is no heating or cooling. (Tap on the tooltip to learn about these settings.)

Tap on ‘Apply.’
