The Cielo Smart Thermostat allows you to connect a whole-home dehumidifier using its dedicated CWA terminal. The wiring setup will vary based on whether you're installing a 1-wire or 2-wire dehumidifier.
📢 Important: Cielo Smart Thermostat supports 1-wire or 2-wire accessories through the CWA terminal, but does not support an accessory and common wire adapter (CWA) at the same time.
Firmware Requirements
Ensure your device is running the latest firmware version (1.3.0, 1.2.4, or higher). To check the firmware version - Go to Menu > Scroll down to About Device > Firmware Version.
1-Wire Accessory
Accessories with 1-wire attach to the thermostat's CWA terminal and use the HVAC system's 24V power for activation, sourced from the Rc terminal.

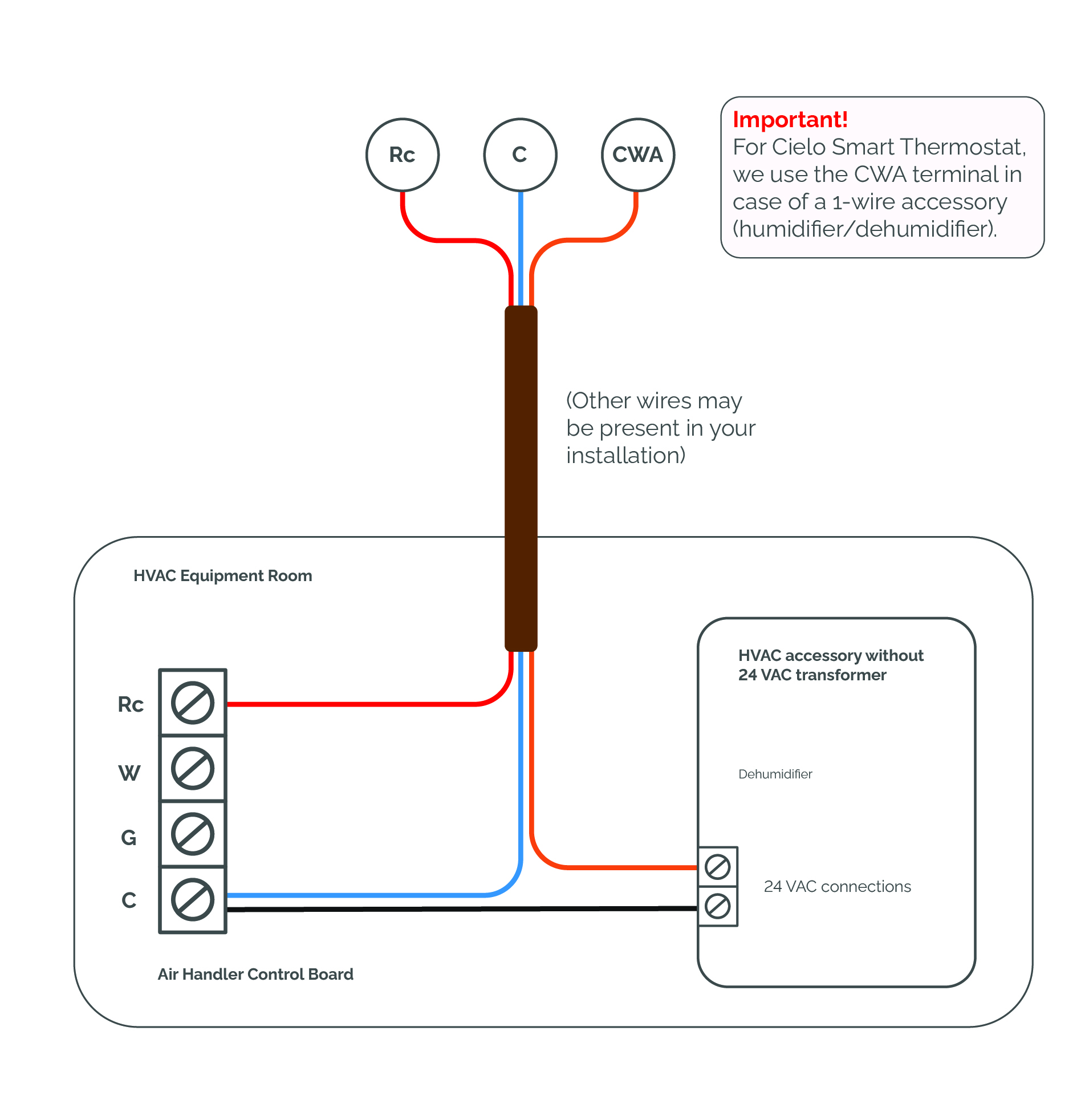

The connection of the 1-wire system is depicted in the following diagram:
2-Wire Accessory
Accessories with 2-wires have their own power source and are electrically isolated from the HVAC equipment. The thermostat's CWA terminal would be used to connect with the wire coming from an additional isolation relay (separately sold and attached).

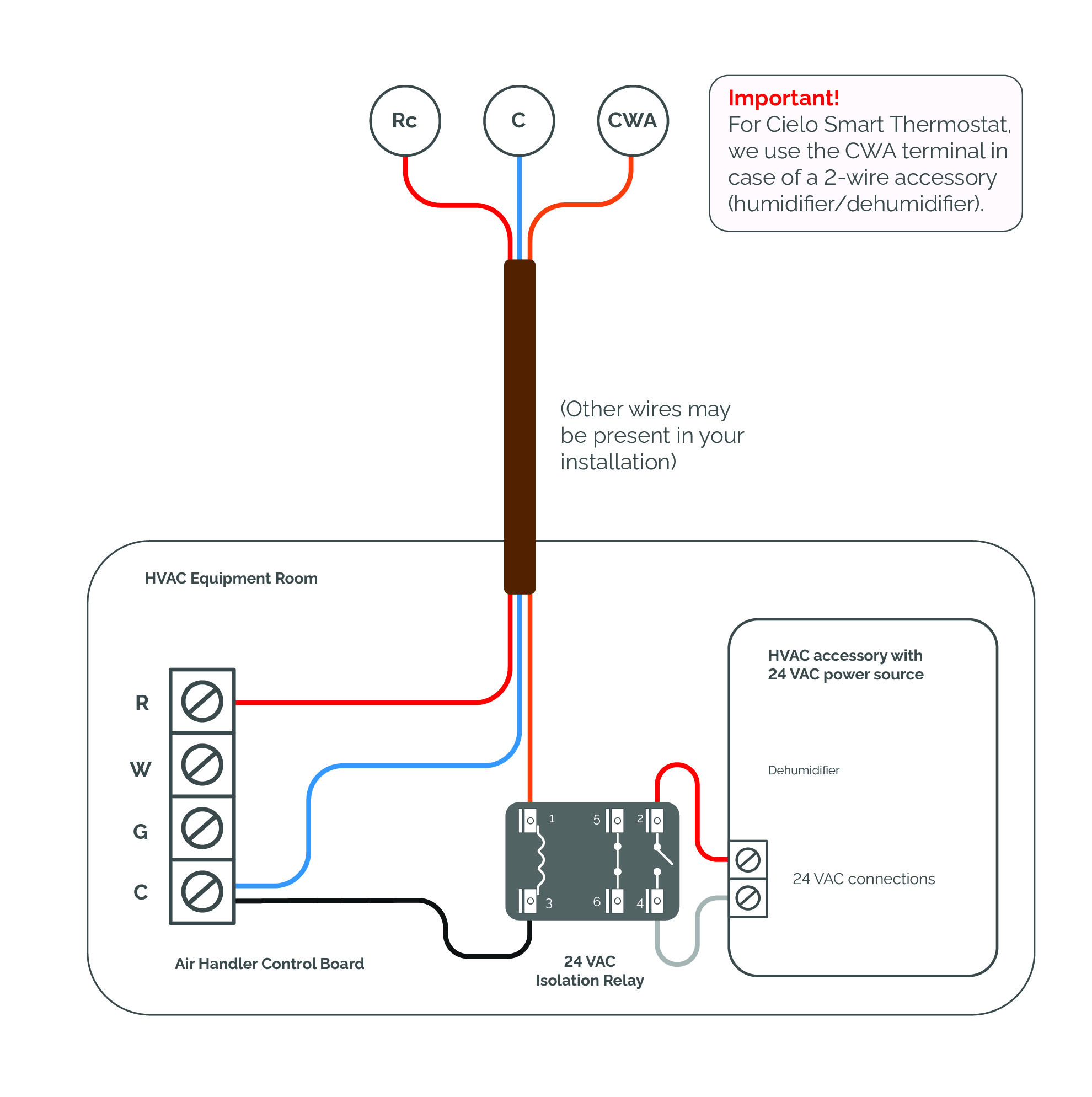

The connection of the 2-wire system is depicted in the following diagram:
Before You Begin
- Identify the dehumidifier control wire. Look for labels such as D, DHUM, or DHUM1.
- If you don’t have a common wire (C-wire) and are using a C-wire adapter to power your Cielo Smart Thermostat, your accessory cannot be connected because it must be wired to the CWA terminal.
- If you have a 2-wire dehumidifier, a 24 VAC isolation relay is required for installation. For assistance, please contact Cielo tech support at:
📞 Call: +1 (425) 529-5775 (9 am - 9 pm ET | Mon -Fri)
📧 Email: support@cielowigle.com
⚠️ WARNING
In case of dual power source, i.e., Rc & Rh, power the accessory (dehumidifier) using the cooling system’s power source, i.e., Rc and C. DO NOT use the heating system’s power source, i.e., Rh & C, as it may damage the equipment.
WIRING INSTRUCTIONS (Dehumidifier)
Step 1: Power OFF the HVAC System

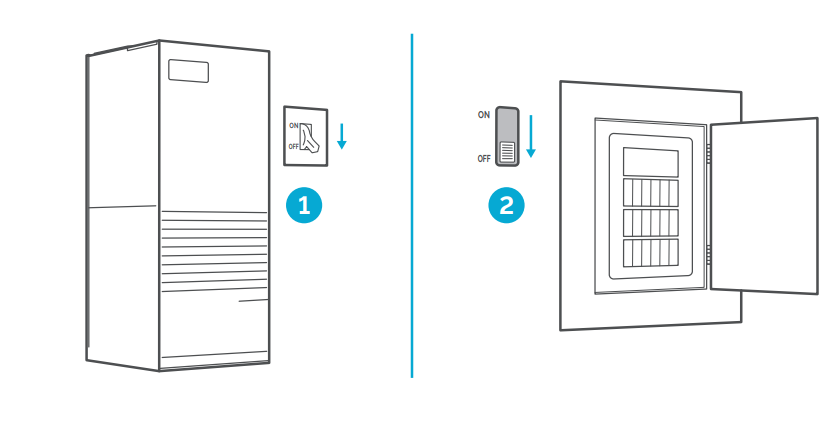

Step 1: Power off your HVAC system using the:
1. The master switch OR 2. The circuit breaker
To be on the safe side, ensure that the system is completely switched off. Double-check that:

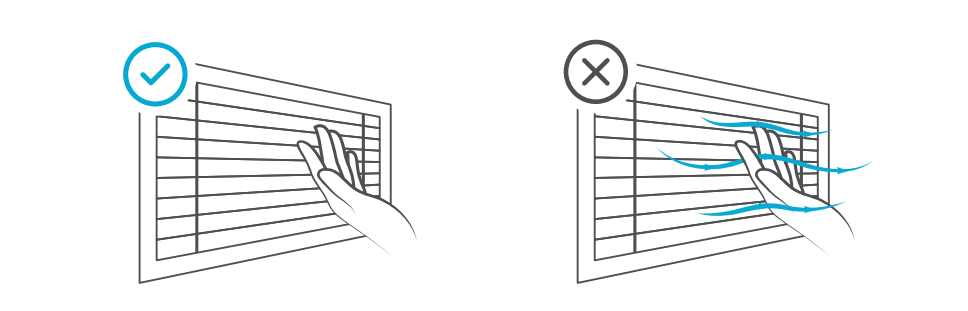

- No air is coming out of the air vents.
- The main flame is extinguished in case of a boiler.
Step 2: Remove the Thermostat

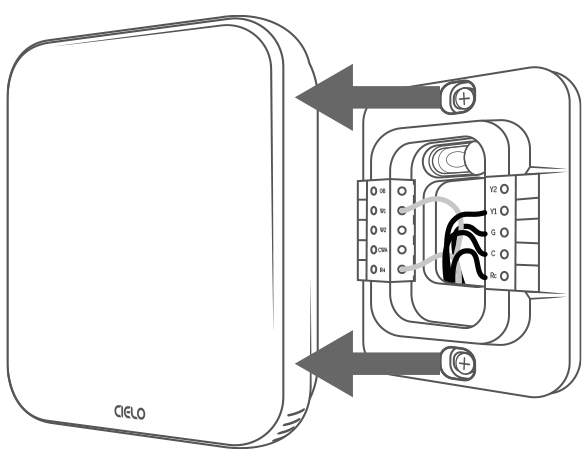

Detach the Cielo Smart Thermostat from its backplate.
Step 3: Locate the Accessory Wire

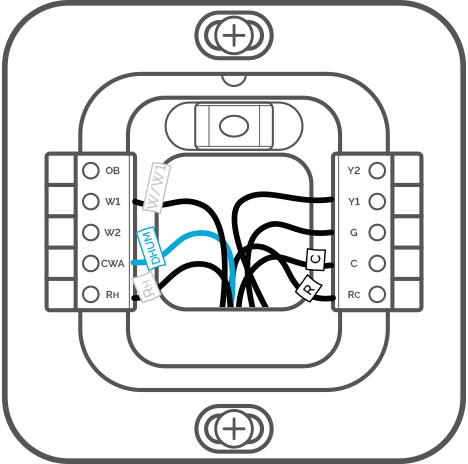

Locate your accessory wire labeled as D, DHUM, or DHUM1. This wire controls your dehumidifier. Ensure that the accessory wire is coming directly from the system to the thermostat.
Step 4: Connect to the CWA Terminal

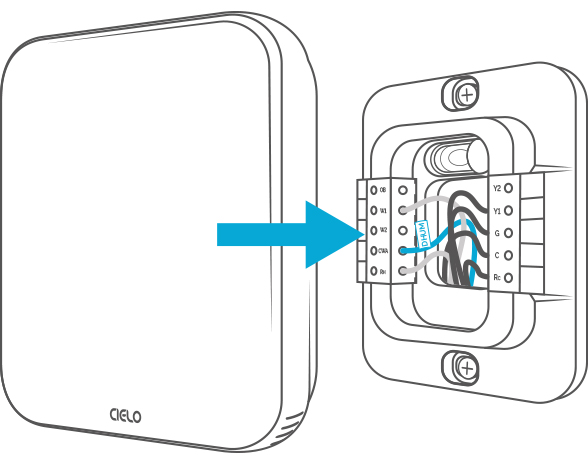

Connect the dehumidifier wire to the CWA terminal (press terminal block buttons for ease of insertion).
Step 5: Reattach the Thermostat
Align the Cielo Smart Thermostat with the backplate and press gently to fix it properly.

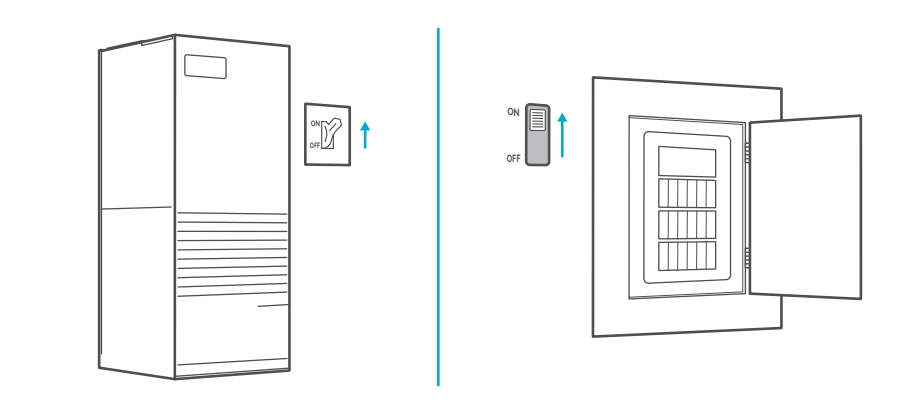

Step 6: Restore Power
Go to your HVAC system and turn ON the power from the master switch or circuit breaker.
Configuring Dehumidifier With Cielo Smart Thermostat

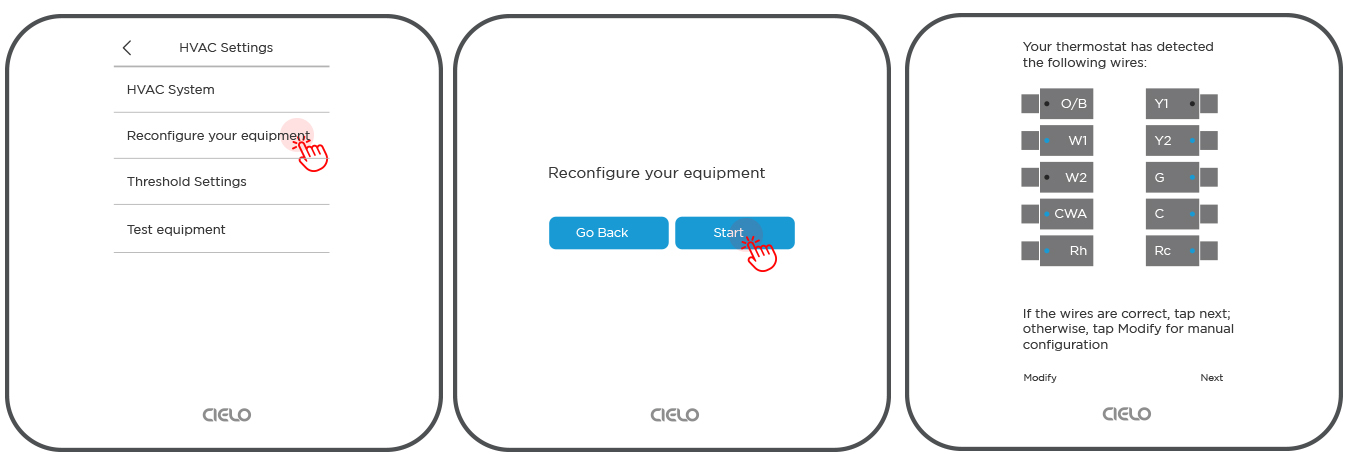

Step 1: Access Settings

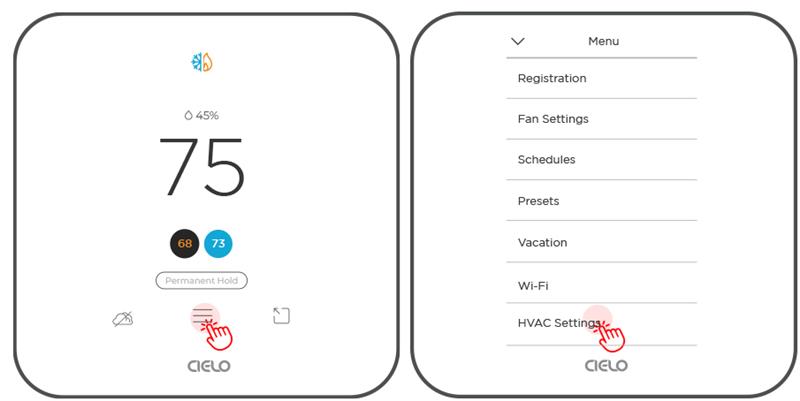

Go to 'Menu' and select 'HVAC Settings.'
Step 2: Reconfigure Equipment
- Select 'Reconfigure your equipment'.
- Tap 'Start',
- Cielo Smart Thermostat will automatically detect the connected wires. Tap ‘Next’.
Step 3: Confirm Configuration

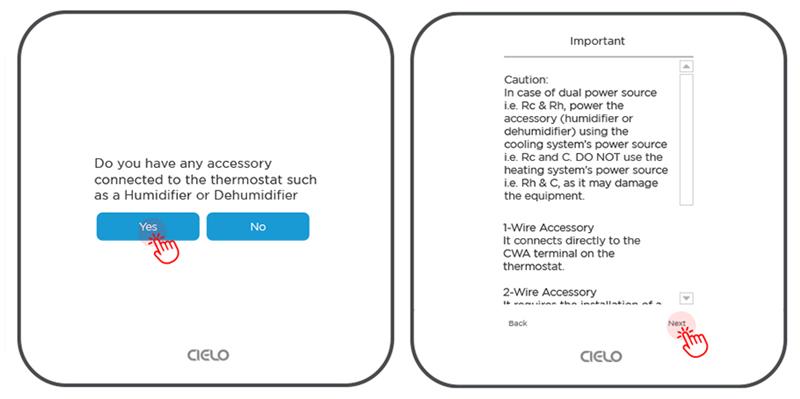

You’ll be asked, “Do you have any accessory connected to the thermostat, such as a Humidifier or Dehumidifier?”
Select ‘Yes’.
Carefully go through the caution note and tap ‘Next’.

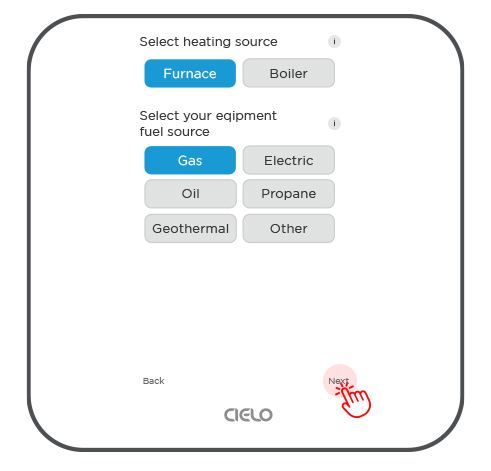

Step 4: Choose Equipment
Configure your equipment and fuel source as you did in the initial setup. Then proceed forward.
Note: This screen may vary depending on your configured equipment.

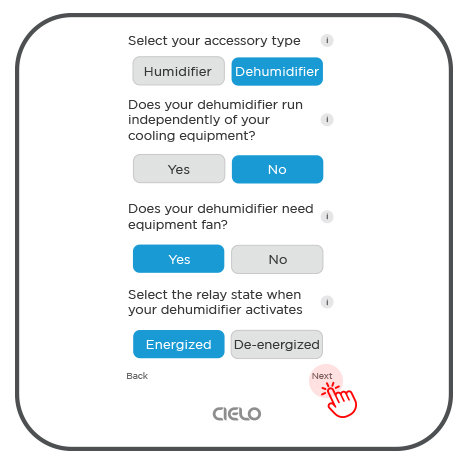

Step 5: Select Accessory Type
Select your accessory. In this case, choose a dehumidifier.
Then select the appropriate options:
1. Does your dehumidifier run independently of your cooling equipment?
Some dehumidifiers work in conjunction with your cooling equipment, while others can function on their own. You may refer to the user manual of your dehumidifier for more details.
2. Does your dehumidifier need an equipment fan?
- If your dehumidifier operation is dependent on the cooling equipment, select ‘Yes’.
- If your dehumidifier operates independently of the cooling equipment and uses its fan to circulate air, select ‘No’.
3. Select the relay state when your dehumidifier activates.
The thermostat requires relay state information to activate your dehumidifier (can be either energized or de-energized). Please refer to your dehumidifier’s manual for the recommended settings.

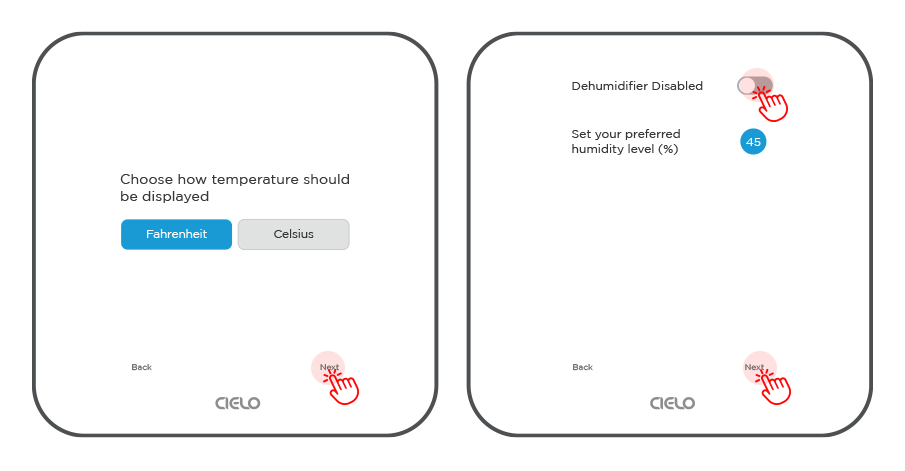

Step 6: Setting Preferred Humidity
Choose how the temperature should be displayed. Now toggle ON the dehumidifier & set your preferred humidity levels. Tap ‘Next’
Setup Complete
Your dehumidifier is now successfully connected and configured with the Cielo Smart Thermostat. If you encounter any issues or need further assistance, feel free to reach out to Cielo Tech Support.
