A multi-zone mini-split system can only function in either cooling or heating mode at any given time, but not both simultaneously, as they have the same refrigerant flow.
When different indoor units are set to conflicting modes (e.g., one in heat and another in cool), it can disrupt the system performance and cause some of the units to turn off.
How Cielo Breez Edge Helps Prevent Mode Conflict
Cielo Breez Edge offers a dedicated feature that helps prevent mode conflicts and ensures smooth operation in multi-zone setups.
Note: You'll need to connect each indoor unit with a separate Breez Edge.
To avoid mode conflict, this feature offers two key functionalities to either:
Follow
This enables synchronized settings across all units. When you change the mode (e.g., from cooling to heating) on one unit, all others will automatically switch to the same mode.
This is ideal if you want consistent comfort throughout your home without worrying about manual adjustments.
Turn Off
This setting prevents conflict by shutting down other units. When you change the mode on one unit, any other units operating in a different mode will automatically turn off.
This is useful when only one zone needs a mode change, and you don’t want to affect the entire system.
📢 Important Information
It’s not recommended to use Comfy Max or Comfy Mode with Multi-Zone Mini-Split Control. Adjust the temperature set points manually when using the Multi-Zone Mini-Split Control.
Benefits of Mode Conflict Control Feature
Mode conflict isn’t just a glitch; it can put a strain on your entire system. Multi-Zone Mode Conflict Control feature:
- Prevents mode conflict, ensuring smooth operation across all units.
- Delivers hassle-free comfort, no need for manual adjustments.
- Protects your compressor from premature wear and tear.
- Improves overall system performance.
- Prevents unnecassary service calls.
How to Set Up Multi-Zone Mini-Split Control Using the Cielo Home App

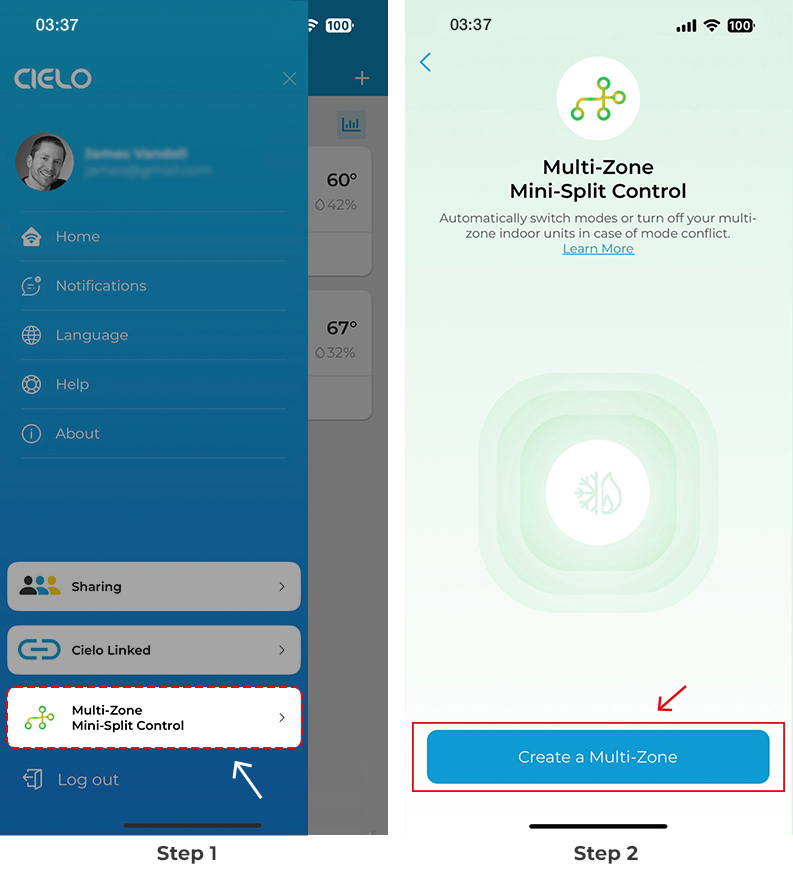

Step 1: Open 'Menu' from the Home screen and tap on 'Multi-Zone Mini-Split Control'.
Step 2: Tap on ‘Create a Multi-Zone’.
Step 3: Select the mini-splits that you want to group as a multi-zone. Tap on 'Continue'.
Step 4: Choose a name for your multi-zone. Also, select a suitable icon. Tap on 'Continue'.
Step 5: Select from the two options; ‘Follow’ or ‘Turn Off’. Tap on 'Save'.
Your multi-zone mini-split control will be activated.
