Pairing your Breez Edge with the Cielo Home App is the first step to unlocking smart climate controls. Once paired, you’ll be able to control your mini-split, window, or portable unit from anywhere. Moreover, you can set schedules, track energy usage, and enjoy automation features like Comfy Max.
Before You Begin
Make sure your smartphone’s Bluetooth is turned ON.
Make sure your smartphone’s Wi-Fi is turned ON.
Ensure your smartphone has active internet access.
Network Requirements
- Ensure that the Wi-Fi router has a working internet connection.
Make sure there is no proxy server or authentication server configured on the internet connection.
Make sure there is no captive portal on the Wi-Fi router.
Important: Make sure IP isolation or client isolation is turned OFF on the Wi-Fi router.
Download the Cielo Home App
- Install the Cielo Home app from the App Store or Google Play Store.
- If you’re a new user, tap Sign Up to create an account.
- If you already have an account, simply log in with your credentials.
Open the Cielo Home app, tap ‘Add Device’ on the home screen, and select Breez Edge from the list of devices.
Permissions Required
- For iOS 13.0 & above, location permission is required to complete the registration process. It can be disabled later.
- For Android OS 8.1 & above, location permission is required to complete the registration process. It can be disabled later.
Configuring Breez Edge With the Cielo Home App

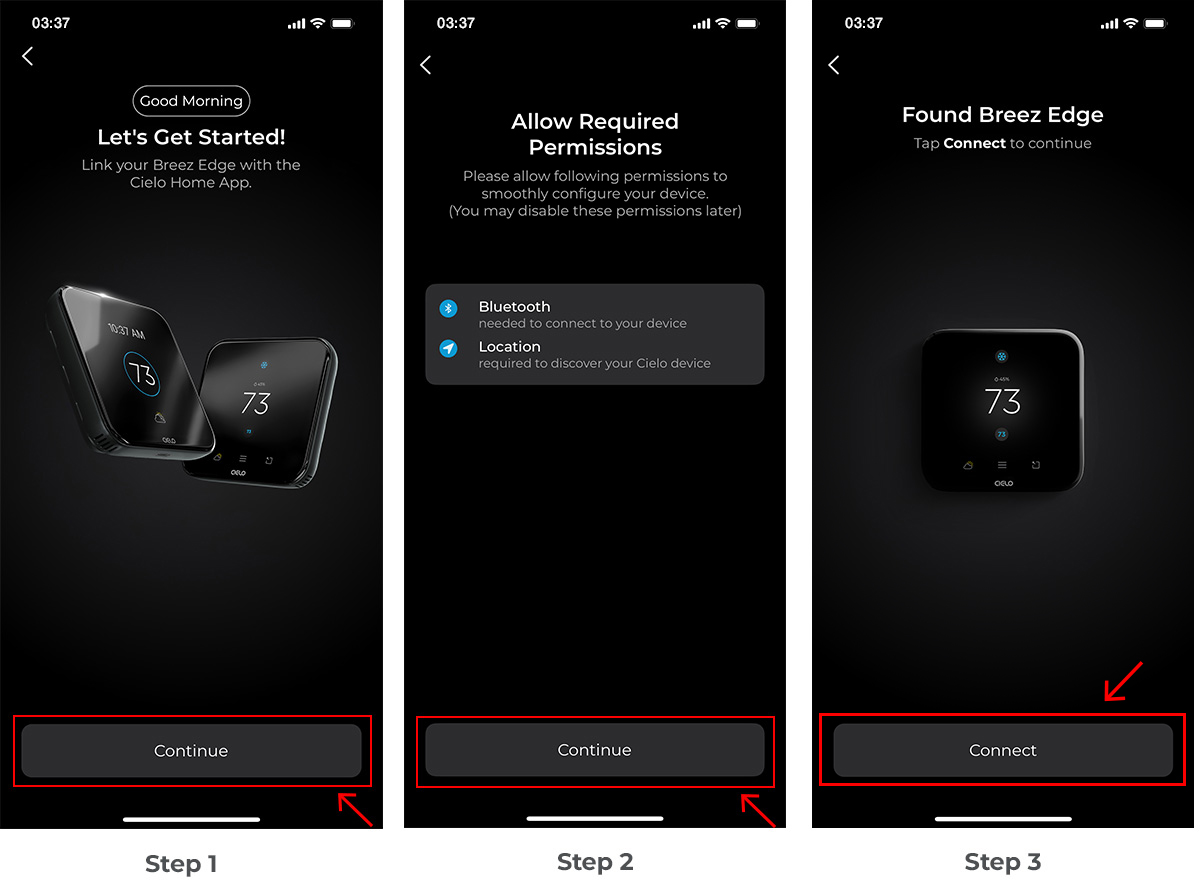

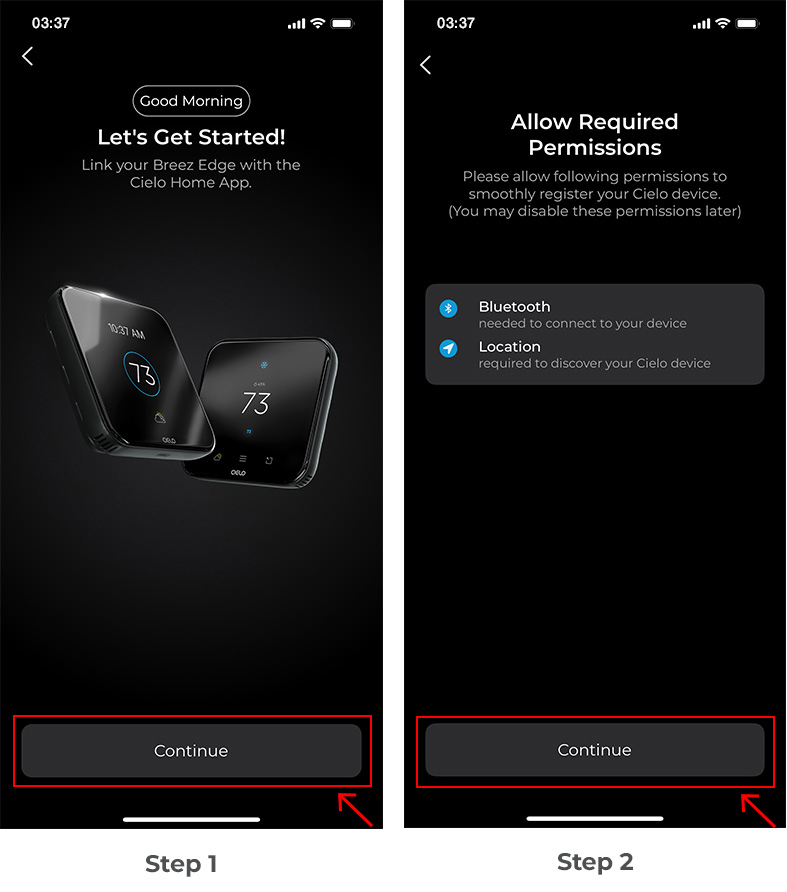

Step 1: Tap on 'Continue'.
Step 2: Allow required permissions and tap 'Continue'.

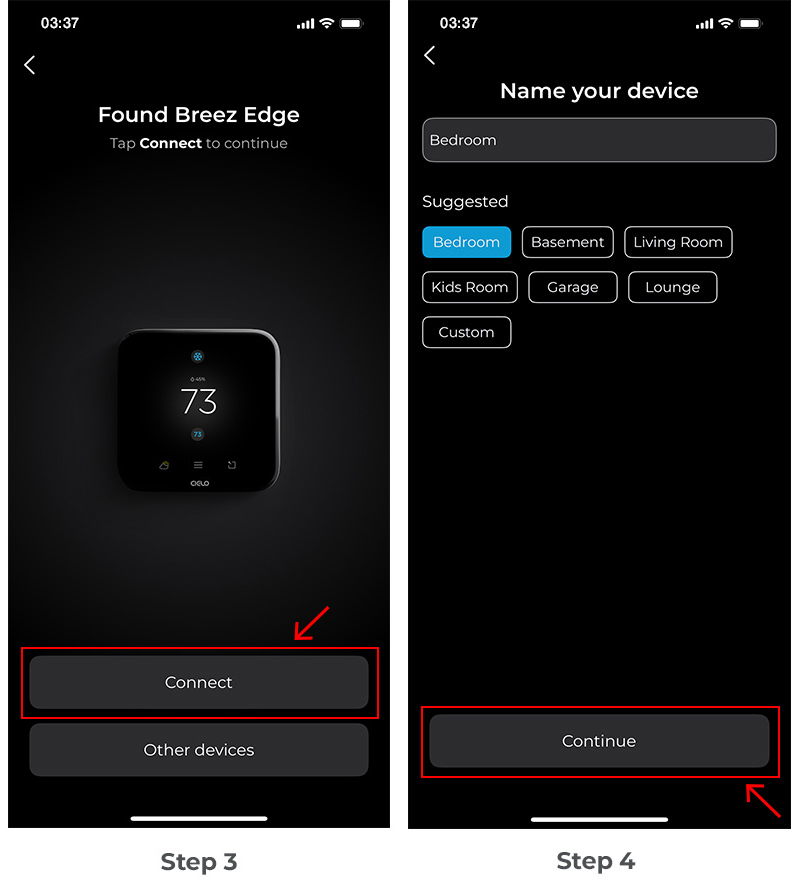

Step 3: Tap ‘Connect’ to proceed.
Step 4: Name the device and tap 'continue.'

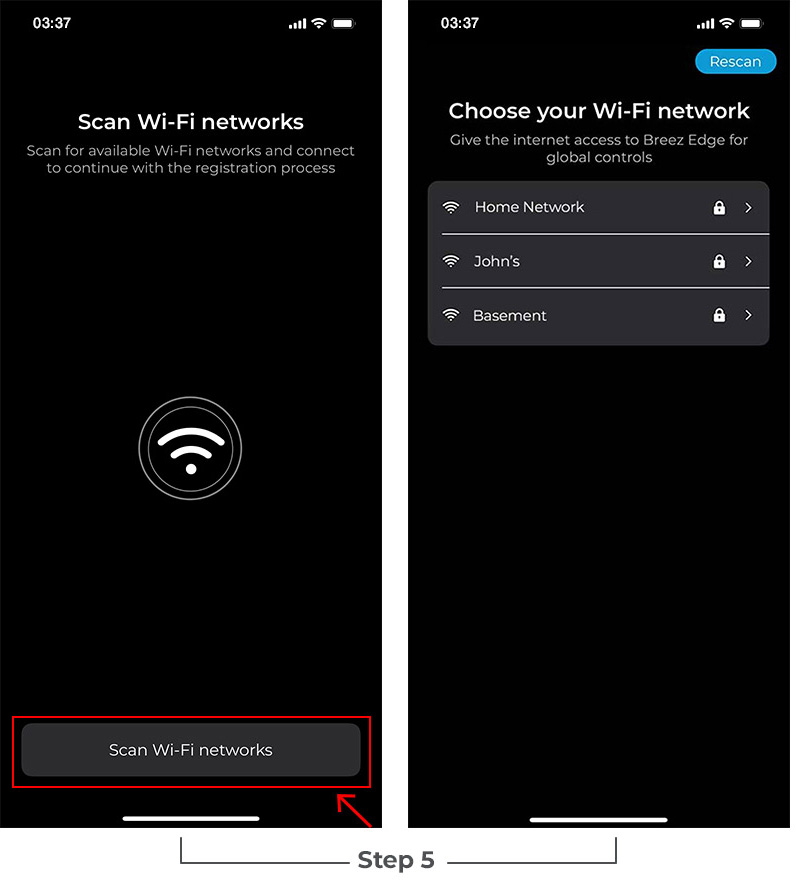

Step 5: Tap on 'Scan Wi-Fi networks.' Choose the Wi-Fi network.

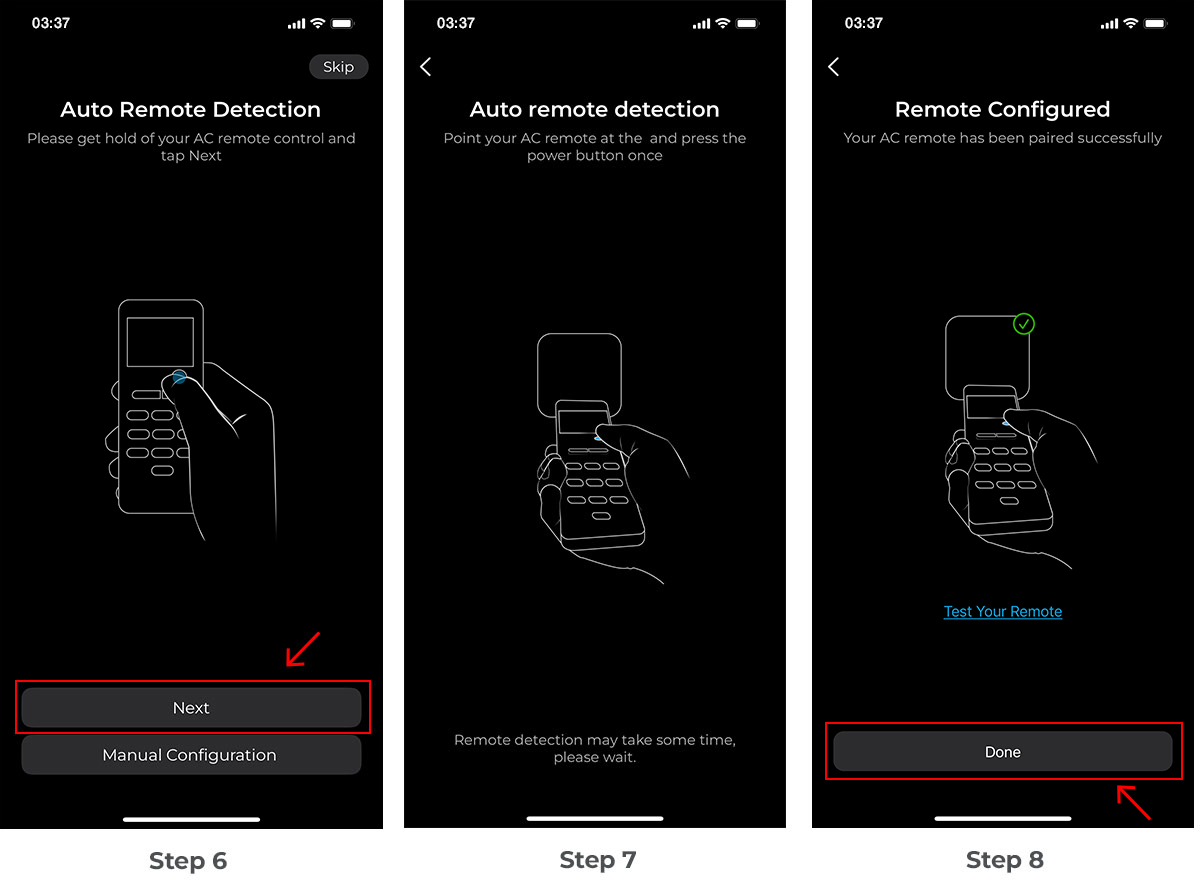

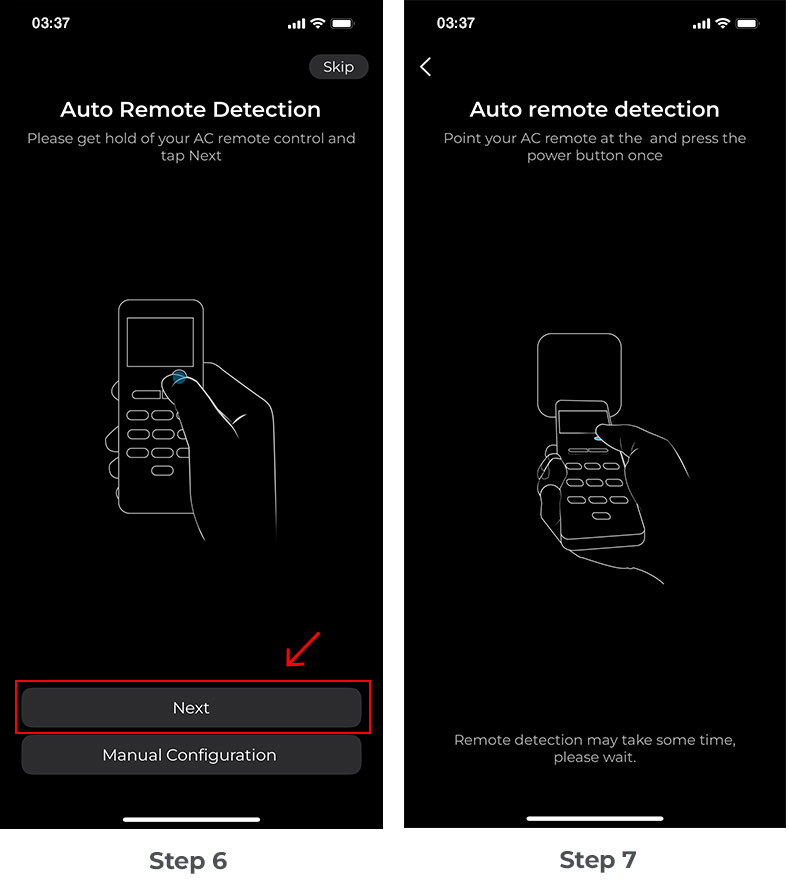

Step 6: After Wi-Fi configuration, auto remote detection will start. Get hold of the remote and tap ‘Next’.
Step 7: Point the remote at Breez Edge and press the remote’s ‘Power button’ once. It will start the configuration process.

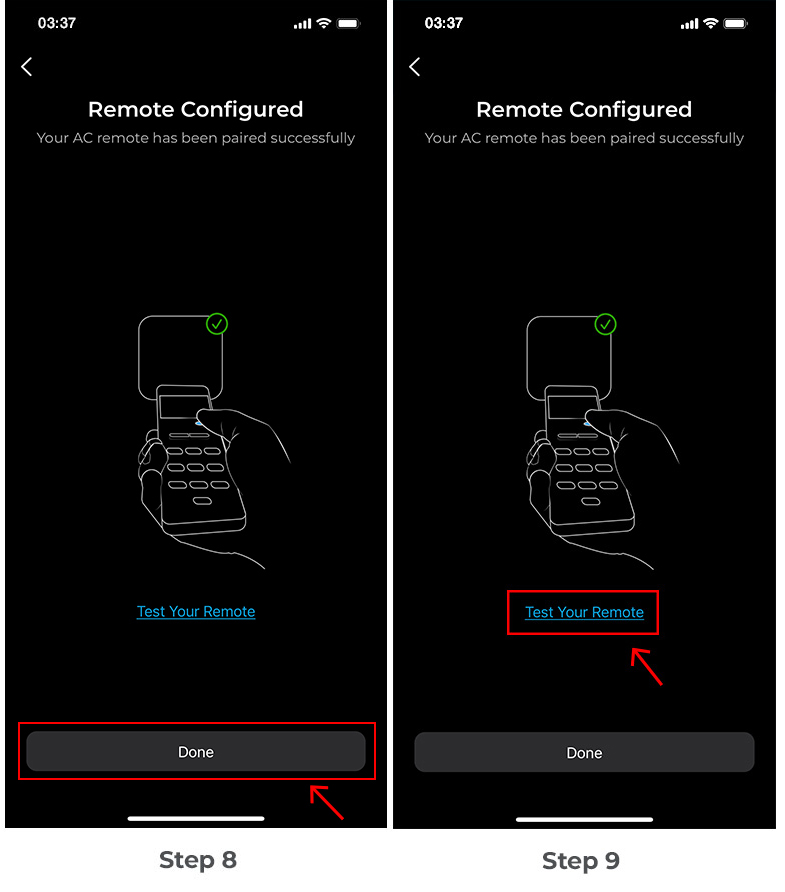

Step 8: The remote is now paired with Breez Edge. Tap on ‘Done’.

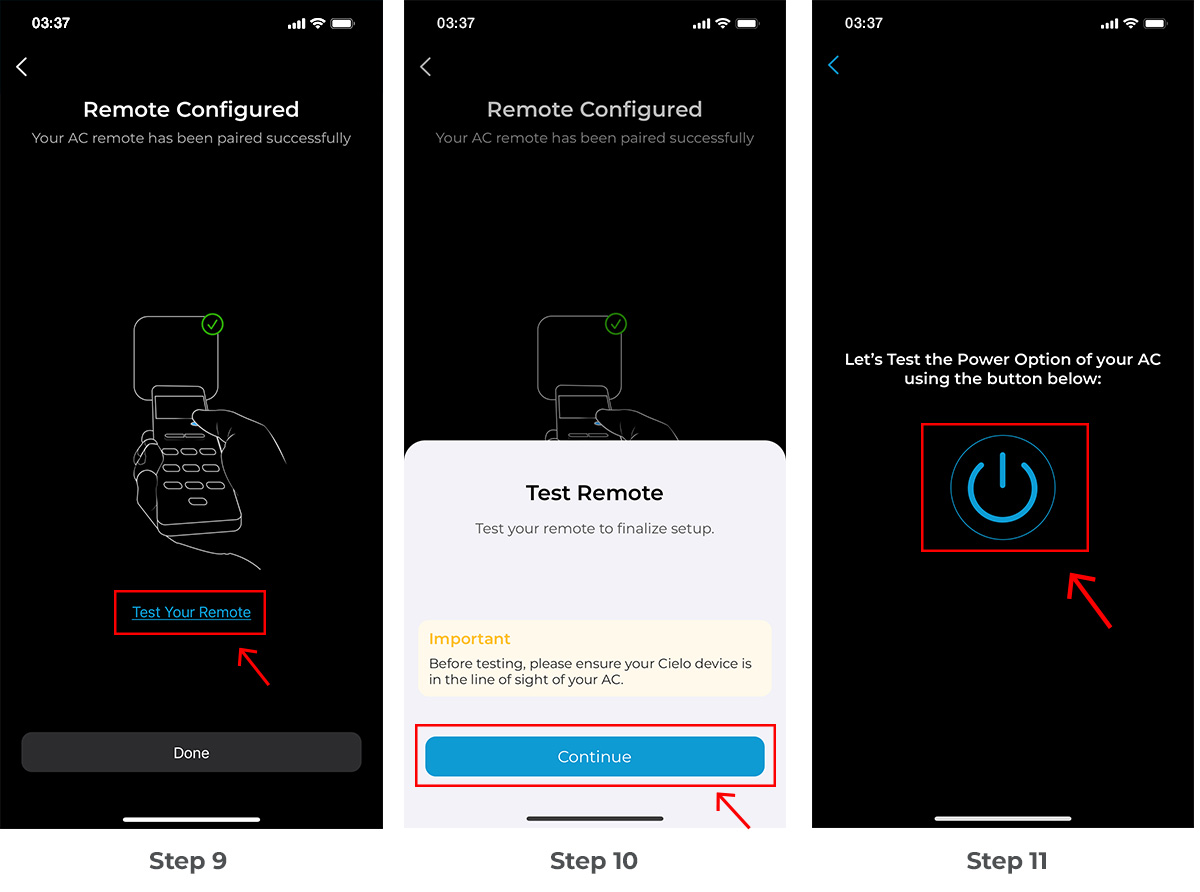

Step 9: To verify if your remote is configured correctly, tap on 'Test your remote.'

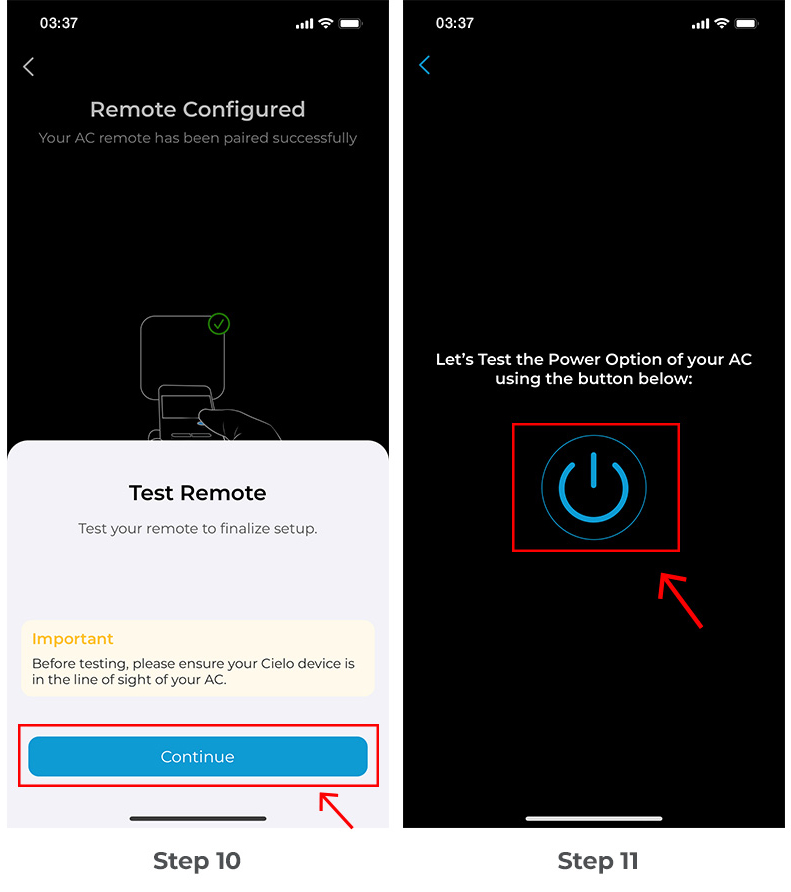

Step 10: Tap ‘Continue.'
Step 11: Tap on the power icon as shown.

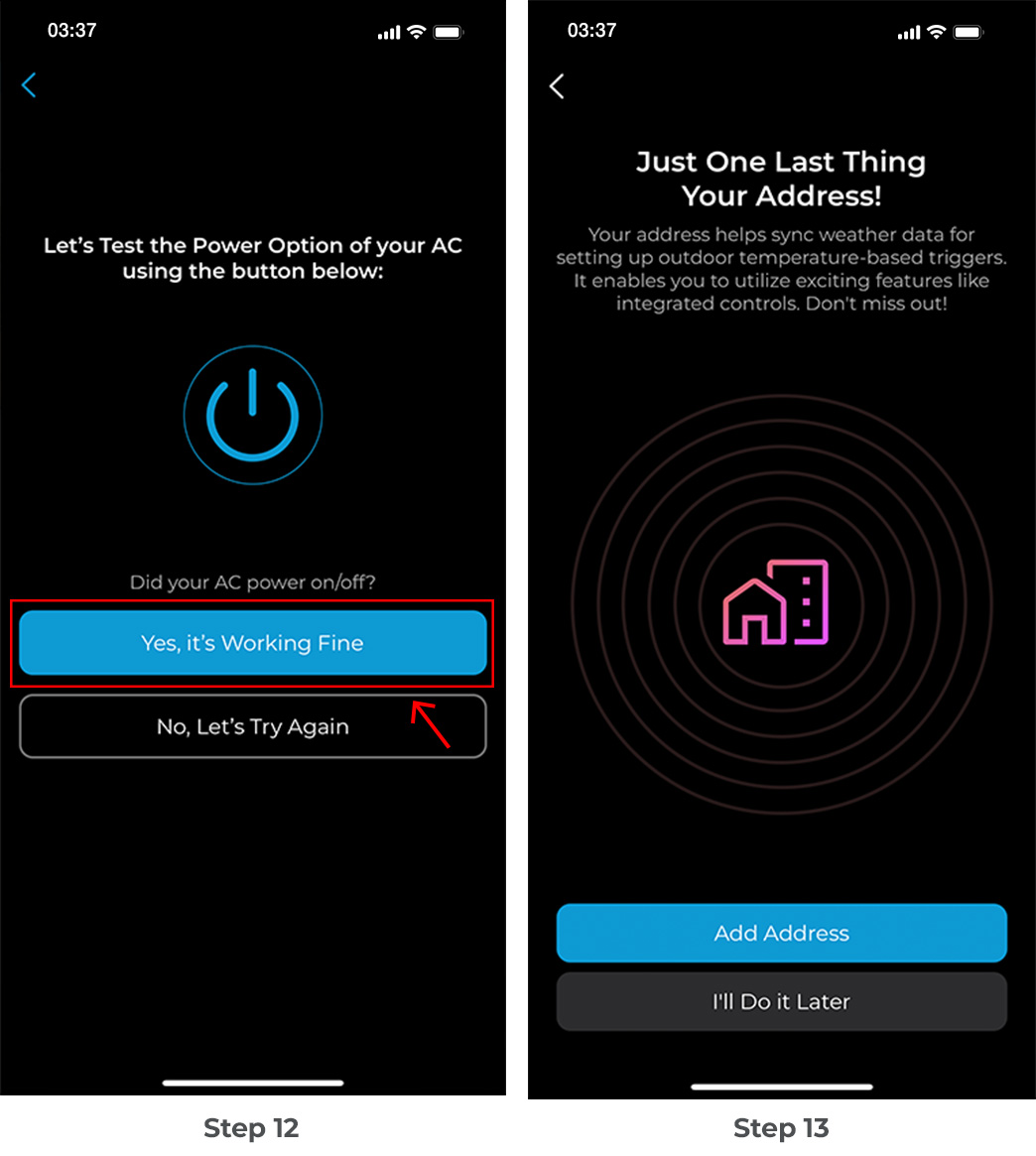

Step 12: If your AC responds correctly, tap 'Yes, it's working fine.' If it doesn't, select 'Let's try again.'
Step 13: You can add your address at this step, or you can do it later.
