Breez Edge can be powered up using a 5V adapter (always use the provided power adapter and USB cable for optimal results) OR through a wired connection option of 24V.
Please DO NOT use any other voltage level to power up Breez Edge. Please choose ONLY ONE power-up option, i.e., either 5V OR 24V.
Instructions for Wired Connection
Step 1: Switch off power by using the circuit breaker. This is very important for your safety.
Step 2: Find a point where 24V is available (In case of non-availability of 24V point, you can use an external transformer). Ensure that the chosen point is also within the line of sight of the mini-split.
Please DO NOT use any other voltage level to power up Breez Edge.

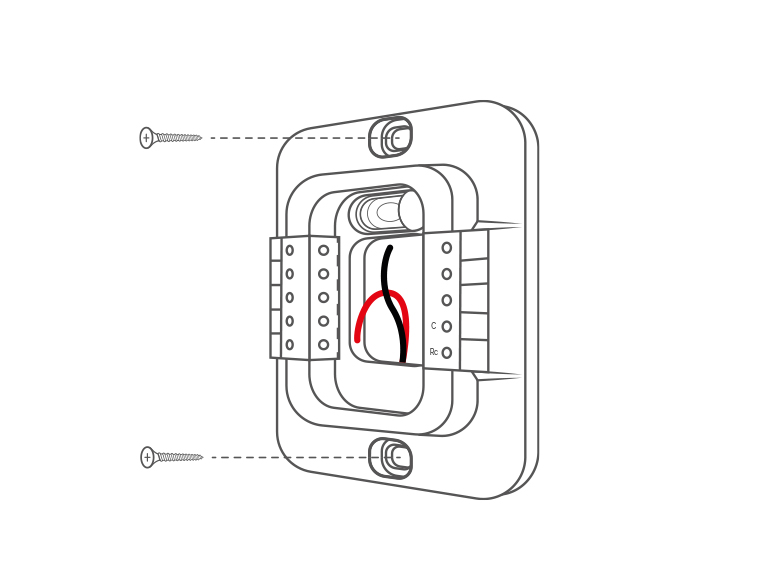

Step 3: Take out the wires through the hole in the middle of the backplate. Screw in the backplate using the provided pair of drywall anchors and screws.

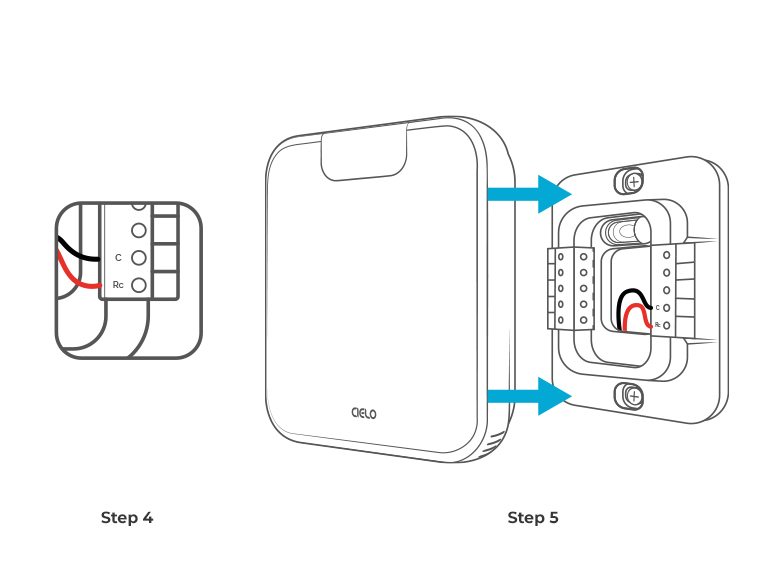

Step 4: Cielo Breez Edge has two terminals marked as Rc and C on its backplate. Insert red wire in to Rc and black wire into C from the side (press the terminal block buttons for ease of insertion).
Step 5: Align Cielo Breez Edge with the backplate and press gently to fix it properly.
