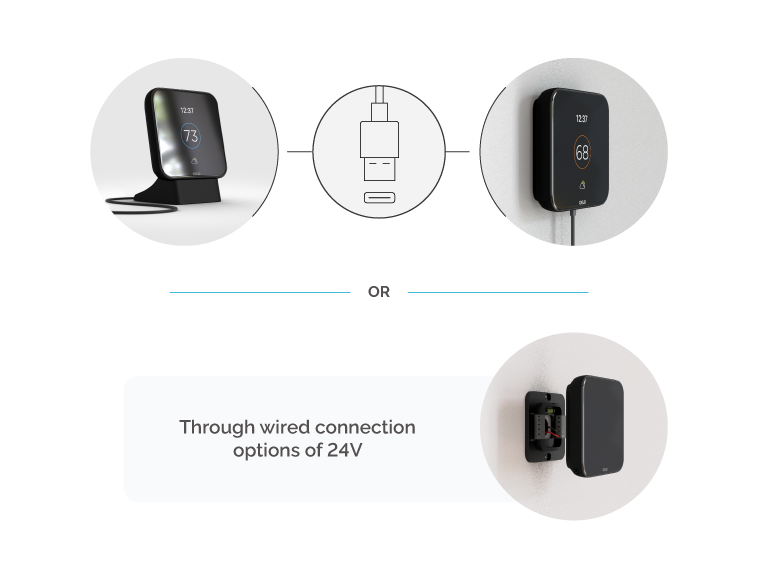

No, the Cielo Breez Edge cannot run on batteries. Instead, you have the following power options:
Option 1: 5V Adapter
- Plug the Breez Edge into a standard outlet using the 5V adapter.
Note: It is recommended to use the provided adapter and cable.
Option 2: Wired Connection (24V)
- Breez Edge also supports a hardwired connection. You can connect it to a 24V power source.
Note: Please DO NOT use any other voltage level to power up Breez Edge. Please choose ONLY ONE power-up option, i.e., either 5V OR 24V.
Powering Up Using a 24V Connection
Step 1: Switch off the power by using the circuit breaker. This is very important for your safety.
Step 2: Find a point where 24V is available (In case of non-availability of a 24V point, you can either DIY or consult a professional installer). Ensure that the chosen point is also in the line of sight of your AC.

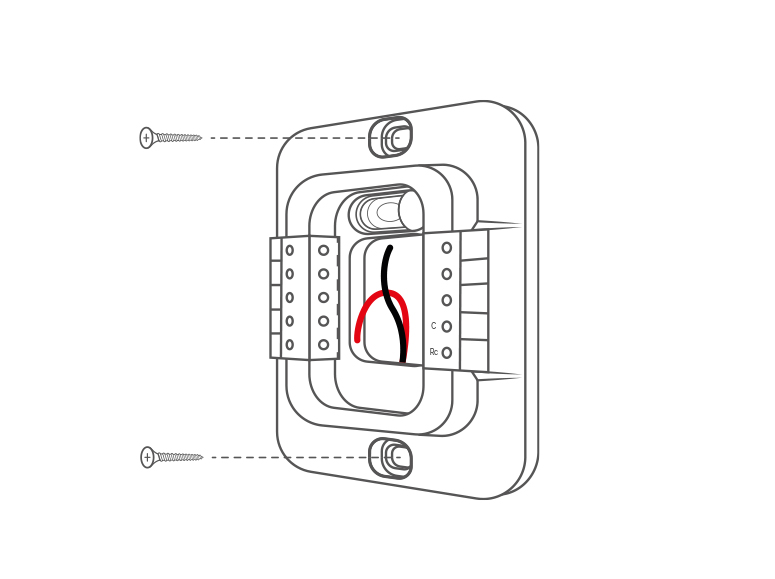

Step 3: Take out the wires through the hole in the middle of the backplate. Screw in the backplate using the provided pair of drywall anchors and screws.
Step 2: Find a point where 24V is available (In case of non-availability of a 24V point, you can either DIY or consult a professional installer). Ensure that the chosen point is also in the line of sight of your AC.
Step 3: Take out the wires through the hole in the middle of the backplate. Screw in the backplate using the provided pair of drywall anchors and screws.

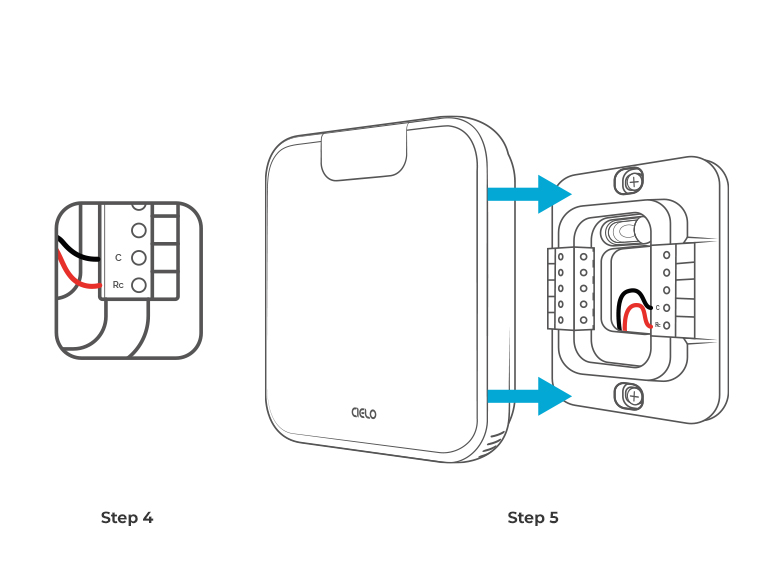

Step 4: Cielo Breez Edge has two terminals marked as Rc and C on its backplate. Insert red wire
into Rc and black wire into C from the side (press the terminal block buttons for ease of insertion).
Step 5: Align your Cielo Breez Edge with the backplate and press gently to fix it properly.
