With the Cielo PRO App, HVAC pros can easily test heating, cooling, fan, as well as connected accessories, to ensure a reliable setup and minimize post-installation callbacks.
Why Testing Is Important
It’s always recommended to test your equipment after the thermostat setup to ensure it operates efficiently and responds properly to commands. This proactive approach allows professionals to quickly identify and resolve any issues before leaving the job site.
A complete system test helps you:
- Verify correct wiring connections
- Confirm heating and cooling stages are working
- Ensure the fan and connected accessories (humidifiers & dehumidifiers) operate as expected
How to Test HVAC Equipment
To test the HVAC equipment, follow these simple steps:

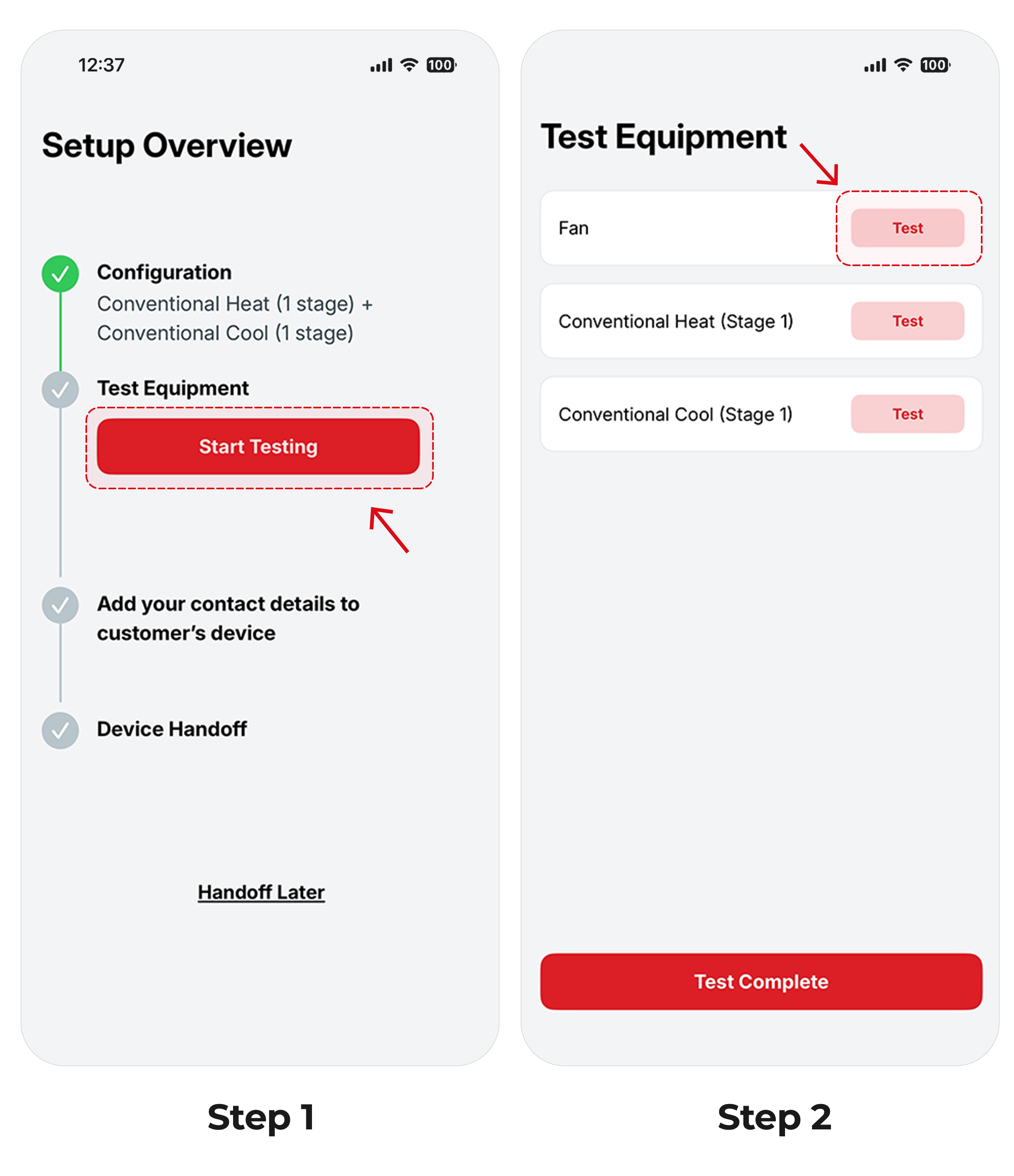

Step 1: After configuring the thermostat, tap ‘Start Testing’.
Step 2: Select the function you want to test and tap ‘Test’.
Note: The options shown on the Test Equipment screen will vary based on your configured equipment.

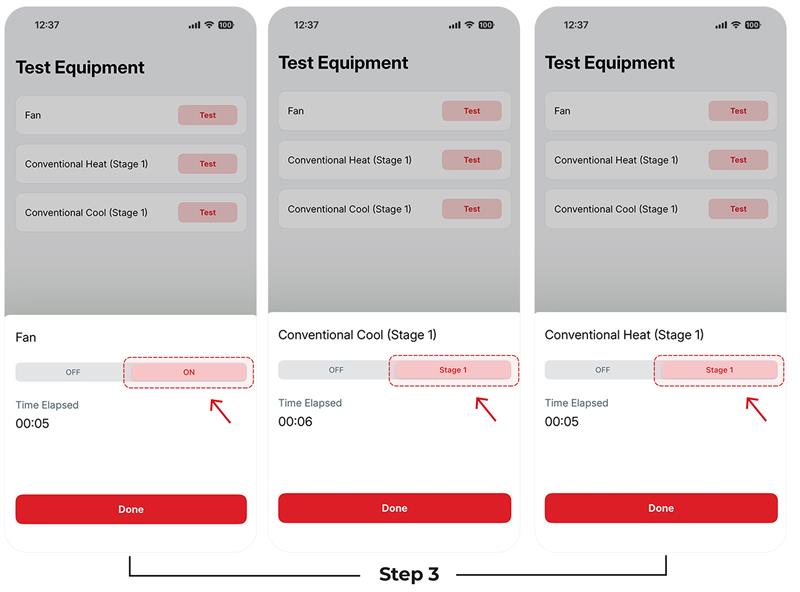

Step 3: Tap 'ON' (fan) or 'Stage 1' (heating/cooling) to initiate the test.

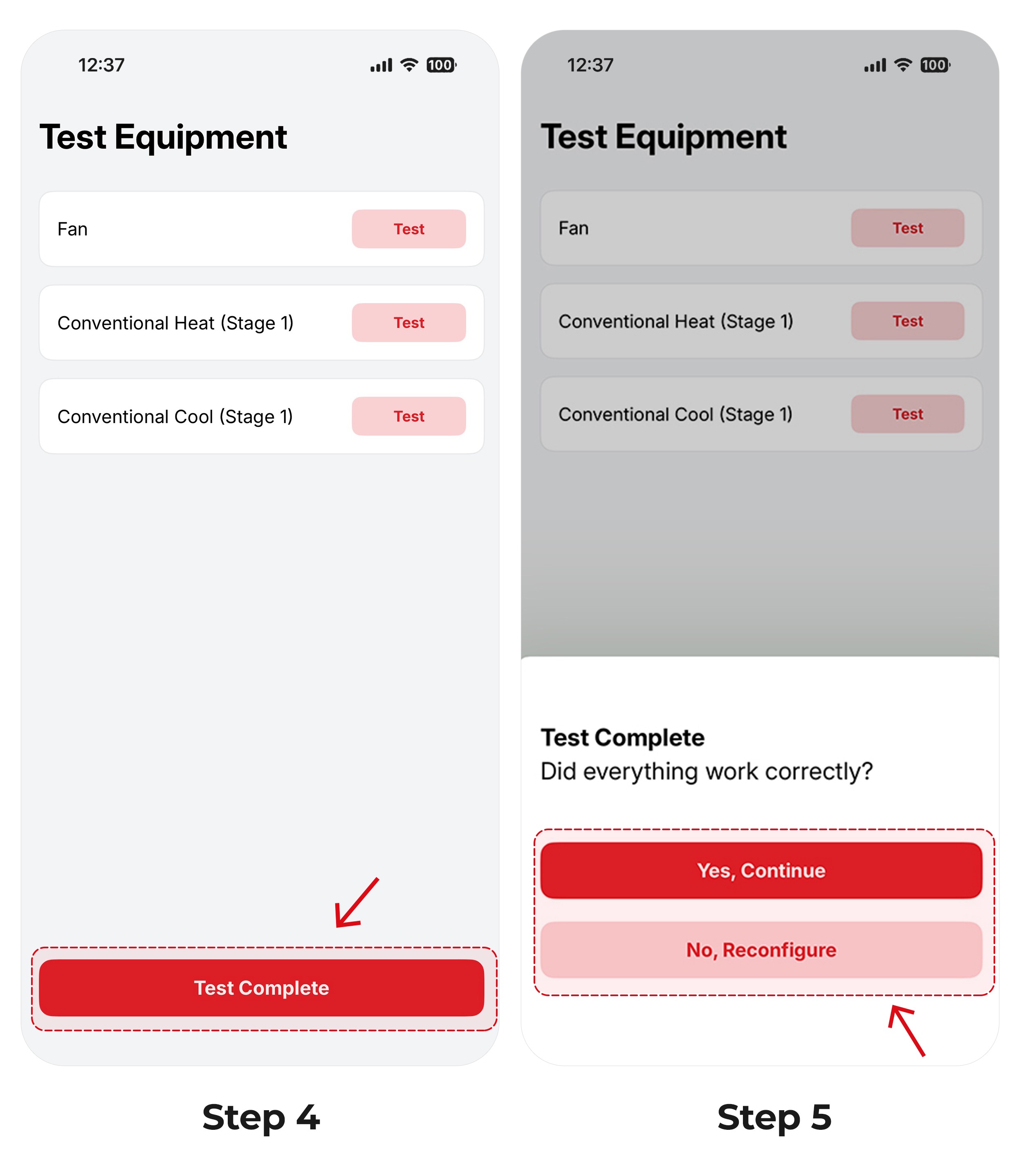

Step 4: After testing is complete, tap ‘Test Complete'.
Step 5: After that, you will be prompted:
‘Is everything working correctly?’
- Tap ‘Yes, Continue’ if all functions are operating properly.
- Tap ‘No, Reconfigure’ to check the wiring again.
